PCD Adapter Spacer Custom-Made Manufacturing

✓ to configure yourself
✓ with TÜV certificate
✓ best quality

£81.85*

Prices incl. VAT plus shipping costs

7 Reviews

ca. 4 Wochen - Produkt wird für dich angefertigt,

Product number: LK1

Delivery by Friday, 29.08.2025 if you order within the next 13 Hours.

Repeated order: check settings carefully and change if necessary.

Desired adapter

Select adapter plate

Lochkreisadapter

Spurplatte

Select car data

Dimension A Bolt circle of your wheel hub

Dimension B centering of your wheel hub

Dimension C thread of the wheel bolt/ wheel nut

Back

Select rim data

Dimension D Bolt circle of your rim

Dimension D bolt circle of your rim (track plate)

Dimension E centring of your rim

Dimension F thread size

Back

Dimension H Bolt circle adapter thickness

Thickness per wheel (thickness of bolt circle adapter)

Thickness per wheel (thickness of track plate)

Back

Price calculation

Pricebox

Name

Title

Surcharge

Desired adapter:

Surcharges
Image	Title	Surcharge

Dimension A Bolt circle of your wheel hub:

Dimension B centering of your wheel hub:

Dimension C thread of the wheel bolt/ wheel nut:

Dimension D Bolt circle of your rim:

Dimension D bolt circle of your rim (track plate):

Dimension E centring of your rim:

Dimension F thread size:

Thickness per wheel (thickness of bolt circle adapter):

Thickness per wheel (thickness of track plate):

Your Price:

% £81.85 * £81.85 * ( 0% saved )

rounded up to minimum price

Prices incl. VAT plus shipping costs

* Configuration is incomplete - please check it!

Product number: LK1

Weight: 4 kg

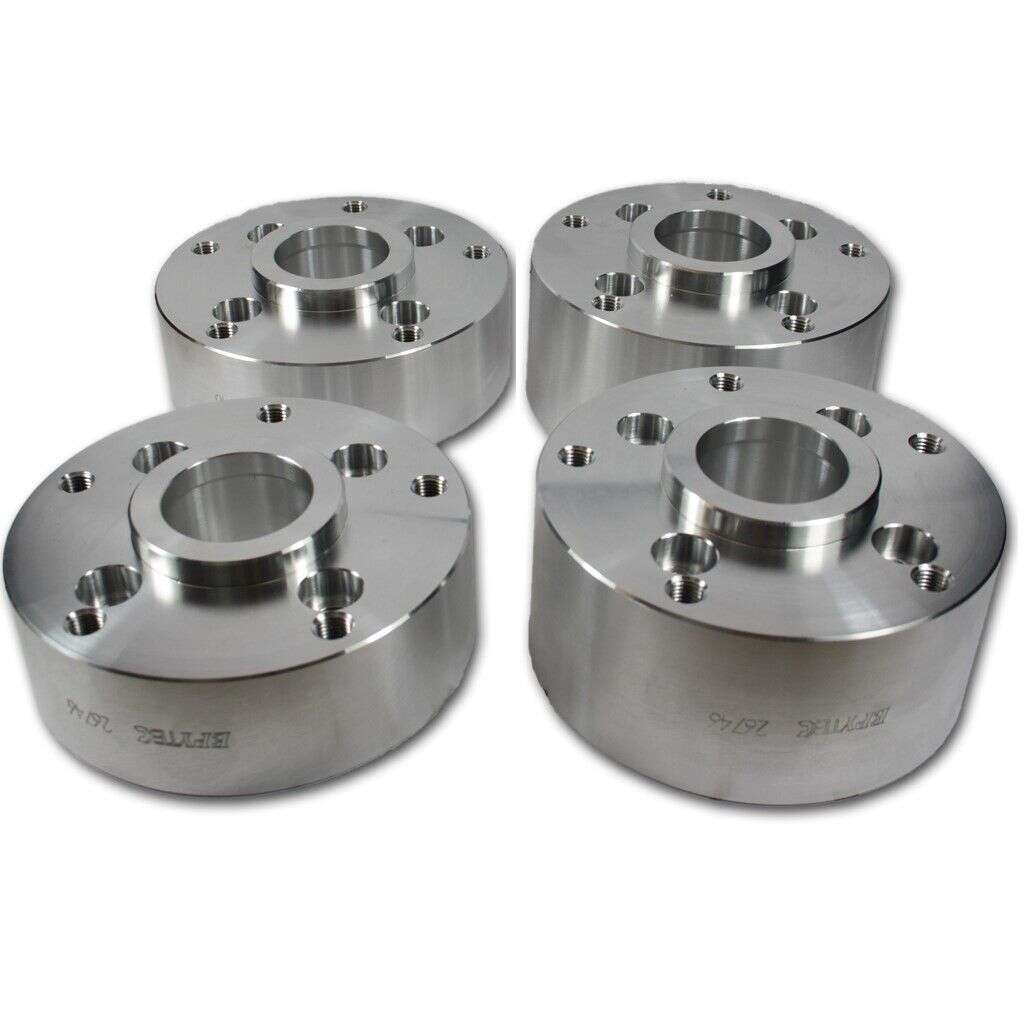

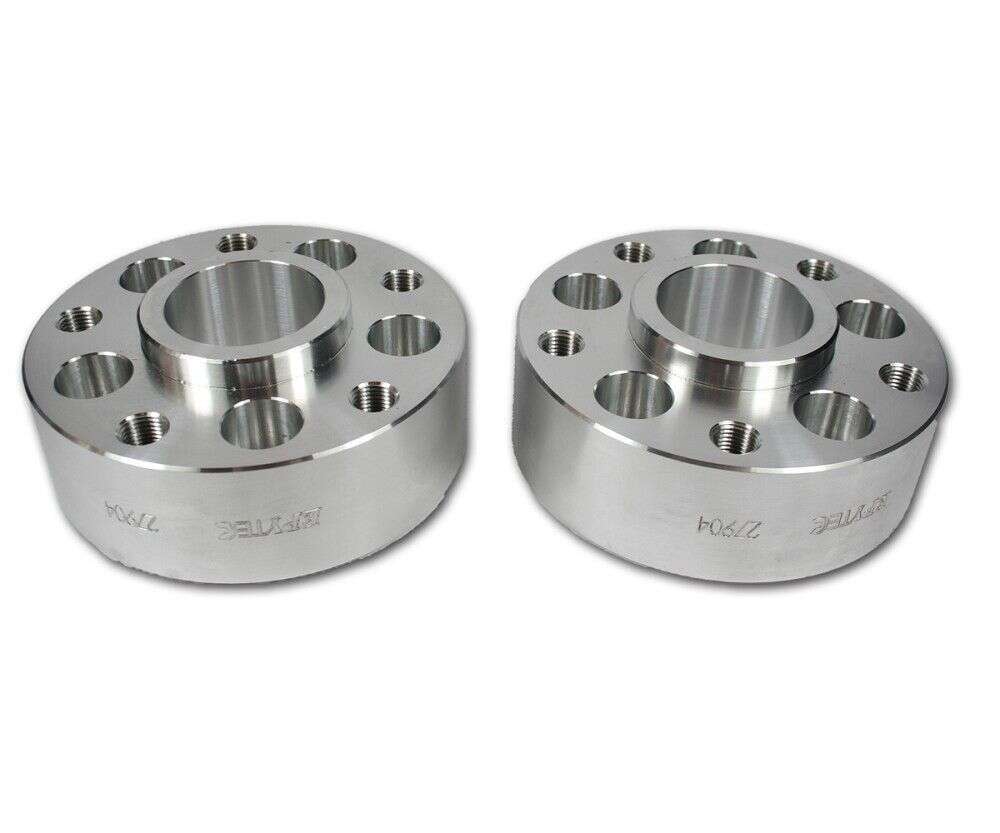

Exclusive and individual bolt circle adapters / track extensions according to your wishes

There is such a large selection of rims that there are almost never the right adapter plates to fit your vehicle. This is over now!
With our configurator, we offer you the possibility to put together bolt circle adapters and wheel spacers according to your desired dimensions.

Facts and scope of delivery:

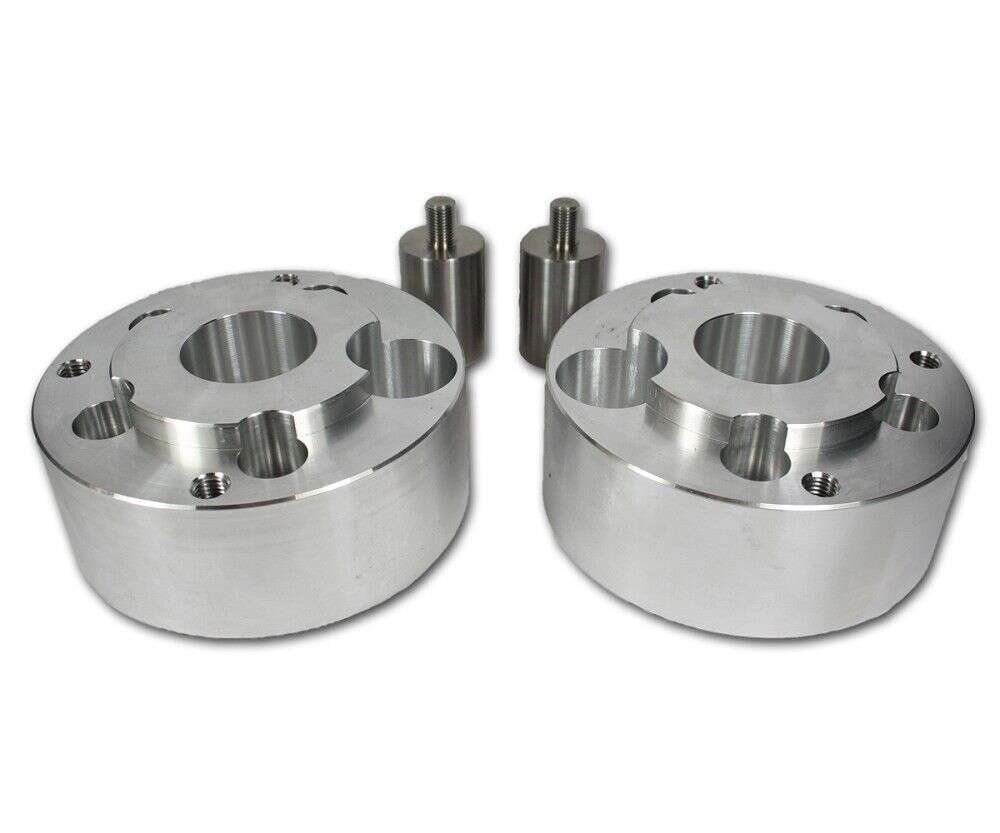

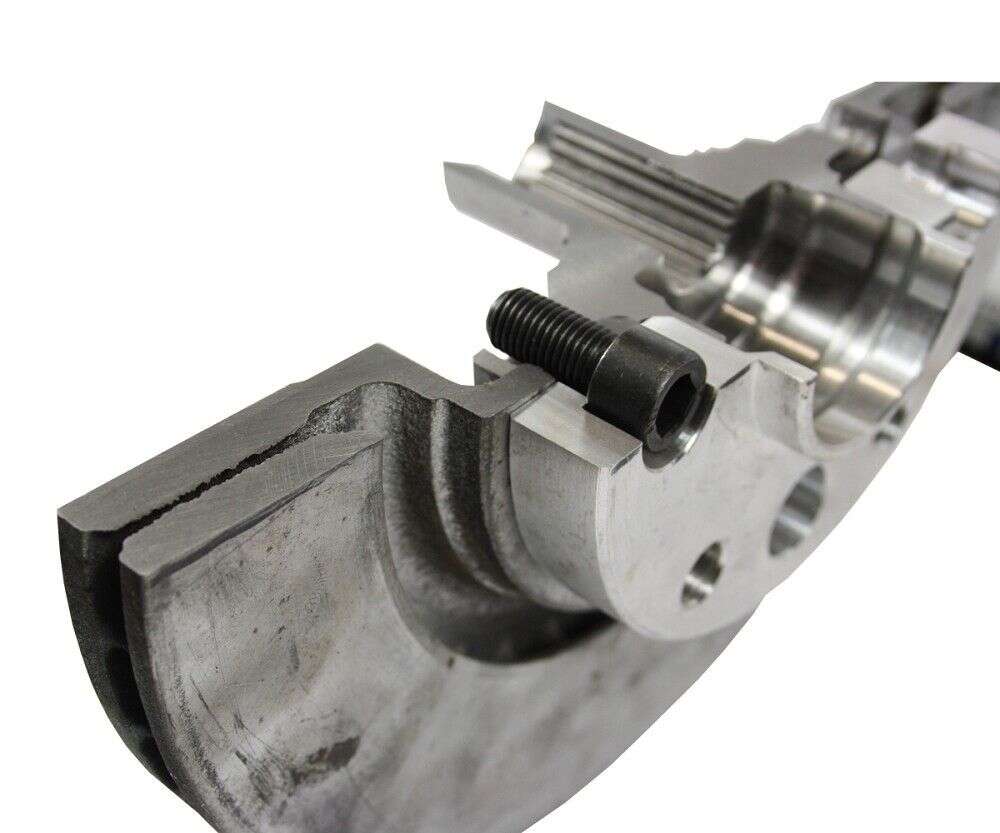

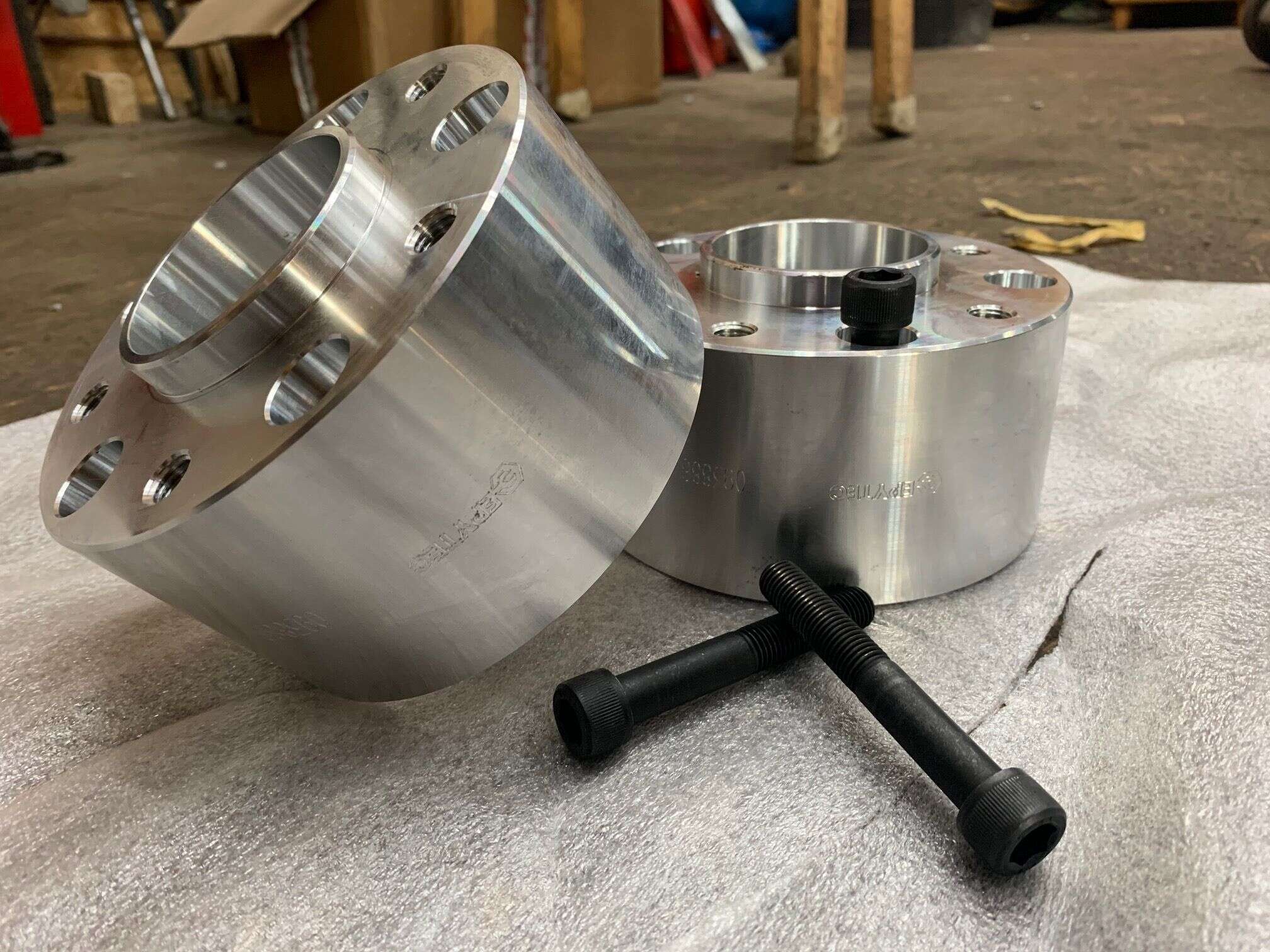

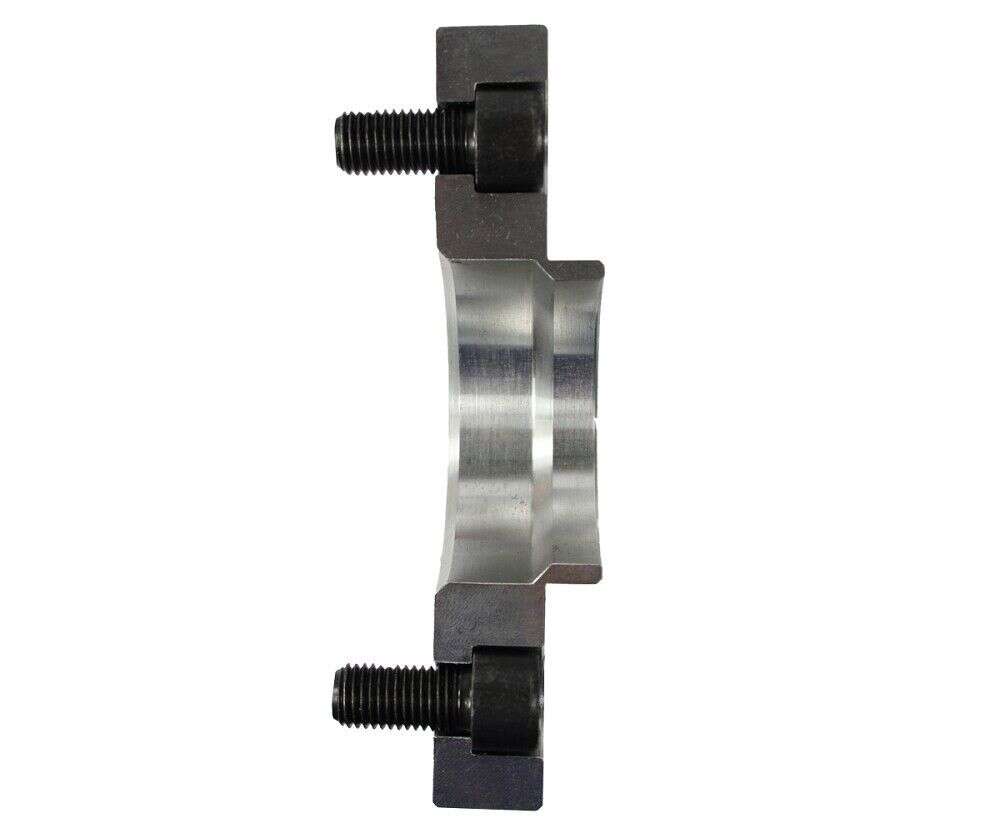

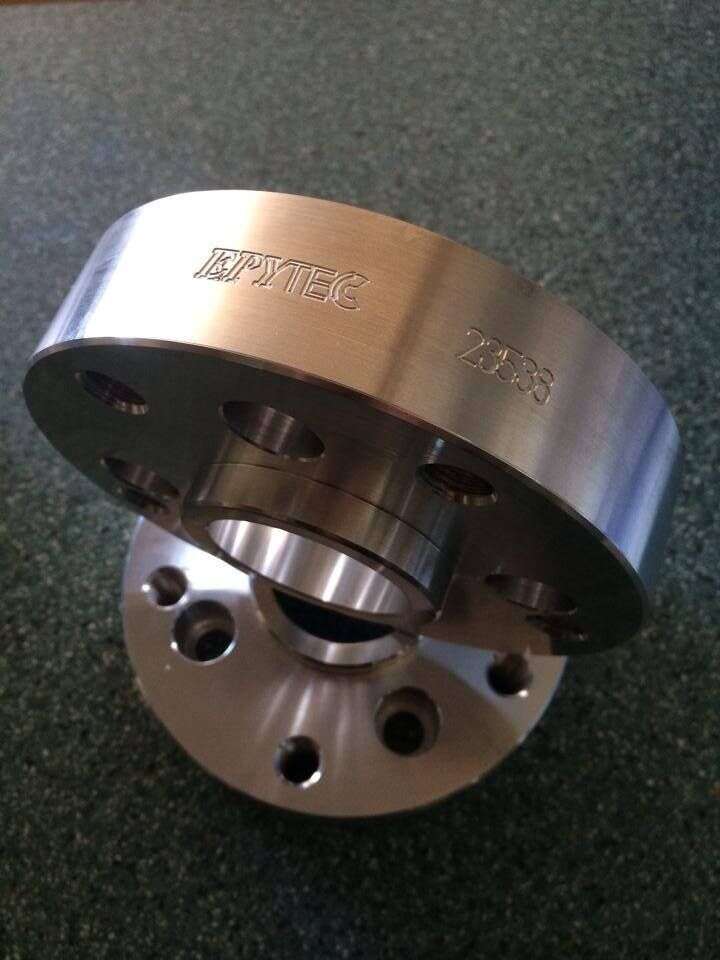

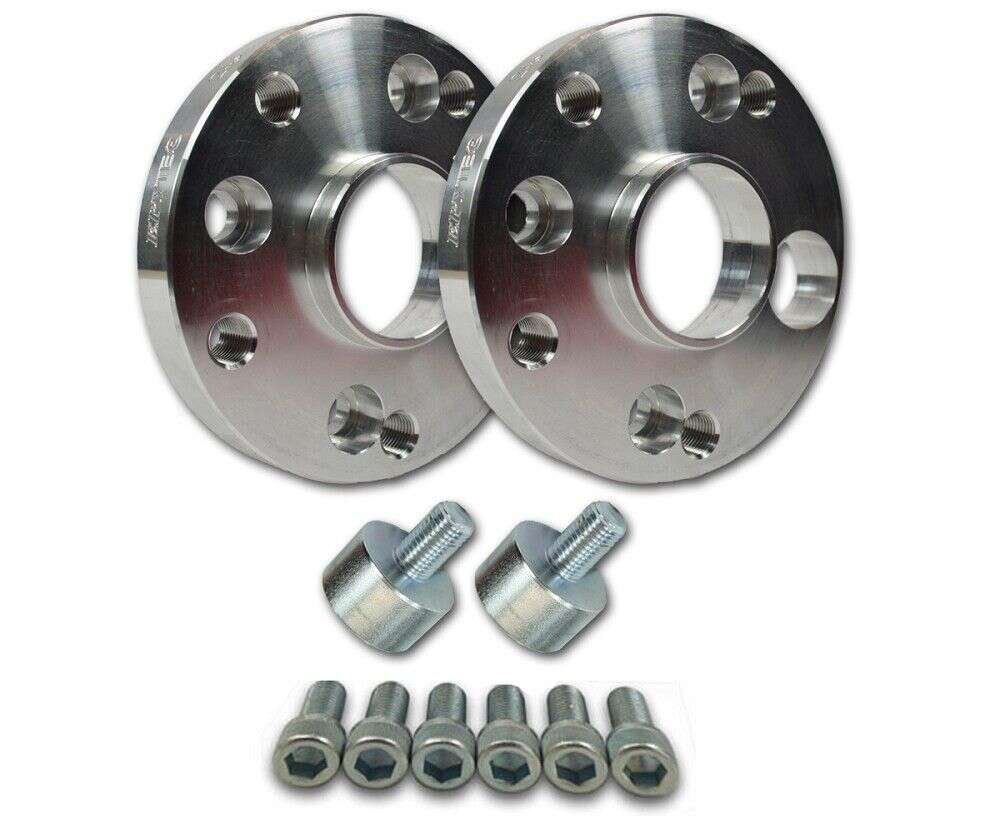

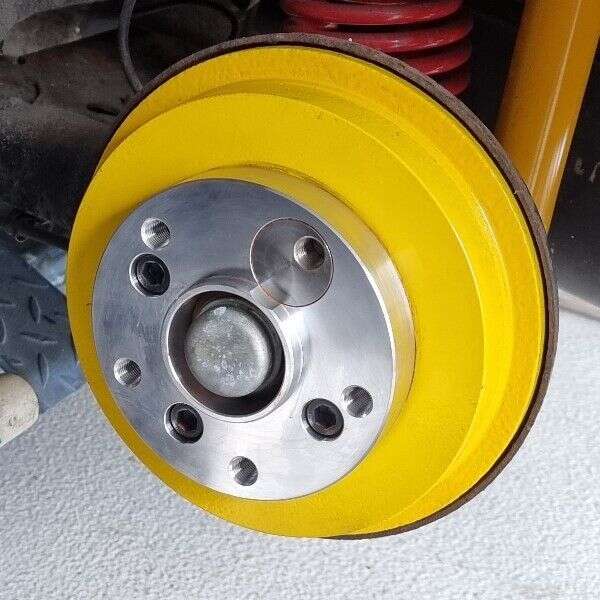

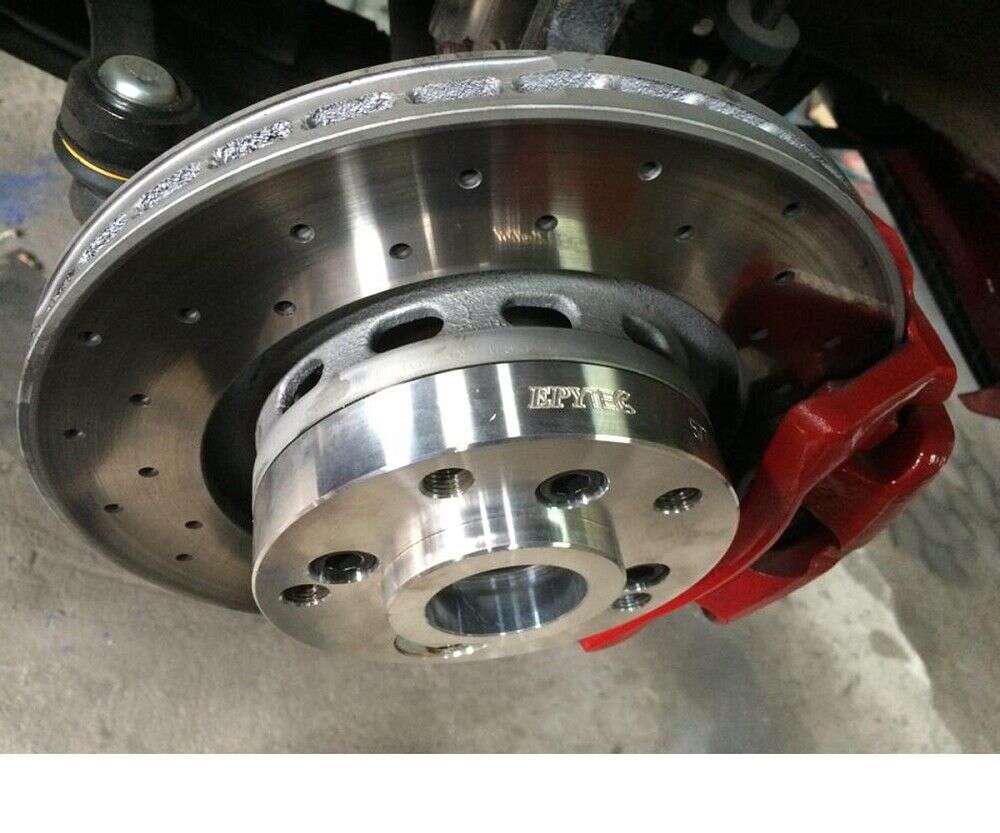

All plates are made of high-strength aircraft aluminum and are delivered with engraving on the plate and a technical certificate from TÜV (technical report) delivered. This allows registration by individual acceptance. The scope of delivery is regulated by the number of pieces you choose (selected number of pieces 1 piece = 1 plate and the necessary mounting screws to fix the plate to the scar). The mounting screws to fix the bolt circle adapters to the vehicle are delivered in such a way that the thread looks 20mm out of the plate. Please check if the length is sufficient so that the screw goes completely through the wheel hub and engages in all threads.

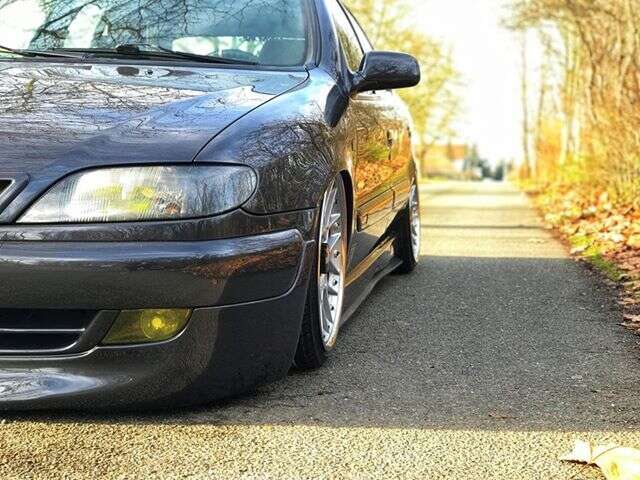

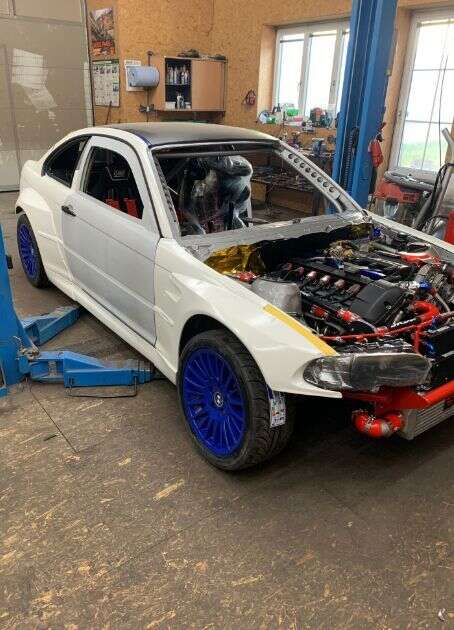

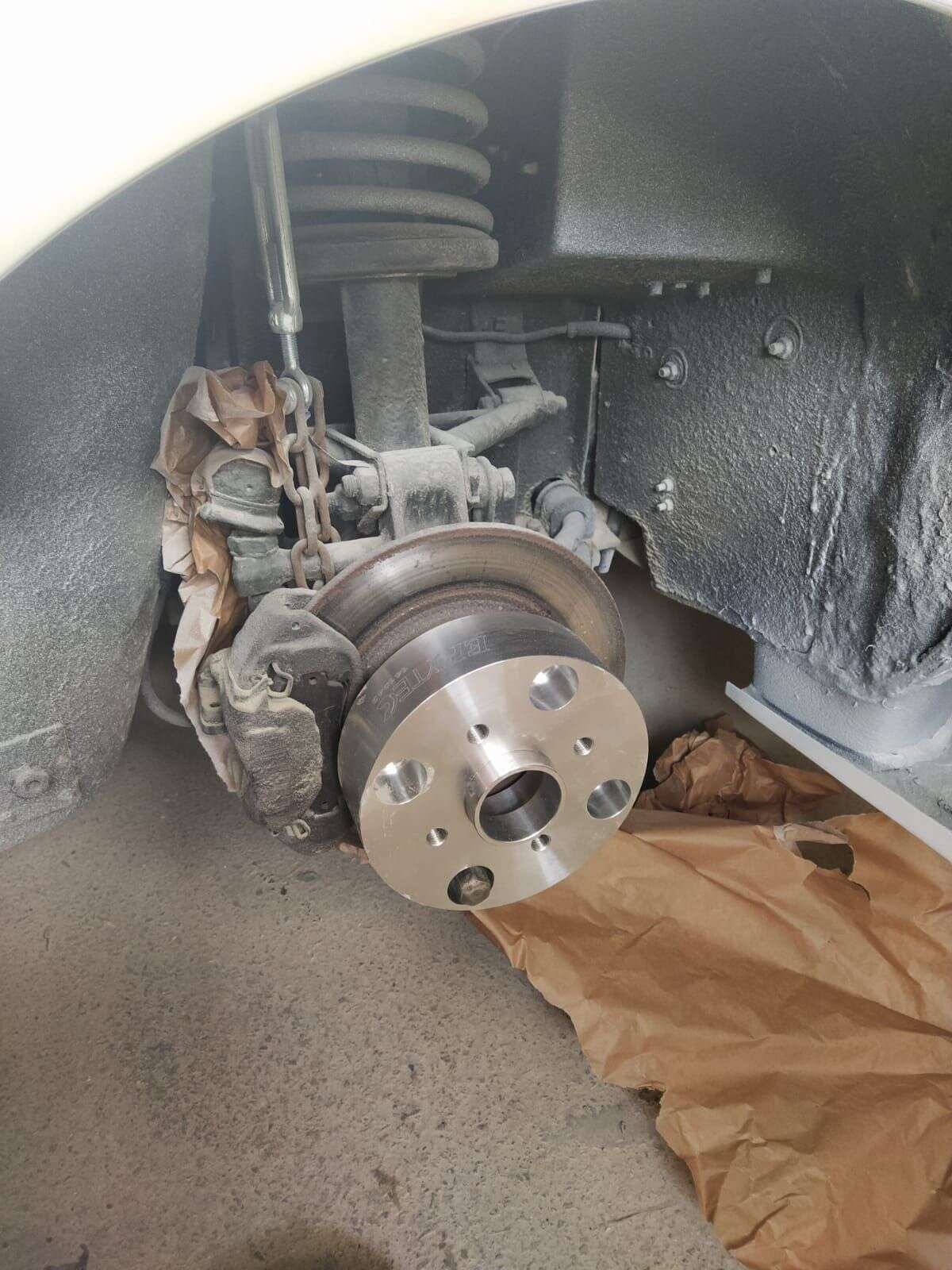

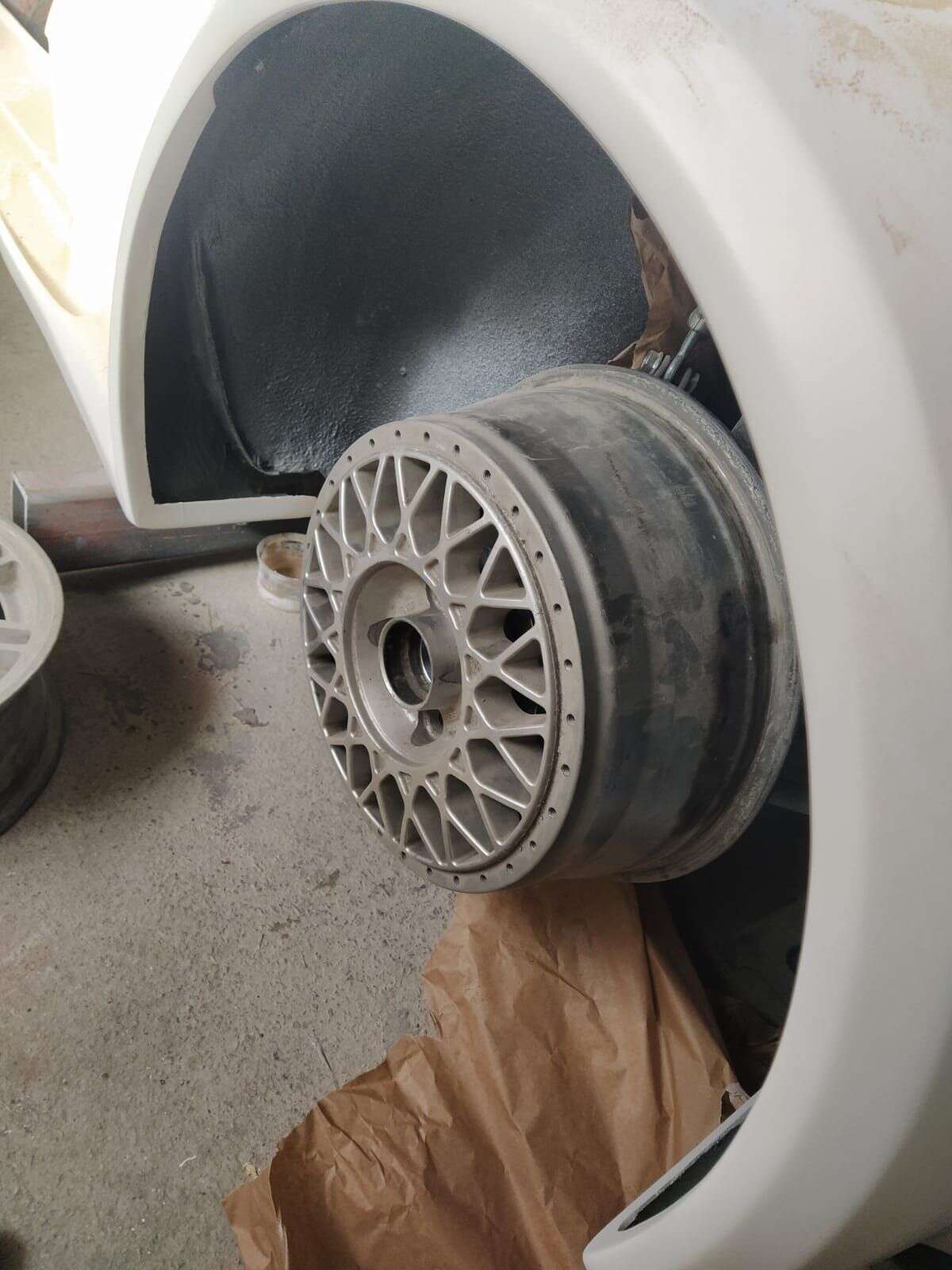

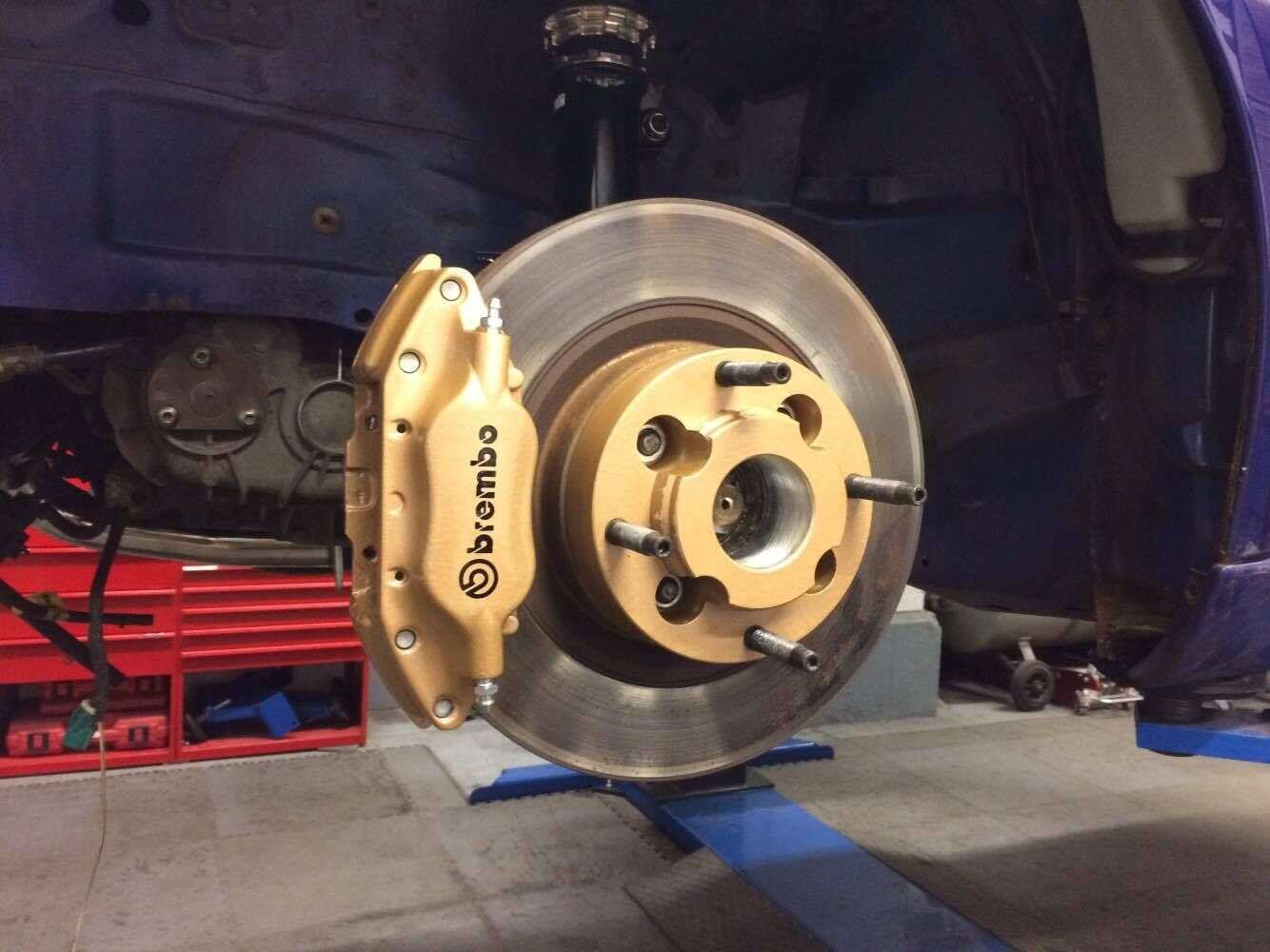

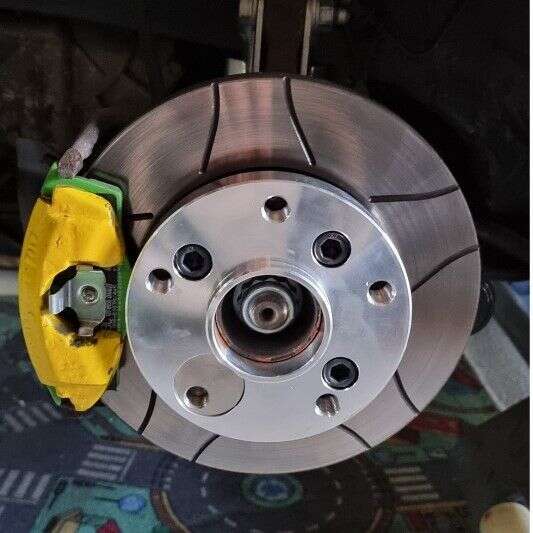

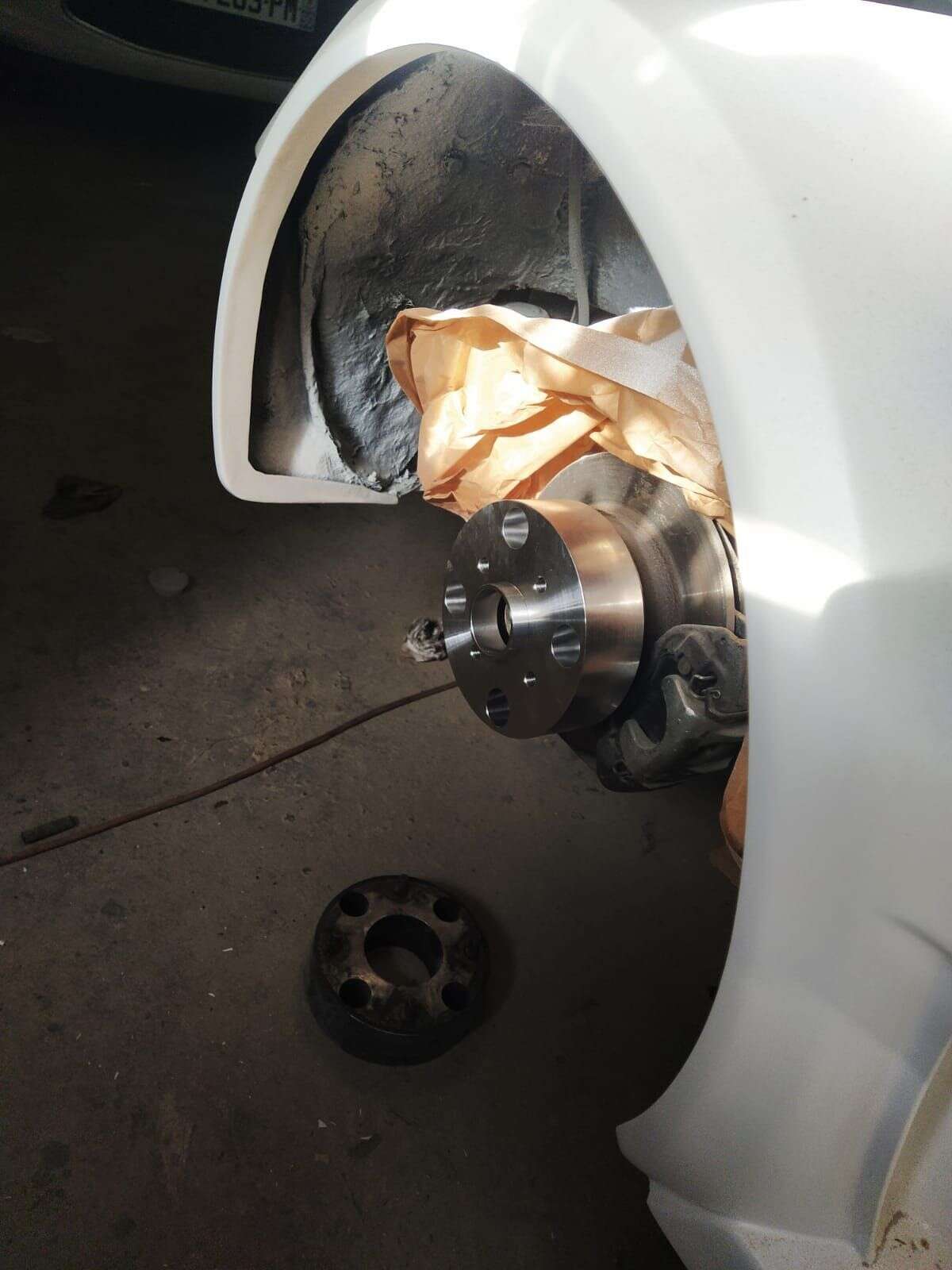

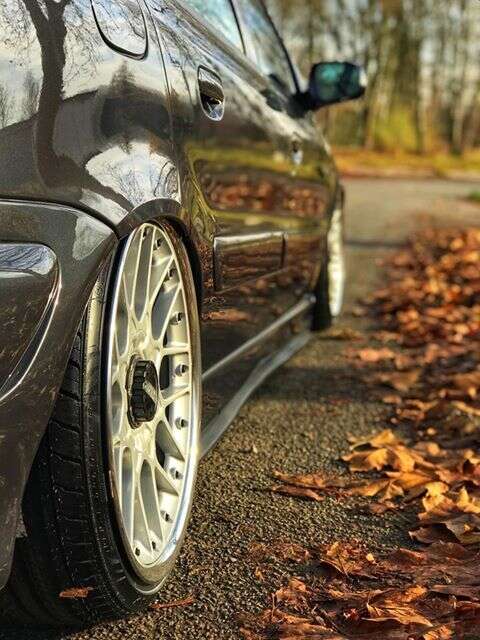

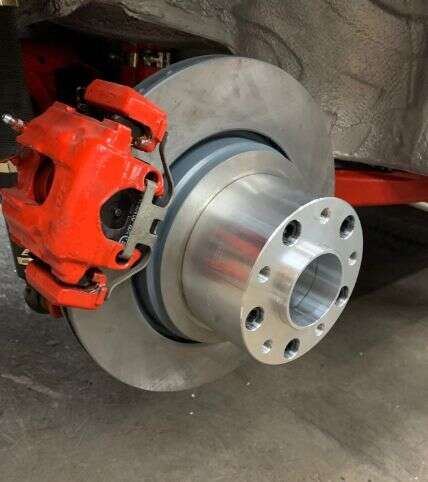

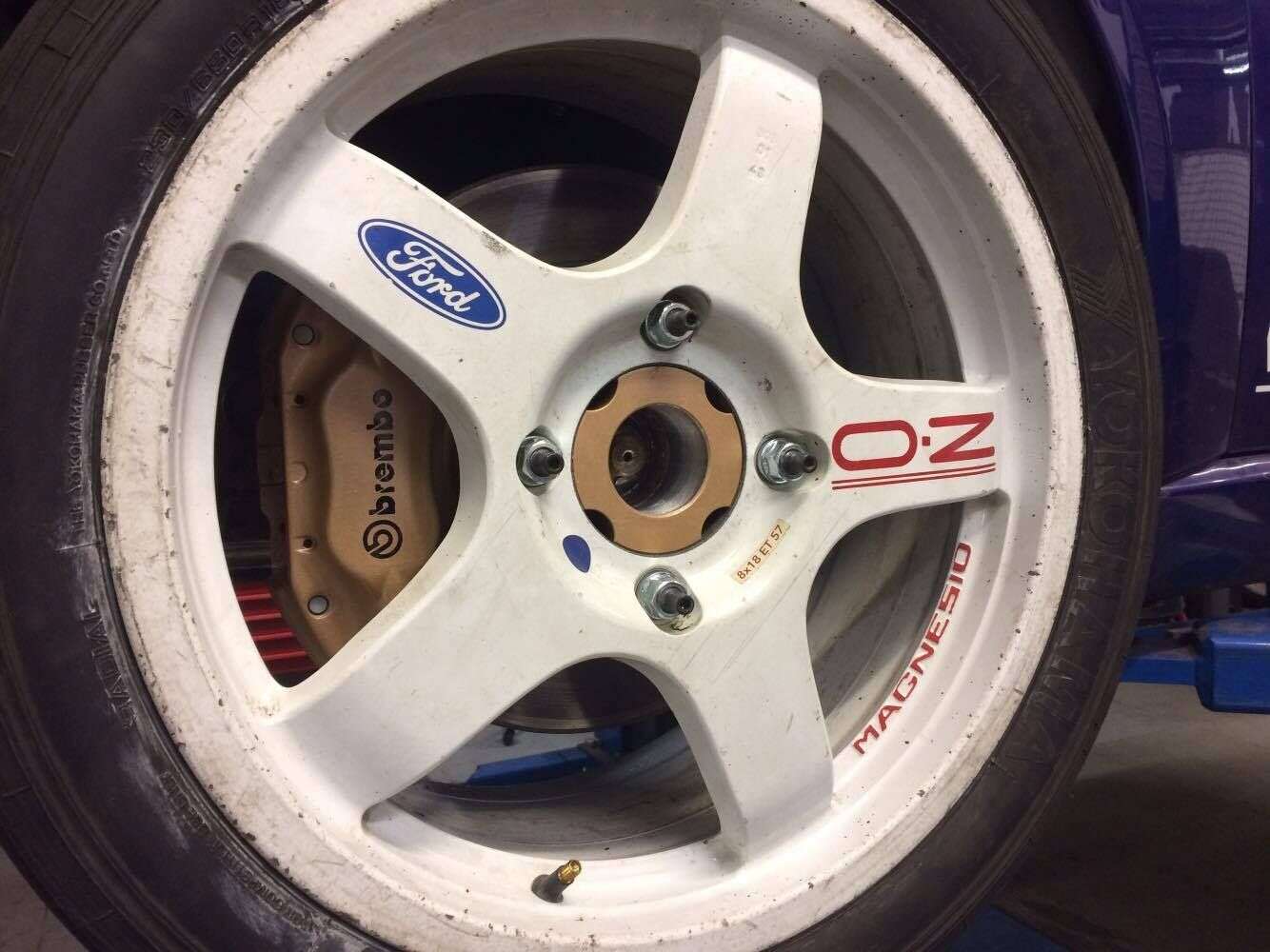

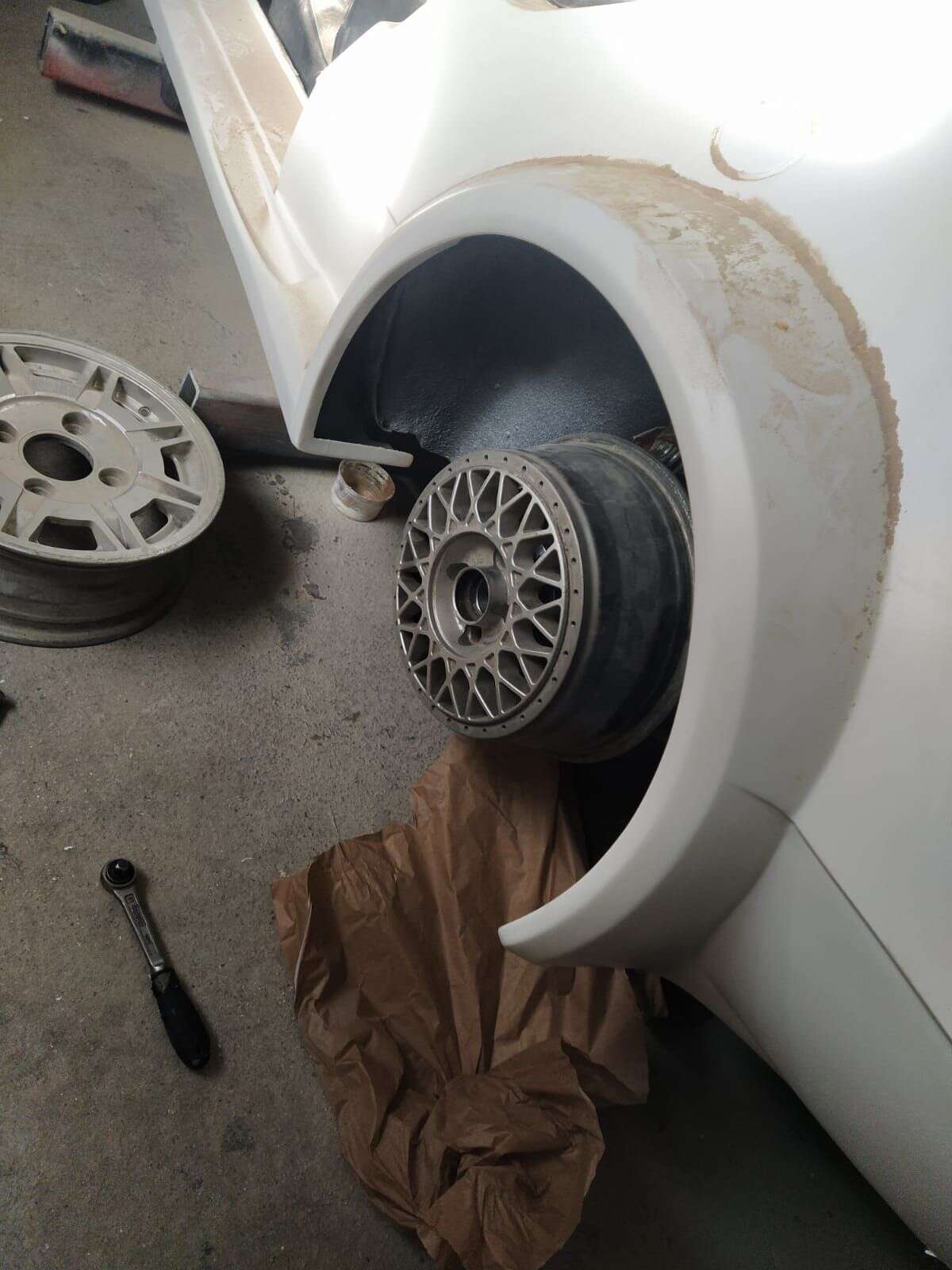

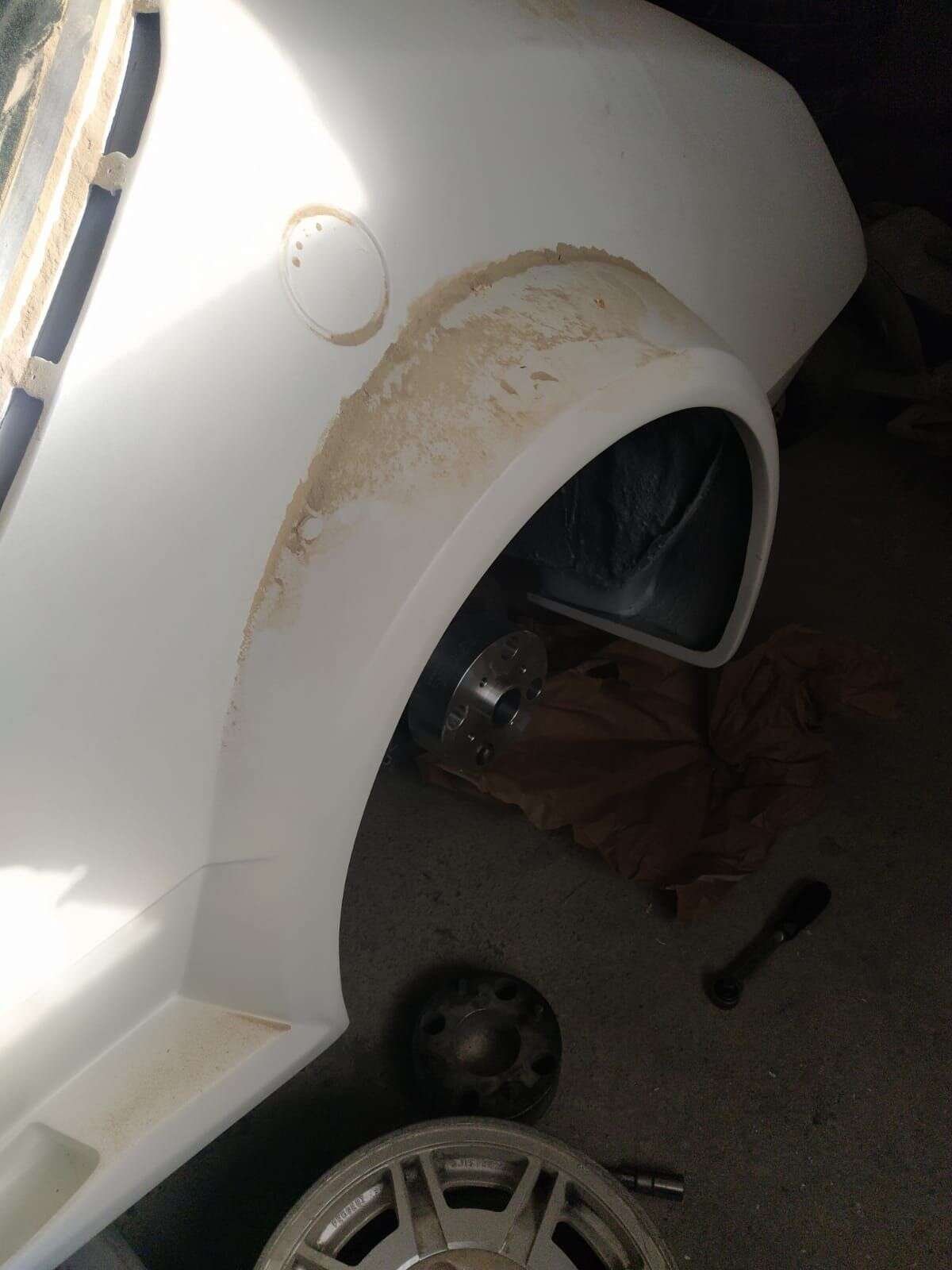

Realized customer projects:Here is a selection for you of how customers have used the configurator to mount their dream rim on their vehicle or what is possible with our bolt circle adapters.

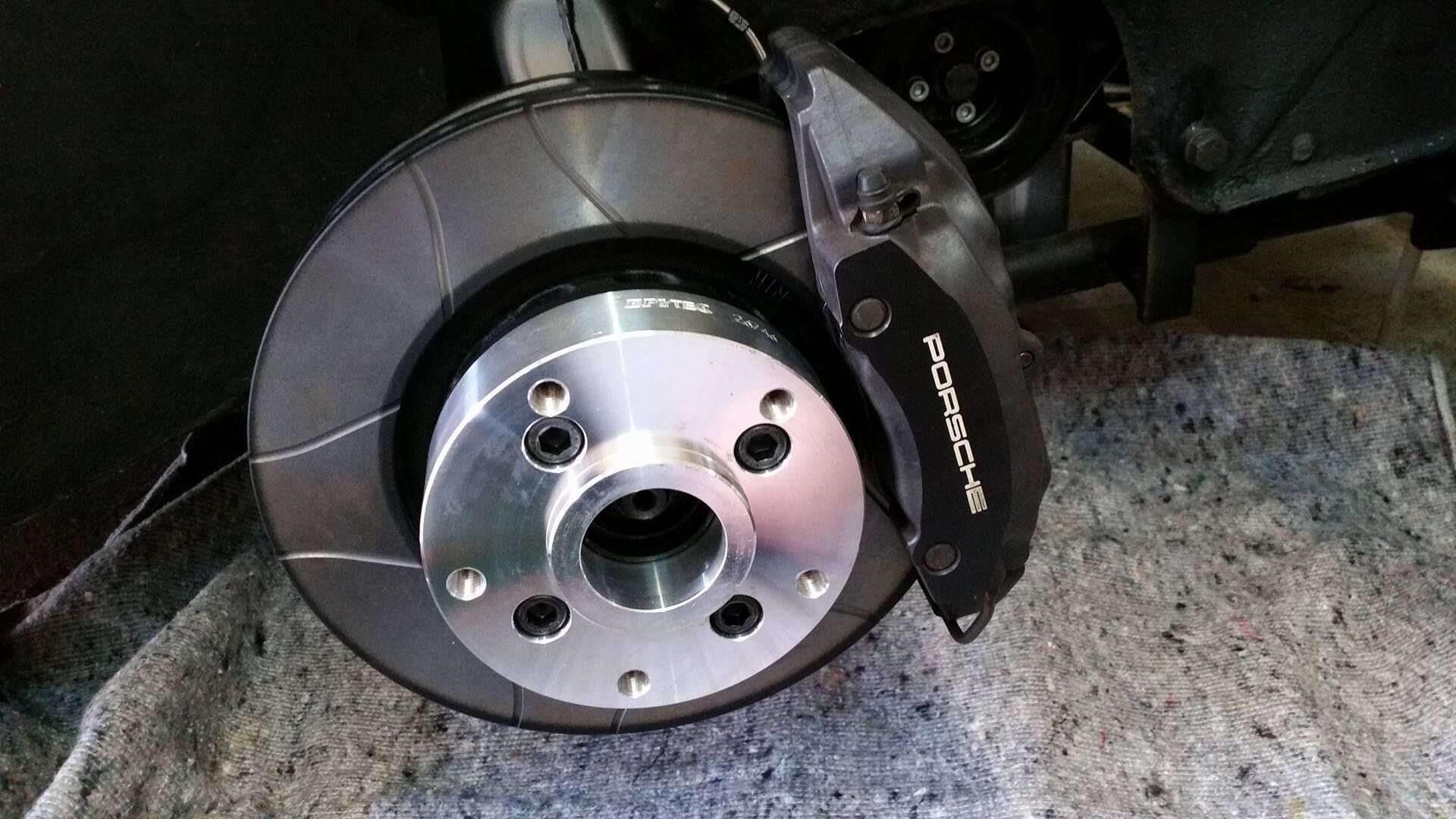

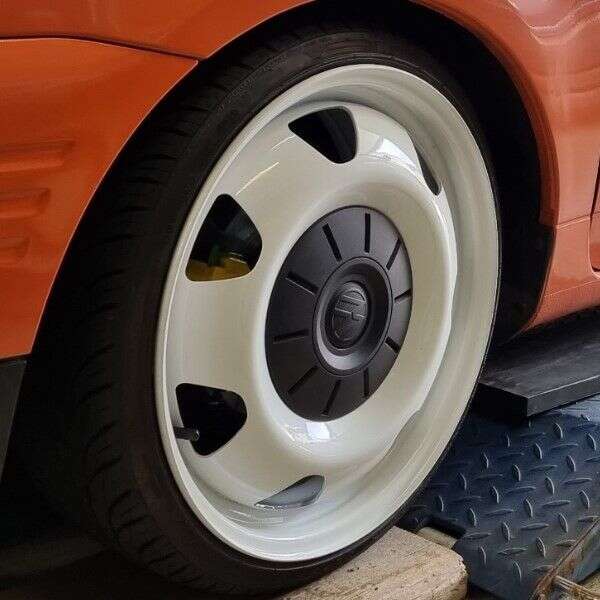

Example on a Porsche rim, click here.

Example of a bolt circle adapter on an offroadbuggy, click here.

Better cornering stability for a trailer, learn more.

And this is how it works:

Just select your vehicle below. We make a pre-selection of vehicle data which are listed in our database. Some fields are already filled out automatically. If your vehicle is not listed or you have a motorbike or quad you can also make the selection manually. You can choose the bolt circle adapter/track width from 20mm thickness per side in 1mm steps. This is especially useful if you want to achieve a maximum width of your vehicle. With this you are no longer bound to straight dimensions. When you have filled out all required fields you can put your desired quantity into the shopping cart and pay there. We manufacture all adapter plates with thread for the rims, so that the rims can always be fixed with wheel bolts.

Important Info:

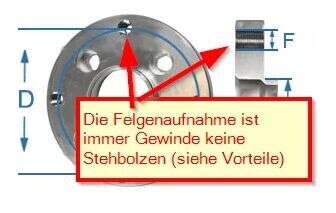

We manufacture all adapter plates with thread for the rims, so that the rims can always be fastened with wheel bolts and not with stud and no longer with wheel nuts as with your vehicle:

The plates are clearly more favorable in the production and thus for you more favorably.
With defective wheel bolts, the change is an enormous effort. The plate must be completely dismantled and the knurled bolt pressed out. This is not necessary for wheel bolts. Just order a new screw and you are done!
You have a much larger selection of wheel bolts for your desired rim, the selection of wheel nuts is much smaller.

Developed exclusively for alloy wheels, they offer a customised fit and optimum performance. With an impressive load capacity of up to 850 kg/wheel, our bolt circle adapters set new standards in load capacity. Please note that they are not suitable for steel rims. Configure your bolt circle adapters now for the highest quality in your conversion

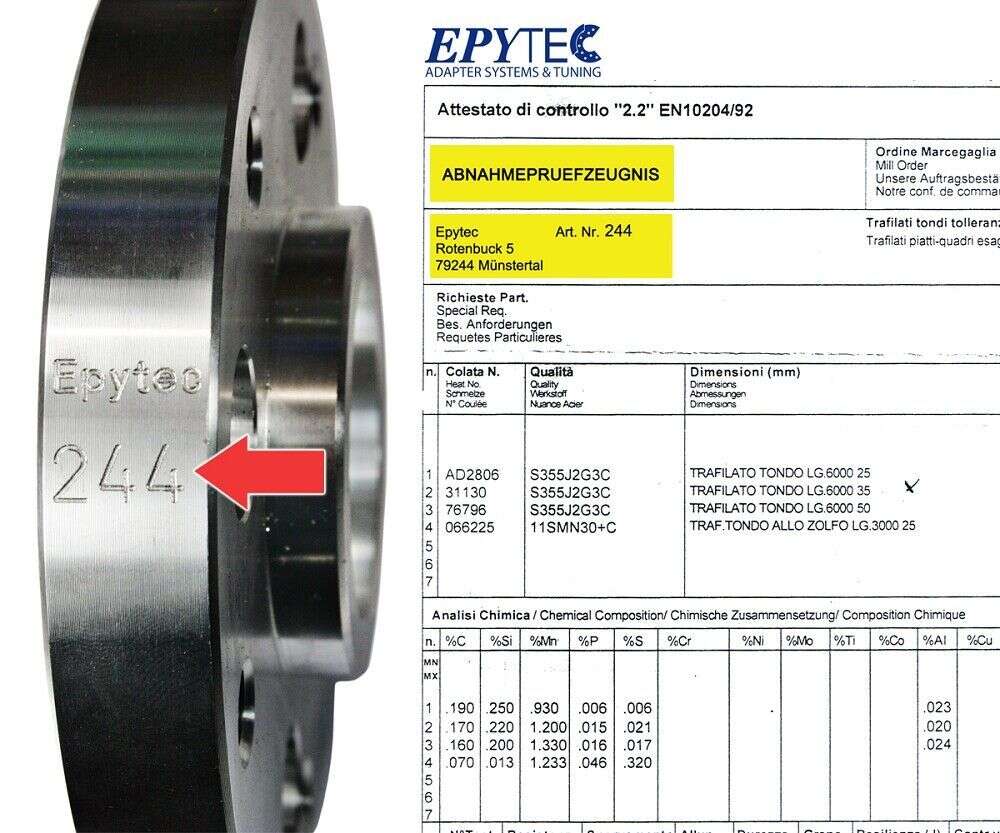

We provide a material certificate for this adapter, allowing the TÜV inspector to easily register the adapter.

7 of 7 reviews

Leave a review!

Share your experiences with other customers.

Login

email address

password

or Register with...

Sort by

26 June 2025 18:50

Benedikt L

Maße passen wunderbar.

23 May 2025 05:44

Christian G

Die Qualität der Lochkreisadapter ist absolut hochwertig..Ich habe die bestellt um auf meinen Wohnwagen keine Standard Alufelgen zu fahren sondern mal was keiner hat...Der Lochkreisadapter Konfigurator ist kinderleicht und selbsterklärend...Dadurch das so gut wie alles hergestellt werden kann und die Lochkreisadapter eintragungsfähig sind, ist was für jedermann dabei...Meine Felgen sind jetzt montiert, meine Lochkreisadapter passen perfekt und alles ist an meinem Wohnwagen offiziell auch eingetragen...Danke Epytec für den tollen Support..Ich komme jederzeit gerne wieder...Gruß Christian

1 June 2025 05:59

Alexander G

Für mein Projekt benötigte ich eine Sonderanfertigung von Lochkreisadaptern, die ich über den EPYTEC-Konfigurator beauftragt habe. Die Umsetzung erfolgte präzise nach meinen Vorgaben, die Fertigungsqualität ist top sauber verarbeitet und maßgenau. Besonders positiv hervorheben möchte ich den schnellen und professionellen Kundenservice: Rückfragen wurden zeitnah beantwortet. Insgesamt ein sehr zufriedenstellender Ablauf und ein empfehlenswerter Anbieter für individuelle Lösungen.

5 February 2025 12:26

Johannes F

Alles top!, verarbeitung super, sowie passgenauigkeit!

8 August 2024 10:13

Christian W

Alles super

13 June 2025 07:20

Alexander G

Positiv: Gute Kommunikation, man fühlt sich nicht nach Bestelleingang verlassen, sondern hört immer wieder was, die Qualität ist super, man kommt leicht an Gutachten/etc. auch im Nachgang über das Kundenprofil ran Was ich noch verbessern würde: Es wäre vielleicht noch sinnvoll, wenn man die Fase um die Nabenzentrierung herum auch noch wählen könnte - die bestellten Spurplatten sind für ein Audi Cabriolet Typ89 und passen nur auf der Vorderachse (wo sie auch gedacht waren, für mich also ok). An der Hinterachse würden sie nicht an der Nabe anliegen können. Dieses Problem dürfte viele Audi 80/90/100/200/V8/Cabriolet/Coupé/etc. treffen

10 August 2024 00:02

Christian B

Der Lochkreisadapter an sich ist sehr gut verarbeitet. Alle angegebenen Maße passen sehr gut. Leider sind die Befestigungsschrauben für die Adapterplatten aufgrund meiner Trommelbremse 10mm zu kurz (Standardlänge 25mm) . Eventuell könnte man im Konfigurator die eingreifende Gewindelänge hinzufügen um von vorn herein die richtige Schraubenlänge beilegen zu können.

I cannot select my vehicle for the bolt circle / PCD adapter, can Epytec still produce it?
Yes of course you can configure it through our homepage. Just click on \ "my vehicle is not in the list \", then you can enter your vehicle data.
What about the return right/policy, if something is wrong?
Unfortunately, this is not possible, as we make them exactly to your specifications and custom-made products are excluded from return by our terms and conditions.
Can we choose different plate thicknesses, front and back? For example 20 mm at the front and 30 mm at the rear.
Yes, just put 2x in the shopping cart, with 20 mm and again 2x in the shopping cart and select with 30 mm
How does the registration with the technical inspection work?
The TÜV registration process is relatively simple. Please take a look at the following pages for detailed information: TÜV-Partner.

We have also produced a technical report for our bolt circle adapters from TÜV Süd. You can view this report here: Technical report bolt circle adapter
Which wheel bolts do I have to use for the bolt circle adapters that I have ordered from you?
All plates are made of high-strength AW-7075 aircraft aluminum and are supplied with engraving on the plate and a material certificate. This enables registration by individual approval, even for series production vehicles. The scope of delivery is determined by the quantity you select (selected quantity 1 piece = 1 plate and the required mounting screws). The mounting screws for attaching the bolt circle adapters to the vehicle are supplied so that the thread protrudes 20 mm from the plate. Please check whether the length is sufficient for the screw to pass completely through the wheel hub and engage in all threads.

We do not have any wheel bolts, the reason is that each rim requires different wheel bolts, we cannot possibly cover all rim types here, so you must always obtain these yourself (see the rim manufacturer's specifications)
How often do I have to pay the express surcharge if I have several products in one order or place several orders?
You only have to pay the express surcharge once per order. However, if you complete the order and place a new order, an express surcharge will apply again. The express surcharge therefore applies per order, not per product.
With which torque are our Epytec bolt circle adapters screwed tight?
To attach the bolt circle adapters to the wheel hub, the same torque is used as original, this is usually between 120 and 140NM.
If you are not sure, it must be asked at the vehicle manufacturer.
The rim is always attached to the bolt circle adapter with the torque that the rim manufacturer specifies. There is a data sheet for each rim, which specifies the tightening torque.
If the data sheet is no longer available, the values must be requested from the rim manufacturer.

Questions? Click here for the contact form
