Brake Caliper Adapter VW T5 T6 Audi RS6 Ceramic Brake Disc 420x40 Brake Caliper Audi RS6 Front Axle Ceramic Tuning Adapter
- ✓ 420x40 4G0615302J / 4G0615301J Audi RS6 brake disc
- ✓ 6-piston 4G0615107E / 4G0615108E Audi RS6 brake caliper
- ✓ front axle
€174.73*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

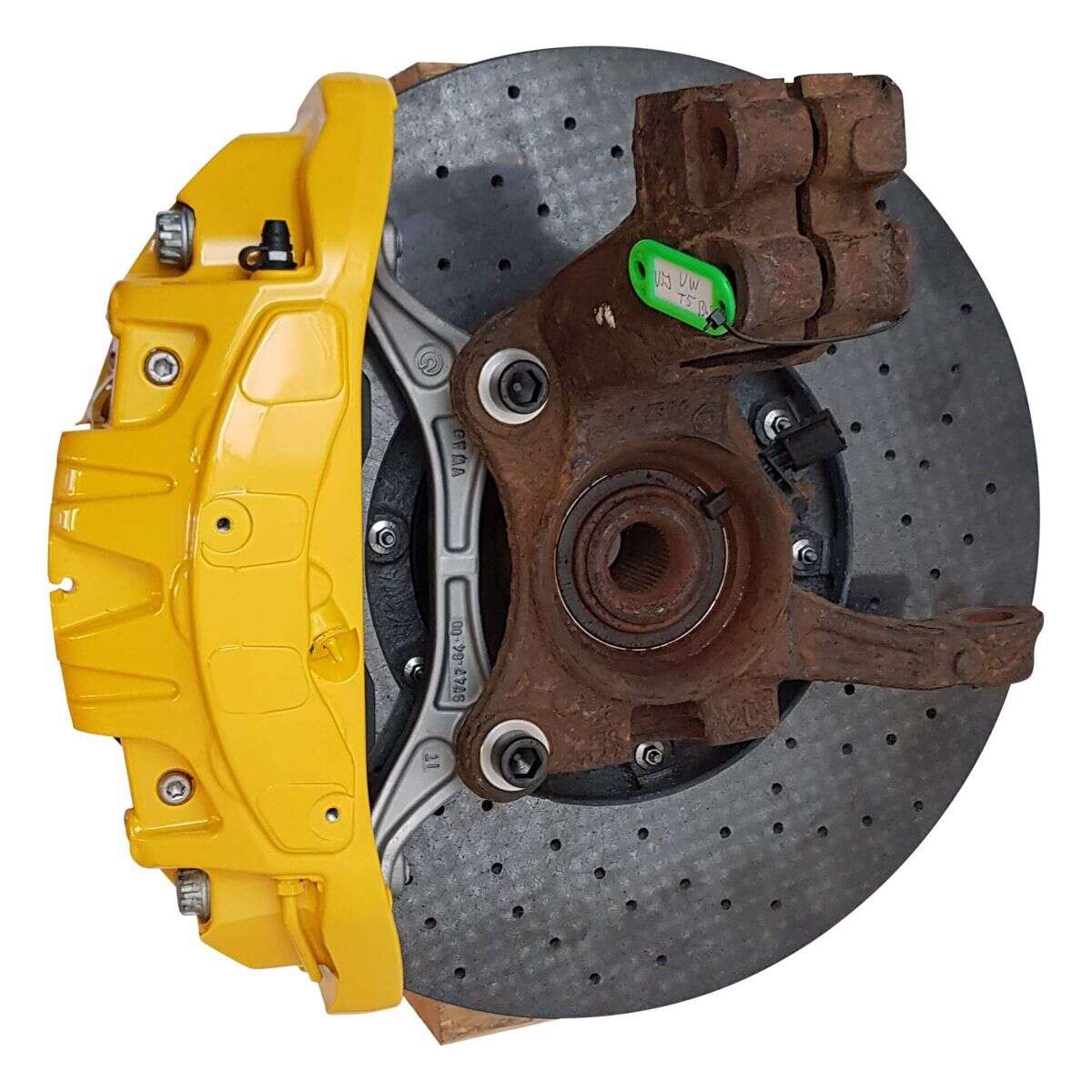

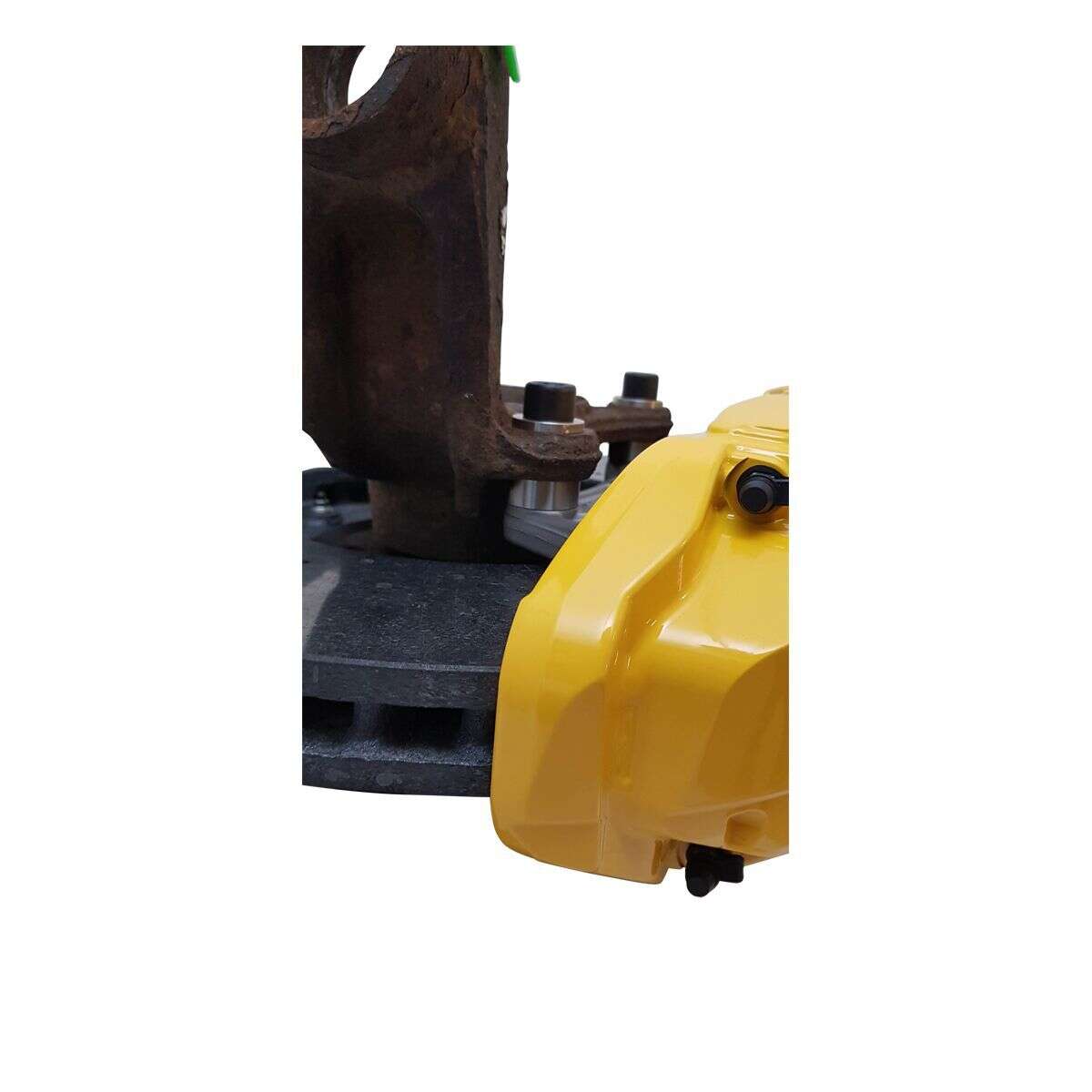

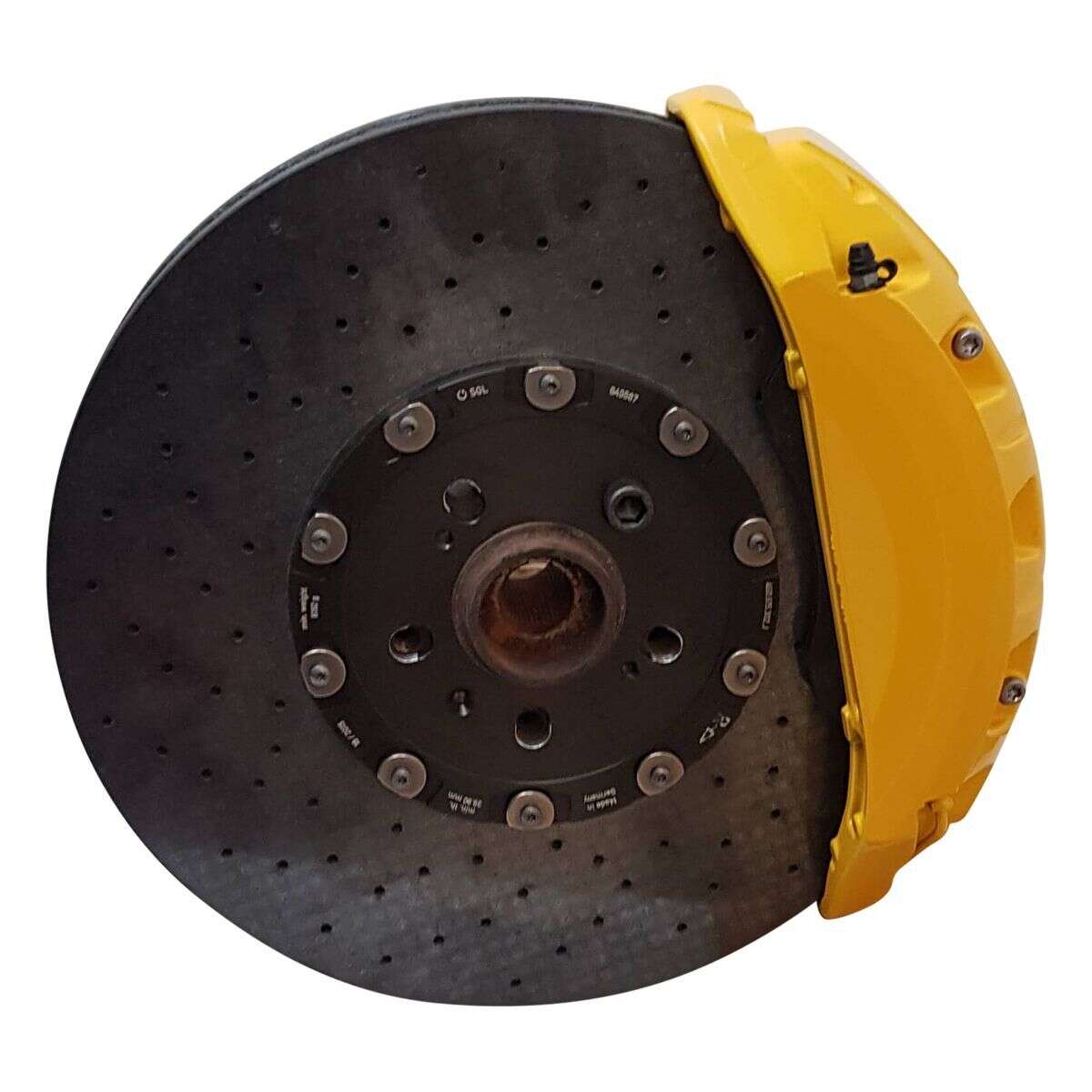

Brake caliper adapter, front axle, on models VW T5 and T6 bus / transporter, for conversion to the Audi RS6 brake calipers or 6-piston Brembo brake calipers, combined with the ceramic brake discs 420x40 from Audi RS6.
Suitable brake caliper adapters for the rear axle are linked below in the "Crossselling" tab!
Suitable for the following vehicles :
- VW T5 BUS
- VW T6 BUS
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake caliper: Audi RS6, reference 4G0 615 107 E / 4G0 615 108 E ; Brembo reference: 8404.02-01
- brake disc: ceramic Audi RS6 420x40mm, reference: 4G0.615.302.J / 4G0.615.301.J
- bolt circle/pitch circle diameter and hub bore must be modified
Delivery:
- 2x brake caliper adapters for VW T5 and T6 bus / transporter
- high-strength mounting screws
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
