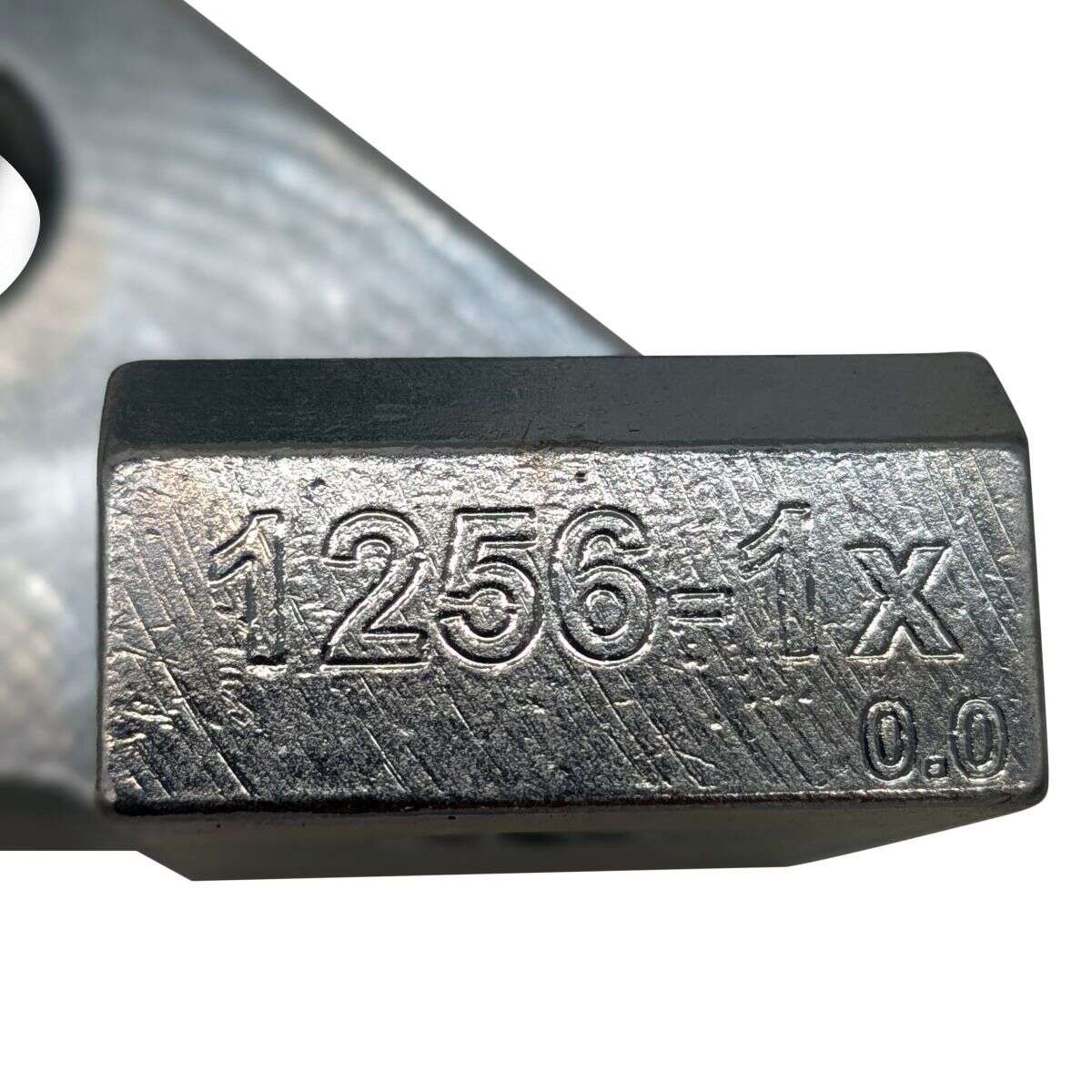

Brake caliper adapter Audi A4 RS4 B5 8-piston brake caliper 365x34mm brake disc Audi RS4 B7
The adapters are suitable for the following vehicles:
- AUDI A4 Avant (8D5, B5)
- RS4 RS5 B5 Quattro Kombi
Advantages of this brake system:
- extreme deceleration values also in conjunction with our rear axle brake system
- the material certificate included in the scope of delivery can also be used to enable registration by individual approval for series vehicles.
- directly suitable for the above-mentioned models and can therefore be easily retrofitted to the original condition at any time
- our EPYTEC brake calliper adapters do not require your standard parts to be sent in, no rewelding, re-milling or re-drilling.
Required components:
- Audi R8 8-piston original Brembo brake calipers Brake caliper left part no.: 8E0615107 Brake caliper right part no.: 8E0615108
- Audi RS4 B7 brake disc 365x34mm part number 8E0615301AB
Scope of delivery:
- 2x brake caliper adapter for Audi RS4 A4 B5
- Material certificate
- High-strength screw material
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
Motor | Motorcode |
---|---|
1.9 TDI | 8D5|115PS(85KW) |
2.4 quattro | B5|165PS(121KW) |
2.5 TDI quattro | 8D5|150PS(110KW) |
1.9 TDI quattro | 8D5|115PS(85KW) |
2.6 quattro | B5|150PS(110KW) |
1.9 TDI quattro | B5|115PS(85KW) |
1.9 TDI | 8D5|90PS(66KW) |
2.8 quattro | B5|174PS(128KW) |
2.4 quattro | B5|163PS(120KW) |
1.8 | 8D5|125PS(92KW) |
1.9 TDI | B5|75PS(55KW) |
1.9 TDI quattro | B5|110PS(81KW) |
1.6 | 8D5|102PS(75KW) |
2.5 TDI | B5|150PS(110KW) |
2.5 TDI quattro | B5|150PS(110KW) |
2.4 | 8D5|165PS(121KW) |
2.8 | 8D5|174PS(128KW) |
1.6 | B5|102PS(75KW) |
2.4 | B5|165PS(121KW) |
2.4 quattro | 8D5|163PS(120KW) |
2.8 quattro | 8D5|193PS(142KW) |
1.8 T quattro | B5|180PS(132KW) |
2.6 | 8D5|150PS(110KW) |
1.8 | B5|125PS(92KW) |
1.9 TDI | B5|90PS(66KW) |
1.6 | 8D5|100PS(74KW) |
2.8 | B5|193PS(142KW) |
1.9 TDI quattro | 8D5|110PS(81KW) |
2.8 quattro | B5|193PS(142KW) |
1.8 quattro | B5|125PS(92KW) |
1.9 TDI | 8D5|110PS(81KW) |
2.4 | B5|163PS(120KW) |
1.8 quattro | 8D5|125PS(92KW) |
S4 quattro | B5|265PS(195KW) |
1.8 T | B5|150PS(110KW) |
RS4 quattro | B5|380PS(280KW) |
1.8 T quattro | B5|150PS(110KW) |
1.8 T quattro | 8D5|150PS(110KW) |
2.8 | B5|174PS(128KW) |
1.9 TDI | 8D5|75PS(55KW) |
RS4 quattro | 8D5|380PS(280KW) |
1.9 TDI | B5|110PS(81KW) |
2.8 | 8D5|193PS(142KW) |
2.6 | B5|150PS(110KW) |
1.8 T | 8D5|180PS(132KW) |
2.5 TDI | 8D5|150PS(110KW) |
S4 quattro | 8D5|265PS(195KW) |
1.8 T | 8D5|150PS(110KW) |
2.8 quattro | 8D5|174PS(128KW) |
1.9 TDI | B5|115PS(85KW) |
2.4 quattro | 8D5|165PS(121KW) |
1.6 | B5|100PS(74KW) |
1.9 Hybrid | 8D5|90PS(66KW) |
1.8 T | B5|180PS(132KW) |
2.4 | 8D5|163PS(120KW) |
2.6 quattro | 8D5|150PS(110KW) |
1.8 T quattro | 8D5|180PS(132KW) |
