Engine Mounting Bracket Audi 80 B4 1.8T Conversion AEB Engine Audi A6 A4 VW Passat Engine Umbau
- ✓ Audi 80 B4
- ✓ 1.8T engine from the Audi A4 B5, Audi A6, VW Passat 3B
- ✓ Torque arm from ABK motor, viscous fan must be removed
£137.95*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

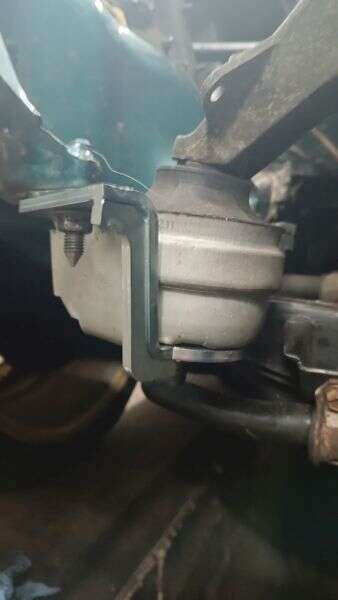

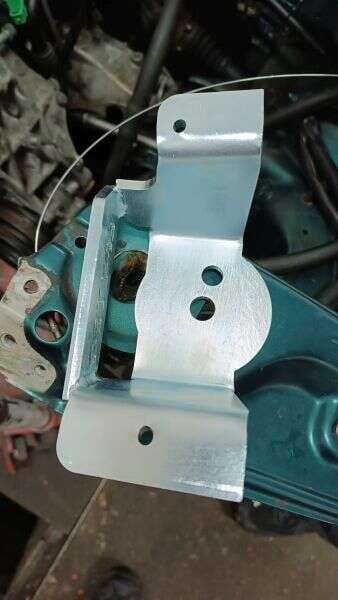

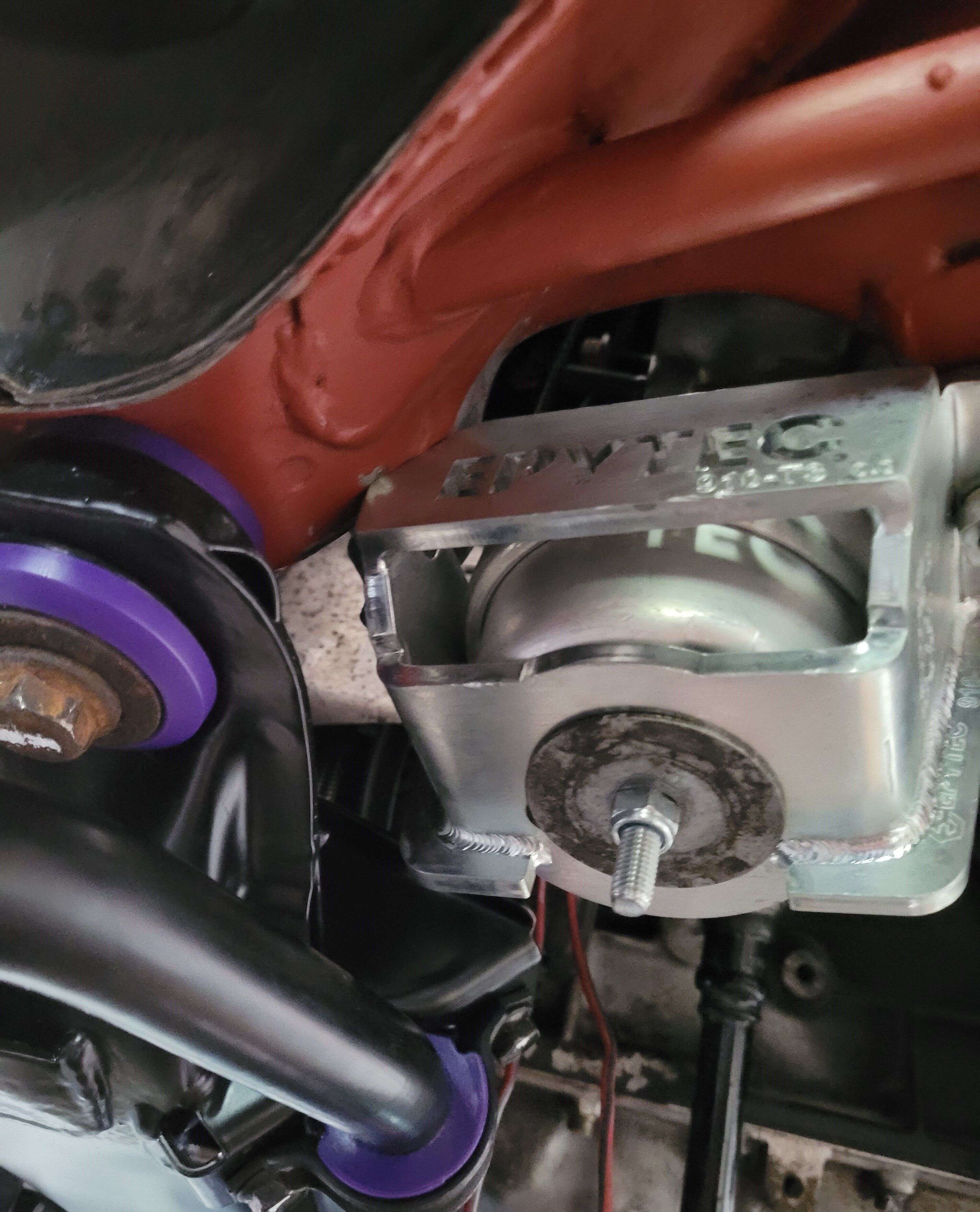

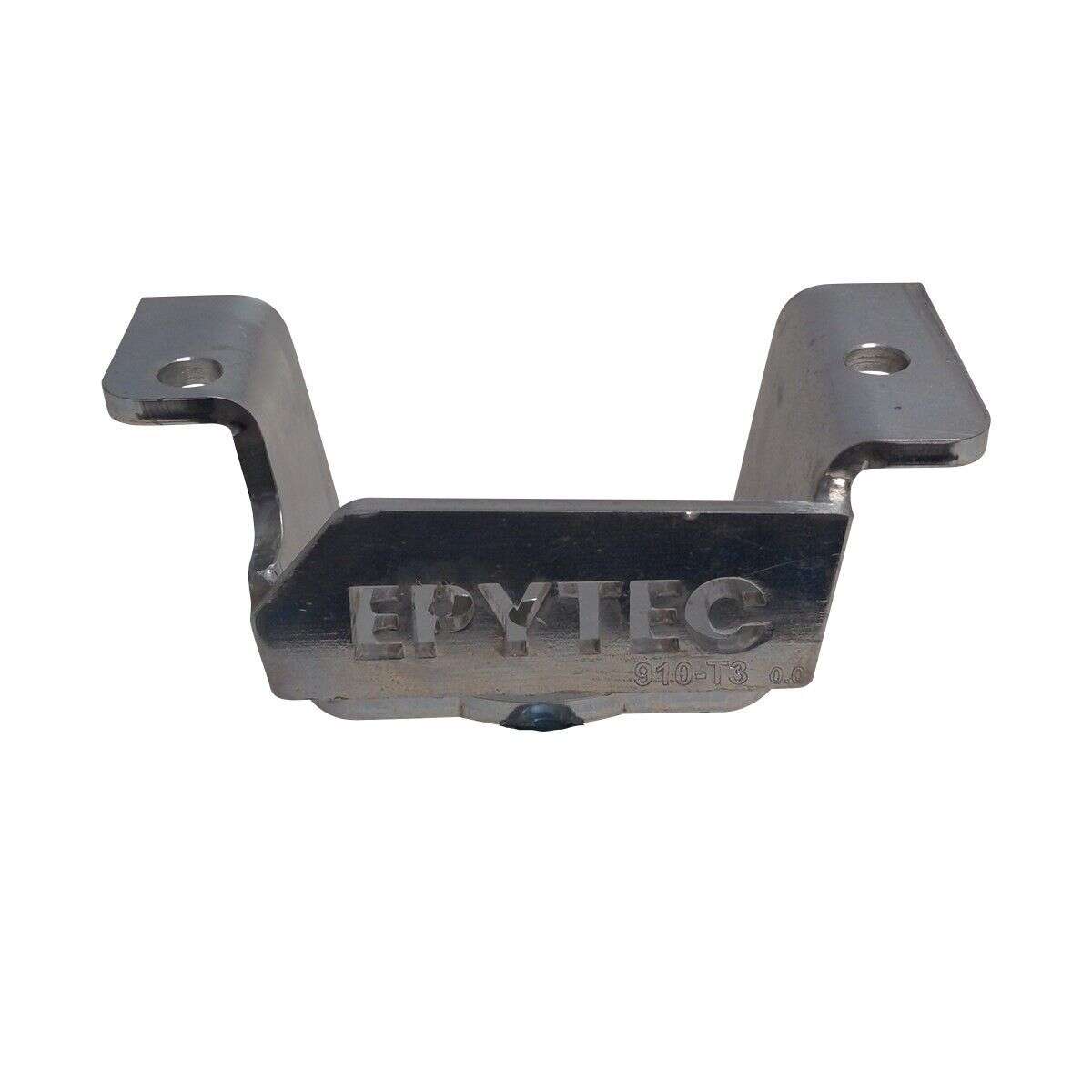

Engine mounting bracket to install the 1.8T engine (AEB) from the Audi A4 B5, Audi A6, VW Passat 3B in the Audi 80 B4
Suitable for all Audi 80 that have the original 4 or 5 cylinder engines installed
With our engine mounting bracket you can easily rebuild the engien and save a lot of time.
Due to the stable construction and the accuracy of adjustment, the bracket set can be fixed to the original holder/support, which means that an absolute fit of the transmission can be guaranteed. No welding on the body is necessary, which saves a lot of time when converting your vehicle.
The engine and gearbox mounting brackets are supplied galvanized, which provides the best protection against corrosion.
Delivery:
- 1x engine mounting bracket to install the 1.8T engine from Audi A4 B5, Audi A6, VW Passat 3B into the Audi 80 B4
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
- Do your engine and transmission mounts fit both left-hand drive and right-hand drive vehicles?
Yes – in most cases, our engine and gearbox mounts fit both left-hand and right-hand drive vehicles equally well. The reason is simple: engine and gearbox are installed in the same position in most vehicles – regardless of whether the car is configured as left-hand drive or right-hand drive. This is exactly what our mounts are designed and intended for.
For you, this means: You can usually use the mounts without additional modifications, and installation proceeds as usual. Especially in conversions or replacement projects, this is a significant advantage because the relevant mounting points in the powertrain area usually remain identical.
In individual cases, it may be advisable for right-hand drive vehicles, due to the immediate environment (e.g., due to vehicle-specific components or slightly different spatial conditions), to make a small adjustment. However, this is the exception – and if at all, it usually involves small, easily feasible adjustments, not extensive changes to the mount.
