Brake Caliper Adapter VW Scirocco Passat EOS Tiguan Audi Q3 TT Seat Wave Brake Disc Audi RS7 356x22 Porsche Cayenne Brake Caliper
- ✓ 356x22 4G0615601E Audi RS7 Wave brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
£488.75*
Sold out
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

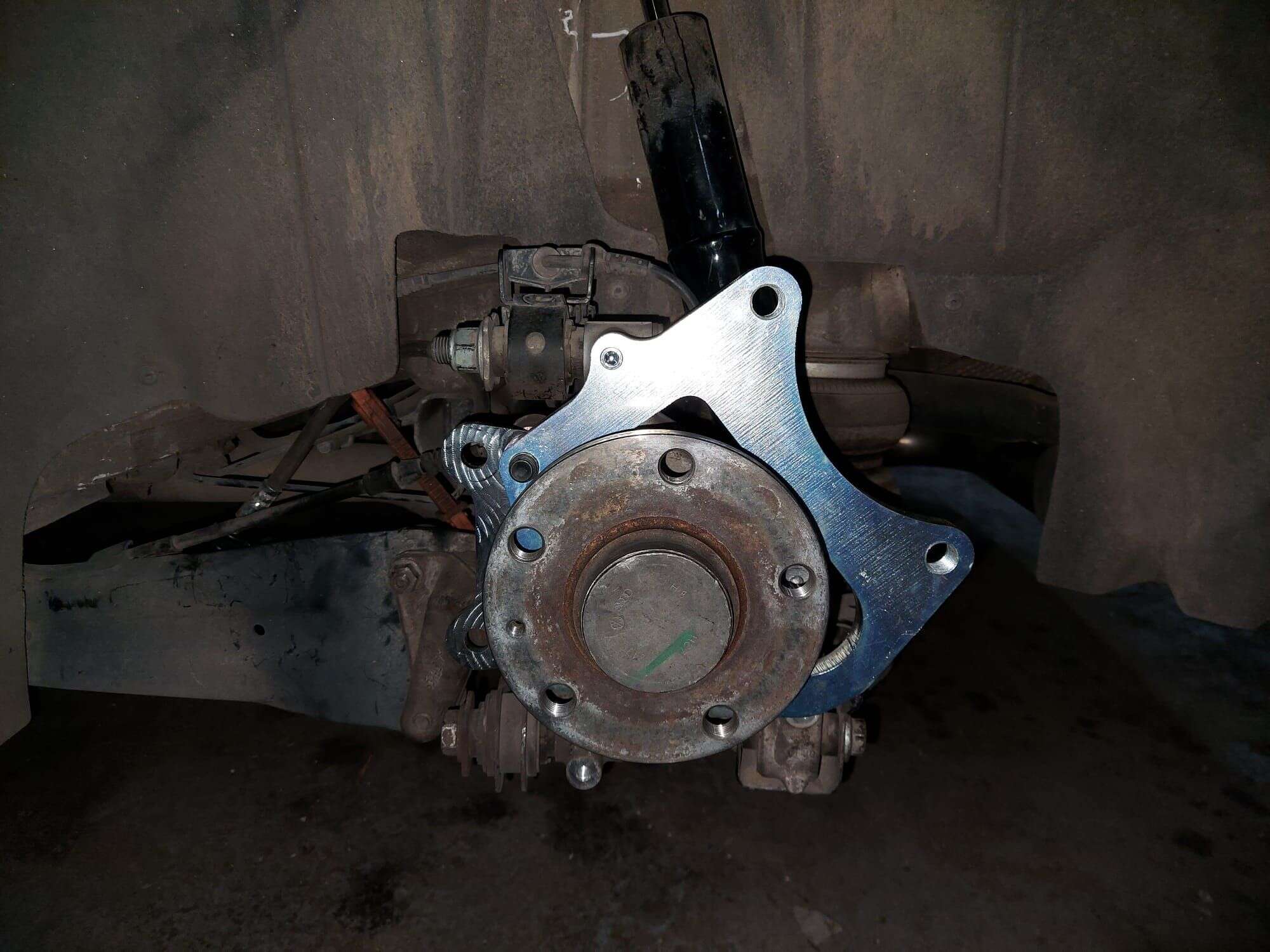

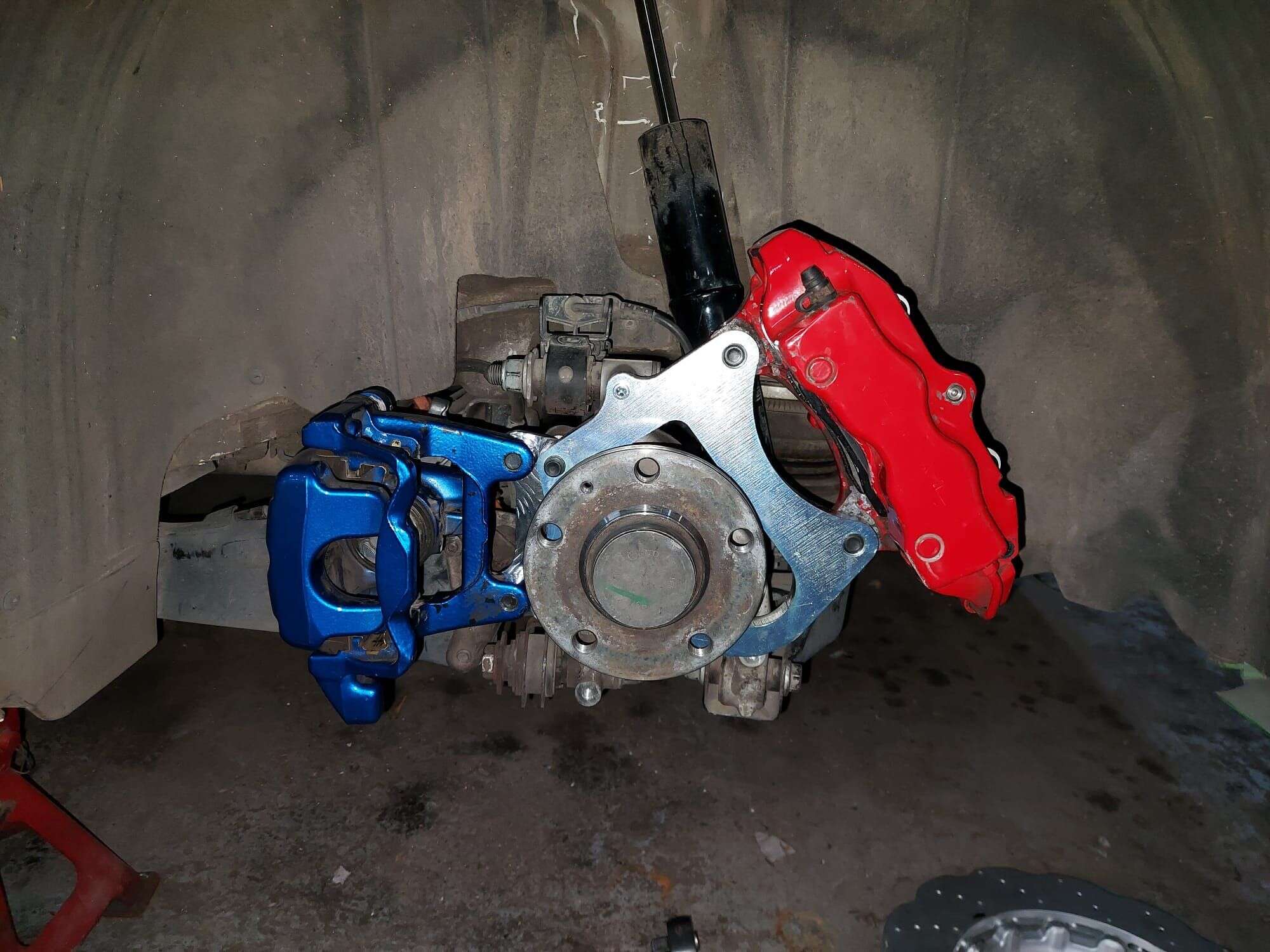

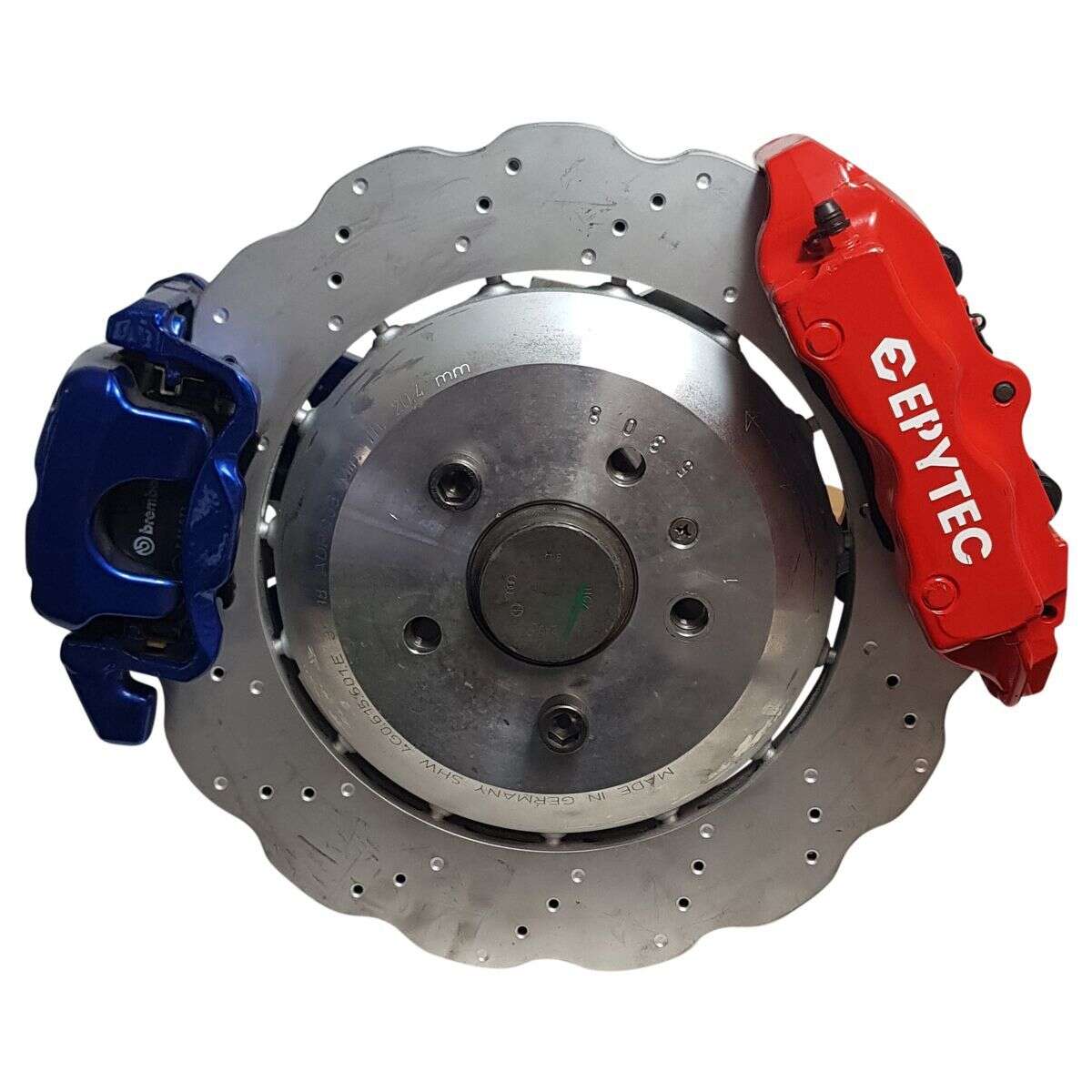

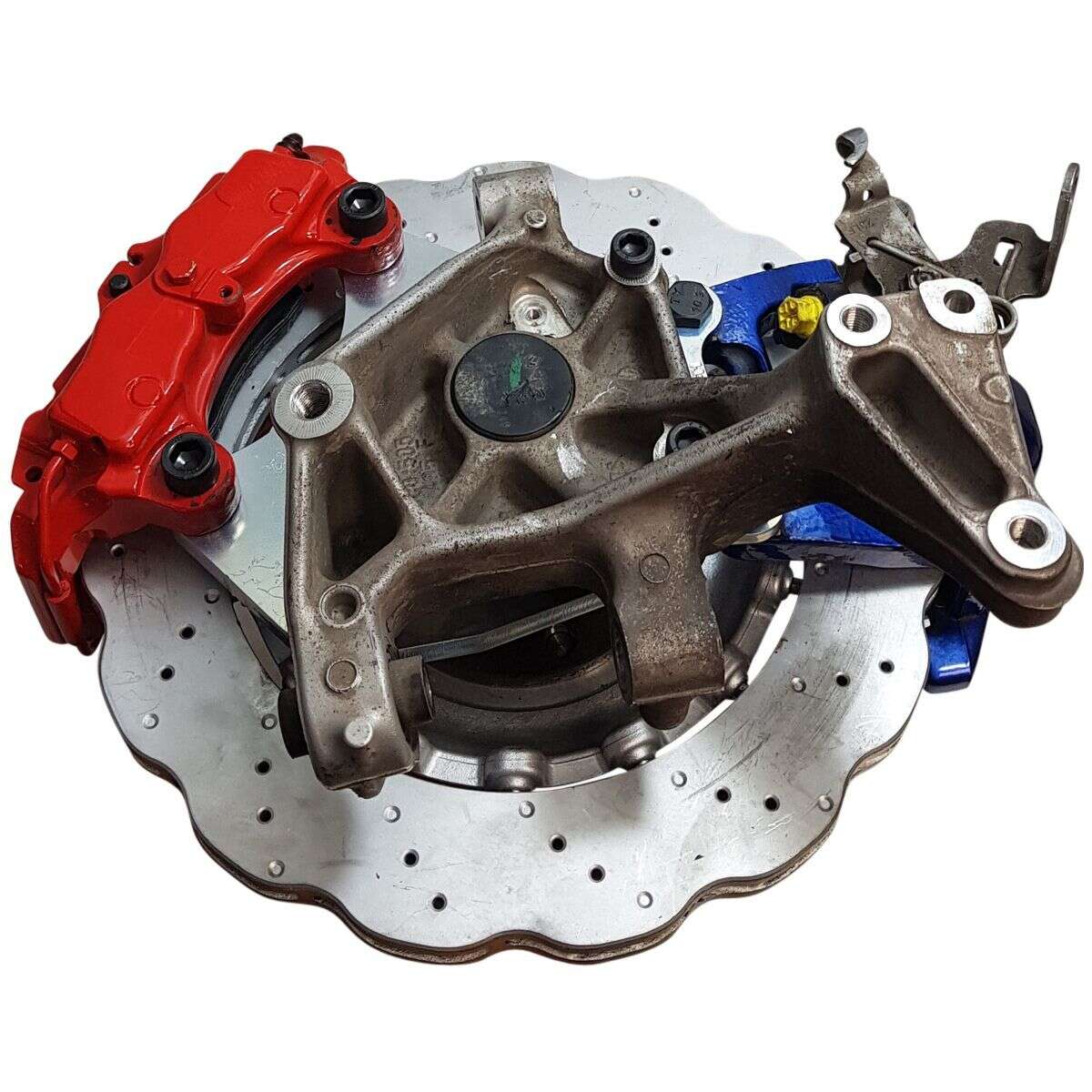

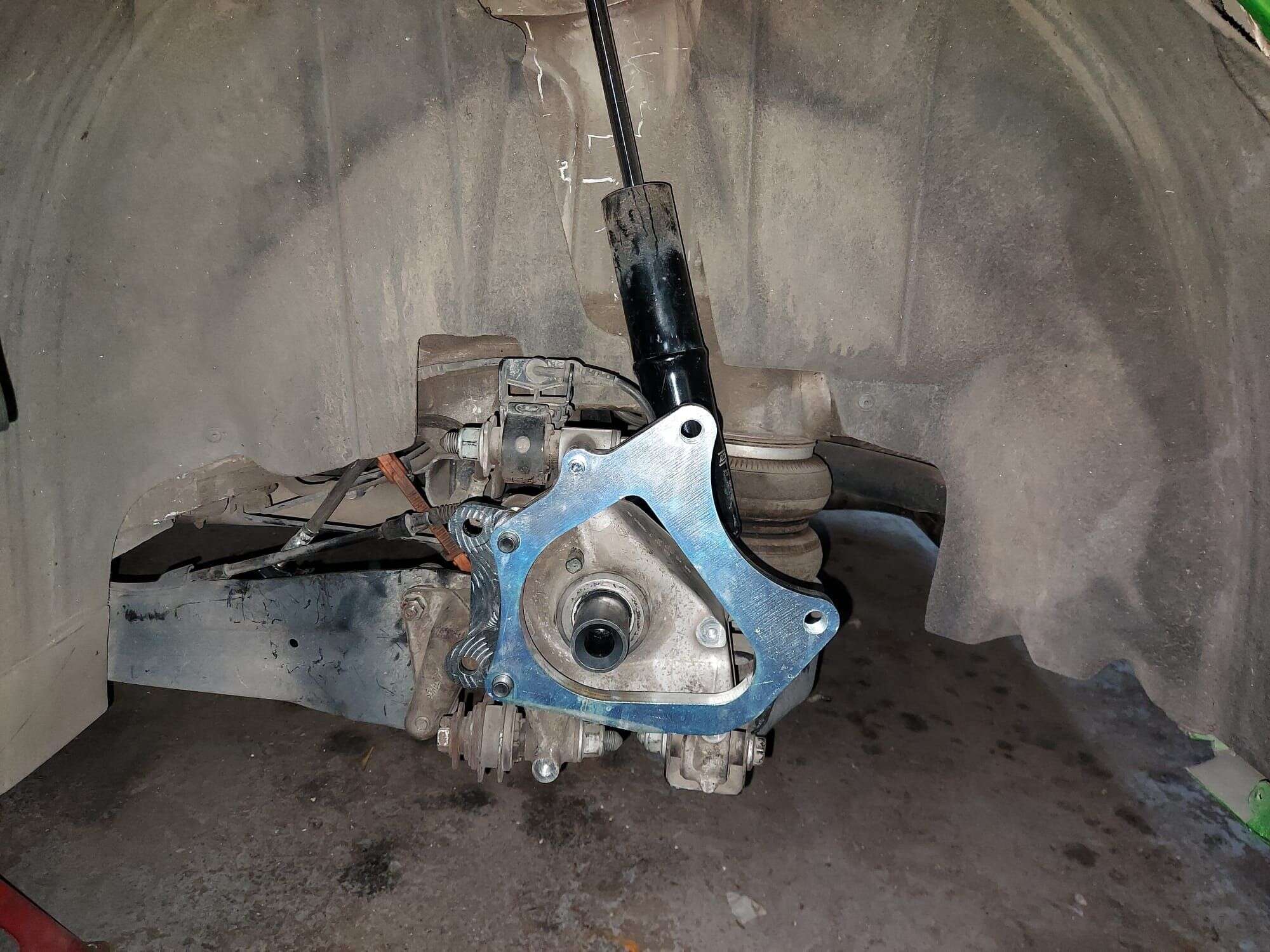

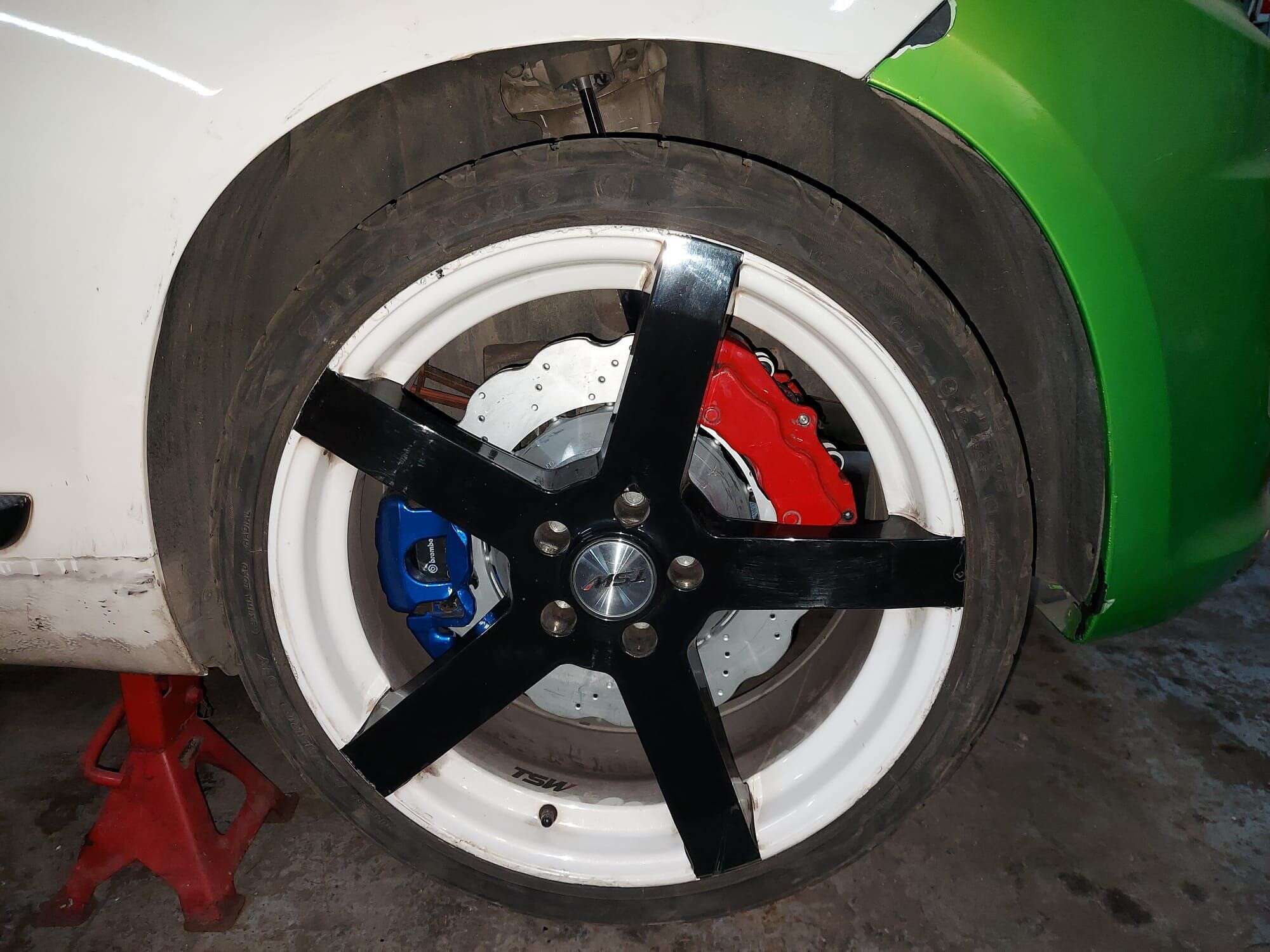

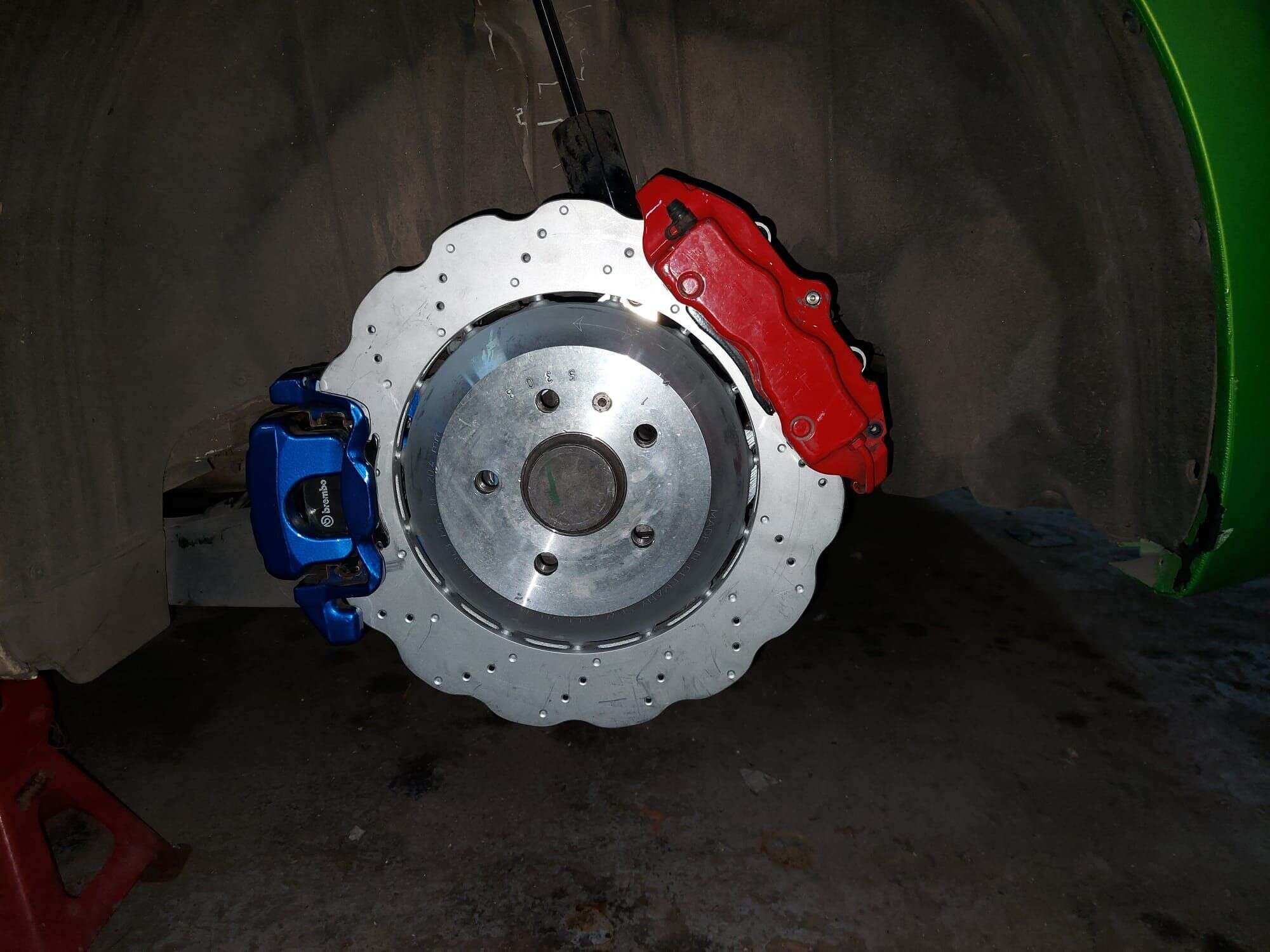

Brake caliper adapter, rear axle, on models VW Passat Eos Audi Q3 TT series, for conversion to Porsche Cayenne brake calipers, combined with the Audi RS7 Wave brake discs 356x22 mm.
The Porsche calipers are connected to the hydraulics of the vehicle and can thus develop an enormous braking force. However, these do not have handbrake functions. The rear axle of Scirocco R is additionally used for a handbrake caliper adapter. The hydraulic connection is thereby closed with a blind plug / closure cap, thus this serves only as a hand brake caliper.
Suitable for the following VW and Seat models with aluminum axle (manufacturer reference: 3C0505435F):
- VW Eos
- VW Passat
- VW Scirocco
- VW Sharan
- Audi Q3
- Audi TT / TT Roadstar
- Seat Alhambra
- Skoda Yeti
Advantages of this brake system:
- top deceleration, without comparison with conventional brake discs
- better performance
- supplied material certificate
Required components:
- brake caliper: Porsche Cayenne, rear xale, reference 955.352.421 + 955.352.422 / Brembo reference 20.7673.03 + 20.7673.04
- brake caliper mounting bracket: for hand brake, Golf 7R, reference 5Q0615424 / 5Q0615424
- brake disc: Audi A6 A7 356x22 mm, reference 4H0 615 601 F
Delivery:
- 2x brake caliper adapters, rear axle, for VW Eos, Passat, Scirocco, Sharan, Audi Q3, Audi TT / TT Roadstar, Seat Alhambra, Skoda Yeti
- high-strength screw material
- material Ccertificate
- installation instructions
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
