Audi A80 90 B4 S2 Brake Caliper Adapter Audi S8 Brake Disc 345x30mm Audi 4-piston Brake Caliper Tuning Adapter Conversion

  • ✓ 345x30 4D0615301B Audi S8 brake disc
  • ✓ 4-piston 4D0615107D / 4D0615108D Audi S8 D2 brake caliper
  • ✓ front axle

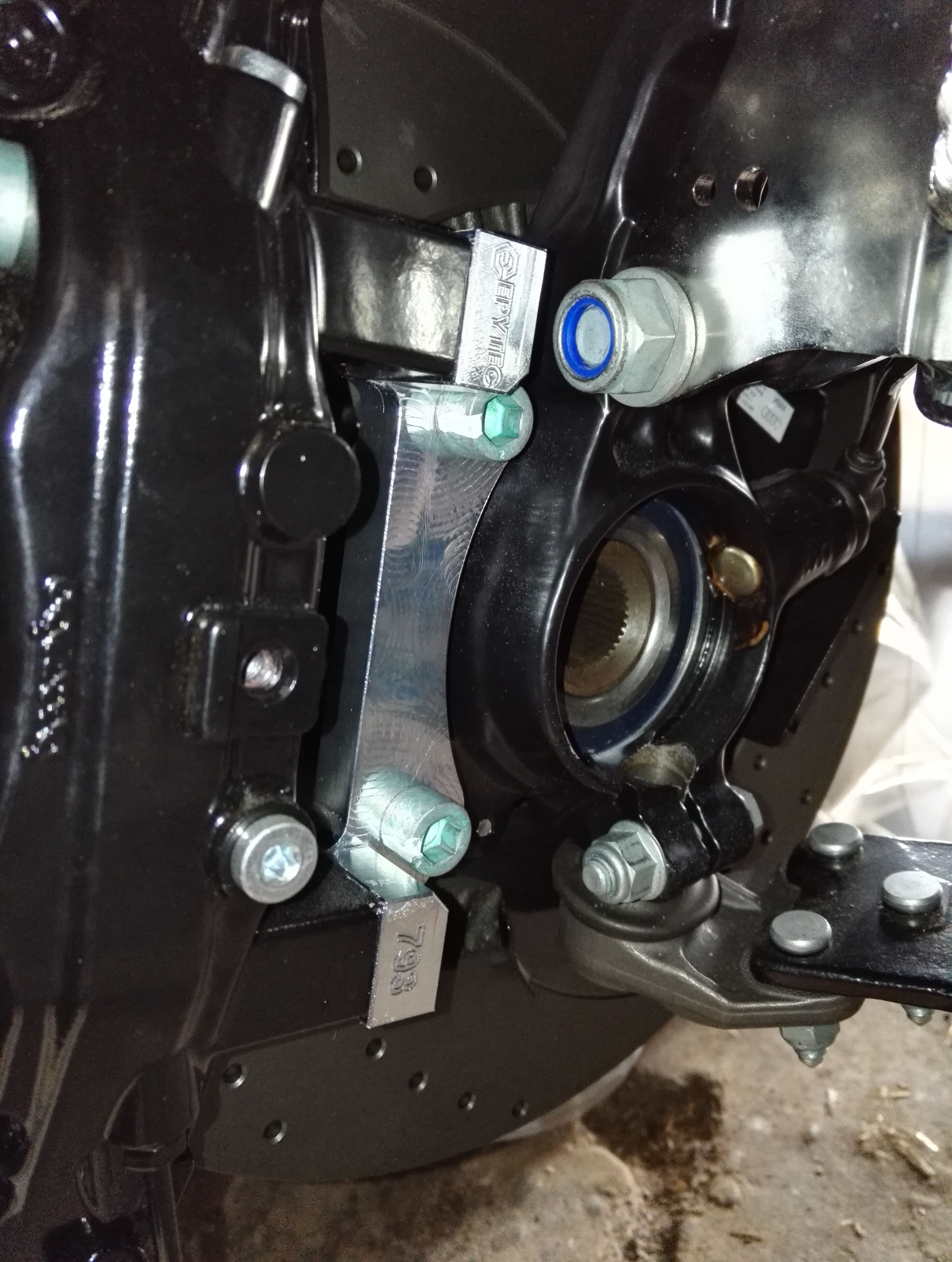

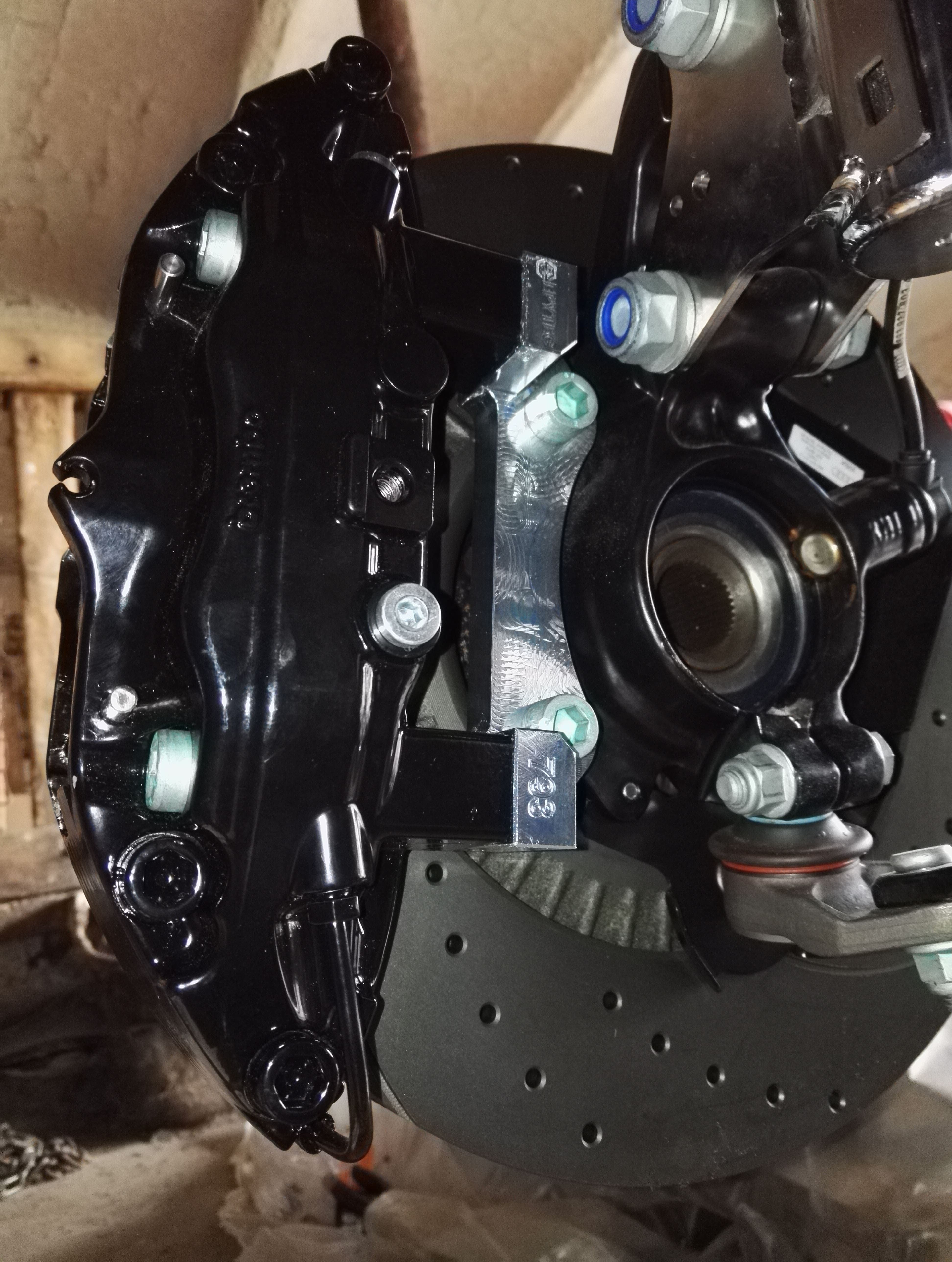

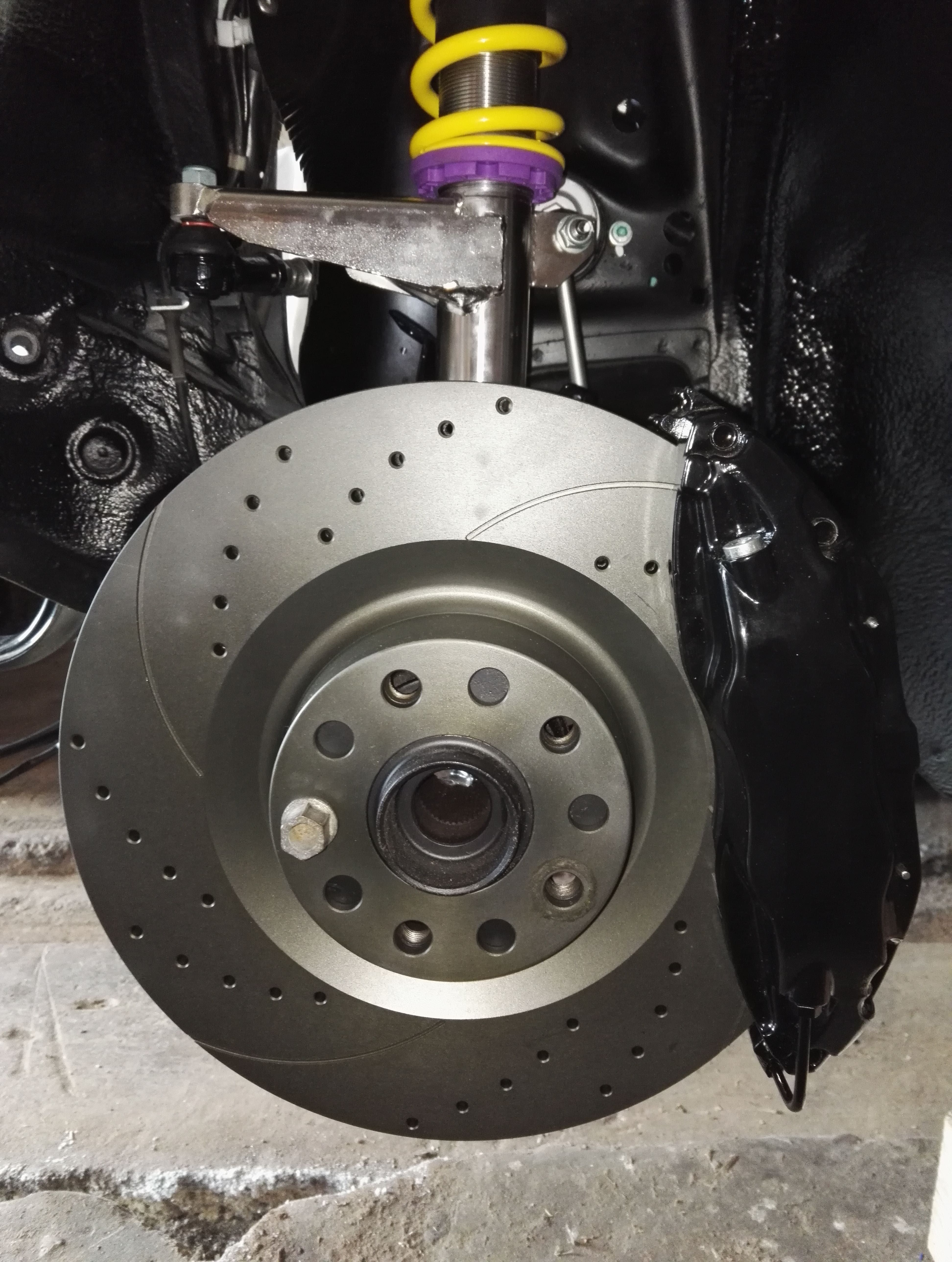

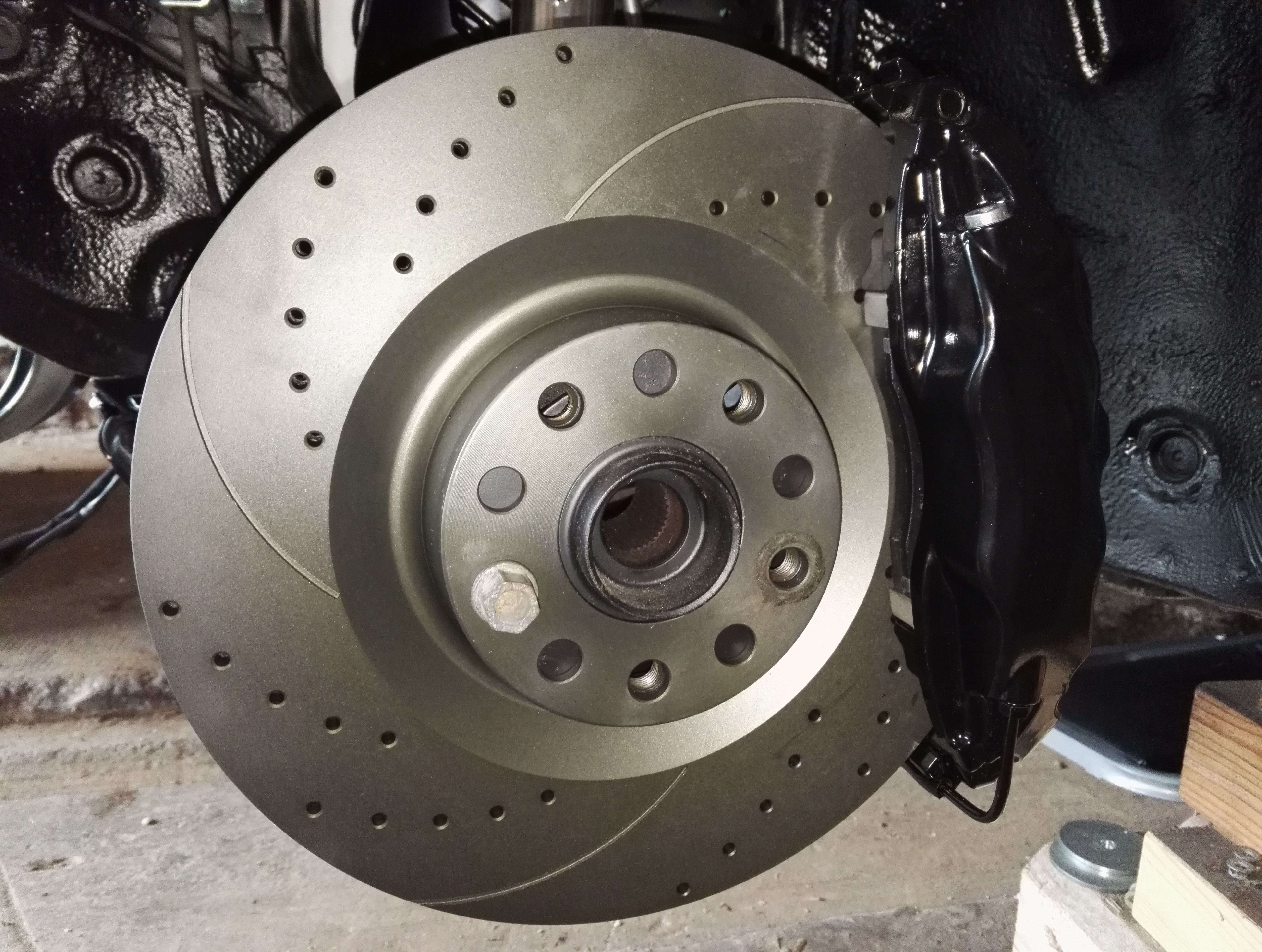

Brake caliper adapters, front axle, on models Audi S2 and Audi 80 / 90, for conversion to the 4-piston Brembo brake calipers from Audi S8 D2, combined with the Audi S8 brake discs 345x30mm, with original 5x112 or 5x112 bolt/pitch circle conversion.

Required components::

  • brake caliper: Audi 4-piston Audi S8 D2, reference 4D0615107D | 4D0615108D
  • brake disc: Audi S8 345x30mm, reference 4D0615301B Height: 59.5 mm
  • wheel hub from the Audi S2 with 5x112 must be installed (also available in our shop. Item number: 46859)

Advantages:

  • significantly better deceleration values than the undersized original brake system
  • high deceleration, also in conjunction with our rear axle braking system
  • thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
  • directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
  • our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling

Delivery:

  • 2x brake caliper adapters for Audi 80, 90, S2, uvm
  • high-strength mounting screws
  • material certificate

Tipps, Infos und Hinweise:

  • Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
  • Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
  • Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden. >> Jetzt direkt zu Spurverbreiterungen nach Wunsch <<
  • Den Adapter mit den benötigten Komponenten zu verbauen um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst. Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren <<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 130mm
Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 130mm

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
