Audi TT A3 S3 VW Golf Polo 6r WRC Brake Caliper Adapter Cayenne ZR17 Brake System 334x32
- ✓ 334x32 1J0615301AA 1J0615302 A Golf 4 R32 brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne / VW Tuareg brake caliper
- ✓ front axle
€148.46*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Versandkosten
Germany | €0.00 |
United Kingdom | €22.31 |
Austria | €18.21 |
France | €18.21 |
Switzerland | €24.45 |
Italy | €17.55 |
Spain | €17.55 |
Andorra | €17.55 |
Arab Emirates | €51.63 |
Afghanistan | €51.63 |
Antigua and Barbuda | €63.02 |
Anguilla | €63.02 |
Albania | €24.67 |
Armenia | €51.63 |
Niederländische Antillen | €63.02 |
Angola | €63.02 |
Antarctica | €17.55 |
Argentina | €63.02 |
American Samoa | €63.02 |
Australia | €63.02 |
Aruba | €63.02 |
Åland Islands | €17.55 |
Azerbaijan | €51.63 |
Bosnia and Herzegovina | €24.67 |
Barbados | €63.02 |
Bangladesh | €51.63 |
Belgium | €18.21 |
Burkina Faso | €63.02 |
Bulgaria | €18.46 |
Bahrain | €51.63 |
Burundi | €63.02 |
Benin | €63.02 |
Saint Barthélemy | €17.55 |
Bermuda | €63.02 |
Brunei Darussalam | €51.63 |
Bolivia (Plurinational State of) | €63.02 |
Bonaire, Sint Eustatius and Saba | €63.02 |
Brazil | €63.02 |
Bahamas | €63.02 |
Bhutan | €51.63 |
Bouvet Island | €17.55 |
Botswana | €63.02 |
Belarus | €24.67 |
Belize | €63.02 |
Kanada | €51.63 |
Cocos (Keeling) Islands | €17.55 |
Congo (Democratic Republic of the) | €63.02 |
Central African Republic | €63.02 |
Congo | €63.02 |
Côte d'Ivoire | €63.02 |
Cook Islands | €17.55 |
Chile | €63.02 |
Cameroon | €63.02 |
China | €51.63 |
Colombia | €63.02 |
Costa Rica | €63.02 |
Cuba | €63.02 |
Cabo Verde | €63.02 |
Curaçao | €17.55 |
Christmas Island | €17.55 |
Cyprus | €18.46 |
Czech Republic | €18.21 |
Djibouti | €63.02 |
Denmark | €18.21 |
Dominica | €63.02 |
Dominican Republic | €63.02 |
Algeria | €42.20 |
Ecuador | €63.02 |
Estonia | €18.46 |
Egypt | €42.20 |
Western Sahara | €17.55 |
Eritrea | €63.02 |
Ethiopia | €63.02 |
Finland | €18.46 |
Fiji | €63.02 |
Falkland Islands (Malvinas) | €63.02 |
Micronesia (Federated States of) | €63.02 |
Faroe Islands | €24.67 |
Gabon | €63.02 |
Grenada | €63.02 |
Georgia | €42.20 |
French Guiana | €63.02 |
Guernsey | €17.55 |
Ghana | €63.02 |
Gibraltar | €17.55 |
Greenland | €24.67 |
Gambia | €63.02 |
Guinea | €63.02 |
Guadeloupe | €63.02 |
Equatorial Guinea | €63.02 |
Greece | €18.46 |
South Georgia and the South Sandwich Islands | €17.55 |
Guatemala | €63.02 |
Guam | €17.55 |
Guinea-Bissau | €63.02 |
Guyana | €63.02 |
Hong Kong | €51.63 |
Heard Island and McDonald Islands | €17.55 |
Honduras | €63.02 |
Croatia | €18.46 |
Haiti | €63.02 |
Hungary | €17.55 |
Kanarische Inseln | €17.55 |
Indonesia | €51.63 |
Ireland | €18.46 |
Israel | €42.20 |
Isle of Man | €17.55 |
India | €51.63 |
British Indian Ocean Territory | €63.02 |
Iraq | €51.63 |
Iran (Islamic Republic of) | €51.63 |
Iceland | €24.67 |
Jersey | €17.55 |
Jamaica | €63.02 |
Jordan | €51.63 |
Japan | €51.63 |
Kenya | €63.02 |
Kyrgyzstan | €51.63 |
Cambodia | €51.63 |
Kiribati | €63.02 |
Comoros | €63.02 |
Saint Kitts and Nevis | €17.55 |
Korea (Democratic People's Republic of) | €51.63 |
Korea (Republic of) | €51.63 |
Kuwait | €17.55 |
Cayman Islands | €63.02 |
Kazakhstan | €51.63 |
Lao People's Democratic Republic | €51.63 |
Lebanon | €42.20 |
Saint Lucia | €17.55 |
Liechtenstein | €24.45 |
Sri Lanka | €51.63 |
Liberia | €63.02 |
Lesotho | €63.02 |
Lithuania | €18.46 |
Luxembourg | €18.21 |
Latvia | €18.46 |
Libya | €42.20 |
Morocco | €42.20 |
Monaco | €18.21 |
Moldova (Republic of) | €18.46 |
Montenegro | €24.67 |
Saint Martin (French part) | €17.55 |
Madagascar | €63.02 |
Marshall Islands | €63.02 |
Macedonia (the former Yugoslav Republic of) | €24.67 |
Mali | €63.02 |
Myanmar | €51.63 |
Mongolia | €51.63 |
Macao | €17.55 |
Northern Mariana Islands | €17.55 |
Martinique | €63.02 |
Mauritania | €63.02 |
Montserrat | €63.02 |
Malta | €18.46 |
Mauritius | €63.02 |
Maldives | €51.63 |
Malawi | €63.02 |
Mexico | €51.63 |
Malaysia | €51.63 |
Mozambique | €63.02 |
Namibia | €63.02 |
New Caledonia | €63.02 |
Niger | €63.02 |
Norfolk Island | €17.55 |
Nigeria | €63.02 |
Nicaragua | €63.02 |
Netherlands | €18.21 |
Norway | €24.67 |
Nepal | €51.63 |
Nauru | €63.02 |
Niue | €17.55 |
New Zealand | €63.02 |
Oman | €51.63 |
Panama | €63.02 |
Peru | €63.02 |
French Polynesia | €63.02 |
Papua New Guinea | €51.63 |
Philippines | €51.63 |
Pakistan | €51.63 |
Poland | €18.21 |
Saint Pierre and Miquelon | €63.02 |
Pitcairn | €63.02 |
Puerto Rico | €17.55 |
Palestine, State of | €17.55 |
Portugal | €18.46 |
Palau | €63.02 |
Paraguay | €63.02 |
Qatar | €51.63 |
Réunion | €63.02 |
Romania | €18.46 |
Serbia | €24.67 |
Russian Federation | €42.20 |
Rwanda | €63.02 |
Saudi Arabia | €51.63 |
Solomon Islands | €63.02 |
Seychelles | €63.02 |
Sudan | €63.02 |
Sweden | €17.55 |
Singapore | €51.63 |
Saint Helena, Ascension and Tristan da Cunha | €63.02 |
Slovenia | €17.55 |
Svalbard and Jan Mayen | €17.55 |
Slovakia | €17.55 |
Sierra Leone | €63.02 |
San Marino | €17.55 |
Senegal | €63.02 |
Somalia | €63.02 |
Suriname | €63.02 |
South Sudan | €63.02 |
Sao Tome and Principe | €63.02 |
El Salvador | €17.55 |
Sint Maarten (Dutch part) | €17.55 |
Syrian Arab Republic | €42.20 |
Swaziland | €63.02 |
Turks and Caicos Islands | €63.02 |
Chad | €63.02 |
French Southern Territories | €17.55 |
Togo | €17.55 |
Thailand | €51.63 |
Tajikistan | €51.63 |
Tokelau | €17.55 |
Timor-Leste | €17.55 |
Turkmenistan | €51.63 |
Tunisia | €42.20 |
Tonga | €63.02 |
Turkey | €42.20 |
Trinidad and Tobago | €63.02 |
Tuvalu | €63.02 |
Taiwan | €51.63 |
Tanzania, United Republic of | €63.02 |
Ukraine | €24.67 |
Uganda | €63.02 |
United States Minor Outlying Islands | €17.55 |
Vereinigte Staaten von Amerika | €51.63 |
Uruguay | €63.02 |
Uzbekistan | €51.63 |
Vatican City | €17.55 |
Saint Vincent and the Grenadines | €17.55 |
Venezuela (Bolivarian Republic of) | €63.02 |
Virgin Islands (British) | €63.02 |
Virgin Islands (U.S.) | €17.55 |
Viet Nam | €51.63 |
Vanuatu | €63.02 |
Wallis and Futuna | €63.02 |
Samoa | €63.02 |
Republic of Kosovo | €17.55 |
Yemen | €51.63 |
Mayotte | €63.02 |
South Africa | €63.02 |
Zambia | €63.02 |
Zimbabwe | €63.02 |

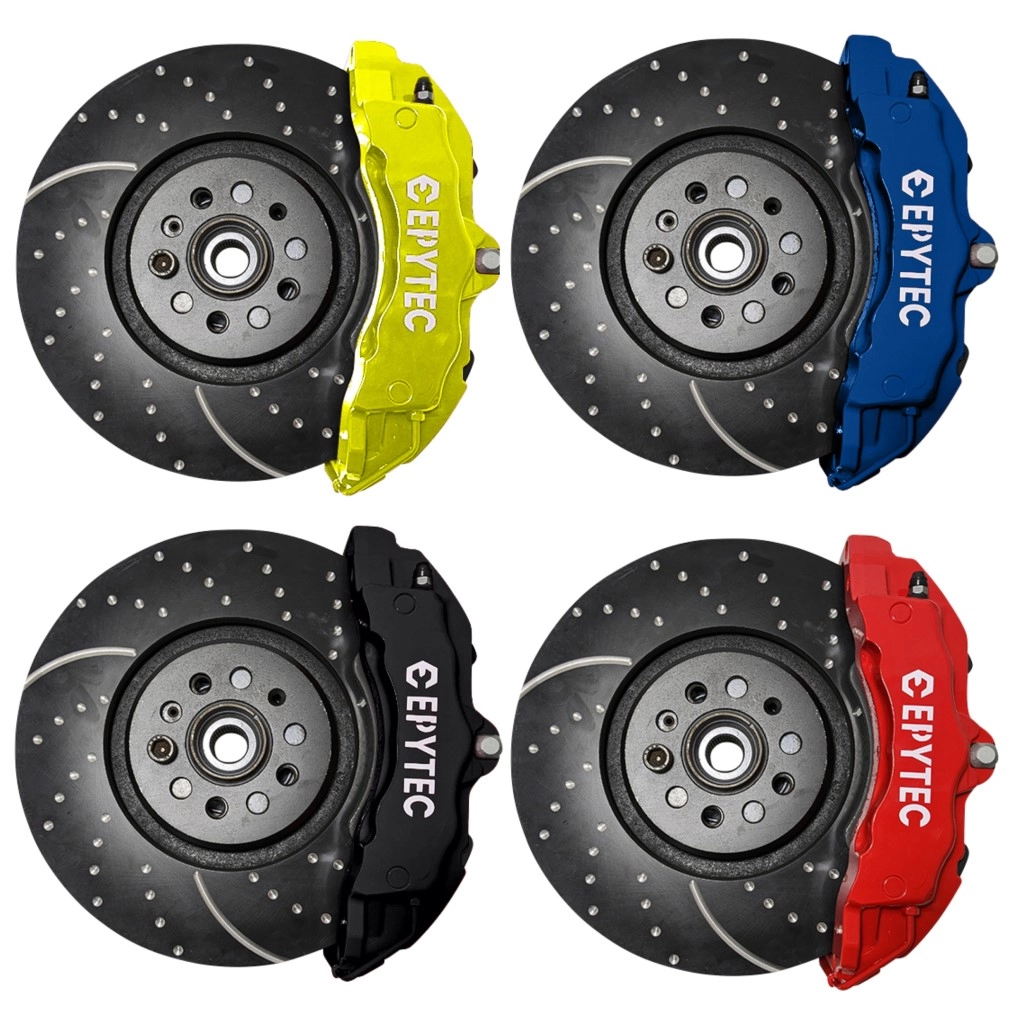

Brake caliper adapter, front axle, for conversion to Porsche or Brembo 6-piston brake caliper ZR17, combined with the R32 brake discs 334x32mm.
The brake calipers are installed on models Porsche Cayenne, VW Touareg and Q7.
Suitable for all models of VW / Audi with front axle Vorderachse of front-drive-wheel:
- Audi A3 (8L)
- Audi S3 (8L)
- Audi TT (8N)
- VW Golf MK4
- VW Bora
- VW Beetle
- VW Polo (9N)
- VW Polo 6R WRC
- Seat Ibiza
- Seat Leon
Important!:
The adapter is only suitable for cast wishbones OE: 8N0 407 151 A.
These are installed as standard in the Golf 4 R32, Audi S3 8L, and Audi TT 8N 1.8T and the Quattro models. All other models of the Golf 4, Audi A3 series must be converted to this cast wishbone, otherwise no more steering is possible. The stabilizer OE: 1J0411305AF must also be converted in vehicles that do not have the cast wishbone installed as standard.
We have the right wishbones in the matching accessories and can be ordered directly.
The problem with the wishbone only affects conversions to Z18 and Z17 calipers. With all other adapters that we still have, such as conversion to 4-piston Porsche Boxter, Audi TTRS or 6-piston Porsche Panamera brake calipers for the Golf 4 Audi A3 series, the adapters fit with all wishbones.
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:

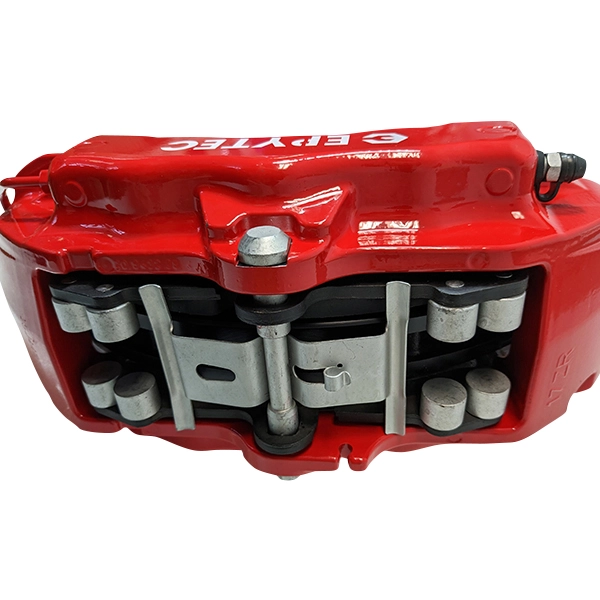

- Brake caliper: Porsche Cayenne or VW Tuareg (17 inch variant), reference 7L6 615 123 T + 7L6 615 124 T
- Brake pads are used by the 18 inch calipers, item-number: 7L0 698 151 J
- Brake disc: Golf 4 R32 334x32mm, reference 1J0 615 301AA + 1J0 615 302 A
Delivery:

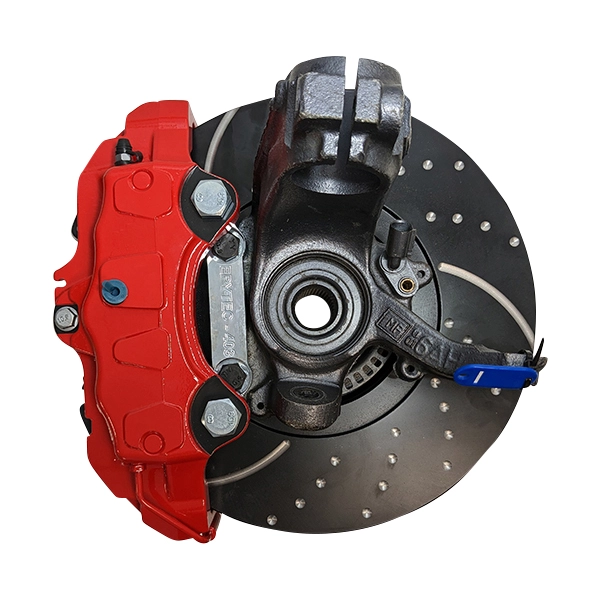

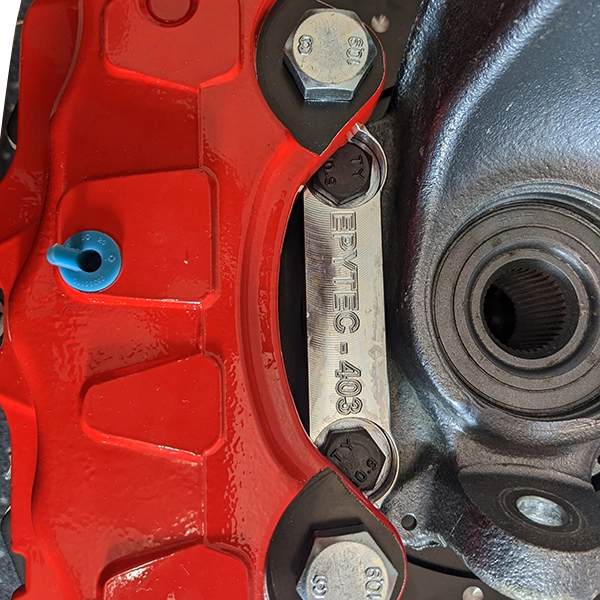

- 2x brake caliper adapters (see pictures)/li>
- high-strength mounting screws
- material certificate
- Stress analysis / FEM calculation for entry

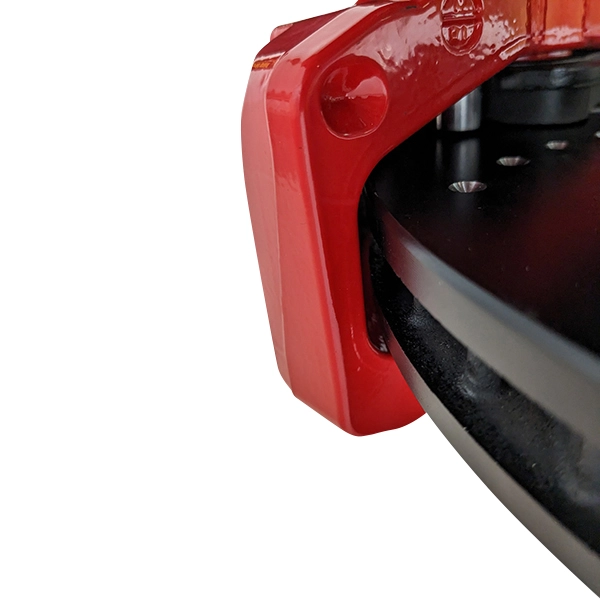

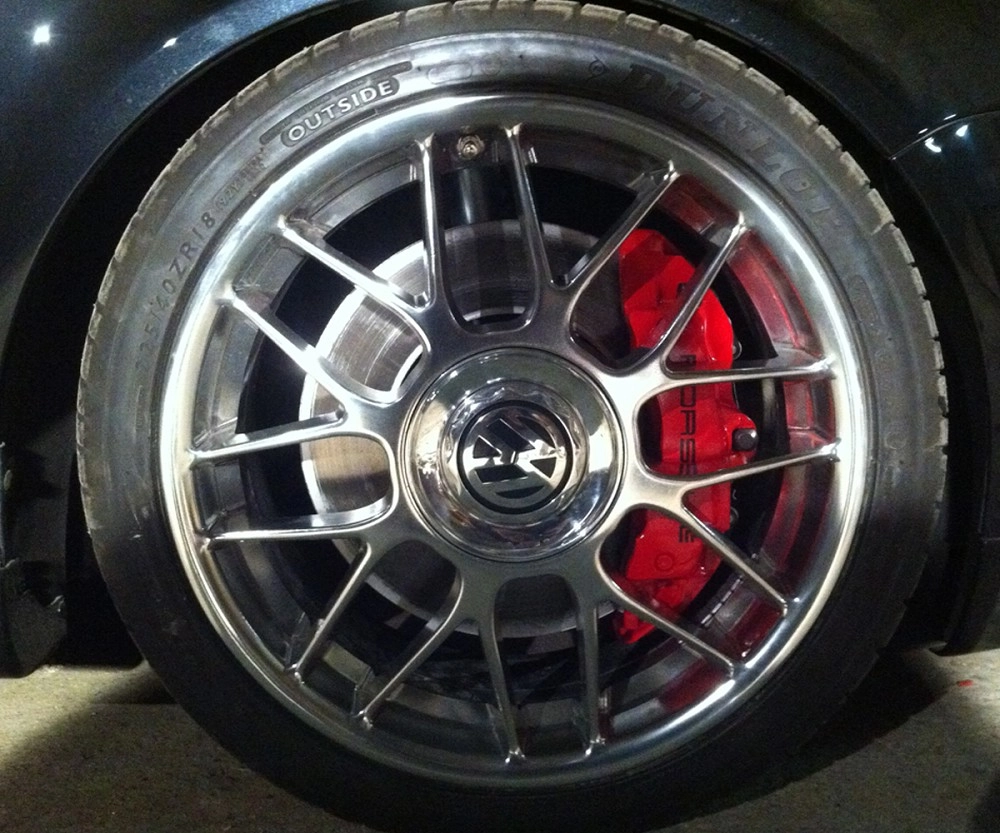

- Template to check whether the brake system fits under your rim
- installation instructions
We also have suitable adapters to convert to ZR18 6-piston calipers.
Tips, information and notes:
- For better ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.

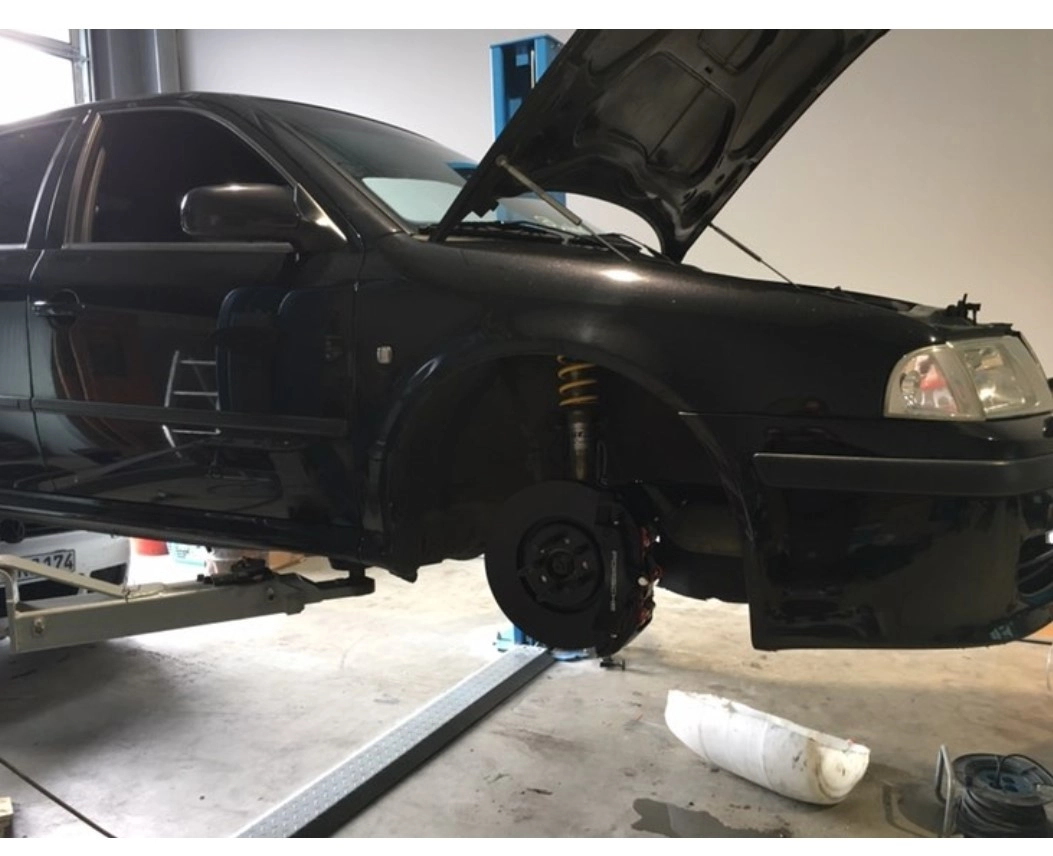

- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, where you can assemble and then install them according to your requirements.click here for the steel braided line configurator >>configure steel braided brake line<<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
26 of 26 reviews
4.92 out of 5 stars
Login
1 May 2024 11:32
Stanley V
- excellent service.
15 October 2023 21:57
Guy G
Top qualität , past perfeckt und funktioniert 🤘🏻
15 October 2023 21:57
Guy G
Top qualität , past perfeckt und funktioniert 🤘🏻
29 June 2023 17:58
Nick V
Producten zijn zoals op de fotos Pasvorm is super ! 👍
29 June 2023 15:44
Nick V
Producten zijn zoals op de fotos Pasvorm is super ! 👍
29 June 2023 15:44
Nick V
Producten zijn zoals op de fotos Pasvorm is super ! 👍
1 August 2022 10:16
Frank M
Passgenau, schnelle Lieferung und der Service ist nicht zu verbessern. Habe schon viele Teile bestellt und bin immer wieder vom Service und der Qualität begeistert. Freue mich auf weitere gemeinsame Projekte.
31 July 2022 21:24
Frank M
Passgenau, schnelle Lieferung und der Service ist nicht zu verbessern. Habe schon viele Teile bestellt und bin immer wieder vom Service und der Qualität begeistert. Freue mich auf weitere gemeinsame Projekte.
6 July 2022 17:16
Maikel B
Cales d'adaptation pour le montage d'étrier Z17 sur une golf 4 R32. Nous avons choisis ces cales avec l'aide des collaborateurs de Epytec, à la suite d'une mauvaise commande de notre part ( pour étrier Z18 ) Nous avons donc refait une commande urgente, et les articles sont arrivés très rapidement ! C'est parfait pour nous !
22 June 2022 21:28
Tomasz C
Top
-
Audi|A3|1.6|8L1
-
Audi|A3|1.8 T quattro|8L1
-
Audi|A3|1.8 T|8L1
-
Audi|A3|1.8|8L1
-
Audi|A3|1.9 TDI quattro|8L1
-
Audi|A3|1.9 TDI|8L1
-
Audi|A3|S3 quattro|8L1
-
Audi|TT Roadster|1.8 T quattro|8N9
-
Audi|TT Roadster|1.8 T|8N9
-
Audi|TT Roadster|3.2 VR6 quattro|8N9
-
Audi|TT|1.8 T quattro|8N3
-
Audi|TT|1.8 T|8N3
-
Audi|TT|3.2 VR6 quattro|8N3
-
Seat|Leon|1.4 16V|1M1
-
Seat|Leon|1.6|1M1
-
Seat|Leon|1.8 20V|1M1
-
Seat|Leon|1.8 T Cupra R|1M1
-
Seat|Leon|1.9 SDi|1M1
-
Seat|Leon|1.9 TDi Syncro|1M1
-
Seat|Leon|1.9 TDi|1M1
-
Seat|Leon|2.8 Cupra 4|1M1
-
Seat|Toledo II|1.9 TDi|1M2
-
Skoda|Octavia I|1.8 T 4x4|1U2
-
Skoda|Roomster|1.2|5J
-
Skoda|Roomster|1.4 TDi|5J
-
Skoda|Roomster|1.9 TDi|5J
-
VW|Bora Variant|1.4 16V|1J6
-
VW|Bora Variant|1.6 16V|1J6
-
VW|Bora Variant|1.6 FSI|1J6
-
VW|Bora Variant|1.6|1J6
-
VW|Bora Variant|1.8 T|1J6
-
VW|Bora Variant|1.9 TDI|1J6
-
VW|Bora Variant|2.0|1J6
-
VW|Bora Variant|2.8 VR6|1J6
-
VW|Bora|1.4 16V|1J2
-
VW|Bora|1.6 16V|1J2
-
VW|Bora|1.6 FSI|1J2
-
VW|Bora|1.6|1J2
-
VW|Bora|1.8|1J2
-
VW|Bora|1.9 SDI|1J2
-
VW|Bora|1.9 TDI|1J2
-
VW|Bora|2.0|1J2
-
VW|Golf IV Variant|1.4 16V|1J5
-
VW|Golf IV Variant|1.6 16V|1J5
-
VW|Golf IV Variant|1.6 FSI|1J5
-
VW|Golf IV Variant|1.6|1J5
-
VW|Golf IV Variant|1.9 SDI|1J5
-
VW|Golf IV Variant|1.9 TDI|1J5
-
VW|Golf IV Variant|2.0 Bi-Fuel|1J5
-
VW|Golf IV Variant|2.0|1J5
-
VW|Golf IV|1.4 16V|1J1
-
VW|Golf IV|1.6 16V|1J1
-
VW|Golf IV|1.6 FSI|1J1
-
VW|Golf IV|1.6|1J1
-
VW|Golf IV|1.8 4motion|1J1
-
VW|Golf IV|1.8 T GTI|1J1
-
VW|Golf IV|1.8 T|1J1
-
VW|Golf IV|1.8|1J1
-
VW|Golf IV|1.9 SDI|1J1
-
VW|Golf IV|1.9 TDI 4motion|1J1
-
VW|Golf IV|1.9 TDI|1J1
-
VW|Golf IV|2.0 4motion|1J1
-
VW|Golf IV|2.0|1J1
-
VW|Golf IV|2.3 V5 4motion|1J1
-
VW|Golf IV|2.3 V5|1J1
-
VW|Golf IV|2.8 V6 4motion|1J1
-
VW|Golf IV|3.2 R32 4motion|1J1
-
VW|New Beetle Cabriolet|1.4|1Y7
-
VW|New Beetle Cabriolet|1.6|1Y7
-
VW|New Beetle Cabriolet|1.8 T|1Y7
-
VW|New Beetle Cabriolet|1.9 TDI|1Y7
-
VW|New Beetle Cabriolet|2.0|1Y7
-
VW|New Beetle Cabriolet|2.5|1Y7
-
VW|New Beetle|1.4|1C1, 9C1
-
VW|New Beetle|1.6|1C1, 9C1
-
VW|New Beetle|1.8 T|1C1, 9C1
-
VW|New Beetle|1.9 TDI|1C1, 9C1
-
VW|New Beetle|2.0|1C1, 9C1
-
VW|New Beetle|2.3 V5|1C1, 9C1
-
VW|New Beetle|2.5|1C1, 9C1
-
VW|New Beetle|RSI 3.2 4motion|1C1, 9C1
-
VW|Polo|2.0 R WRC|6C1, 6R1
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
Passendes Zubehör
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 1-piston 1J0615425D / 1J0615426D R32 / S3 brake caliper
- ✓ rear axle
- ✓ 256x22 8L0615601 VW / Audi brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C R32 / S3 brake caliper
- ✓ rear axle
- ✓ Desired color can be selected
- ✓ ZR17 / ZL17 Cayenne brake calipers
- ✓ 95535142130 / 95535142131 / 95535142132 / 95535142133 / 955.351.421.33 95535142230 / 95535142231 / 95535142232 / 95535142233 / 955.351.422.33 7L6615105AQ / 7L6615123H / 7L6615123M / 7L6615123P / 7L6615123T
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 334x32
- ✓ 65mm centering
- ✓ 35mm height
- ✓ 35% better braking performance
- ✓ 75% more service life
- ✓ low dust generation
- ✓ Registration-free
- ✓ Yellowstuff sports surface
- ✓ temperature up to 900°C
- ✓ 334x32
- ✓ 65mm centering
- ✓ 35mm height
- ✓ 334x32
- ✓ 65mm centering
- ✓ 35mm height
- ✓ 334x32
- ✓ 65mm centering
- ✓ 35mm height
- ✓ optimized paste for brake systems
- ✓ correct viscosity
- ✓ no squeaking
- ✓ Racing brake fluid
- ✓ Reduction in brake fading
- ✓ improved pedal feel
- ✓ Registration-free
- ✓ Greenstuff sports surface
- ✓ temperature up to 650°C
- ✓ 334x32
- ✓ 65mm centering
- ✓ 35mm height
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 996352421 / 996352422 Audi S3 8L VW Golf R32 brake caliper
- ✓ rear axle
- ✓ 330x22 4F0615601B Audi A6 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 335x22 4E0615601L VW Phaeton brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C VW Golf 4 R32 / Audi S3
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C VW Golf 4 R32 / Audi S3 brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 330x22 4F0615601B Audi A6 brake disc
- ✓ 4-piston 955352421 / 95535242 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ Registration-free
- ✓ Redstuff ceramic covering
- ✓ temperature up to 750°C
- ✓ Reinforced and bend-proof
- ✓ Longer service life
- ✓ TÜV tested
- ✓ Thread M14x1.5
- ✓ ensures comfortable installation of your upgrade brake
- ✓ makes work easier
- ✓ Significantly higher boiling point
- ✓ Better pedal feel
- ✓ Suitable for the race track
- ✓ 1J0411305AF
- ✓ OEM quality
- ✓ Golf 4 R32
- ✓ rim assembly
- ✓ M14x1.5 on the wheel hub
- ✓ precise centering
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle

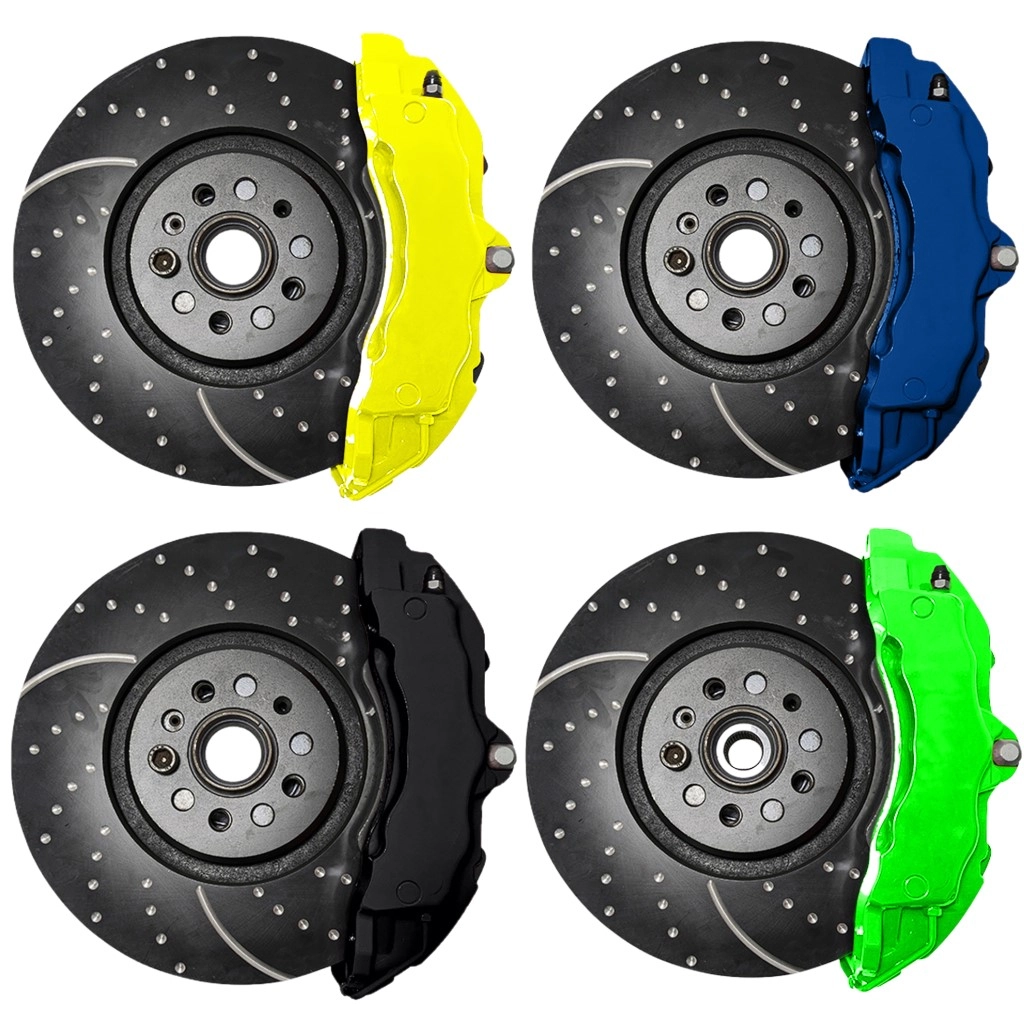

- ✓ Desired color can be selected
- ✓ ZR17 / ZL17 Cayenne brake calipers
- ✓ 95535142130 / 95535142131 / 95535142132 / 95535142133 / 955.351.421.33 95535142230 / 95535142231 / 95535142232 / 95535142233 / 955.351.422.33 7L6615105AQ / 7L6615123H / 7L6615123M / 7L6615123P / 7L6615123T
