Steel Braided Brake Line VW T3 Bus Transporter Girling Brake Conversion
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
£75.84*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

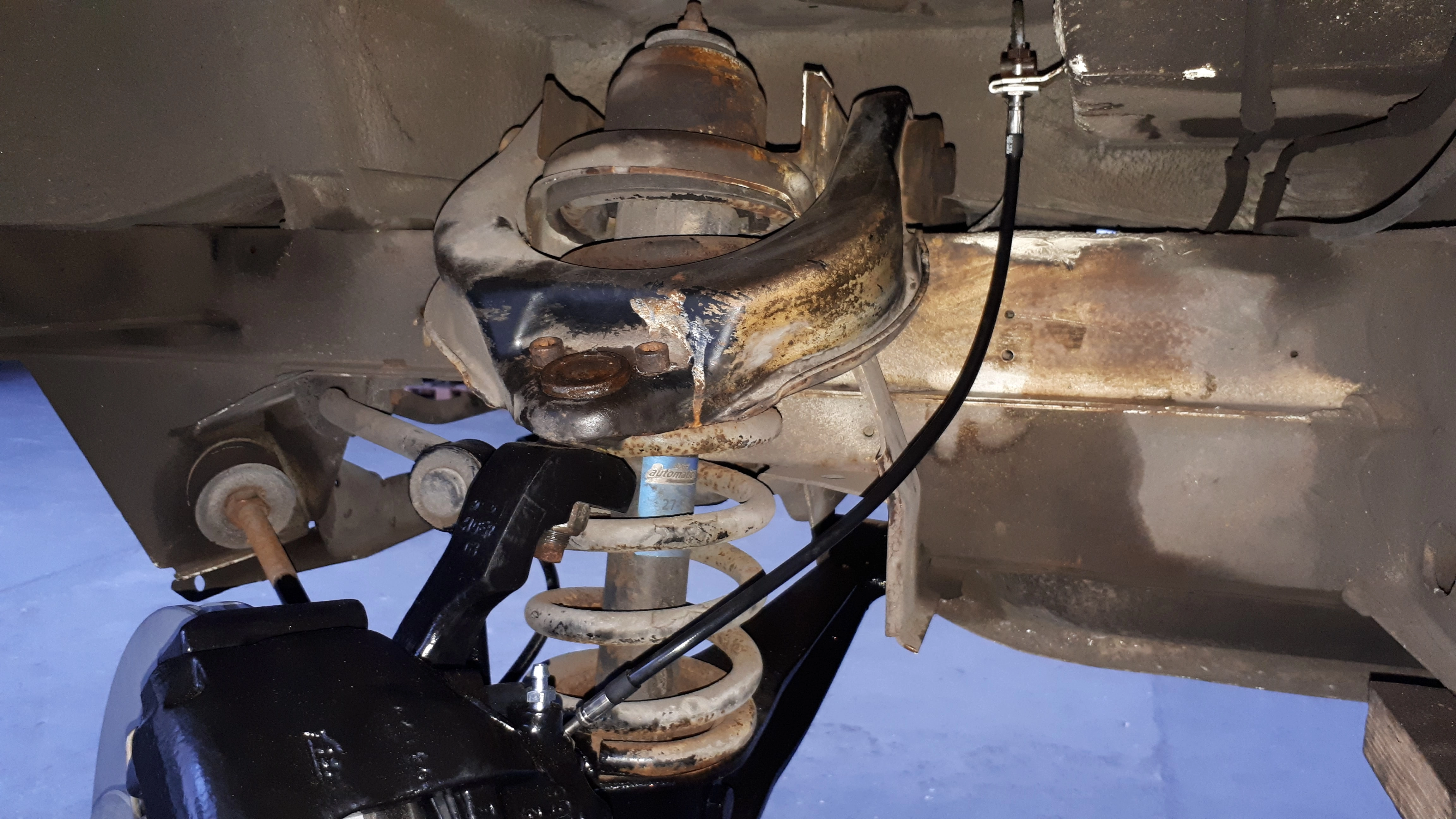

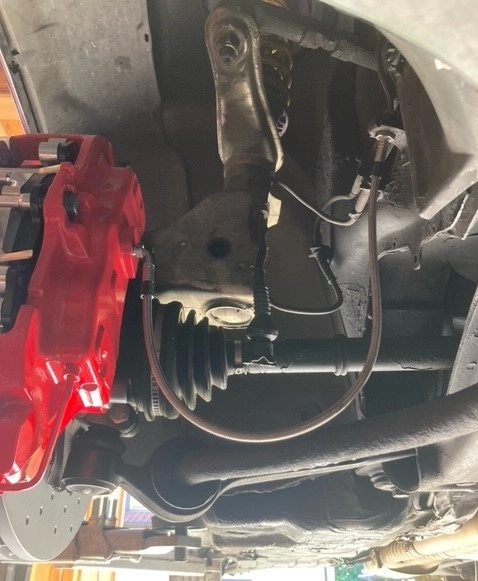

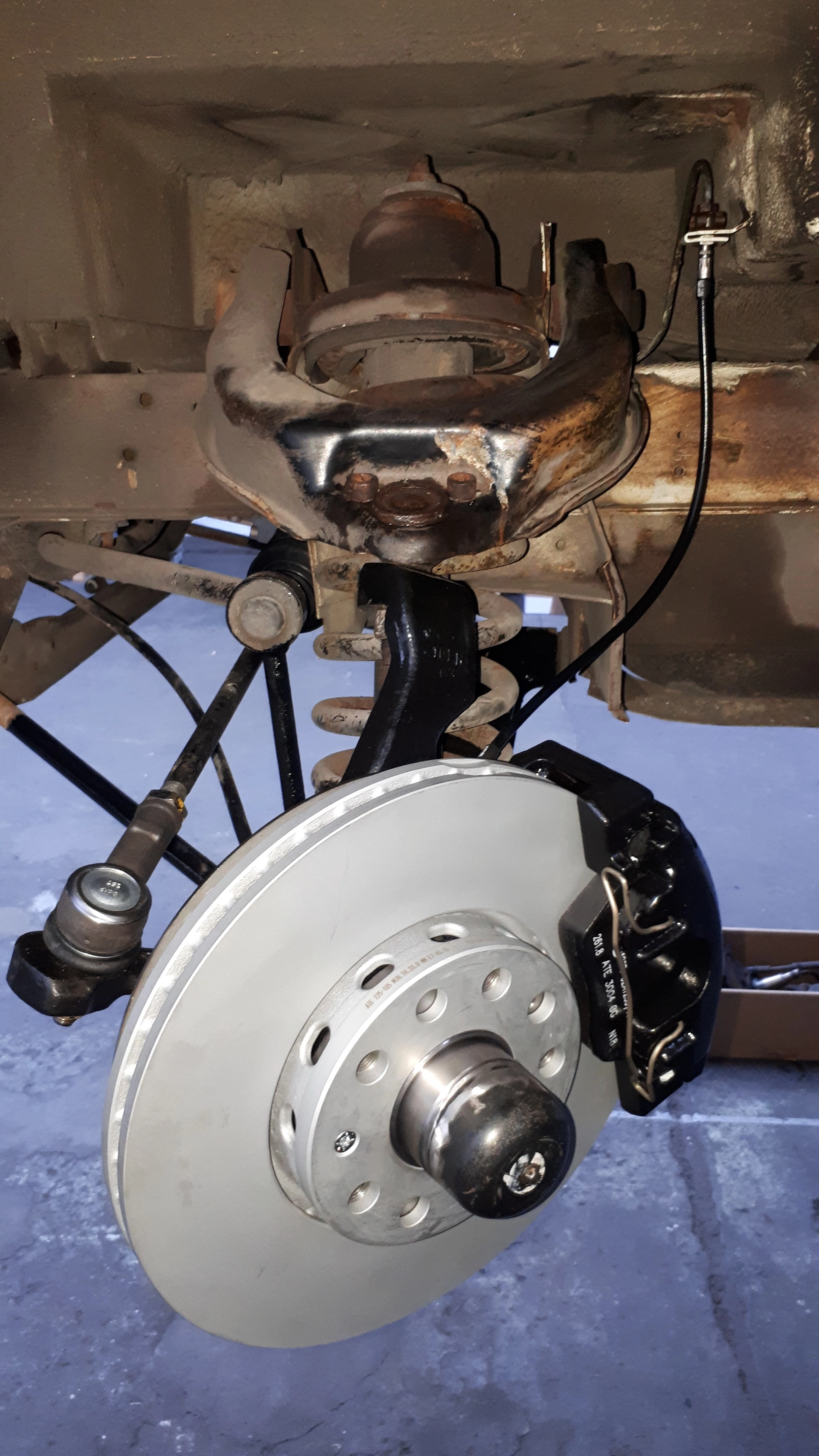

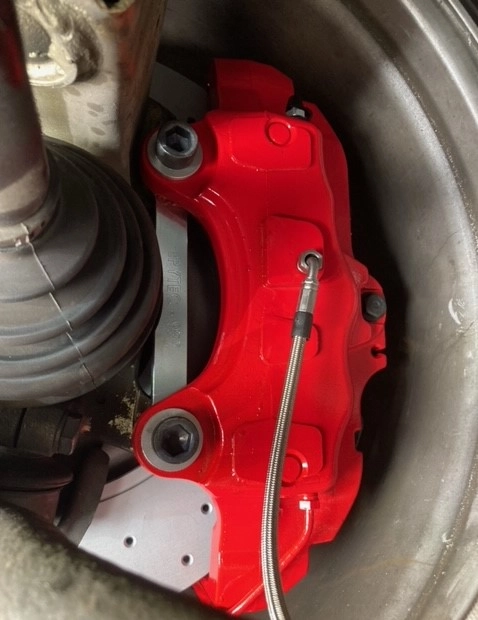

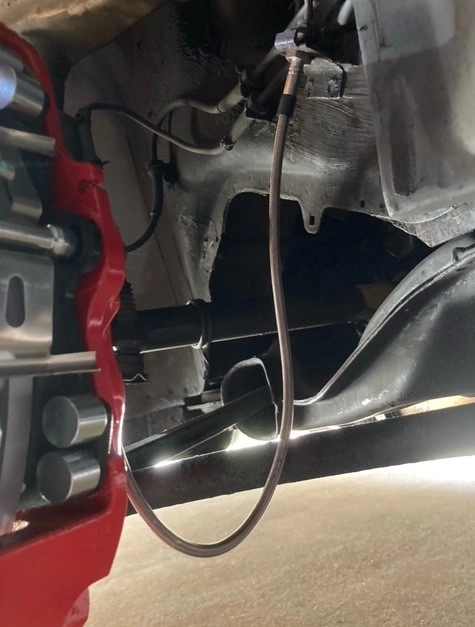

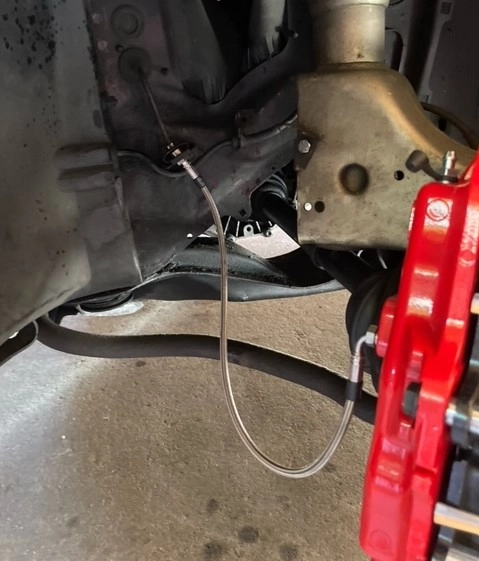

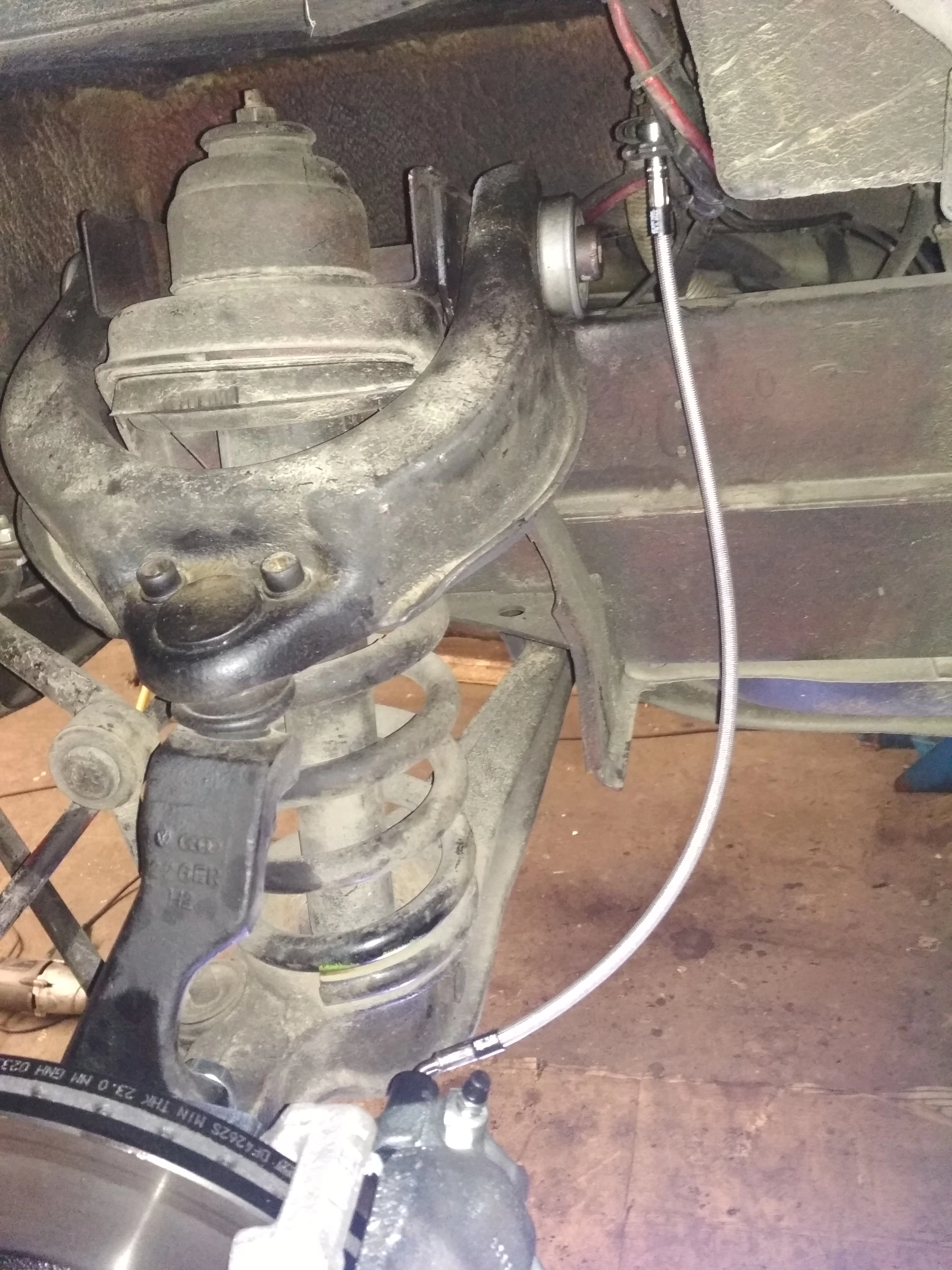

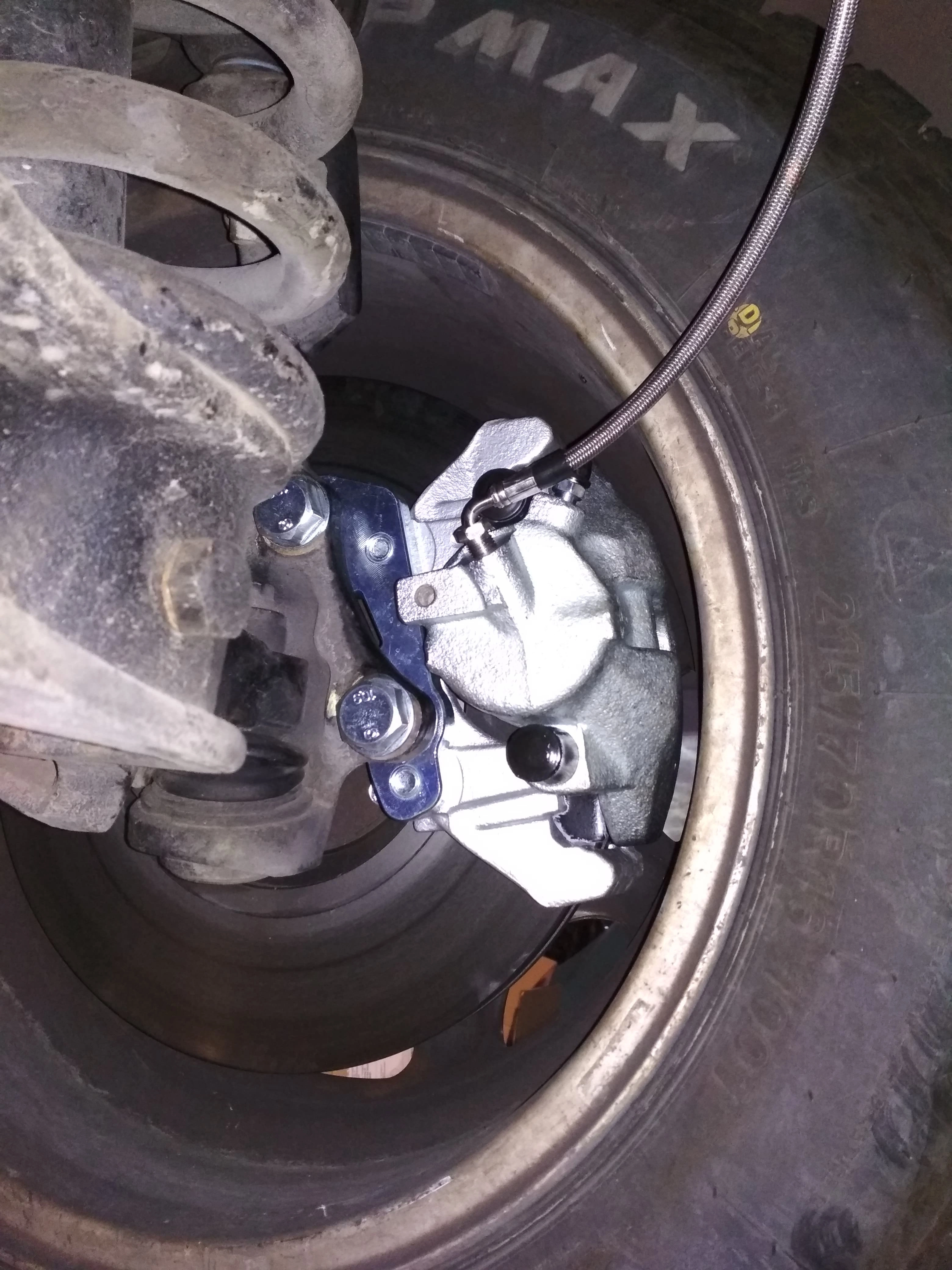

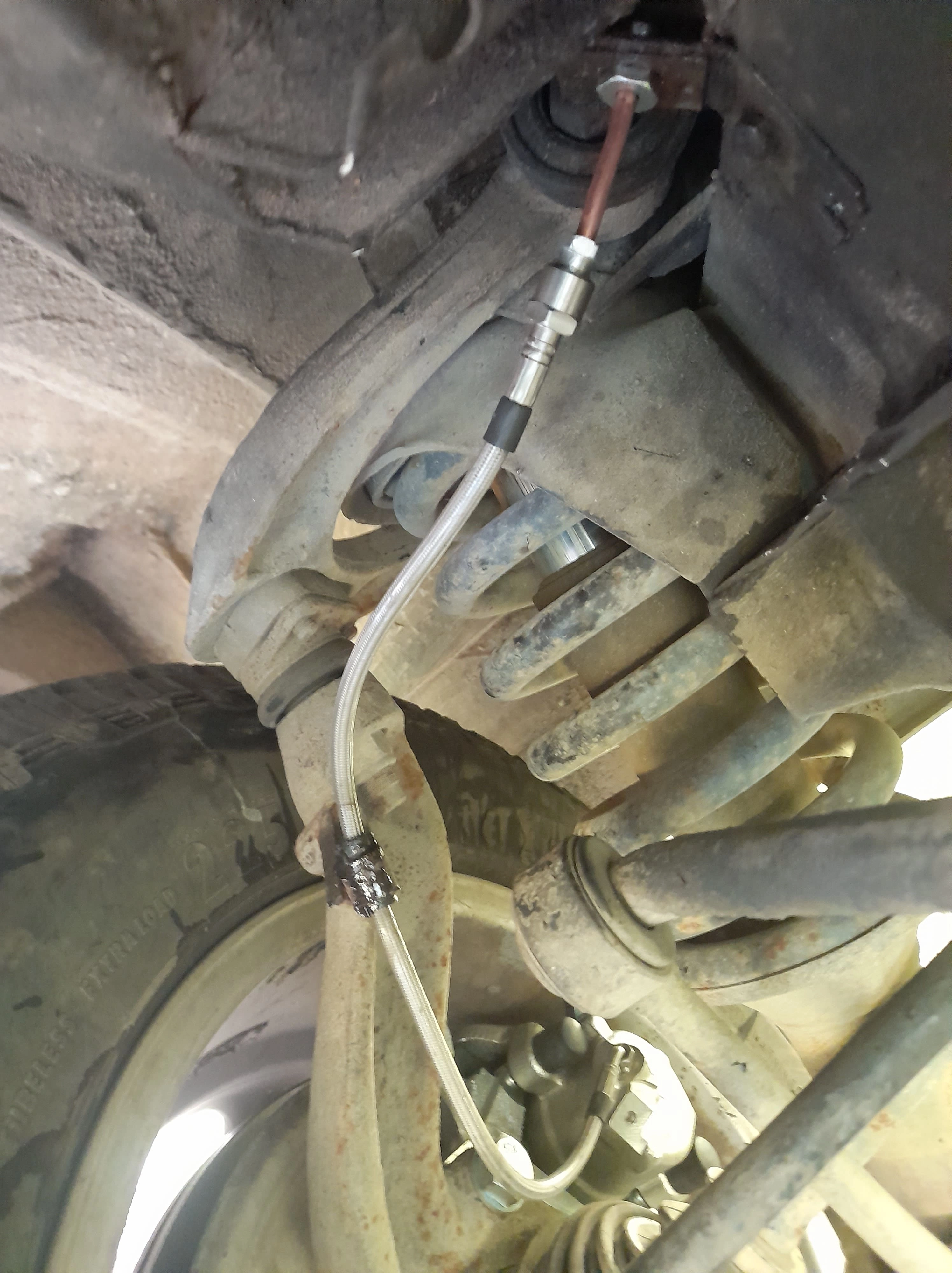

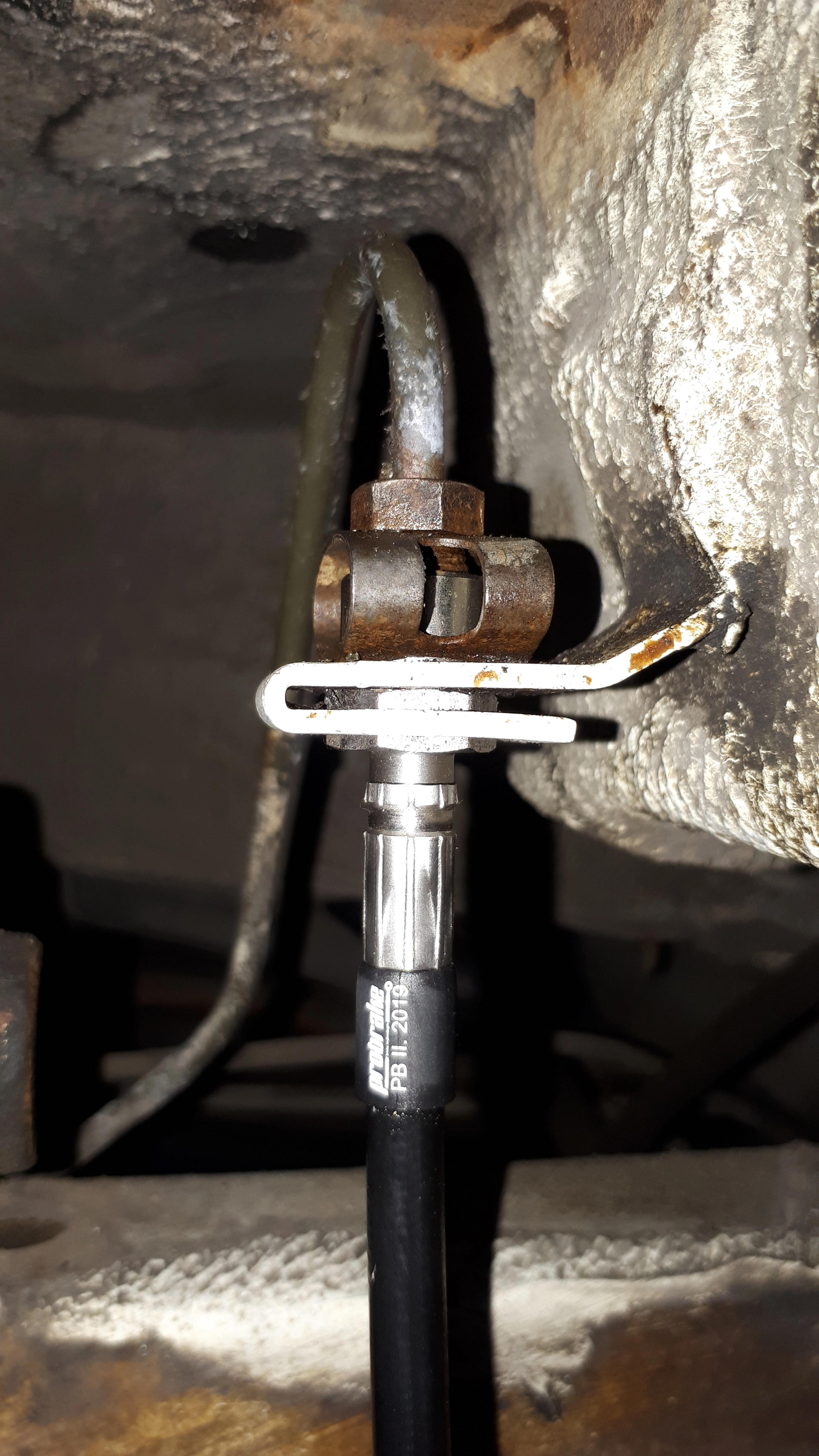

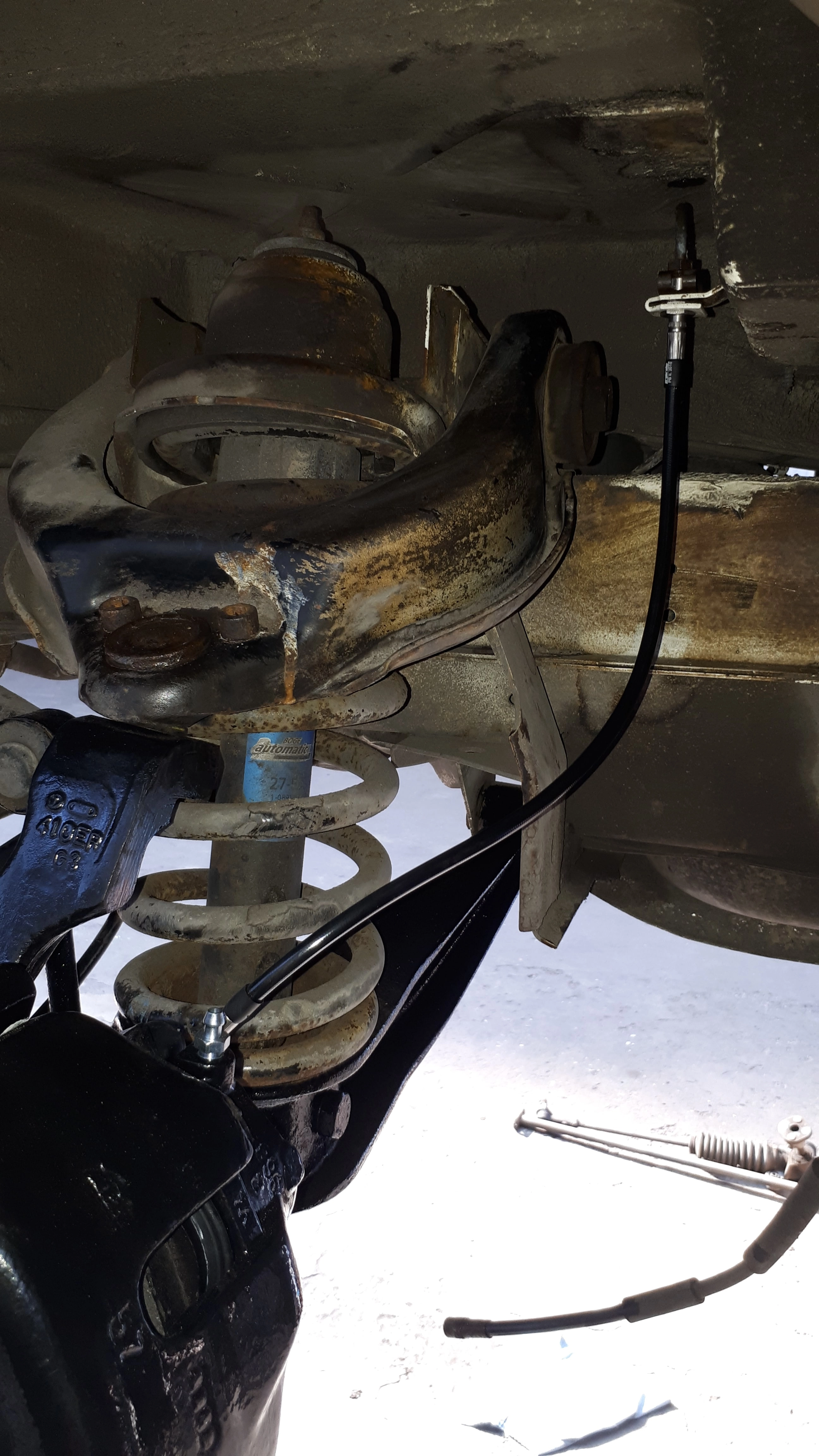

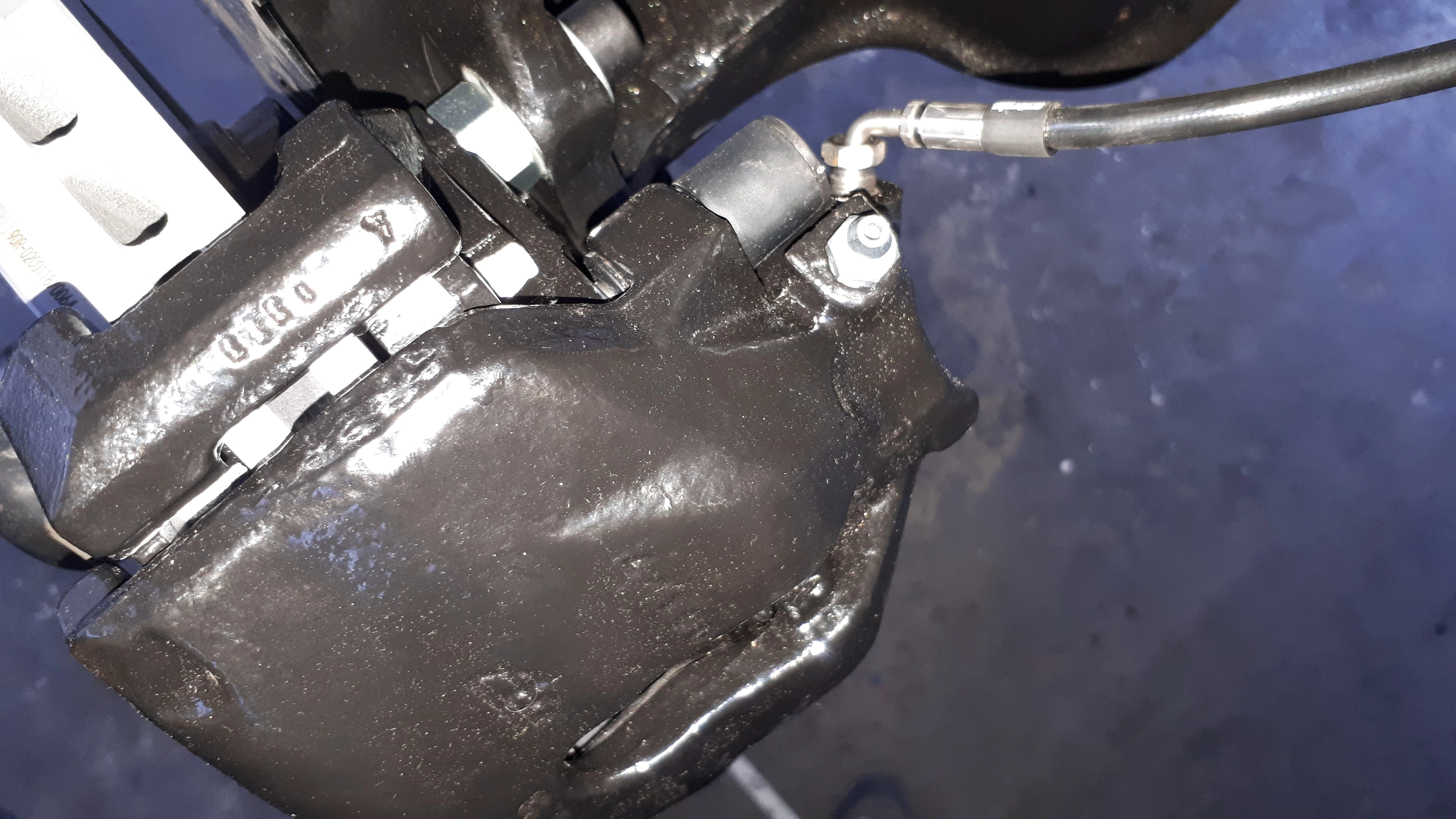

Longer steel braided brake line / steel flexible brake hoses, including material certificate, for conversion to Girling 38-57 brake caliper, for example in models VW T3 transporter/bus.
Suitable for the following models:
- VW T3 bus/transporter
- VW T3 utility
Advantages compared to original brake lines:
- no loss of pressure when braking. Exact pressure point
- easy assembly. The original line is simply replaced by the braided steel line
- no swelling as with rubber lines
- cost savings, because the braided steel lines do not need to be changed every 3 or 5 years
- shorter braking
- protection against the rodents
- including ABE (General Operating Permit), no registration necessary
- great optics
Technical data:
- length: 50 cm
- connection 1 M10x1 external thread bent
- connection 2 M10x1 internal thread straight
- sealing 90°. Our fittings are so-called hybrid, which means that every connection fits no matter whether concave and convex
Delivery:
- 2x steel braided brake lines VW T3 bus / transporter/ utility, etc
- material certificate
We also manufacture according to desired dimensions. With our steel braided lines configurator (click here), you can configure your steel braided brake line, according to your wishes. (Length, color and connections)
Login
3 July 2024 15:39
Christian B
Passt wunderbar und lässt sich einfach verbauen
20 December 2020 21:39
Annelore H
Super Qualität freundlicher Service
18 June 2025 17:46
Christian H
Die Schläuche haben einwandfrei gepasst 👍
25 December 2024 09:39
black-sammy-dog
danke ... super gelaufen
30 June 2025 23:20
renmuelle_19
Super gerne wieder
5 February 2025 19:36
Matthias B
Alles Super wie immer bei euch. Sehr zufrieden.
19 November 2021 08:34
Patrizio I
Hat super gepasst Weiter so
- Does the steel braided line also fit other vehicles?
Yes – basically the braided steel line can also fit many other vehicles if the connection data matches. In practice, many manufacturers use very similar thread sizes for brake line fittings, so using them across different models is often possible.
What really matters
To ensure the line fits securely and tightly, you need to match three main points:
Thread size / connection
The key factor is what thread your vehicle has at the connection points (e.g., at the fixed line connection or brake caliper).
This thread size must match the fittings of the line.
Sealing surface (concave or convex)
Often, the problem is not the thread, but the sealing shape on the counterpart:
concave (valley) or
convex (hill)
Our fittings are so-called “hybrid” connections. This means: Each connection is designed to reliably seal with both concave and convex sealing surfaces. This makes the line significantly more versatile.
Length and routing
You need to determine the required length suitable for your vehicle (ideally as described above: fully extend, simulate routing, check steering).
Only if the line is long enough and can be routed cleanly is it truly suitable.
How to quickly check if it fits
Determine the thread size on the vehicle (and compare it with the data of the line)
Measure the line length
Check the technical data in the product description – there you will find all the details about the line and the connections.
- Two lens gaskets were supplied with the Steelflex lines. Where exactly are these installed?
The 2 lens seals are not automatically always installed, but only when they are needed to compensate for the sealing cone on the respective counterpart. Background: Depending on the vehicle/connection, there are different flaring or sealing shapes – and that's exactly why the lenses are always provided as a precaution.
What are the lens seals for?
They serve as a compensating piece when the cone on the connection (counterpart) does not perfectly match the steel braided hose. This ensures that the connection seals cleanly.
Where are they used?
If needed, the lens seals are placed directly into the connection with internal thread – that is, into the “female” fitting on the vehicle/distributor/brake caliper, before you screw in the hose.
The hose presses the lens into its seat when tightened, thus creating the seal.When do you need them – and when not?
F flare (DIN/ISO cone, usually fits):
→ Lens seals are not needed.
The hose usually seals directly over the matching cone here.E flare:
→ Lens seals must be used.
Simply place it into the internal thread, then screw in the hose and tighten as usual.
Installation note
The installation direction does not matter – you can install the lens either way, it makes no difference.
