VW Golf MK4 Bora 1,8T Polo Audi A3 Brake Caliper Adapter Porsche Cayenne Brake Rear Axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
£444.54*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

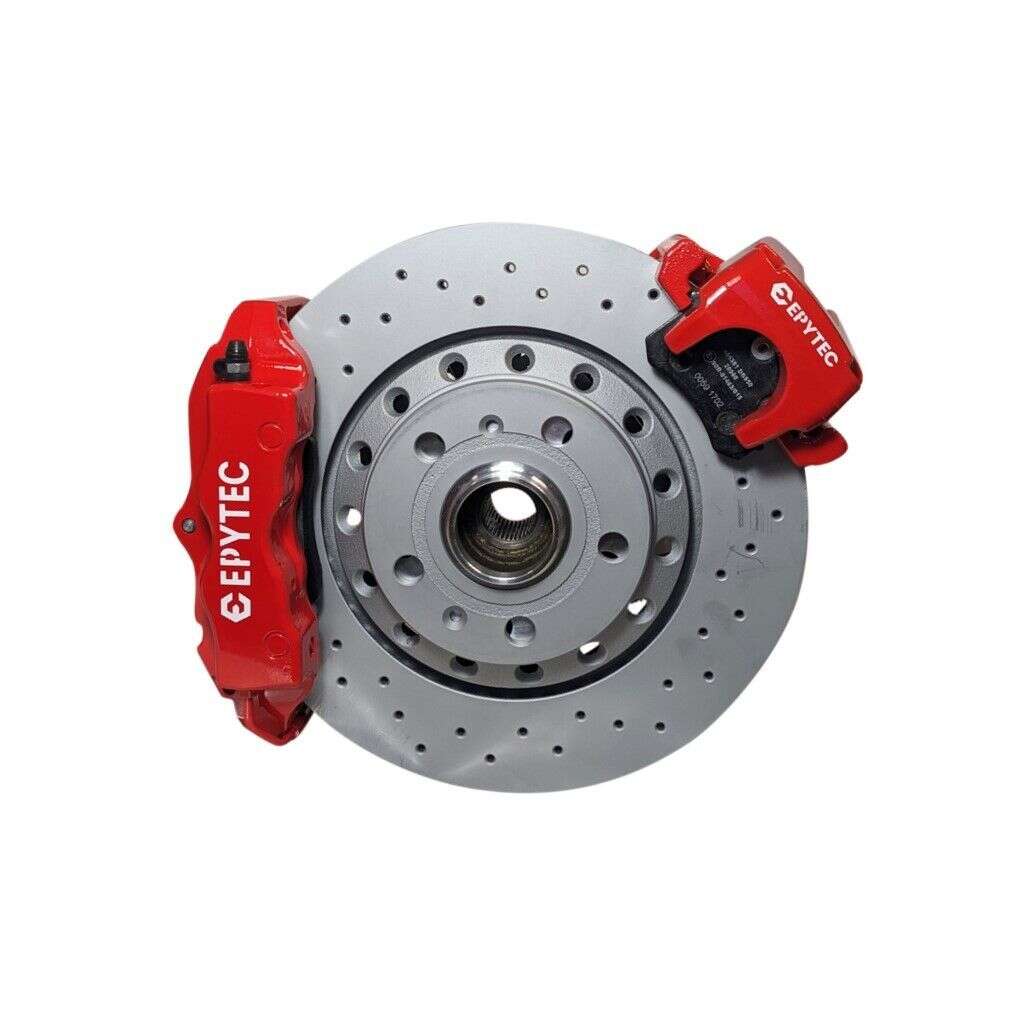

Brake caliper adapter, rear axle, on all 4WD models Golf MK4 Bora Vento Audi A3, etc, for conversion to Porsche Cayenne caliper, combined with the 310x22 mm VW Phaeton brake discs, rear.

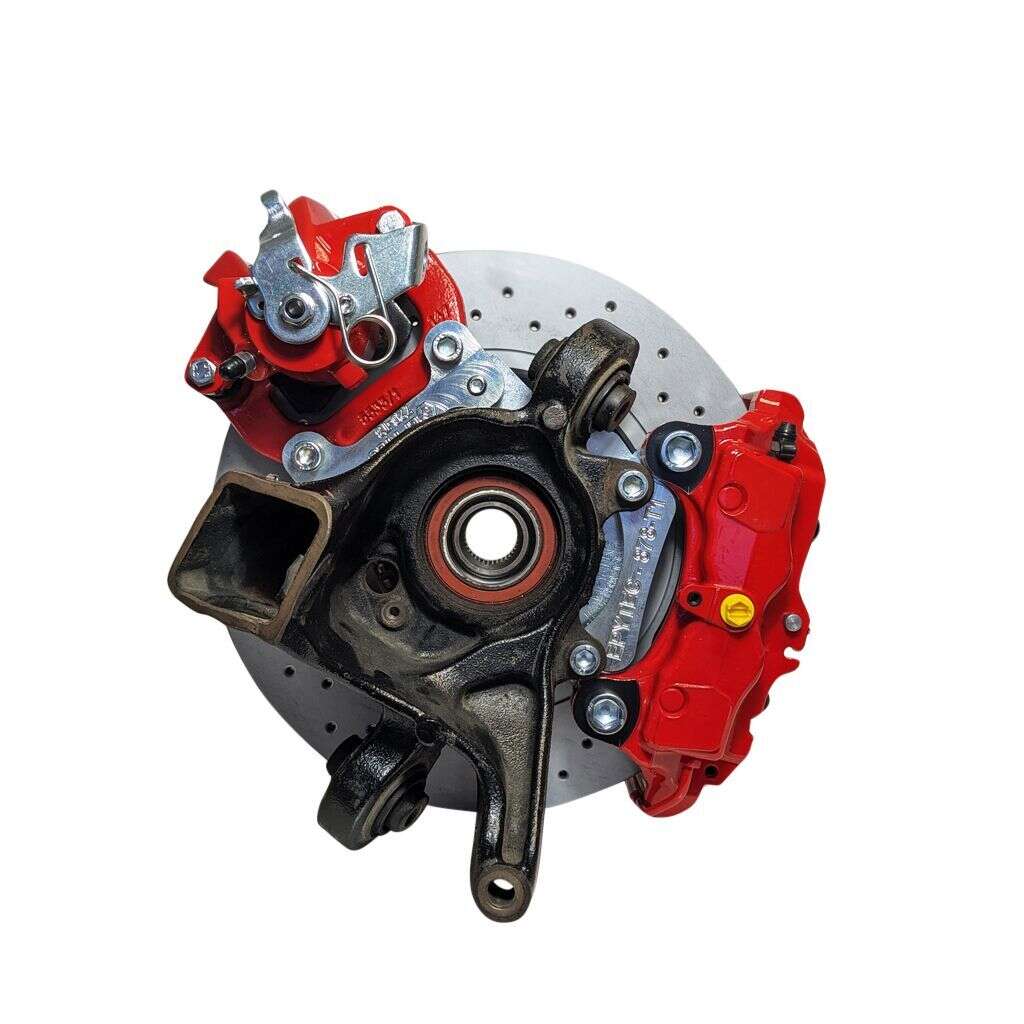

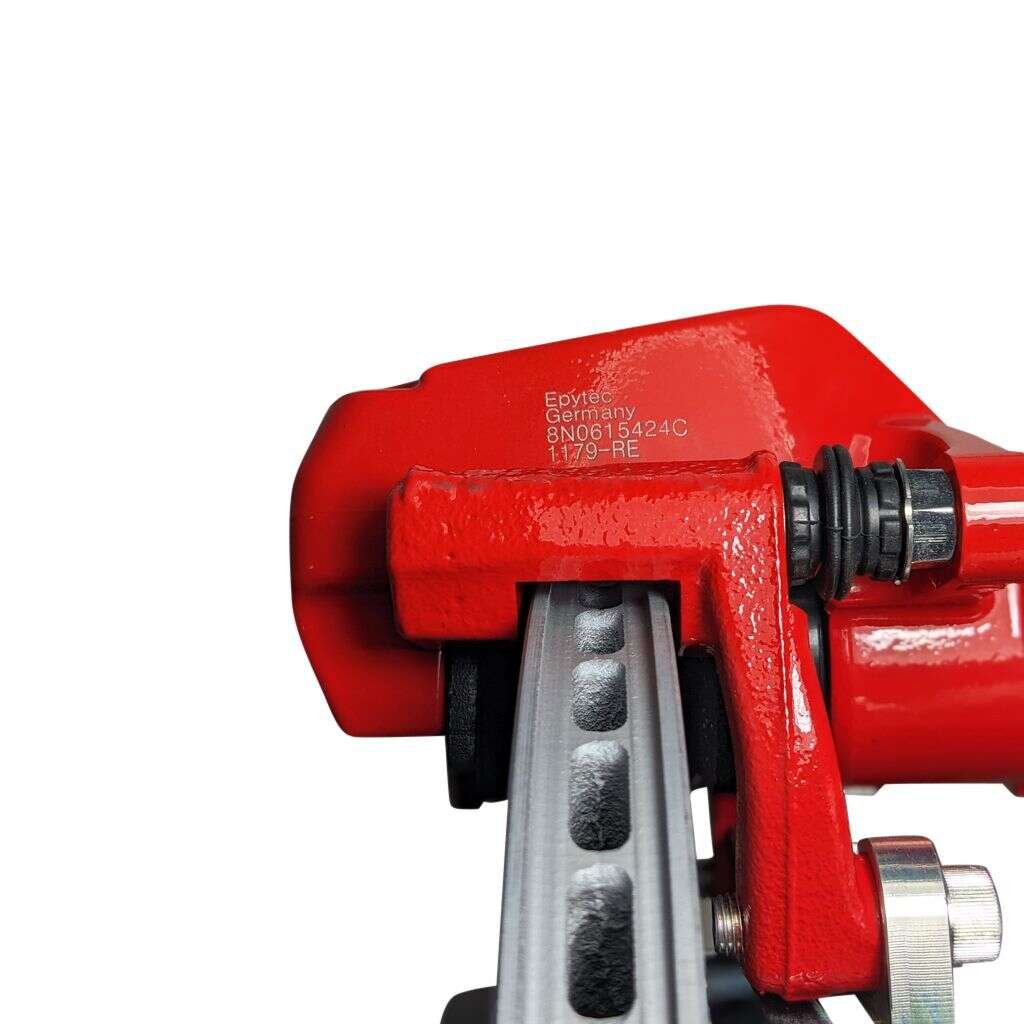

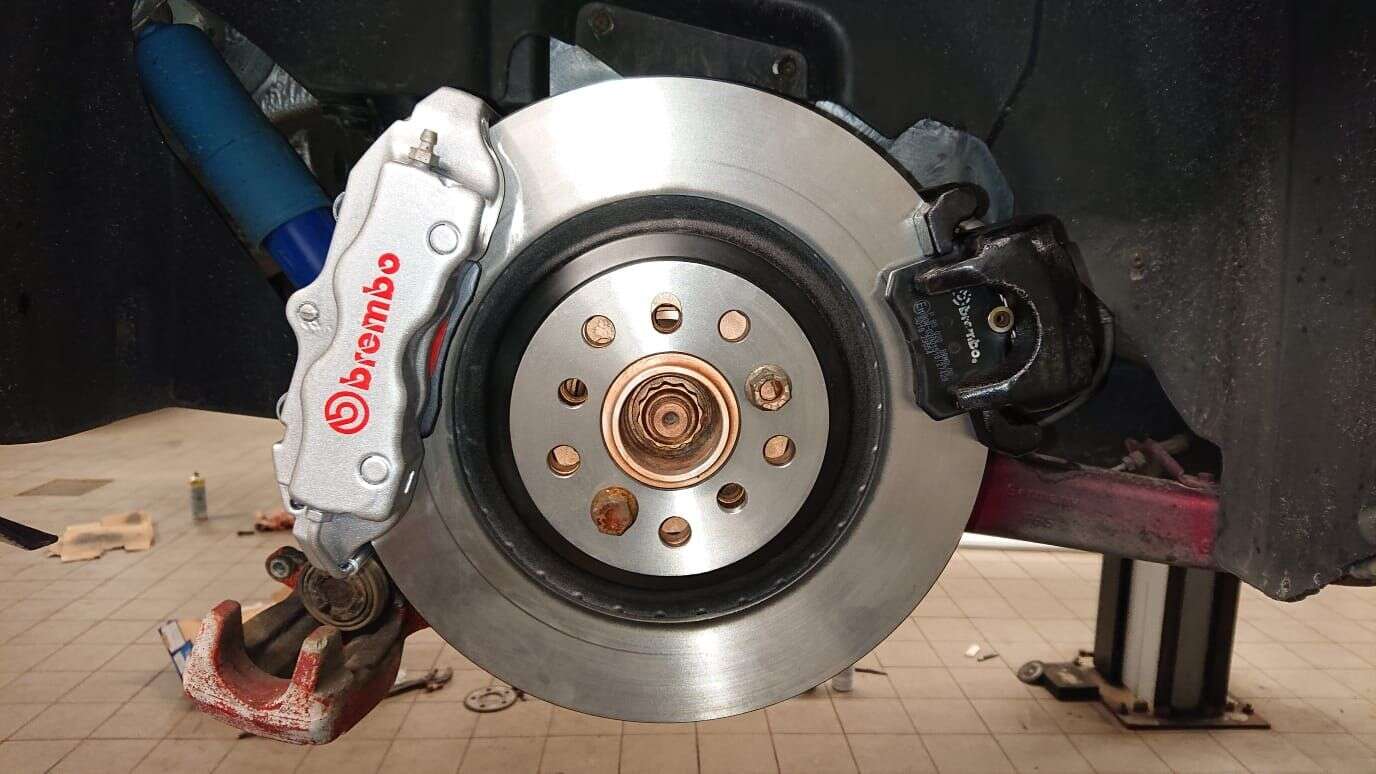

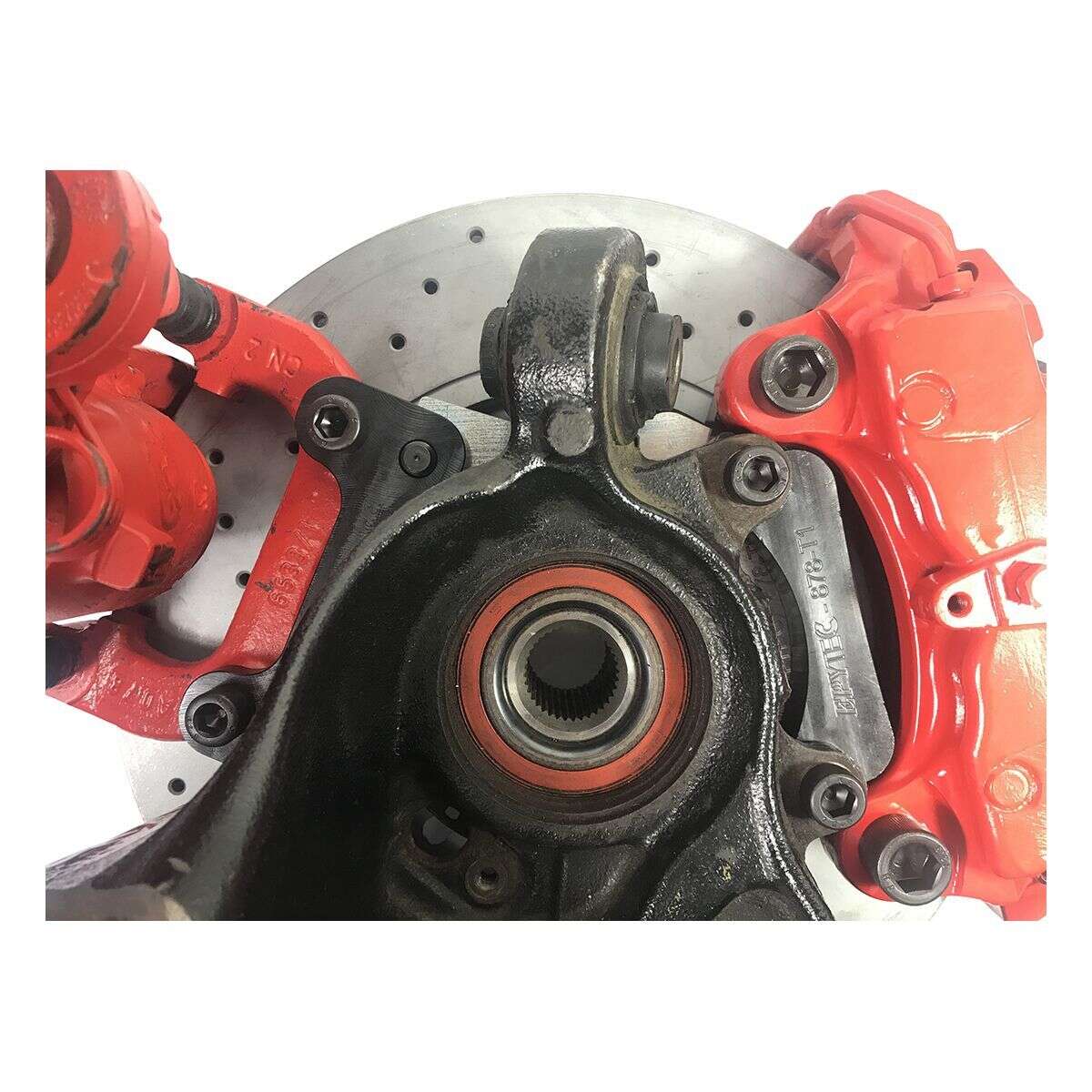

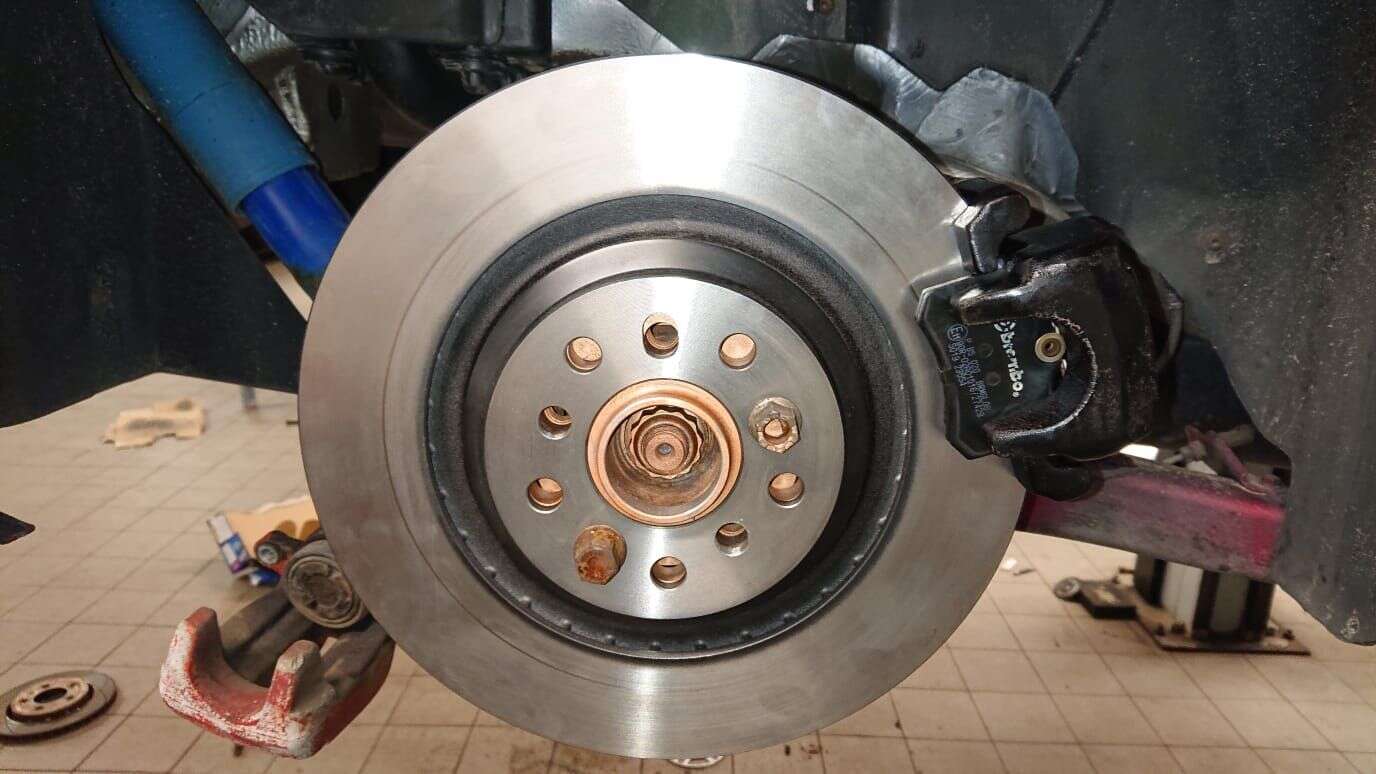

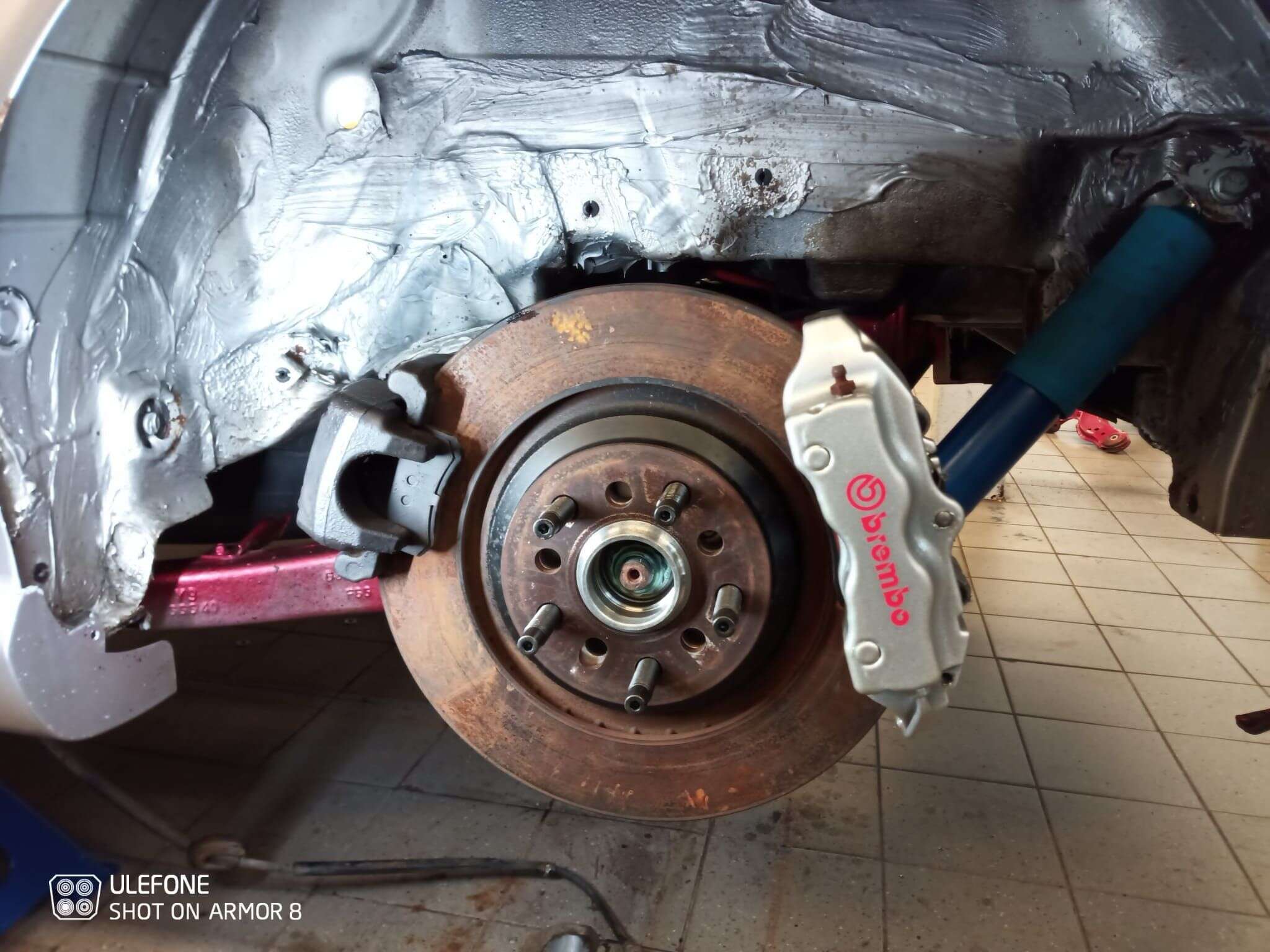

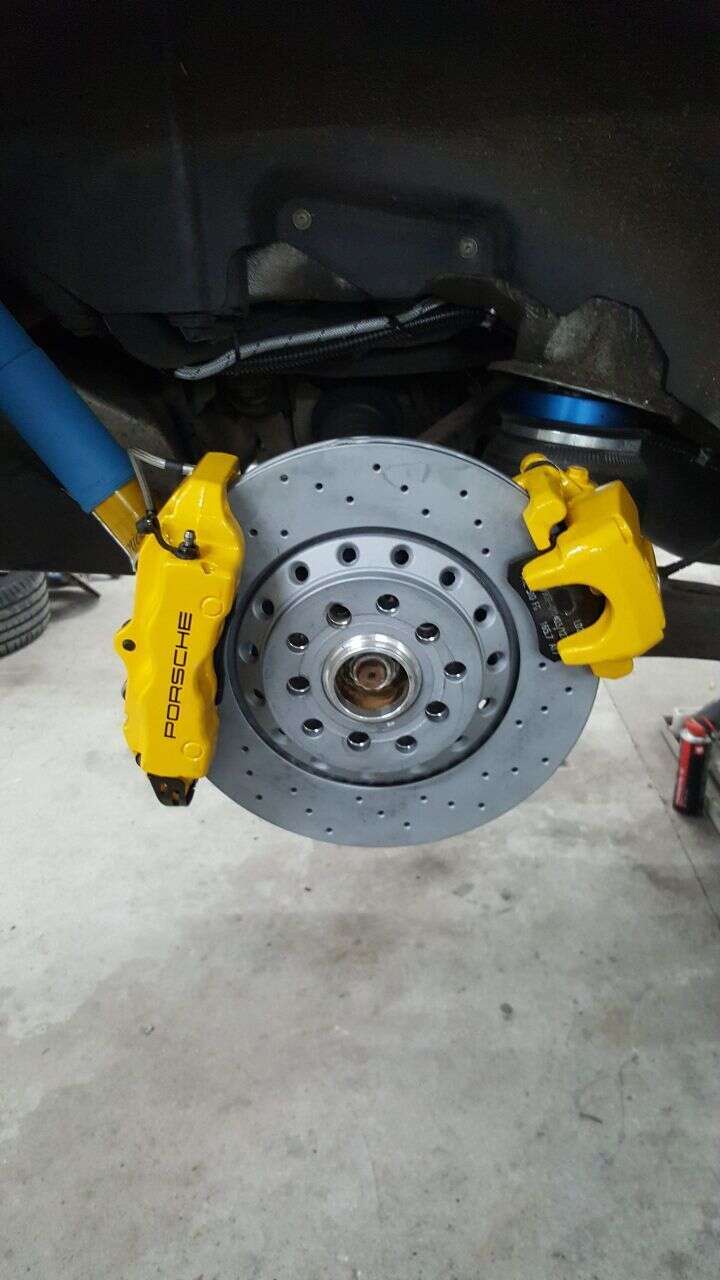

The Porsche calipers are connected to the hydraulics of the vehicle and can thus develop an enormous braking force. However, these do not have handbrake functions. The rear axle of Audi S3 or Golf MK4 R32 is additionally used for a handbrake brake caliper adapter. The hydraulic connection is thereby closed with a blind plug / closure cap, thus this serves only as a hand brake caliper.
Thanks to the plates, the track is 15 mn wider per side.
Suitable for the following VW and Seat models (4WD):
- Audi A3 8L
- Audi TT 8N
- Seat Leon
- Seat Toledo 1M2
- Skoda Octavia 1U
- VW Golf MK4
- VW Bora/Jetta mk4
Advantages of this brake system:
- top deceleration, without comparison with conventional brake discs
- better performance
- supplied material certificate
Required components:

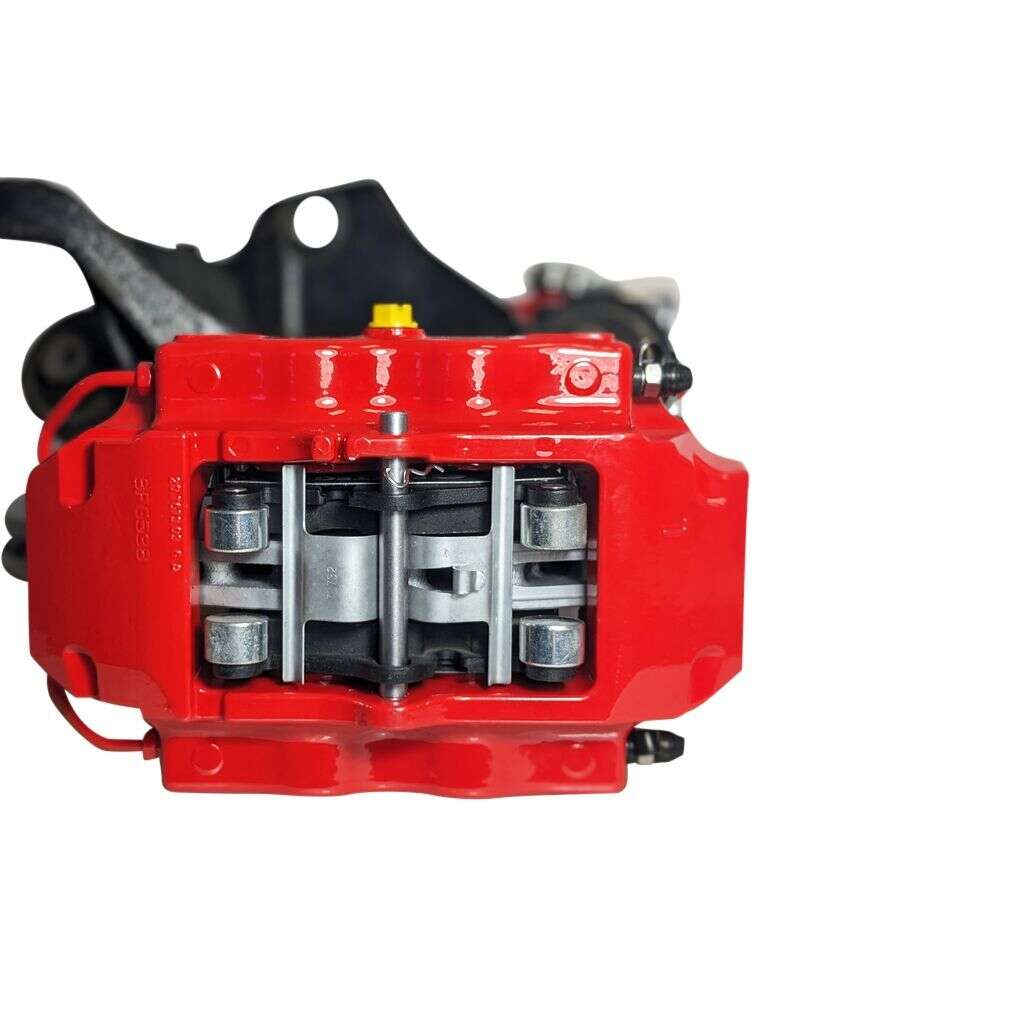

- brake caliper: Porsche Cayenne, rear axle, reference 955.352.421 + 955.352.422 / Brembo reference left 20.7673.03 + right 20.7673.04
- brake caliper mounting bracket , rear axle, Audi S3 8L or VW Golf R32
- brake disc: 310x22 rear VW Phaeton (PCD of the disc have to be modified to 5x100 - service available from EPYTEC)
Delivery:

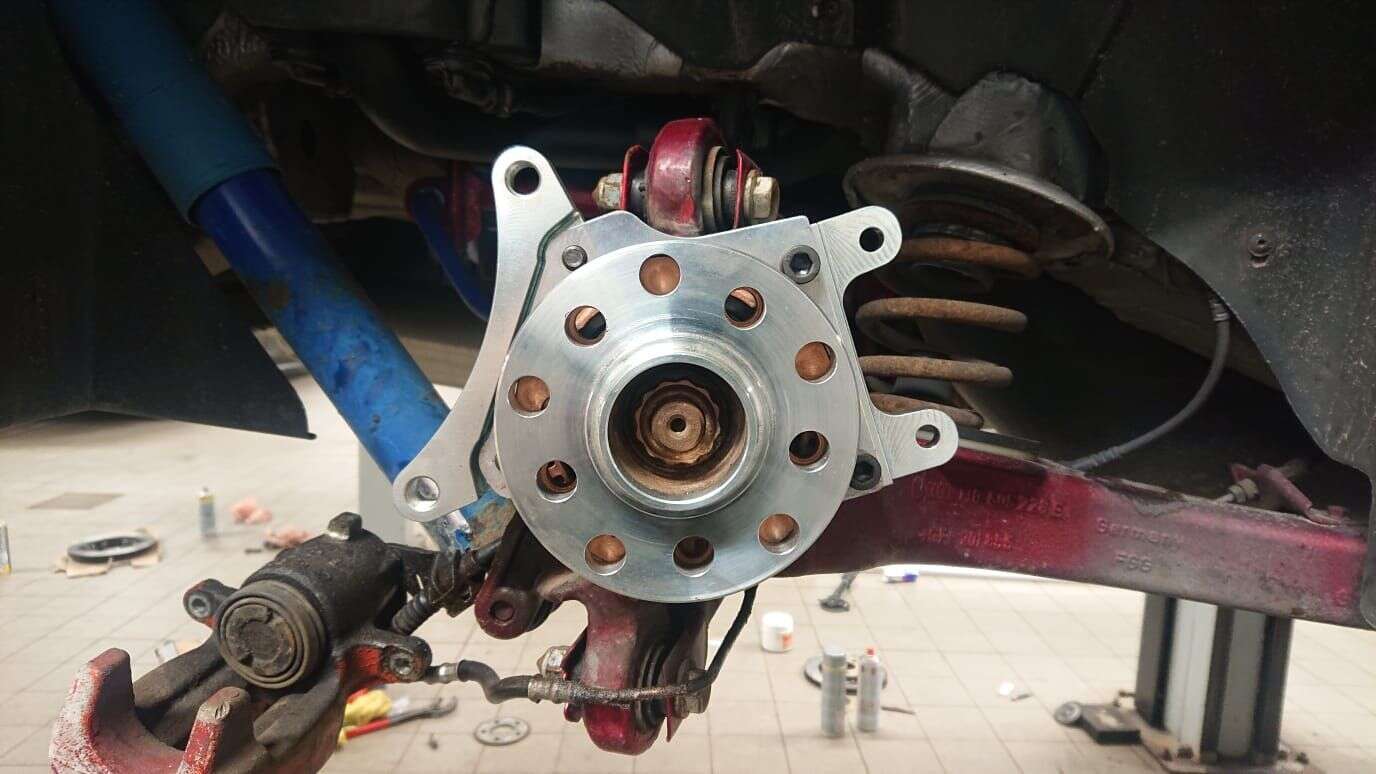

- 2x brake caliper adapters for Porsche caliper
- 2x brake caliper adaper for R32 / S3 hand brake caliper
- 2x spacers under the discs
- 4x flexible braided brake lines
- high strength mounting screws
- material certificate
- Stress analysis / FEM calculation for entry
- Installation instructions (click here)
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

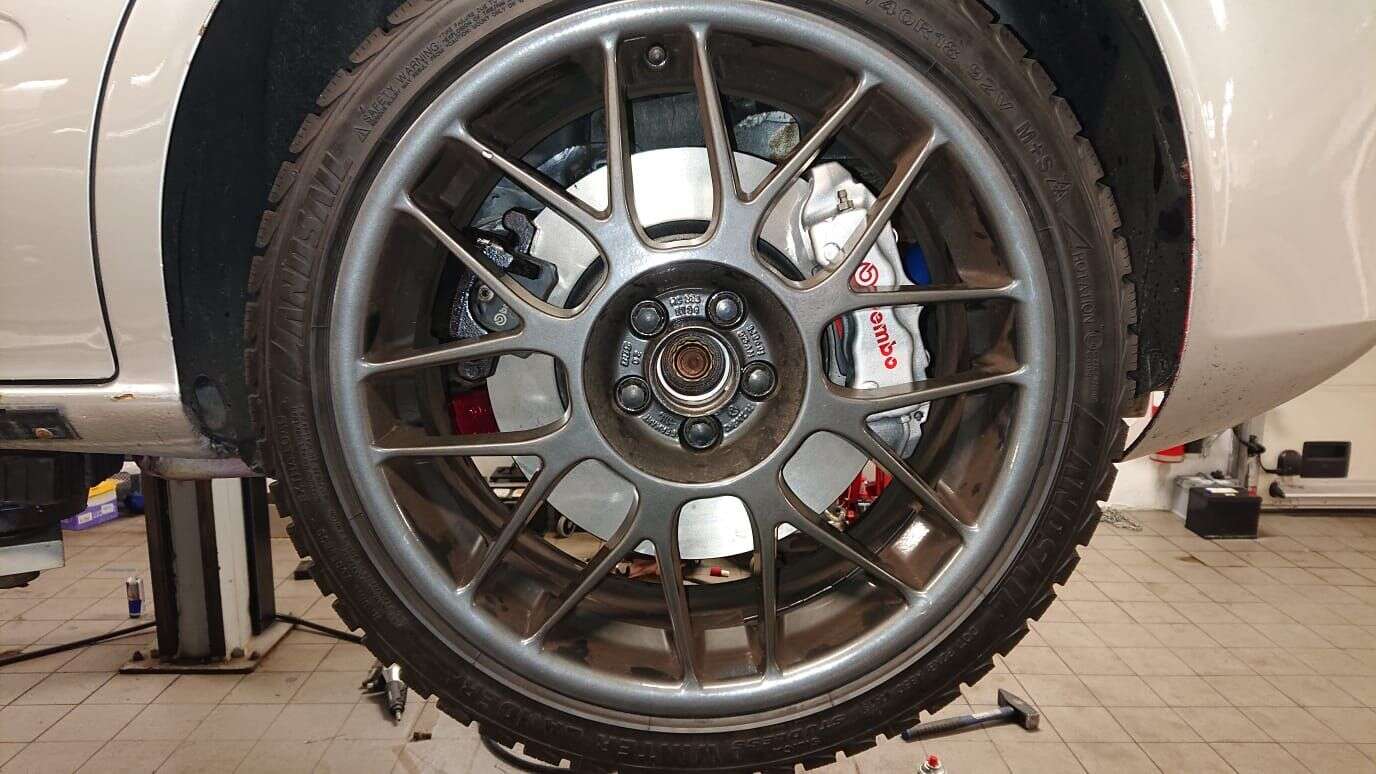

- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
12 August 2025 11:48
adam.gudgeon
Very good quality new in condition great value for money well packaged great appearance good postage rate as described perfect very happy with this purchase
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N9|180PS(132KW) |
| 1.8 T quattro | 8N9|190PS(140KW) |
| 1.8 T quattro | 8N9|224PS(165KW) |
| 3.2 VR6 quattro | 8N9|250PS(184KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N3|180PS(132KW) |
| 1.8 T quattro | 8N3|190PS(140KW) |
| 1.8 T quattro | 8N3|245PS(180KW) |
| 1.8 T quattro | 8N3|224PS(165KW) |
| 3.2 VR6 quattro | 8N3|250PS(184KW) |
| Motor | Motorcode |
|---|---|
| S3 quattro | 8L1|224PS(165KW) |
| 1.8 T quattro | 8L1|180PS(132KW) |
| S3 quattro | 8L1|210PS(154KW) |
| 1.9 TDI quattro | 8L1|130PS(96KW) |
| 1.8 T quattro | 8L1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 3.2 R32 4motion | 1J1|241PS(177KW) |
| 1.9 TDI 4motion | 1J1|101PS(74KW) |
| 2.3 V5 4motion | 1J1|170PS(125KW) |
| 2.3 V5 4motion | 1J1|150PS(110KW) |
| 1.9 TDI 4motion | 1J1|130PS(96KW) |
| 1.9 TDI 4motion | 1J1|90PS(66KW) |
| 1.8 4motion | 1J1|125PS(92KW) |
| 1.9 TDI 4motion | 1J1|150PS(110KW) |
| 2.8 V6 4motion | 1J1|204PS(150KW) |
| 2.8 VR6 4motion | 1J1|204PS(150KW) |
| 1.9 TDI 4motion | 1J1|115PS(85KW) |
| 2.0 4motion | 1J1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| RSI 3.2 4motion | 9C1|224PS(165KW) |
| RSI 3.2 4motion | 1C1|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T 4x4 | 1U2|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T Cupra R | 1M1|209PS(154KW) |
| 1.8 T Cupra R | 1M1|225PS(165KW) |
| 2.8 Cupra 4 | 1M1|204PS(150KW) |
| 1.9 TDi Syncro | 1M1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N9|180PS(132KW) |
| 1.8 T quattro | 8N9|190PS(140KW) |
| 1.8 T quattro | 8N9|224PS(165KW) |
| 3.2 VR6 quattro | 8N9|250PS(184KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N3|180PS(132KW) |
| 1.8 T quattro | 8N3|190PS(140KW) |
| 1.8 T quattro | 8N3|245PS(180KW) |
| 1.8 T quattro | 8N3|224PS(165KW) |
| 3.2 VR6 quattro | 8N3|250PS(184KW) |
| Motor | Motorcode |
|---|---|
| S3 quattro | 8L1|224PS(165KW) |
| 1.8 T quattro | 8L1|180PS(132KW) |
| S3 quattro | 8L1|210PS(154KW) |
| 1.9 TDI quattro | 8L1|130PS(96KW) |
| 1.8 T quattro | 8L1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 3.2 R32 4motion | 1J1|241PS(177KW) |
| 1.9 TDI 4motion | 1J1|101PS(74KW) |
| 2.3 V5 4motion | 1J1|170PS(125KW) |
| 2.3 V5 4motion | 1J1|150PS(110KW) |
| 1.9 TDI 4motion | 1J1|130PS(96KW) |
| 1.9 TDI 4motion | 1J1|90PS(66KW) |
| 1.8 4motion | 1J1|125PS(92KW) |
| 1.9 TDI 4motion | 1J1|150PS(110KW) |
| 2.8 V6 4motion | 1J1|204PS(150KW) |
| 2.8 VR6 4motion | 1J1|204PS(150KW) |
| 1.9 TDI 4motion | 1J1|115PS(85KW) |
| 2.0 4motion | 1J1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| RSI 3.2 4motion | 9C1|224PS(165KW) |
| RSI 3.2 4motion | 1C1|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T 4x4 | 1U2|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T Cupra R | 1M1|209PS(154KW) |
| 1.8 T Cupra R | 1M1|225PS(165KW) |
| 2.8 Cupra 4 | 1M1|204PS(150KW) |
| 1.9 TDi Syncro | 1M1|150PS(110KW) |
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 370x32 8J0615301F TTRS brake disc
- ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne ZR18 / ZL18 brake caliper
- ✓ front axle
- ✓ Length: 63cm
- ✓ M10x1 outside 45° curved
- ✓ M10x1 inside straight
- ✓ 375x36 1664210912 Mercedes GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 334x32 1J0615301AA 1J0615302 A Golf 4 R32 brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne / VW Tuareg brake caliper
- ✓ front axle
- ✓ 325x28 34112282801 34112282802 BMW E46 M3 brake discs
- ✓ 4-piston 34111163757 / 34111163758 BMW E38 brake caliper
- ✓ front axle
- ✓ Rear axle
- ✓ Audi A3 8L, Audi S3 8L, TT 8N, Golf 4, Golf 4 R32, Bora, Beetle, Seat Leon
- ✓ camber adjustment

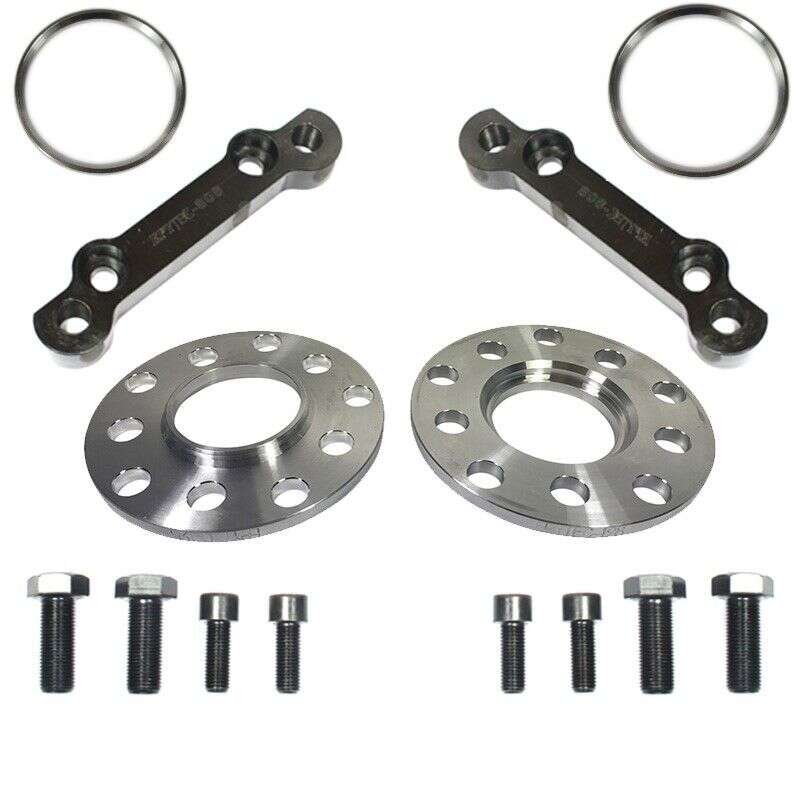

- ✓ 360x32 8D0615302B Audi RS4 B5 brake disc
- ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne ZR18 ZL18 brake caliper
- ✓ front axle
- ✓ 5x112 bolt circle
- ✓ Plug & Play
- ✓ VW Golf 4 Bora / Audi A3 / Audi TT quattro
- ✓ 375x36 1664210912 Mercedes Benz GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Cayenne 958 GTS Panamera brake caliper
- ✓ front axle
- ✓ Length: 60cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 330x22 4F0615601B Audi A6 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle

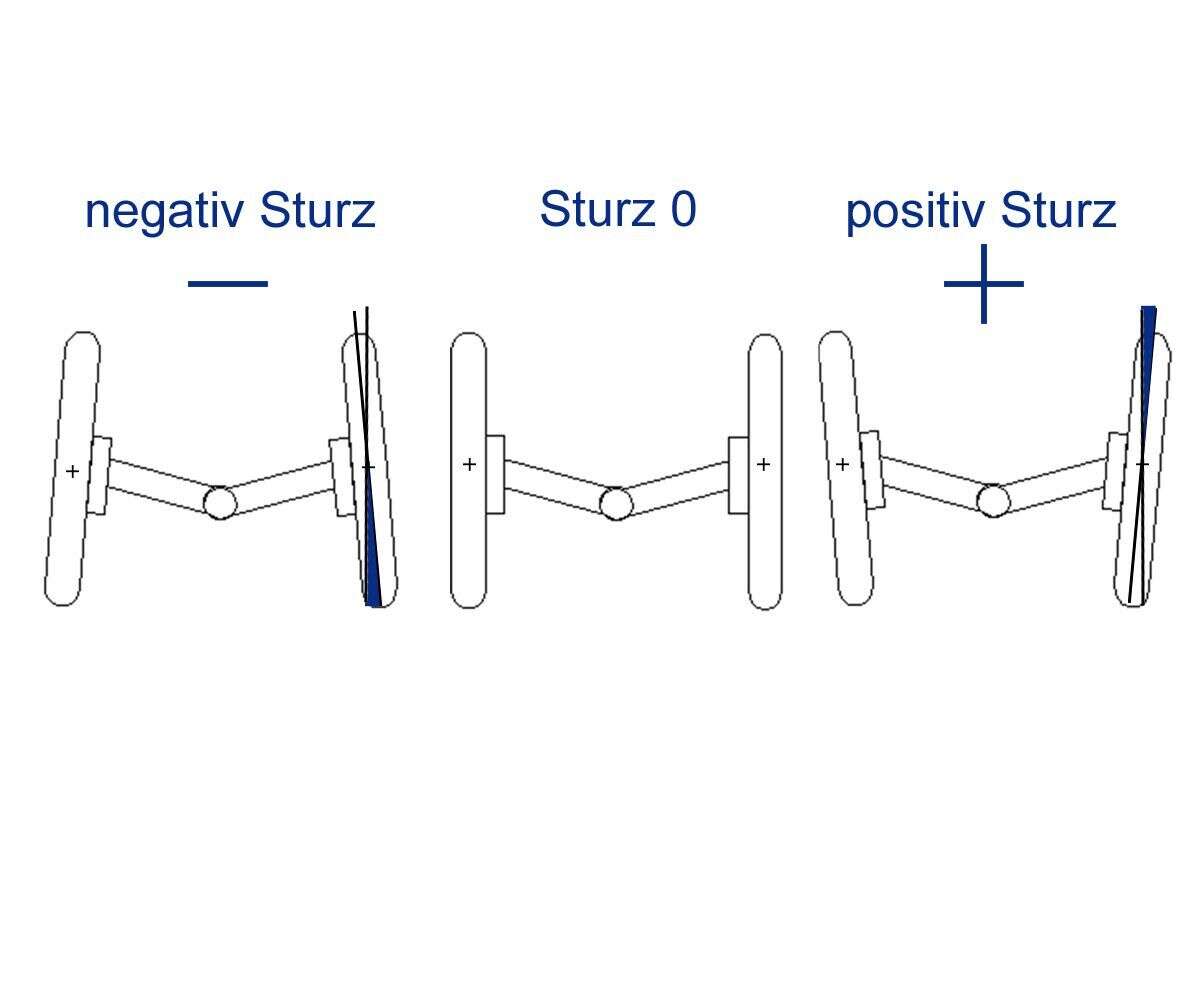

- ✓ camber correction / adjustement plates for installation on rear axle. Thanks to this plate you can modify the camber of the rear wheel, negative or positive.
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 356x22 4H0615601F Audi A6 brake disc
- ✓ 1-piston 8V0615425B Golf 7 / Audi S3 RS3 brake caliper
- ✓ rear axle

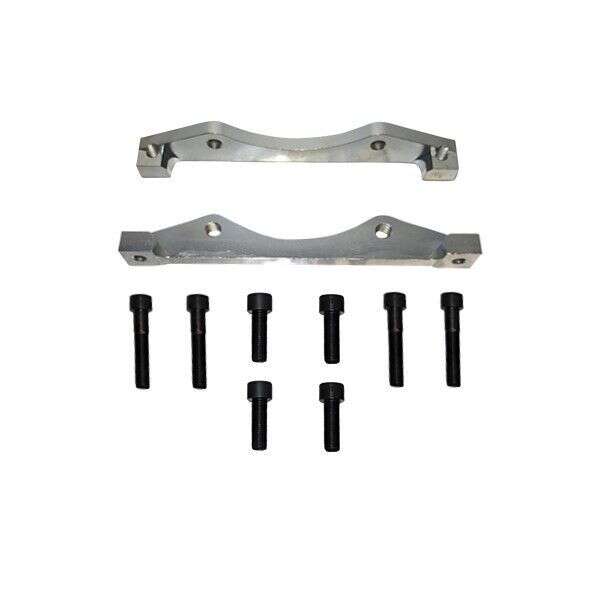

- ✓ 349x34 4M0615301AB Audi A4 B9 brake disc
