VW Golf 3 Brake Caliper Adapter Porsche Vr6 GTI Passat 35 16V ZR17 ZL17 Touareg BM5 Front axle Brake System 334x32
- ✓ 334x32 1J0615301AA 1J0615302 A Golf 4 brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne/ VW Tuareg brake caliper
- ✓ front axle

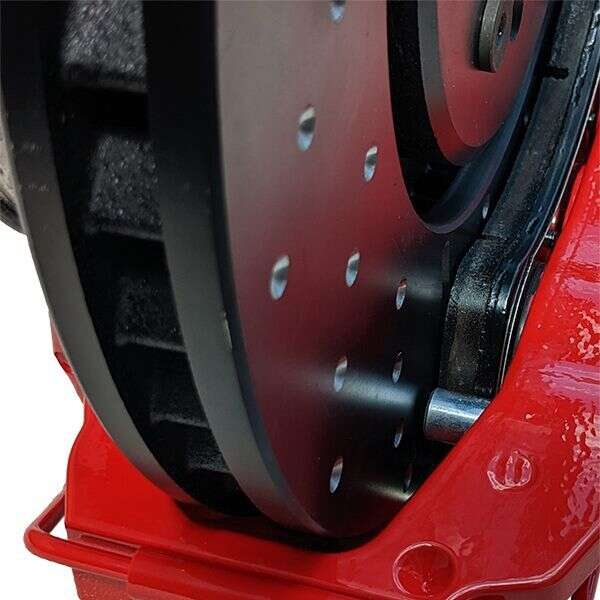

Brake caliper adapter for Brembo/ Porsche 6-piston brake calipers ZR 17 in combination with the R32 brake disc 334x32mm on all VW vehicles with 5x100 bolt pattern mounting on the front axle. Installed in e.g.
- VW Golf 3 2.0l 16V and VR6 GTI
- VW Passat 2.0l 16V 35i and VR6 GTI
- VW Corrado 2.0l 16V and VR6 GTI
- Seat Toledo
Required components:
- Brake calipers:
- 6-piston Porsche Cayenne or VW Touareg (17-inch version) part number: 7L6 615 123 T and 7L6 615 124 T
- or alternatively also suitable
- 4-piston brake calipers BM5 from the VW Touareg, part number: 7L6 615 123 R / 7L6 615 149 A Brembo: 209236062A / 209236051A
- Brake pads from the 18-inch calipers are used, item no.: 7L0 698 151 J
- Brake discs from the Golf 4 R32 334x32 mm part number 1J0 615 301AA and 1J0 615 302 A
Advantages of this brake system:
- Best possible deceleration values and performance, indispensable also for power upgrades
- 17-inch wheels can be used
- Components come from VW series production
- Thanks to the material certificate included in the scope of delivery, registration via an individual inspection can also be made possible on production vehicles
- Including complete mounting hardware
Scope of delivery:
- 2x brake caliper adapters, fully galvanized (see picture)
- Complete high-strength bolt set
- Template to check whether the brake system fits under your wheel
- Material certificate
- Stress analysis / FEM calculation for registration
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
15 October 2025 15:36
Christian N
Kann man bedenkenlos weiterempfehlen!
20 September 2023 08:09
Mustafa Kemal A
Top Qualität, ab jetzt bestelle ich immer bei epytec.👍
21 November 2016 20:48
g.matthias93
Perfekt! :-)
28 February 2018 13:43
golf1racing-2009
Alles perfekt , sehr passgenau
14 March 2025 08:16
passatb3-2008
Excellent product thank you 👍
16 July 2018 13:22
shauncycle
Great shopping with you. Thanks again.
21 November 2017 15:28
oktay31oktay
Perfekt!!!
9 November 2023 14:45
wpharrigan
Quick reply. Great quality
23 September 2025 08:38
aldun-6389
Delivered as described
- Which brake pads should be used?
The original brake pads from the brake caliper, which is required for our conversion kit, must always be used.
- Can I use other brake calipers as indicated in the required components?
No, unfortunately that is not possible, the reason being that all brake calipers have different height and depth measurements. If another brake disc is installed, the brake caliper would either not fit the adapter at all or not run centrally to the brake disc. If you want to install a different brake caliper, we also have an option for you. You can have a custom-made product manufactured, check out the following link for more information:
- Can I also use other discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply that all brake calipers have different height and depth measurements. If a different brake disc is installed, the brake caliper would either not fit on the adapter at all or would not be centered with the brake disc. However, if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product produced, have a look at the following link for more information:
https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 3A5|174PS(128KW) |
| 2.9 VR6 Syncro | 35I|184PS(135KW) |
| 2.8 VR6 | 35I|174PS(128KW) |
| 2.9 VR6 Syncro | 3A5|184PS(135KW) |
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 35I|174PS(128KW) |
| 2.8 VR6 | 3A2|174PS(128KW) |
| Motor | Motorcode |
|---|---|
| 2.9 VR6 | 53I|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 1H1|174PS(128KW) |
| 2.9 VR6 Syncro | 1H1|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 1H2|174PS(128KW) |
| Motor | Motorcode |
|---|---|
| 2.9 VR6 Syncro | 1H5|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 3A5|174PS(128KW) |
| 2.9 VR6 Syncro | 35I|184PS(135KW) |
| 2.8 VR6 | 35I|174PS(128KW) |
| 2.9 VR6 Syncro | 3A5|184PS(135KW) |
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 35I|174PS(128KW) |
| 2.8 VR6 | 3A2|174PS(128KW) |
| Motor | Motorcode |
|---|---|
| 2.9 VR6 | 53I|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 1H1|174PS(128KW) |
| 2.9 VR6 Syncro | 1H1|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 2.8 VR6 | 1H2|174PS(128KW) |
| Motor | Motorcode |
|---|---|
| 2.9 VR6 Syncro | 1H5|190PS(140KW) |
