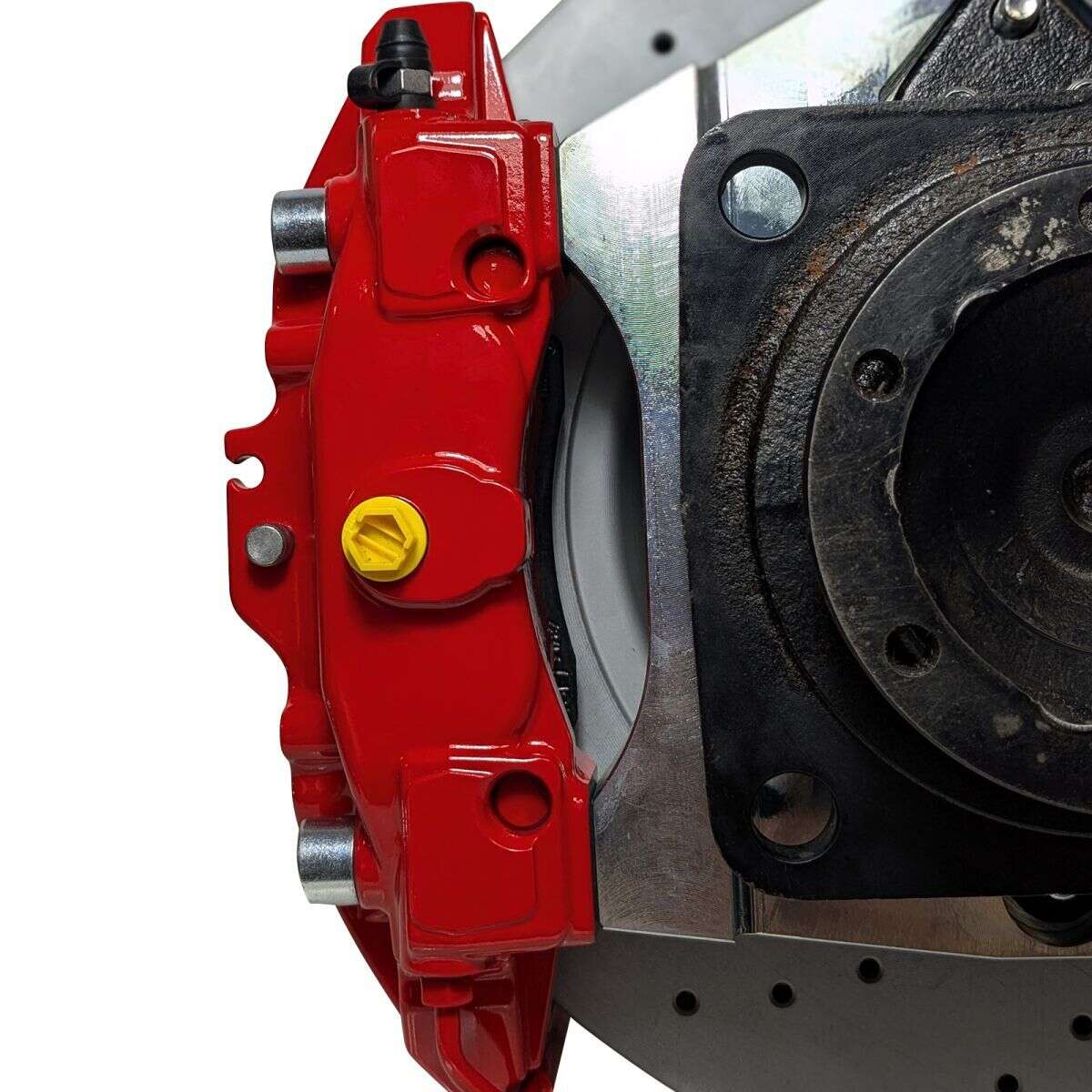

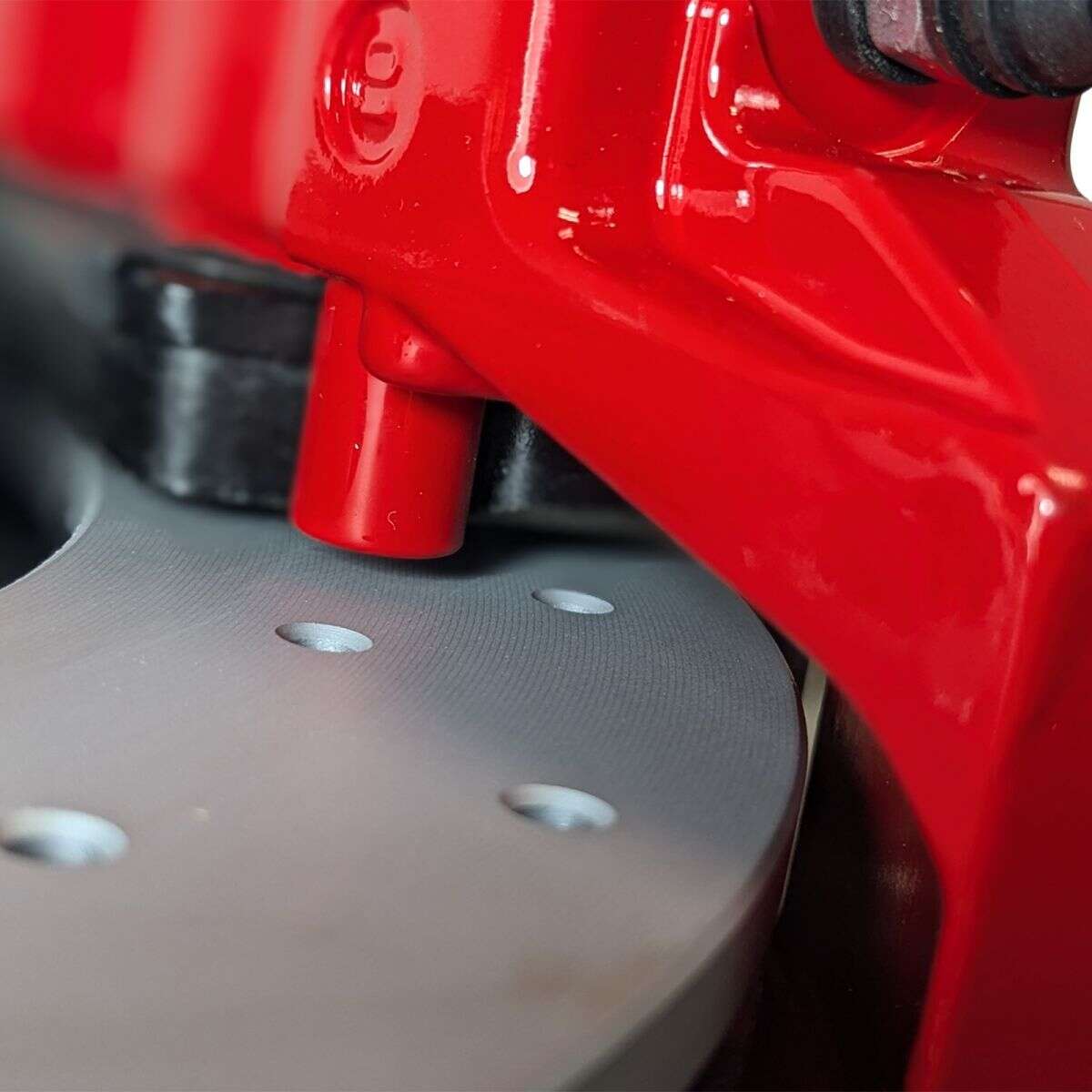

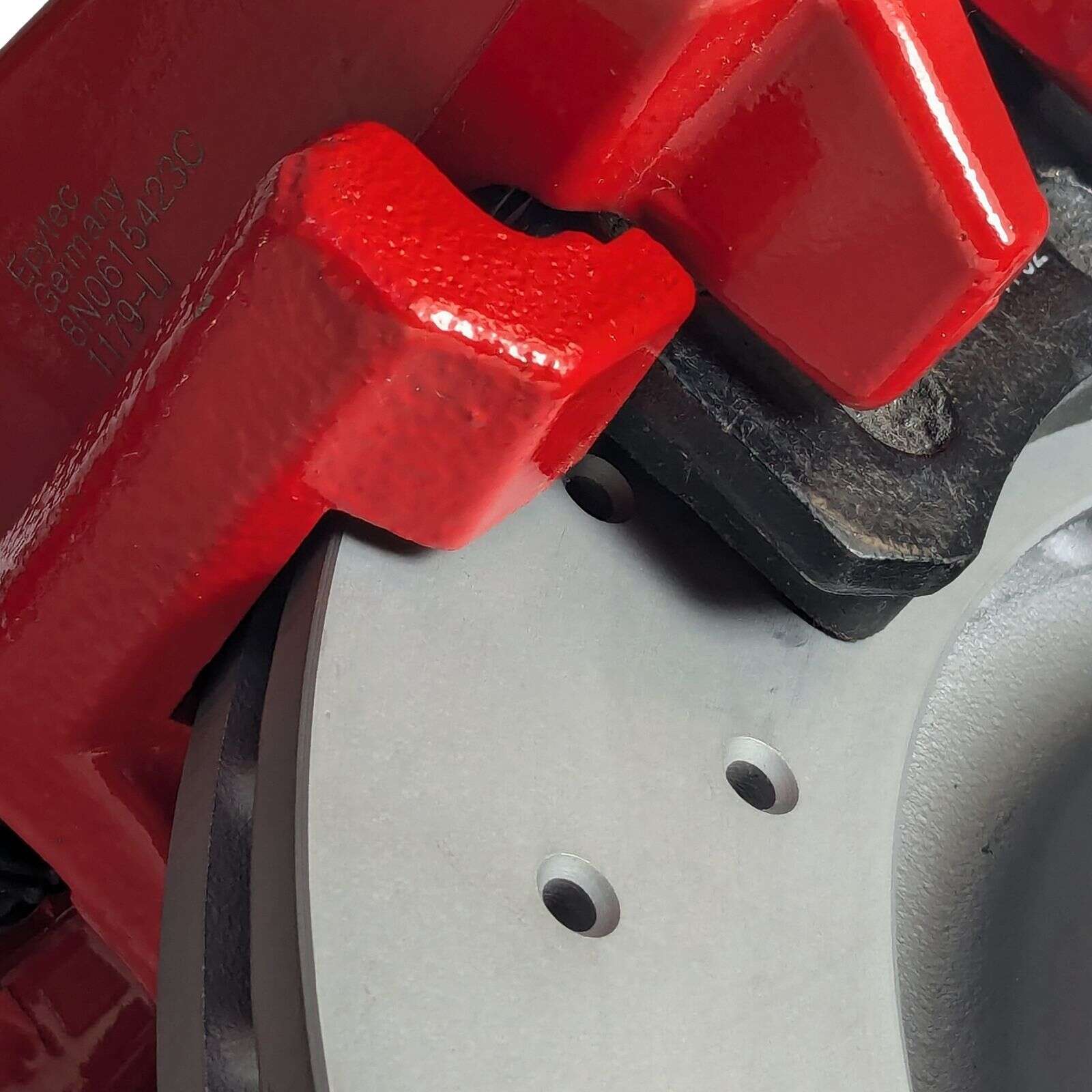

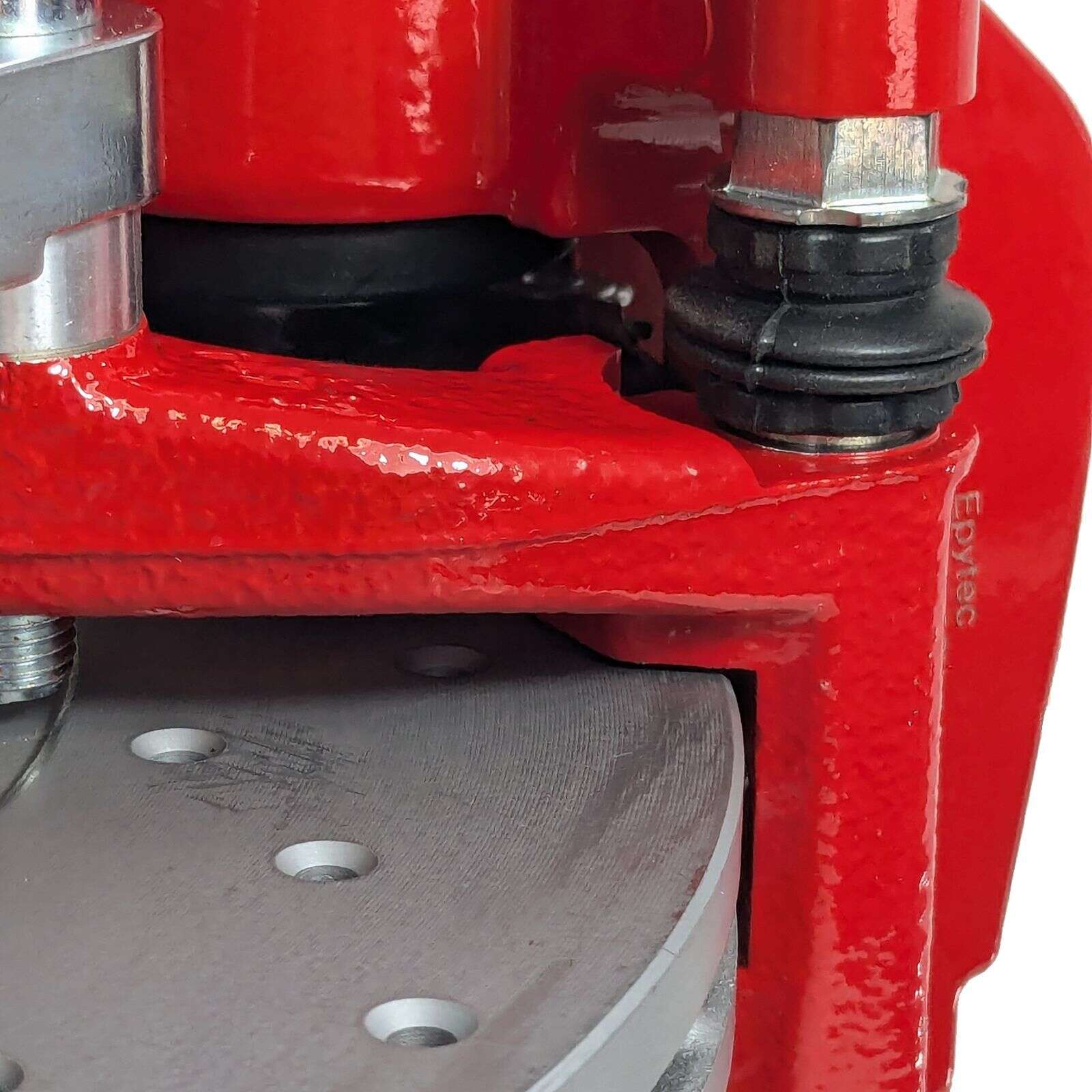

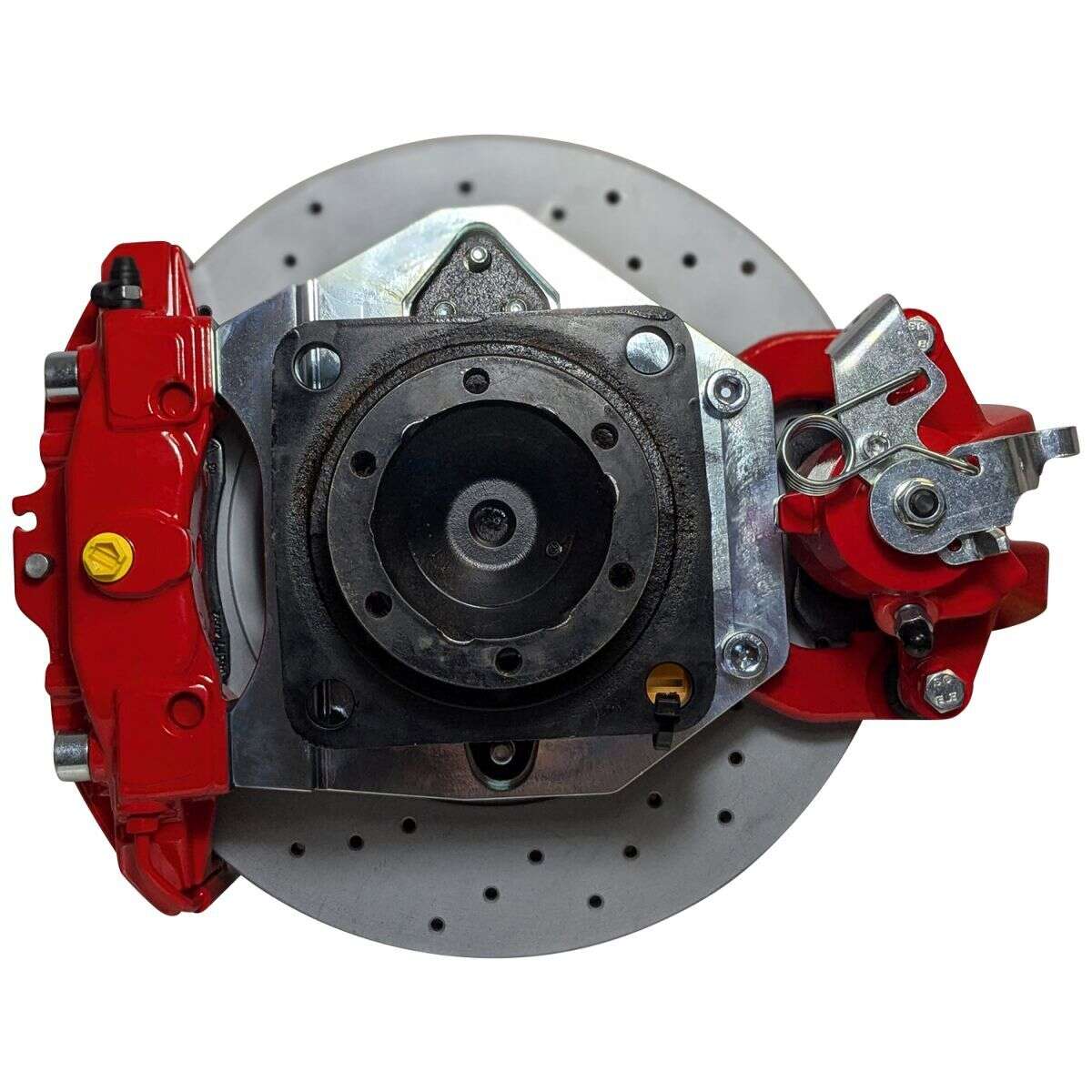

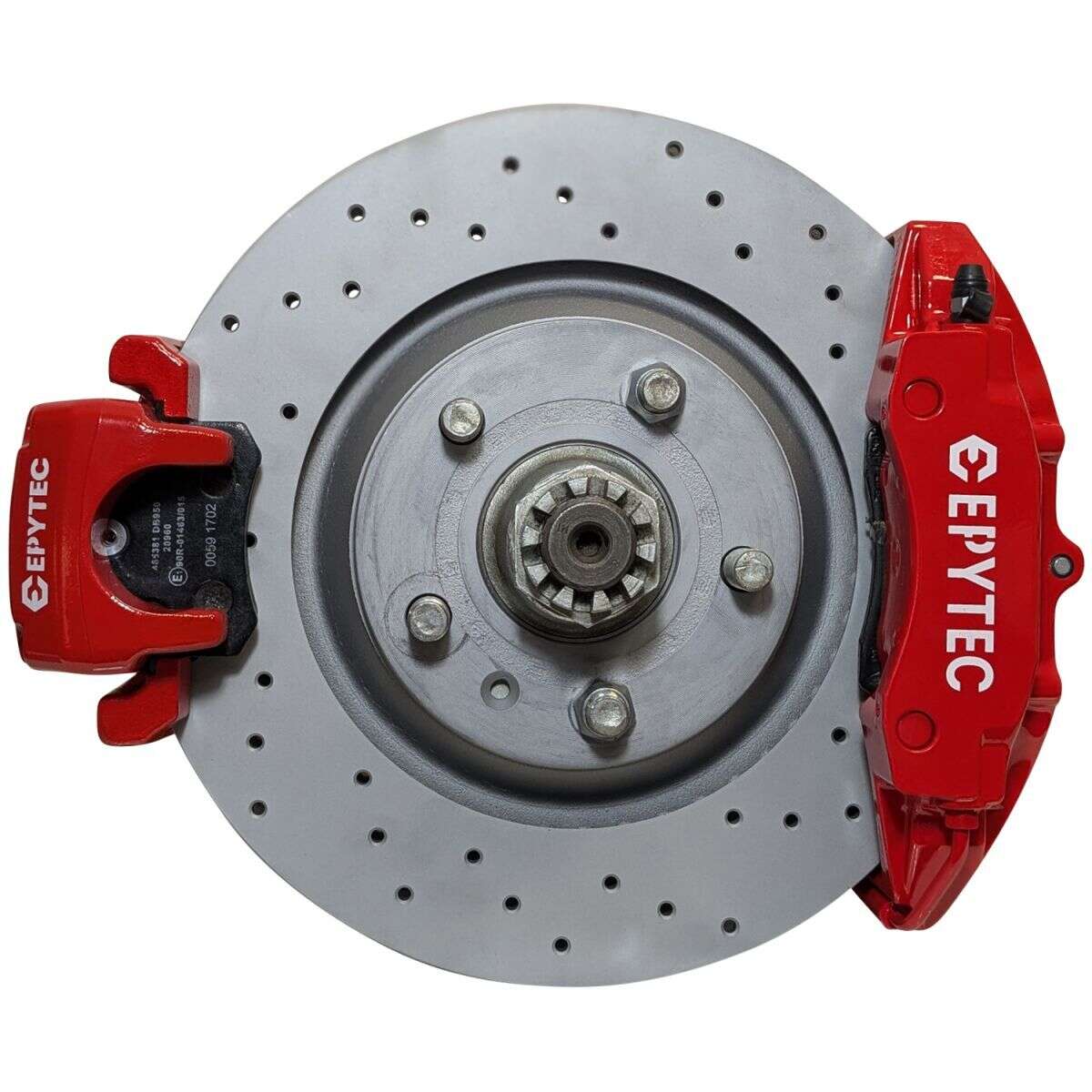

Large brake system KIT rear axle VW T3 Bus Porsche brake caliper handbrake caliper and handbrake cable from Golf 4 R32 - Colour brake caliper: painted in desired colour

With our big brake kit for BMW E46 M3 , you can convert T3 Bus (for all T3 Bus models) you can convert your rear axle to a 4-piston Porsche brake system in conjunction with the Golf 4 R32 handbrake calliper and achieve ideal performance.

With this high performance brake kit/big brake you can use the Porsche 996  calipers and the Golf 4 R32 handbrake caliper in conjunction with the 300x22 mm brake discs from the A4 S4 on the T3 bus models.

Another advantage of our brake system kit is that it is equipped with the same original brake calipers and brake discs that are installed in series-production cars. These OE parts not only make the replacement of the brakes simple and uncomplicated, but also facilitate the registration with the TÜV.

The big brake kit is not only sporty, but also suitable for everyday use and, thanks to the perforated sports brake discs in conjunction with our ceramic lining, enables ideal performance while reducing brake dust, temperature and wear.

With this high-performance big brake kit, you can get started straight away and have everything you need to convert your rear axle to a 4-piston brake system.

The high performance big brake kit is suitable for the following cars:

  • T3 Bus models

Advantages of this big brake kit:

  • our components, such as brake callipers and brake discs, come from series-production cars and are OE parts. This makes replacing the brakes simple and uncomplicated and facilitates registration with the TÜV.
  • The material certificate included in the scope of delivery enables registration by individual acceptance even for series-production cars.

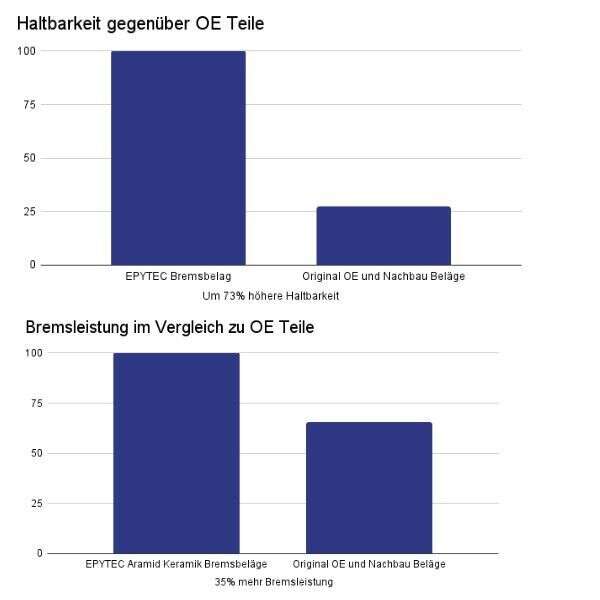

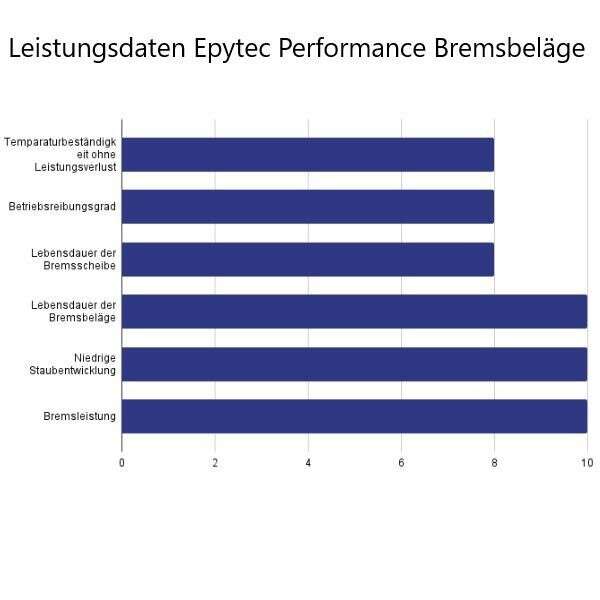

  • High-performance brake pads with longer service life than the original pads
  • extreme deceleration values also in combination with our rear axle brake system
  • directly fitting to the above mentioned models and therefore easily rebuildable to original condition at any time
  • our EPYTEC brake caliper adapters require no sending in of your stock parts, no re-welding, re-milling or re-drilling.

Note:

  • Please note that these brake callipers are supplied in the colour of your choice, according to your specifications.
  • Get our high performance brake kit now and experience ideal performance and durability.


Scope of delivery:

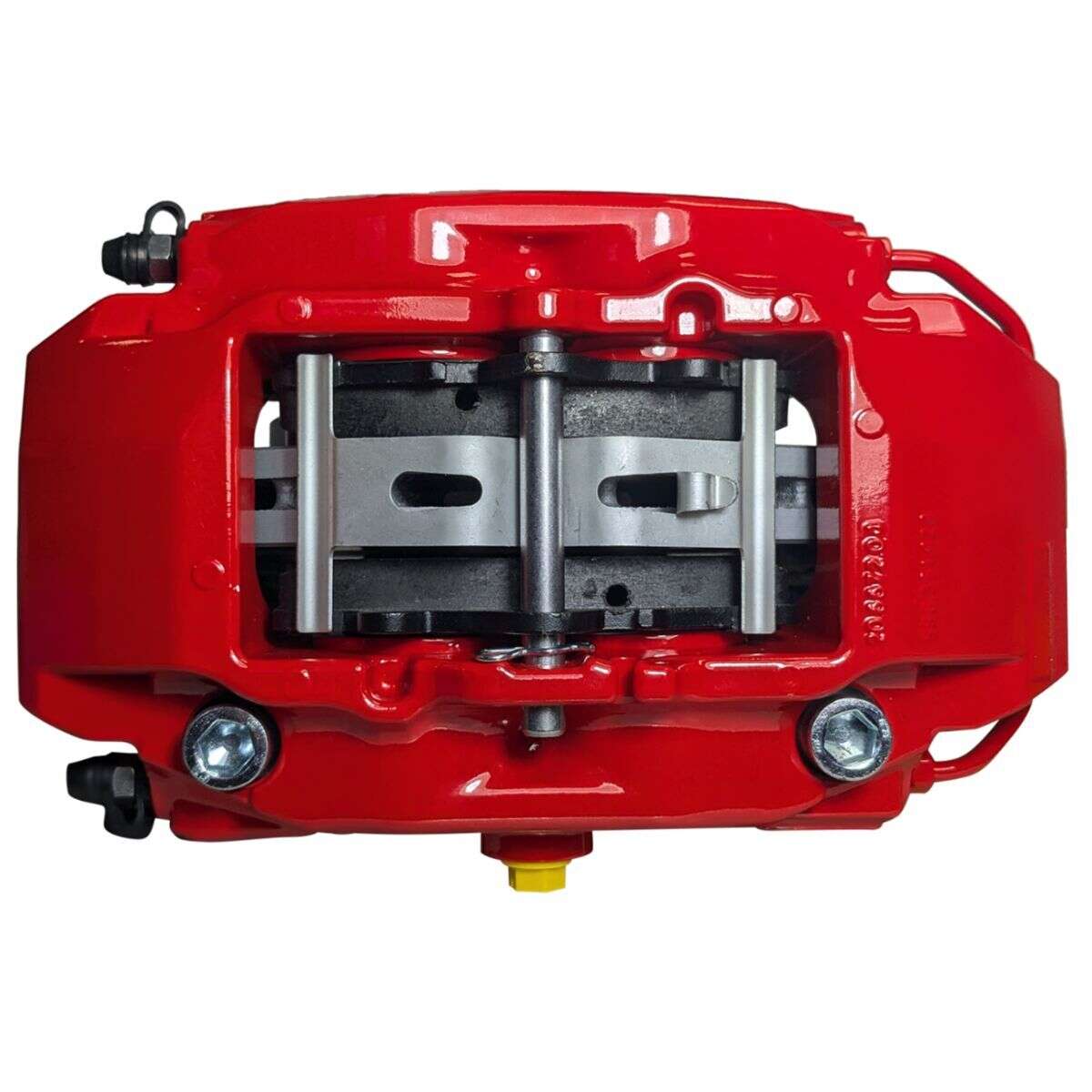

  • Brake calipers from Porsche 996 (rear axle) part number: 996.352.422 + 996.352.421 (only 100% compatible with the specified Porsche calipers) the colour of your choice
  • Brake discs from A4 S4 rear axle in 300x22mm Original part no : 8E0 615 601 R
  • 2x matching centring ring

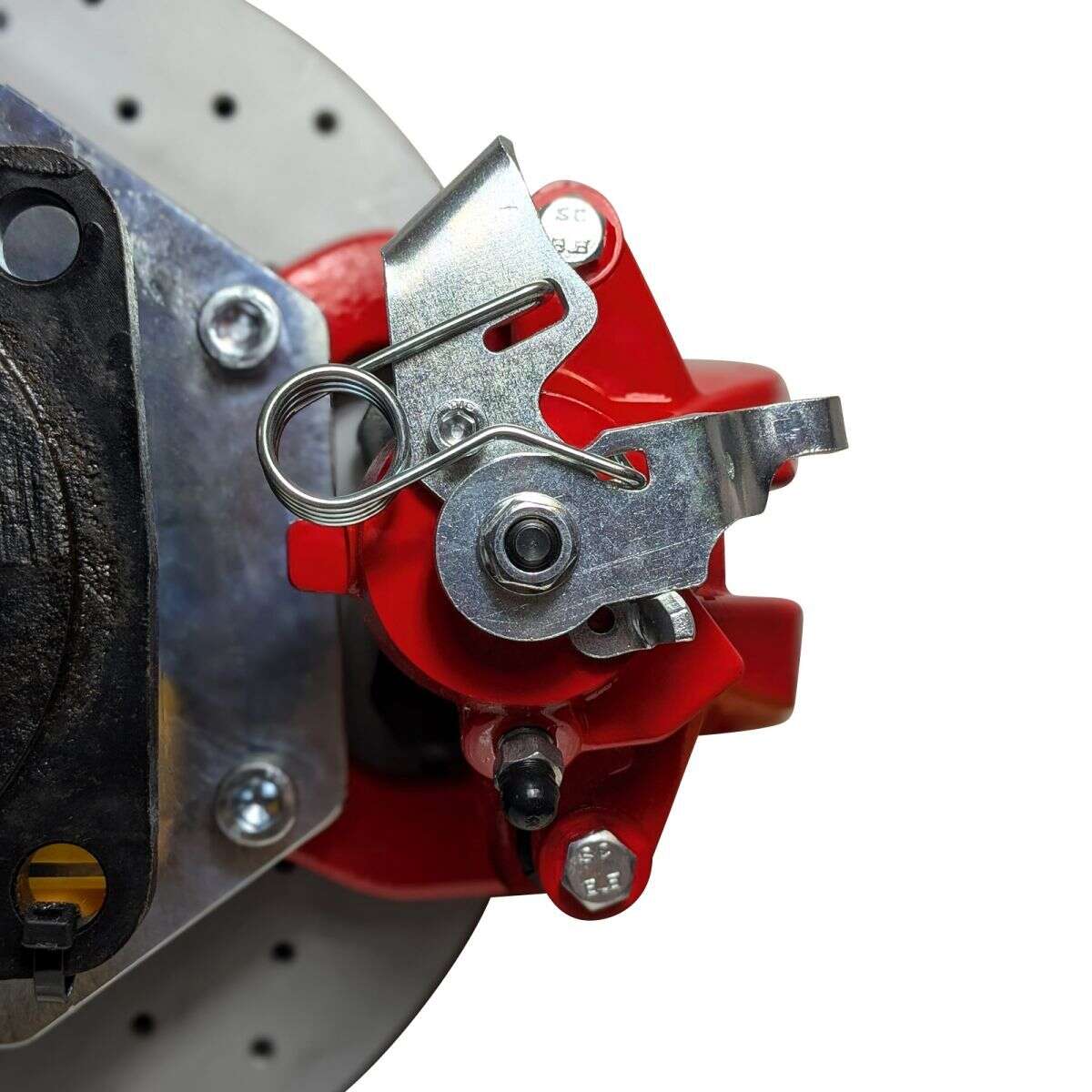

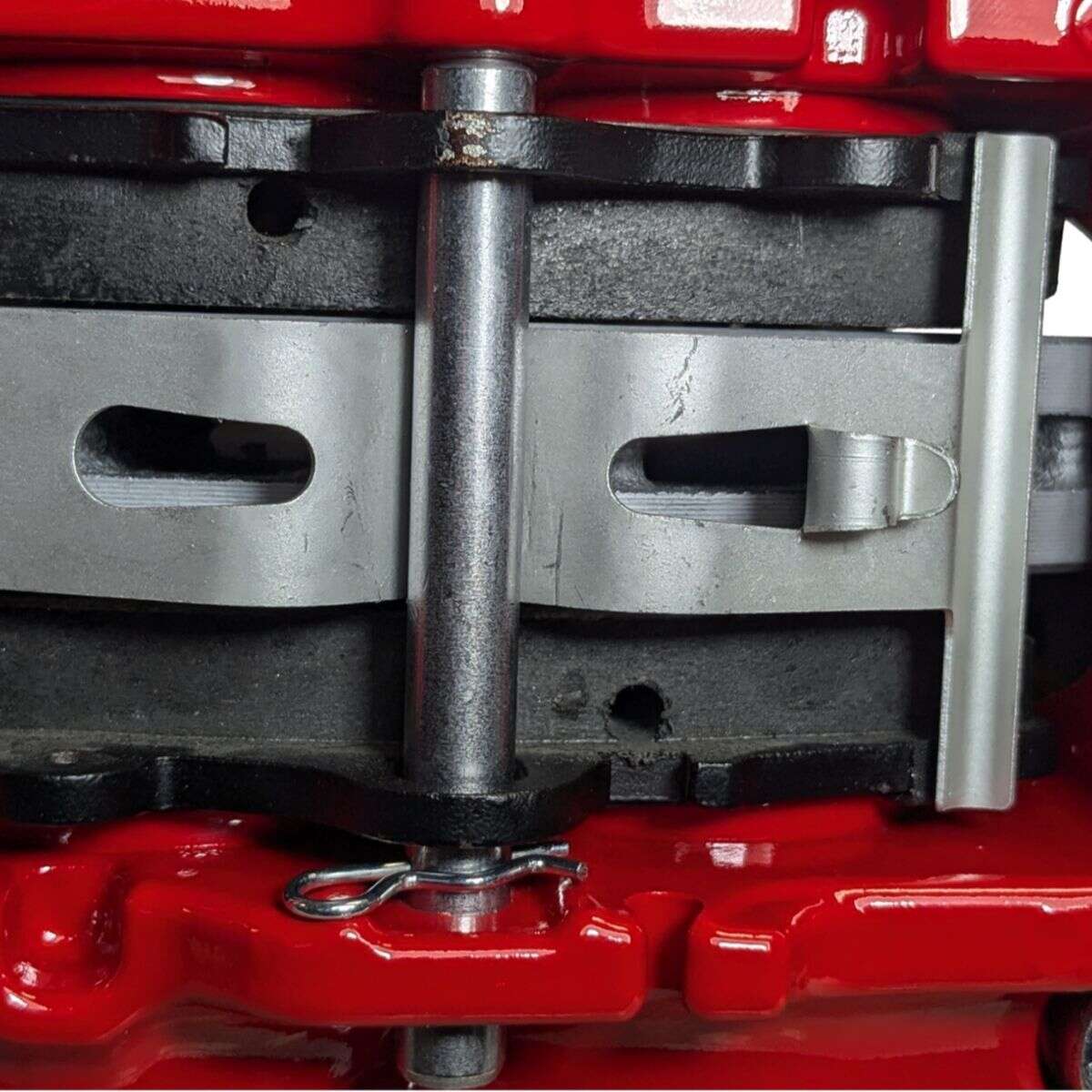

  • Matching brake pads handbrake caliper part number: JZW698451
  • Brake caliper bracket VW part number 8N0 615 425 B.
  • 2x conversion adapter for VW T3 to Porsche for the rear axle
  • 2x matching steel braided lines
  • Assembly aid for brake disc assembly
  • high strength bolt material
  • Material certificate
  • Stress analysis / FEM calculation for registration
  • Installation instructions (click here)
Tipps, Infos und Hinweise: Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen. Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel Jetzt direkt zu Spurverbreiterungen nach Wunsch

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Brake caliper hole spacing: 90
Brake caliper type: Porsche 996 4 Kolben Sattel Hinterachse
Hole spacing steering knuckle: 90
Manufacturer: Epytec
Mounting location: rear!
Brake caliper hole spacing: 90
Brake caliper type: Porsche 996 4 Kolben Sattel Hinterachse
Hole spacing steering knuckle: 90
Manufacturer: Epytec
Mounting location: rear!
