VW T3 BUS Rear axle brake adapter T4 Brake disc transformation Brake caliper adapter
- ✓ 280x12 7D0615601 VW BUS T4 brake disc
- ✓ 1-piston 7D0615424B VW BUS T4 brake caliper
- ✓ rear axle
€217.96*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Versandkosten
Germany | €0.00 |
United Kingdom | €24.03 |
Austria | €18.21 |
France | €18.21 |
Switzerland | €29.14 |
Italy | €19.27 |
Spain | €19.27 |
Andorra | €19.27 |
Arab Emirates | €67.34 |
Afghanistan | €67.34 |
Antigua and Barbuda | €85.44 |
Anguilla | €85.44 |
Albania | €29.36 |
Armenia | €67.34 |
Niederländische Antillen | €85.44 |
Angola | €85.44 |
Antarctica | €19.27 |
Argentina | €85.44 |
American Samoa | €85.44 |
Australia | €85.44 |
Aruba | €85.44 |
Åland Islands | €19.27 |
Azerbaijan | €67.34 |
Bosnia and Herzegovina | €29.36 |
Barbados | €85.44 |
Bangladesh | €67.34 |
Belgium | €18.21 |
Burkina Faso | €85.44 |
Bulgaria | €20.55 |
Bahrain | €67.34 |
Burundi | €85.44 |
Benin | €85.44 |
Saint Barthélemy | €19.27 |
Bermuda | €85.44 |
Brunei Darussalam | €67.34 |
Bolivia (Plurinational State of) | €85.44 |
Bonaire, Sint Eustatius and Saba | €85.44 |
Brazil | €85.44 |
Bahamas | €85.44 |
Bhutan | €67.34 |
Bouvet Island | €19.27 |
Botswana | €85.44 |
Belarus | €29.36 |
Belize | €85.44 |
Kanada | €67.34 |
Cocos (Keeling) Islands | €19.27 |
Congo (Democratic Republic of the) | €85.44 |
Central African Republic | €85.44 |
Congo | €85.44 |
Côte d'Ivoire | €85.44 |
Cook Islands | €19.27 |
Chile | €85.44 |
Cameroon | €85.44 |
China | €67.34 |
Colombia | €85.44 |
Costa Rica | €85.44 |
Cuba | €85.44 |
Cabo Verde | €85.44 |
Curaçao | €19.27 |
Christmas Island | €19.27 |
Cyprus | €20.55 |
Czech Republic | €18.21 |
Djibouti | €85.44 |
Denmark | €18.21 |
Dominica | €85.44 |
Dominican Republic | €85.44 |
Algeria | €50.67 |
Ecuador | €85.44 |
Estonia | €20.55 |
Egypt | €50.67 |
Western Sahara | €19.27 |
Eritrea | €85.44 |
Ethiopia | €85.44 |
Finland | €20.55 |
Fiji | €85.44 |
Falkland Islands (Malvinas) | €85.44 |
Micronesia (Federated States of) | €85.44 |
Faroe Islands | €29.36 |
Gabon | €85.44 |
Grenada | €85.44 |
Georgia | €50.67 |
French Guiana | €85.44 |
Guernsey | €19.27 |
Ghana | €85.44 |
Gibraltar | €19.27 |
Greenland | €29.36 |
Gambia | €85.44 |
Guinea | €85.44 |
Guadeloupe | €85.44 |
Equatorial Guinea | €85.44 |
Greece | €20.55 |
South Georgia and the South Sandwich Islands | €19.27 |
Guatemala | €85.44 |
Guam | €19.27 |
Guinea-Bissau | €85.44 |
Guyana | €85.44 |
Hong Kong | €67.34 |
Heard Island and McDonald Islands | €19.27 |
Honduras | €85.44 |
Croatia | €20.55 |
Haiti | €85.44 |
Hungary | €19.27 |
Kanarische Inseln | €19.27 |
Indonesia | €67.34 |
Ireland | €20.55 |
Israel | €50.67 |
Isle of Man | €19.27 |
India | €67.34 |
British Indian Ocean Territory | €85.44 |
Iraq | €67.34 |
Iran (Islamic Republic of) | €67.34 |
Iceland | €29.36 |
Jersey | €19.27 |
Jamaica | €85.44 |
Jordan | €67.34 |
Japan | €67.34 |
Kenya | €85.44 |
Kyrgyzstan | €67.34 |
Cambodia | €67.34 |
Kiribati | €85.44 |
Comoros | €85.44 |
Saint Kitts and Nevis | €19.27 |
Korea (Democratic People's Republic of) | €67.34 |
Korea (Republic of) | €67.34 |
Kuwait | €19.27 |
Cayman Islands | €85.44 |
Kazakhstan | €67.34 |
Lao People's Democratic Republic | €67.34 |
Lebanon | €50.67 |
Saint Lucia | €19.27 |
Liechtenstein | €29.14 |
Sri Lanka | €67.34 |
Liberia | €85.44 |
Lesotho | €85.44 |
Lithuania | €20.55 |
Luxembourg | €18.21 |
Latvia | €20.55 |
Libya | €50.67 |
Morocco | €50.67 |
Monaco | €18.21 |
Moldova (Republic of) | €20.55 |
Montenegro | €29.36 |
Saint Martin (French part) | €19.27 |
Madagascar | €85.44 |
Marshall Islands | €85.44 |
Macedonia (the former Yugoslav Republic of) | €29.36 |
Mali | €85.44 |
Myanmar | €67.34 |
Mongolia | €67.34 |
Macao | €19.27 |
Northern Mariana Islands | €19.27 |
Martinique | €85.44 |
Mauritania | €85.44 |
Montserrat | €85.44 |
Malta | €20.55 |
Mauritius | €85.44 |
Maldives | €67.34 |
Malawi | €85.44 |
Mexico | €67.34 |
Malaysia | €67.34 |
Mozambique | €85.44 |
Namibia | €85.44 |
New Caledonia | €85.44 |
Niger | €85.44 |
Norfolk Island | €19.27 |
Nigeria | €85.44 |
Nicaragua | €85.44 |
Netherlands | €18.21 |
Norway | €29.36 |
Nepal | €67.34 |
Nauru | €85.44 |
Niue | €19.27 |
New Zealand | €85.44 |
Oman | €67.34 |
Panama | €85.44 |
Peru | €85.44 |
French Polynesia | €85.44 |
Papua New Guinea | €67.34 |
Philippines | €67.34 |
Pakistan | €67.34 |
Poland | €18.21 |
Saint Pierre and Miquelon | €85.44 |
Pitcairn | €85.44 |
Puerto Rico | €19.27 |
Palestine, State of | €19.27 |
Portugal | €20.55 |
Palau | €85.44 |
Paraguay | €85.44 |
Qatar | €67.34 |
Réunion | €85.44 |
Romania | €20.55 |
Serbia | €29.36 |
Russian Federation | €50.67 |
Rwanda | €85.44 |
Saudi Arabia | €67.34 |
Solomon Islands | €85.44 |
Seychelles | €85.44 |
Sudan | €85.44 |
Sweden | €19.27 |
Singapore | €67.34 |
Saint Helena, Ascension and Tristan da Cunha | €85.44 |
Slovenia | €19.27 |
Svalbard and Jan Mayen | €19.27 |
Slovakia | €19.27 |
Sierra Leone | €85.44 |
San Marino | €19.27 |
Senegal | €85.44 |
Somalia | €85.44 |
Suriname | €85.44 |
South Sudan | €85.44 |
Sao Tome and Principe | €85.44 |
El Salvador | €19.27 |
Sint Maarten (Dutch part) | €19.27 |
Syrian Arab Republic | €50.67 |
Swaziland | €85.44 |
Turks and Caicos Islands | €85.44 |
Chad | €85.44 |
French Southern Territories | €19.27 |
Togo | €19.27 |
Thailand | €67.34 |
Tajikistan | €67.34 |
Tokelau | €19.27 |
Timor-Leste | €19.27 |
Turkmenistan | €67.34 |
Tunisia | €50.67 |
Tonga | €85.44 |
Turkey | €50.67 |
Trinidad and Tobago | €85.44 |
Tuvalu | €85.44 |
Taiwan | €67.34 |
Tanzania, United Republic of | €85.44 |
Ukraine | €29.36 |
Uganda | €85.44 |
United States Minor Outlying Islands | €19.27 |
Vereinigte Staaten von Amerika | €67.34 |
Uruguay | €85.44 |
Uzbekistan | €67.34 |
Vatican City | €19.27 |
Saint Vincent and the Grenadines | €19.27 |
Venezuela (Bolivarian Republic of) | €85.44 |
Virgin Islands (British) | €85.44 |
Virgin Islands (U.S.) | €19.27 |
Viet Nam | €67.34 |
Vanuatu | €85.44 |
Wallis and Futuna | €85.44 |
Samoa | €85.44 |
Republic of Kosovo | €19.27 |
Yemen | €67.34 |
Mayotte | €85.44 |
South Africa | €85.44 |
Zambia | €85.44 |
Zimbabwe | €85.44 |

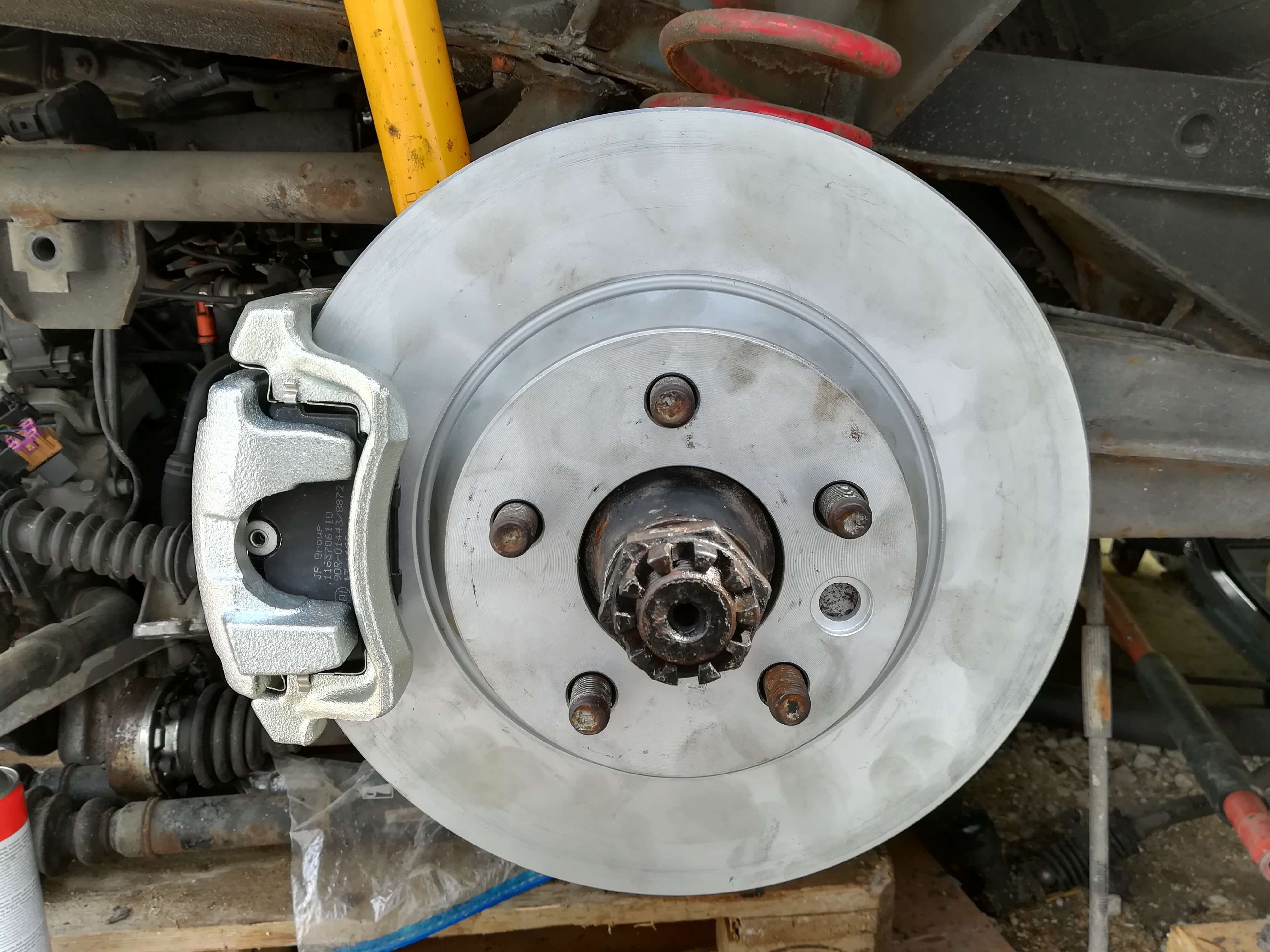

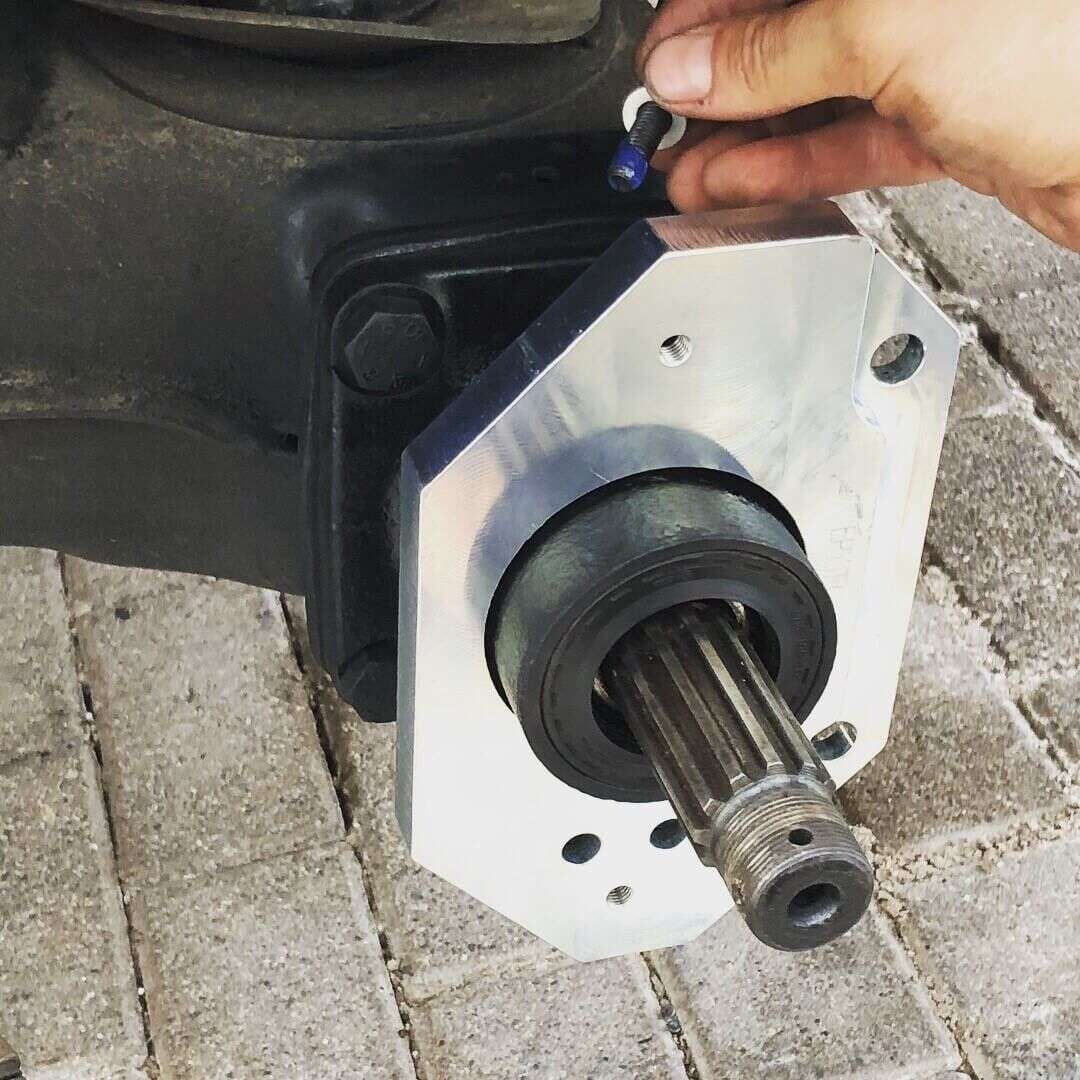

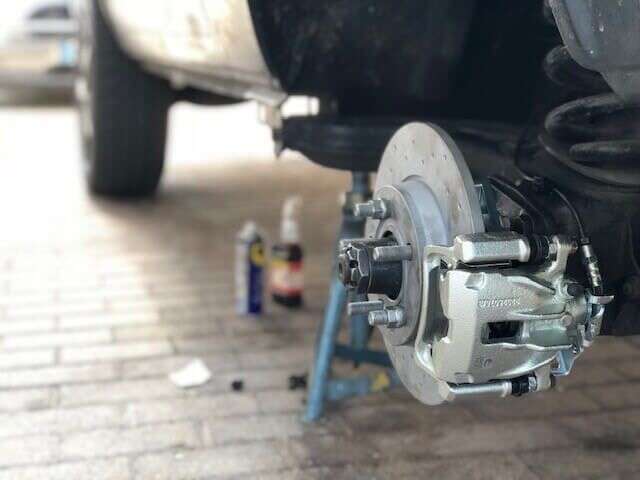

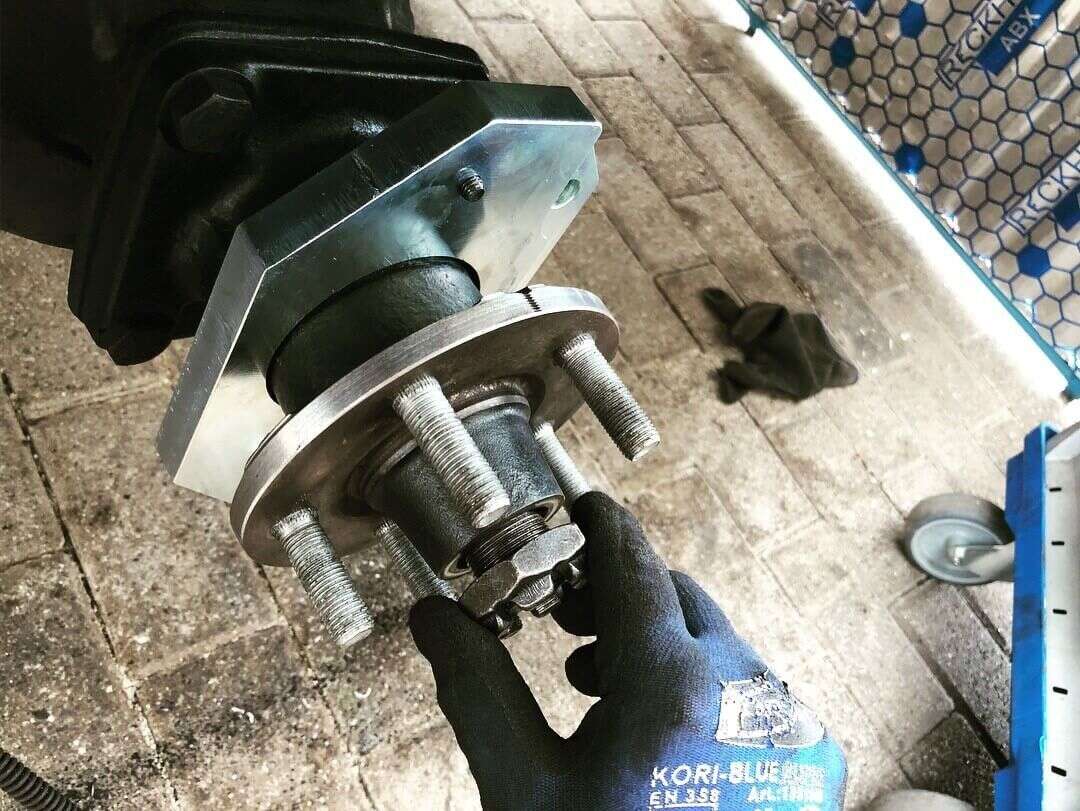

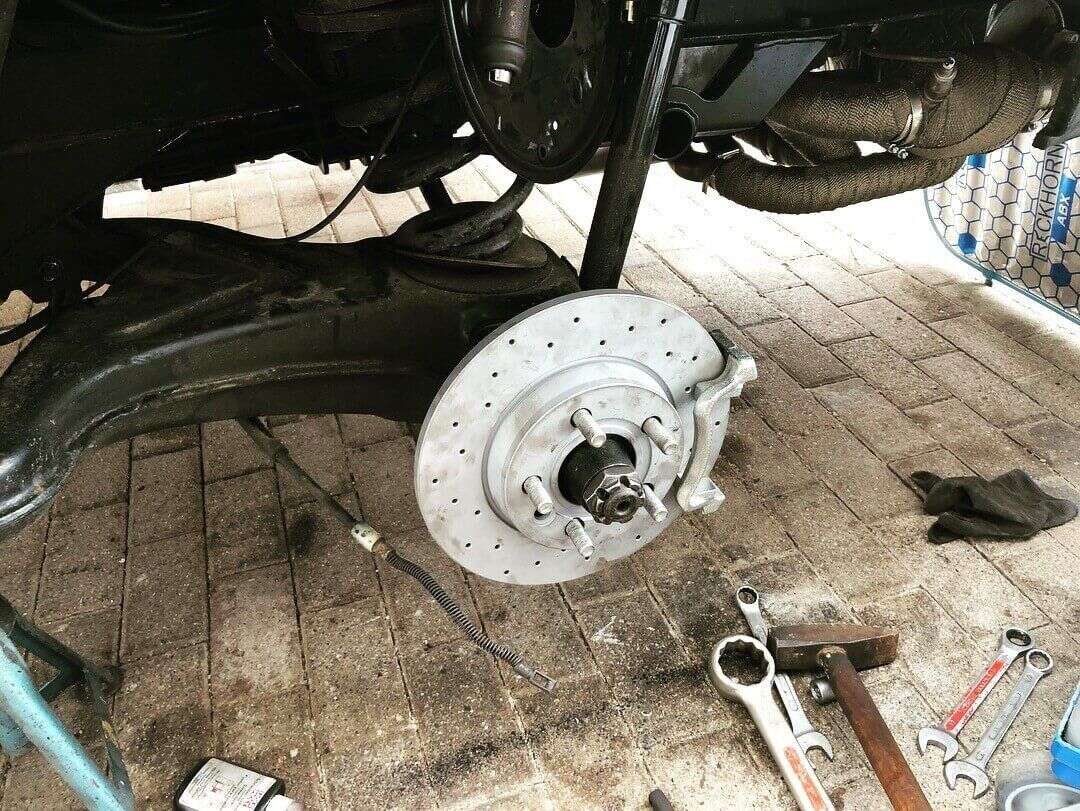

Disc brake adapter to convert the T3 BUS to brake discs on the rear axle of the T4.
The holders are made of high-strength steel, completely galvanized.
With these adapters, both T4 brake discs, i.e. both the 280 and the 294 brake discs with T4 brake calipers can be used. When buying the components, you only have to make sure that if you want to install the 280 brake disc, for example, you also use the brake calipers and brake caliper carrier that were originally installed with this brake disc.
Advantages of this brake system:
- The remaining fading on the original brake system is gone.
- Significantly better perfomance than the standard brake system.
- The material certificate included in the scope of delivery enables entry by individual acceptance even for series vehicles
- Quick and easy assembly possible with the supplied screws
The wheel hubs must be turned off for the rear disc or can also be ordered from us.
Required material for installation:
- Brake discs from VW BUS T4 280x12 mm 15 inch VAG: 7D0 615 601
- or for 16 inch 294x13.5 OE numbers: 7D0615601C
- Brake caliper bracket from VW BUS T4 280x12 mm 15 inch VAG:7D0615425B
- oor for 16 inch OE number: 7D0615425A
- Brake calipers from the VW BUS T4 15 inch OE number: 7D0 615 424B
- or for 16 inch OE number: 7D0 615 424A
- Longer studs for the rear axle
- The following brake cable fits without modifications to the vehicle if the sleeve is laid generously at the bottom of the swing arm: Brake cable Golf 2, Jetta 2 1988-1992. Cable 1622 mm/ sheath 1221 mm, vehicles with rear disc brakes (except G60) No.: 191 609 721
Suitable adapters for the front axle are also available from us.
Scope of delivery:

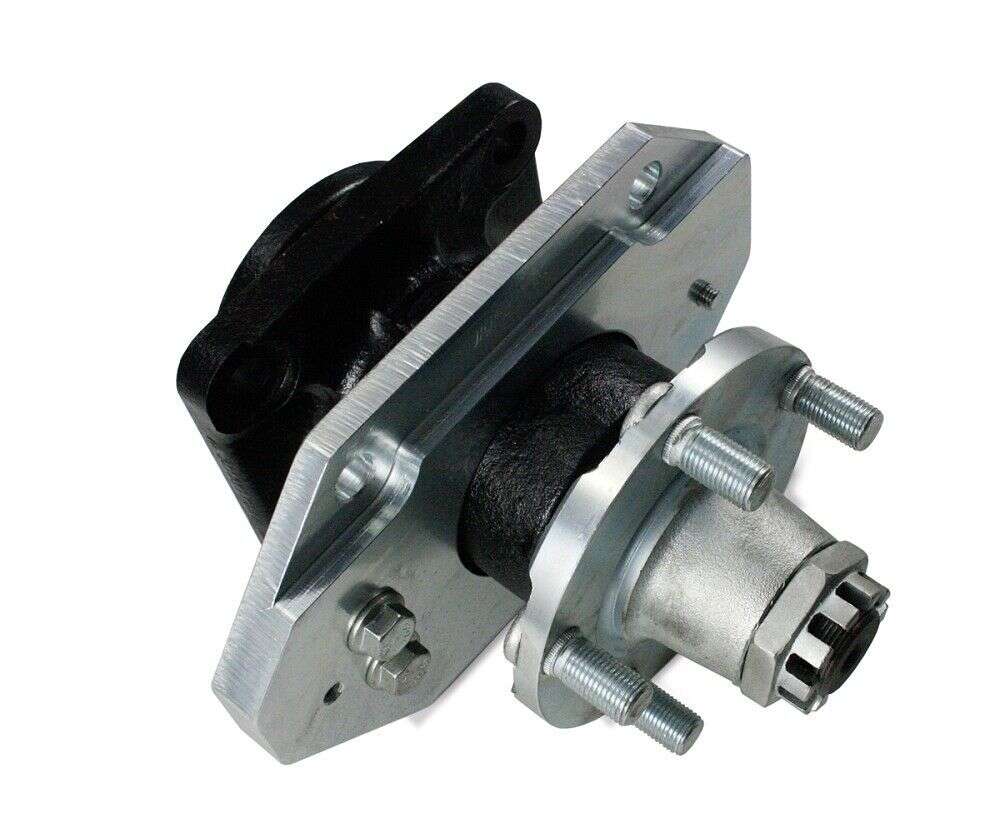

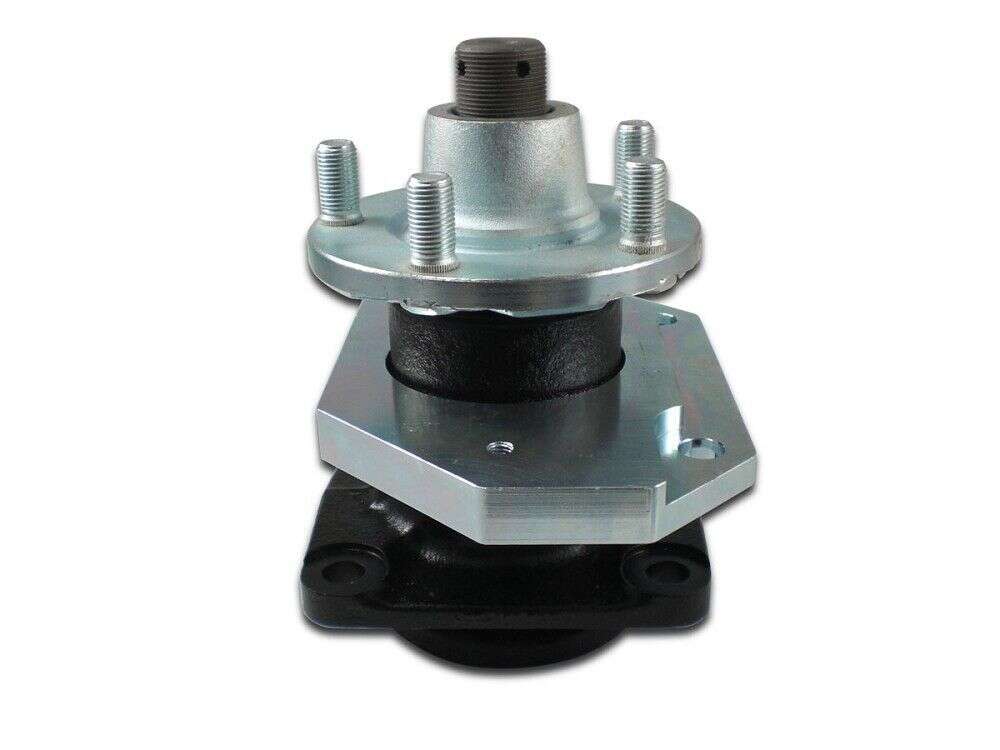

- 2x conversion adapter for VW T3 to T4 brake discs for the rear axle
- Set of matching centering rings
- Complete set of high resistant srews
- Certificate of material
- Copy of the german document 'Fahrzeugschein' (equivalent with the English vehicle registration card). Proves the conformity of our product in Germany and simplifies authorization by authorities.
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.

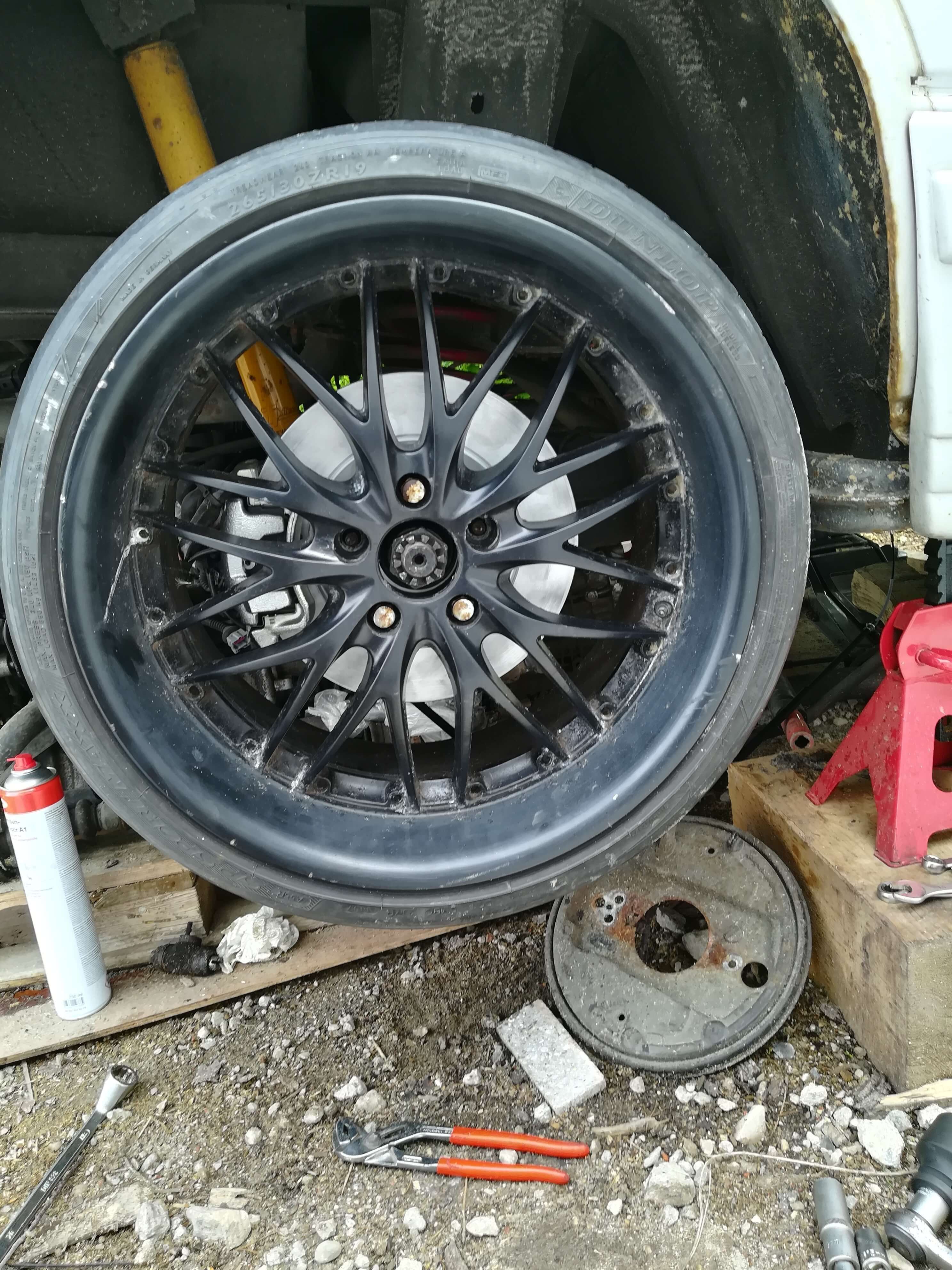

- We can not answer generally, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want.
Click here to go to the >> configure steel braided brake lines << - Always use the hand brake cable of the installed brake caliper. So sometimes you have to modify / adapt the new handbrake cable. For conversions, where the original caliper is used and the handbrake cable can be used, you may need to pull the cable without any other fittings (ie directly) to compensate for the long distance due to the large diameter of the large brake discs.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
24 of 24 reviews
4.92 out of 5 stars
Login
2 March 2024 07:26
Filip N
Central spacers did not fit
7 August 2023 12:55
Paul M
Wegen bevorstehenden Motor umbau mit Leistungssteigerung, muss ich auch Bremsanlage am meinem Bulli entsprechend anpassen. Da ich schon früher vordere Bremsen auf Audi Bremsen mit EPYTEC Adapter umgebaut habe, und damit gute Erfahrung gemacht habe, entschied ich mich wieder auf EPYTEC zurück zugreifen. Bei Produkt Beschreibung sind auch sämtliche Teile mit Teilenummer aufgelistet mit vielen Bilder zum Umbau, was die ganze Sache viel einfache macht Am Anfang war ich etwas skeptisch, vor allem was den Preis betrifft. Aber, wie es heisst: was nichts kostet, ist auch nichts. Qualität hat sein Preis. Endergebnis hat mich überzeugt. Umbau sieht sauber und professionell aus. Eintragung wird mit dem Motor zusammen gemacht, sollte aber wegen beigefügten Materialgutachten kein Problem sein. Wenn jemand gleiche vorhaben hat, kann ich EPYTEC ruhig weiter empfelen.
15 July 2023 20:50
Henning S
Super produkt.
26 June 2023 15:46
Bernard B
Produit de grande qualité, usinage et finit de surface de qualité supérieur, assemblage sur mon vanagon facile, sans accroc. Merci Epitec
15 July 2022 17:58
Matheo P
Package recieved quickly and well packed All pieces fit perfectly and are well made Easy instalation Informations on the article page are perfectly correct and very easy to understand
8 July 2022 11:27
Bas V
Good quality and fitment.
3 October 2021 17:39
Patrick W
Habe mich für dieses Produkt entschieden da die Firma für Qualität steht und Passgenauigkeit Produkt hat wie versprochen gepasst mit den Tipp sie dabei standen weil die Montage ein leichtes würde das Produkt auf jeden Fall weiterempfehlen und wieder kaufen vielen Dank
3 October 2021 12:29
Patrick W
Alles super gerne wieder
22 April 2021 08:41
Konstantin Z
Vielen Dank! Die Lieferung war sofort und die Qualität war zufrieden.
8 April 2021 09:17
Konstantin Z
Vielen Dank für die schnelle Lieferung! Die Qualität ist großartig!
-
VW|Transporter II Pritsche/Fahrgestell|1.6|--
-
VW|Transporter III Bus|1.6 D|--
-
VW|Transporter III Bus|1.6 TD Syncro|--
-
VW|Transporter III Bus|1.6 TD|--
-
VW|Transporter III Bus|1.6|--
-
VW|Transporter III Bus|1.7 D|--
-
VW|Transporter III Bus|1.9 Syncro|--
-
VW|Transporter III Bus|1.9|--
-
VW|Transporter III Bus|2.0|--
-
VW|Transporter III Bus|2.1 Cat|--
-
VW|Transporter III Bus|2.1 Syncro|--
-
VW|Transporter III Bus|2.1|--
-
VW|Transporter III Bus|2.1i|--
-
VW|Transporter III Pritsche/Fahrgestell|1.6 D|--
-
VW|Transporter III Pritsche/Fahrgestell|1.6 TD Syncro|--
-
VW|Transporter III Pritsche/Fahrgestell|1.6 TD|--
-
VW|Transporter III Pritsche/Fahrgestell|1.7 D|--
-
VW|Transporter III Pritsche/Fahrgestell|1.9 Syncro|--
-
VW|Transporter III Pritsche/Fahrgestell|1.9|--
-
VW|Transporter III Pritsche/Fahrgestell|2.0|--
-
VW|Transporter III Pritsche/Fahrgestell|2.1 Syncro|--
-
VW|Transporter III Pritsche/Fahrgestell|2.1|--
-
VW|Transporter III Pritsche/Fahrgestell|2.1i|--
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
Passendes Zubehör
- ✓ 312x25 4B0615301A Audi A4 Quattro / Audi A6 brake disc
- ✓ 1-piston 4A0615123A / 4A0615124A Audi 100 / A6 C4 Girling / Ate57 brake caliper
- ✓ front axle
- ✓ 288x25 4A0 615 301 Audi A4 Quattro / Audi A6 brake disc
- ✓ 1-piston Girling / ATE 57 4A0615123A / 4A0615124A Audi 100 /A6 brake caliper
- ✓ front axle
- ✓ 365x34 420615301D Audi R8 RS5 brake disc
- ✓ 8-piston 420615105 / 4206151056 RS4 B7 / R8 brake caliper
- ✓ front axle
- ✓ Desired dimensions
- ✓ Quickly configurable
- ✓ Length, color and connections freely selectable
- ✓ 280x12
- ✓ 68mm centering
- ✓ 40.5mm height
- ✓ 280x12
- ✓ 68mm centering
- ✓ 40mm height
- ✓ Registration-free
- ✓ Blackstuff Ultimax brake pads
- ✓ temperature up to 400°C
- ✓ Registration-free
- ✓ Greenstuff sports surface
- ✓ temperature up to 650°C
- ✓ Brake force regulator Infinitely variable
- ✓ Perfectly adjustable braking effect
- ✓ suitable for all vehicles
- ✓ optimized paste for brake systems
- ✓ correct viscosity
- ✓ no squeaking
- ✓ Racing brake fluid
- ✓ Reduction in brake fading
- ✓ improved pedal feel
- ✓ 5x112 bolt circle
- ✓ Plug & Play
- ✓ VW T3 BUS
- ✓ 280x12
- ✓ 68mm centering
- ✓ 40.5mm height
- ✓ 294x13.5
- ✓ 68.15mm centering
- ✓ 41mm height
- ✓ VW T3 Bus/Syncro TDI engine conversion
- ✓ Golf 3 starter
- ✓ 0 001 125 012/013 (2.0 KW),0 986 017 460 (2.0 KW)
- ✓ negative/positive fall
- ✓ 5/10mm thickness
- ✓ Suitable for VW T3 bus, VW T3 box
- ✓ Significantly higher boiling point
- ✓ Better pedal feel
- ✓ Suitable for the race track
- ✓ Installation location: rear
- ✓ Number of holes: 5
- ✓ Bolt circle: 112
- ✓ Diameter: 294 mm
- ✓ Thickness: 14 mm
- ✓ Height: 41 mm
