Brake caliper adapter VW T3 Bus T3 Kasten Audi A4 A6 Brake disc 300x22mm VW T5 Bus Brake caliper rear axle

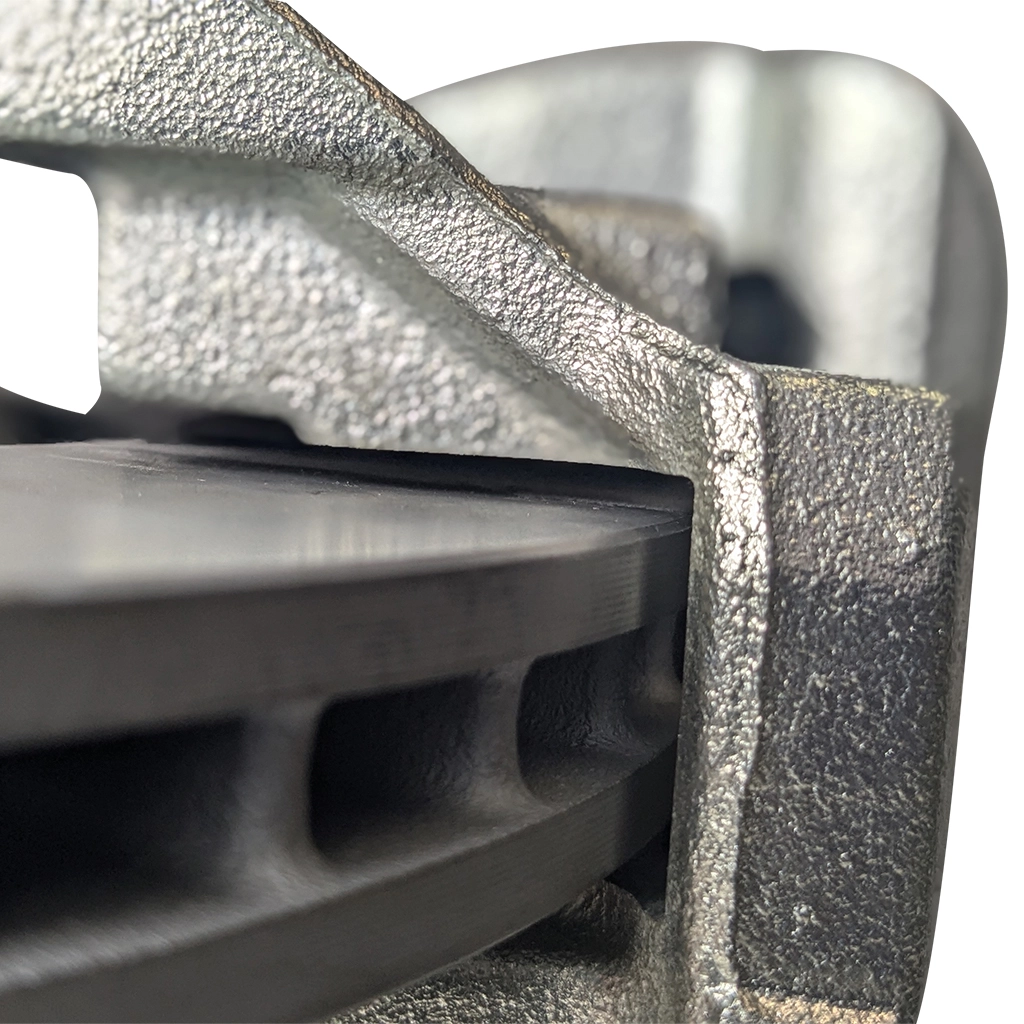

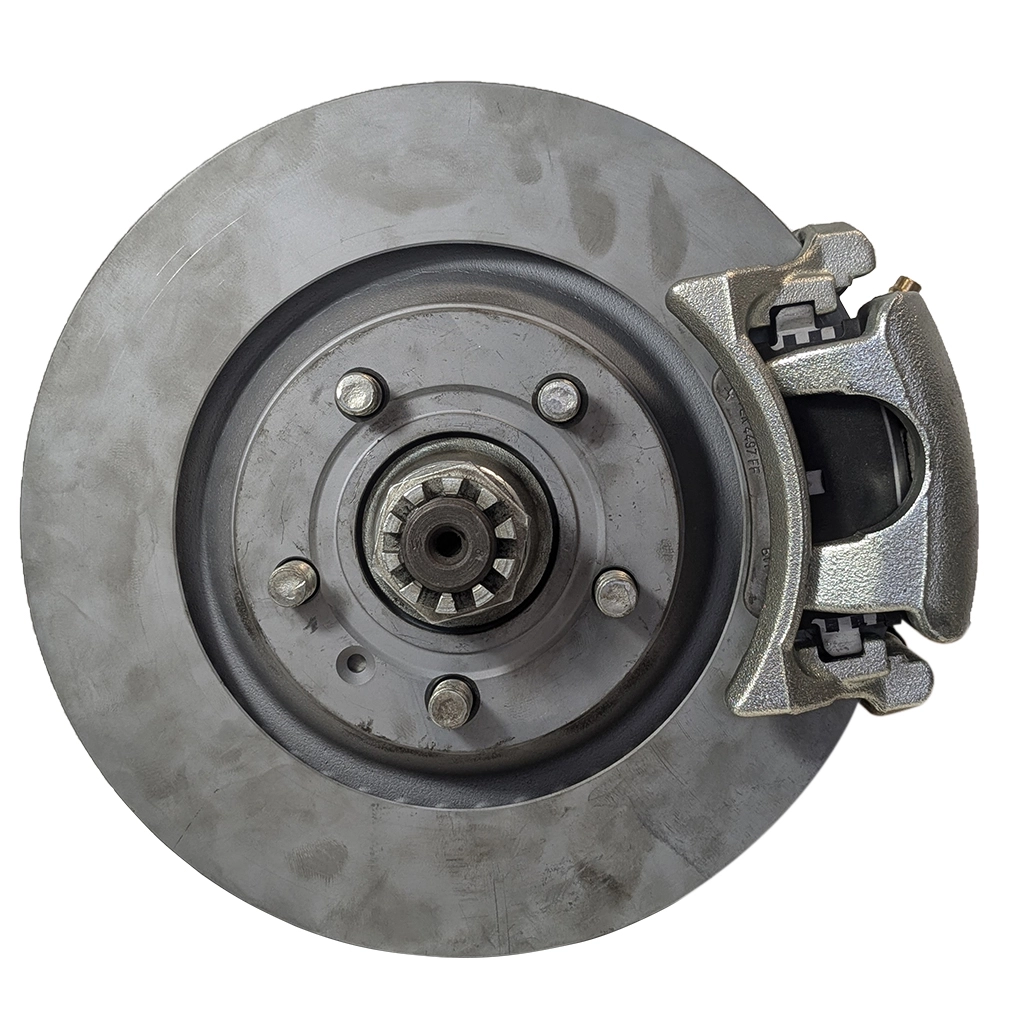

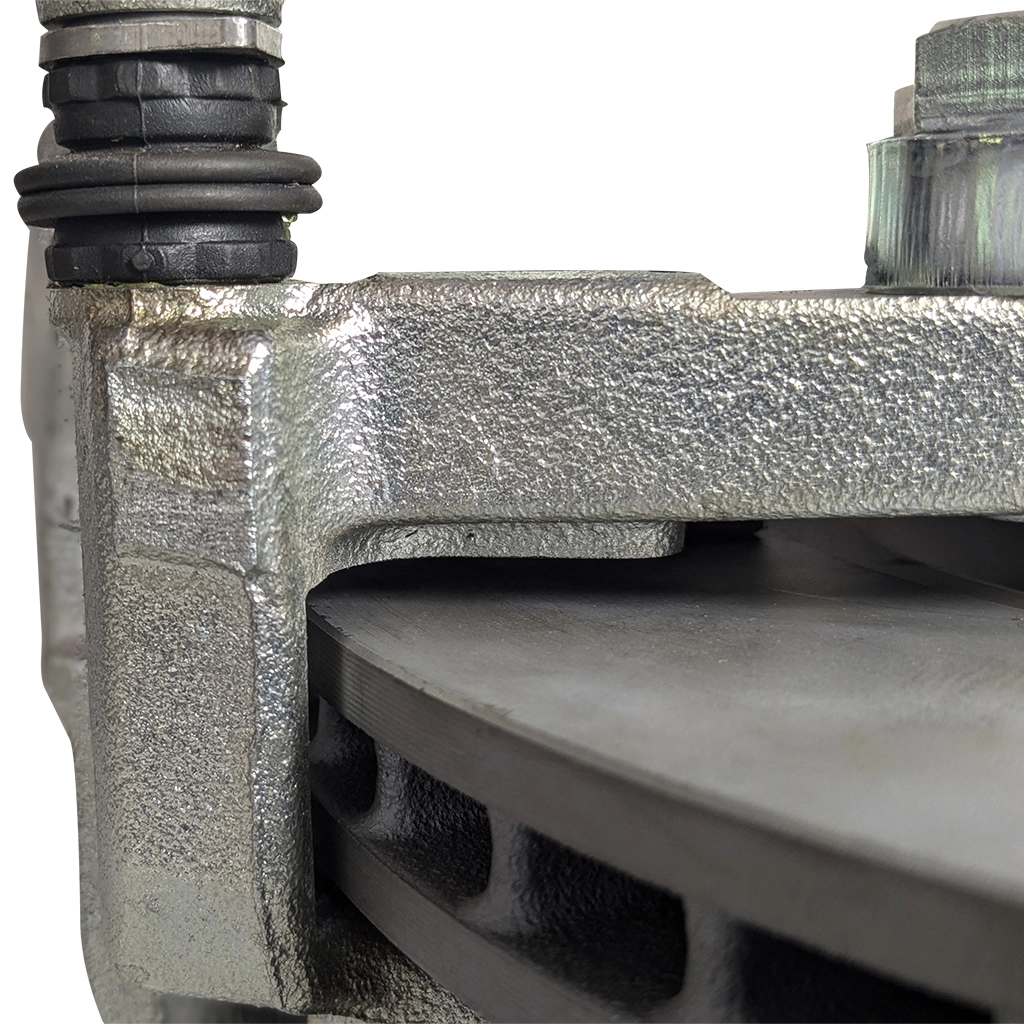

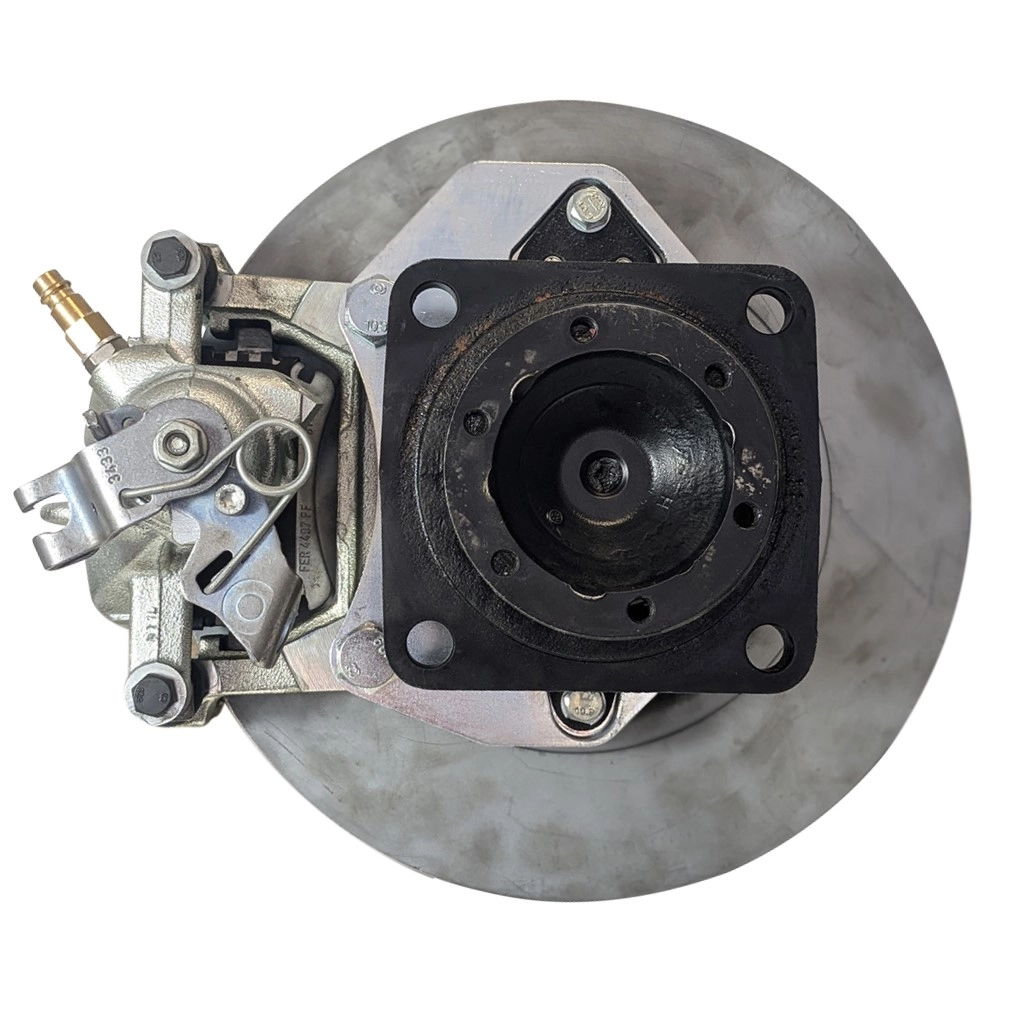

Brake caliper adapter to drive the rear brake calipers of the VW T5, T6 bus in conjunction with the Audi A4, A6 300x22mm brake discs on the rear axle of the VW T3 bus.
Adapters are suitable for the following vehicles:
- VW T3 Bus
- VW T3 Kasten
Advantages of this brake system:
- Top deceleration values, no comparison with conventional rear brake discs
- Significantly improved fading due to internally ventilated discs
- a must for performance upgrades
- the material certificate included in the scope of delivery enables registration via individual approval, even for standard vehicles.
Required components:

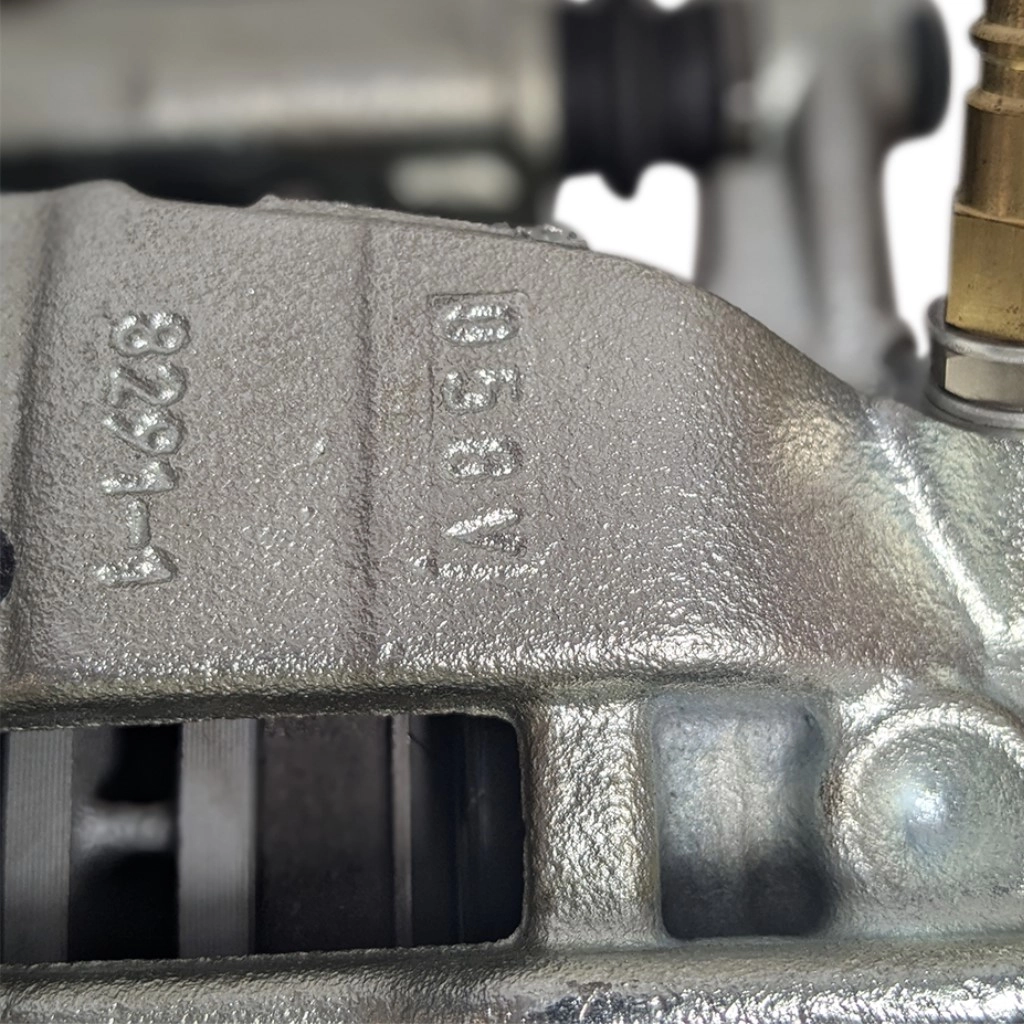

- Brake calipers from VW T5, T6 Bus, brake caliper left VW part no. 7H0615423, brake caliper right VW part no. 7H0615424
- Brake caliper carrier from VW T5, T6 Bus, part no: 7H0615425
- Brake pads, part number: JZW698451L
- Brake discs from Audi A4, A6 300x22mm VW part number: 8E0615601R
Scope of delivery:

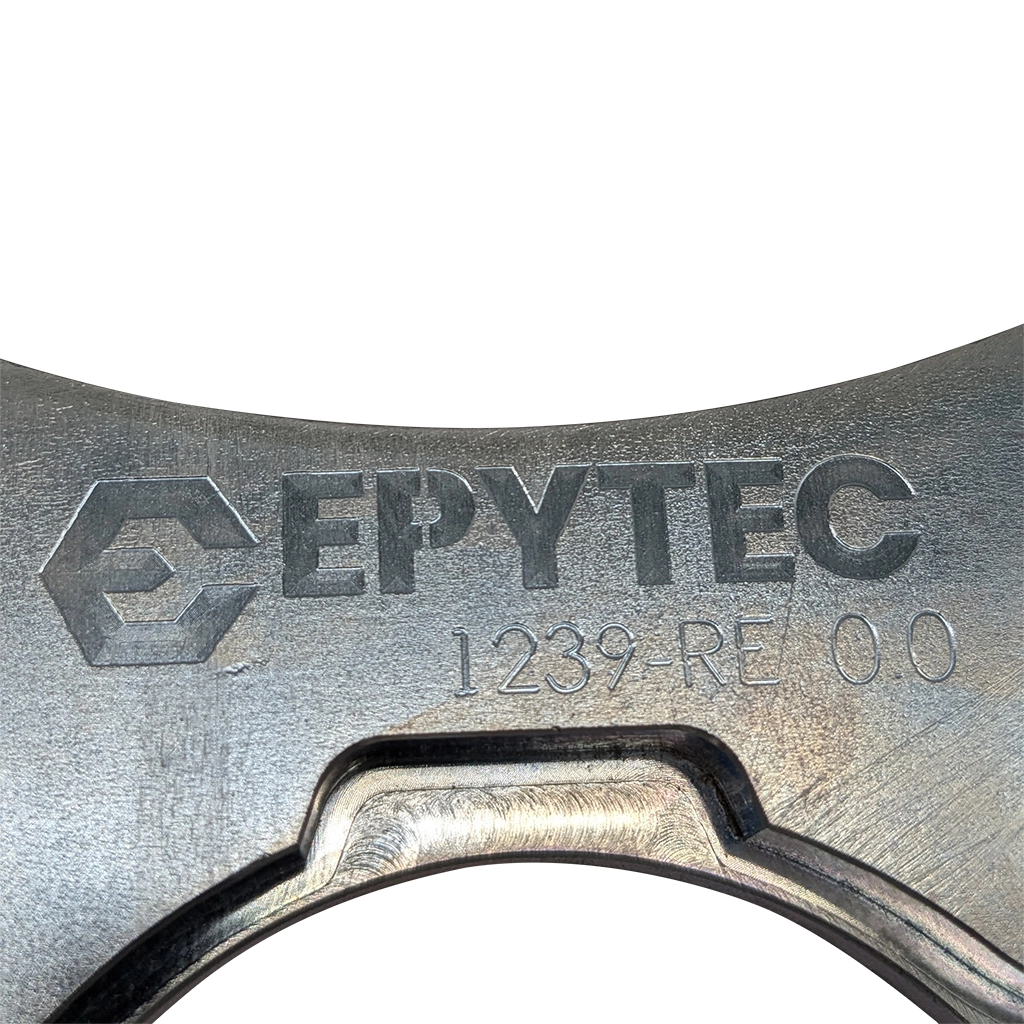

- 2x brake calliper adapter for VW T3 bus, VW T3 panel van

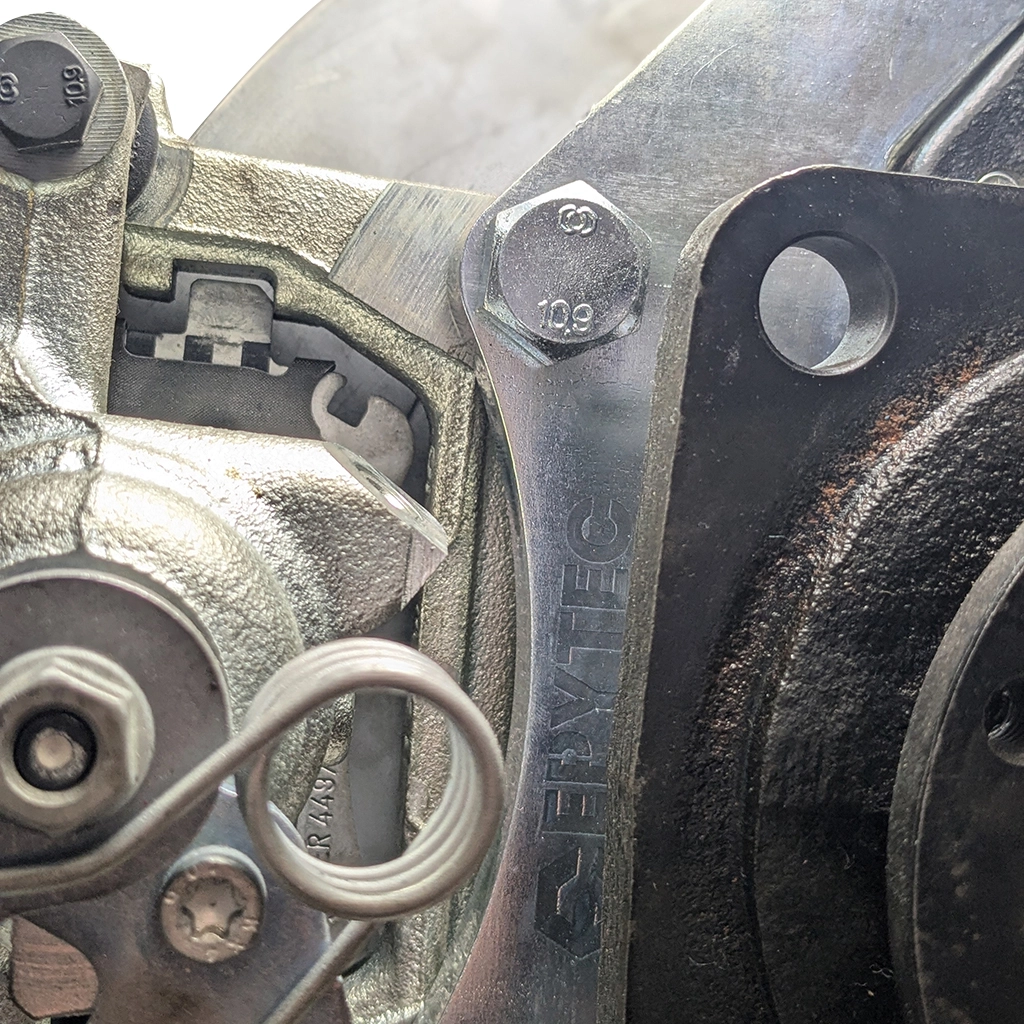

- Complete high-strength screw set
- material certificate
- matching centring rings
Tipps, Infos und Hinweise:
- Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
- Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
- Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden.
>> Jetzt direkt zu Spurverbreiterungen nach Wunsch << - Den Adapter mit den benötigten Komponenten zu verbauen um anschließend zu Prüfen ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst.
Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren << - Das Handbremsseil muss immer vom verbauten Sattel verwendet werden, das heißt, es kann sein, dass das neue Handbremsseil noch etwas angepasst werden muss. Bei Umbauten in dem der Original Sattel weiterverwendet wird und das Original Handbremsseil verwendet werden kann, kann es sein, dass du es auf direkterem Weg verlegen musst um den größeren Scheibendurchmesser und den Längeren weg auszugleichen
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
10 March 2025 17:11
Sebastian T
Schöne guten Tag an das Epytec Team Leider kann ich noch keine Bewertung abgeben da dass gelieferte Produkt noch eingepackt in der Garage steht
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
