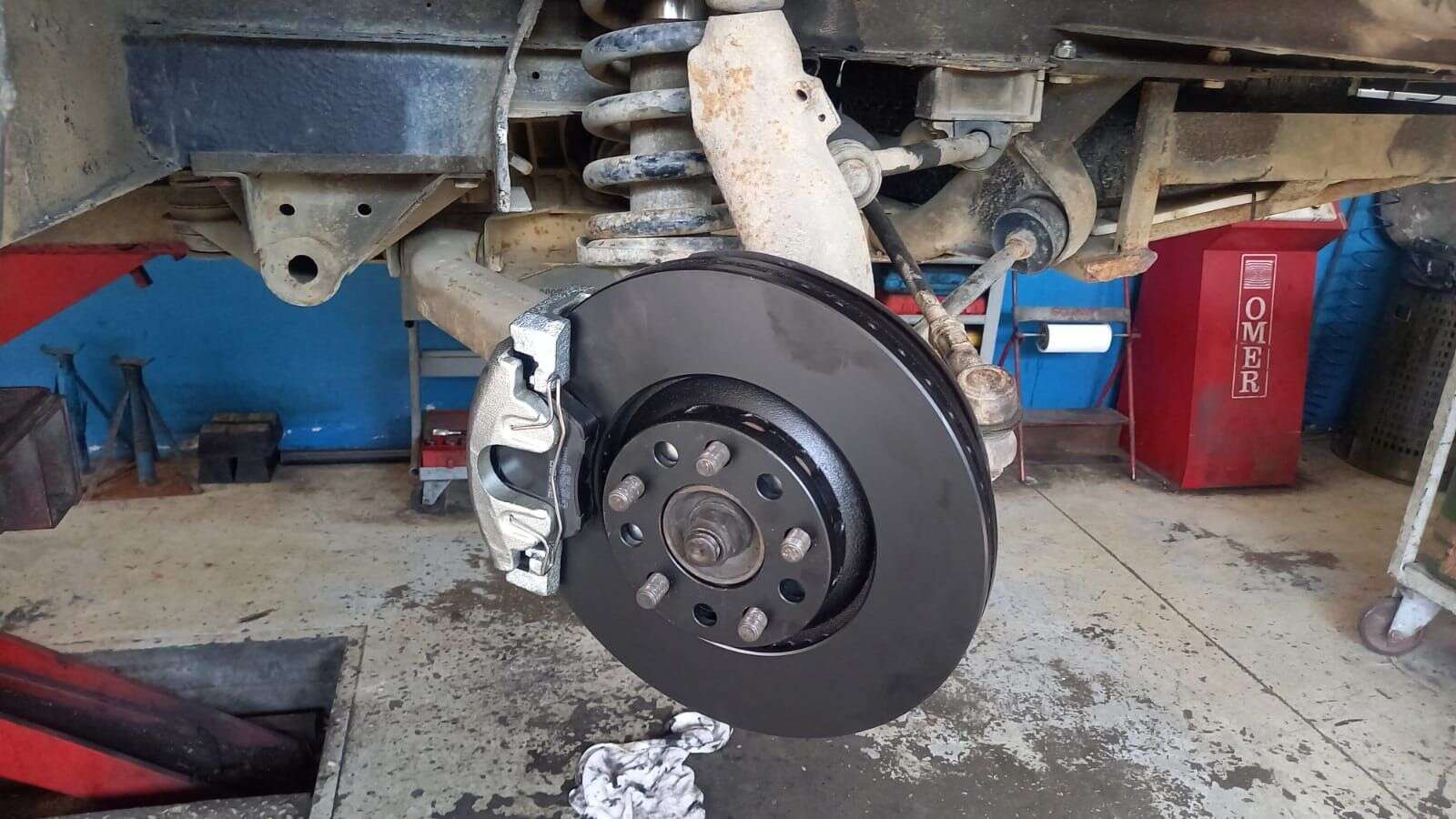

Brake caliper adapter to convert the T3 BUS Syncro to ventilated 312x25 brake discs with Audi A6 calipers.
Advantages of this brake system:
- Top deceleration values
- no more overheating and fading of the brakes
- very cheap procurement of the components. You can find used brake calipers from as little as 49 euros/new brake discs from as little as 70 euros
- TÜV registration possible with the supplied material certificate
- quick and easy assembly possible with the supplied screws
Required conversion components:
- Brake discs 312x25 mm Audi A4 Quattro, Audi A6 e.g. 4B0 615 301 A.
- Brake calipers Audi 100/A6 C4 Girling/ ATE 57 part number: 4A0615123A / 124A
- Brake caliper carrier from the 288 brake system part number: 3B0615125

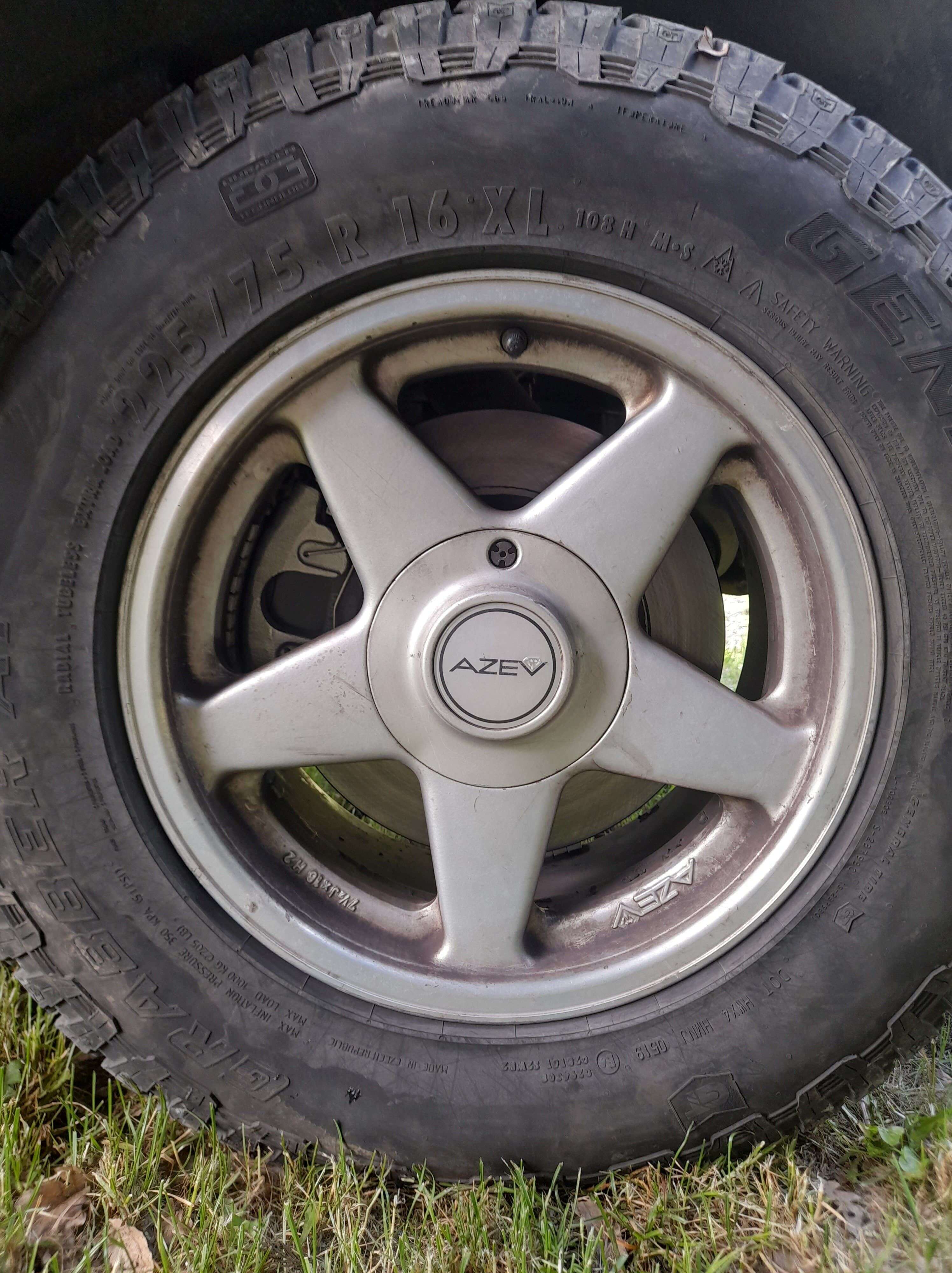

- at least 16 inch rims are required
This bracket set is only for T3 models with 4WD / Syncro! You can find suitable holders for all rear-wheel drive vehicles in our shop (click here)
Scope of delivery:
- 2 piece brake caliper holder
- 3 mm spacer plates under the brake disc
- complete set of high strength bolts for both sides
- material certificate
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
6 of 6 reviews
5 out of 5 stars
Login
25 March 2024 08:16
Christoph B
Passt sehr gut
23 September 2023 16:24
Randy B
This kit is really good and high quality
7 July 2022 21:46
Florian R
Das Set passt super mit wenigen Handgriffen ist alles montiert. Auch die Eintragung beim Tüv Süd war garkein Problem. Hammer so soll es sein Vielen Dank
19 November 2021 08:34
Patrizio I
Hat super gepasst Weiter so
18 June 2021 12:35
Filip N
Fits perfect no need to adjust exept brake hose holder from caliper ;) even calipers and caliper holder ftom passat b5 or audi c5 is correct
24 May 2019 17:43
Gonzalo S
Todo perfecto aunque con algunos problemas con DHL
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
