Centring rings Golf 4 5 R32 Audi A3 S3 TT Cupra on Phaeton and Audi discs
£17.74*

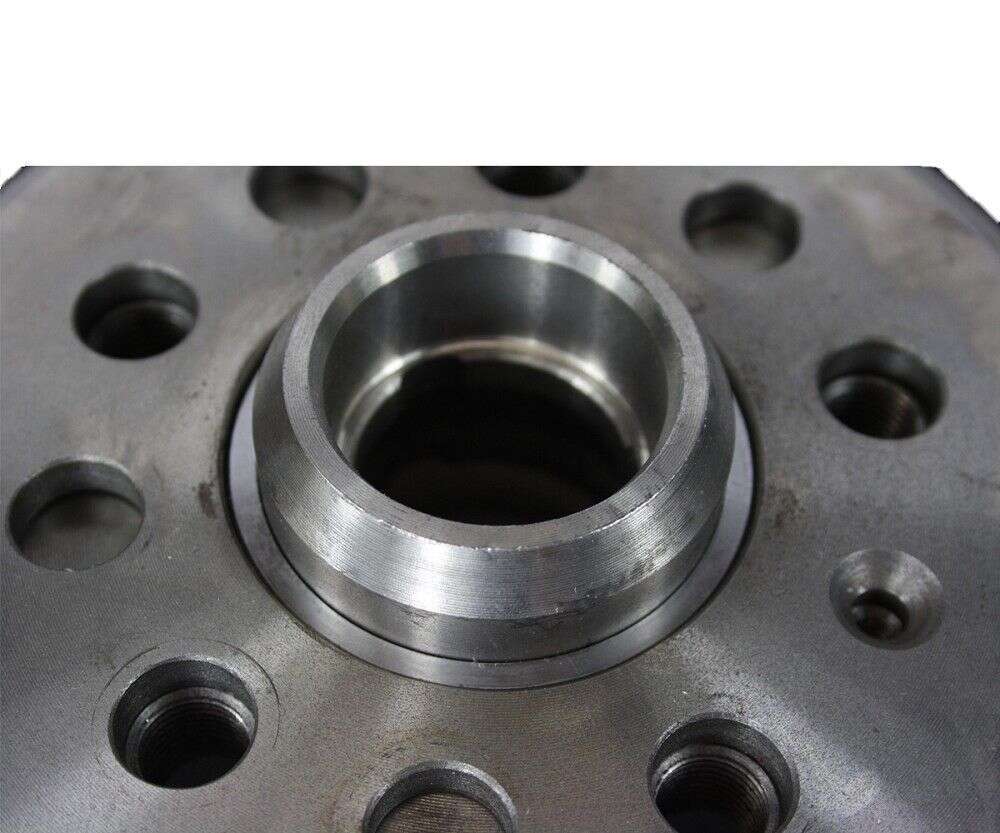

Steel centring ring for brake system conversion.
Our centring rings are required when brake discs from models with larger wheel hub centre centring are to be fitted on cars with smaller wheel hub centre centring.
These centring rings are suitable, for example, for brake disc conversions BMW X2, Mercedes GLE, etc. on the brake discs of newer VW Audi models with a centre centring dimension of 68.00 mm. You can also find suitable brake calliper adapters in our shop.
All our centring rings are manufactured so that they are smaller than the brake disc thickness so that the rims can rest cleanly.
Technical data:
- Inside diameter of centring: 67.00 mm
- Outer diameter centring: 68.00 mm
- Height of centring ring: 6.50 mm
Scope of delivery:
- 1x centring ring for BMW X2, Mercedes GLE, and all other models with brake disc centring of 67mm.
- Material certificate
If we do not have a suitable centring ring, you can easily create one in our configurator (click here) and order it directly.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
