Audi 80 S2 Brake Caliper Adapter ZR18 Cayenne Brake Caliper Audi A6 VW Phaeton 360x34 Brake Disc Conversion Tuning
- ✓ 360x34 3D0615301M Audi A6 / VW Phaeton brake disc
- ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne ZR18 ZL18 brake caliper
- ✓ front axle
£122.17*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

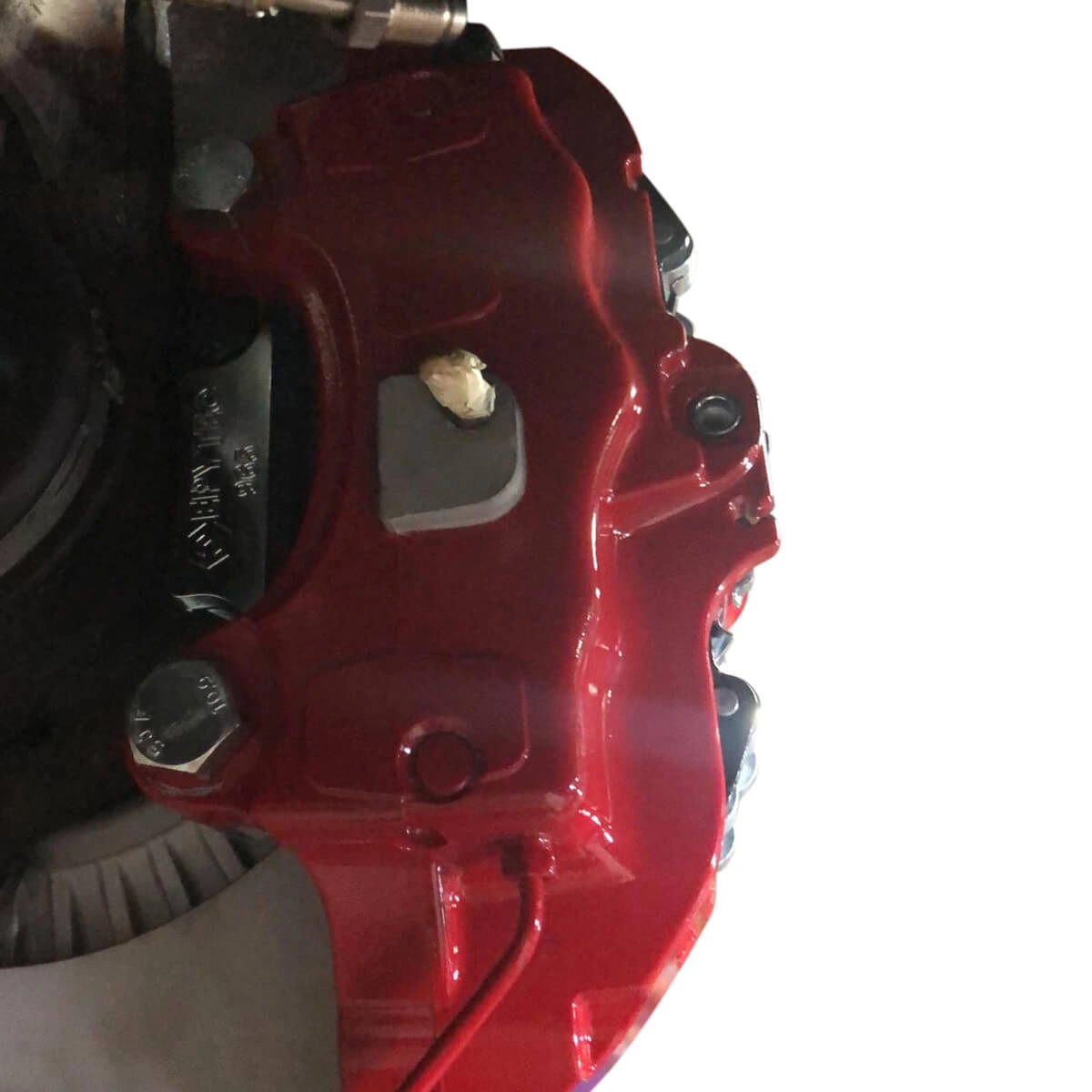

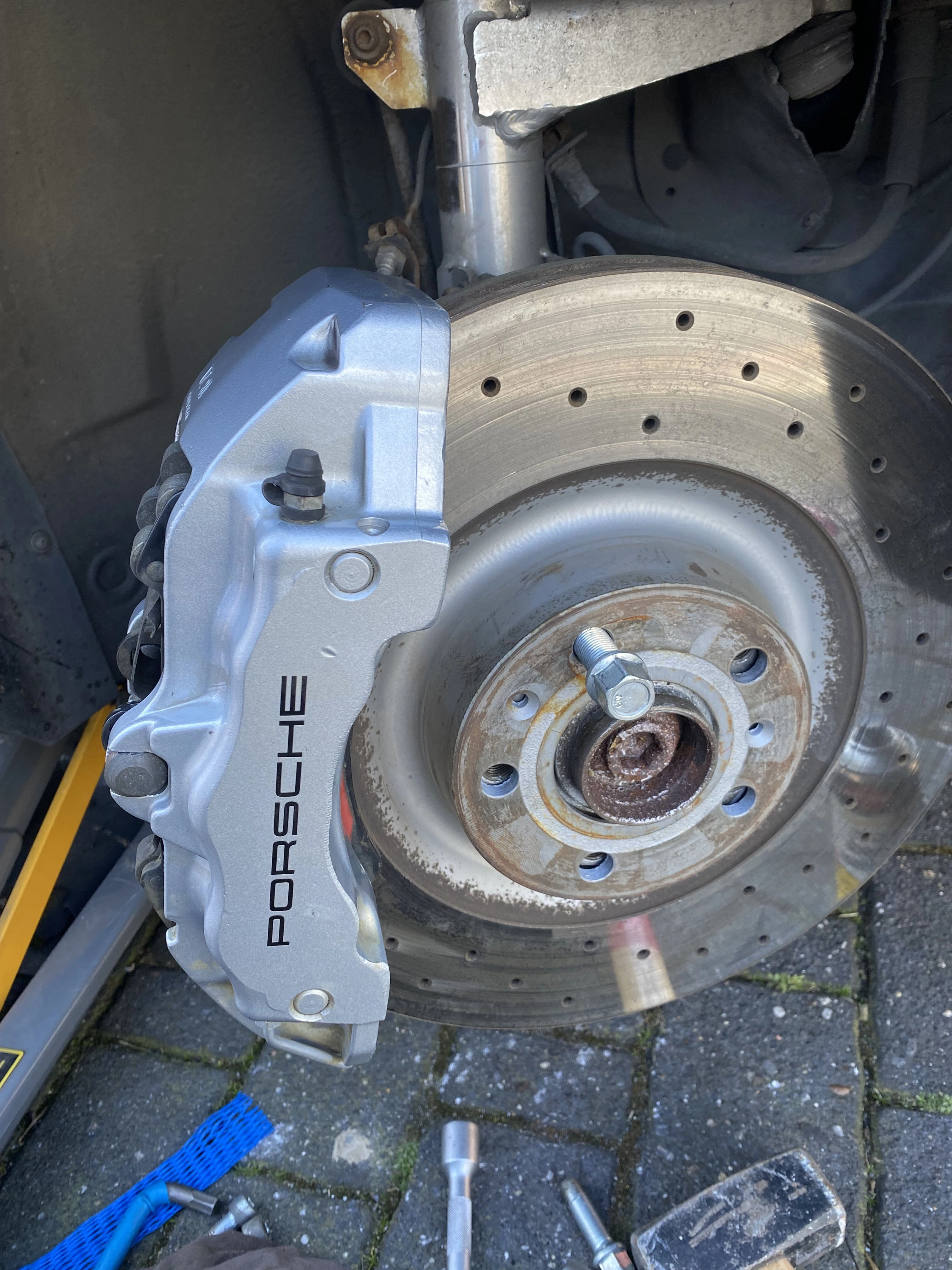

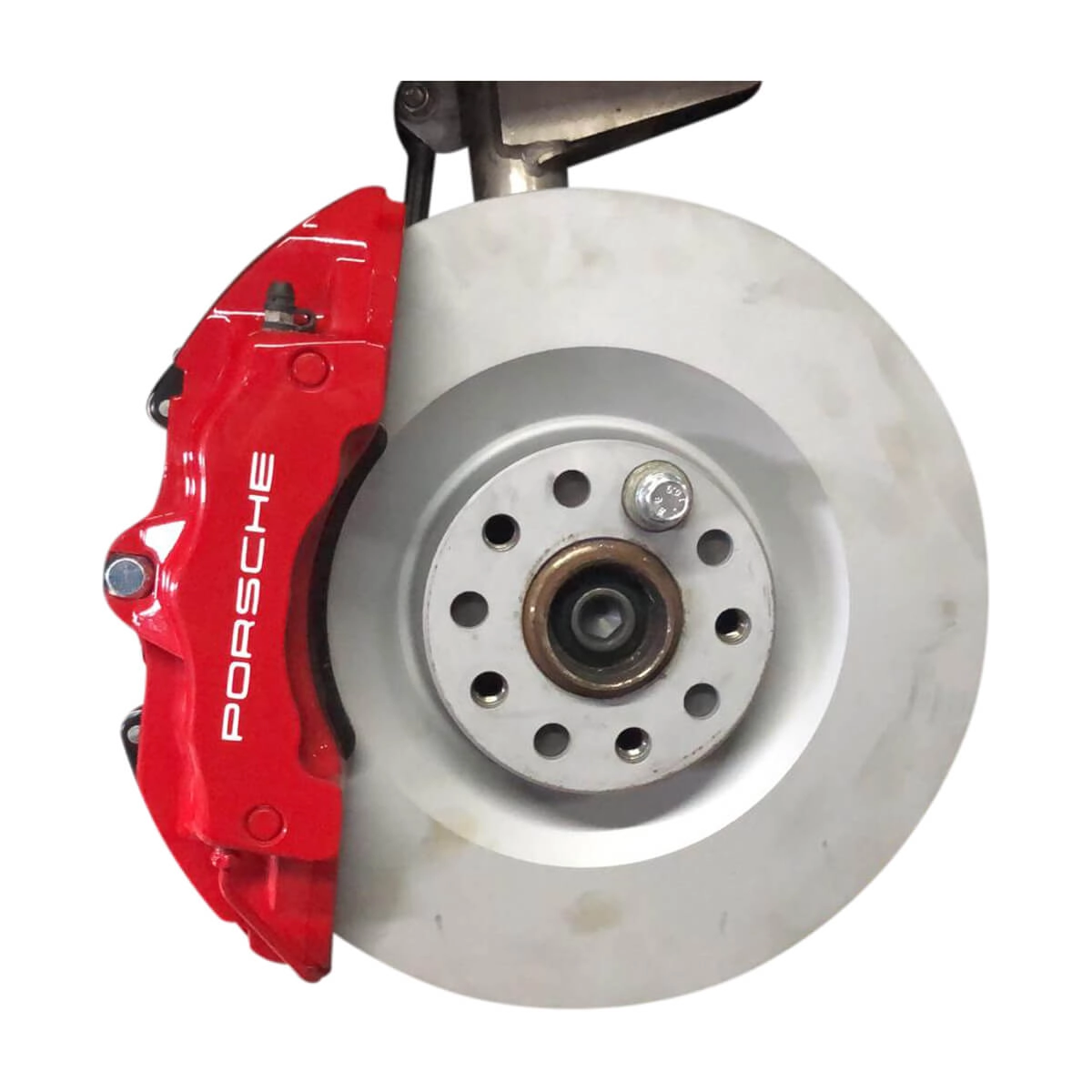

Brake caliper adapter on model Audi 80 S2 B4 for conversion to the die Porsche or Brembo 6-piston brake caliper ZR18, combined with the Audi A6 or VW Phaeton brake disc 360 x 34mm.
The calipers were installed on the Porsche Cayenne, VW Touareg and Q7.
Required components:

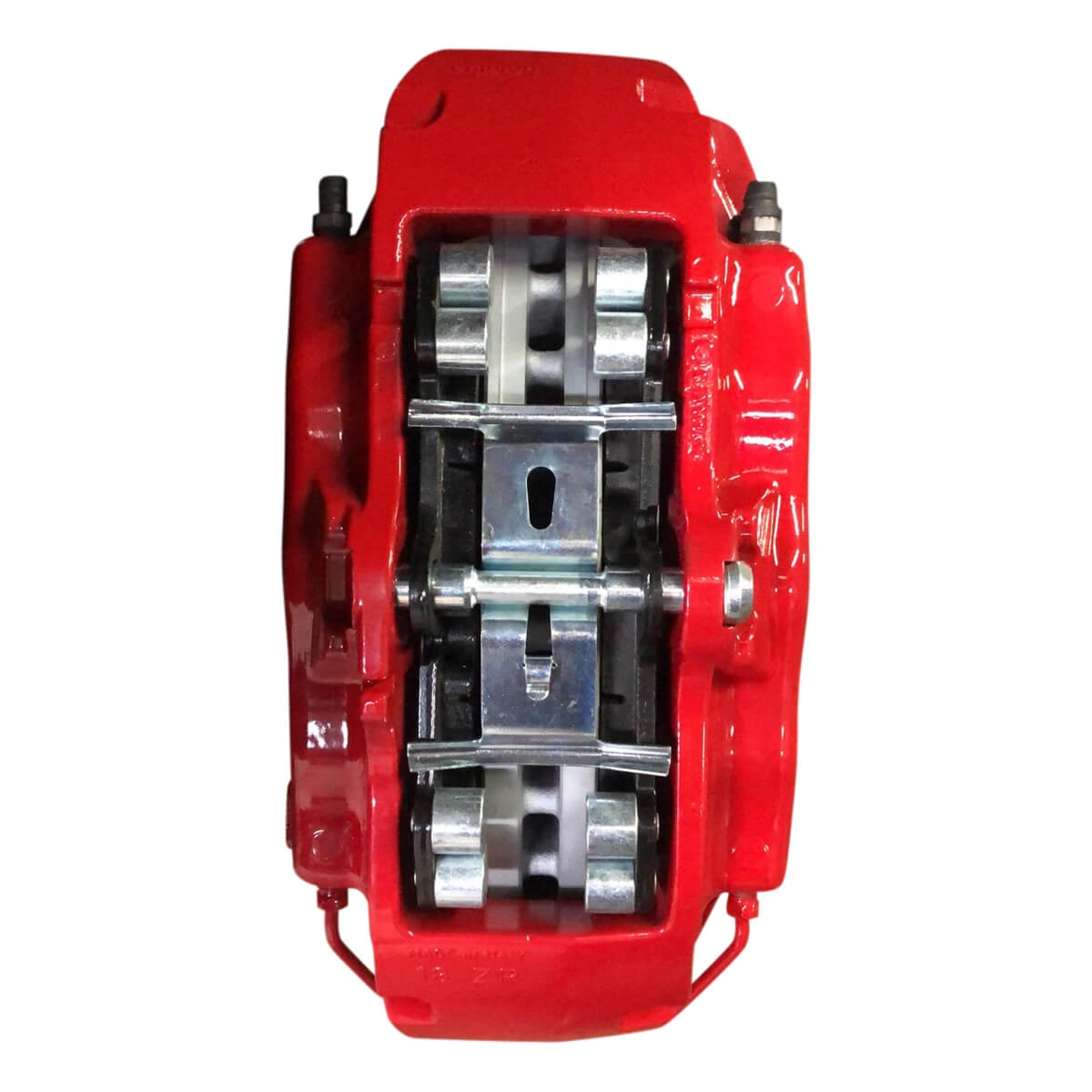

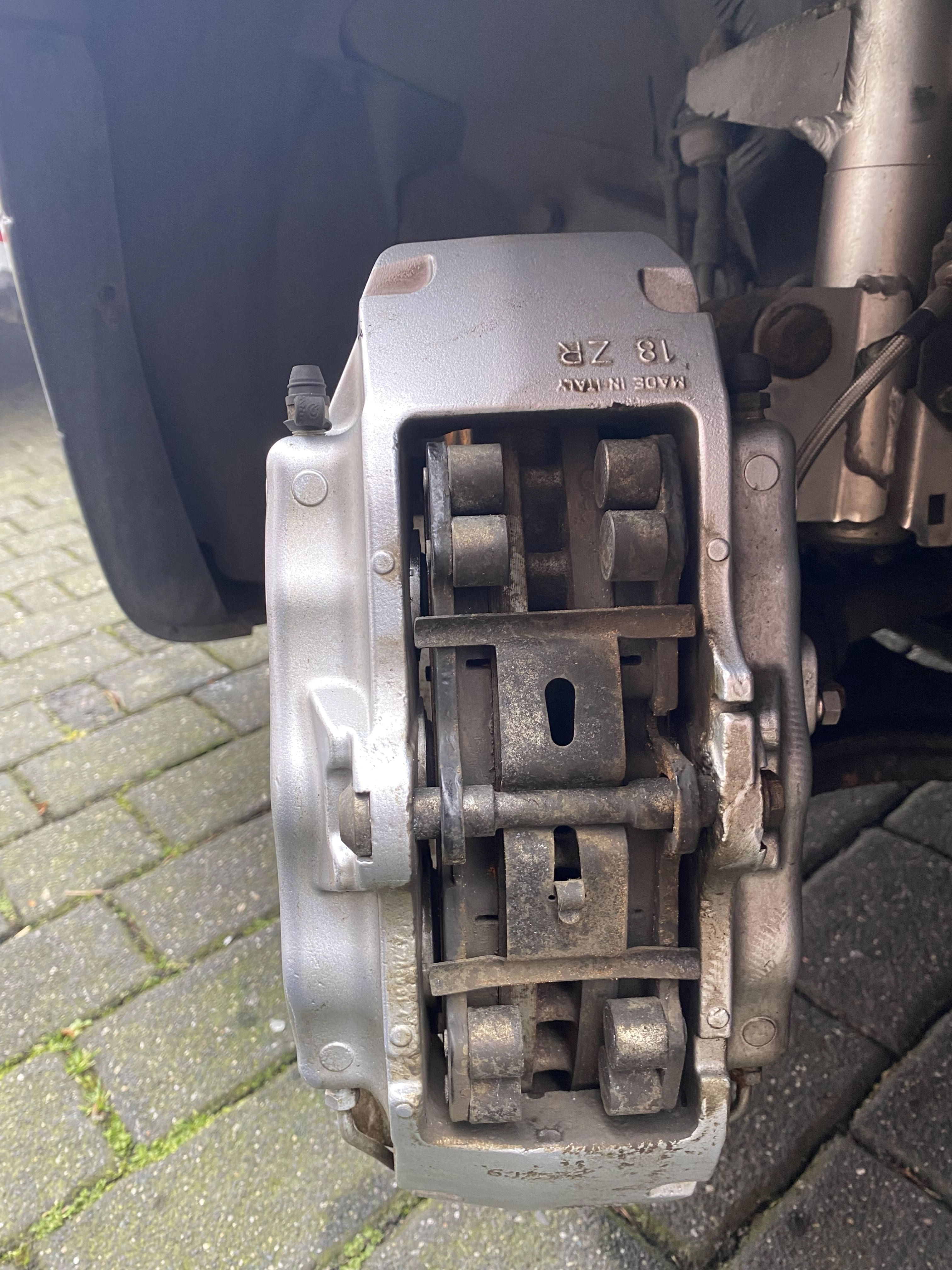

- brake caliper: Porsche Cayenne ZR18 ZL18 , reference 95535142153 / 95535142253
- brake pads: reference 4L0 698 151 A
- brake disc: VW Phaeton 360x34 mm , reference 3D0 615 301 M
- The wheel hub of the Audi S2 with 5x112 must be installed (also available in our shop. Item number: 46859)
Delivery:
- 2x brake caliper adapters for Audi 80 S2
- 1x complete set of high-strength screws
- Template to check whether the brake system fits under your rim
- 1x material certificate
Conseils, informations et remarques:
- Pour une meilleure aération du système de freinage, nous recommandons d'enlever les tôles d'ancrage / les tôles anti-poussière de frein.
- Monter l'adaptateur avec les composants nécessaires et vérifier ensuite si de nouvelles conduites de frein sont nécessaires, car selon le modèle, il se peut que les anciennes ne soient pas assez longues ou que leur raccord ne soit pas adapté. Nous recommandons de passer à des conduites flexibles en acier en raison de leur efficacité nettement supérieure. Nous avons développé spécialement pour ce mode de fonctionnement un configurateur de conduites flexibles en acier qui te permet de les assembler selon tes souhaits et de les poser ensuite.Cliquez ici pour accéder au configurateur de conduites flexibles en acier >> Configurer une conduite flexible en acier <<.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
13 December 2023 22:56
Mortimer G
Awesome customer service and quick shipping to the USA! They fit perfectly with the advertised 18z and listed rotors. I did test these with 17z calipers and a sq5 345mm rotor just to see if itll work. The caliper hits the strut, but with some modifications they could be made to work.
10 July 2019 20:10
romanlindner
Schneller Versand super Kontakt 1A Danke
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 2.0 20 V quattro | 8A2|160PS(118KW) |
| 2.3 E 20V quattro | 893|167PS(123KW) |
| 2.0 20 V | 8A2|160PS(118KW) |
| 2.0 20 V | 893|160PS(118KW) |
| 2.2 E | 894|136PS(100KW) |
| 2.3 E 20V quattro | 8A2|170PS(125KW) |
| 2.0 | 8A2|115PS(85KW) |
| 2.3 E | 8A2|136PS(100KW) |
| 2.2 E | 8A2|136PS(100KW) |
| 2.2 e quattro | 894|136PS(100KW) |
| 2.3 E 20V | 894|170PS(125KW) |
| 2.3 e quattro | 8A2|133PS(98KW) |
| 2.3 e quattro | 893|133PS(98KW) |
| 1.6 TD | 893|80PS(59KW) |
| 2.3 E 20V quattro | 8A2|167PS(123KW) |
| 2.3 E | 893|133PS(98KW) |
| 2.3 e quattro | 894|133PS(98KW) |
| 2.2 e quattro | 8A2|136PS(100KW) |
| 2.3 E | 893|136PS(100KW) |
| 1.6 TD | 8A2|80PS(59KW) |
| 2.3 E 20V | 8A2|170PS(125KW) |
| 1.6 TD | 894|80PS(59KW) |
| 2.2 e quattro | 893|136PS(100KW) |
| 2.3 E 20V | 893|167PS(123KW) |
| 2.2 E | 893|136PS(100KW) |
| 2.3 E 20V | 8A2|167PS(123KW) |
| 2.3 E 20V quattro | 894|167PS(123KW) |
| 2.3 E | 894|133PS(98KW) |
| 2.3 E 20V quattro | 894|170PS(125KW) |
| 2.0 | 894|115PS(85KW) |
| 2.3 e quattro | 894|136PS(100KW) |
| 2.3 e quattro | 8A2|136PS(100KW) |
| 2.3 E | 8A2|133PS(98KW) |
| 2.0 20 V quattro | 893|160PS(118KW) |
| 2.0 20 V | 894|160PS(118KW) |
| 2.0 20 V quattro | 894|160PS(118KW) |
| 2.3 E 20V | 893|170PS(125KW) |
| 2.3 E 20V | 894|167PS(123KW) |
| 2.3 E 20V quattro | 893|170PS(125KW) |
| 2.0 | 893|115PS(85KW) |
| 2.3 e quattro | 893|136PS(100KW) |
| 2.3 E | 894|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 e quattro | B4|115PS(85KW) |
| 2.0 quattro | 893|112PS(82KW) |
| 2.0 quattro | 894|115PS(85KW) |
| 2.0 | 8A2|112PS(82KW) |
| 2.0 e quattro | 8C|115PS(85KW) |
| 2.3 e quattro | B4|133PS(98KW) |
| 1.9 D | 893|68PS(50KW) |
| 1.6 | 8A2|70PS(51KW) |
| S2 quattro | B4|230PS(169KW) |
| 2.0 E 16V | 894|137PS(101KW) |
| 2.0 E 16V quattro | 8A2|137PS(101KW) |
| 2.0 quattro | 893|115PS(85KW) |
| 1.8 quattro | 8A2|113PS(83KW) |
| 1.6 | 894|70PS(51KW) |
| 1.6 D | 894|54PS(40KW) |
| 1.8 S quattro | 894|88PS(65KW) |
| S2 quattro | 8C2|230PS(169KW) |
| 2.0 E 16V quattro | 8C2|140PS(103KW) |
| 1.8 S | 894|90PS(66KW) |
| 1.8 | 893|113PS(83KW) |
| 1.6 TD | 894|80PS(59KW) |
| 2.0 e quattro | 893|113PS(83KW) |
| 2.0 e quattro | 894|113PS(83KW) |
| 2.0 quattro | 894|112PS(82KW) |
| 1.8 | 8A2|75PS(55KW) |
| 1.8 S quattro | 8A2|88PS(65KW) |
| 1.6 | 893|70PS(51KW) |
| 1.8 S | 8A2|90PS(66KW) |
| 1.9 D | 8A2|68PS(50KW) |
| 1.6 D | 893|54PS(40KW) |
| 1.8 S | 893|88PS(65KW) |
| 1.8 E | 894|112PS(82KW) |
| 1.6 TD | 893|80PS(59KW) |
| 2.0 E 16V | 8A2|137PS(101KW) |
| 2.0 E | 8A2|113PS(83KW) |
| 2.6 quattro | B4|150PS(110KW) |
| 1.6 | 8A2|75PS(55KW) |
| 1.6 | 893|75PS(55KW) |
| 1.8 | 894|75PS(55KW) |
| 1.8 S | 893|90PS(66KW) |
| 2.0 e quattro | 8C2|115PS(85KW) |
| 2.0 E | 894|113PS(83KW) |
| 1.8 S quattro | 893|90PS(66KW) |
| 2.0 E 16V quattro | 8C|140PS(103KW) |
| 2.8 quattro | B4|174PS(128KW) |
| 2.3 e quattro | 8C2|133PS(98KW) |
| 2.8 quattro | 8C|174PS(128KW) |
| 2.0 | 893|112PS(82KW) |
| 1.8 E | 8A2|112PS(82KW) |
| 2.0 e quattro | 8A2|113PS(83KW) |
| 2.0 quattro | 8A2|115PS(85KW) |
| 2.0 E 16V quattro | B4|140PS(103KW) |
| 1.8 S | 8A2|88PS(65KW) |
| 2.0 E | 893|113PS(83KW) |
| 2.3 e quattro | 8C|133PS(98KW) |
| 1.9 D | 894|68PS(50KW) |
| 2.0 | 894|112PS(82KW) |
| 1.8 e quattro | 893|112PS(82KW) |
| 2.0 quattro | 8A2|112PS(82KW) |
| 1.6 D | 8A2|54PS(40KW) |
| 2.8 quattro | 8C2|174PS(128KW) |
| 1.8 S | 894|88PS(65KW) |
| 2.0 E 16V | 893|137PS(101KW) |
| 1.8 e quattro | 894|112PS(82KW) |
| 2.0 E 16V quattro | 893|137PS(101KW) |
| 2.6 quattro | 8C|150PS(110KW) |
| 1.8 S quattro | 8A2|90PS(66KW) |
| 2.6 quattro | 8C2|150PS(110KW) |
| 1.8 | 893|75PS(55KW) |
| 1.6 | 894|75PS(55KW) |
| 1.8 | 894|113PS(83KW) |
| 1.8 E | 893|112PS(82KW) |
| 1.8 S quattro | 894|90PS(66KW) |
| 1.8 e quattro | 8A2|112PS(82KW) |
| 1.6 TD | 8A2|80PS(59KW) |
| 1.8 quattro | 894|113PS(83KW) |
| 1.8 quattro | 893|113PS(83KW) |
| 1.8 | 8A2|113PS(83KW) |
| S2 quattro | 8C|230PS(169KW) |
| 1.8 S quattro | 893|88PS(65KW) |
| 2.0 E 16V quattro | 894|137PS(101KW) |
| Motor | Motorcode |
|---|---|
| 2.3 quattro | 89|134PS(98KW) |
| S2 quattro | 89|220PS(162KW) |
| 2.8 quattro | 89|174PS(128KW) |
| 2.3 quattro | 8B3|134PS(98KW) |
| S2 quattro | 8B3|220PS(162KW) |
| 2.3 quattro | 89|136PS(100KW) |
| S2 quattro | 89|230PS(169KW) |
| 2.3 quattro | 8B3|136PS(100KW) |
| S2 quattro | 8B3|230PS(169KW) |
| 2.6 quattro | 8B3|150PS(110KW) |
| 2.6 quattro | 89|150PS(110KW) |
| 2.8 quattro | 8B3|174PS(128KW) |
| Motor | Motorcode |
|---|---|
| 2.8 quattro | 8C5|174PS(128KW) |
| 2.0 E 16V quattro | 8C5|140PS(103KW) |
| 2.6 quattro | B4|150PS(110KW) |
| 2.6 quattro | 8C5|150PS(110KW) |
| 2.6 quattro | 8C|150PS(110KW) |
| S2 quattro | B4|230PS(169KW) |
| 2.3 e quattro | 8C|133PS(98KW) |
| 2.8 quattro | 8C|174PS(128KW) |
| 2.8 quattro | B4|174PS(128KW) |
| 2.0 E 16V quattro | B4|140PS(103KW) |
| 2.0 E 16V quattro | 8C|140PS(103KW) |
| S2 quattro | 8C5|230PS(169KW) |
| 2.3 e quattro | B4|133PS(98KW) |
| 2.3 e quattro | 8C5|133PS(98KW) |
| Motor | Motorcode |
|---|---|
| 4.0 W8 4motion | 3B3|275PS(202KW) |
| Motor | Motorcode |
|---|---|
| 2.0 20 V quattro | 8A2|160PS(118KW) |
| 2.3 E 20V quattro | 893|167PS(123KW) |
| 2.0 20 V | 8A2|160PS(118KW) |
| 2.0 20 V | 893|160PS(118KW) |
| 2.2 E | 894|136PS(100KW) |
| 2.3 E 20V quattro | 8A2|170PS(125KW) |
| 2.0 | 8A2|115PS(85KW) |
| 2.3 E | 8A2|136PS(100KW) |
| 2.2 E | 8A2|136PS(100KW) |
| 2.2 e quattro | 894|136PS(100KW) |
| 2.3 E 20V | 894|170PS(125KW) |
| 2.3 e quattro | 8A2|133PS(98KW) |
| 2.3 e quattro | 893|133PS(98KW) |
| 1.6 TD | 893|80PS(59KW) |
| 2.3 E 20V quattro | 8A2|167PS(123KW) |
| 2.3 E | 893|133PS(98KW) |
| 2.3 e quattro | 894|133PS(98KW) |
| 2.2 e quattro | 8A2|136PS(100KW) |
| 2.3 E | 893|136PS(100KW) |
| 1.6 TD | 8A2|80PS(59KW) |
| 2.3 E 20V | 8A2|170PS(125KW) |
| 1.6 TD | 894|80PS(59KW) |
| 2.2 e quattro | 893|136PS(100KW) |
| 2.3 E 20V | 893|167PS(123KW) |
| 2.2 E | 893|136PS(100KW) |
| 2.3 E 20V | 8A2|167PS(123KW) |
| 2.3 E 20V quattro | 894|167PS(123KW) |
| 2.3 E | 894|133PS(98KW) |
| 2.3 E 20V quattro | 894|170PS(125KW) |
| 2.0 | 894|115PS(85KW) |
| 2.3 e quattro | 894|136PS(100KW) |
| 2.3 e quattro | 8A2|136PS(100KW) |
| 2.3 E | 8A2|133PS(98KW) |
| 2.0 20 V quattro | 893|160PS(118KW) |
| 2.0 20 V | 894|160PS(118KW) |
| 2.0 20 V quattro | 894|160PS(118KW) |
| 2.3 E 20V | 893|170PS(125KW) |
| 2.3 E 20V | 894|167PS(123KW) |
| 2.3 E 20V quattro | 893|170PS(125KW) |
| 2.0 | 893|115PS(85KW) |
| 2.3 e quattro | 893|136PS(100KW) |
| 2.3 E | 894|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 e quattro | B4|115PS(85KW) |
| 2.0 quattro | 893|112PS(82KW) |
| 2.0 quattro | 894|115PS(85KW) |
| 2.0 | 8A2|112PS(82KW) |
| 2.0 e quattro | 8C|115PS(85KW) |
| 2.3 e quattro | B4|133PS(98KW) |
| 1.9 D | 893|68PS(50KW) |
| 1.6 | 8A2|70PS(51KW) |
| S2 quattro | B4|230PS(169KW) |
| 2.0 E 16V | 894|137PS(101KW) |
| 2.0 E 16V quattro | 8A2|137PS(101KW) |
| 2.0 quattro | 893|115PS(85KW) |
| 1.8 quattro | 8A2|113PS(83KW) |
| 1.6 | 894|70PS(51KW) |
| 1.6 D | 894|54PS(40KW) |
| 1.8 S quattro | 894|88PS(65KW) |
| S2 quattro | 8C2|230PS(169KW) |
| 2.0 E 16V quattro | 8C2|140PS(103KW) |
| 1.8 S | 894|90PS(66KW) |
| 1.8 | 893|113PS(83KW) |
| 1.6 TD | 894|80PS(59KW) |
| 2.0 e quattro | 893|113PS(83KW) |
| 2.0 e quattro | 894|113PS(83KW) |
| 2.0 quattro | 894|112PS(82KW) |
| 1.8 | 8A2|75PS(55KW) |
| 1.8 S quattro | 8A2|88PS(65KW) |
| 1.6 | 893|70PS(51KW) |
| 1.8 S | 8A2|90PS(66KW) |
| 1.9 D | 8A2|68PS(50KW) |
| 1.6 D | 893|54PS(40KW) |
| 1.8 S | 893|88PS(65KW) |
| 1.8 E | 894|112PS(82KW) |
| 1.6 TD | 893|80PS(59KW) |
| 2.0 E 16V | 8A2|137PS(101KW) |
| 2.0 E | 8A2|113PS(83KW) |
| 2.6 quattro | B4|150PS(110KW) |
| 1.6 | 8A2|75PS(55KW) |
| 1.6 | 893|75PS(55KW) |
| 1.8 | 894|75PS(55KW) |
| 1.8 S | 893|90PS(66KW) |
| 2.0 e quattro | 8C2|115PS(85KW) |
| 2.0 E | 894|113PS(83KW) |
| 1.8 S quattro | 893|90PS(66KW) |
| 2.0 E 16V quattro | 8C|140PS(103KW) |
| 2.8 quattro | B4|174PS(128KW) |
| 2.3 e quattro | 8C2|133PS(98KW) |
| 2.8 quattro | 8C|174PS(128KW) |
| 2.0 | 893|112PS(82KW) |
| 1.8 E | 8A2|112PS(82KW) |
| 2.0 e quattro | 8A2|113PS(83KW) |
| 2.0 quattro | 8A2|115PS(85KW) |
| 2.0 E 16V quattro | B4|140PS(103KW) |
| 1.8 S | 8A2|88PS(65KW) |
| 2.0 E | 893|113PS(83KW) |
| 2.3 e quattro | 8C|133PS(98KW) |
| 1.9 D | 894|68PS(50KW) |
| 2.0 | 894|112PS(82KW) |
| 1.8 e quattro | 893|112PS(82KW) |
| 2.0 quattro | 8A2|112PS(82KW) |
| 1.6 D | 8A2|54PS(40KW) |
| 2.8 quattro | 8C2|174PS(128KW) |
| 1.8 S | 894|88PS(65KW) |
| 2.0 E 16V | 893|137PS(101KW) |
| 1.8 e quattro | 894|112PS(82KW) |
| 2.0 E 16V quattro | 893|137PS(101KW) |
| 2.6 quattro | 8C|150PS(110KW) |
| 1.8 S quattro | 8A2|90PS(66KW) |
| 2.6 quattro | 8C2|150PS(110KW) |
| 1.8 | 893|75PS(55KW) |
| 1.6 | 894|75PS(55KW) |
| 1.8 | 894|113PS(83KW) |
| 1.8 E | 893|112PS(82KW) |
| 1.8 S quattro | 894|90PS(66KW) |
| 1.8 e quattro | 8A2|112PS(82KW) |
| 1.6 TD | 8A2|80PS(59KW) |
| 1.8 quattro | 894|113PS(83KW) |
| 1.8 quattro | 893|113PS(83KW) |
| 1.8 | 8A2|113PS(83KW) |
| S2 quattro | 8C|230PS(169KW) |
| 1.8 S quattro | 893|88PS(65KW) |
| 2.0 E 16V quattro | 894|137PS(101KW) |
| Motor | Motorcode |
|---|---|
| 2.3 quattro | 89|134PS(98KW) |
| S2 quattro | 89|220PS(162KW) |
| 2.8 quattro | 89|174PS(128KW) |
| 2.3 quattro | 8B3|134PS(98KW) |
| S2 quattro | 8B3|220PS(162KW) |
| 2.3 quattro | 89|136PS(100KW) |
| S2 quattro | 89|230PS(169KW) |
| 2.3 quattro | 8B3|136PS(100KW) |
| S2 quattro | 8B3|230PS(169KW) |
| 2.6 quattro | 8B3|150PS(110KW) |
| 2.6 quattro | 89|150PS(110KW) |
| 2.8 quattro | 8B3|174PS(128KW) |
| Motor | Motorcode |
|---|---|
| 2.8 quattro | 8C5|174PS(128KW) |
| 2.0 E 16V quattro | 8C5|140PS(103KW) |
| 2.6 quattro | B4|150PS(110KW) |
| 2.6 quattro | 8C5|150PS(110KW) |
| 2.6 quattro | 8C|150PS(110KW) |
| S2 quattro | B4|230PS(169KW) |
| 2.3 e quattro | 8C|133PS(98KW) |
| 2.8 quattro | 8C|174PS(128KW) |
| 2.8 quattro | B4|174PS(128KW) |
| 2.0 E 16V quattro | B4|140PS(103KW) |
| 2.0 E 16V quattro | 8C|140PS(103KW) |
| S2 quattro | 8C5|230PS(169KW) |
| 2.3 e quattro | B4|133PS(98KW) |
| 2.3 e quattro | 8C5|133PS(98KW) |
| Motor | Motorcode |
|---|---|
| 4.0 W8 4motion | 3B3|275PS(202KW) |
- ✓ camber adjustement plates, rear, Audi 80 Cabrio, to adjust the camber and the track (teo). Thanks to this plates you can change the cember of the rear wheels 2.0 degrees negative
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 330x22 4F0615601B Audi A6 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 5x112 bolt circle
- ✓ Plug & Play
- ✓ Audi 80 S2
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 5x112 bolt circle
- ✓ Plug & Play
- ✓ Audi A4
- ✓ 5x112 bolt circle
- ✓ Plug & Play
- ✓ Audi 100 / Audi 80 / Audi 90
- ✓ excellent fit
- ✓ rear axle Audi RS4 / RS2 / A4
- ✓ high stability
- ✓ 2.2 20V Quattro engines
- ✓ 240 clutch
- ✓ lightens 7.1 kg
- ✓ VW Golf 4 1.8T GTI engine
- ✓ 600NM torque
- ✓ hub profile: 21.8x24.2-23N
- ✓ Pulley
- ✓ Audi 80, 90, VW Passat B2 and many more
- ✓ AUDI 034105251A, 035105251C, VW 034105251A, 035105251C
- ✓ Conversion to Bosch injection nozzles
- ✓ increased engine performance
- ✓ lower fuel consumption
- ✓ Audi 80 B4
- ✓ 1.8T engine from the Audi A4 B5, Audi A6, VW Passat 3B
- ✓ Torque arm from ABK motor, viscous fan must be removed
- ✓ 302x12 240112-01761 A6 brake disc
- ✓ original Audi S2b Coupe brake caliper
- ✓ rear axle
- ✓ Right brake caliper suitable for many Audi A4, VW Passat
- ✓ front axle
- ✓ OE quality
- ✓ Left brake caliper suitable for many Audi A4, VW Passat
- ✓ front axle
- ✓ OE quality
- ✓ Reinforced version
- ✓ Audi 80 8C B4 90 B3
- ✓ 775mm diameter
- ✓ 35% better braking performance
- ✓ 75% more service life
- ✓ low dust generation
