VW Golf Corrado Passat 2 3 G60 Porsche Brake calipers Adapter Brake system Brake caliper adapter for front axle
- ✓ 310x22 240122-02121 A8 brake disc
- ✓ original brake caliper
- ✓ rear axle
€179.30*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

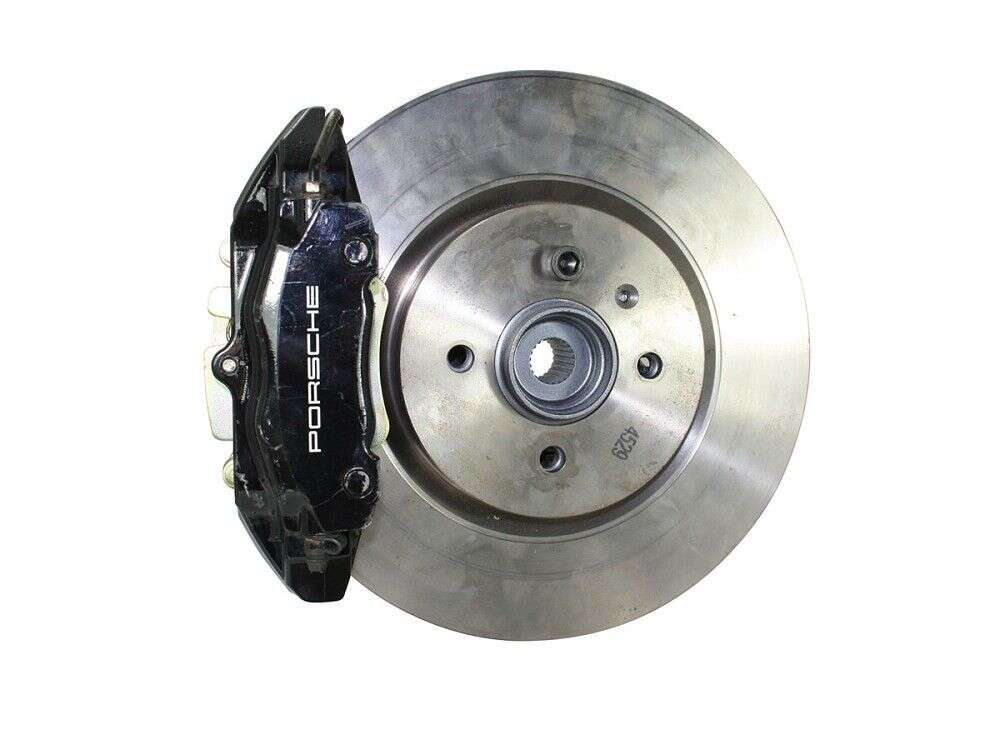

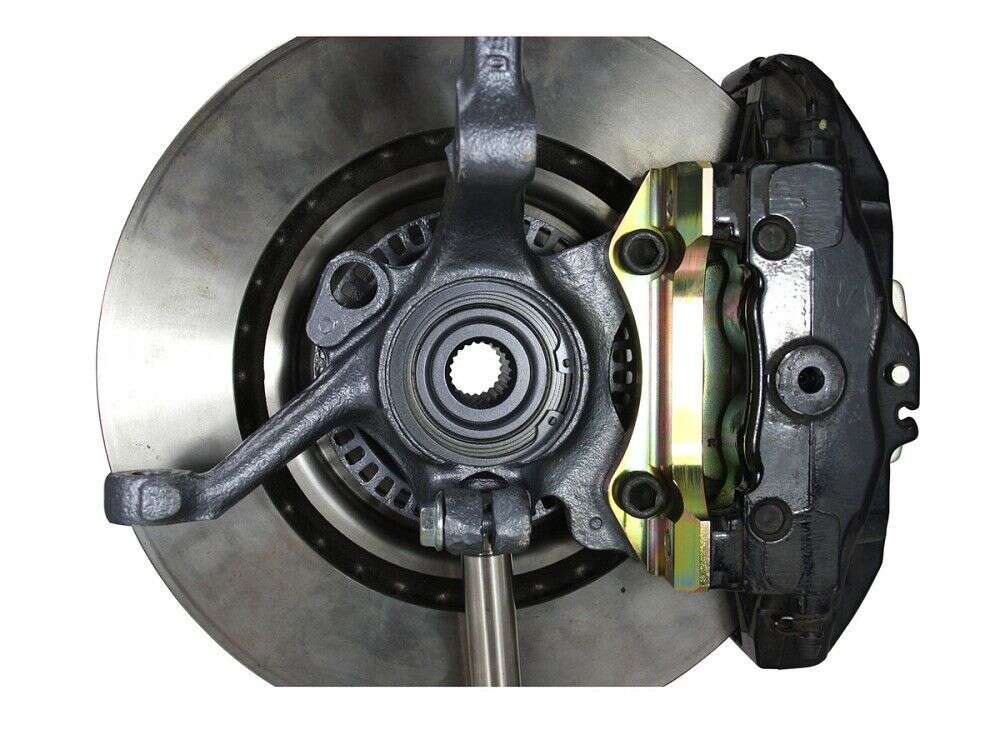

Brake caliper adapter for 996 Porsche 4-piston brake calipers in connection with the 305x28 Cupra R brake disc suitable for all VW with bolt circle connection 4x100 on the front axle, e.g.:
- VW Golf 2 und 3
- VW Passat
- VW Corrado
- VW Jetta
- VW Polo
- Seat Toledo
Required components:
- Brake calipers Porsche 996 Porsche .: 996.351.426 + 996.351.425 (a successful conversion is only possibile with the before mentioned pieces)
- brake pads from Porsche 996
- Brake discs typ Seat Ibiza Cupra R diameter 305x28mm Nr.: 6KL 615 301
Advantages:
- Significantly better perfomance than the standard brake system.
- Components come from series production by VW
- The material certificate included in the scope of delivery enables entry by individual acceptance even for series vehicles
- Including complete screw material
Scope of delivery:

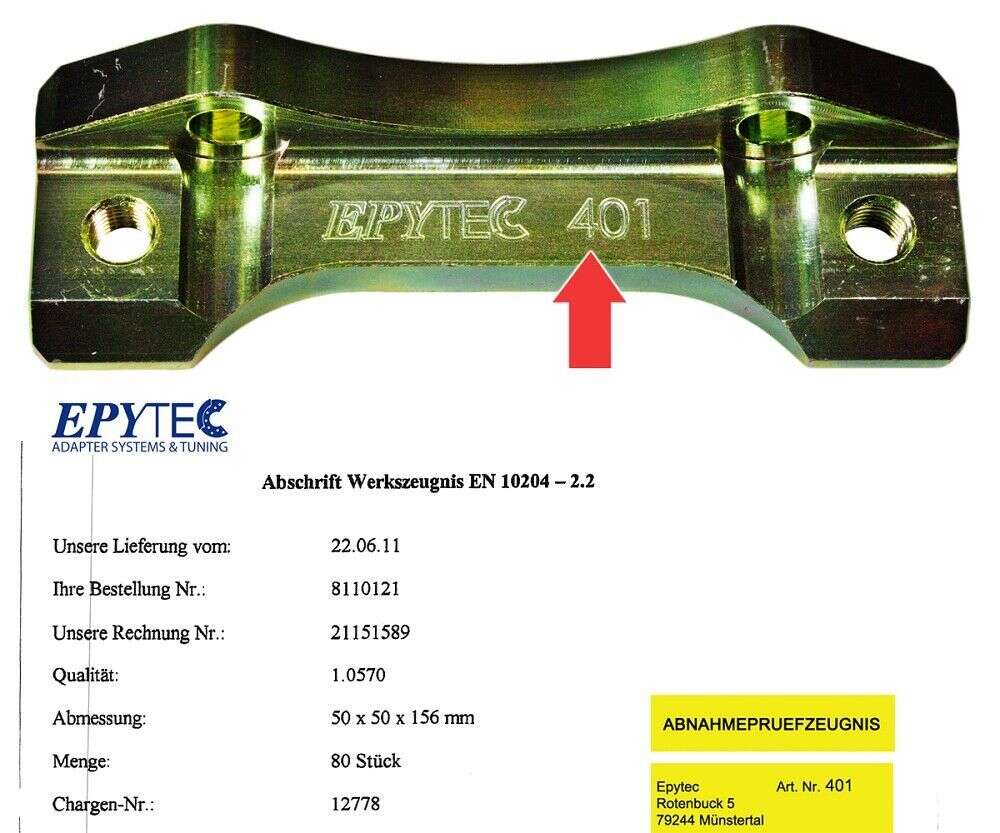

- 2 high resistant adapter galvaniced(see photo)
- High resistant screws for fixation
- Certificate of material
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
20 September 2017 20:07
marion.n2303
Envoie rapide et objet conforme a la description ! Verry good 👍
20 April 2018 22:54
kamenouracing
Excellent communication. Item as described. Many, Many thanks A+++++++
28 October 2021 07:47
Cristian C

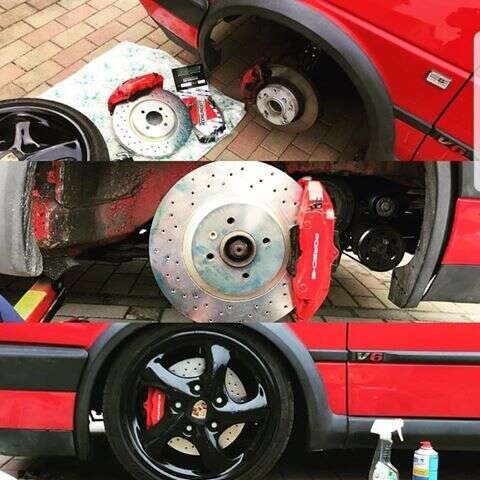

Tolles Team, super schneller und engagierter Support ! Bremssattel Adapter ist toll verarbeitet und passt zu 100% Verbaut in einem Golf 2 G60 mit Cayman HA Sätteln
19 February 2019 09:57
Christoph K
Klasse Sonderlösungen in sehr guter Qualität. Absolut zu empfehlen. Schnelle Lieferung und fairer Preis.
9 March 2017 02:49
krizz_krozz
Alles bestens, immer wieder gern...
13 June 2019 12:23
Alexandre G
Gute Qualität. Einfach zu montieren und perfekt.
4 October 2017 05:41
claudiholger83
Dankeschön
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
