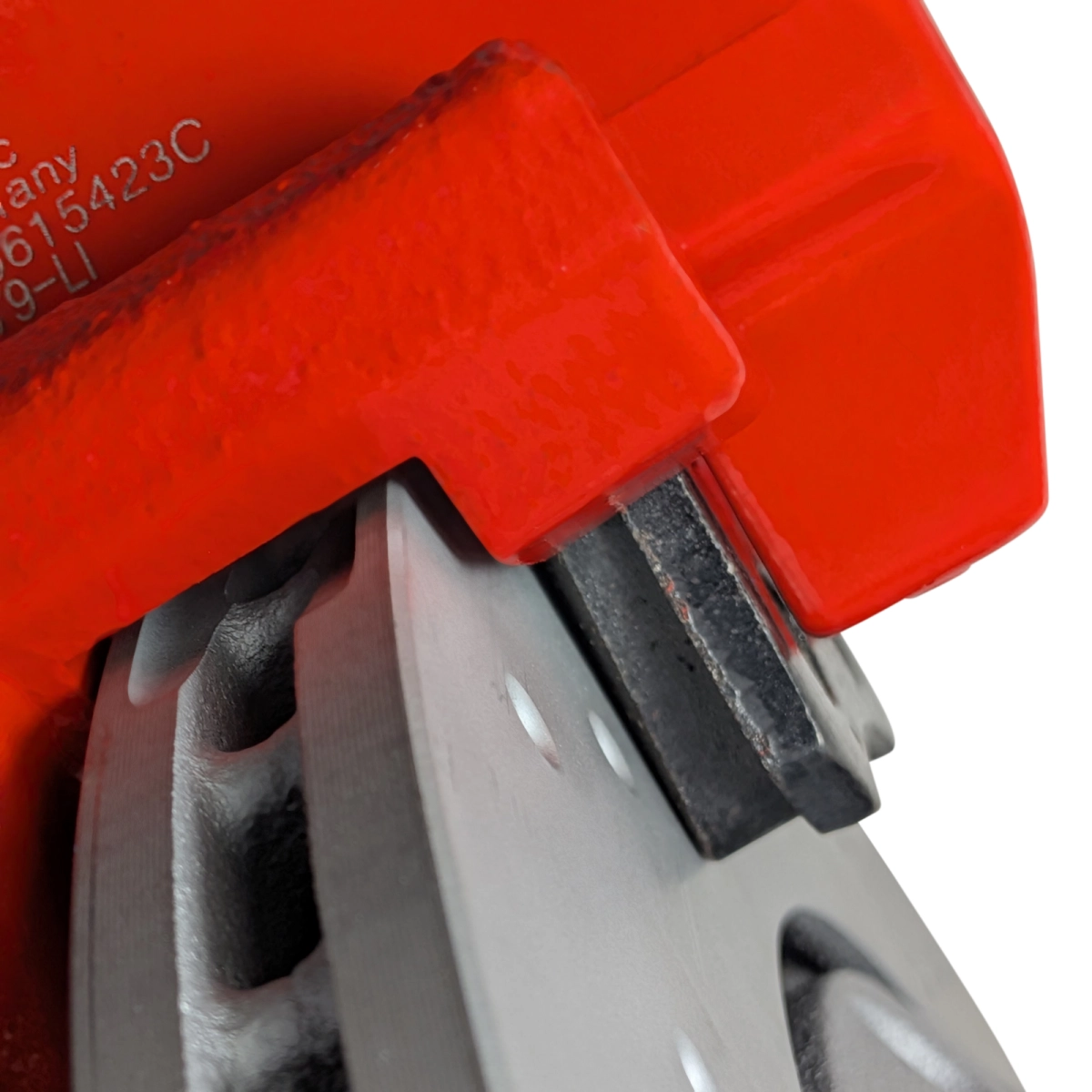

VW Golf 4 R32 Polo VW Polo 6r WRC Audi S3 adapter brake caliper adapter rear axle 310x22 brake disc

  • ✓ 310x22 3D0615601D VW Phaeton brake disc
  • ✓ 1-piston 8N0615423C / 8N0615424C VW Golf 4 R32 / Audi S3 brake caliper
  • ✓ rear axle

Brake caliper adapter, rear axle, for the models Golf R32 Audi S3 to install the Phaeton brake dics 310x22 mm, combined with the original caliper R32 / S3

Fits the following vehicles (4WD only):

  • VW Golf 4 R32
  • VW Polo 6R WRC
  • Audi S3 (8L)
  • Audi TT 8N
  • Seat Leon

Advantages of this brake system:

  • High deceleration
  • Thanks to the material certificate supplied with the order, it is possible to approve your purchase even for series vehicles
  • Directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
  • Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling.

Required components:

  • internally vented brake disc 310x22  of VW Phaeton, reference: 3D0 615 601 D (the 5x112 PCD must be modificated to 5x100, what we can do ourselves in our workshops)
  • rear axle brake caliper with bracket from Audi S3 8L or VW Golf R32

Delivery:

  • 2x brake caliper adapters VW Golf 4 R32 Audi S3
  • 2x centering rings for brake discs
  • complete screw kit (10.9)
  • material certificate
  • Stress analysis for the adapter

Tips, information and advice:

  • To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
  • For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
  • We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
  • Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
  • The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm
Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm

10 of 32 reviews

Average rating of 4.9 out of 5 stars


94%

3%

3%

0%

0%


Leave a review!

Share your experiences with other customers.


3 November 2019 12:39

Review with rating of 5 out of 5 stars

Sascha P

Adapter passen einwandfrei.

28 May 2022 05:35

Review with rating of 5 out of 5 stars

Erol E

Alles bestens

11 August 2021 20:48

Review with rating of 5 out of 5 stars

Titus S

A cheap option for a rear brake upgrade. The TUV option is also great.

24 April 2019 19:23

Review with rating of 5 out of 5 stars

David K

Super, gerne wieder!

13 December 2019 06:23

Review with rating of 5 out of 5 stars

Andreas H

Die fertigung ist perfekt, sowie die Passgenauigkeit, die Produkte kann ich ohne Bedenken jedem weiterempfehlen, die Wahl ist auf euch gefallen weil iht mit TÜV verkauft und uch hab nicht mehr die zeit mir solche Adapter selber zu bauen, nein war nicht skeptisch, und das Ergebnis nach dem Einbau wird mechanisch perfekt sein, warte noch auf die bremsscheiben zum einbauen

22 December 2021 17:25

Review with rating of 5 out of 5 stars

Marco R

Spitzen Qualität. Klasse online-Shop

9 June 2021 12:42

Review with rating of 5 out of 5 stars

Jean M

Bonne qualité ,on peut pas faire mieux ,vive Allemagne !!!

8 March 2020 11:14

Review with rating of 5 out of 5 stars

Karsten K

Fast shipping good fitment

6 May 2023 01:30

Review with rating of 5 out of 5 stars

Hector M

Muy buena atención son unos profesionales, el espaciador llego bien y muy rapido 😊

9 September 2021 12:21

Review with rating of 5 out of 5 stars

Fritjof S

Sehr gute Qualität und passgenau

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
