Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R32 Audi A3 S3 V6 Brembo TTRS Brake Conversion
- ✓ Length: 63cm

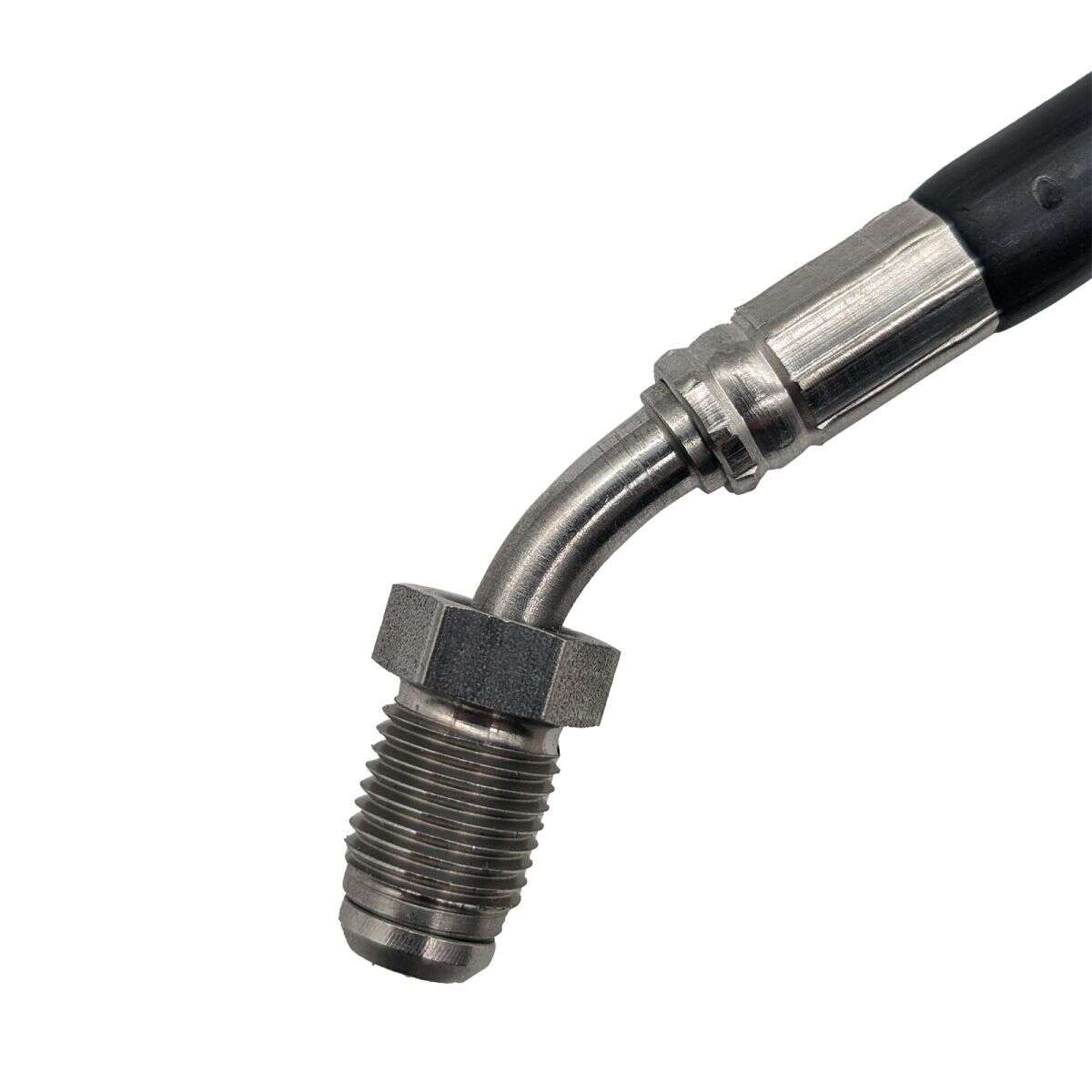

- ✓ M10x1 outside 45° curved

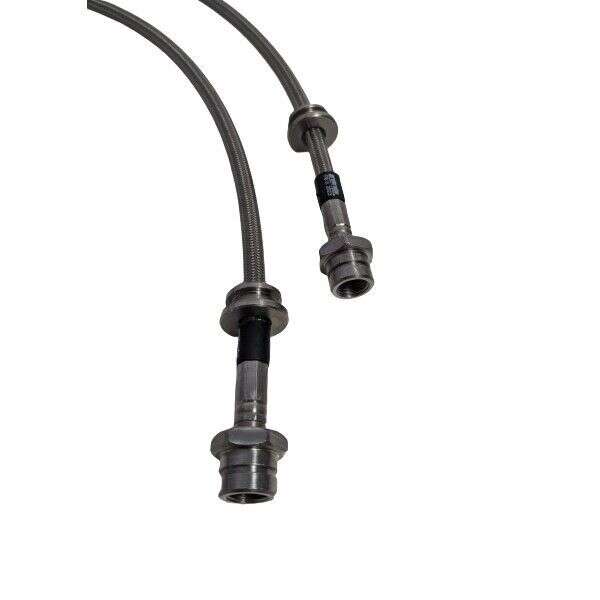

- ✓ M10x1 inside straight
Longer steel braided brake line with material certificate, for conversion to larger brake system, for example Brembo 4-6-piston brake caliper from Porsche oder TTRS.
Suitable for the following models, front axle:
- Golf Mk5 MK6 MK7
- Seat
- Audi A3 / S3
Advantages compared to original brake lines:
- no loss of pressure when braking. Exact pressure point
- easy assembly. The original line is simply replaced by the braided steel line
- no swelling as with rubber lines
- cost savings, because the braided steel lines do not need to be changed every 3 or 5 years
- shorter braking
- protection against the rodents
- including material certificate
- great optics
Technical data:
- Length: 69 cm
- Connection 1 M10x1 external thread bent 45°
- Connection 2 M10x1 internal thread straight
- 90° flanging our fittings are so-called hermaphrodites, which means that every connection fits regardless of whether concave or convex
Delivery:
- 2x steel braided brake lines / steel flexible brake hoses for Golf MK5 MK6 MK7 R32 Audi A3, etc
- material certificate
We also manufacture according to desired dimensions. With our steel braided lines configurator (click here), you can configure your steel braided brake line, according to your wishes. (Length, color and connections)
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
22 April 2025 15:52
Jonathan D
Produits de qualité. Je fais appel a votre entreprise depuis un moment pour chacun de mes vehicules afin dupgrade le freinage et je ne suis jamais déçu.
12 October 2019 15:01
Gianluca C
Hochwertige Materialien, sehr gute Verarbeitung, Passgenauigkeit 1+!
9 June 2022 11:27
Bernahrd B
Top Qualität und mega Support zu vernünftigen Preisen lösungen für so gut wie alle Plattformen Schnell und zuverlässig immer wieder gerne
20 April 2025 06:54
Baptiste R
Bonne qualité
11 August 2018 12:51
Saša R
Outstanding product and amazing service
5 November 2020 10:09
Christophe B
Très bon produit
13 November 2020 01:09
orbidsoundsammler
alles super schnell geliefert
22 March 2023 19:08
Tomáš M
Die Ware war in Ordnung und von guter Qualität
3 January 2024 22:58
Jonathan A
Parfait . Très rapide
2 February 2022 21:59
Giovanni V
gutes Produkt
- Does the steel braided line also fit other vehicles?
Yes – basically the braided steel line can also fit many other vehicles if the connection data matches. In practice, many manufacturers use very similar thread sizes for brake line fittings, so using them across different models is often possible.
What really matters
To ensure the line fits securely and tightly, you need to match three main points:
Thread size / connection
The key factor is what thread your vehicle has at the connection points (e.g., at the fixed line connection or brake caliper).
This thread size must match the fittings of the line.
Sealing surface (concave or convex)
Often, the problem is not the thread, but the sealing shape on the counterpart:
concave (valley) or
convex (hill)
Our fittings are so-called “hybrid” connections. This means: Each connection is designed to reliably seal with both concave and convex sealing surfaces. This makes the line significantly more versatile.
Length and routing
You need to determine the required length suitable for your vehicle (ideally as described above: fully extend, simulate routing, check steering).
Only if the line is long enough and can be routed cleanly is it truly suitable.
How to quickly check if it fits
Determine the thread size on the vehicle (and compare it with the data of the line)
Measure the line length
Check the technical data in the product description – there you will find all the details about the line and the connections.
- Two lens gaskets were supplied with the Steelflex lines. Where exactly are these installed?
The 2 lens seals are not automatically always installed, but only when they are needed to compensate for the sealing cone on the respective counterpart. Background: Depending on the vehicle/connection, there are different flaring or sealing shapes – and that's exactly why the lenses are always provided as a precaution.
What are the lens seals for?
They serve as a compensating piece when the cone on the connection (counterpart) does not perfectly match the steel braided hose. This ensures that the connection seals cleanly.
Where are they used?
If needed, the lens seals are placed directly into the connection with internal thread – that is, into the “female” fitting on the vehicle/distributor/brake caliper, before you screw in the hose.
The hose presses the lens into its seat when tightened, thus creating the seal.When do you need them – and when not?
F flare (DIN/ISO cone, usually fits):
→ Lens seals are not needed.
The hose usually seals directly over the matching cone here.E flare:
→ Lens seals must be used.
Simply place it into the internal thread, then screw in the hose and tighten as usual.
Installation note
The installation direction does not matter – you can install the lens either way, it makes no difference.
| Motor | Motorcode |
|---|---|
| 2.0 TDI quattro | 8P1|140PS(103KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 1.6 TDI | 8P1|90PS(66KW) |
| 2.0 TDI quattro | 8P1|136PS(100KW) |
| 2.0 TDI | 8P1|163PS(120KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 3.2 V6 quattro | 8P1|250PS(184KW) |
| 2.0 TFSI quattro | 8P1|200PS(147KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| 2.0 TDI quattro | 8P1|170PS(125KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| S3 quattro | 8P1|256PS(188KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 2.0 TDI 16V quattro | 8P1|140PS(103KW) |
| 2.0 TDI | 8P1|140PS(103KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| S3 quattro | 8P1|265PS(195KW) |
| 1.8 TFSI quattro | 8P1|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8PA|136PS(100KW) |
| 1.6 | 8PA|102PS(75KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 2.0 TFSI quattro | 8PA|200PS(147KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 2.0 TDI 16V quattro | 8PA|140PS(103KW) |
| RS3 quattro | 8PA|340PS(250KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| 2.0 TDI quattro | 8PA|170PS(125KW) |
| 1.8 TFSI quattro | 8PA|160PS(118KW) |
| 3.2 V6 quattro | 8PA|250PS(184KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 2.0 TDI quattro | 8PA|140PS(103KW) |
| S3 quattro | 8PA|265PS(195KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|140PS(103KW) |
| S3 quattro | 8PA|256PS(188KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| 1.9 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 8P7|102PS(75KW) |
| 1.8 TFSI | 8P7|160PS(118KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| 1.6 TDI | 8P7|105PS(77KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSI | 8J3|211PS(155KW) |
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.0 TFSI | 8J3|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1K1|90PS(66KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 1.9 TDI 4motion | 1K1|105PS(77KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| 2.0 TDI | 1K1|140PS(103KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 1.6 | 1K1|102PS(75KW) |
| 2.0 TDI 16V 4motion | 1K1|140PS(103KW) |
| 2.0 FSI 4motion | 1K1|150PS(110KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 2.0 TDI 4motion | 1K1|140PS(103KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 2.0 FSI | 1K1|150PS(110KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R 4motion | 5G1|280PS(206KW) |
| 1.4 TGI CNG | 5G1|110PS(81KW) |
| 1.6 TDI | BQ1|90PS(66KW) |
| 2.0 TDI | BQ1|150PS(110KW) |
| 1.6 TDI | BE1|110PS(81KW) |
| 1.2 TSI | 5G1|86PS(63KW) |
| 1.6 TDI 4motion | BE1|105PS(77KW) |
| 1.4 TSI | BE2|122PS(90KW) |
| 1.4 TSI MultiFuel | BE1|122PS(90KW) |
| 1.4 TSI | BQ1|122PS(90KW) |
| 1.6 TDI 4motion | BE2|110PS(81KW) |
| 1.6 TDI | BQ1|105PS(77KW) |
| 1.6 TDI | BE2|110PS(81KW) |
| 1.6 TDI | 5G1|105PS(77KW) |
| 1.4 TSI MultiFuel | BE2|122PS(90KW) |
| 2.0 GTI | BQ1|230PS(169KW) |
| 1.4 GTE Hybrid | BE2|204PS(150KW) |
| 1.4 TSI MultiFuel | 5G1|125PS(92KW) |
| 1.4 TSI | BE2|140PS(103KW) |
| 2.0 TDI | 5G1|150PS(110KW) |
| 2.0 R 4motion | BE2|280PS(206KW) |
| 1.2 TSI | BQ1|105PS(77KW) |
| 1.4 TSI | BQ1|140PS(103KW) |
| 2.0 TDI | BE2|150PS(110KW) |
| 2.0 R 4motion | BE2|300PS(221KW) |
| 1.4 TSI MultiFuel | BE2|125PS(92KW) |
| 2.0 GTI | 5G1|220PS(162KW) |
| 1.6 TDI | BE1|90PS(66KW) |
| 2.0 GTI | BE1|230PS(169KW) |
| 1.4 TSI | BE1|122PS(90KW) |
| 1.6 TDI | BE2|105PS(77KW) |
| 1.6 TDI | 5G1|110PS(81KW) |
| 1.4 TGI CNG | BE1|110PS(81KW) |
| 1.4 GTE Hybrid | BQ1|204PS(150KW) |
| 1.6 TDI 4motion | 5G1|105PS(77KW) |
| 1.2 TSI | BQ1|86PS(63KW) |
| 2.0 R 4motion | BQ1|280PS(206KW) |
| 1.2 TSI | BE1|105PS(77KW) |
| 1.2 TSI | BE2|105PS(77KW) |
| 1.4 TSI | 5G1|125PS(92KW) |
| 2.0 GTI | BE1|220PS(162KW) |
| 1.6 TDI | 5G1|90PS(66KW) |
| 1.6 TDI 4motion | BQ1|105PS(77KW) |
| 1.2 TSI | BE1|86PS(63KW) |
| 1.4 TSI | BE1|140PS(103KW) |
| 1.4 TSI MultiFuel | BE1|125PS(92KW) |
| 1.6 TDI | BE1|105PS(77KW) |
| 1.0 TSI | BQ1|115PS(85KW) |
| 1.4 TSI | BE2|125PS(92KW) |
| 2.0 R 4motion | BQ1|300PS(221KW) |
| 1.6 TDI 4motion | BE2|105PS(77KW) |
| 2.0 GTI | BE2|230PS(169KW) |
| 1.4 TSI MultiFuel | 5G1|122PS(90KW) |
| 2.0 R 4motion | BE1|280PS(206KW) |
| 1.2 TSI | 5G1|105PS(77KW) |
| 2.0 TDI | BE1|150PS(110KW) |
| 2.0 TDI 4motion | BE2|150PS(110KW) |
| 2.0 R 4motion | BE1|300PS(221KW) |
| 1.6 TDI 4motion | BE1|110PS(81KW) |
| 2.0 GTI | 5G1|230PS(169KW) |
| 1.4 GTE Hybrid | 5G1|204PS(150KW) |
| 2.0 TDI 4motion | BE1|150PS(110KW) |
| 1.4 TSI | BQ1|125PS(92KW) |
| 1.4 GTE Hybrid | BE1|204PS(150KW) |
| 1.6 TDI | BQ1|110PS(81KW) |
| 2.0 R 4motion | 5G1|300PS(221KW) |
| 1.4 TSI MultiFuel | BQ1|122PS(90KW) |
| 1.4 TGI CNG | BQ1|110PS(81KW) |
| 2.0 TDI 4motion | 5G1|150PS(110KW) |
| 1.4 TGI CNG | BE2|110PS(81KW) |
| 2.0 GTI | BE2|220PS(162KW) |
| 1.0 TSI | 5G1|115PS(85KW) |
| 1.6 TDI | BE2|90PS(66KW) |
| 1.4 TSI | 5G1|140PS(103KW) |
| 1.4 TSI | BE1|125PS(92KW) |
| 1.6 TDI 4motion | BQ1|110PS(81KW) |
| 2.0 TDI 4motion | BQ1|150PS(110KW) |
| 2.0 GTI | BQ1|220PS(162KW) |
| 1.6 TDI 4motion | 5G1|110PS(81KW) |
| 1.4 TSI MultiFuel | BQ1|125PS(92KW) |
| 1.0 TSI | BE1|115PS(85KW) |
| 1.0 TSI | BE2|115PS(85KW) |
| 1.2 TSI | BE2|86PS(63KW) |
| 1.4 TSI | 5G1|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 1.0 TSI | BV5|115PS(85KW) |
| 1.4 TSI | BA5|122PS(90KW) |
| 2.0 TDI | BA5|150PS(110KW) |
| 1.4 TSI MultiFuel | BA5|122PS(90KW) |
| 2.0 TDI 4motion | BA5|150PS(110KW) |
| 1.6 TDI | BA5|90PS(66KW) |
| 1.2 TSI | BA5|105PS(77KW) |
| 1.4 TSI | BV5|122PS(90KW) |
| 2.0 GTD | BA5|184PS(135KW) |
| 2.0 TDI 4motion | BV5|150PS(110KW) |
| 1.6 TDI 4motion | BA5|110PS(81KW) |
| 1.4 TSI MultiFuel | BV5|125PS(92KW) |
| 1.4 TSI | BV5|150PS(110KW) |
| 1.4 TGI CNG | BA5|110PS(81KW) |
| 1.6 TDI | BV5|110PS(81KW) |
| 1.6 TDI 4motion | BV5|110PS(81KW) |
| 1.2 TSI | BA5|86PS(63KW) |
| 2.0 TDI | BV5|150PS(110KW) |
| 1.4 TSI | BV5|125PS(92KW) |
| 1.2 TSI | BV5|105PS(77KW) |
| 1.0 TSI | BA5|115PS(85KW) |
| 1.6 TDI | BA5|110PS(81KW) |
| 1.4 TSI MultiFuel | BV5|122PS(90KW) |
| 1.4 TSI | BA5|150PS(110KW) |
| 1.6 TDI | BV5|105PS(77KW) |
| 1.4 TGI CNG | BV5|110PS(81KW) |
| 2.0 GTD | BV5|184PS(135KW) |
| 1.6 TDI | BV5|90PS(66KW) |
| 1.2 TSI | BV5|86PS(63KW) |
| 1.4 TSI | BA5|125PS(92KW) |
| 1.6 TDI | BA5|105PS(77KW) |
| 1.4 TSI MultiFuel | BA5|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI 4motion | 1K5|105PS(77KW) |
| 1.4 | 1K5|80PS(59KW) |
| 1.4 TSI | 1K5|122PS(90KW) |
| 1.6 | 1K5|102PS(75KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 517|110PS(81KW) |
| 2.0 TDI | 517|150PS(110KW) |
| 1.2 TSI 16V | 517|105PS(77KW) |
| 2.0 GTI | 517|211PS(155KW) |
| 1.4 TSI | 517|122PS(90KW) |
| 2.0 TSI | 517|220PS(162KW) |
| 1.4 TSI | 517|150PS(110KW) |
| 1.2 TSI | 517|105PS(77KW) |
| 1.6 TDI | 517|105PS(77KW) |
| 1.4 TSI | 517|125PS(92KW) |
| 2.0 TDI | 517|140PS(103KW) |
| 1.4 TSI | 517|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R 4motion | 5K1|256PS(188KW) |
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| 1.4 | 5K1|80PS(59KW) |
| 2.0 TDI 4motion | 5K1|140PS(103KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 1.6 | 5K1|102PS(75KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 1.2 TSI | 5K1|86PS(63KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| 2.0 R 4motion | 5K1|270PS(199KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | AJ5|160PS(118KW) |
| 1.6 TDI | AJ5|90PS(66KW) |
| 2.0 TDI | AJ5|136PS(100KW) |
| 1.4 | AJ5|80PS(59KW) |
| 1.6 | AJ5|102PS(75KW) |
| 2.0 TDI | AJ5|140PS(103KW) |
| 1.2 TSI | AJ5|86PS(63KW) |
| 1.6 TDI | AJ5|105PS(77KW) |
| 1.2 TSI | AJ5|105PS(77KW) |
| 1.4 TSI | AJ5|122PS(90KW) |
| 1.6 MultiFuel | AJ5|102PS(75KW) |
| 1.6 TDI 4motion | AJ5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | 162|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.6 FSI | 521|115PS(85KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 1.9 TDI | 5M1|105PS(77KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 2.0 TDI | 521|131PS(96KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 1.4 TSI | 521|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P1|150PS(110KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| 2.0 TDi | 5P1|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 FSi | 5P8|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TFSi | 1P1|185PS(136KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| 2.0 TFSi | 1P1|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI quattro | 8P1|140PS(103KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 1.6 TDI | 8P1|90PS(66KW) |
| 2.0 TDI quattro | 8P1|136PS(100KW) |
| 2.0 TDI | 8P1|163PS(120KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 3.2 V6 quattro | 8P1|250PS(184KW) |
| 2.0 TFSI quattro | 8P1|200PS(147KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| 2.0 TDI quattro | 8P1|170PS(125KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| S3 quattro | 8P1|256PS(188KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 2.0 TDI 16V quattro | 8P1|140PS(103KW) |
| 2.0 TDI | 8P1|140PS(103KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| S3 quattro | 8P1|265PS(195KW) |
| 1.8 TFSI quattro | 8P1|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8PA|136PS(100KW) |
| 1.6 | 8PA|102PS(75KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 2.0 TFSI quattro | 8PA|200PS(147KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 2.0 TDI 16V quattro | 8PA|140PS(103KW) |
| RS3 quattro | 8PA|340PS(250KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| 2.0 TDI quattro | 8PA|170PS(125KW) |
| 1.8 TFSI quattro | 8PA|160PS(118KW) |
| 3.2 V6 quattro | 8PA|250PS(184KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 2.0 TDI quattro | 8PA|140PS(103KW) |
| S3 quattro | 8PA|265PS(195KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|140PS(103KW) |
| S3 quattro | 8PA|256PS(188KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| 1.9 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 8P7|102PS(75KW) |
| 1.8 TFSI | 8P7|160PS(118KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| 1.6 TDI | 8P7|105PS(77KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSI | 8J3|211PS(155KW) |
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.0 TFSI | 8J3|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1K1|90PS(66KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 1.9 TDI 4motion | 1K1|105PS(77KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| 2.0 TDI | 1K1|140PS(103KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 1.6 | 1K1|102PS(75KW) |
| 2.0 TDI 16V 4motion | 1K1|140PS(103KW) |
| 2.0 FSI 4motion | 1K1|150PS(110KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 2.0 TDI 4motion | 1K1|140PS(103KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 2.0 FSI | 1K1|150PS(110KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R 4motion | 5G1|280PS(206KW) |
| 1.4 TGI CNG | 5G1|110PS(81KW) |
| 1.6 TDI | BQ1|90PS(66KW) |
| 2.0 TDI | BQ1|150PS(110KW) |
| 1.6 TDI | BE1|110PS(81KW) |
| 1.2 TSI | 5G1|86PS(63KW) |
| 1.6 TDI 4motion | BE1|105PS(77KW) |
| 1.4 TSI | BE2|122PS(90KW) |
| 1.4 TSI MultiFuel | BE1|122PS(90KW) |
| 1.4 TSI | BQ1|122PS(90KW) |
| 1.6 TDI 4motion | BE2|110PS(81KW) |
| 1.6 TDI | BQ1|105PS(77KW) |
| 1.6 TDI | BE2|110PS(81KW) |
| 1.6 TDI | 5G1|105PS(77KW) |
| 1.4 TSI MultiFuel | BE2|122PS(90KW) |
| 2.0 GTI | BQ1|230PS(169KW) |
| 1.4 GTE Hybrid | BE2|204PS(150KW) |
| 1.4 TSI MultiFuel | 5G1|125PS(92KW) |
| 1.4 TSI | BE2|140PS(103KW) |
| 2.0 TDI | 5G1|150PS(110KW) |
| 2.0 R 4motion | BE2|280PS(206KW) |
| 1.2 TSI | BQ1|105PS(77KW) |
| 1.4 TSI | BQ1|140PS(103KW) |
| 2.0 TDI | BE2|150PS(110KW) |
| 2.0 R 4motion | BE2|300PS(221KW) |
| 1.4 TSI MultiFuel | BE2|125PS(92KW) |
| 2.0 GTI | 5G1|220PS(162KW) |
| 1.6 TDI | BE1|90PS(66KW) |
| 2.0 GTI | BE1|230PS(169KW) |
| 1.4 TSI | BE1|122PS(90KW) |
| 1.6 TDI | BE2|105PS(77KW) |
| 1.6 TDI | 5G1|110PS(81KW) |
| 1.4 TGI CNG | BE1|110PS(81KW) |
| 1.4 GTE Hybrid | BQ1|204PS(150KW) |
| 1.6 TDI 4motion | 5G1|105PS(77KW) |
| 1.2 TSI | BQ1|86PS(63KW) |
| 2.0 R 4motion | BQ1|280PS(206KW) |
| 1.2 TSI | BE1|105PS(77KW) |
| 1.2 TSI | BE2|105PS(77KW) |
| 1.4 TSI | 5G1|125PS(92KW) |
| 2.0 GTI | BE1|220PS(162KW) |
| 1.6 TDI | 5G1|90PS(66KW) |
| 1.6 TDI 4motion | BQ1|105PS(77KW) |
| 1.2 TSI | BE1|86PS(63KW) |
| 1.4 TSI | BE1|140PS(103KW) |
| 1.4 TSI MultiFuel | BE1|125PS(92KW) |
| 1.6 TDI | BE1|105PS(77KW) |
| 1.0 TSI | BQ1|115PS(85KW) |
| 1.4 TSI | BE2|125PS(92KW) |
| 2.0 R 4motion | BQ1|300PS(221KW) |
| 1.6 TDI 4motion | BE2|105PS(77KW) |
| 2.0 GTI | BE2|230PS(169KW) |
| 1.4 TSI MultiFuel | 5G1|122PS(90KW) |
| 2.0 R 4motion | BE1|280PS(206KW) |
| 1.2 TSI | 5G1|105PS(77KW) |
| 2.0 TDI | BE1|150PS(110KW) |
| 2.0 TDI 4motion | BE2|150PS(110KW) |
| 2.0 R 4motion | BE1|300PS(221KW) |
| 1.6 TDI 4motion | BE1|110PS(81KW) |
| 2.0 GTI | 5G1|230PS(169KW) |
| 1.4 GTE Hybrid | 5G1|204PS(150KW) |
| 2.0 TDI 4motion | BE1|150PS(110KW) |
| 1.4 TSI | BQ1|125PS(92KW) |
| 1.4 GTE Hybrid | BE1|204PS(150KW) |
| 1.6 TDI | BQ1|110PS(81KW) |
| 2.0 R 4motion | 5G1|300PS(221KW) |
| 1.4 TSI MultiFuel | BQ1|122PS(90KW) |
| 1.4 TGI CNG | BQ1|110PS(81KW) |
| 2.0 TDI 4motion | 5G1|150PS(110KW) |
| 1.4 TGI CNG | BE2|110PS(81KW) |
| 2.0 GTI | BE2|220PS(162KW) |
| 1.0 TSI | 5G1|115PS(85KW) |
| 1.6 TDI | BE2|90PS(66KW) |
| 1.4 TSI | 5G1|140PS(103KW) |
| 1.4 TSI | BE1|125PS(92KW) |
| 1.6 TDI 4motion | BQ1|110PS(81KW) |
| 2.0 TDI 4motion | BQ1|150PS(110KW) |
| 2.0 GTI | BQ1|220PS(162KW) |
| 1.6 TDI 4motion | 5G1|110PS(81KW) |
| 1.4 TSI MultiFuel | BQ1|125PS(92KW) |
| 1.0 TSI | BE1|115PS(85KW) |
| 1.0 TSI | BE2|115PS(85KW) |
| 1.2 TSI | BE2|86PS(63KW) |
| 1.4 TSI | 5G1|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 1.0 TSI | BV5|115PS(85KW) |
| 1.4 TSI | BA5|122PS(90KW) |
| 2.0 TDI | BA5|150PS(110KW) |
| 1.4 TSI MultiFuel | BA5|122PS(90KW) |
| 2.0 TDI 4motion | BA5|150PS(110KW) |
| 1.6 TDI | BA5|90PS(66KW) |
| 1.2 TSI | BA5|105PS(77KW) |
| 1.4 TSI | BV5|122PS(90KW) |
| 2.0 GTD | BA5|184PS(135KW) |
| 2.0 TDI 4motion | BV5|150PS(110KW) |
| 1.6 TDI 4motion | BA5|110PS(81KW) |
| 1.4 TSI MultiFuel | BV5|125PS(92KW) |
| 1.4 TSI | BV5|150PS(110KW) |
| 1.4 TGI CNG | BA5|110PS(81KW) |
| 1.6 TDI | BV5|110PS(81KW) |
| 1.6 TDI 4motion | BV5|110PS(81KW) |
| 1.2 TSI | BA5|86PS(63KW) |
| 2.0 TDI | BV5|150PS(110KW) |
| 1.4 TSI | BV5|125PS(92KW) |
| 1.2 TSI | BV5|105PS(77KW) |
| 1.0 TSI | BA5|115PS(85KW) |
| 1.6 TDI | BA5|110PS(81KW) |
| 1.4 TSI MultiFuel | BV5|122PS(90KW) |
| 1.4 TSI | BA5|150PS(110KW) |
| 1.6 TDI | BV5|105PS(77KW) |
| 1.4 TGI CNG | BV5|110PS(81KW) |
| 2.0 GTD | BV5|184PS(135KW) |
| 1.6 TDI | BV5|90PS(66KW) |
| 1.2 TSI | BV5|86PS(63KW) |
| 1.4 TSI | BA5|125PS(92KW) |
| 1.6 TDI | BA5|105PS(77KW) |
| 1.4 TSI MultiFuel | BA5|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI 4motion | 1K5|105PS(77KW) |
| 1.4 | 1K5|80PS(59KW) |
| 1.4 TSI | 1K5|122PS(90KW) |
| 1.6 | 1K5|102PS(75KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 517|110PS(81KW) |
| 2.0 TDI | 517|150PS(110KW) |
| 1.2 TSI 16V | 517|105PS(77KW) |
| 2.0 GTI | 517|211PS(155KW) |
| 1.4 TSI | 517|122PS(90KW) |
| 2.0 TSI | 517|220PS(162KW) |
| 1.4 TSI | 517|150PS(110KW) |
| 1.2 TSI | 517|105PS(77KW) |
| 1.6 TDI | 517|105PS(77KW) |
| 1.4 TSI | 517|125PS(92KW) |
| 2.0 TDI | 517|140PS(103KW) |
| 1.4 TSI | 517|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R 4motion | 5K1|256PS(188KW) |
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| 1.4 | 5K1|80PS(59KW) |
| 2.0 TDI 4motion | 5K1|140PS(103KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 1.6 | 5K1|102PS(75KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 1.2 TSI | 5K1|86PS(63KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| 2.0 R 4motion | 5K1|270PS(199KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | AJ5|160PS(118KW) |
| 1.6 TDI | AJ5|90PS(66KW) |
| 2.0 TDI | AJ5|136PS(100KW) |
| 1.4 | AJ5|80PS(59KW) |
| 1.6 | AJ5|102PS(75KW) |
| 2.0 TDI | AJ5|140PS(103KW) |
| 1.2 TSI | AJ5|86PS(63KW) |
| 1.6 TDI | AJ5|105PS(77KW) |
| 1.2 TSI | AJ5|105PS(77KW) |
| 1.4 TSI | AJ5|122PS(90KW) |
| 1.6 MultiFuel | AJ5|102PS(75KW) |
| 1.6 TDI 4motion | AJ5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | 162|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.6 FSI | 521|115PS(85KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 1.9 TDI | 5M1|105PS(77KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 2.0 TDI | 521|131PS(96KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 1.4 TSI | 521|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P1|150PS(110KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| 2.0 TDi | 5P1|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 FSi | 5P8|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TFSi | 1P1|185PS(136KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| 2.0 TFSi | 1P1|200PS(147KW) |
- ✓ 350x32 A1644210512 Mercedes W164 brake disc
- ✓ 6-piston 955351421 / 955351422 Z18 brake caliper
- ✓ front axle
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 310x22 1K0615601N Golf 5 R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 375x36 1664210912 Mercedes GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 375x36 1664210912 Mercedes ML / GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 330x32 1644210412 brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne brake caliper
- ✓ front axle
- ✓ 375x36 Mercedes GL 166 421 0912 disc
- ✓ 6-piston Panamera saddle 7PP615149J / 7PP615150J 7PP615123 / 7PP615124 20.A221.03
- ✓ front axle
- ✓ 390x36 1664210512 Mercedes GL 500 brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 356x22 4H0615601F Audi A6 A7 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 35% better braking performance
- ✓ 75% more service life
- ✓ low dust generation
- ✓ 375x36 1664210912 Mercedes ML / GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J brake caliper
- ✓ front axle
- ✓ 375x36 1664210912 Mercedes ML / GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 brake caliper
- ✓ front axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 390x36 1664210512 Mercedes Benz GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ Length: 60cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 356x22 4H0615601F Audi A6 brake disc
- ✓ 1-piston 8V0615425B Golf 7 / Audi S3 RS3 brake caliper
- ✓ rear axle
- ✓ 370x34 8V0615301R Audi RS3 brake disc
- ✓ 8-piston 8T0615107D / 8T0615108D Audi RS brake caliper
- ✓ front axle
- ✓ 330x32
- ✓ 67mm centering
- ✓ 54mm height
- ✓ Thread M10x1.5
- ✓ Perfect for separate handbrake caliper
- ✓ Quick installation
