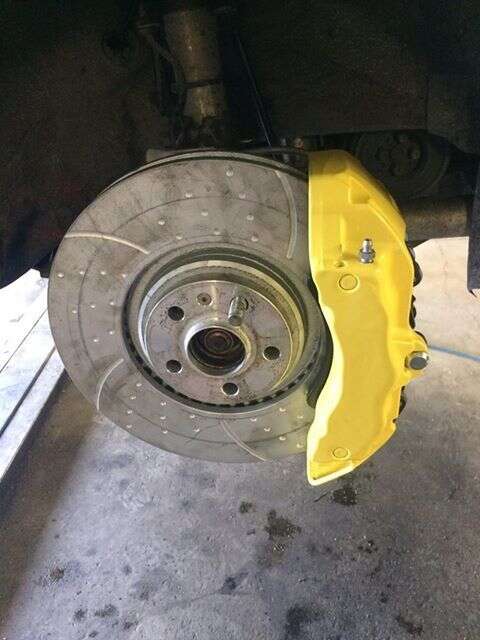

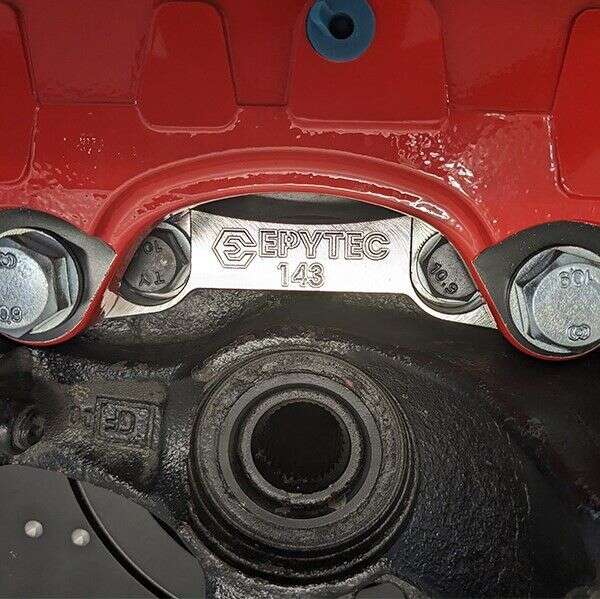

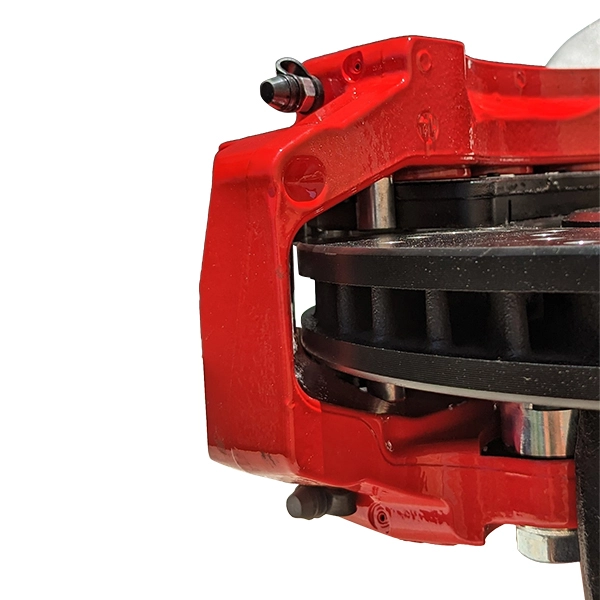

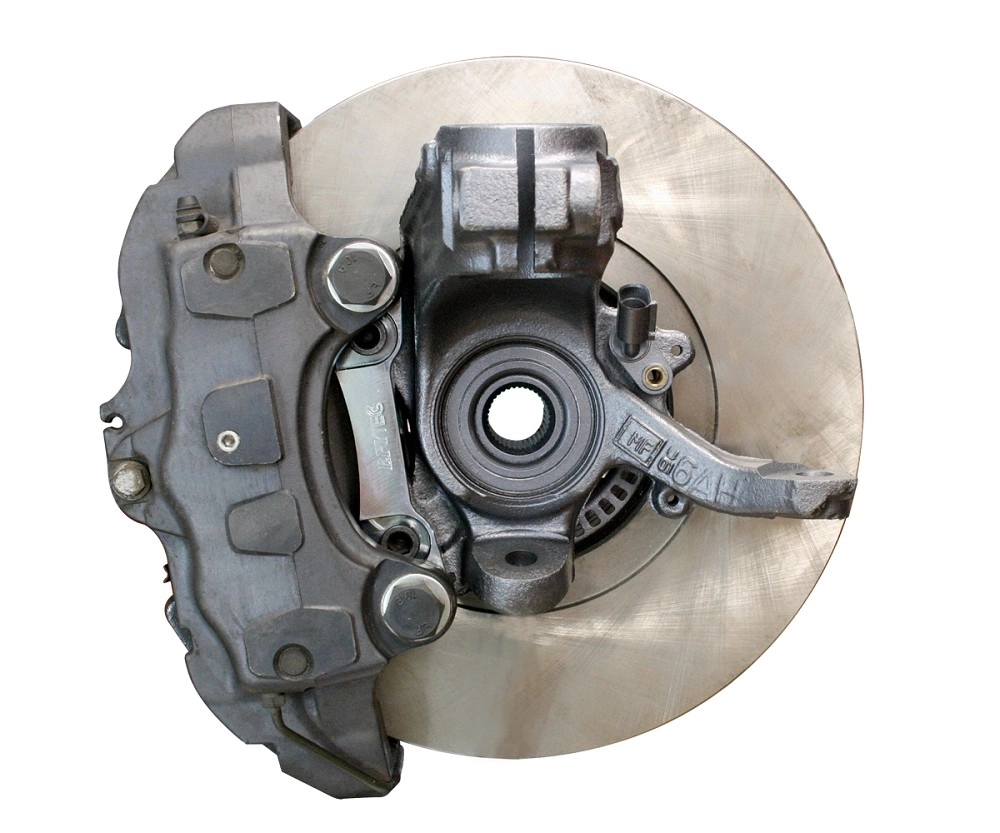

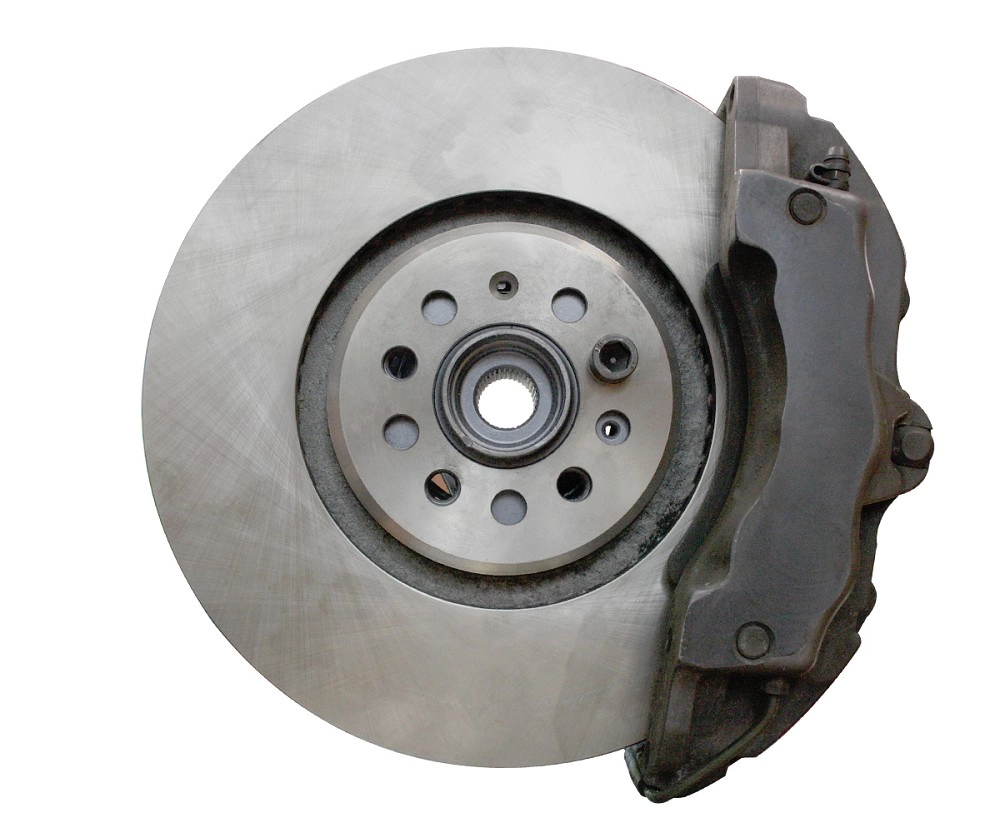

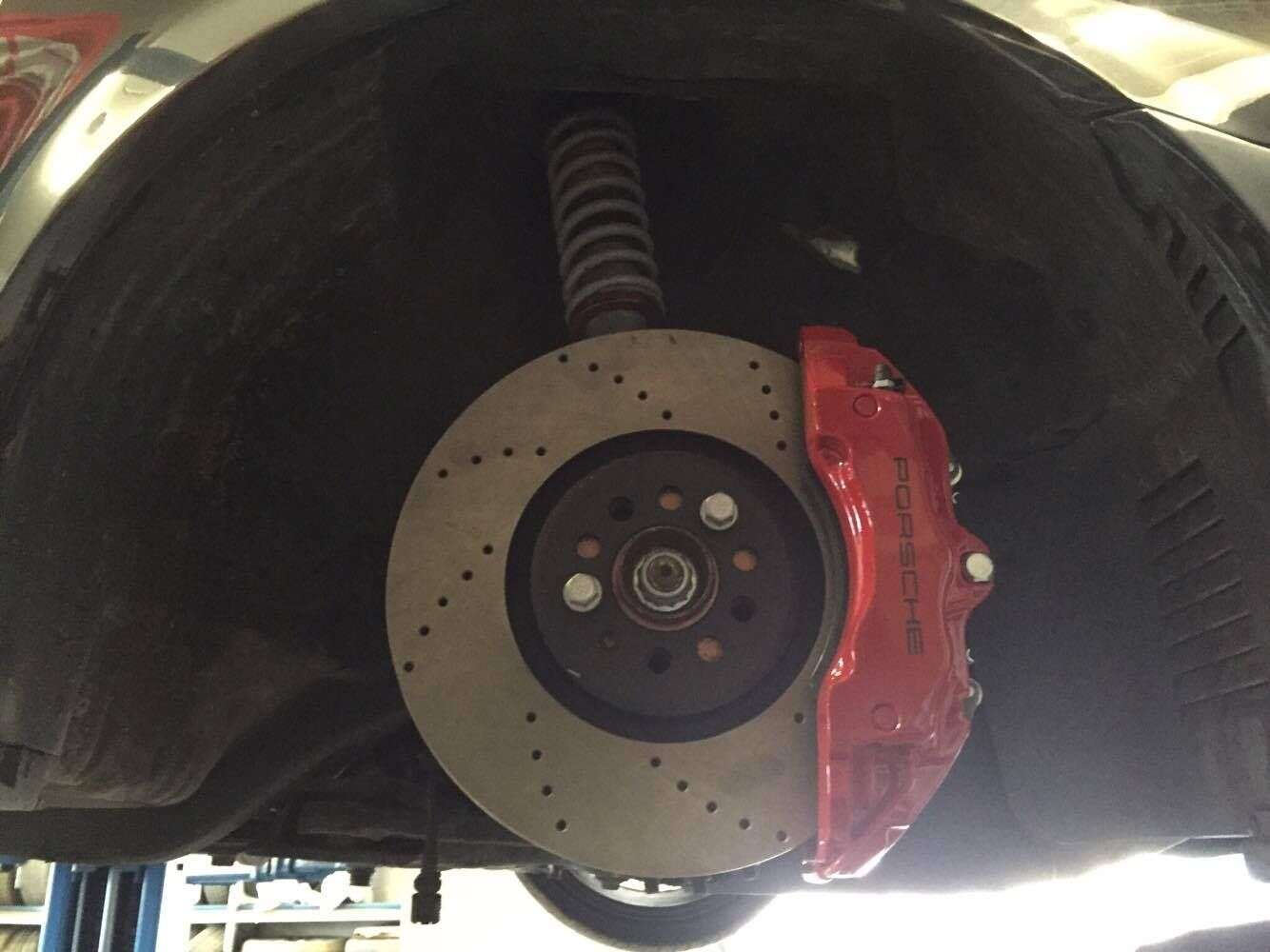

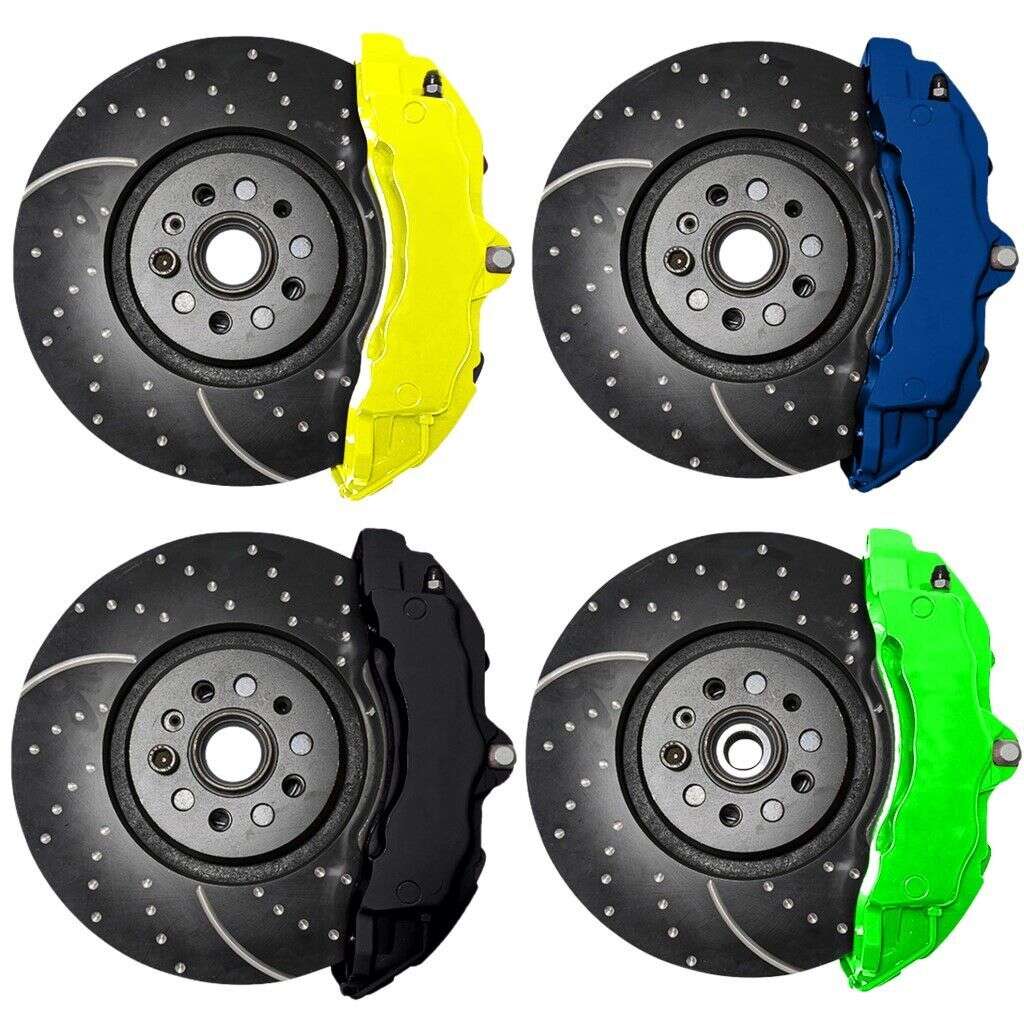

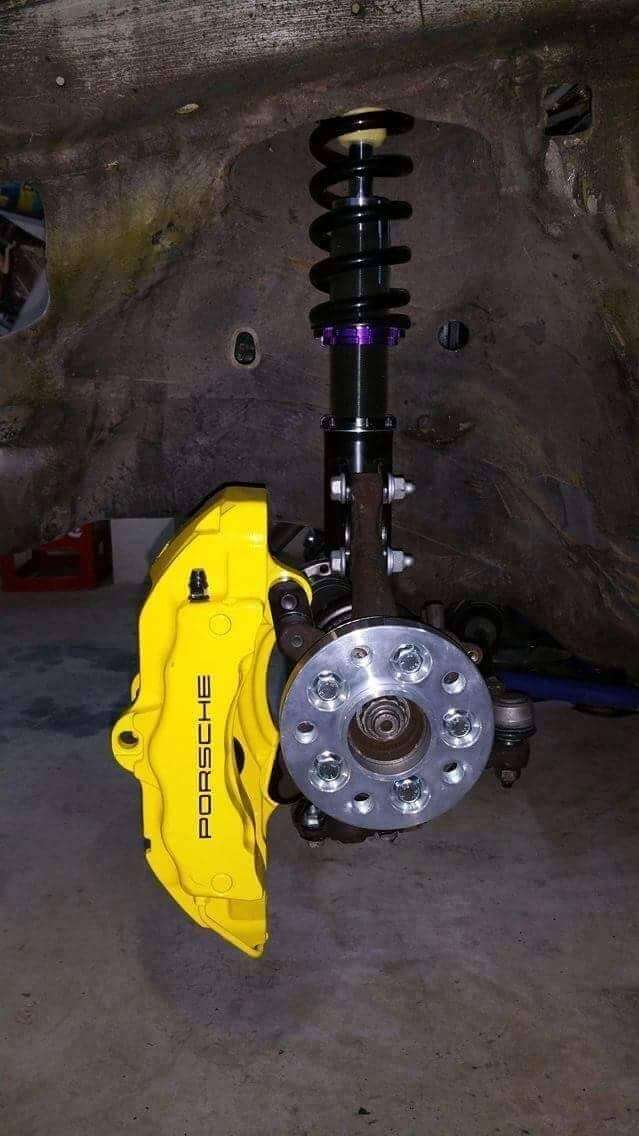

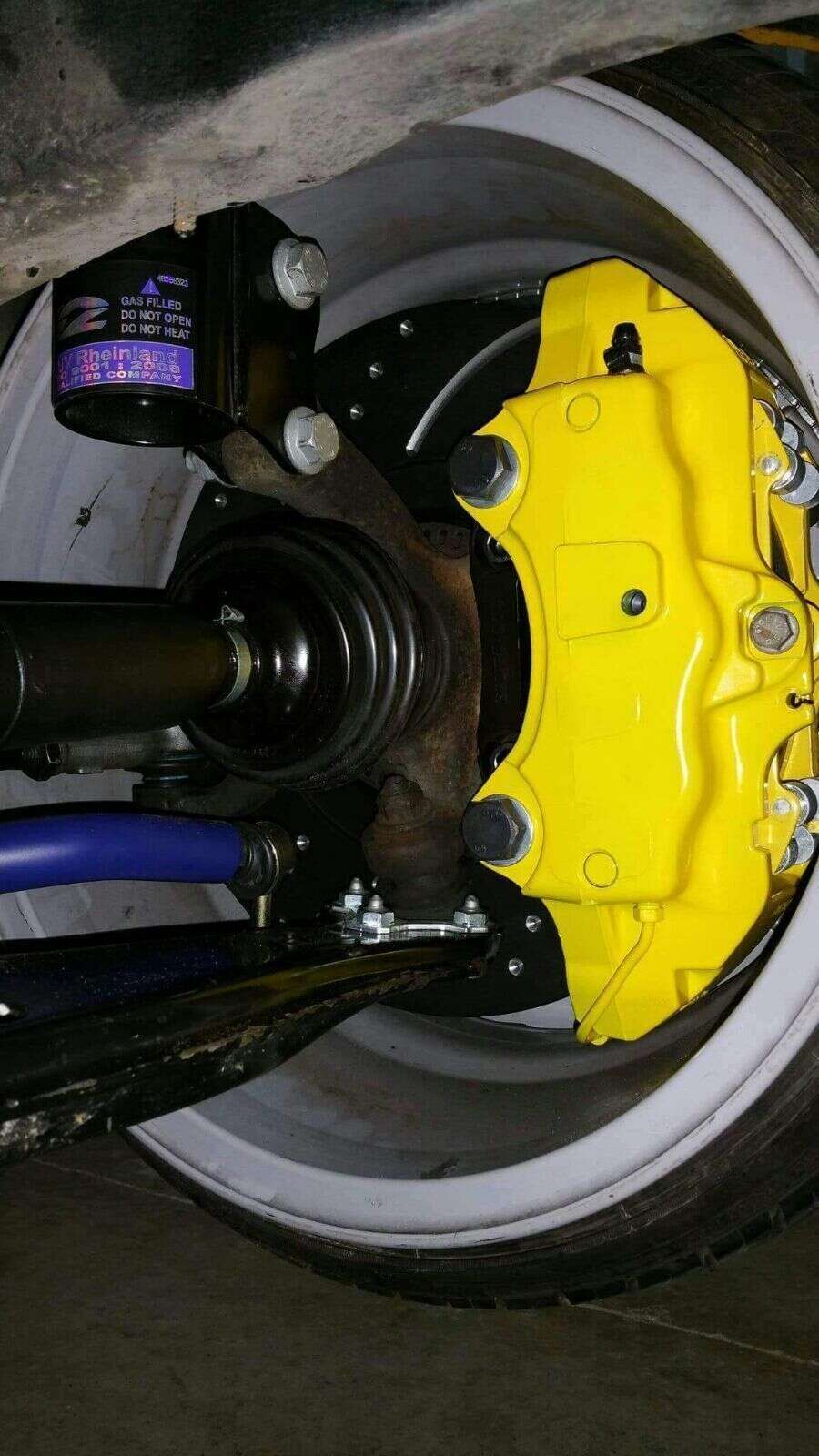

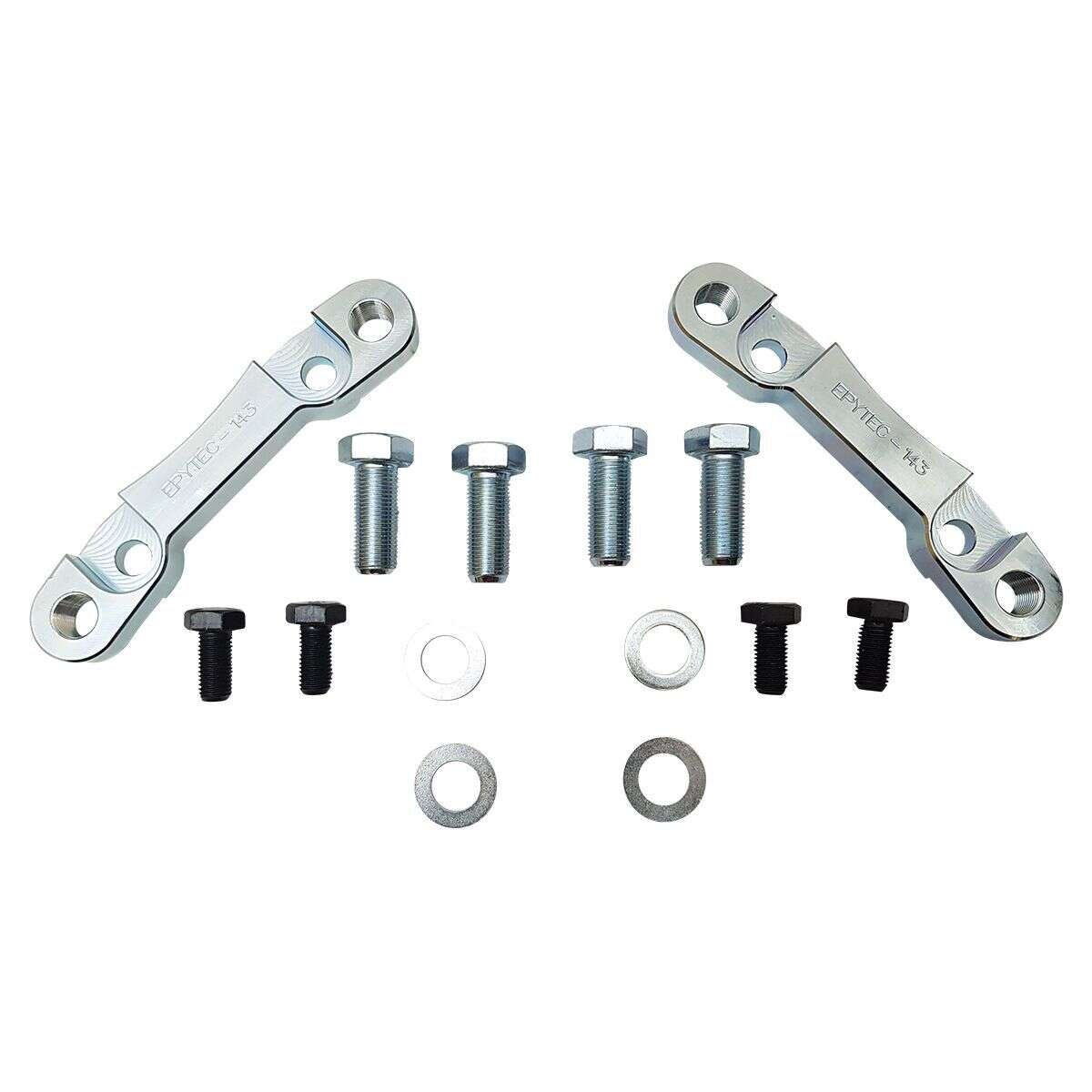

Brake Caliper Adapter Porsche for Audi TT A3 S3 VW Golf Polo

  • ✓ 334x32 8N0615301B 1J0615301 R32 brake disc
  • ✓ 6-piston Z18 95535142153 / 95535142253 Cayenne brake caliper
  • ✓ front axle

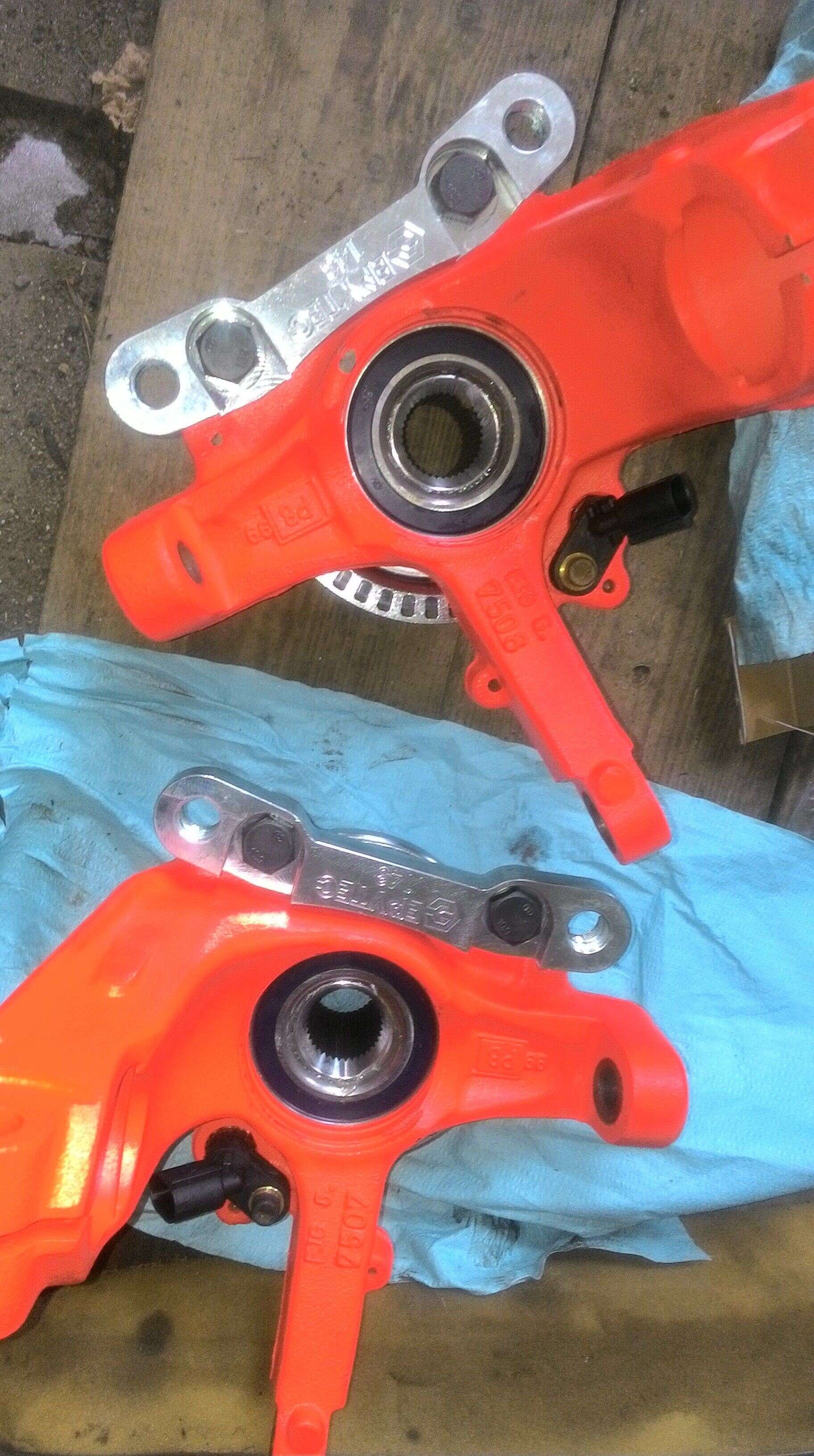

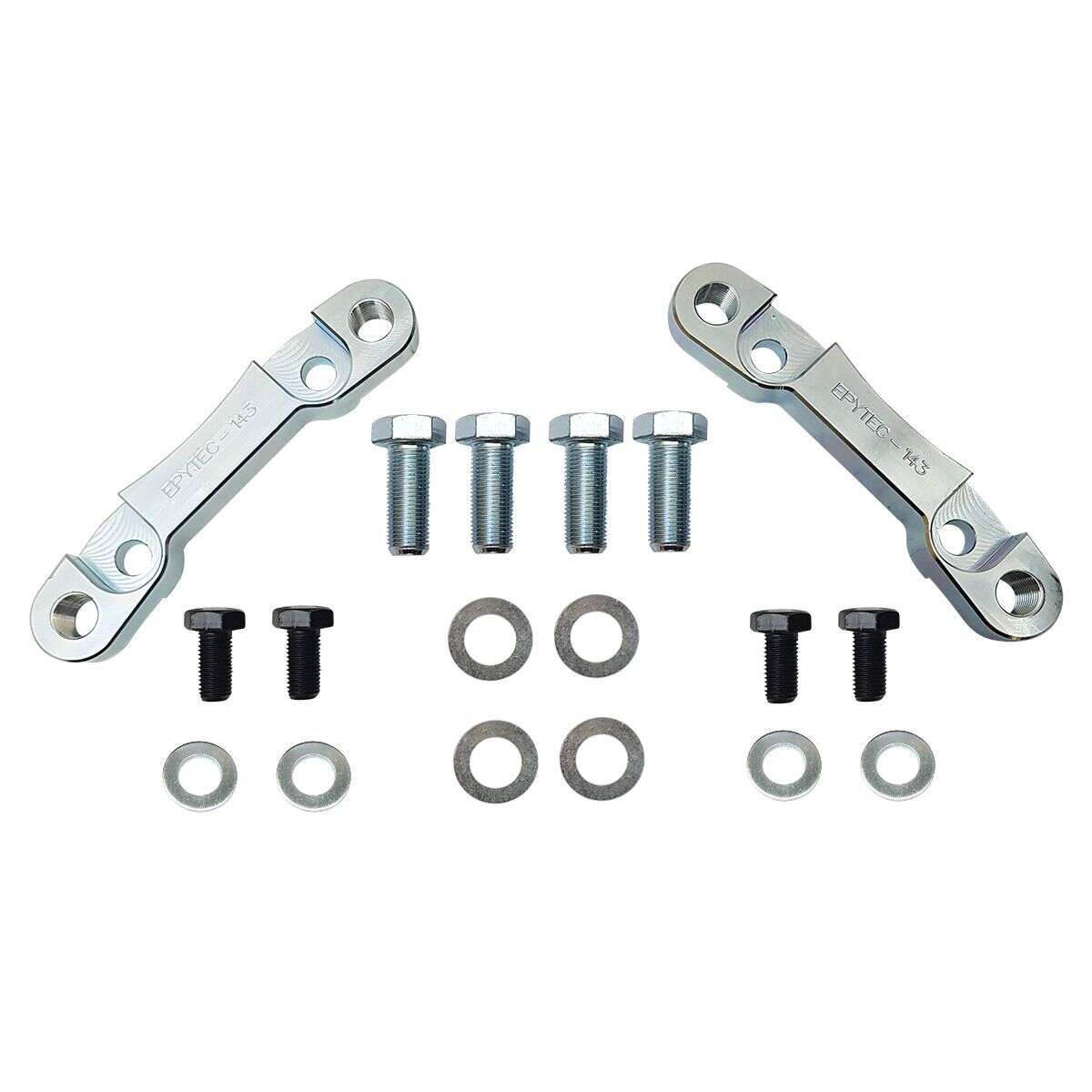

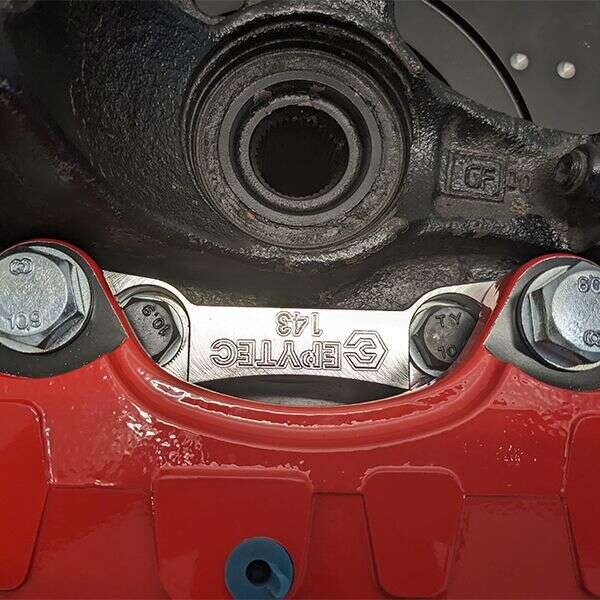

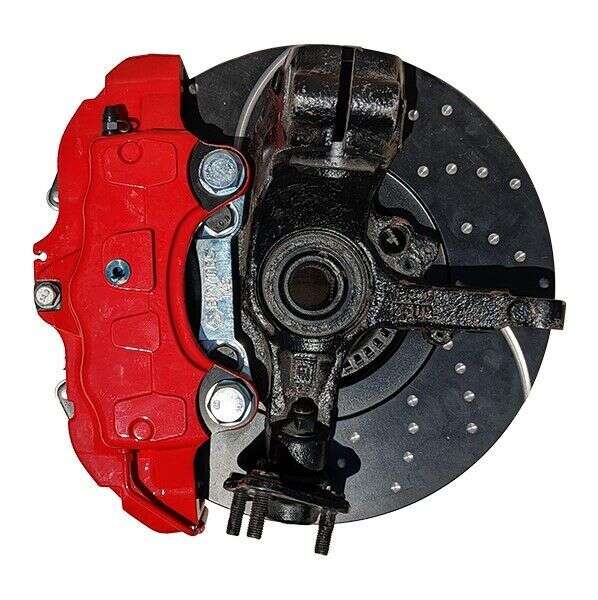

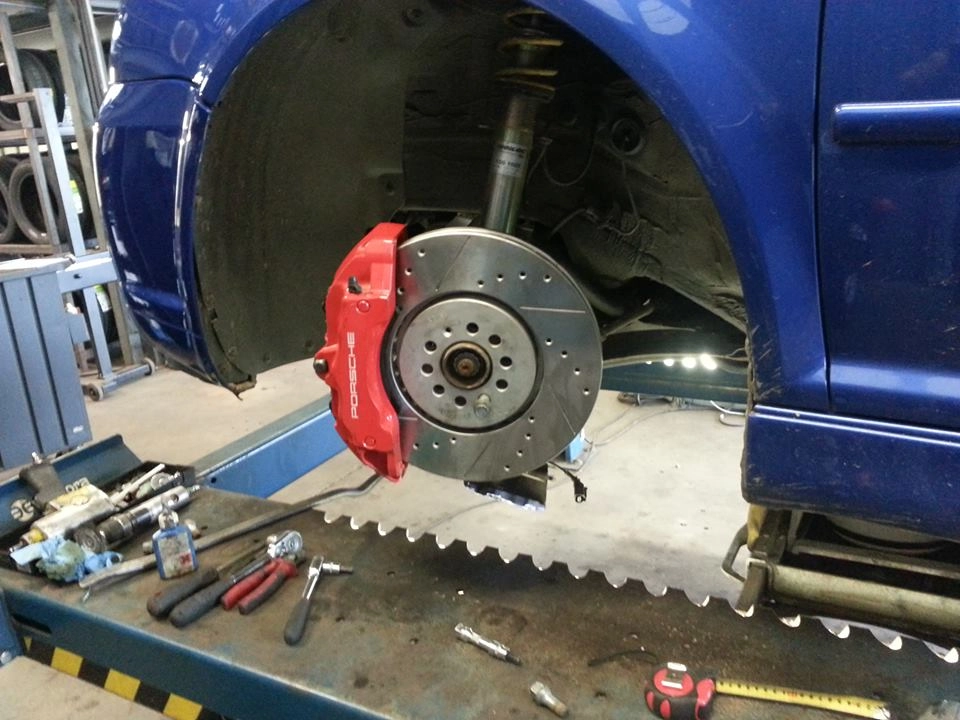

Brake caliper adapter, front axle, for  Audi TT A3, etc, to convert to Porsche or Brembo 6-piston ZR18 brake caliper, combined with the R32 334 x 32mm brake discs.

These calipers are used as standard for Porsche Cayenne, VW Touareg and Q7.

Suitable for the following models of VW/Audi group:

  • Audi A3 (8L)
  • Audi TT (8N)
  • VW Golf MK4
  • VW Bora
  • VW Beetle
  • VW Polo (9N)
  • Seat Ibiza
  • Seat Leon

Important!:

The adapter is only suitable for cast wishbones OE: 8N0 407 151 A.

These are installed as standard in the Golf 4 R32, Audi S3 8L, and Audi TT 8N 1.8T and the Quattro models. All other models of the Golf 4, Audi A3 series must be converted to this cast wishbone, otherwise no more steering is possible. The stabilizer OE: 1J0411305AF must also be converted in vehicles that do not have the cast wishbone installed as standard.

We have the right wishbones in the matching accessories and can be ordered directly.

The problem with the wishbone only affects conversions to Z18 and Z17 calipers. With all other adapters that we still have, such as conversion to 4-piston Porsche Boxter, Audi TTRS or 6-piston Porsche Panamera brake calipers for the Golf 4 Audi A3 series, the adapters fit with all wishbones.

Required components:

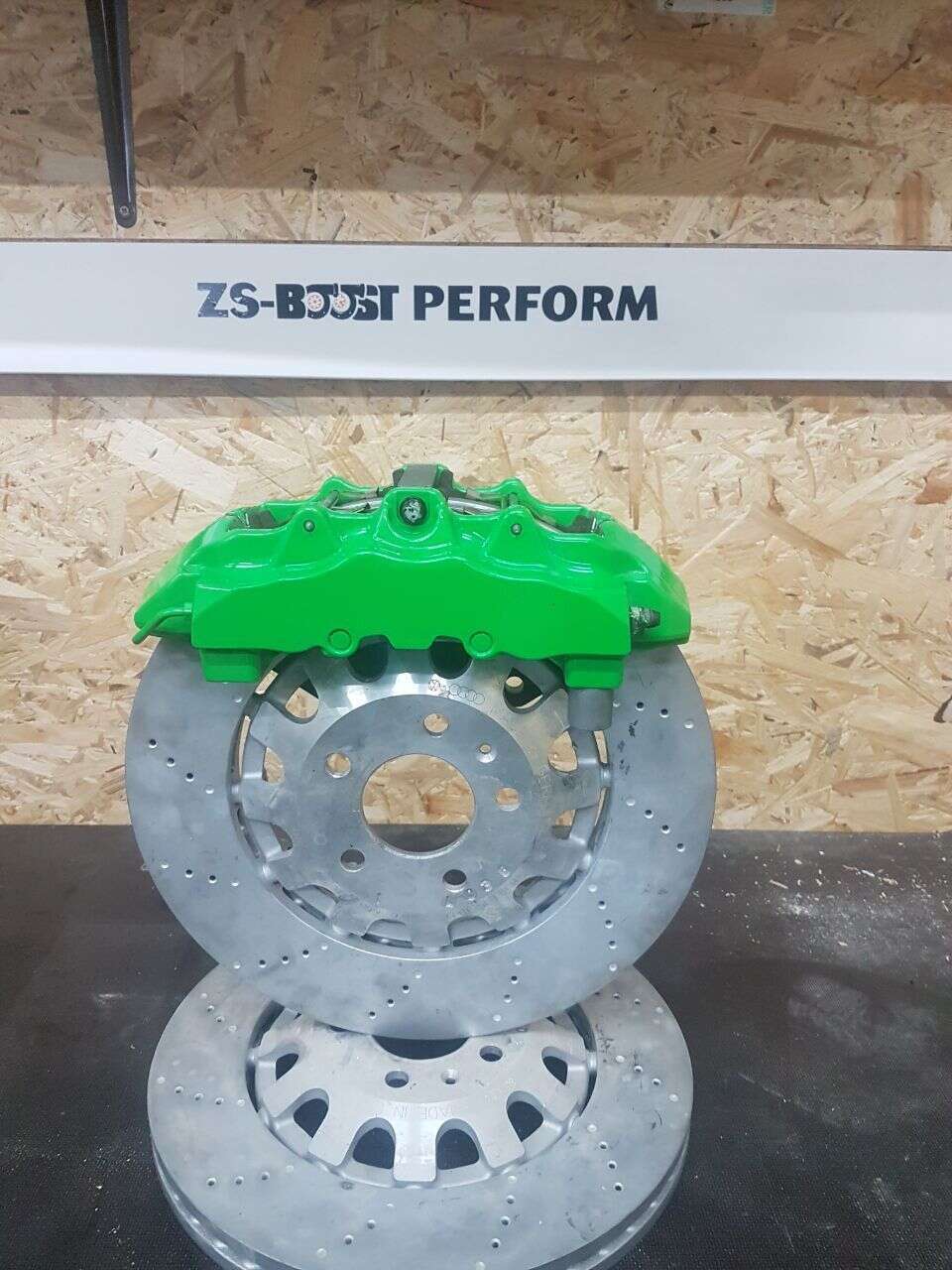

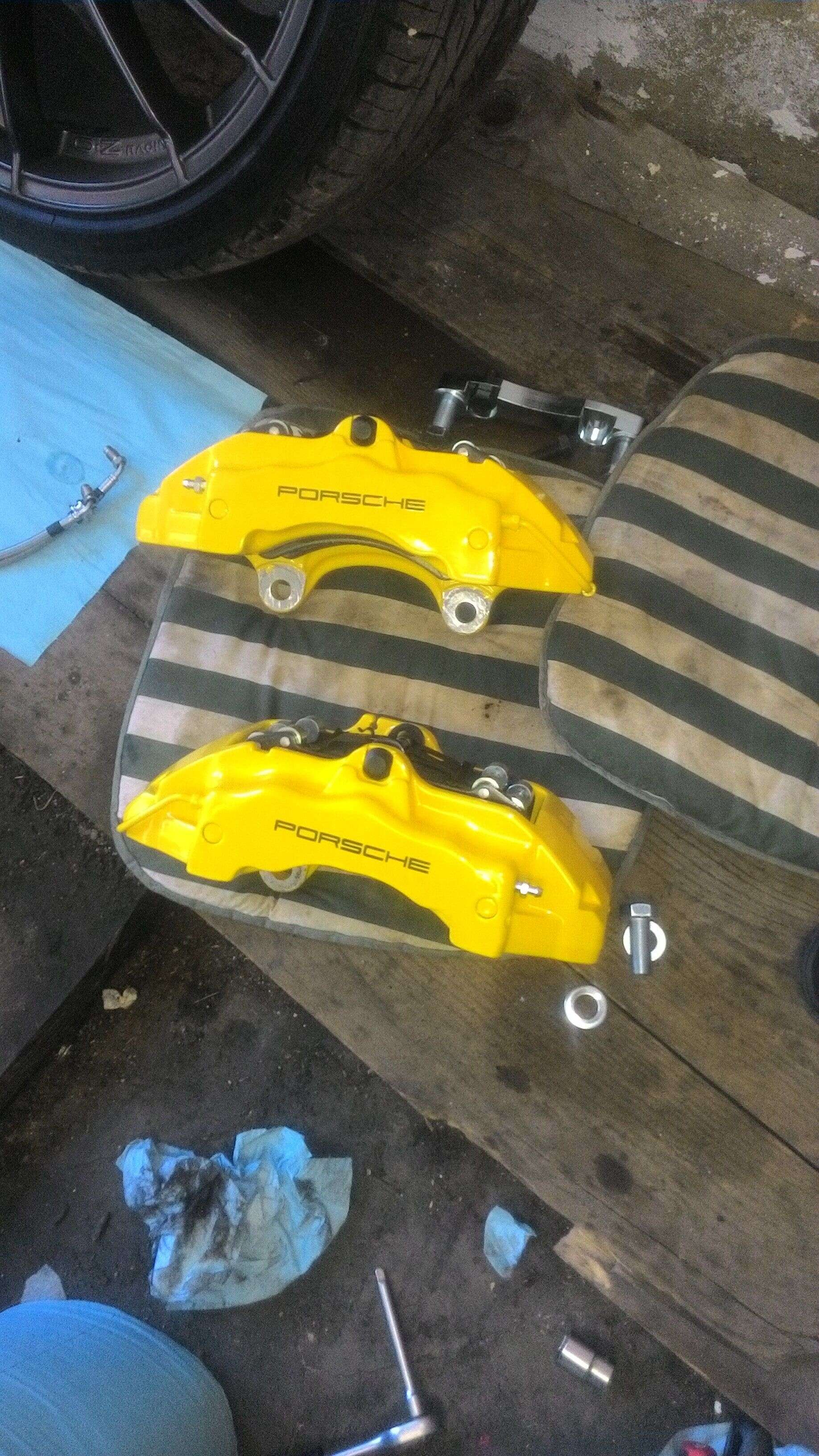

  • brake caliper Porsche Cayenne ZR18 ZL18 , référence 95535142153 +  95535142253
  • brake disc VW Golf 4 R32  334x32mm  part number: 8N0 615 301 B / 1J0 615 301 AA

Delivery:

You also find the corresponding adapter for conversion to ZR17 6-piston brake calipers in our shop (click here)

Tips, information and advice:

  • To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
  • For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

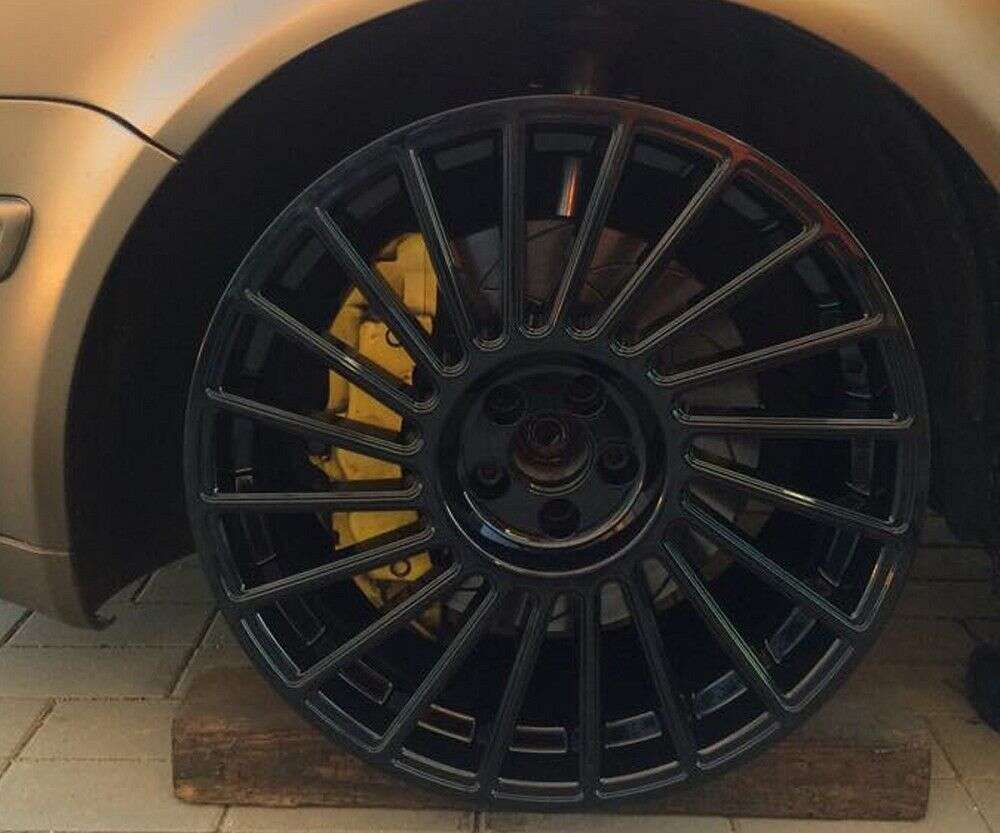

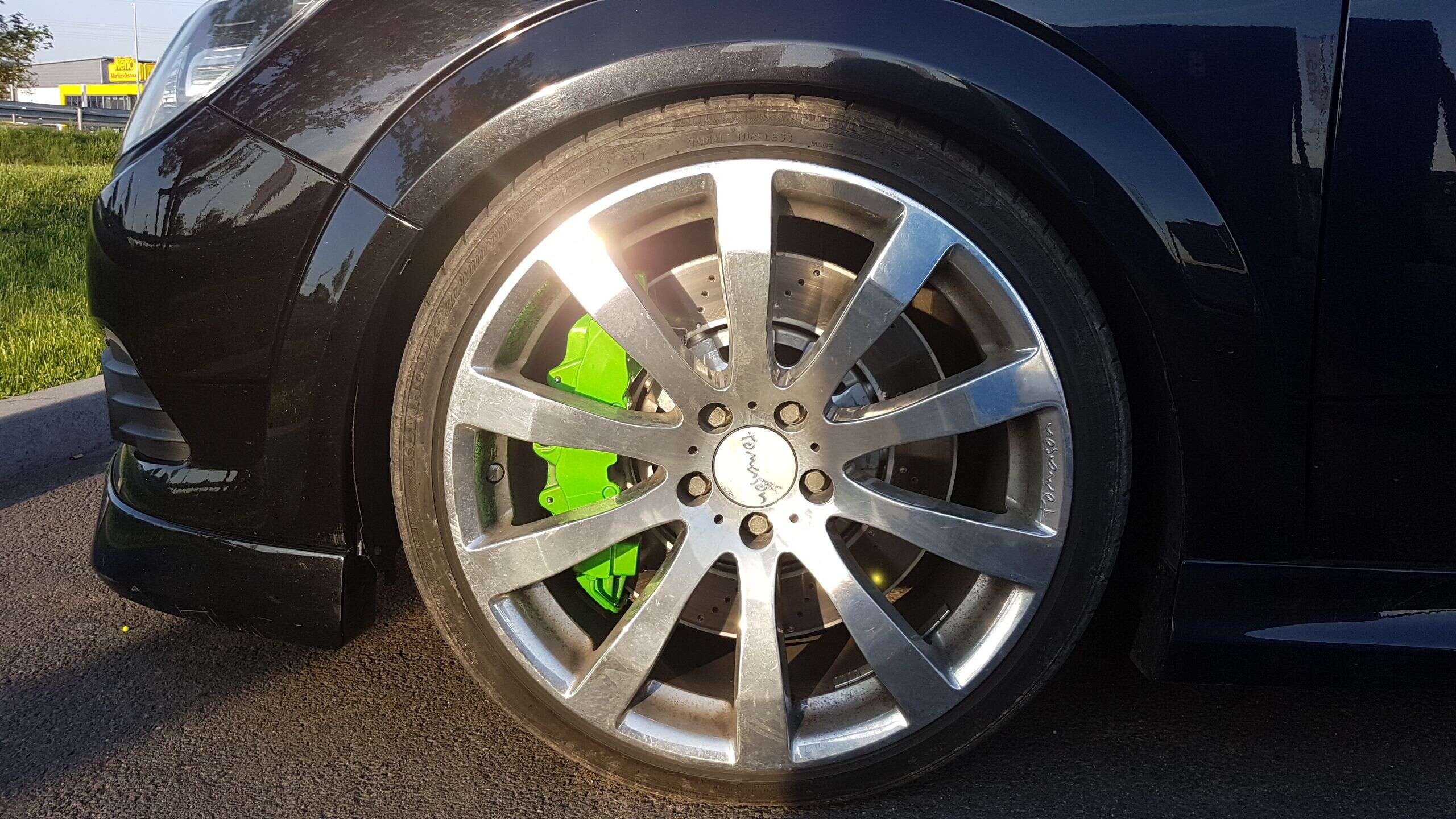

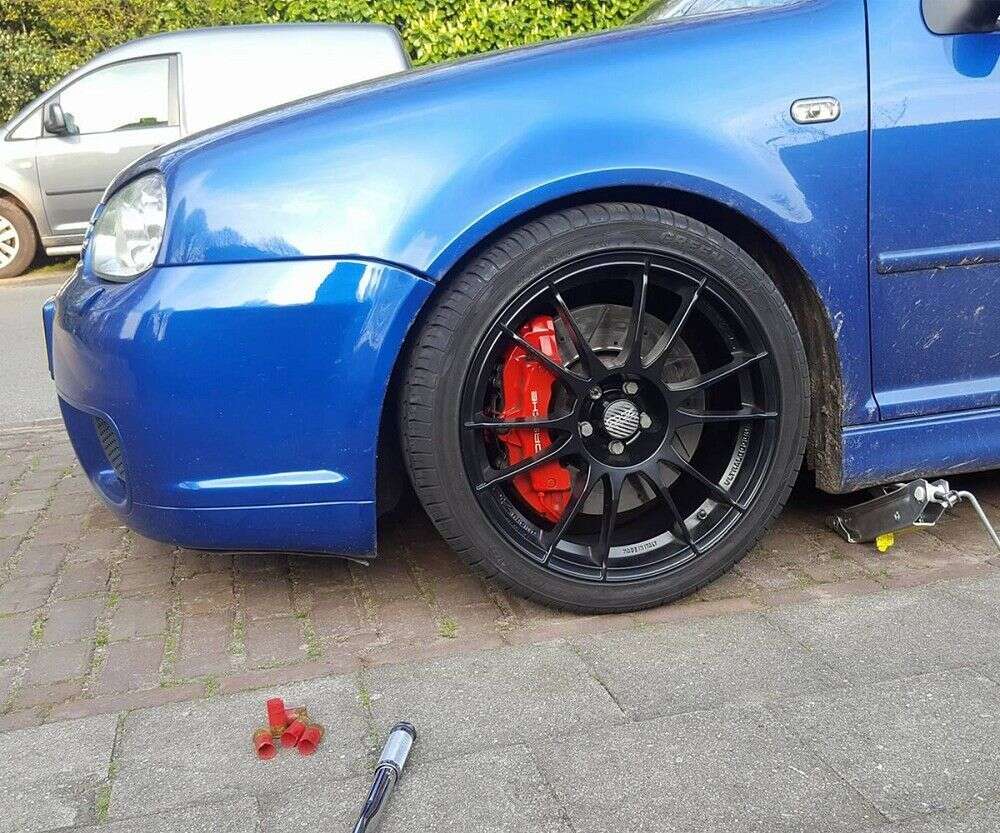

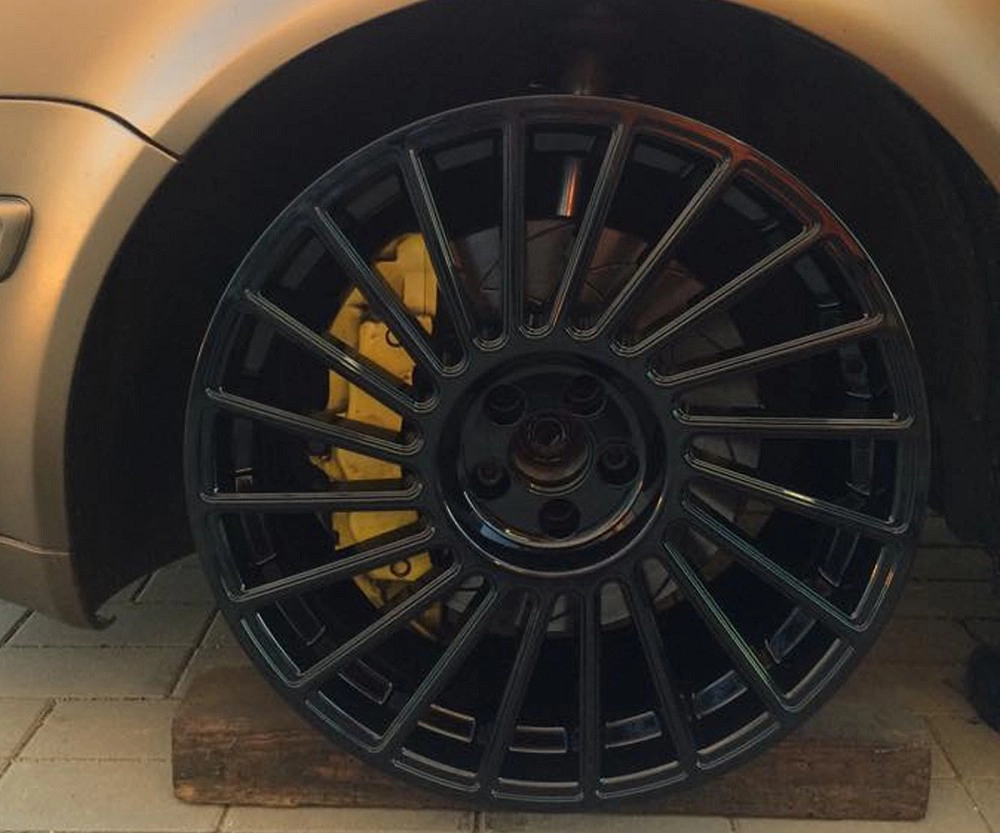

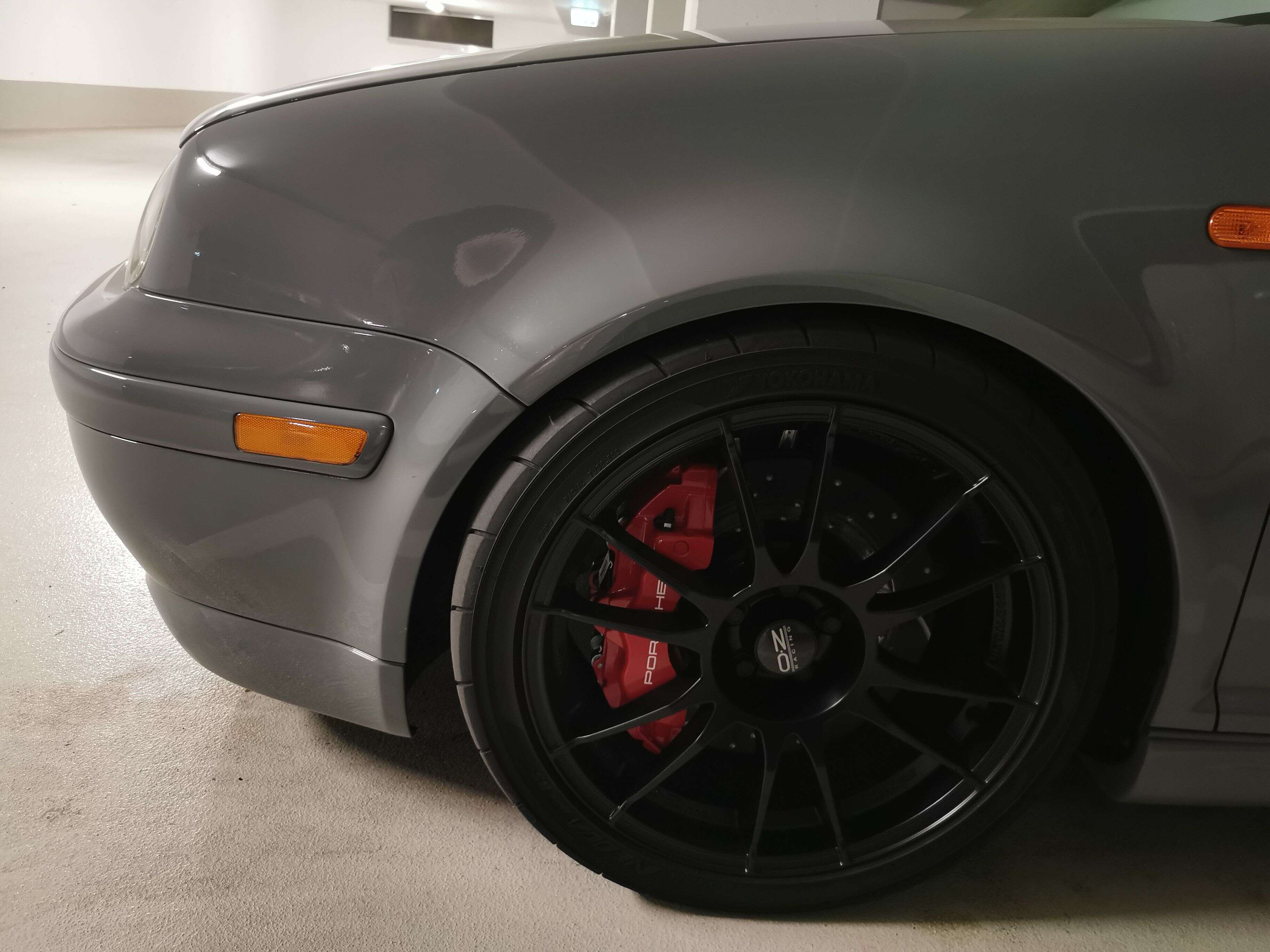

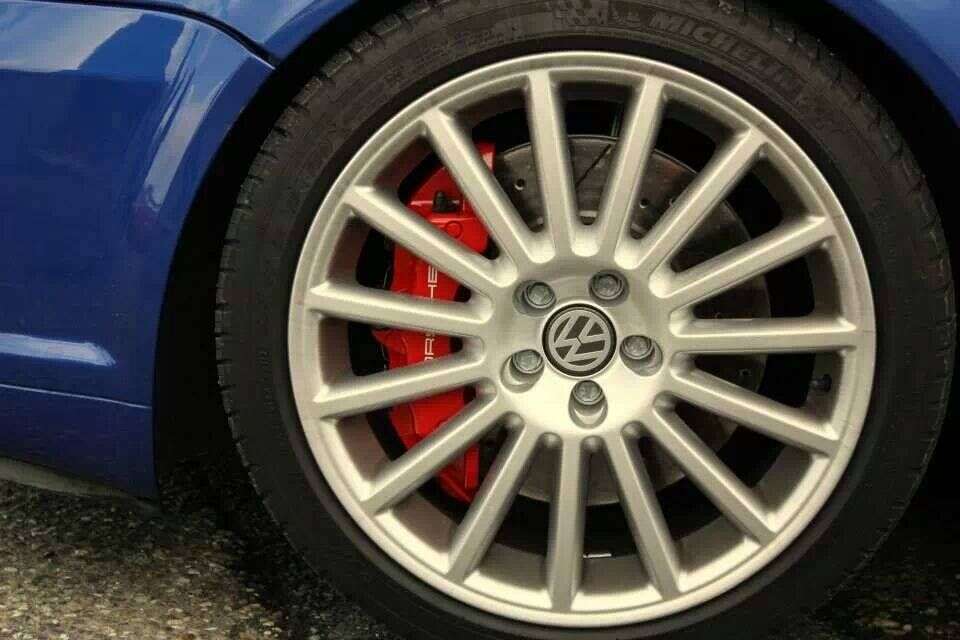

  • We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
  • Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
  • The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 146mm
Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 146mm

10 of 51 reviews

Average rating of 4.9 out of 5 stars


96%

4%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


2 May 2019 11:47

Review with rating of 5 out of 5 stars

Marcel M

Wäre super wenn das noch erwähnt wird dass man eventuell Spurverbreiterungen braucht.! Mit freundlichen Grüßen Marcel Matheis

31 December 2020 12:07

Review with rating of 5 out of 5 stars

Mario S

Top Qualität

26 June 2022 09:42

Review with rating of 5 out of 5 stars

Cl&#233;ment K

Super produit de qualité et le personnel et super ils répondent super vite je recommande fortement !

24 March 2024 08:32

Review with rating of 5 out of 5 stars

Daniel S

Fast shipping

24 December 2020 01:49

Review with rating of 5 out of 5 stars

Patrick H

passt super Verarbeitung spitze freunde Familie kenne euch von altere umbauten war nicht skeptisch wusste ja das alles passt funktioniert alles ohne Probleme und stehts bei nachfragen schnelle und einfache antworten klasse Team werde noch mehr bei euch holen bin noch lange nicht fertig macht weiter so

3 April 2019 16:14

Review with rating of 5 out of 5 stars

Philipp B

Wie immer ein guter Kauf und die richtige Wahl! Top Qualität!

11 May 2018 10:31

Review with rating of 5 out of 5 stars

Marco S

wie immer top von Epytec

12 June 2019 12:12

Review with rating of 5 out of 5 stars

Sven A

Gute Qualität Schneller Versand

29 April 2021 14:19

Review with rating of 5 out of 5 stars

Vladim&#237;r H

Alles Super! Top Qualität! Bin sehr zufrieden und würde weiter empfehlen.

22 March 2023 19:44

Review with rating of 5 out of 5 stars

Petr J

Perfect fit

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
