VW Golf 4 Polo 9N VW Polo 6r WRC Bora Audi A3 TT TTRS RS3 Audi TT Brake Caliper Adapter 370x32 Disc

  • ✓ 370x32 8J0615301F TTRS brake disc
  • ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne ZR18 / ZL18 brake caliper
  • ✓ front axle

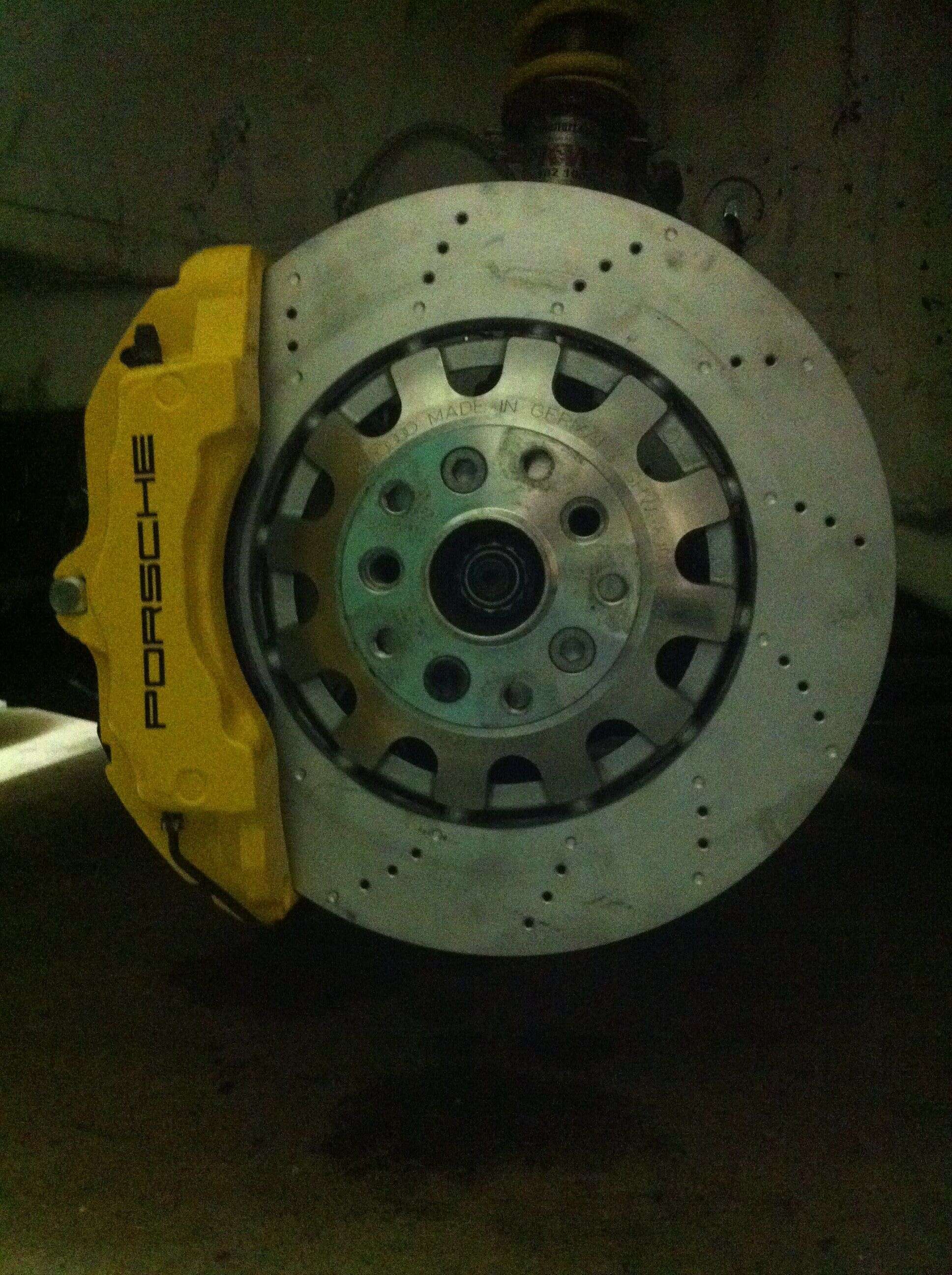

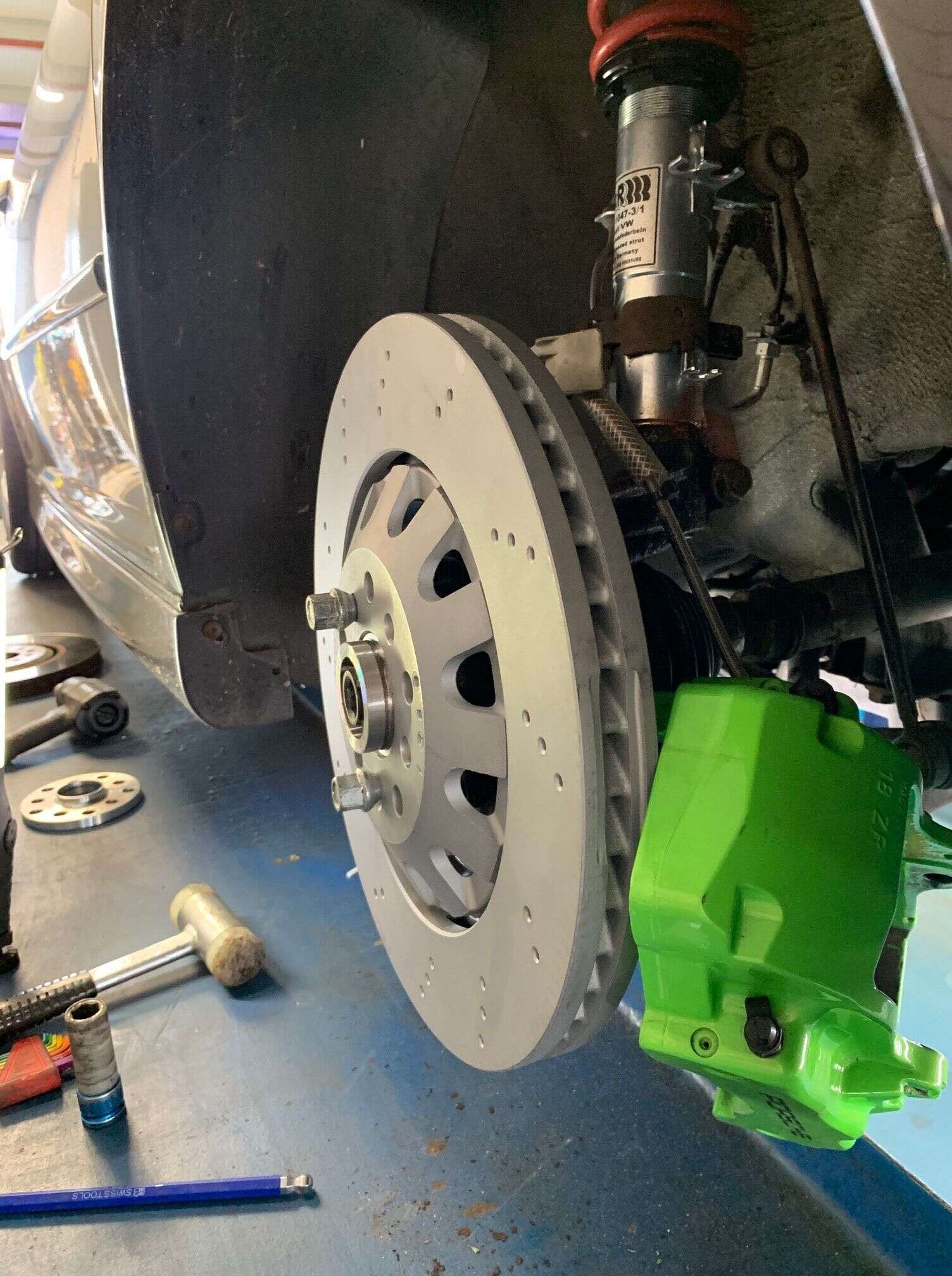

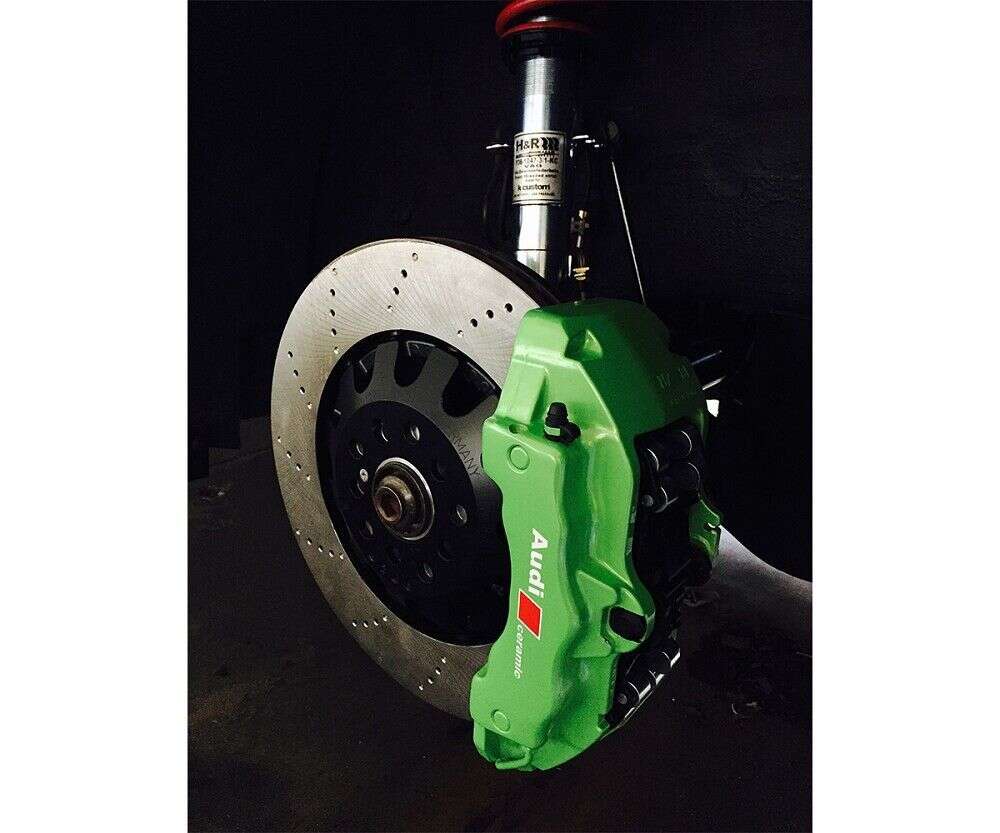

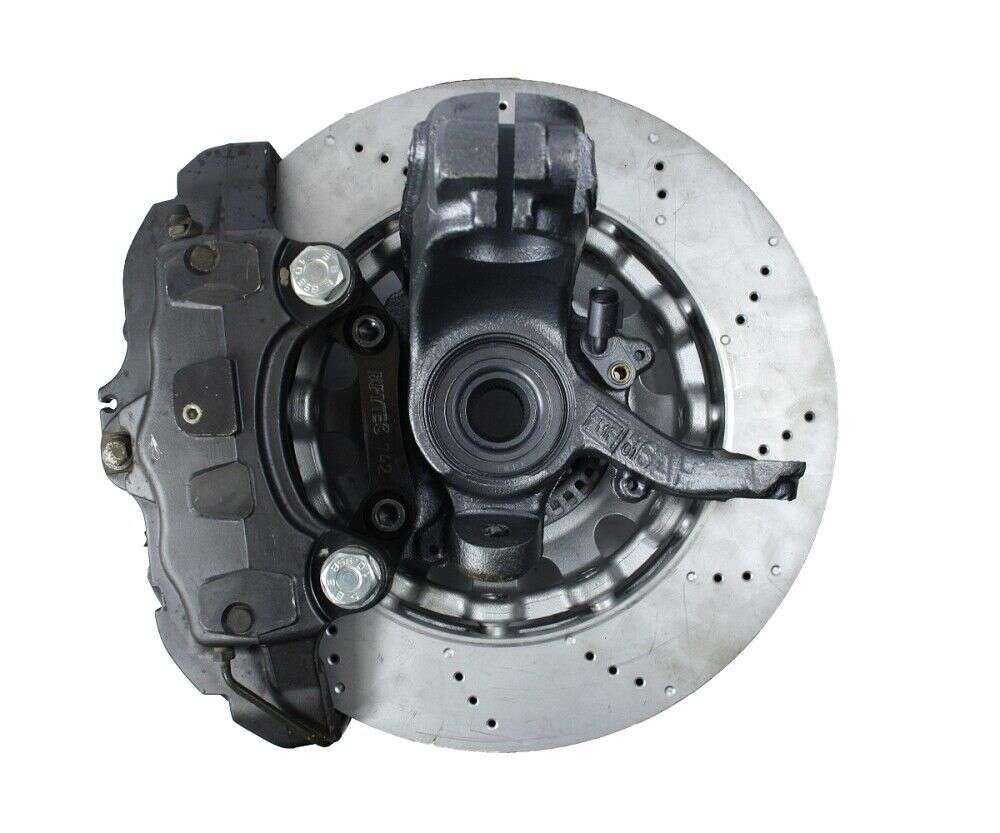

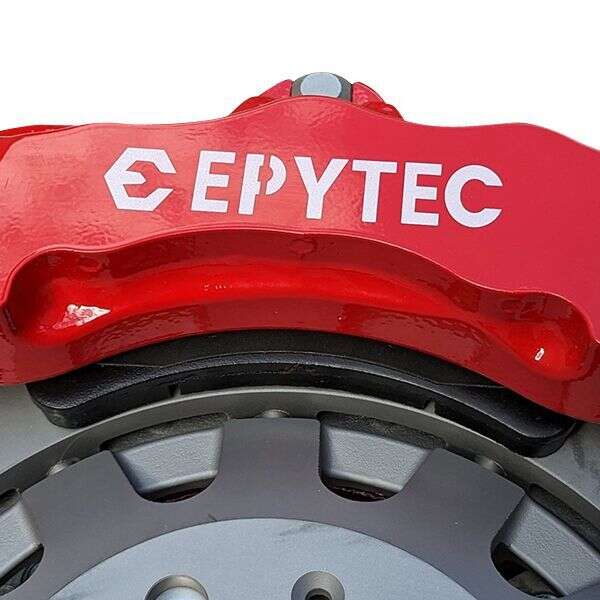

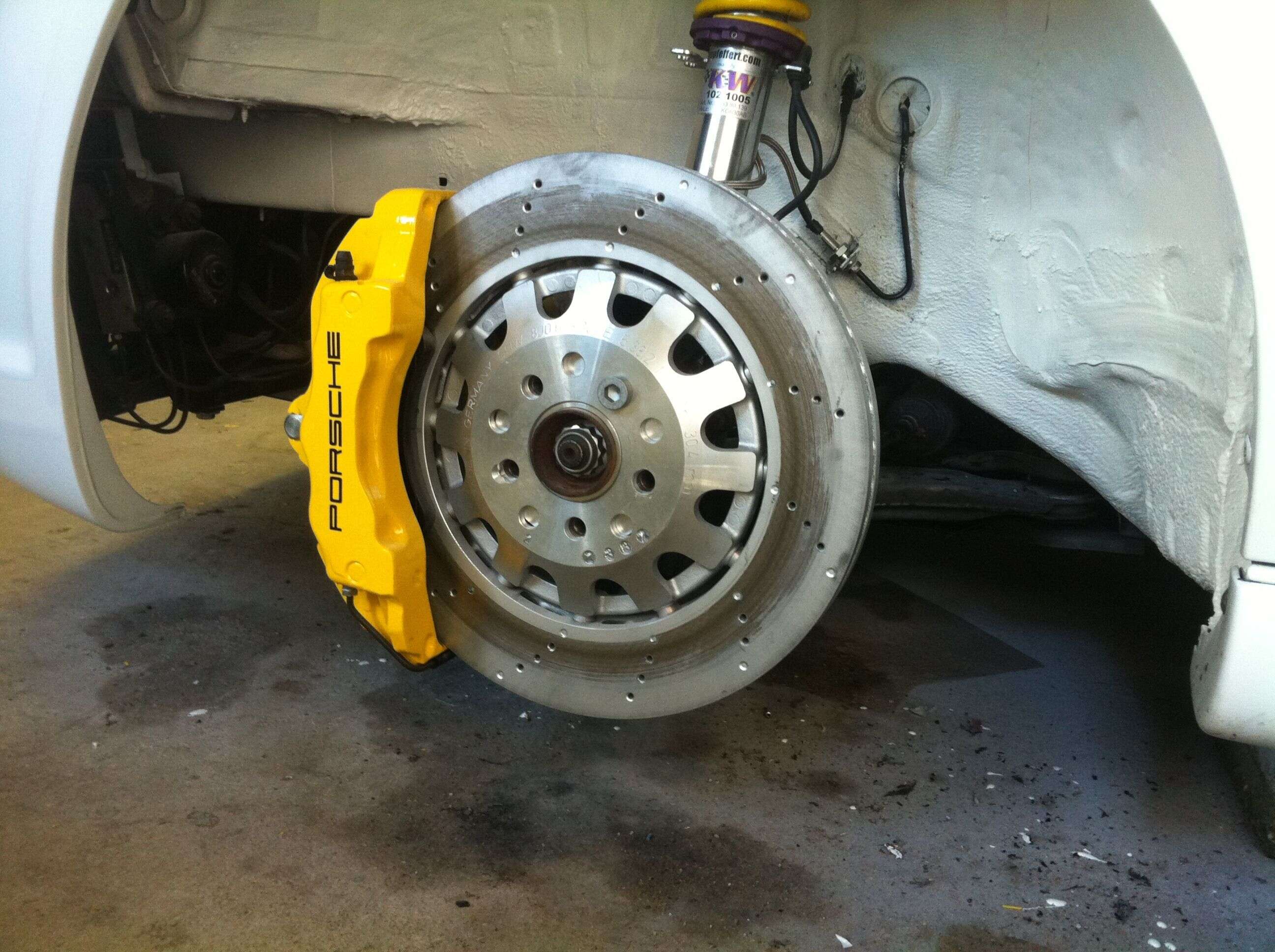

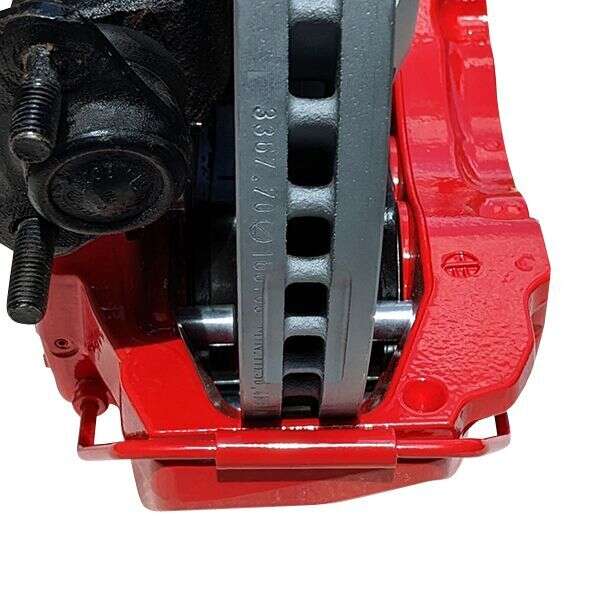

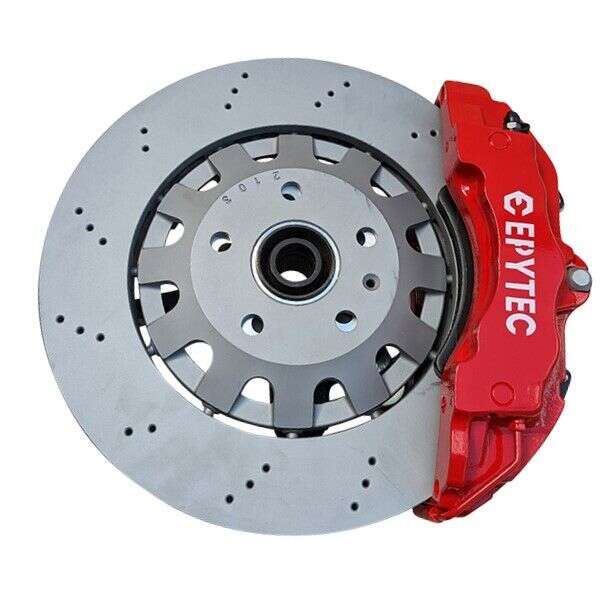

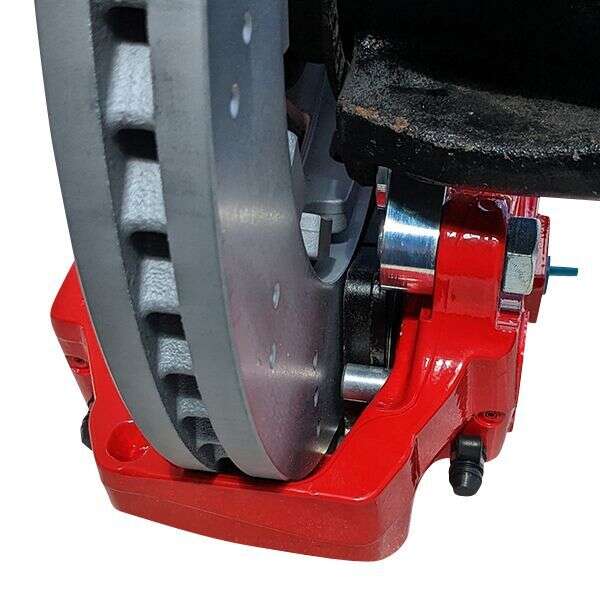

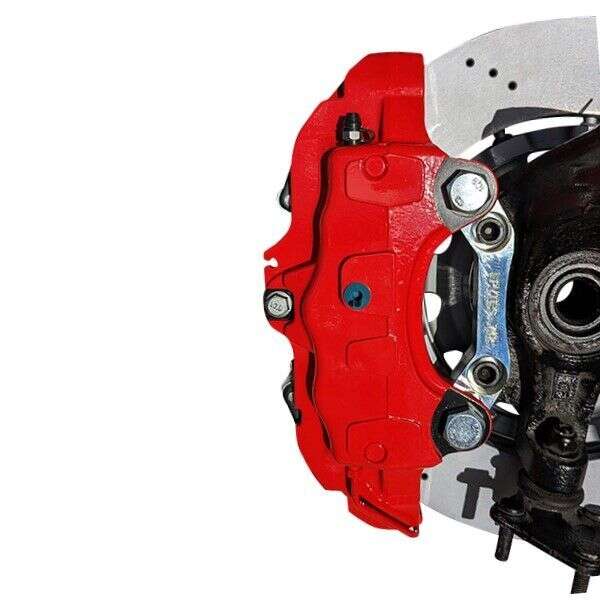

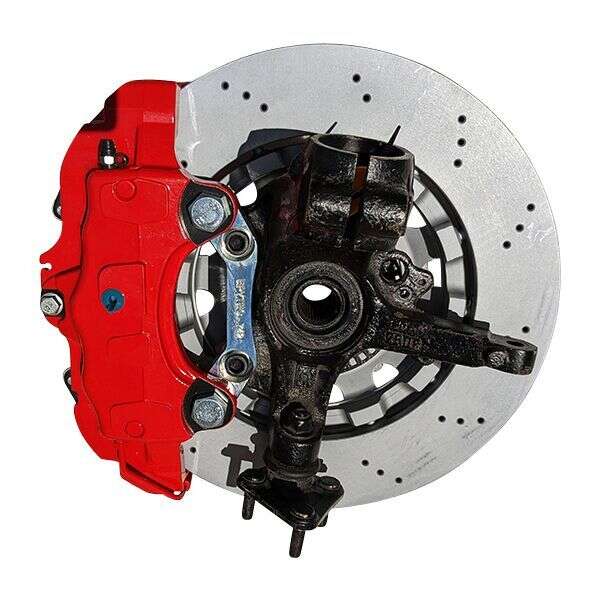

Brake caliper adapter for Golf 4 series, front axle, to install the brake caliper of Cayenne ZR18, combined with the original brake disc of TTRS.

Suitable for following vehicles:

  • Audi A3 (8L)
  • Audi TT (8N)
  • VW Golf MK4
  • VW Bora
  • VW Beetle
  • VW Polo 6R WRC
  • Seat Ibiza
  • Seat Leon

As the TTRS disc could touch the wishbone because of its high height, we have developed spacers of 8mm thickness, which are mounted under the brake disc. The discs are thus pushed outwards. In addition, the disc with the plate is perfectly centered on the axle stub. The spacers are naturally contained in the delivery.

Important!:

The adapter is only suitable for cast wishbones OE: 8N0 407 151 A.

These are installed as standard in the Golf 4 R32, Audi S3 8L, and Audi TT 8N 1.8T and the Quattro models. All other models of the Golf 4, Audi A3 series must be converted to this cast wishbone, otherwise no more steering is possible. Article APA100 The stabilizer OE: 1J0411305AF must also be converted in vehicles that do not have the cast wishbone installed as standard.

We have the right wishbones in the matching accessories and can be ordered directly.

The problem with the wishbone only affects conversions to Z18 and Z17 calipers. With all other adapters that we still have, such as conversion to 4-piston Porsche Boxter, Audi TTRS or 6-piston Porsche Panamera brake calipers for the Golf 4 Audi A3 series, the adapters fit with all wishbones.

Advantages of this brake system:

  • high deceleration
  • thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
  • directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
  • Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling

Required components:

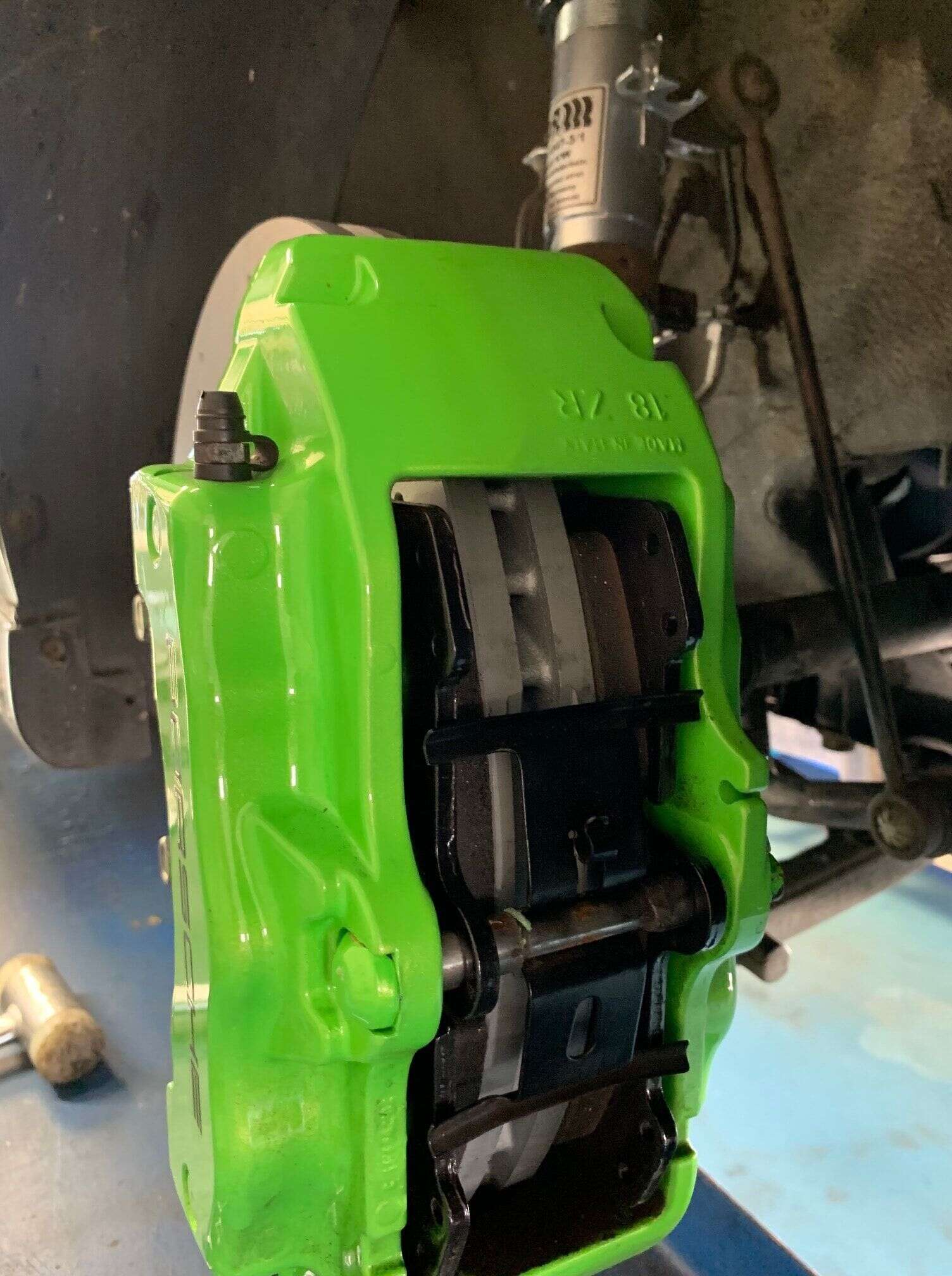

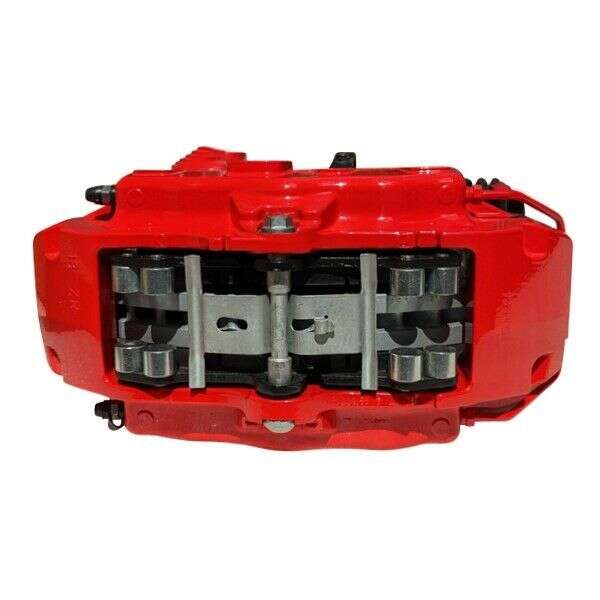

  • brake calipers Porsche Cayenne ZR18 ZL18 , reference 95535142153 / 95535142253
  • brake pads: we recommend to use the pads from the ZR 17 brake calipers
  • brake discs TTRS  370x32 mm , reference 8J0615301F (The RS3 disks are not suitable, it is another depth)
  • adapters are suitable only with the original ball joints.
  • modification of the disc PCD from 5x112 to 5x100 (possibility of making it directly from EPYTEC)

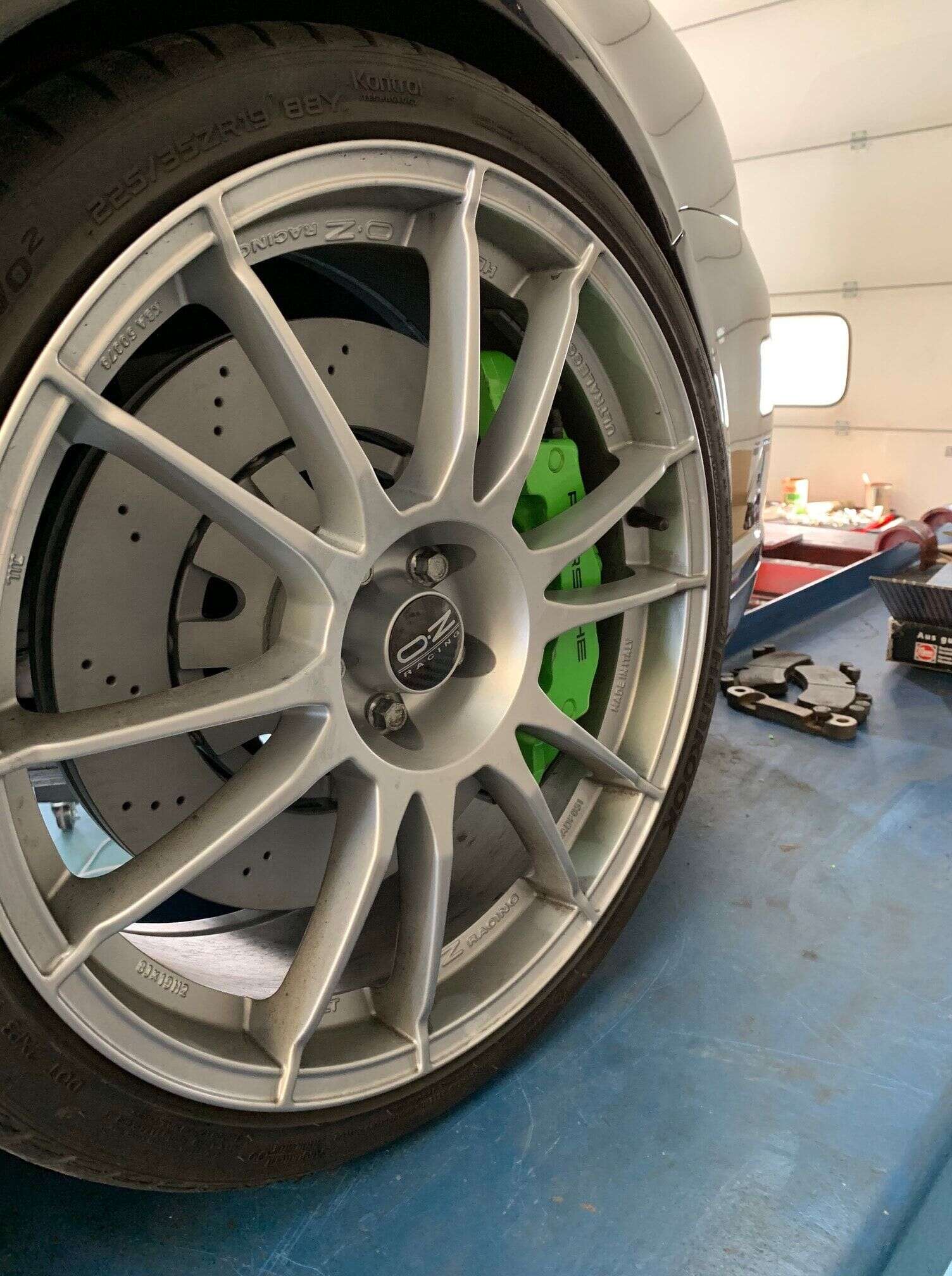

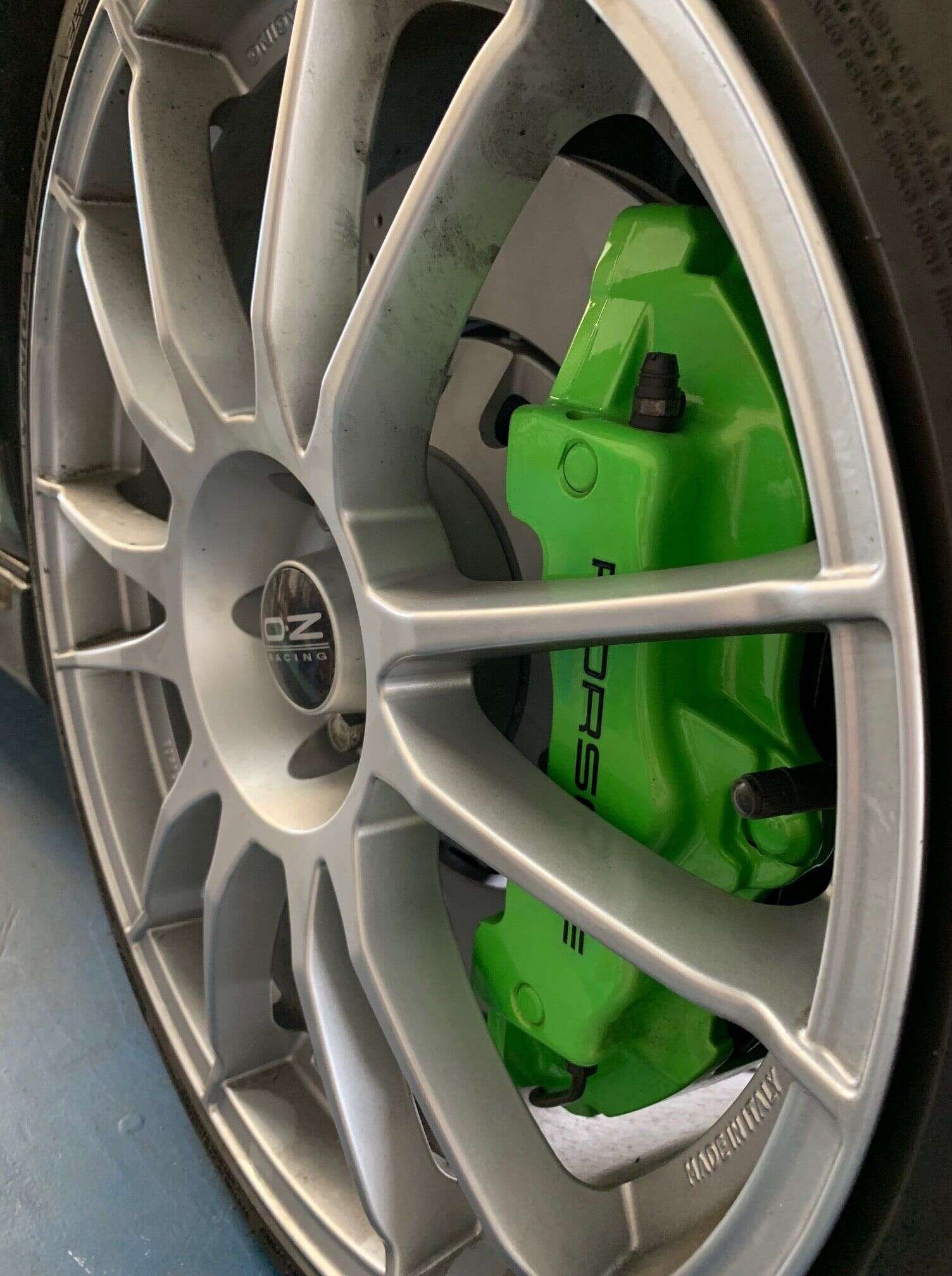

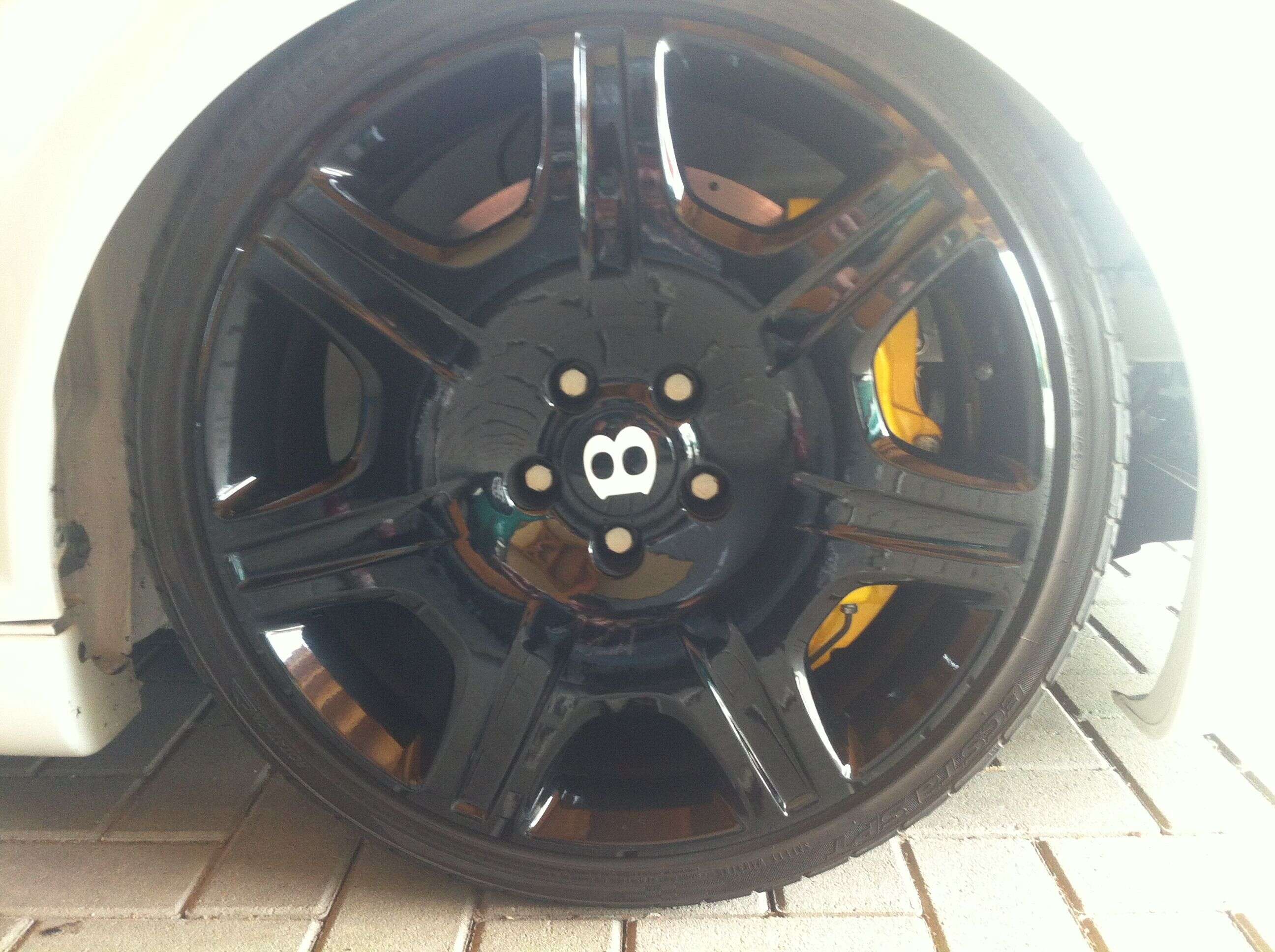

At least 19 inch rims must be used

Delivery:

Tips, information and notes:

  • For better ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.

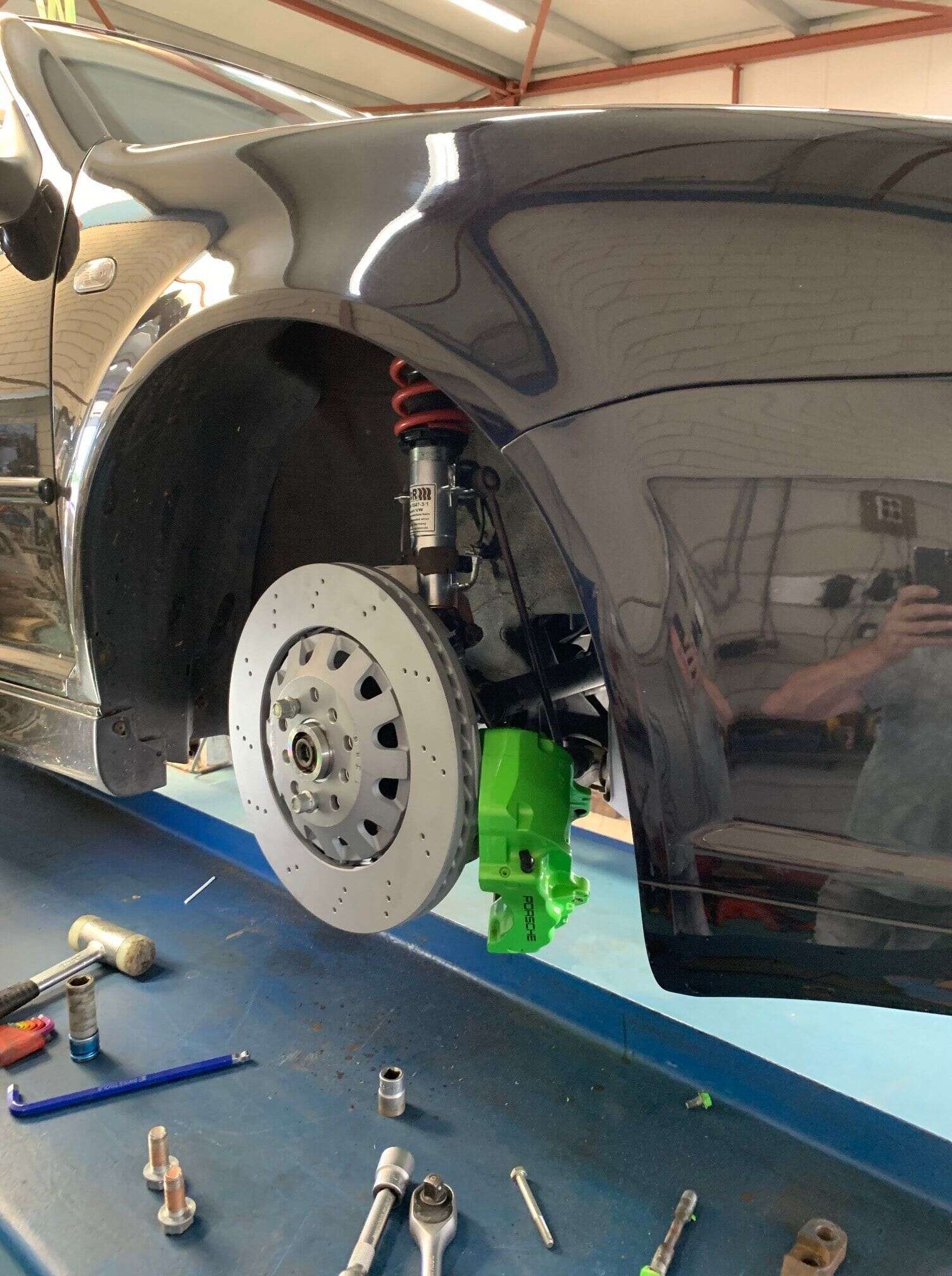

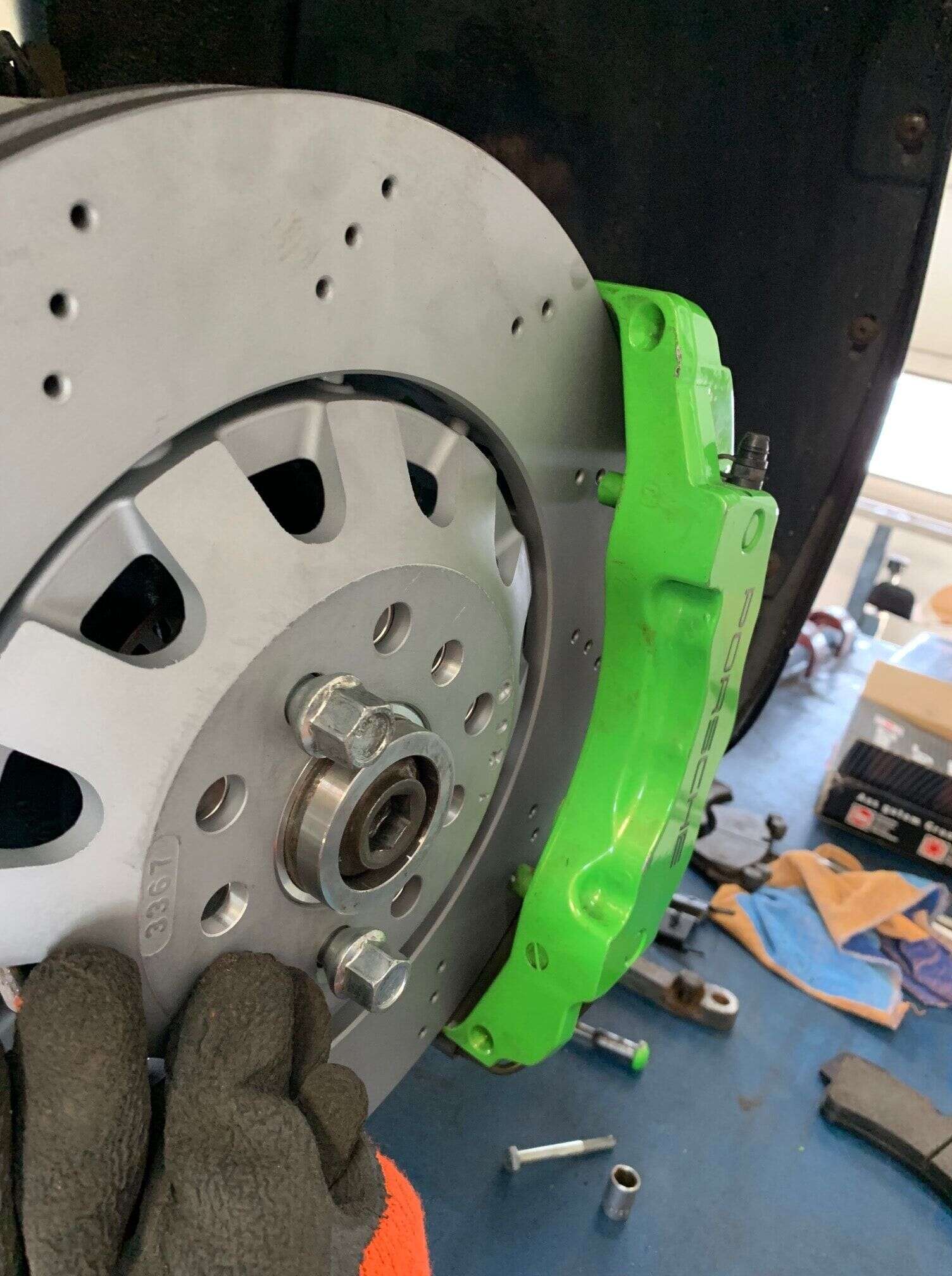

  • Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, where you can assemble and then install them according to your requirements.click here for the steel braided line configurator >>configure steel braided brake line<<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 146mm
Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 146mm

10 of 16 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


4 March 2020 17:51

Review with rating of 5 out of 5 stars

Tom&#225;&#353; F

Ich bin wiederkehrender Kunde im Shop, der für uns Tuner am besten geeignet ist Alles perfekt , sehr passgenau

22 August 2021 14:23

Review with rating of 5 out of 5 stars

Jan L

best best best

28 June 2020 13:48

Review with rating of 5 out of 5 stars

Yasin Y

Produit de très bonne qualité

23 August 2021 08:03

Review with rating of 5 out of 5 stars

Jan L

best best best

22 October 2020 09:44

Review with rating of 5 out of 5 stars

Marcelo F

Perfect instalation and Quality. 5 stars parts.

23 August 2021 09:48

Review with rating of 5 out of 5 stars

Jan L

best best best

28 July 2018 15:58

Review with rating of 5 out of 5 stars

Ludwig O

Rasche Lieferung.

8 August 2021 09:07

Review with rating of 5 out of 5 stars

Jan L

super super super gut arbeit und sofort versand

6 November 2019 13:38

Review with rating of 5 out of 5 stars

Luis C

Great parts quality is perfect 👌

11 September 2019 09:23

Review with rating of 5 out of 5 stars

Chester B

PERFECT FITMENT AND TOUGH PRODUCT

  • Why is the Epytec adapter only suitable for the original fixation ball joints?
  • This is due to the fact that you have to pay attention to the diameter of the ball joint. It should be compared in advance whether the ball joint has the same diameter as the original, as different manufacturers use different diameters. If the diameters are the same, the adapters are suitable.

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
