Big Brake systems KIT Rear axle VW Golf 4 Bora VW Polo 6r WRC 1,8T Polo Audi A3 Porsche Cayenne - Farbe Bremssattel: In Wunschfarbe lackiert
- ✓ 330x22 4F0615601B Audi A6 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
€2,291.01*
| Name | Title | Surcharge |
|---|---|---|
| Desired color: |
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

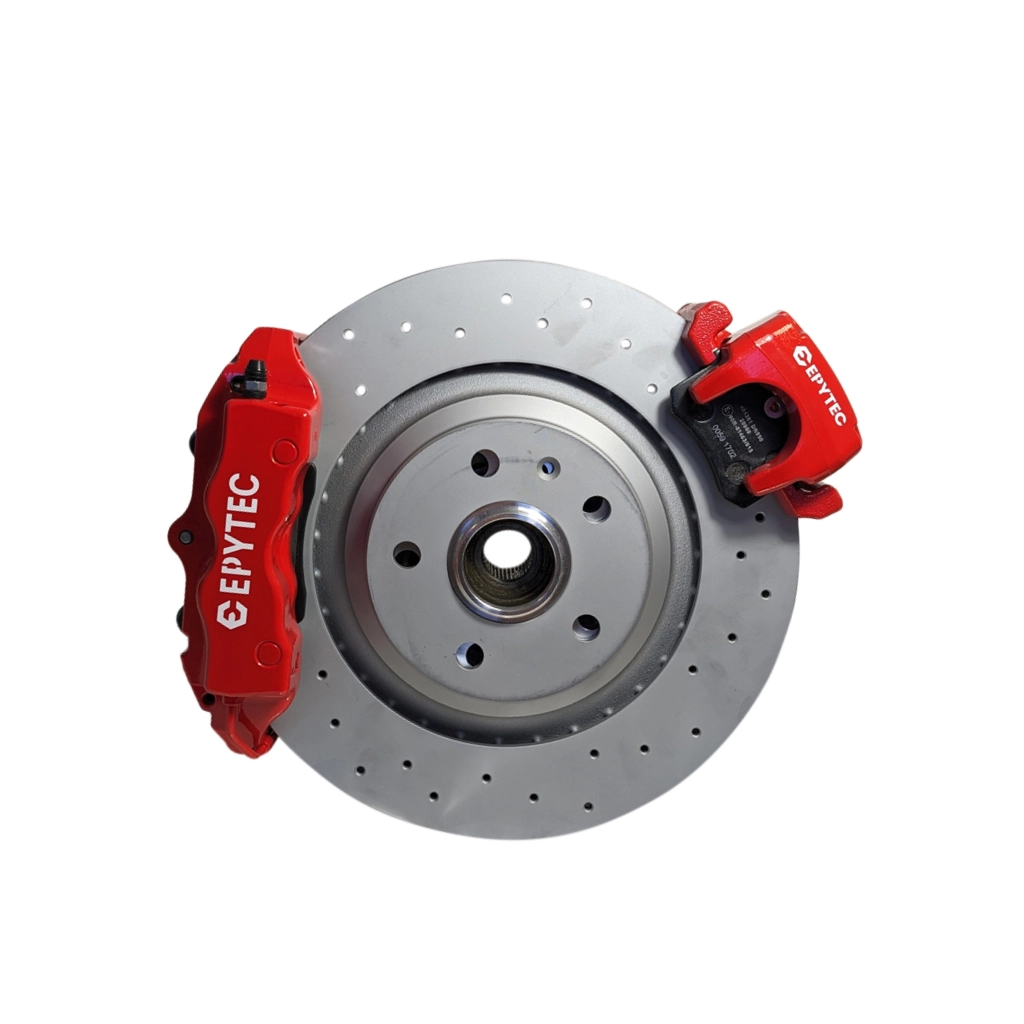

With our big brake kit for all four-wheel drive Golf 4 Bora Vento Audi A3 and many other cars, you can convert your rear axle to a 4-piston brake system in conjunction with the VW Golf 4 R32 handbrake caliper and achieve ideal performance.
With this high performance brake kit you can drive the Porsche Cayenne 4-piston Brembo brake calipers and the VW Golf 4 R32 handbrake caliper in combination with the 330x22 mm brake discs from Audi A6 on theall four-wheel drive Golf 4 Bora Vento Audi A3 and many other cars.
Another advantage of our brake system kit is that it is equipped with the same original brake calipers and brake discs that are also installed in series-production cars. These OE parts not only make the replacement of the brakes simple and uncomplicated, but also facilitate the registration with the TÜV.
The big brake kit is not only sporty, but also suitable for everyday use and, thanks to the perforated sports brake discs in conjunction with our ceramic lining, enables ideal performance while reducing brake dust, temperature and abraison.
With this high-performance big brake kit you can get started straight away and have everything you need to convert your rear axle to a 4-piston brake system.
The high performance big brake kit is suitable for the following models with all-wheel drive
- Audi A3 8L
- Audi TT 8N
- Seat Leon
- Seat Toledo 1M2
- Skoda Octavia 1U
- VW Golf mk4
- VW Bora/Jetta mk4
- VW Polo 6r WRC
Advantages of this big brake kit:
- our components, such as brake callipers and brake discs, come from series-production cars and are OE parts. This makes replacing the brakes simple and uncomplicated and facilitates registration with the TÜV.
- The material certificate included in the scope of delivery enables registration by individual acceptance even for series-production cars.
- High-performance brake pads with longer service life than the original pads
- extreme deceleration values also in combination with our rear axle brake system
- directly fitting to the above mentioned models and therefore easily rebuildable to original condition at any time

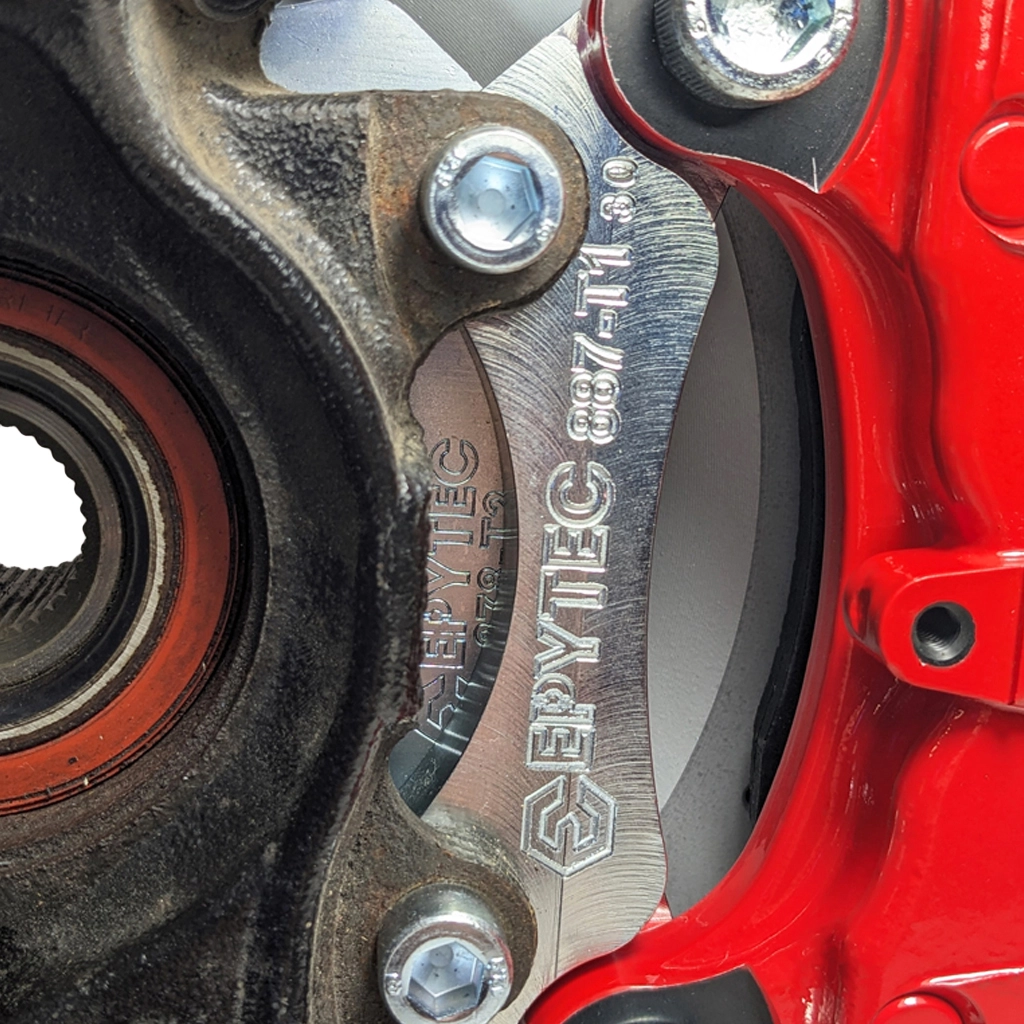

- our EPYTEC brake caliper adapters require no sending in of your stock parts, no re-welding, re-milling or re-drilling.
Note:

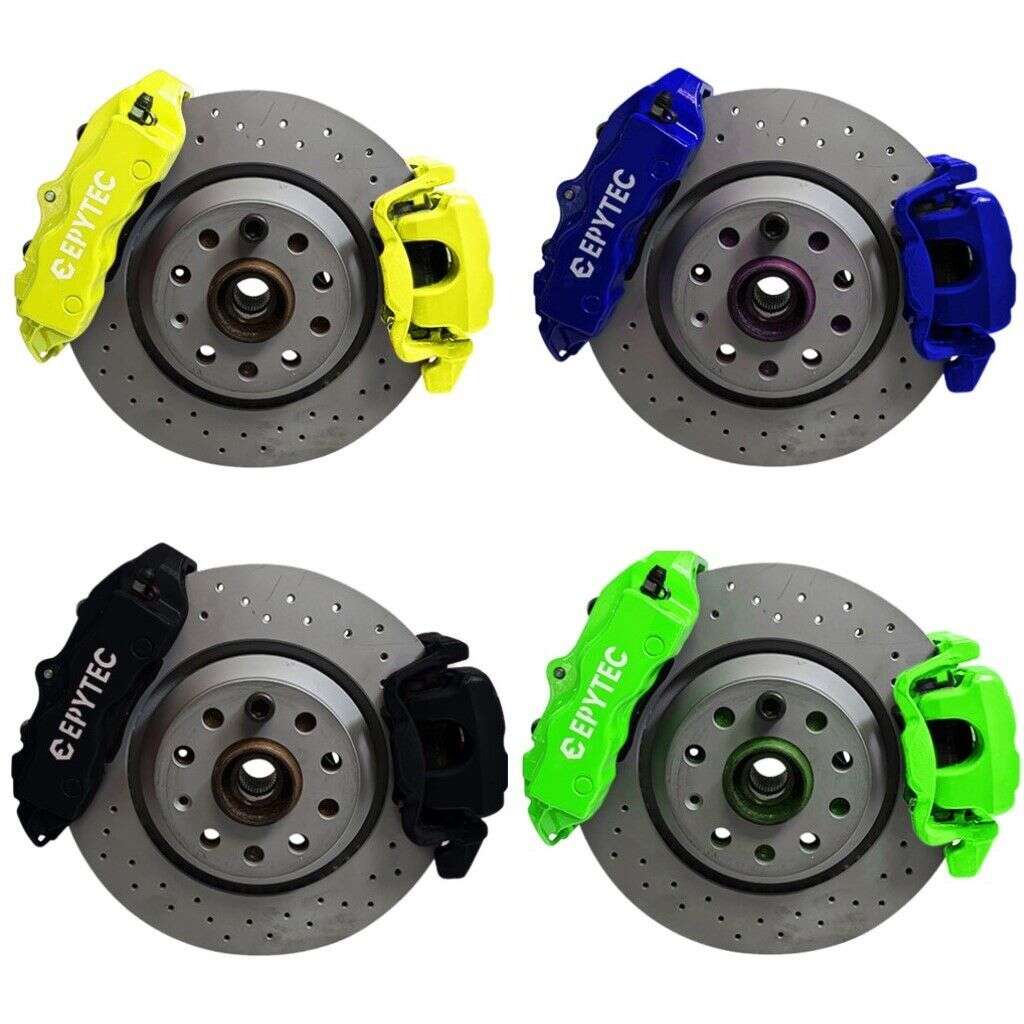

Please note that these brake calipers will be delivered in the color of your choice, according to your specifications.

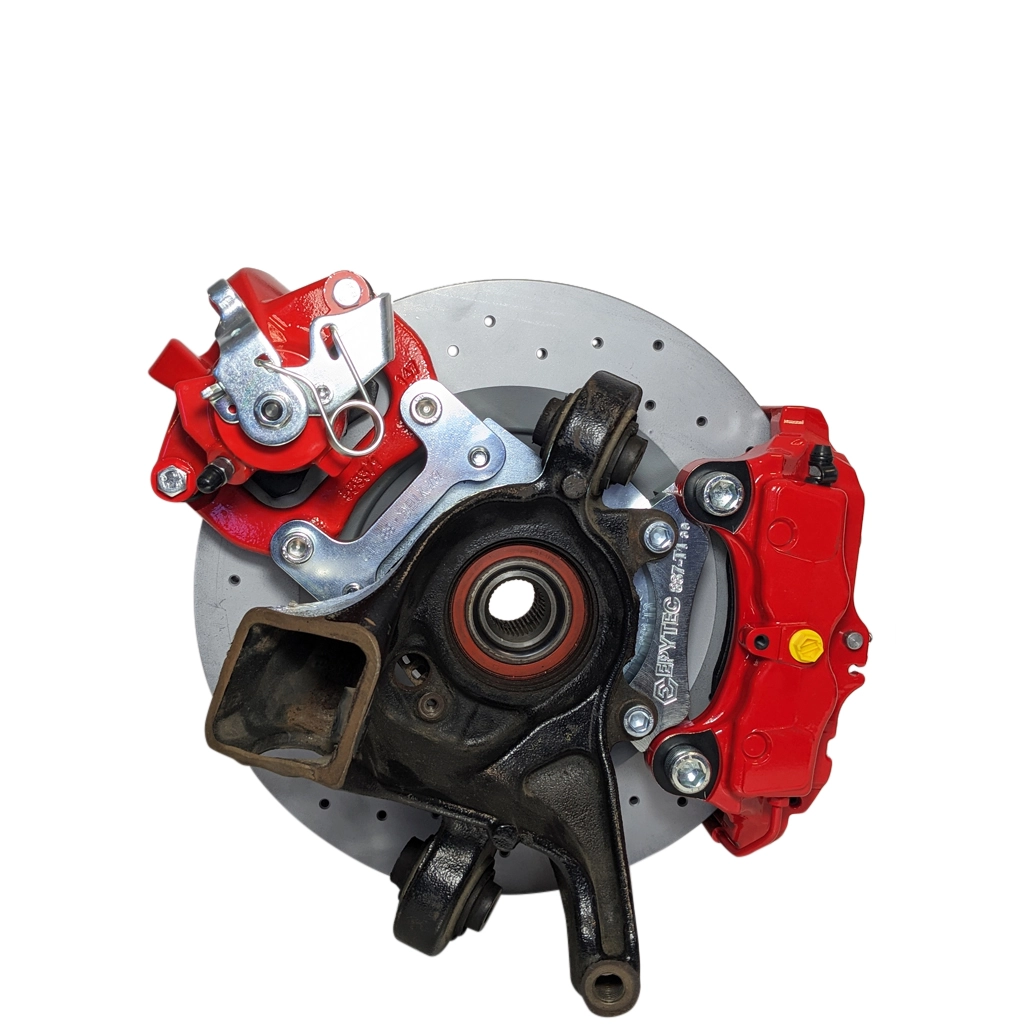

The Porsche calipers are connected to the car's hydraulics and can therefore develop enormous braking power. However, as these do not have handbrake functions, the rear Audi S3 or Golf 4 R32 is also used as a handbrake caliper adapter. The hydraulic connection is closed with a blind plug. This means that it only serves as a handbrake caliper.
The track is widened by the plates on each side by 15mm.

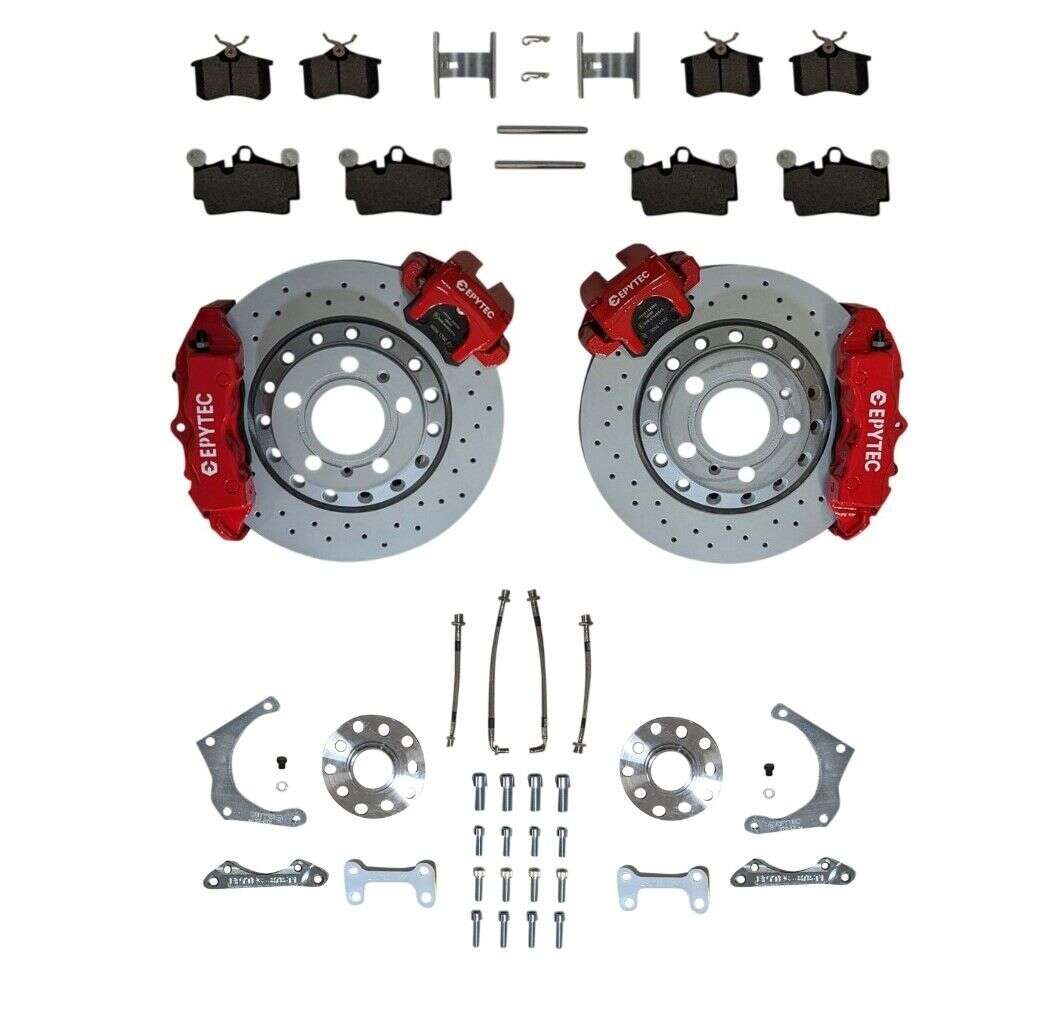

Scope of delivery:
- 2x Porsche Cayenne brake callipers part number: 955.352.421/ 955.352.422 (left / right)Brembo 20.7673.03/20.7673.04(left / right) including complete new brake calliper bracket kit painted in your desired color

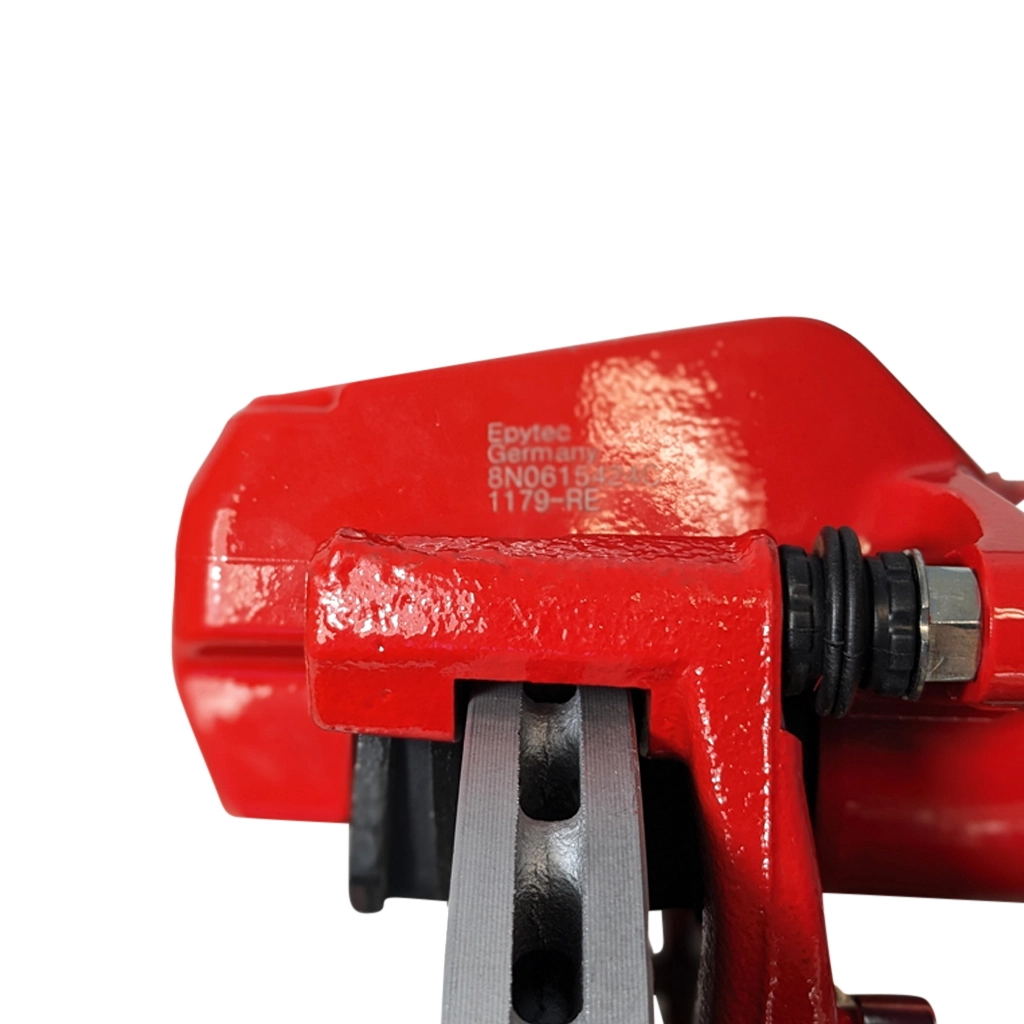

- 2x handbrake caliper Golf 4 R32
- matching set of matching set of Audi A6 brake discs 330x22 mm part number: 4F0 615 601 B
- ceramic brake pads for less brake dust and longer lifetime

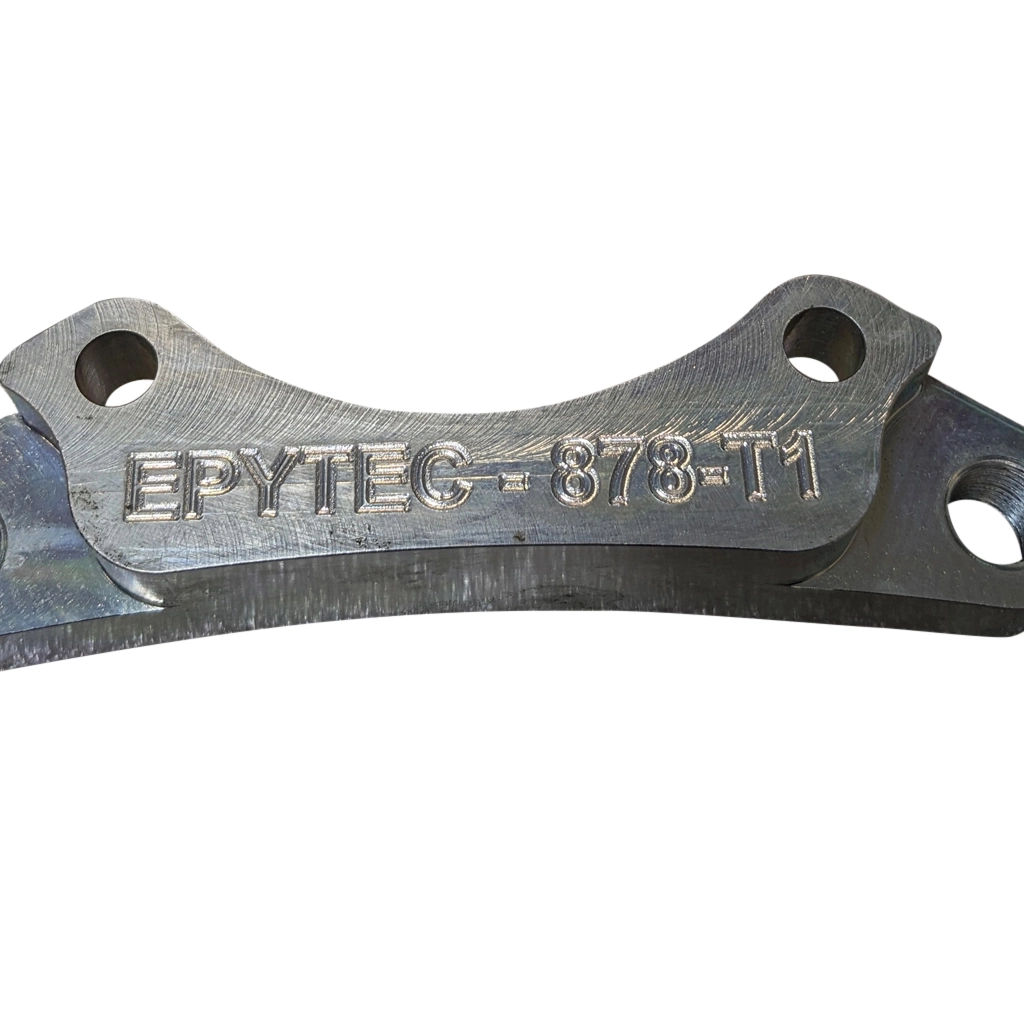

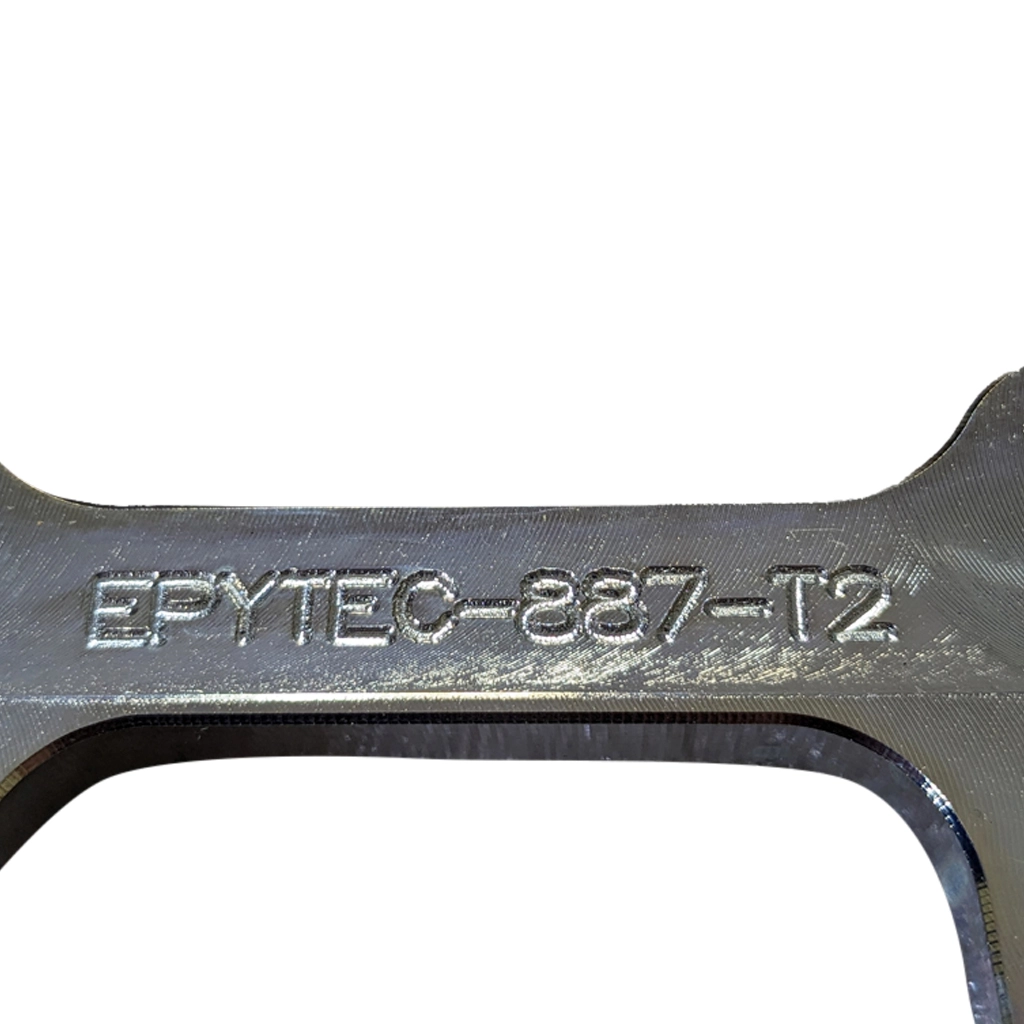

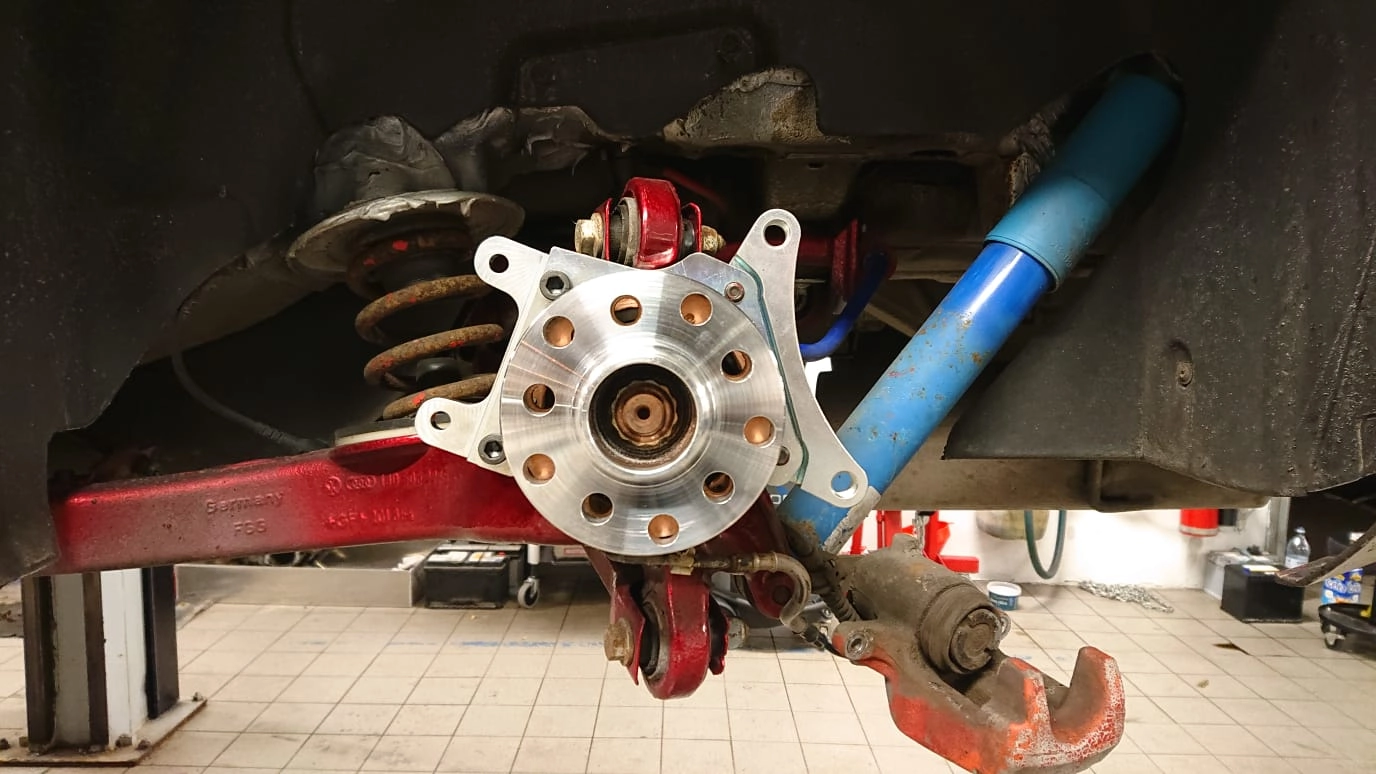

- 4x brake caliper adapter for All four-wheel drive Golf 4 Bora Vento Audi A3 series

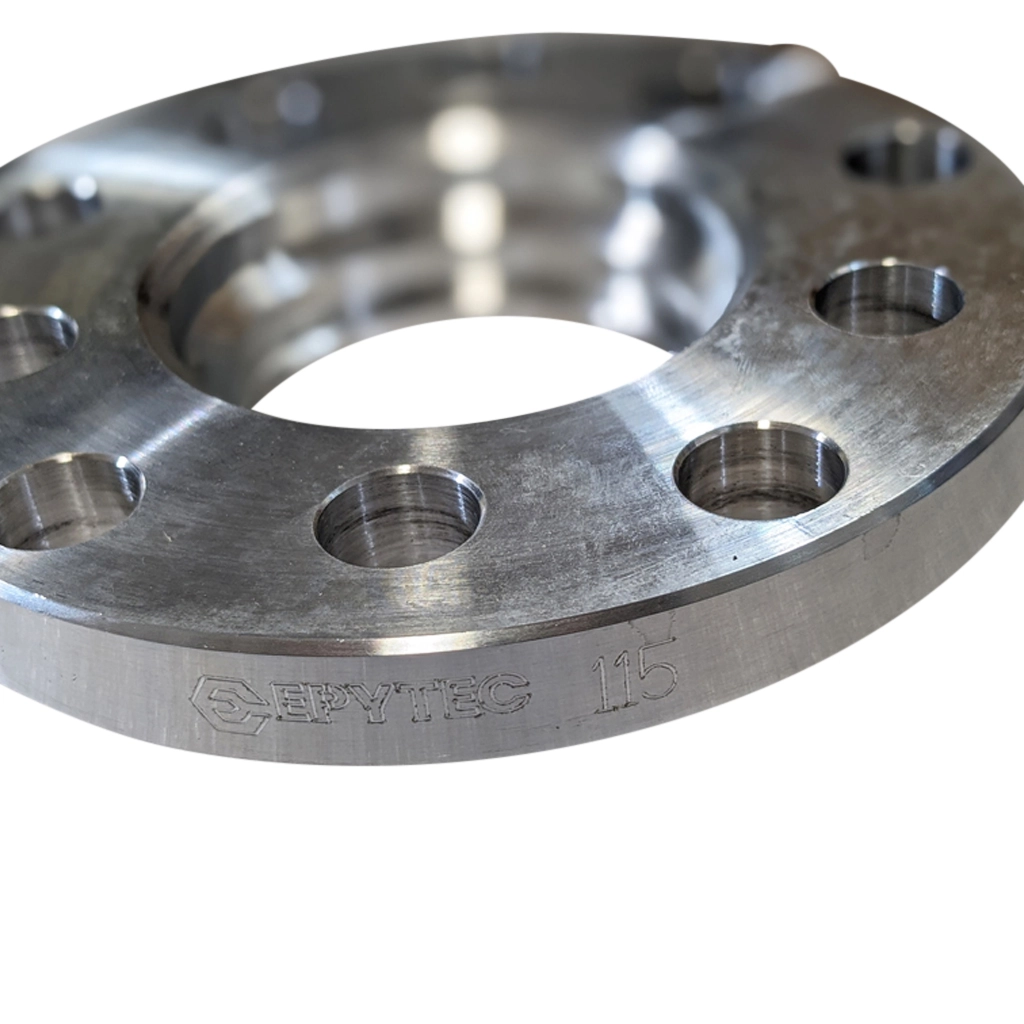

- 2x track plates under brake discs
- 4x matching steel braided lines
- high-strength bolt material
- Material certificate
- Stress analysis / FEM calculation for registration
- Installation instructions (click here)
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a general answer as to which rim size you can ride after your brake conversion. There are simply too many different rims. In rare cases, it can happen that the rims have minimal contact with the brake caliper, in which case you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
- ✓ 330x22
- ✓ 68mm centering
- ✓ 42mm height
- ✓ Desired color can be selected
- ✓ Golf 4 R32 1-piston brake calipers
- ✓ 8N0615423C / 8N0615424C / 1J0615425
- ✓ 330x22
- ✓ 68mm centering
- ✓ 42mm height
- ✓ Choice of color
- ✓ ZR18 / Z18 4-piston brake calipers
- ✓ 955.352.421 / 955352421 955.352.422 / 955352422 7L6615423H / 7L6615423L / 7L6615423D / 7L6615423G

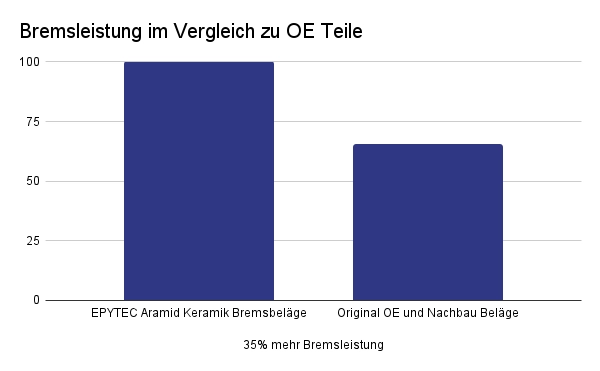

- ✓ 35% better braking performance

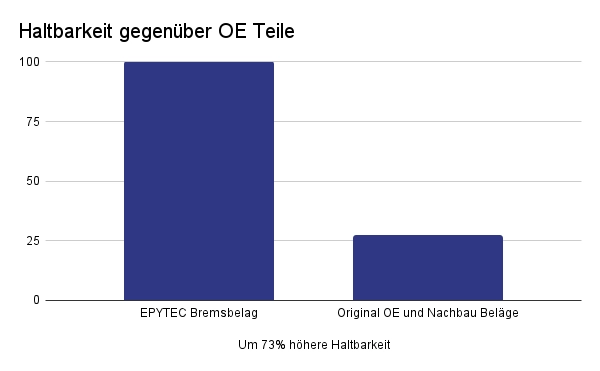

- ✓ 75% more service life
