Audi A3 S3 TT VW Polo 6R VW Golf MK4 Bora Porsche Brake Caliper Adapter

  • ✓ 323x28 1ML615301 Seat Leon Cupra R brake disc
  • ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
  • ✓ front axle

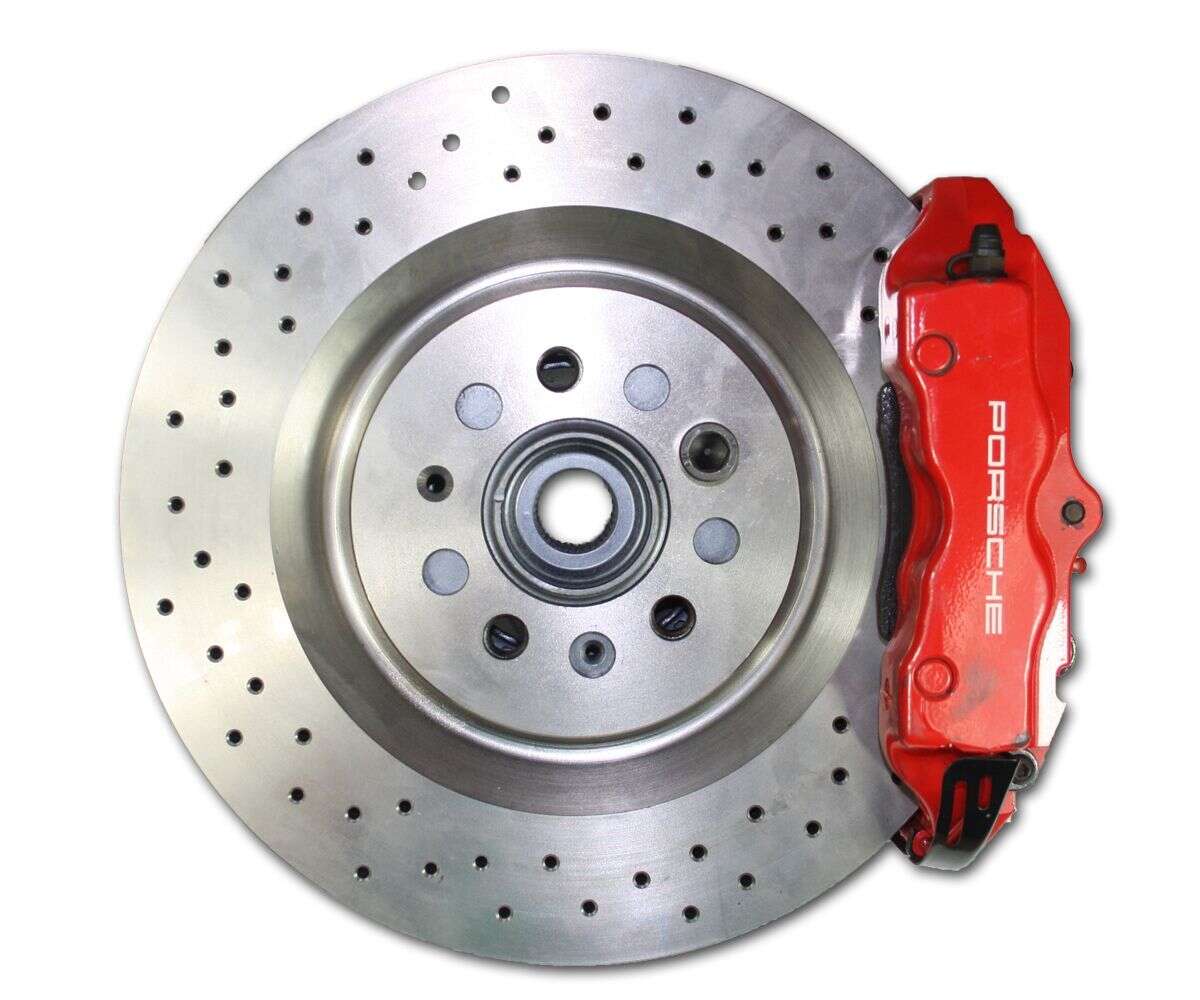

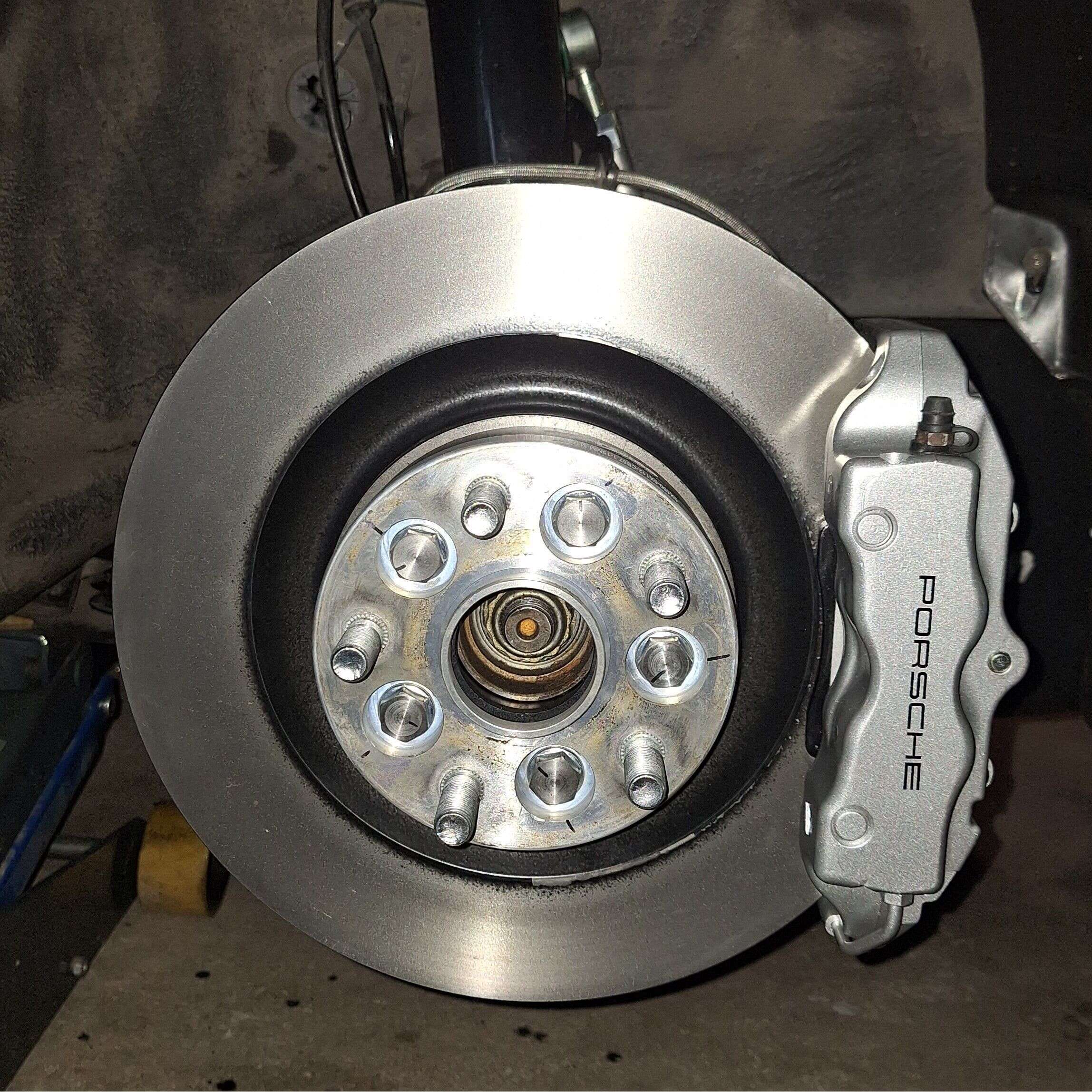

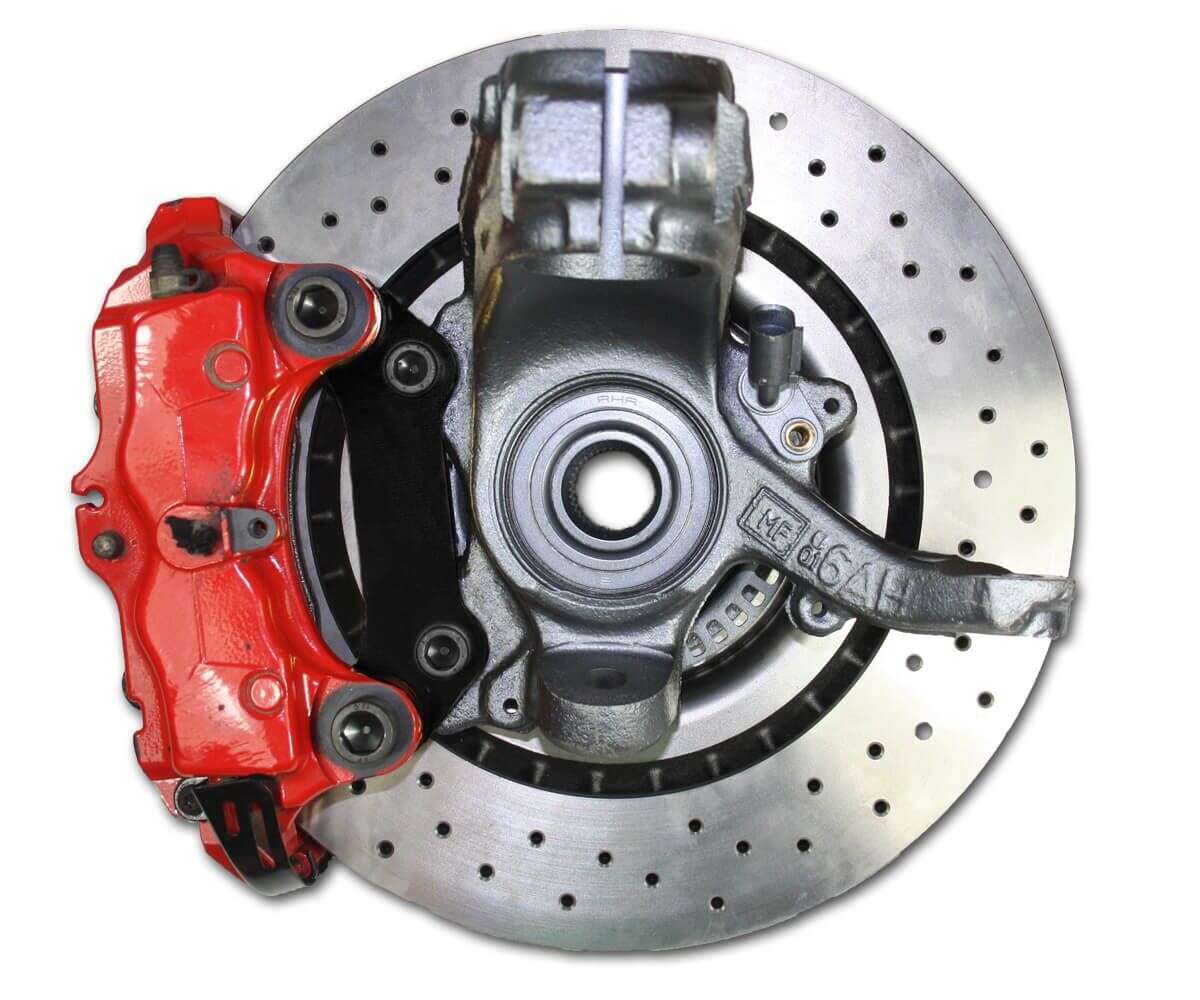

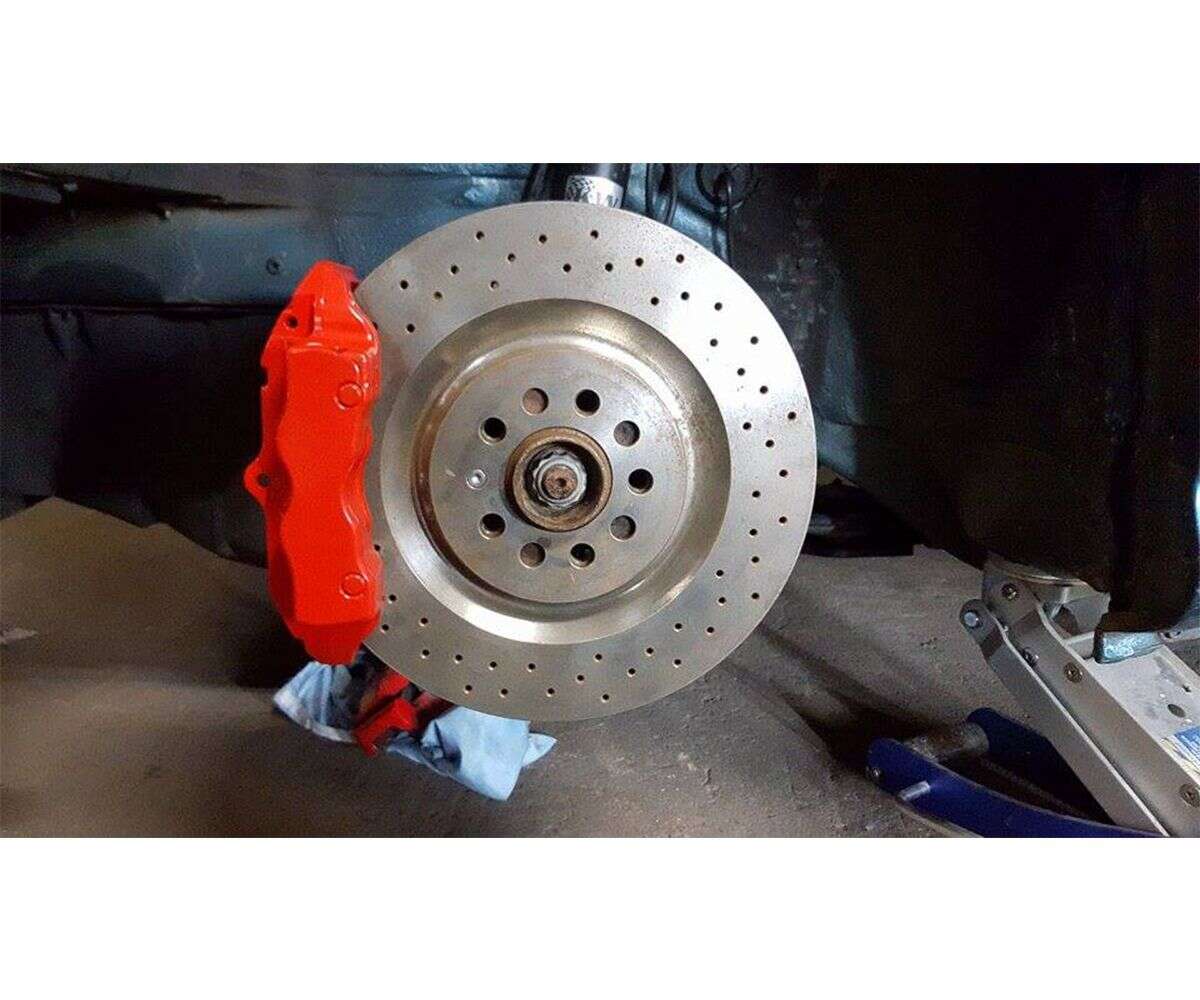

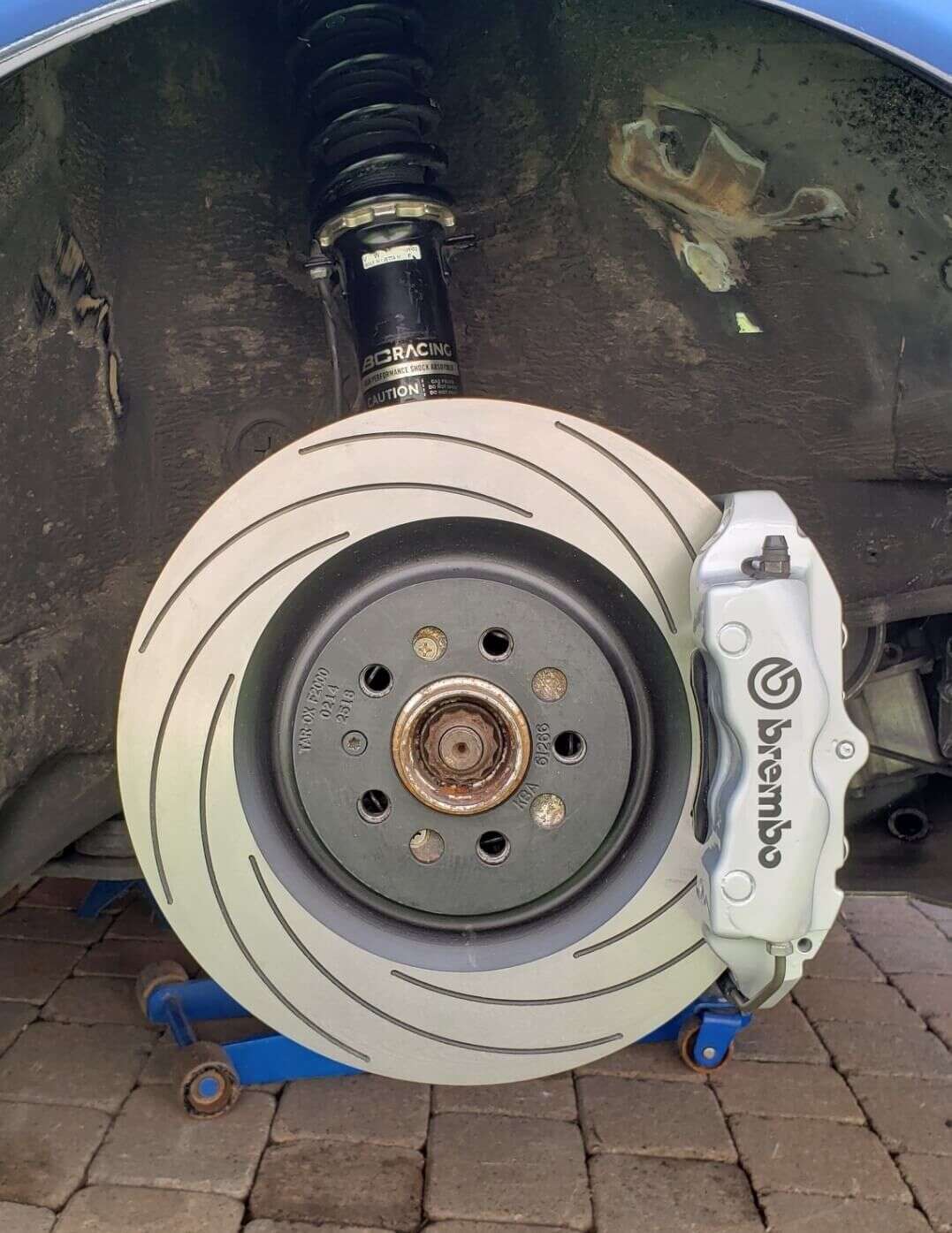

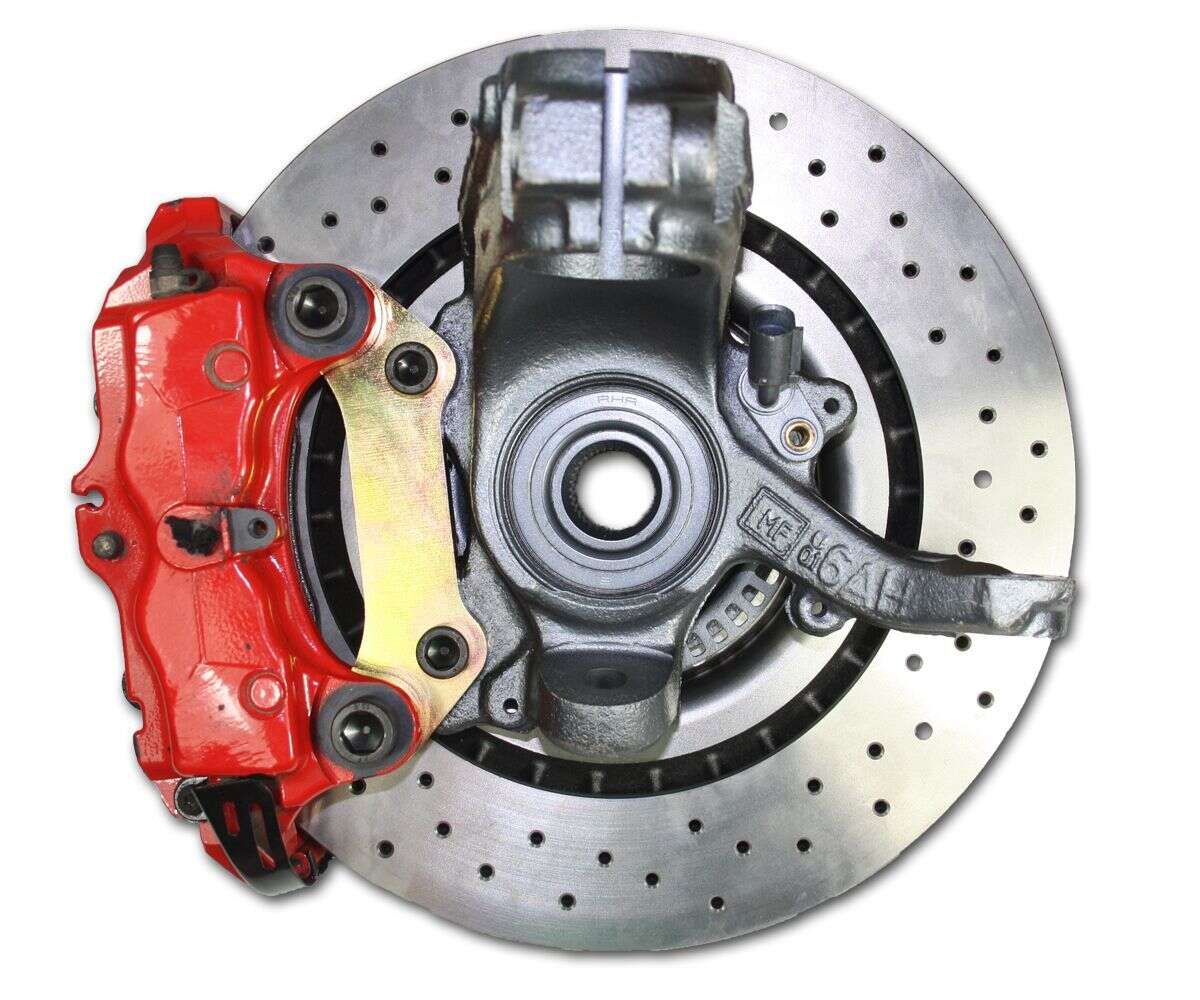

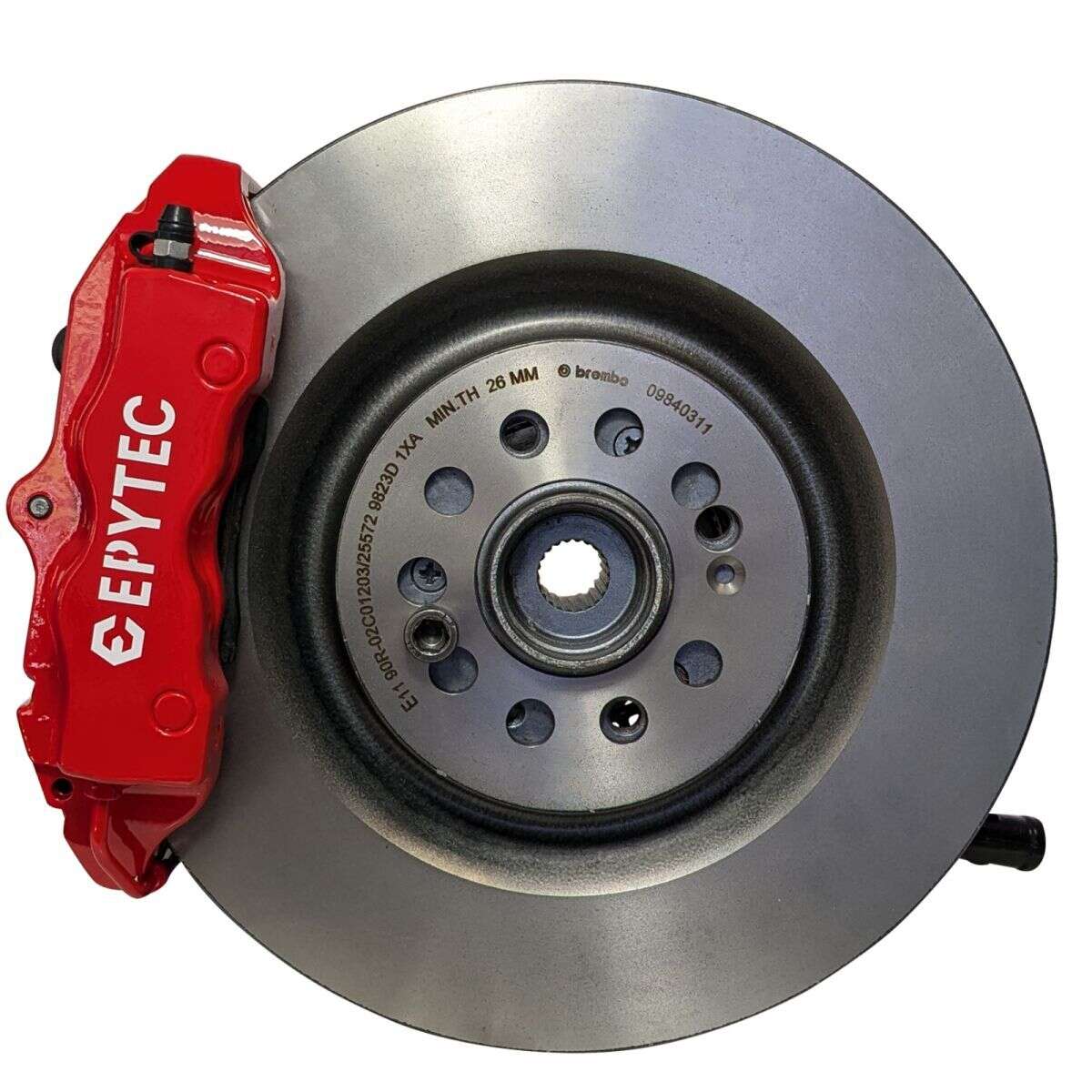

Brake caliper adapter for original Seat Leon Cupra R 323er brake discs, combined with 4 piston Porsche Brembo brake calipers on all VW models with 5x100 PCD on the front axle.

Suitable for e.g :

  • Audi A3 (8L)
  • Audi S3 (8L)
  • Audi TT (8N)
  • VW Golf MK4
  • VW Bora
  • VW Polo 6r WRC
  • VW Beetle
  • Seat Leon

Required components:

  • brake calipers from Porsche Cayenne, rear axle. Reference : (The rear number on the brake calipers distinguishes right and left calipers) 955.352.421 + 955.352.422 (100% suitable only for the mentionned calipers) Brembo number ::20.7673.03
  • brake discs from Seat Leon Cupra R 323x28 reference : 1ML 615 301

Advantages of this brake system:

  • top deceleration, better engine performance, without comparison with conventional brake discs

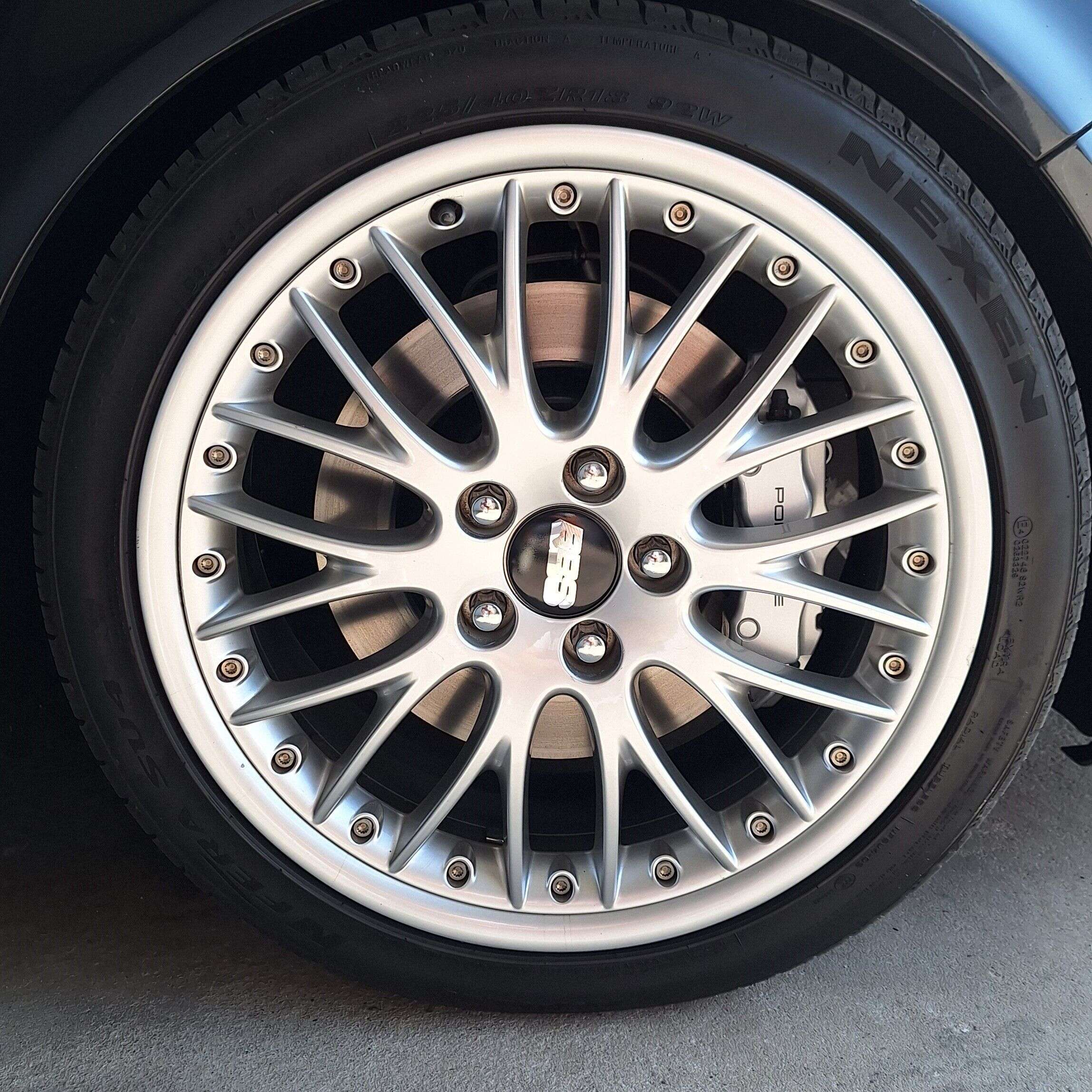

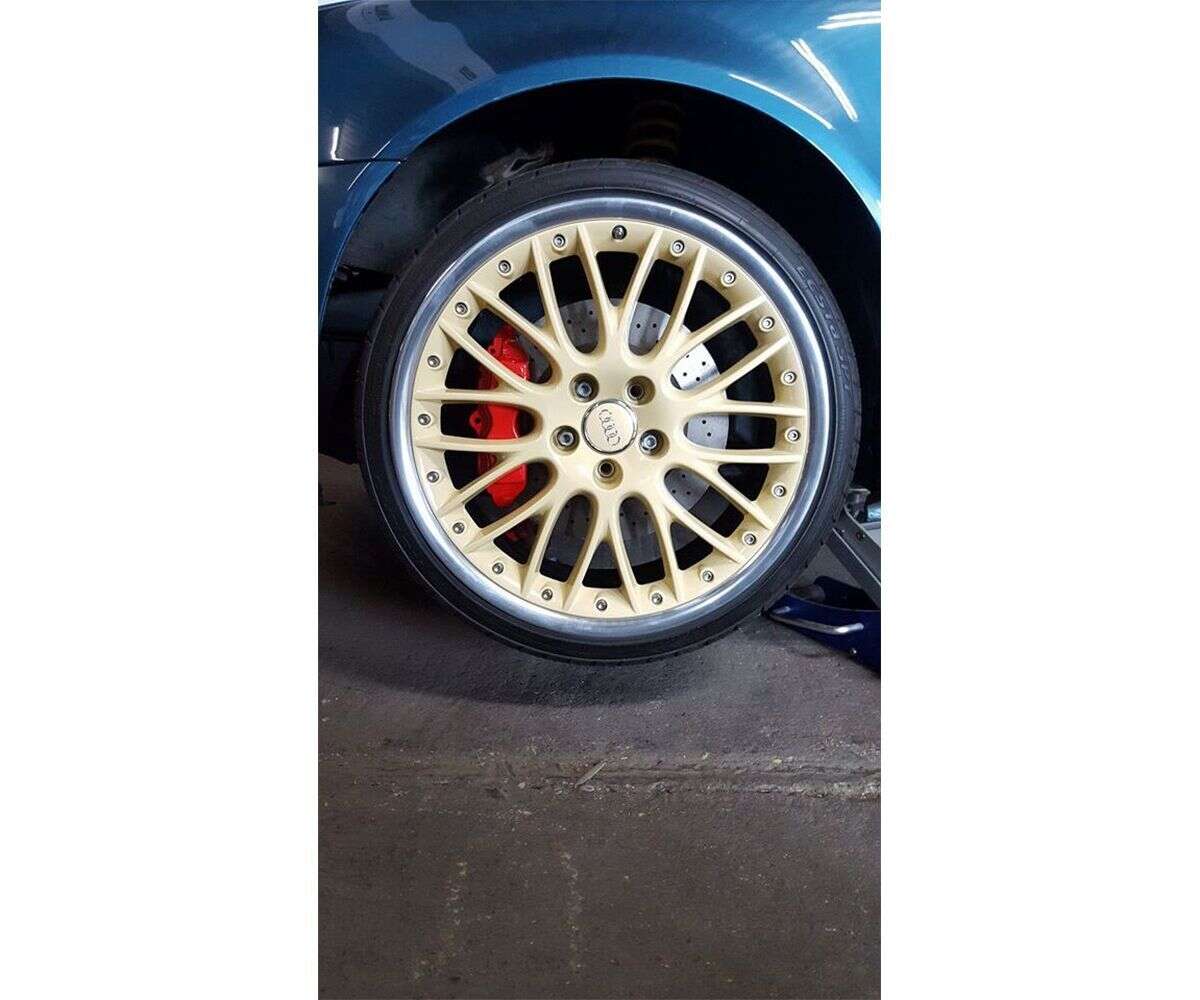

  • suitable for 17 inch rims
  • components come from the production series of VW
  • registration is possible if correct assembly.
  • including set of mounting screws

Delivery:

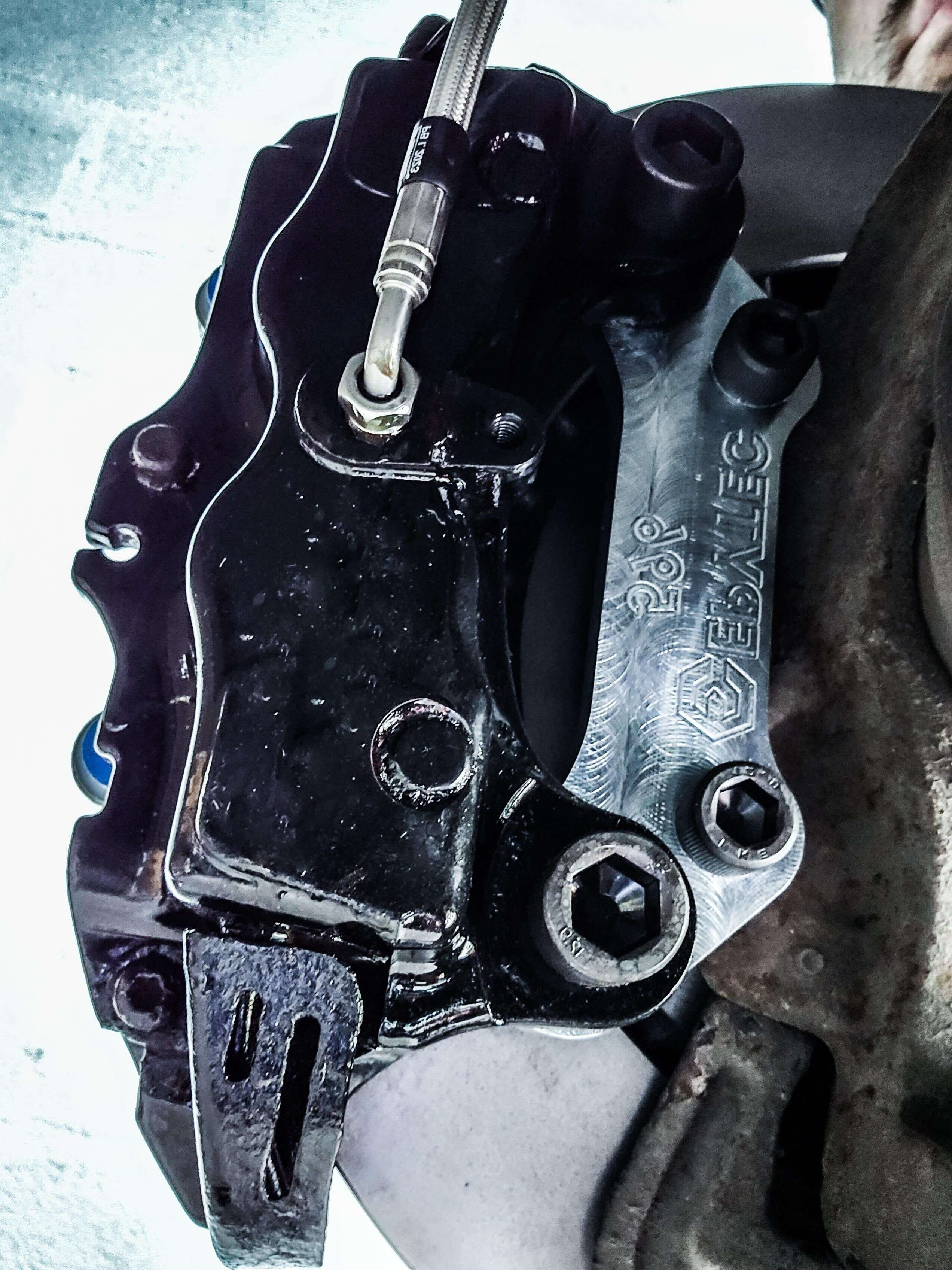

  •  2x brake caliper adapters, galvanized (see picture)
  •  set of high-strength mounting screws
  •  material certificate

Tips, information and advice:

  • To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
  • For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

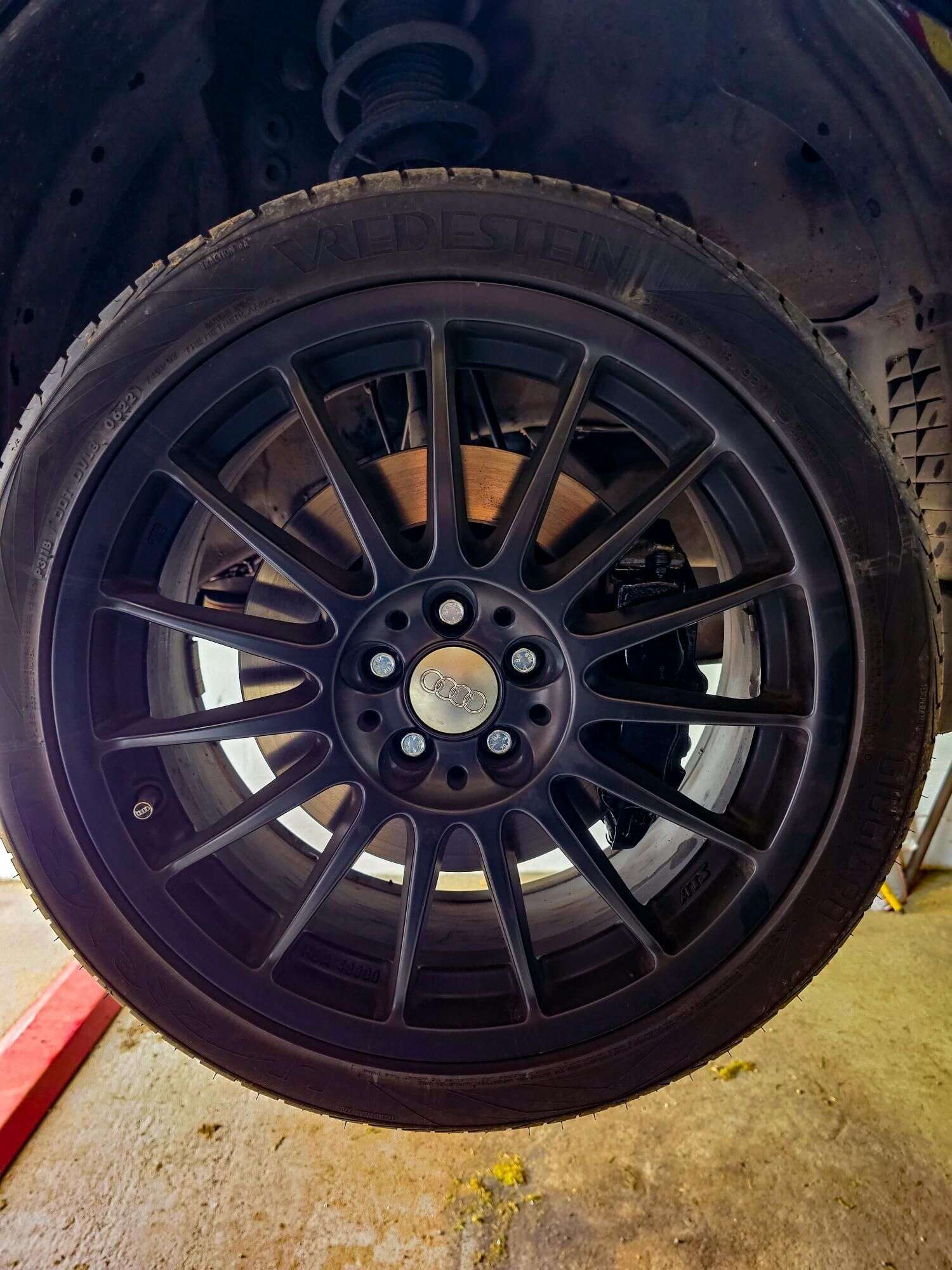

  • We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
  • Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
  • The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 136mm
Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 136mm

10 of 32 reviews

Average rating of 4.9 out of 5 stars


97%

3%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


8 October 2018 13:40

Review with rating of 5 out of 5 stars

Martin P

Alles super gelaufen Top Firma

19 February 2020 20:22

Review with rating of 5 out of 5 stars

Andre F

Weil der versand und alles drumherum einfach super war. Jederzeit gern wieder

3 June 2021 06:25

Review with rating of 5 out of 5 stars

Christophe D

Nickel 👌🏼

16 July 2023 20:59

Review with rating of 5 out of 5 stars

Antoine D

Très bon produit un documentaire photo sera fait pour présenter le produit très bonne finition qualité au top

25 October 2018 17:49

Review with rating of 5 out of 5 stars

Christoph D

Super verarbeitet, passt gut.

10 June 2020 16:01

Review with rating of 5 out of 5 stars

L&#225;szl&#243; M

This is the best product i've ever seen. I put it under my 2003 Volkswagen Bora (1.9 PDTDI 150 hp ARL). The quality is good. The shipping was fast and good. The size is perfect.

29 May 2021 20:16

Review with rating of 5 out of 5 stars

Patrick M

Super Passgenauigkeit . Einfache Montage . Hochwertige Materialien. Ich bin hellauf begeistert und alles passt mit den Teilen die man lt. Verbauliste braucht.

27 December 2023 11:13

Review with rating of 5 out of 5 stars

Juancarlos M

Excelente producto, una empresa muy seria y gran atencion con el cliente. La recomiendo

28 October 2018 19:19

Review with rating of 5 out of 5 stars

Ronny G

Habe schon einige Artikel bei euch gekauft, war immer zufrieden. Aus diesem Grund bleib ich treu..

11 June 2020 08:01

Review with rating of 5 out of 5 stars

Paulius S

No issues with installation of the adapters. All fits well. Fast shipping.

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:

Questions? Click here for the contact form

Average rating of 4.6 out of 5 stars

EBC brake discs 323x28 Turbo Groove front axle Seat Leon 1.8 T Cupra R
  • ✓ 323x28
  • ✓ 65mm centering
  • ✓ 35mm height

€412.25*
Item number: GD1338

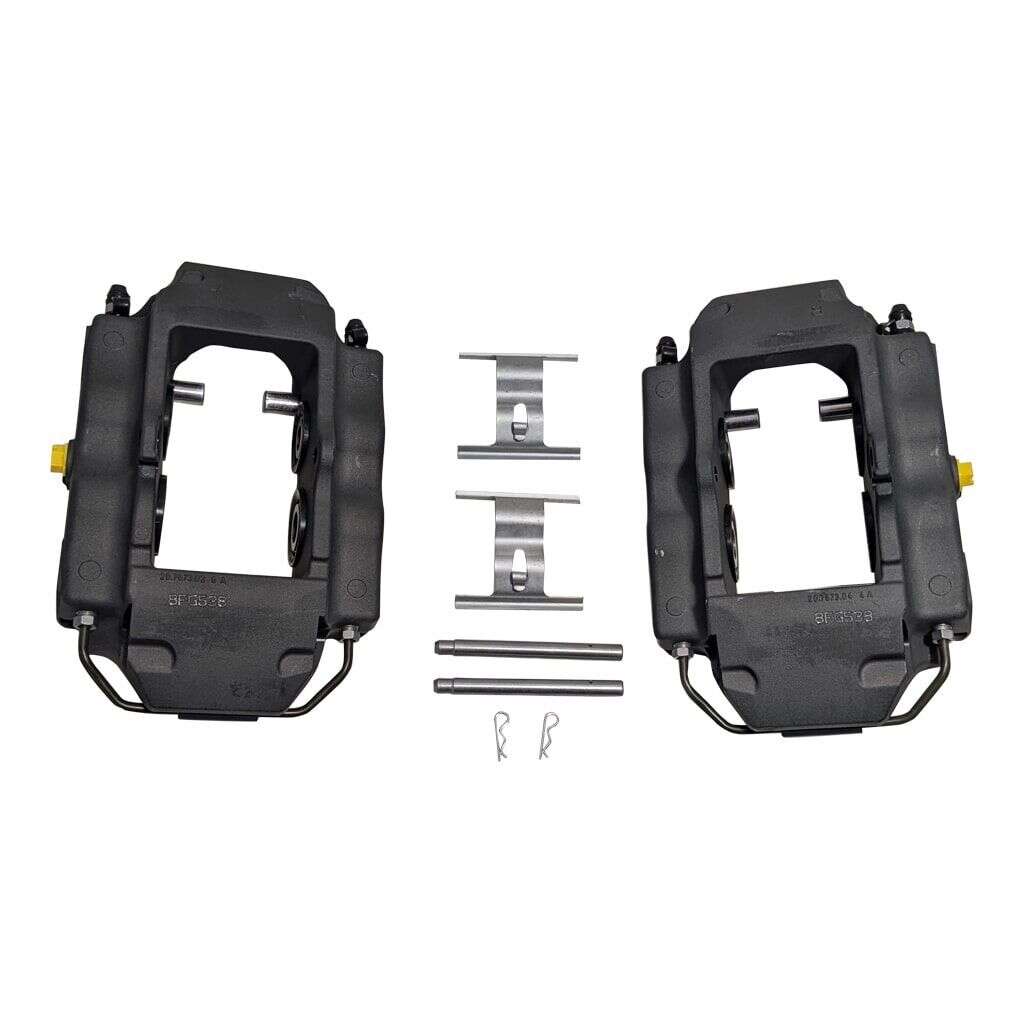

Z18 Brake Caliper Epytec 4-Piston ZR18 ZL18 Porsche Cayenne VW Touareg Tuning Brake System Rear Axle
