VW Golf 4 VW Polo 6r WRC Audi A3 TT R32 S3 Caliper Brake Adapter Brake Caliper Mounting Bracket

  • ✓ 256x22 8L0615601 VW / Audi brake disc
  • ✓ 1-piston 8N0615423C / 8N0615424C R32 / S3 brake caliper
  • ✓ rear axle

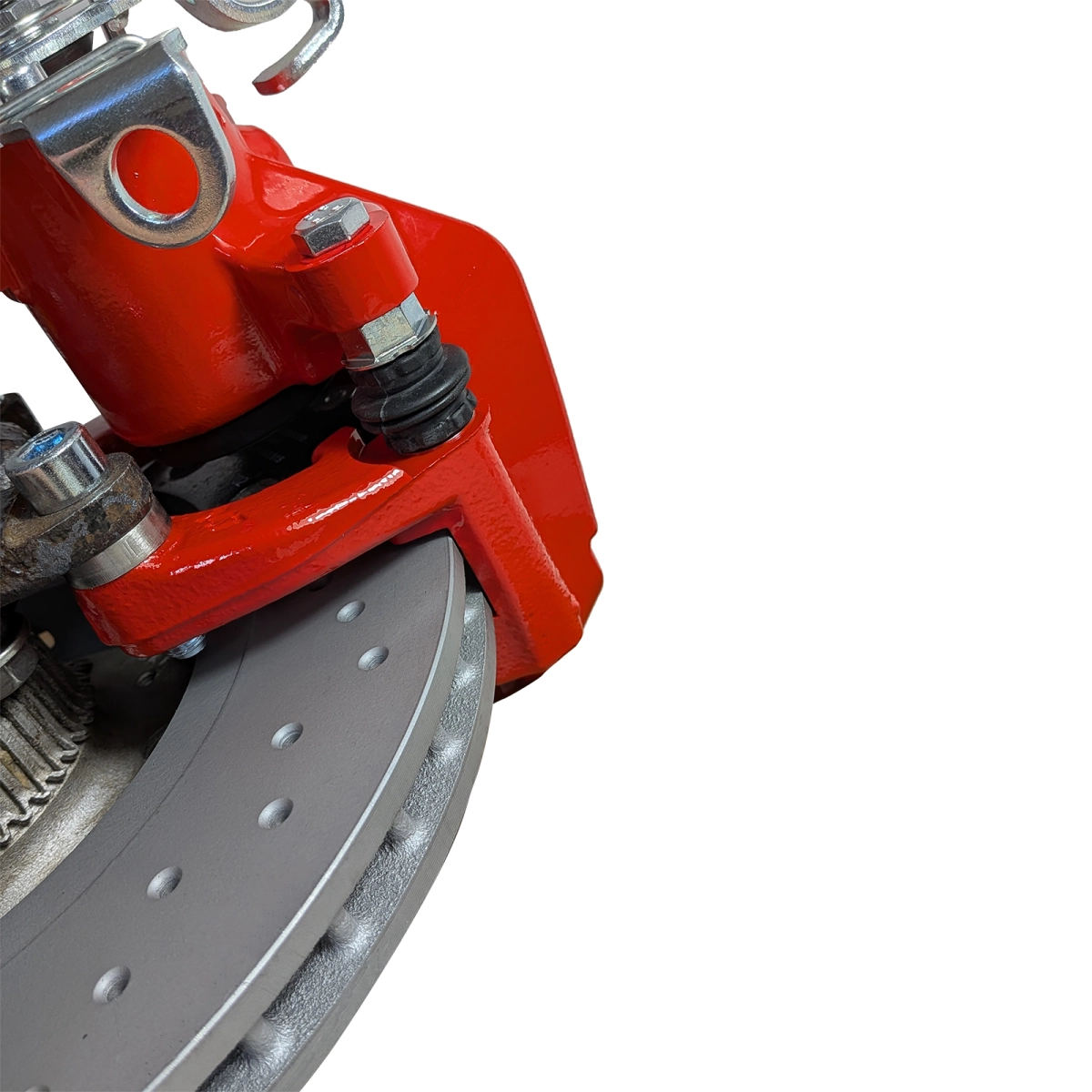

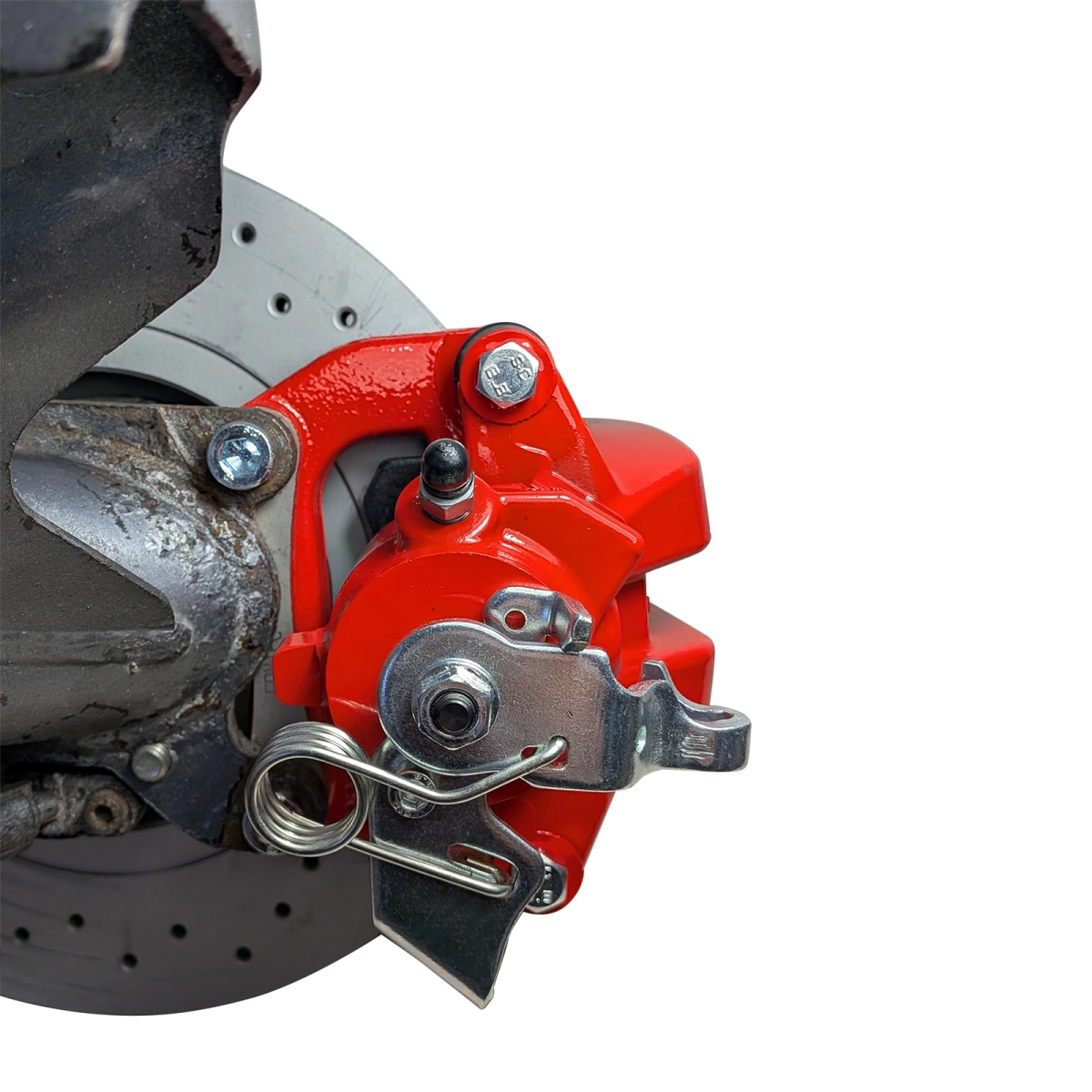

Brake Conversion kit with brake caliper adapters / brackets to allow fitment of the large rear brake system (256x22) from Golf 4 V6 4Motion R32, VW Polo 6r WRC, Audi TT, S3 on all vehicles with front drive of the series Golf 4 Golf 4 TT A3.
The adapters are made of high-strength steel and are supplied galvanized

Advantages of this brake system:

  • top deceleration, without comparison with conventional brake discs
  • better performance
  • supplied material certificat
  • the brake calipers from the 4Motion models can be fitted with our brackets. Thus, you avoid the purchase of Jubi caliper supports costing around 120 €, and which are difficult to find.

Required components:

  • original VW/Audi brake caliper 4motion
  • original large 4motion VW/Audi disc brakes 256x22

Delivery:

  •  2x brake caliper adapters
  •  High strength mouting screws
  •  material certificat

Tips, information and hints:

  • For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
  • We can not answer generally, which rim size you can mount after your brake conversion. There are simply too many different rims.
  • In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers. >> Now directly to spacers <<
  • Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the >> configure steel braided brake lines <<
  • Always use the hand brake cable of the installed brake caliper. So sometimes you have to modify / adapt the new handbrake cable. For conversions, where the original caliper is used and the handbrake cable can be used, you may need to pull the cable without any other fittings (ie directly) to compensate for the long distance due to the large diameter of the large brake discs.

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm
Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm

10 of 40 reviews

Average rating of 4.9 out of 5 stars


98%

3%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


30 January 2019 19:38

Review with rating of 5 out of 5 stars

Christian S

Gute möglichkeit der Anpassung verschiedener Komponenten

2 July 2021 16:06

Review with rating of 5 out of 5 stars

Michele M

come tutti i prodotti Epytec sono di facile installazione e assenti da difetti.

26 May 2023 14:30

Review with rating of 5 out of 5 stars

Mathias R

Fits perfect

5 June 2021 06:23

Review with rating of 5 out of 5 stars

Siegfried K

Alles gut , wie immer 👍

11 April 2024 21:41

Review with rating of 5 out of 5 stars

Yassin M

Tres haute qualité

30 April 2018 09:16

Review with rating of 5 out of 5 stars

Fabian S

Passt perfekt und für den Preis macht man auf jeden Fall keine miese.

14 March 2019 13:16

Review with rating of 5 out of 5 stars

Karsten W

Schnell geliefert, alle Anbauteile waren dabei. Einbau problemlos und paßgenau. Gutachten per Mail. Sehr guter Support Danke

10 December 2021 18:12

Review with rating of 5 out of 5 stars

Ronny S

Passgenauigkeit super.

16 June 2023 10:28

Review with rating of 5 out of 5 stars

Vicent F

Perfect for fitting rear S3/R32 calipers on your FWD Golf 4

10 December 2021 22:03

Review with rating of 5 out of 5 stars

Ronny S

Passgenauigkeit super.

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
