VW Golf MK4 Polo 6R WRC 9N Bora Audi A3 TT Audi RS4 B5 Brake Caliper Adapter 360x32 Porsche Panamera Brake Caliper
- ✓ 360x32 8D0615302B Audi RS4 B5 brake disc

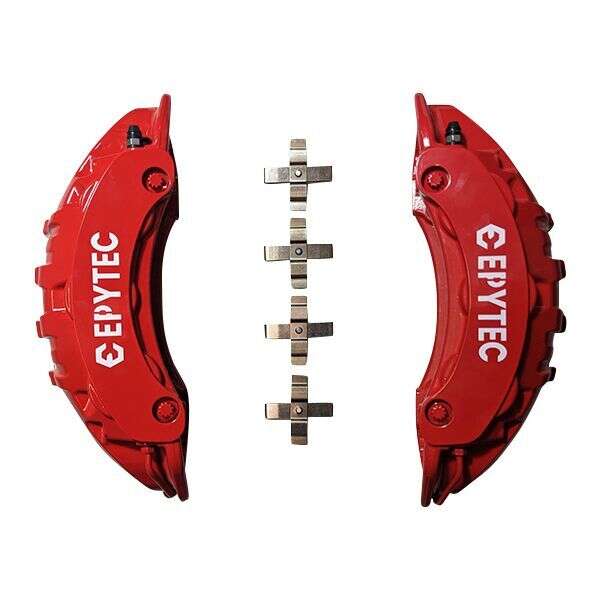

- ✓ 6-piston 7PP615149J / 7PP615150J Cayenne 958 GTS Panamera brake caliper
- ✓ front axle
€296.44*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Brake caliper adapter on Golf MK4 series, for conversion to Porsche Panamera 6-piston brake caliper, combined with the original Audi RS4 B5 360x32 brake discs.
Suitable for following vehicles:
- Audi A3 (8L)
- Audi TT (8N)
- VW Golf MK4
- VW Bora
- VW Beetle
- VW Polo (9N)
- Seat Ibiza
- Seat Leon
- VW Polo 6r (WRC)
As the RS disc could touch the wishbone because of its high height, we have developed spacers of 8mm thickness, which are mounted under the brake disc. The discs are thus pushed outwards. In addition, the disc with the plate is perfectly centered on the axle stub. The spacers are naturally contained in the delivery.
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake caliper: Porsche Panamera 6-piston, reference 7PP.615.123 / 7PP.615.124 ( 20.A221.03 ) 7PP615149J / 7PP615150J (Shaft length from the caliper must be 82mm, see yellow mark on the last picture)
- brake disc: Audi RS4 B5 360x32 mm, reference 8D0615302B
- adapter only suitable with original support joints
- modification of the disc PCD from 5x112 to 5x100 (possibility of making it directly from EPYTEC)
Delivery:
- 2x brake caliper adapters
- 2x 8mn spacers under discs
- 2x centering rings
- high-strength mounting screws
- Template to check whether the brake system fits under your rim
- material certificate
Tips, information and notes:
- For better ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, where you can assemble and then install them according to your requirements.click here for the steel braided line configurator >>configure steel braided brake line<<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
29 December 2018 09:01
Michelangelo M
Perfette!!!!
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
