Brake discs Bore circle Reboring Hub bore machining Special production - Additional machining of hub bore: Yes
- ✓ brake discs pitch circle diameter / bolt circle / drilling hub bore hole custome-made
- ✓ additional 2nd hole circle / pitch circle drilled in the brake disc
- ✓ turn hub diameter up
£128.87*
| Name | Title | Surcharge |
|---|---|---|
| desired hole circle / hub bore: |
We offer you here the redrilling of the bolt pattern, as well as the machining of the center bore of one pair of brake discs (2 pieces).
This is required if you want to install, for example, larger brake discs from another model on your vehicle in combination with our brake caliper adapters. We then drill an additional 2nd bolt pattern into the brake disc for you. In addition, we also machine your hub diameter to your desired size.
Note:

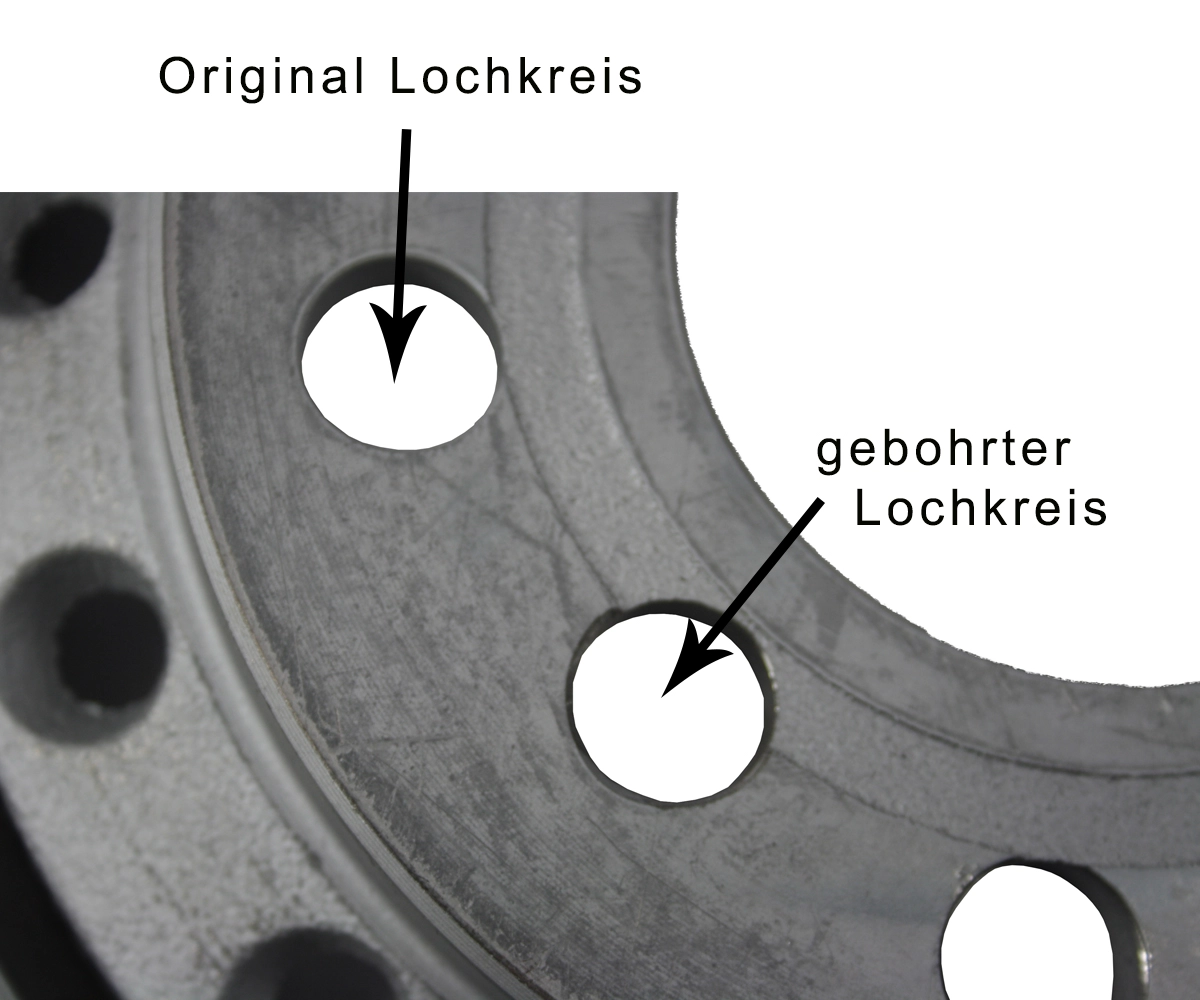

If technically possible, we always produce an offset second bolt pattern in the brake disc. However, depending on the design of the brake disc, it may be necessary to work partially or completely with slotted holes. The machining is always carried out only after a technical inspection of the brake discs sent in and in the way that, based on our experience, makes the most technical sense. A binding statement in advance as to whether slotted holes or a second bolt pattern will be used is therefore not possible.
Procedure when sending in your own brake disc:
- Purchase and pay for this item Brake Disc Redrilling
- Enter your desired modifications in the field above the shopping cart button.
- Take a piece of paper and write your email address on it
- Place this note in the package you send us so that we can quickly assign your package and your requests.
- Important: Send the package to Metallverarbeitung Wuttke /Föckinghauser Weg 39/D-49324 Melle
The delivery time is 5–14 working days, depending on the workload of our machines.
Furthermore, in our shop we offer you the option of having a brake caliper adapter and brake disc centering rings made for your desired brake system. Just take a look.
Procedure when purchasing the brake disc from EPYTEC:
Our brake discs are delivered directly from the manufacturers’ warehouse, so please proceed as follows.
- Place the brake disc that you want to buy and have redrilled in the shopping cart
- Important: Select the following delivery address in the shopping cart: Metallverarbeitung Wuttke /Föckinghauser Weg 39/D-49324 Melle (IMPORTANT! Please only change the different delivery address, not your master data)
- Purchase and pay for this item Brake Disc Redrilling
- Enter your desired modifications in the field above the shopping cart button.
The delivery time is 5–14 working days, depending on the workload of our machines.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
22 July 2022 06:14
Lehrmann C
Habe nach einer vernünftigen Lösung gesucht um eine größere Bremsanlage zu verbauen welche aber noch Original vom gleichen Fahrzeughersteller ist. Die verbaute war zu schwach. Da noch das Problem des anderen Lochkreises war versuchte ich es bei euch. Durch eure Arbeit ist dieser Umbau nun möglich geworden.
11 June 2020 08:15
Alexander S
Kann man nur empfehlen, saubere Arbeit. Lieferzeit war gut.
12 September 2019 07:44
Sebastian B
Um meine Felgen weiter fahren zu können musste ich die Bremsscheiben umbohren lassen. Das Ergebnis ist top. Warum ich Epytec nahm? Sie waren die einzigen die das in der Form anboten. Der Ablauf war problemlos und ging schneller als erwartet. Gerne wieder
- How do I get a 50% discount opportunity
If you inform us of your components with part numbers, our team can check whether this modification could be of interest to future customers. If this is the case, you will be informed by us via email. The total amount of the order is due in advance. Once you have mounted and registered the caliper adapters, you just need to take nice pictures of the installed caliper adapter and the brake system, and provide us with a copy of the vehicle registration document with the entry, and you will receive 50% of the purchase price back from us.
- What should I consider when selecting the components?
When selecting the components for your brake conversion, it's crucial that the brake caliper, brake disc, and vehicle mounting fit together smoothly. This ensures stress-free assembly and makes future replacements (e.g., new discs) straightforward.
1) Selecting the brake disc to match the brake caliper
An example: You want to install Porsche 996 calipers (originally usually with 318×28 mm discs). These points are crucial:
Bolt pattern / Vehicle mounting
Ensure that the brake disc ideally has the same bolt pattern as your vehicle.
If you drive a 5×100, the disc should also be 5×100 if possible – then you won't have to re-drill the discs with each change.Thickness of the brake disc (very important)
The disc thickness should be as close as possible to the original disc for the caliper. The rule of thumb is:
maximum ± 2 mm deviation from the original disc thickness
Why?
If the disc is too thin, it can be disadvantageous (e.g., pad/caliper position).
If it's too thick, it often won't fit into the caliper or run smoothly.
Diameter of the brake disc
The diameter can be chosen larger depending on the conversion – but everything must fit together (e.g., caliper position via adapter, wheel clearance, etc.).
2) Additional points to keep in mind
Hub bore/centering: The disc must sit correctly centered on your hub (if necessary, using a centering ring).
Wheel clearance: Caliper + disc must fit under the wheel (observe inner contour/offset).
Replaceability & daily use: If possible, choose components so that spare parts are easily available later.
👉 You can find the complete, detailed explanation, including examples, here on our info page:
(click here)
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C VW Golf 4 R32 / Audi S3 brake caliper
- ✓ rear axle
- ✓ 370x32 8J0615301F TTRS brake disc
- ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne ZR18 / ZL18 brake caliper
- ✓ front axle
- ✓ for rear axle: Golf 1, Golf 1 Cabrio, 2, 3, GTI, VR6, Caddy 14d, Jetta, Corrado, Passat 35i, Scirocco, Vento, Polo 6N1, Seat Cordoba, Ibiza, Toledo
- ✓ Brake caliper: VW part no left 8N0615423C + right 8N0615424C
- ✓ Brake caliper holder: VW part no. 8N0 615 425 B or paintec blue from R32 part no. 1J0 615 425 F
- ✓ Brake disc:
- ✓ if 5 holes are used: Golf 3 VR6 brake disc 280x22mm VW part no 1H0615301A pot depth 29mm
- ✓ if 4 holes are used: Golf 2 G60 brake disc 280x22mm VW part no 535615301 pot depth 40mm
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C R32 / S3 brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 996352421 / 996352422 Audi S3 8L VW Golf R32 brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 1-piston 1J0615425D / 1J0615426D R32 / S3 brake caliper
- ✓ rear axle
- ✓ 370x32 8J0615301F TTRS brake disc
- ✓ 4-piston 8J0615107 / 8J0615108 TTRS brake caliper
- ✓ front axle
- ✓ 345x30 1K0615301AB Golf 5 R32 brake disc
- ✓ 4-piston 8J0615107 / 8J0615108 TTRS brake caliper
- ✓ front axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 996352421 / 996352422 Porsche 8N0615423C / 8N0615424C R32 / S3 brake caliper
- ✓ rear axle
- ✓ 347x30 4F24F5PR1ZL A8 A6 S8 brake disc
- ✓ 6-piston Z18 955351421 / 955351422 brake caliper
- ✓ front axle
- ✓ 335x22 4E0615601L VW Phaeton brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C VW Golf 4 R32 / Audi S3
- ✓ rear axle
- ✓ 335x22 4E0615601L VW Phaeton brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C VW Golf 4 R32 / Audi S3
- ✓ rear axle
- ✓ 365x34 8E0615301AB Audi RS4 B7 brake disc
- ✓ 8-piston 8E0615107 / 8E0615108 RS4 B7 brake caliper
- ✓ front axle
- ✓ 360x32 8D0615302B Audi RS4 B5 brake disc
- ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne ZR18 ZL18 brake caliper
- ✓ front axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 330x22 4F0615601B Audi A6 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 323x28 1ML615301 Seat Leon Cupra R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ front axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
