VW Golf 4 Polo Bora Audi A3 TT Audi RS4 B5 Brake Caliper Adapter 360x32 Brake Disc
- ✓ 360x32 8D0615302B Audi RS4 B5 brake disc
- ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne ZR18 ZL18 brake caliper
- ✓ front axle
€212.70*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

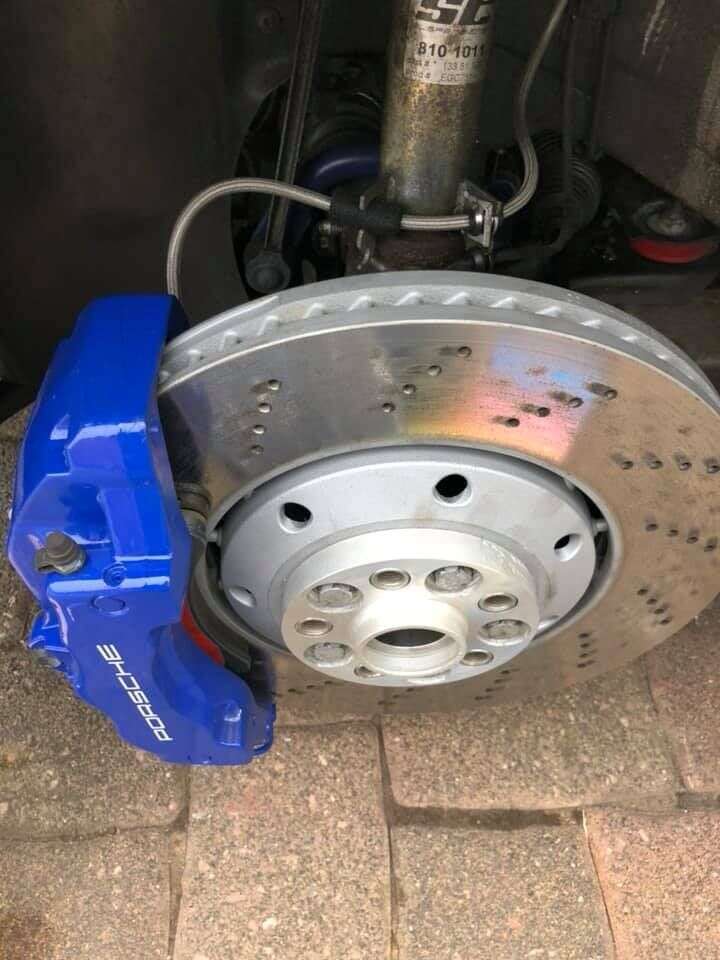

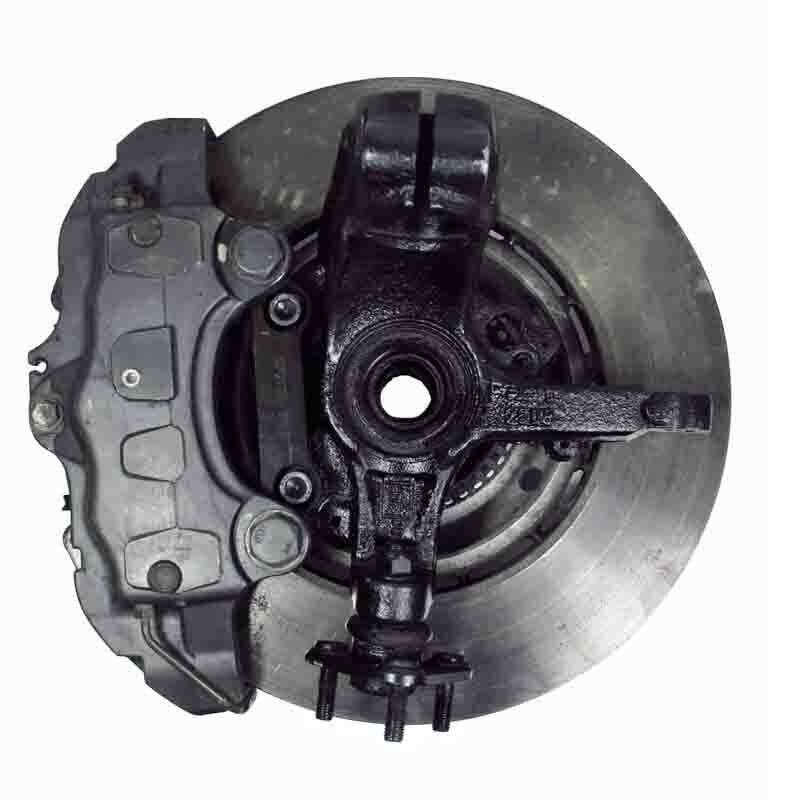

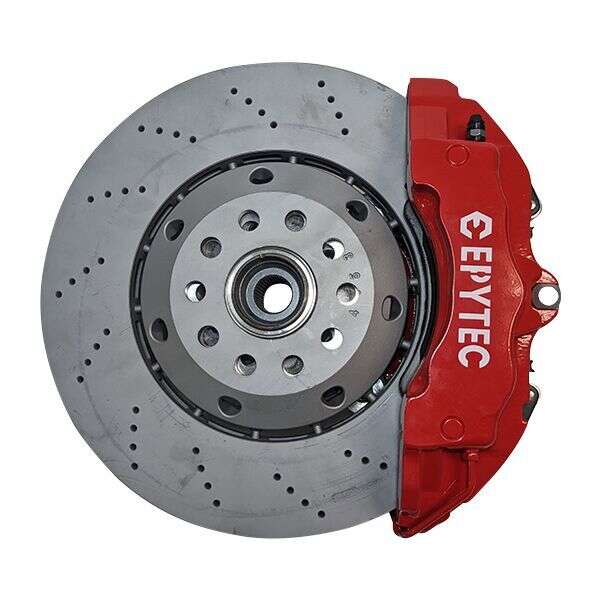

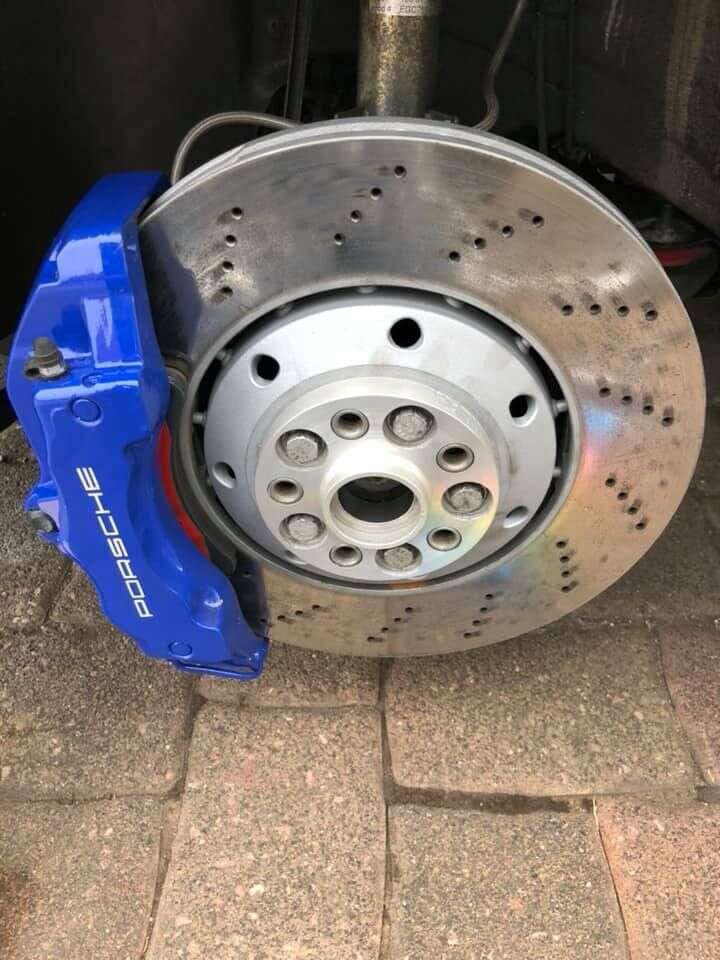

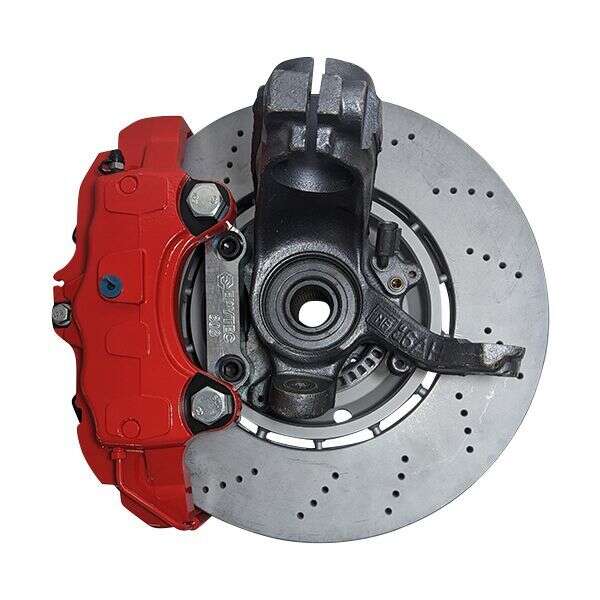

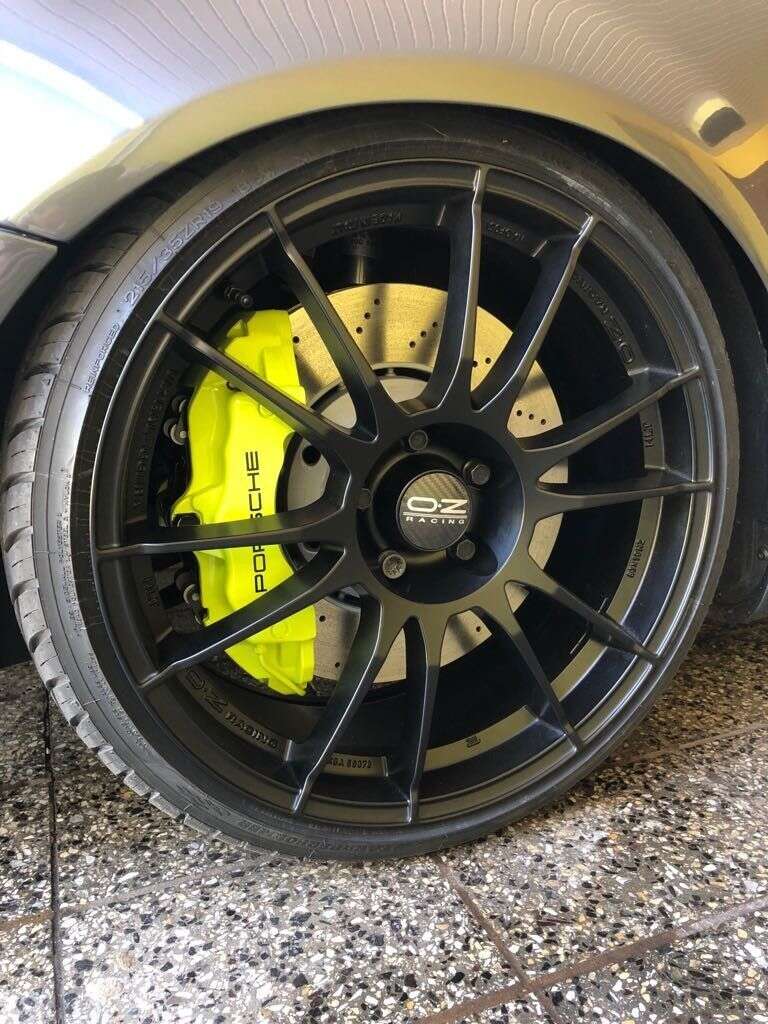

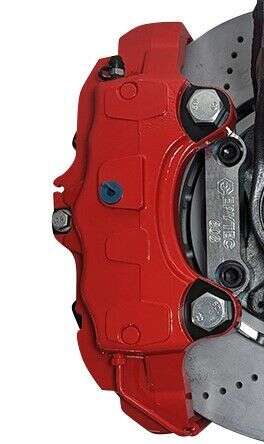

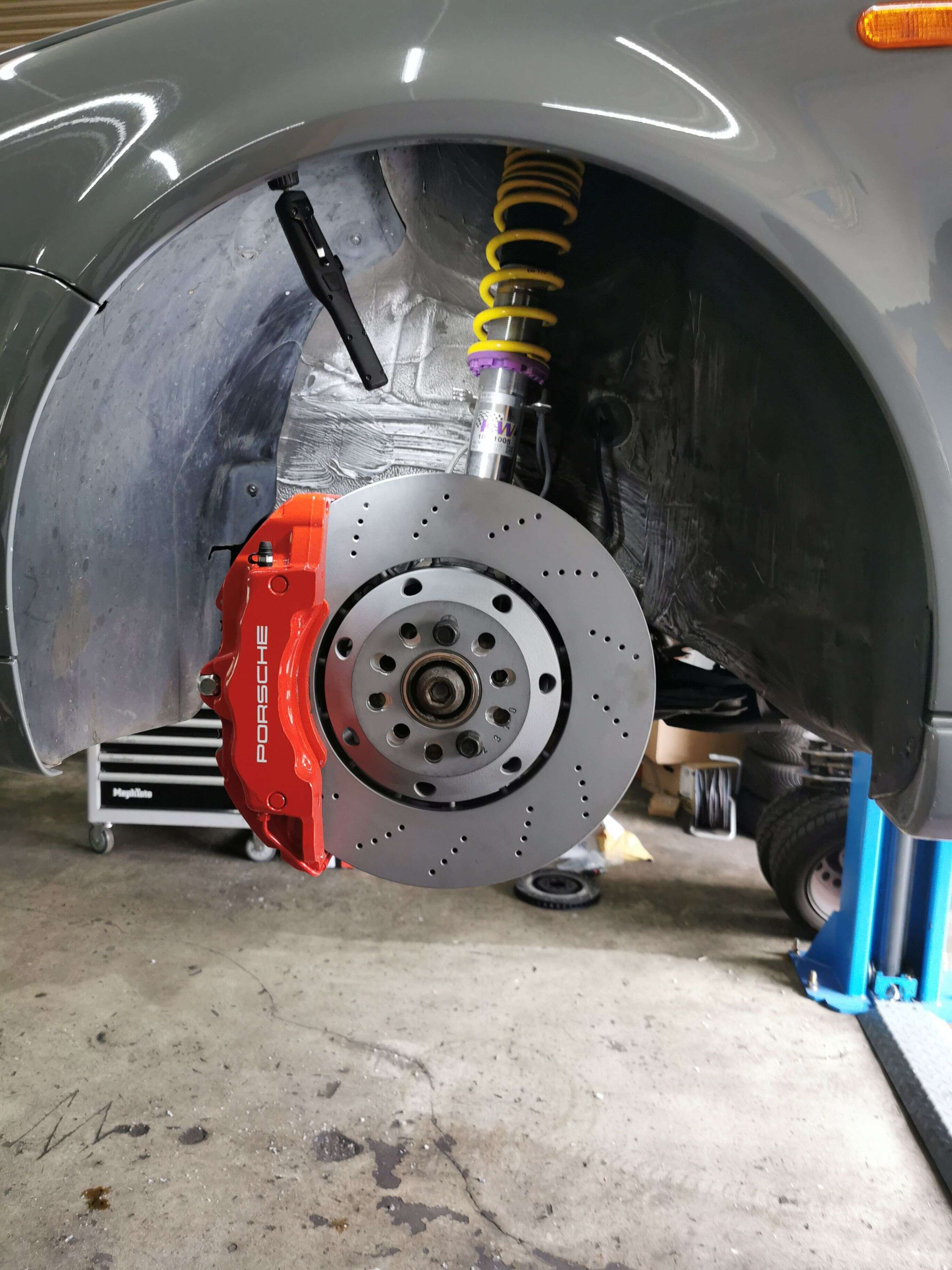

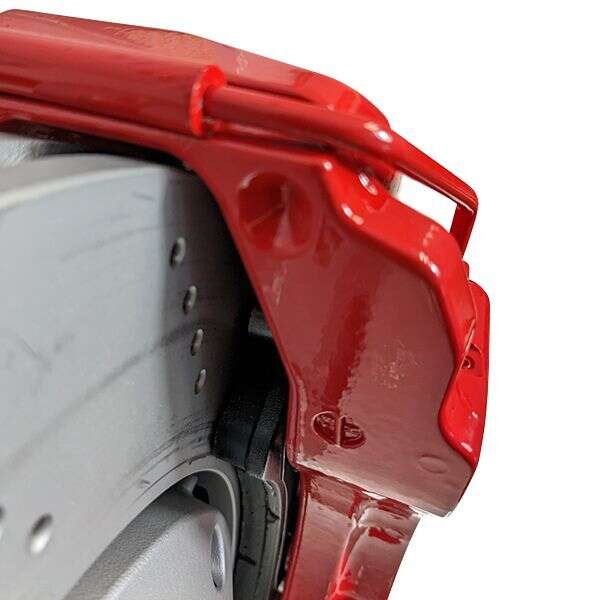

Brake caliper adapter on models Golf MK4 for conversion to Cayenne ZR18 brake caliper, combined with the original Audi RS4 B5 brake discs.
Suitable for the following vehicles:
- Audi A3 (8L)
- Audi TT (8N)
- VW Golf 4
- VW Bora
- VW Beetle
- VW Polo (6R)
- Seat Ibiza
- Seat Leon

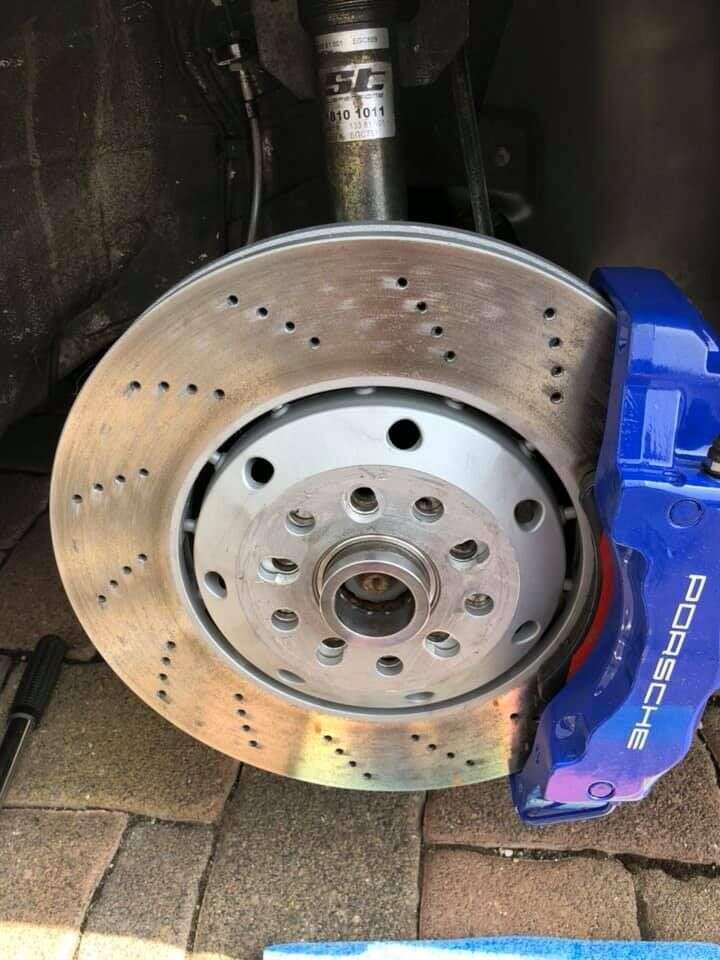

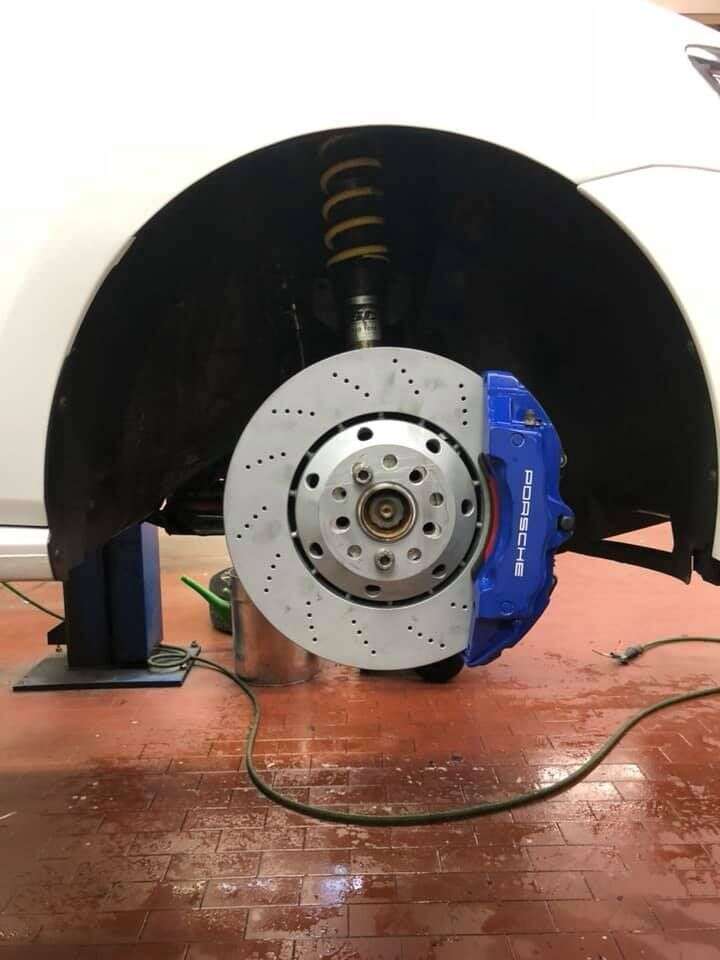

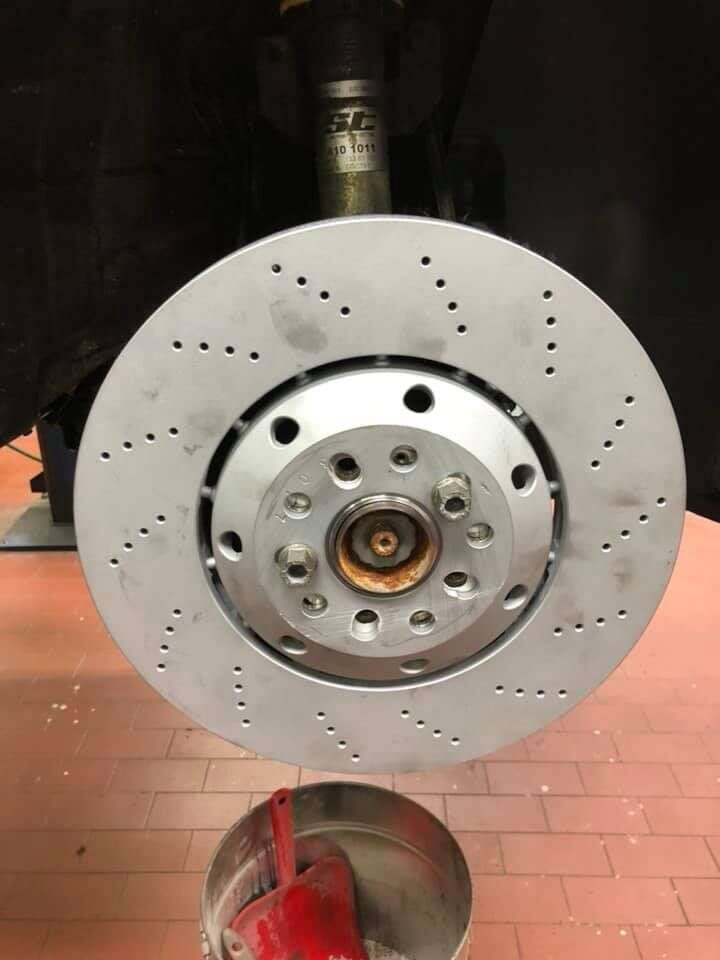

As the TTRS disc could touch the wishbone because of its high height, we have developed spacers of 8mm thickness, which are mounted under the brake disc. The discs are thus pushed outwards. In addition, the disc with the plate is perfectly centered on the axle stub. The spacers are naturally contained in the delivery.
Important!:
The adapter is only suitable for cast wishbones OE: 8N0 407 151 A.
These are installed as standard in the Golf 4 R32, Audi S3 8L, and Audi TT 8N 1.8T and the Quattro models. All other models of the Golf 4, Audi A3 series must be converted to this cast wishbone, otherwise no more steering is possible. The stabilizer OE: 1J0411305AF must also be converted in vehicles that do not have the cast wishbone installed as standard.
We have the right wishbones in the matching accessories and can be ordered directly.
The problem with the wishbone only affects conversions to Z18 and Z17 calipers. With all other adapters that we still have, such as conversion to 4-piston Porsche Boxter, Audi TTRS or 6-piston Porsche Panamera brake calipers for the Golf 4 Audi A3 series, the adapters fit with all wishbones.
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:

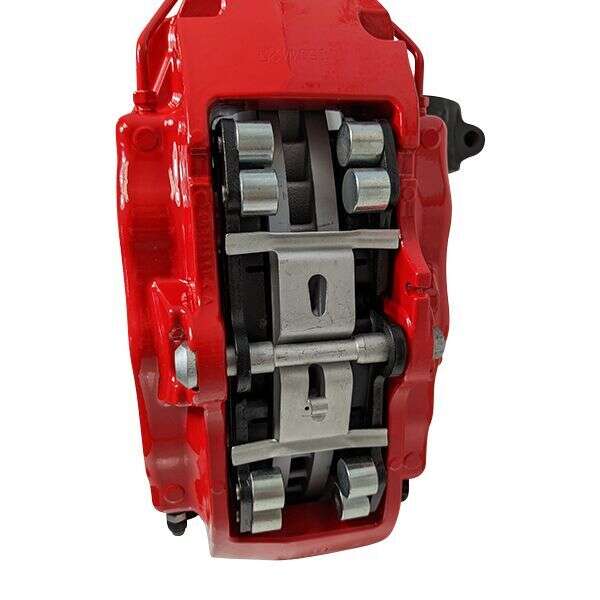

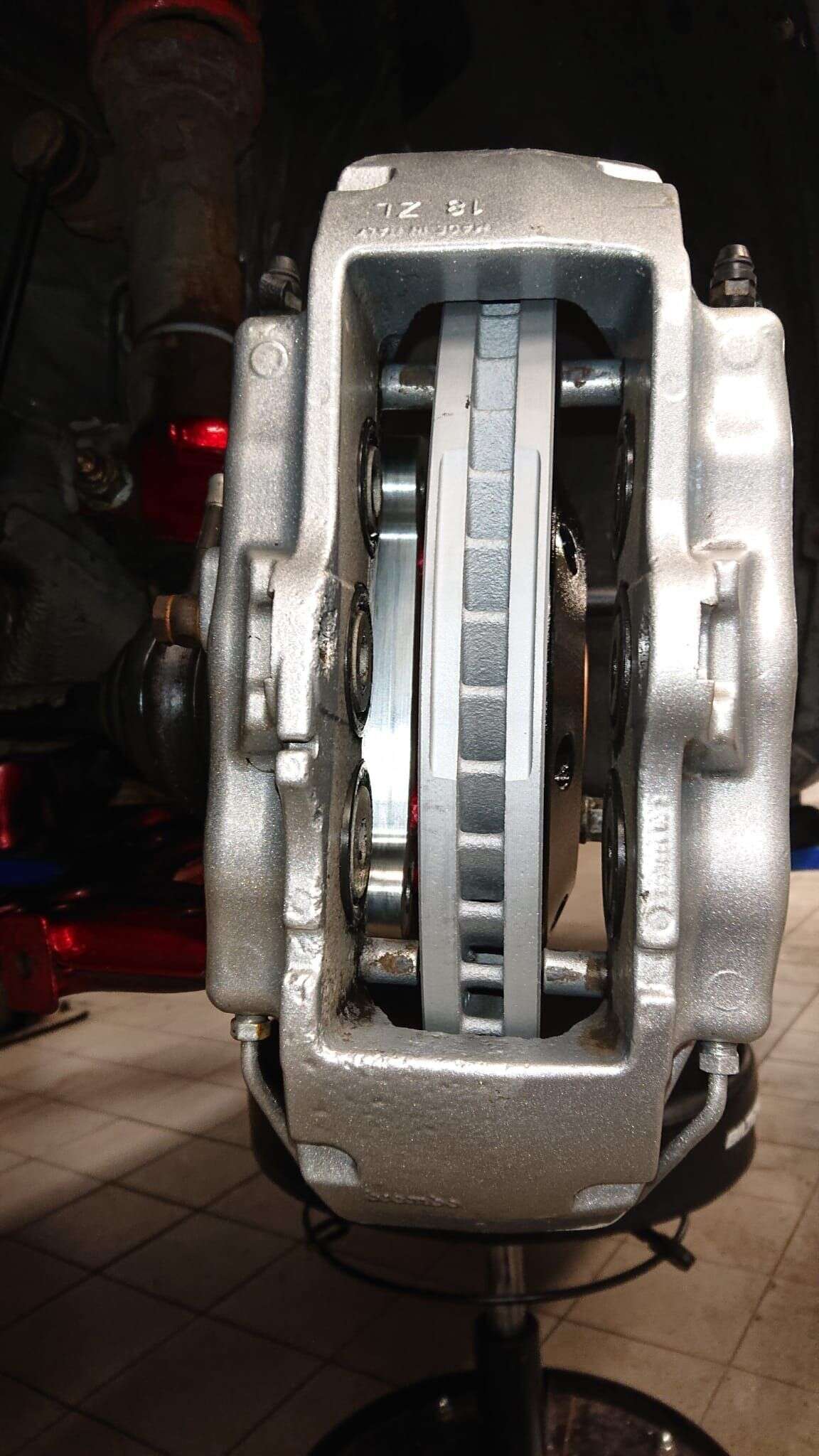

- brake caliper: Porsche Cayenne ZR18 ZL18 , reference 95535142153 / 95535142253
- brake discs: Audi RS4 B5 360x32 mm reference 8D0615302B
- adapters only fit with original suspension supporting joints
- PCD modification from 5x112 to 5x100 (also possible in-house, click here)
Delivery:

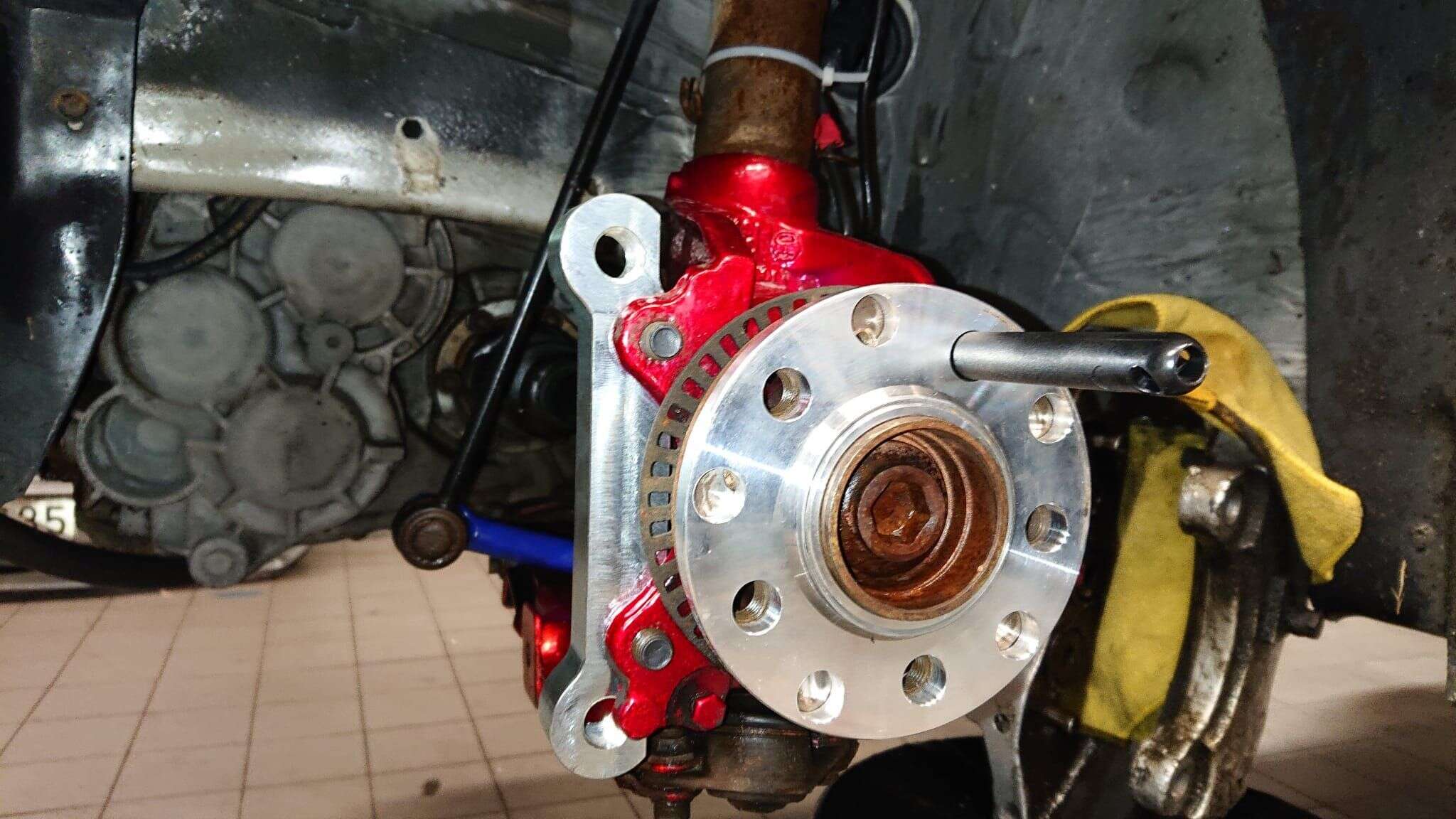

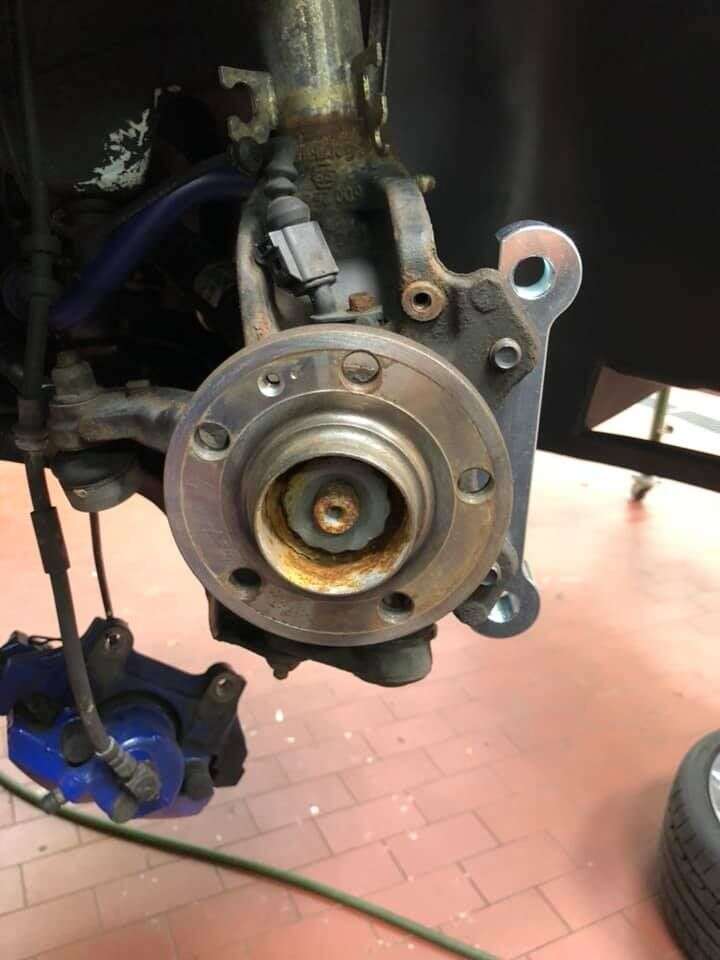

- 2x brake caliper adapters
- 2x 8mm spacers under brake discs
- 2x centric rings
- high-strength mounting screws

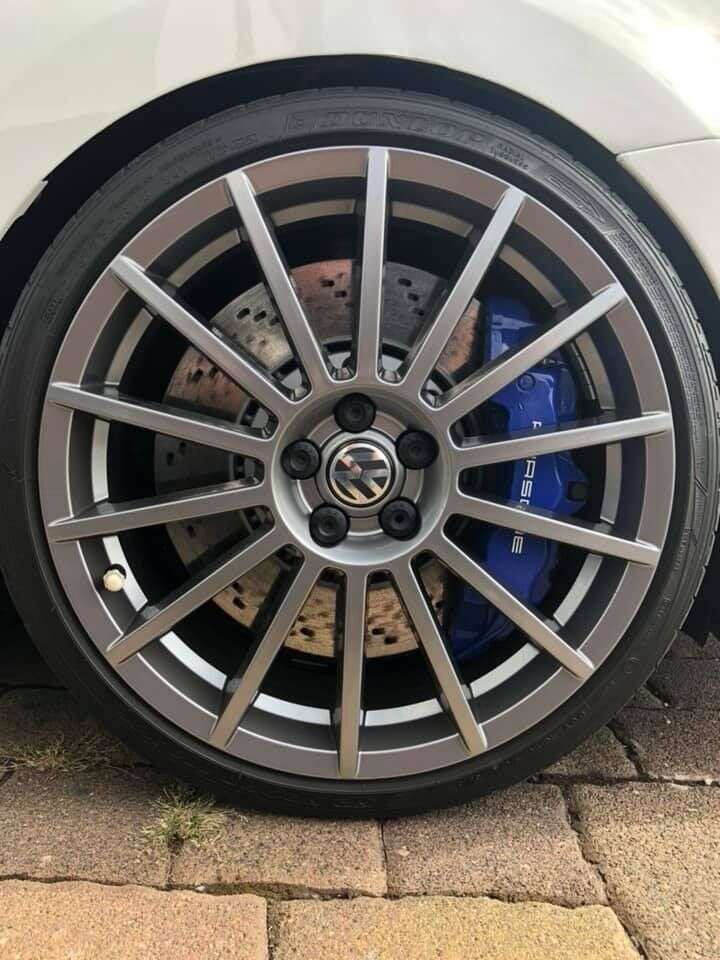

- Template to check whether the brake system fits under your rim
- material certificate
Tips, information and notes:
- For better ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, where you can assemble and then install them according to your requirements.click here for the steel braided line configurator >>configure steel braided brake line<<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
18 April 2018 05:45
D/A P
Passt perfekt
5 August 2018 14:15
Ilari M
Easy to fit and the product is work of art
27 December 2020 10:30
Jorge D
Productos geniales, grandes acabados con gran calidad de materiales, lo recomiendo 100%. El vendedor muy amable y atento, los envios rapidos y una excelente calidad/precio.
16 November 2018 21:13
Pierre Z
Besser geht nicht. 5 Sterne!
11 June 2021 13:32
Christian B
Top Material Passgenauigkeit sehr sehr gut geiler Service sehr freundlich immer wieder gerne 😊😊😊😊👍👍👍
28 May 2021 13:40
Christian B
Super Material sehr freundlich immer wieder gerne 👍👍👍
1 March 2024 19:01
NICOLA B
Ok
8 October 2021 10:48
Ivo I
pretty good workmanship nice items for upgrade
27 December 2020 10:31
Jorge D
Productos geniales, grandes acabados con gran calidad de materiales, lo recomiendo 100%. El vendedor muy amable y atento, los envios rapidos y una excelente calidad/precio.
29 January 2022 17:20
Dimitar S
Great Quality!
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
