Brake discs Bore circle Reboring Hub bore machining Special production - Additional machining of hub bore: Yes
- ✓ brake discs pitch circle diameter / bolt circle / drilling hub bore hole custome-made
- ✓ additional 2nd hole circle / pitch circle drilled in the brake disc
- ✓ turn hub diameter up
£126.88*
| Name | Title | Surcharge |
|---|---|---|
| desired hole circle / hub bore: |
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
- 19 Jahre Expertenwissen
Product information "Brake discs Bore circle Reboring Hub bore machining Special production - Additional machining of hub bore: Yes"
We offer you here the redrilling of the bolt pattern, as well as the machining of the center bore of one pair of brake discs (2 pieces).

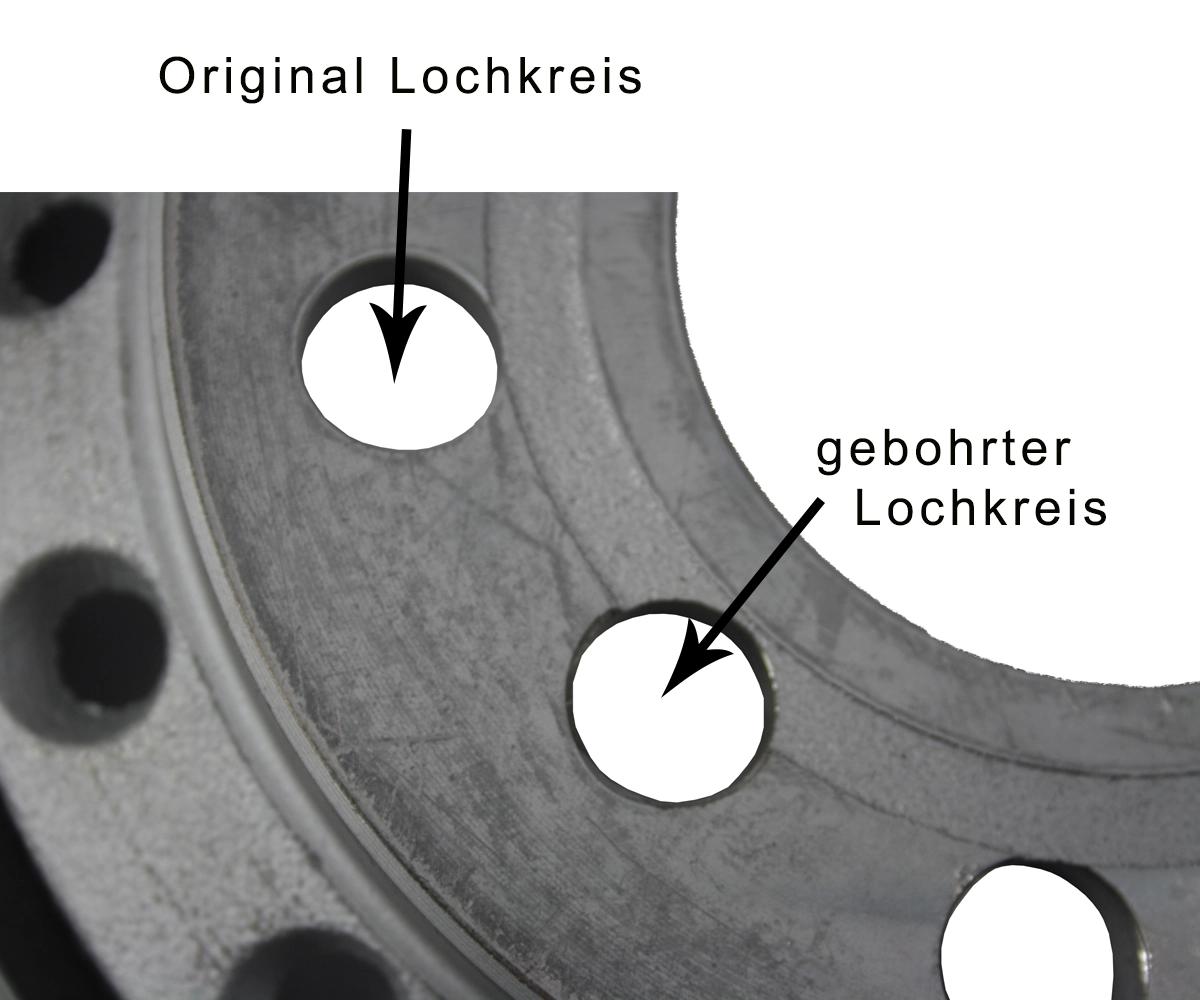

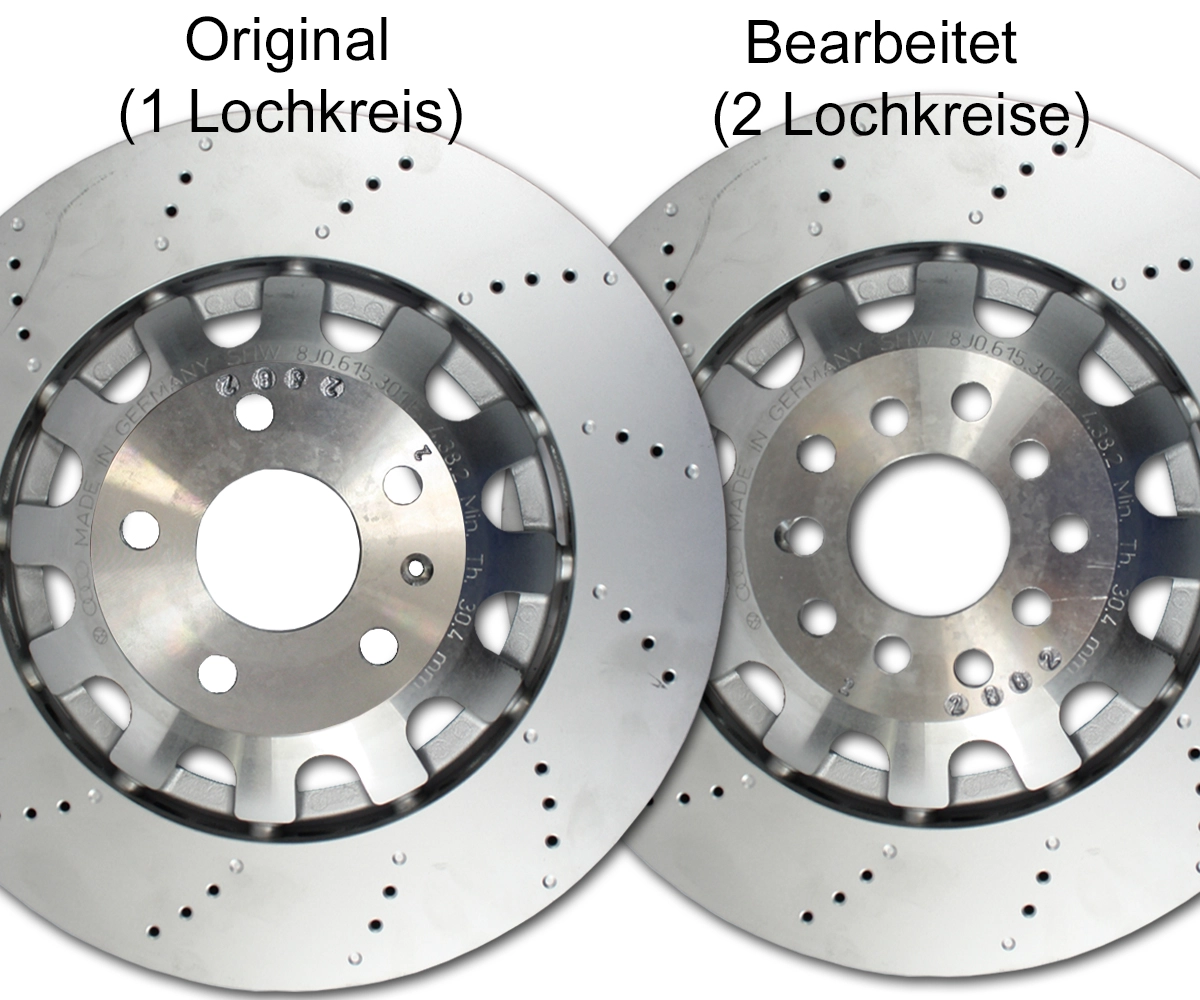

This is required if you want to install, for example, larger brake discs from another model on your vehicle in combination with our brake caliper adapters. We then drill an additional 2nd bolt pattern into the brake disc for you. In addition, we also machine your hub diameter to your desired size.
Note:
If technically possible, we always produce an offset second bolt pattern in the brake disc. However, depending on the design of the brake disc, it may be necessary to work partially or completely with slotted holes. The machining is always carried out only after a technical inspection of the brake discs sent in and in the way that, based on our experience, makes the most technical sense. A binding statement in advance as to whether slotted holes or a second bolt pattern will be used is therefore not possible.
Procedure when sending in your own brake disc:
- Purchase and pay for this item Brake Disc Redrilling
- Enter your desired modifications in the field above the shopping cart button.
- Take a piece of paper and write your email address on it
- Place this note in the package you send us so that we can quickly assign your package and your requests.
- Important: Send the package to Metallverarbeitung Wuttke /Föckinghauser Weg 39/D-49324 Melle
The delivery time is 5–14 working days, depending on the workload of our machines.

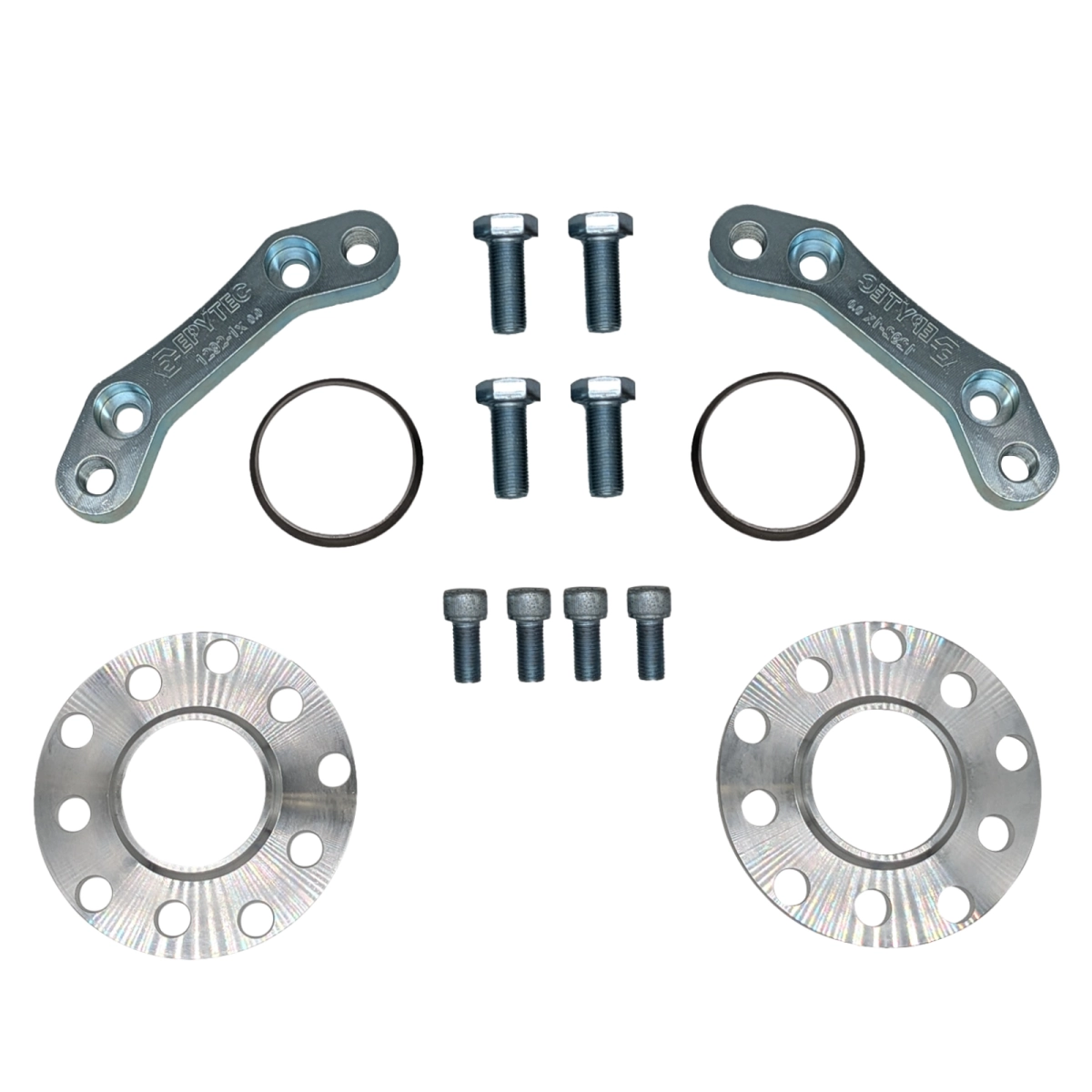

Furthermore, in our shop we offer you the option of having a brake caliper adapter and brake disc centering rings made for your desired brake system. Just take a look.
Procedure when purchasing the brake disc from EPYTEC:
Our brake discs are delivered directly from the manufacturers’ warehouse, so please proceed as follows.
- Place the brake disc that you want to buy and have redrilled in the shopping cart
- Important: Select the following delivery address in the shopping cart: Metallverarbeitung Wuttke /Föckinghauser Weg 39/D-49324 Melle (IMPORTANT! Please only change the different delivery address, not your master data)
- Purchase and pay for this item Brake Disc Redrilling
- Enter your desired modifications in the field above the shopping cart button.
The delivery time is 5–14 working days, depending on the workload of our machines.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
