VW Golf Scirocco Corrado G60 VR6 16V Brake Caliper Adapter S3 R32 280x22 Brake Disc Polo 9N Wheel Hub Rear Axle

  • ✓ 280x22 1J0615301E Golf 4 brake disc
  • ✓ 1-piston 8N0615423C / 8N0615424C Golf 4 V6 R32 Audi S3 brake caliper
  • ✓ rear axle

Brake caliper adapter with special wheel hubs to drive the rear brake calipers from the Golf Mk4 V6 R32 Audi S3 8L, combined with the front 280mm brake discs from the VW Golf Mk4 on the rear axle.

Adapters are suitable for the following VW and Seat models:

  • Golf MK1
  • Golf MK2 MK3 + GTI+ VR6
  • Corrado
  • Jetta
  • Passat 35i
  • Scirrocco
  • Vento
  • Seat Cordoba
  • Seat Ibiza
  • Seat Toledo

Advantages:

  • top deceleration, without comparison with conventional brake discs, rear.
  • only manufacturer components installed
  • better performance
  • supplied material certificate
  • inexpensive procurement of spare parts
  • thanks to the material certificate supplied with the order, it is possible to approve your purchase even for series vehicles

technology:

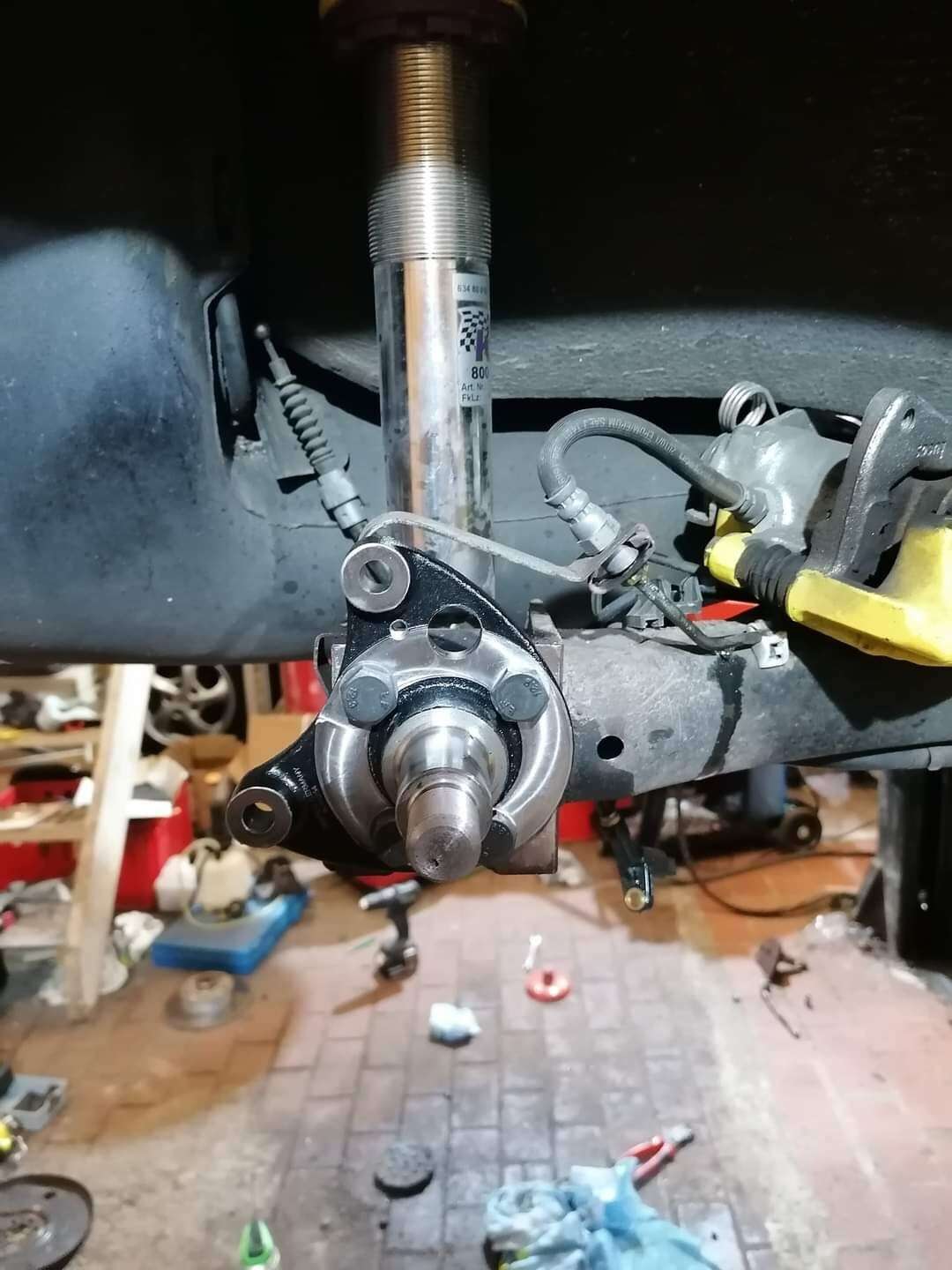

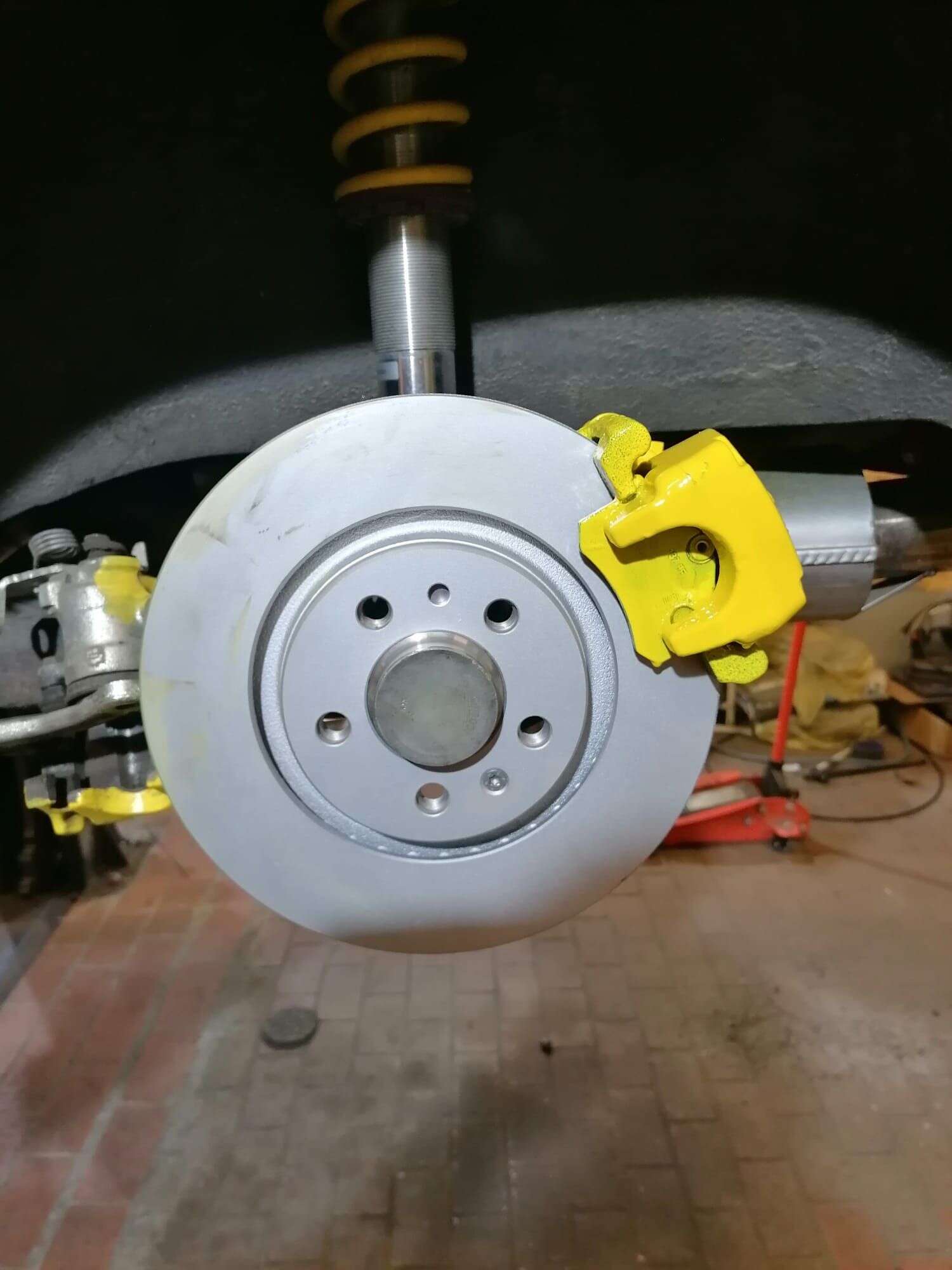

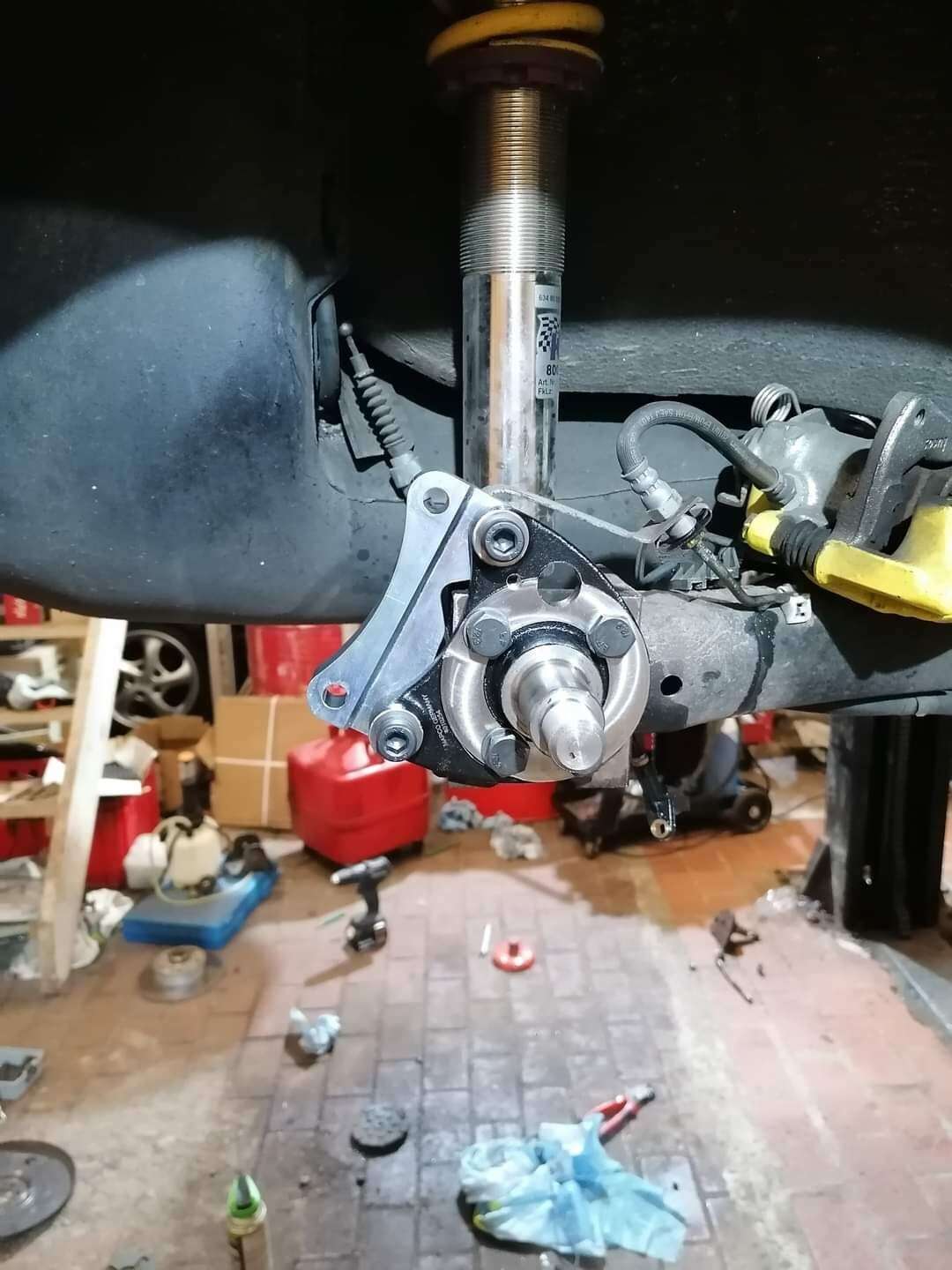

Using the original Polo 9N wheel hubs, the 280 mm brake discs are centered and screwed. The original wheel bearings from the Polo 9N can still be used.

Required components:

  • brake caliper: left VW reference 8N0615423C,  roight VW Teilenummer 8N0615424C
  • brake caliper mounting bracket VW reference 8N0 615 425 B or painted in blue from the R32: 1J0 615 425 F.
  • stub axle from Polo 6N GTI (also available in our shop, item number APA213)
  • wheel hub from Polo 9N reference: 6Q0598611
  • brake disc: front disc from Golf 4 280x22 mm reference: 1J0 615 301 E

Delivery:

  • 2x brake caliper adapters
  • high-strength mounting screws
  • material certificate

Tips, information and advice:

  • To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
  • For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

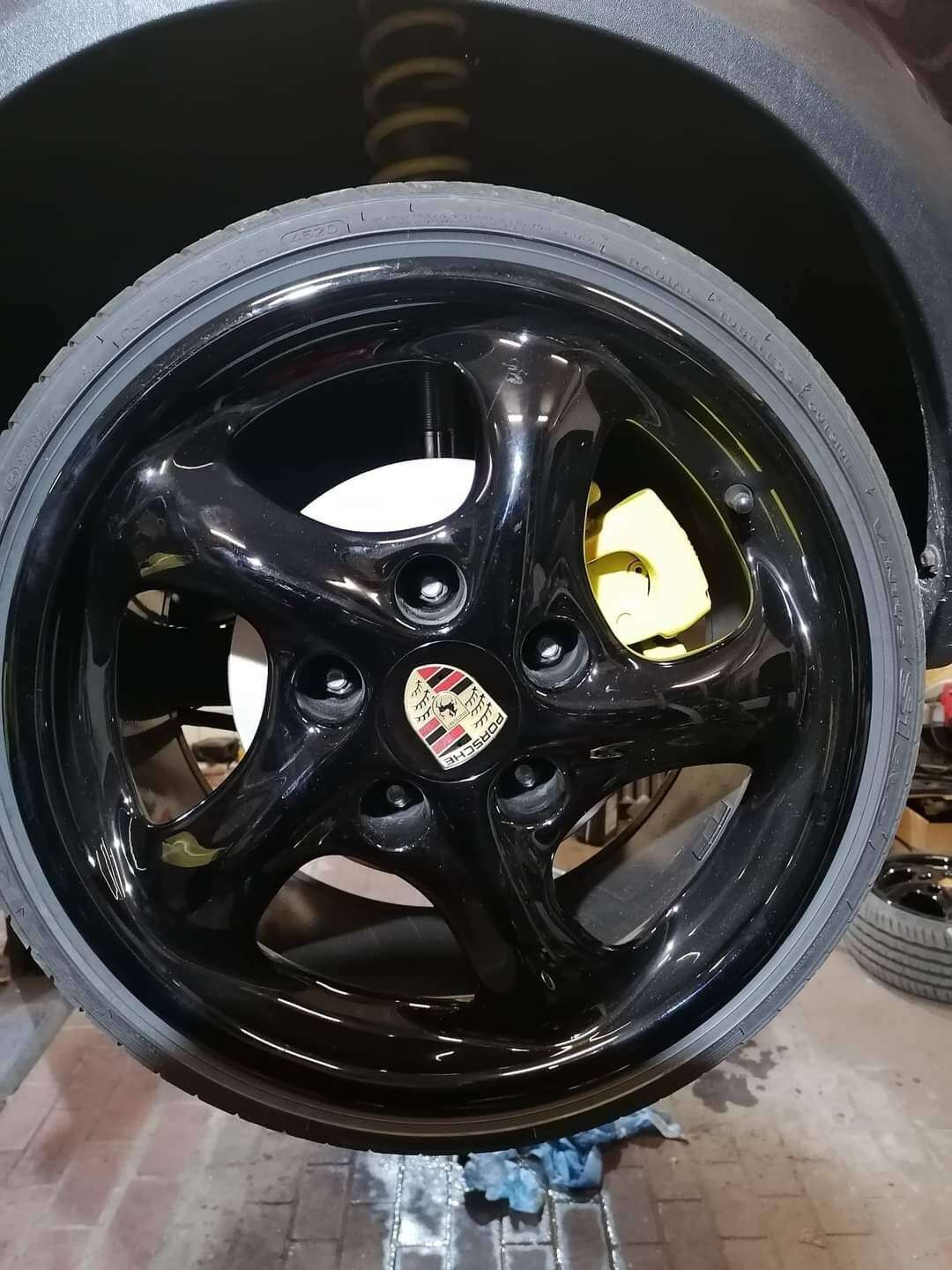

  • We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
  • Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
  • The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm
Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm

2 of 2 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


18 March 2021 08:02

Review with rating of 5 out of 5 stars

Thomas B

Die Adapter sind auch gut .

22 March 2023 17:32

Review with rating of 5 out of 5 stars

Thorben V

Sehr gute Verarbeitung gerne wieder. 100% Kaufempfehlung

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
