Which brake pads should be used?

The original brake pads from the brake caliper, which is required for our conversion kit, must always be used.

Can I use other brake calipers as indicated in the required components?

No, unfortunately that is not possible, the reason being that all brake calipers have different height and depth measurements. If another brake disc is installed, the brake caliper would either not fit the adapter at all or not run centrally to the brake disc. If you want to install a different brake caliper, we also have an option for you. You can have a custom-made product manufactured, check out the following link for more information:

Can I also use other discs as specified in the required components?

No, unfortunately that is not possible. The reason is simply that all brake calipers have different height and depth measurements. If a different brake disc is installed, the brake caliper would either not fit on the adapter at all or would not be centered with the brake disc. However, if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product produced, have a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

My brake caliper is not exactly centered over the brake disc - what should I do?

If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.The most important thing is:👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:there is very little clearance on one side or the bolt lightly toucheswhile on the other side there is more playThis is generally not critical.🔧 This is how you proceed:Install brake pads:First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:slightly shim the adapter with suitable bushings to adjust the brake caliperor – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.

Golf VR6 16V Brake Adapter Brake Caliper Adapter S3 TT 1.8 TPolo 6r WRC 312x25

Name: Golf VR6 16V Brake Adapter Brake Caliper Adapter S3 TT 1.8 TPolo 6r WRC 312x25
Brand: EPYTEC
SKU: 222-ST
Price: 27.39 EUR
Availability: InStock
Rating: 5.0 (10 reviews)

✓ 312x25 1J0615301AA 1J0615302A S3 / R32 brake disc
✓ 1-piston 1J0615123E / 1J0615124E S3 / R32 brake caliper
✓ front axle

€27.39*

Prices incl. VAT plus shipping costs

29 Reviews

Available

Product number: 222-ST

Delivery by Tuesday, 14.07.2026 if you order within the next 10 Hours.

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

Product information "Golf VR6 16V Brake Adapter Brake Caliper Adapter S3 TT 1.8 TPolo 6r WRC 312x25"

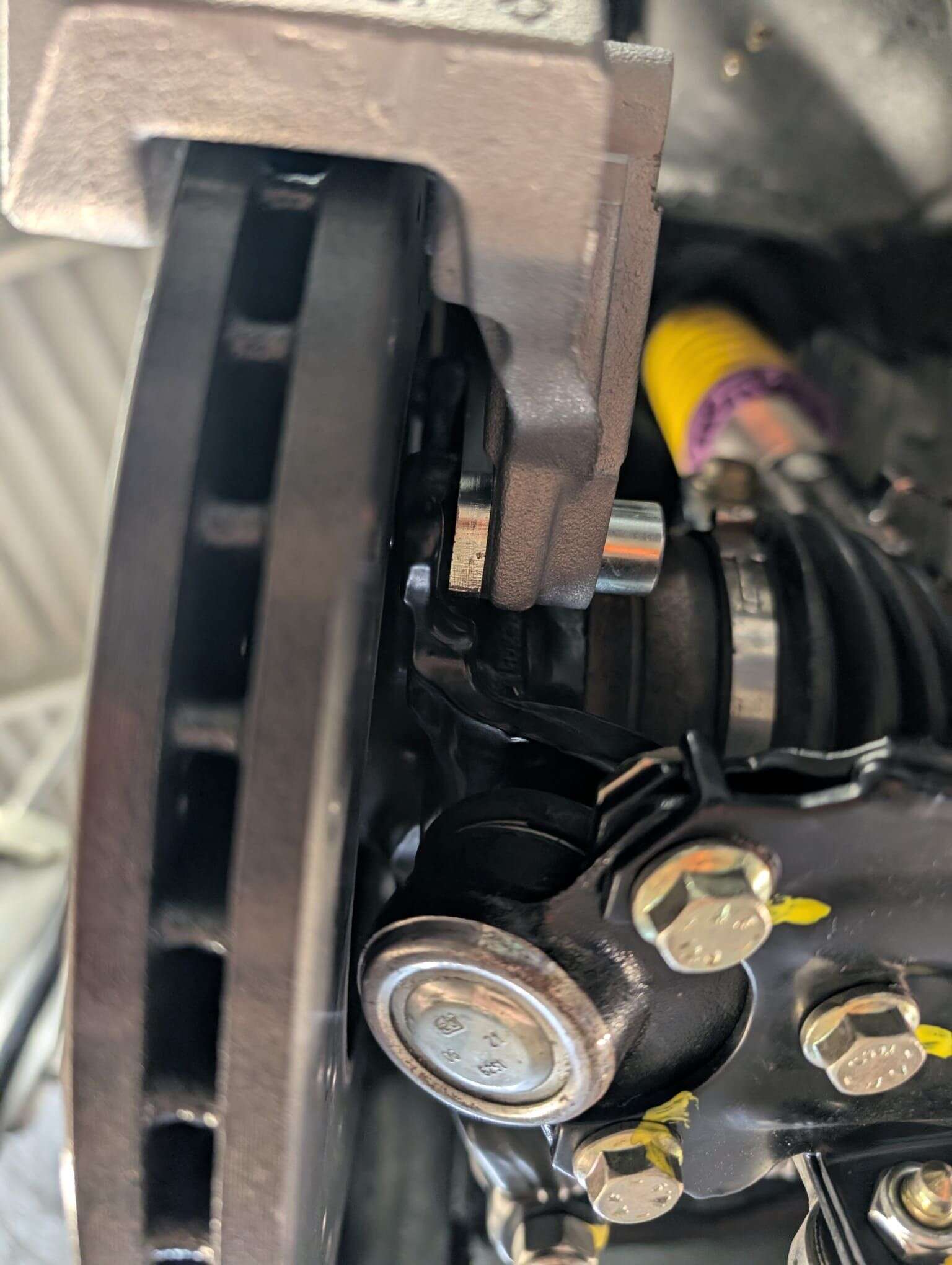

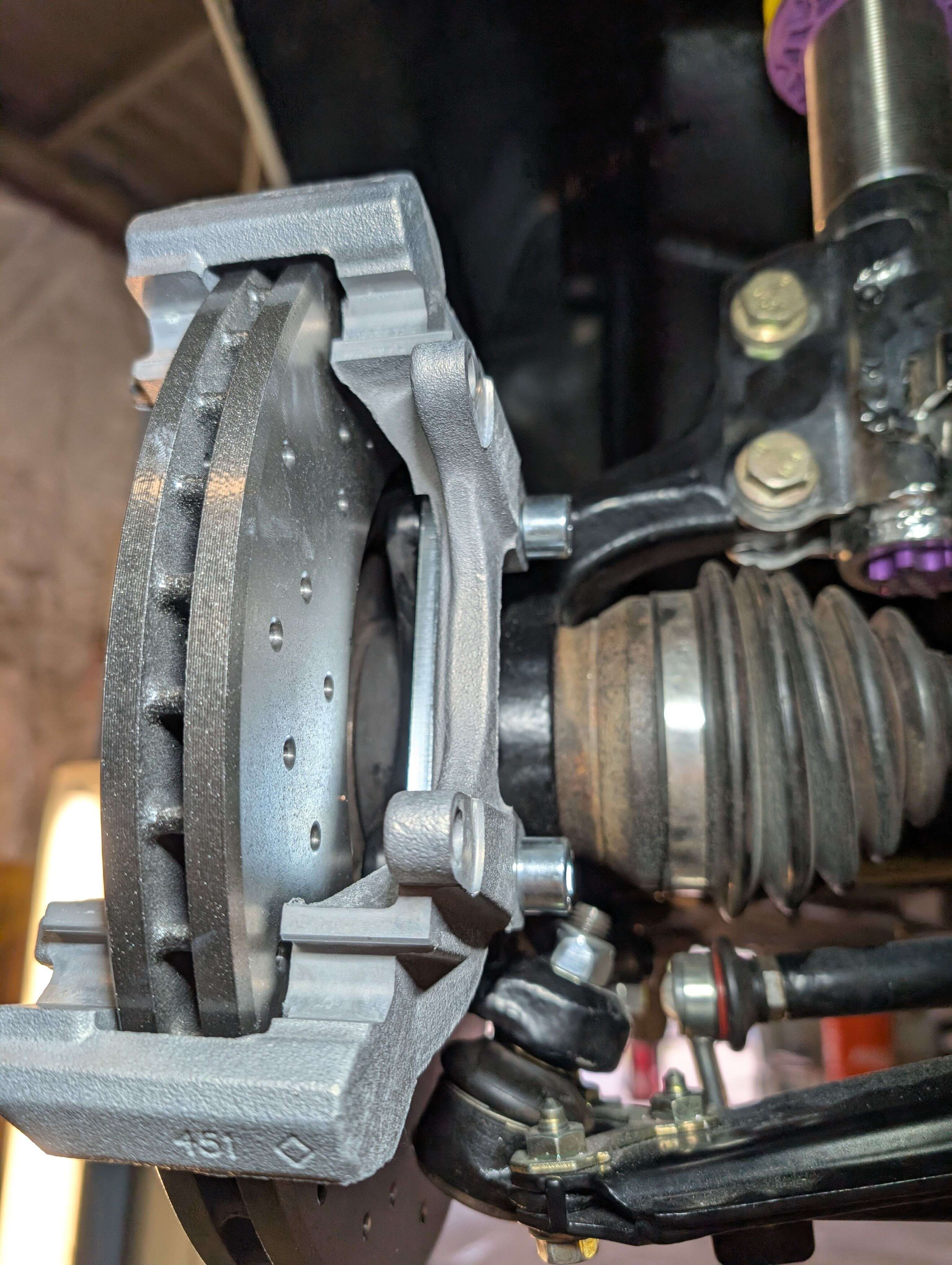

Brake caliper adapter for Golf MK3 VR6 series with VR6 axle to convert to the large Golf MK4 V6 Jubi brake system.

(brake disc 312x25 , brake caliper Golf 4 V6)

Suitable for the following vehicles:

Golf VR6
Corrado VR6
Passat 35i VR6
Polo 6r WRC

Suitable for other vehicles, if the VR6 Plus axle is installed.

The 312x25 brake system was installed in the following vehicles:

Golf 4 25 Jahre Jubi GTI/ V5
Golf 4 V6
Audi S3 8L
Audi TT 225 PS

Advantages:

easy and quick assembly
significantly better braking than the standard braking system
can always be restored to the original state without any problems
for the rear axle, we also have adapters in our shop to drive with the rear S3 calipers , combined with the 280 brake disc

Required components:

brake caliper front original S3 /R32 caliper reference: left 1J0615123E , right 1J0615124E
brake caliper support / bracket S3 /R32 reference : left 1J0615125B , right 1J0615126
brake pads front original S3 /R32 reference: 8D0698151D
brake discs front original 312x25 S3 / R32 reference : left 1J0615301AA , right 1J0615302A

The adapter plates have a thickness of 6mm and the hole distance is 90mm from center to center hole.

Delivery:

2x brake adapters for Golf VR6 16V to S3 TT 1,8T brake
material certificate

We provide a TÜV certificate with this adapter. This means that the TÜV inspector can easily register the adapter.

Tips, information and hints:

For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.

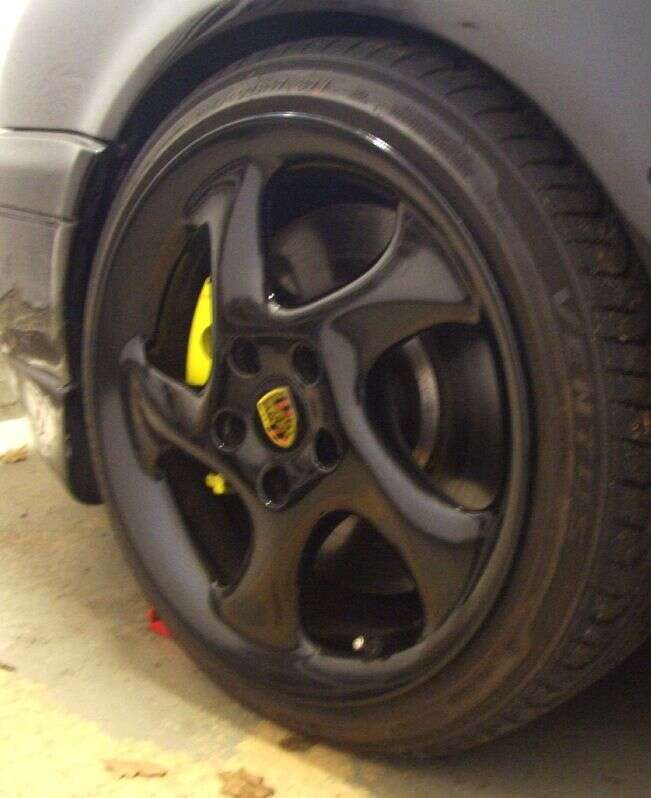

In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers. >> Now directly to spacers <<
Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator >> Configure steel braided brake lines <<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Brake caliper hole spacing: 94

Hole spacing steering knuckle: 94

Manufacturer: Epytec

Mounting location: front

Motor	Motorcode
2.8 VR6	1H1\|174PS(128KW)
2.9 VR6 Syncro	1H1\|190PS(140KW)

Motor	Motorcode
2.8 VR6	35I\|174PS(128KW)
2.9 VR6 Syncro	3A5\|184PS(135KW)
2.8 VR6	3A5\|174PS(128KW)
2.9 VR6 Syncro	35I\|184PS(135KW)

Motor	Motorcode
2.9 VR6	53I\|190PS(140KW)

Motor	Motorcode
2.8 VR6 Syncro	7M9\|174PS(128KW)
2.8 VR6 Syncro	7M8\|174PS(128KW)
2.8 VR6	7M6\|174PS(128KW)
2.8 VR6 Syncro	7M6\|174PS(128KW)
2.8 VR6	7M8\|174PS(128KW)
2.8 VR6	7M9\|174PS(128KW)

Motor	Motorcode
2.8 VR6	35I\|174PS(128KW)
2.8 VR6	3A2\|174PS(128KW)

Motor	Motorcode
2.9 VR6 Syncro	1H5\|190PS(140KW)

Motor	Motorcode
2.8 VR6	1H2\|174PS(128KW)

Motor	Motorcode
2.8 VR6	1H1\|174PS(128KW)
2.9 VR6 Syncro	1H1\|190PS(140KW)

Motor	Motorcode
2.8 VR6	35I\|174PS(128KW)
2.9 VR6 Syncro	3A5\|184PS(135KW)
2.8 VR6	3A5\|174PS(128KW)
2.9 VR6 Syncro	35I\|184PS(135KW)

Motor	Motorcode
2.9 VR6	53I\|190PS(140KW)

Motor	Motorcode
2.8 VR6 Syncro	7M9\|174PS(128KW)
2.8 VR6 Syncro	7M8\|174PS(128KW)
2.8 VR6	7M6\|174PS(128KW)
2.8 VR6 Syncro	7M6\|174PS(128KW)
2.8 VR6	7M8\|174PS(128KW)
2.8 VR6	7M9\|174PS(128KW)

Motor	Motorcode
2.8 VR6	35I\|174PS(128KW)
2.8 VR6	3A2\|174PS(128KW)

Motor	Motorcode
2.9 VR6 Syncro	1H5\|190PS(140KW)

Motor	Motorcode
2.8 VR6	1H2\|174PS(128KW)
