Braided Steel Brake Line Fixation Brake Hose Bracket Bent Curved Rubber
- ✓ Bore 7mm
- ✓ 90° bent
- ✓ for welding/screwing
€7.50*
- Easy TÜ
- V registration
- Quality Made in Germany
- With parts certificate
- 2-year warranty

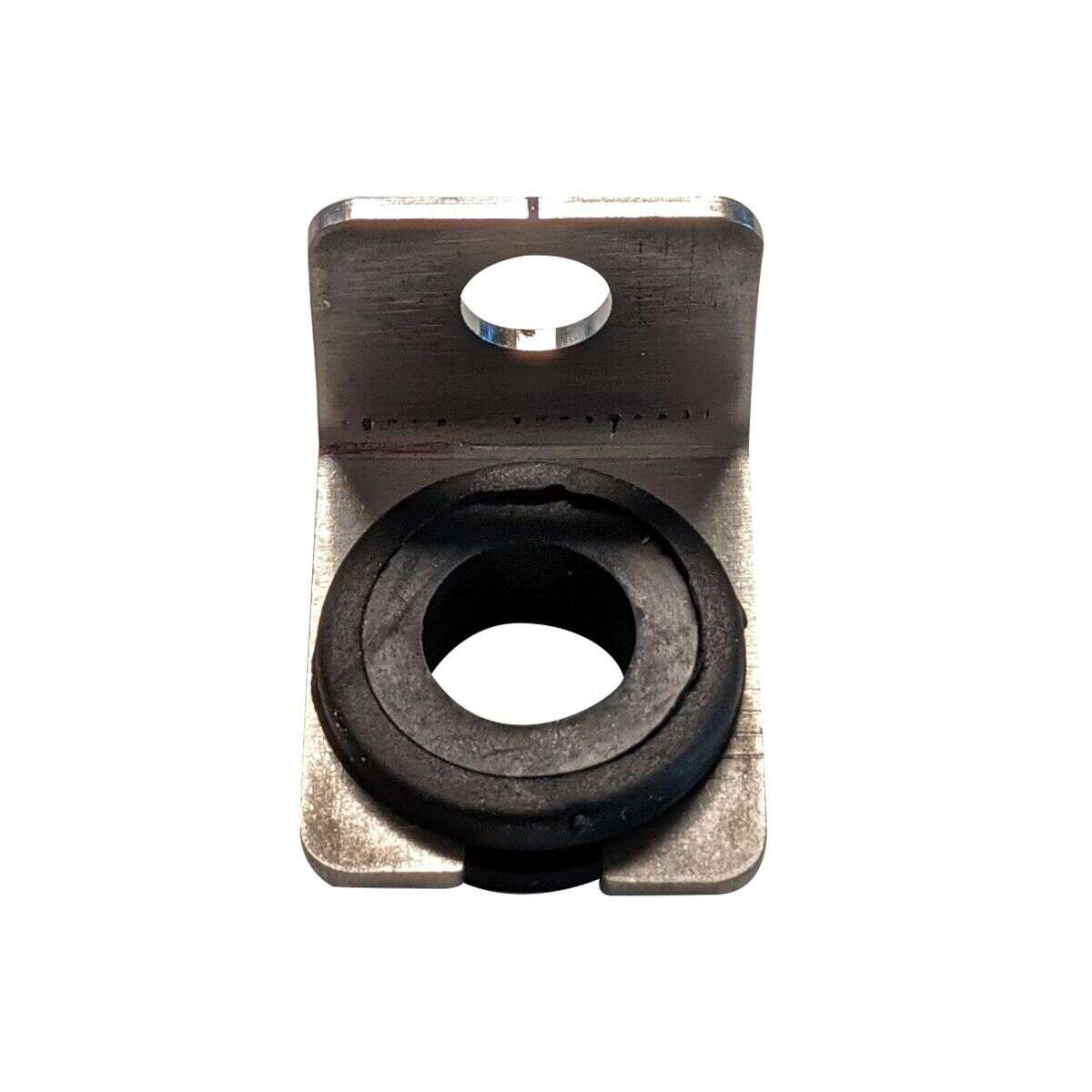

Bent curved mounting/fixation bracket with rubber for steel braided brake lines and brake hoses.
You can remove the rubber ring from the holder for subsequent installation of the brake line. Then cut open the rubber ring at the bottom and insert the brake line. Then fasten the rubber ring, including the brake line, back in the bracket.
The mounting/fixation brackets are made of steel and can be welded or screwed to all bodies because they are universally suitable.

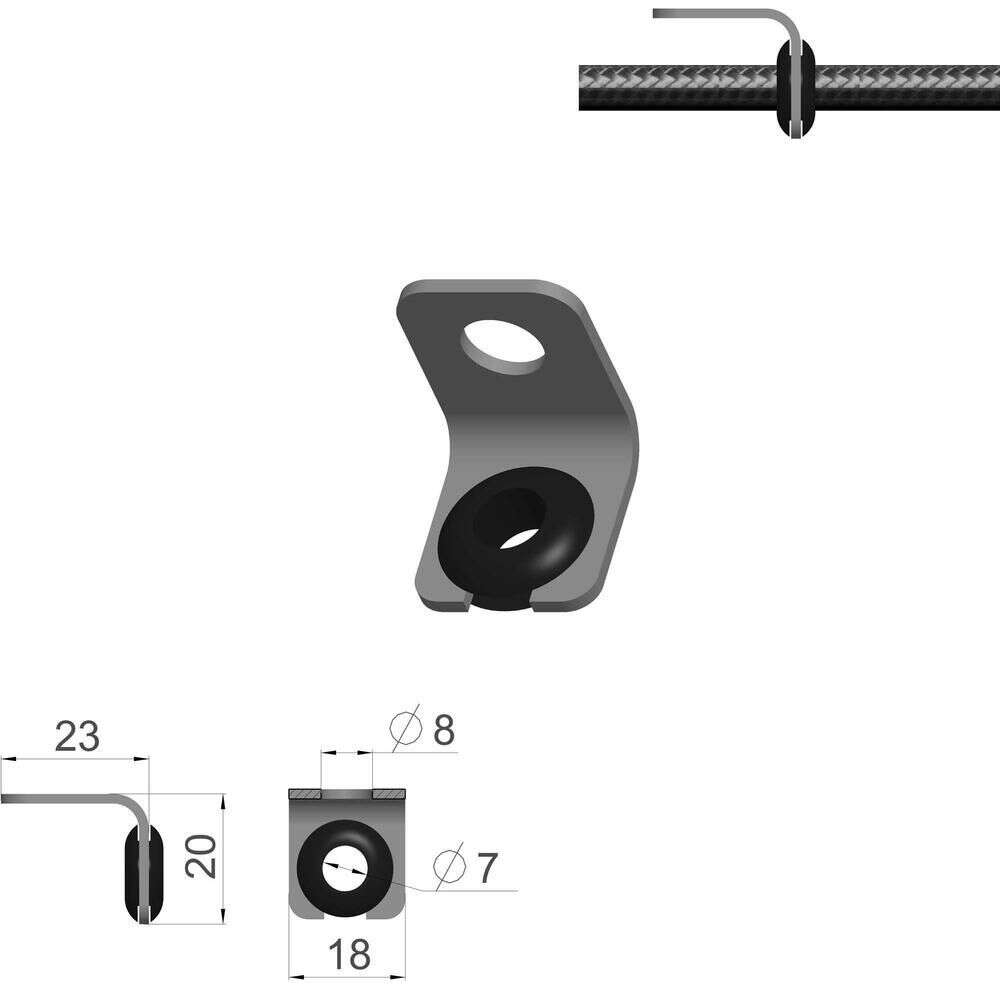

Technical data:
- top hole: 8mm
- bottom hole 7m
- bottom length: 20mm
- top length: 23mm
- width: 18mm
Delivery:
- 1x bent curved fixation for steel braided brake line with rubber
