VW Golf VW Polo 6r WRC 4 Derby Vento Seat Ibiza R32 S3 Brake Caliper Adapter Rear Brake Disc 280x22
- ✓ 280x22 1JO615301E VW Golf 4 / Audi A3 brake disc
- ✓ 1-piston 8N0615423C 8N0 615 424C VW1J0615425 VW Golf 4 / Audi A3 brake caliper
- ✓ rear axle
€147.23*
Average rating of 4.5 out of 5 stars
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

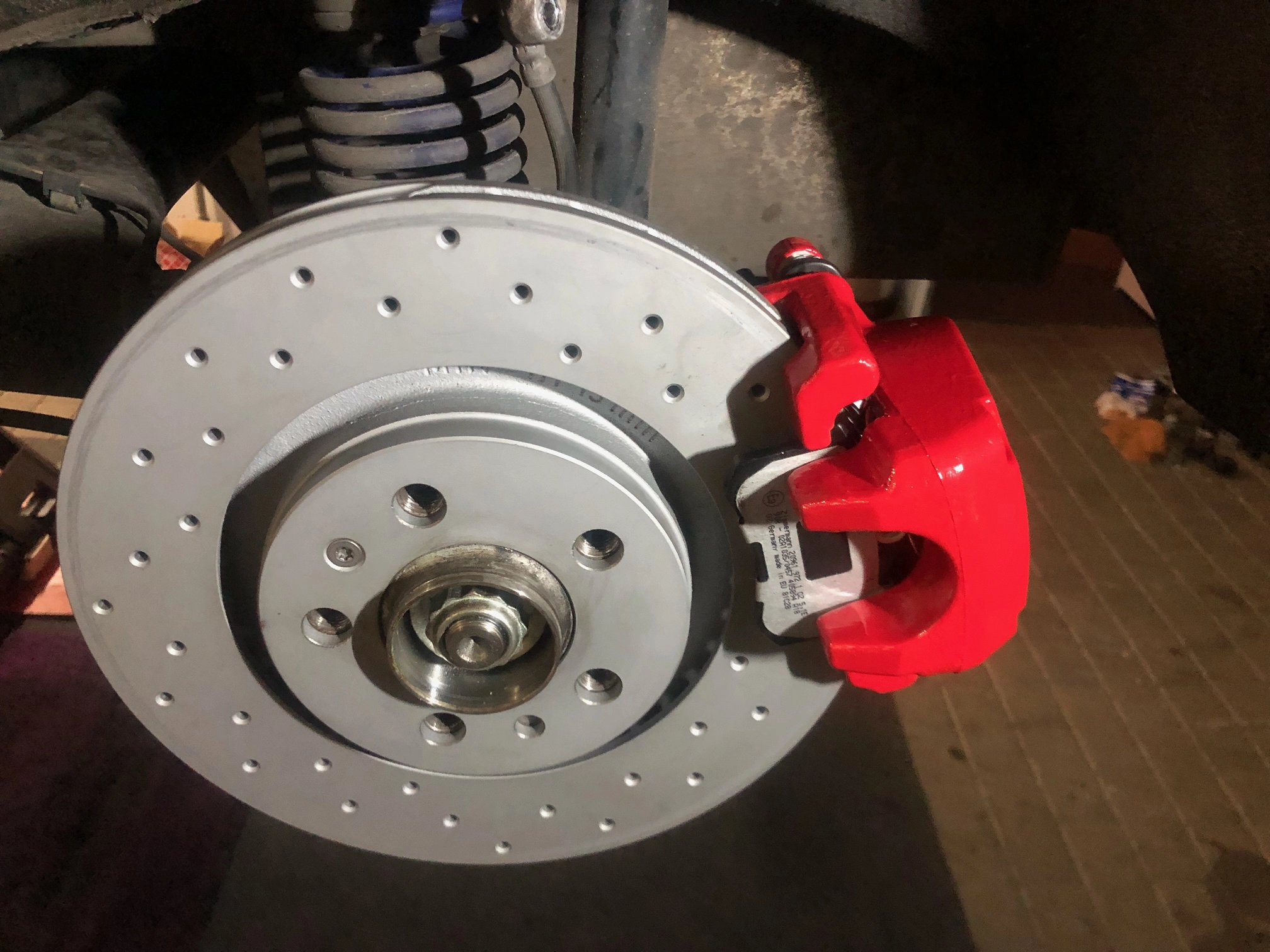

Brake caliper adapter for the rear axle on Golf 4 series for conversion to R32 / S3 brake calipers, combined with the 280mm Golf MK4 brake discs.
Suitable for the following vehicles ( front wheel drive):
- Audi A3 8L
- Audi A1
- Audi TT 8N
- Seat Leon
- Seat Toledo 1M2
- Skoda Octavia 1U
- VW Golf mk4
- VW Bora/Jetta mk4
- Polo 6R WRC
Advantages of this brake system:
- high deceleration
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake disc internally vented ,280x22 VW Golf 4 Audi A3 1,8 1,9TDI , reference: 1JO 615 301 E
- brake caliper, brake caliper support and brake pads from R32 / S3
Delivery:
- 2x brake caliper adapters for VW Golf 4, Audi A3 and others
- high-strength mounting screws (10.9)
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
7 of 7 reviews
Average rating of 4.5 out of 5 stars
4.57 out of 5 stars
Login
16 July 2021 07:38
Review with rating of 5 out of 5 stars
PETER F
Einfach nur top Material mit Sehr guter Paß Genauigkeit was Epytec Liefert. Bei fragen sehr schnelle Rückmeldungen bzw. Antwort.. Bei den Leuten und dem Service kauft man gern.
11 February 2022 19:06
Review with rating of 5 out of 5 stars
Ilhan U
Verarbeitet ist gut Vielleicht Links und Rechts Markieren Weitere Leute die diesen Adapter nicht kennen um Größere Bremsen zu montieren Also eine seiten Markierung währe schon Gute Produkte und Empfehlungen Ja ob es klappen würde Spitze
25 October 2023 09:36
Review with rating of 5 out of 5 stars
Julian H
Epytec ist mit Abstand der Marktführer in Hinsicht Adapter jeglicher Art. Passgenau/ sehr gute Verarbeitung / i-Seite übersichtlich und sehr gut beschrieben.
25 October 2023 13:11
Review with rating of 5 out of 5 stars
Julian H
Epytec ist mit Abstand der Marktführer in Hinsicht Adapter jeglicher Art. Passgenau/ sehr gute Verarbeitung / i-Seite übersichtlich und sehr gut beschrieben.
30 July 2021 06:34
Review with rating of 5 out of 5 stars
PETER F
Sehr zufrieden, 100% passgenau, auch das Zeam zwecks Fragen wieder sehr schnell geantwortet und sehr genau Aussagen getroffen. Immer wieder würde ich hier kaufen.
17 July 2022 17:21
Review with rating of 4 out of 5 stars
Markus K
Die Adapter machen einen hochwertigen Eindruck..langzeitkorrisionsbeständigkeit wird sich ja erst zeigen..leider ist die Oberflächenglätte nicht bei beiden gleich, bei einem sieht man deutlich die Spuren vom abdrehen..desweiteren wäre eine vollständige und bessere Einbauanleitung nicht schlecht, habe lange probiert und letztendlich Beispielbilderim Netz ergoogelt..habe mich für Epytec entschieden, weil ihr führend seid und die Bremsen auch eingetragen werden sollen
1 February 2022 11:29
Review with rating of 3 out of 5 stars
Nikolaus N
Hat leider nicht gepasst bei unserem Polo 6R. Halter war mit RE und LI graviert, montieren mussten wir leider verkehrt (Re-Li und Li-Re) und das leider auch aus erst nach ein paar Anpassungsarbeiten. Schrauben waren zu lang. Wäre super wenn bei euch auf der Website mehr informationen wären. z.B Montagefotos
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
-
Audi|A1|1.0 TFSI|8X1, 8XK
-
Audi|A1|1.2 TFSI|8X1, 8XK
-
Audi|A1|1.4 TDI|8X1, 8XK
-
Audi|A1|1.4 TFSI|8X1, 8XK
-
Audi|A1|1.4 TSI|8X1, 8XK
-
Audi|A1|1.6 TDI|8X1, 8XK
-
Audi|A1|1.8 TFSI|8X1, 8XK
-
Audi|A1|2.0 TDI|8X1, 8XK
-
Audi|A3|1.6|8L1
-
Audi|A3|1.8 T|8L1
-
Audi|A3|1.8|8L1
-
Audi|A3|1.9 TDI|8L1
-
Audi|TT Roadster|1.8 T|8N9
-
Audi|TT|1.8 T|8N3
-
Seat|Leon|1.4 16V|1M1
-
Seat|Leon|1.6|1M1
-
Seat|Leon|1.8 20V|1M1
-
Seat|Leon|1.8 T Cupra R|1M1
-
Seat|Leon|1.9 SDi|1M1
-
Seat|Leon|1.9 TDi|1M1
-
Seat|Leon|2.8 Cupra 4|1M1
-
Skoda|Roomster|1.2|5J
-
Skoda|Roomster|1.4 TDi|5J
-
Skoda|Roomster|1.9 TDi|5J
-
VW|Bora Variant|1.4 16V|1J6
-
VW|Bora Variant|1.6 16V|1J6
-
VW|Bora Variant|1.6 FSI|1J6
-
VW|Bora Variant|1.6|1J6
-
VW|Bora Variant|1.8 T|1J6
-
VW|Bora Variant|1.9 TDI|1J6
-
VW|Bora Variant|2.0|1J6
-
VW|Bora Variant|2.8 VR6|1J6
-
VW|Bora|1.4 16V|1J2
-
VW|Bora|1.6 16V|1J2
-
VW|Bora|1.6 FSI|1J2
-
VW|Bora|1.6|1J2
-
VW|Bora|1.8|1J2
-
VW|Bora|1.9 SDI|1J2
-
VW|Bora|1.9 TDI|1J2
-
VW|Bora|2.0|1J2
-
VW|Caddy 2 Großraumlimousine|1.4 16V|9K9B
-
VW|Caddy 2 Großraumlimousine|1.4|9K9B
-
VW|Caddy 2 Großraumlimousine|1.6|9K9B
-
VW|Caddy 2 Großraumlimousine|1.7 SDI|9K9B
-
VW|Caddy 2 Großraumlimousine|1.9 D|9K9B
-
VW|Caddy 2 Großraumlimousine|1.9 SDI|9K9B
-
VW|Caddy 2 Großraumlimousine|1.9 TDI|9K9B
-
VW|Caddy 2 Kasten/Großraumlimousine|1.4|9K9A
-
VW|Caddy 2 Kasten/Großraumlimousine|1.6|9K9A
-
VW|Caddy 2 Kasten/Großraumlimousine|1.7 SDI|9K9A
-
VW|Caddy 2 Kasten/Großraumlimousine|1.9 D|9K9A
-
VW|Caddy 2 Kasten/Großraumlimousine|1.9 SDI|9K9A
-
VW|Caddy 2 Kasten/Großraumlimousine|1.9 TDI|9K9A
-
VW|Caddy 2 Kasten/Großraumlimousine|60 1.4|9K9A
-
VW|Caddy 2 Kasten/Großraumlimousine|75 1.6|9K9A
-
VW|Caddy 2 Pick-up|1.6|9U7
-
VW|Caddy 2 Pick-up|1.9 D|9U7
-
VW|Golf 4 Variant|1.4 16V|1J5
-
VW|Golf 4 Variant|1.6 16V|1J5
-
VW|Golf 4 Variant|1.6 FSI|1J5
-
VW|Golf 4 Variant|1.6|1J5
-
VW|Golf 4 Variant|1.9 SDI|1J5
-
VW|Golf 4 Variant|1.9 TDI|1J5
-
VW|Golf 4 Variant|2.0 Bi-Fuel|1J5
-
VW|Golf 4 Variant|2.0|1J5
-
VW|Golf 4|1.4 16V|1J1
-
VW|Golf 4|1.6 16V|1J1
-
VW|Golf 4|1.6 FSI|1J1
-
VW|Golf 4|1.6|1J1
-
VW|Golf 4|1.8|1J1
-
VW|Golf 4|1.9 SDI|1J1
-
VW|Golf 4|1.9 TDI|1J1
-
VW|Golf 4|2.0|1J1
-
VW|New Beetle Cabriolet|1.4|1Y7
-
VW|New Beetle Cabriolet|1.6|1Y7
-
VW|New Beetle Cabriolet|1.8 T|1Y7
-
VW|New Beetle Cabriolet|1.9 TDI|1Y7
-
VW|New Beetle Cabriolet|2.0|1Y7
-
VW|New Beetle Cabriolet|2.5|1Y7
-
VW|New Beetle|1.4|1C1, 9C1
-
VW|New Beetle|1.6|1C1, 9C1
-
VW|New Beetle|1.8 T|1C1, 9C1
-
VW|New Beetle|1.9 TDI|1C1, 9C1
-
VW|New Beetle|2.0|1C1, 9C1
-
VW|New Beetle|2.3 V5|1C1, 9C1
-
VW|New Beetle|2.5|1C1, 9C1
-
VW|Polo|2.0 R WRC|6C1, 6R1
