Stahlflex Bremsleitung Audi A1 A2 Seat Cordoba Ibiza 3 4 Skoda Fabia 1 2 3 VW Polo 4 5 WRC Bremsen Umbau
€103.43*
Available
Product number:
SF140
Delivery by Thursday, 26.02.2026 if you order within the next 12 Hours.
Product number:
SF140
Connection 1:
M10x1 Innengewinde
Connection 2:
M10x1 Aussengewinde
Manufacturer:
Epytec
length:
63
Längere Stahlflex Bremsleitung mit Teilegutachten für den Umbau auf größere Bremsanlagen z.B. Brembo 4-6 oder 8 Kolben Bremssättel.
Für die Hinterachse von folgenden Modellen passend:
- Audi A1
- Audi A2
- Seat Cordoba
- Seat Ibiza 3 und 4
- Skoda Fabia 1, 2 und 3
- VW Polo 4
- VW Polo 5
- VW Polo WRC
Vorteile gegenüber Original Bremsleitungen:
- kein Druckverlust bei Bremsbetätigung, dadurch spürbar exakter Druckpunkt
- einfache Montage, die Originalleitung wird einfach durch die Stahlflexleitung ersetzt
- kein Aufquellen wie bei Gummileitungen
- Kostenersparnis, da Stahlflexleitungen nahezu unbegrenzt haltbar sind und nicht alle 3-5 Jahre ausgetauscht werden müssen
- kürzerer Bremsweg
- Mardersicherheit
- inkl. Teilegutachten zur problemlosen Eintragung
- klasse Optik
Technische Daten:
- Länge: 54 cm

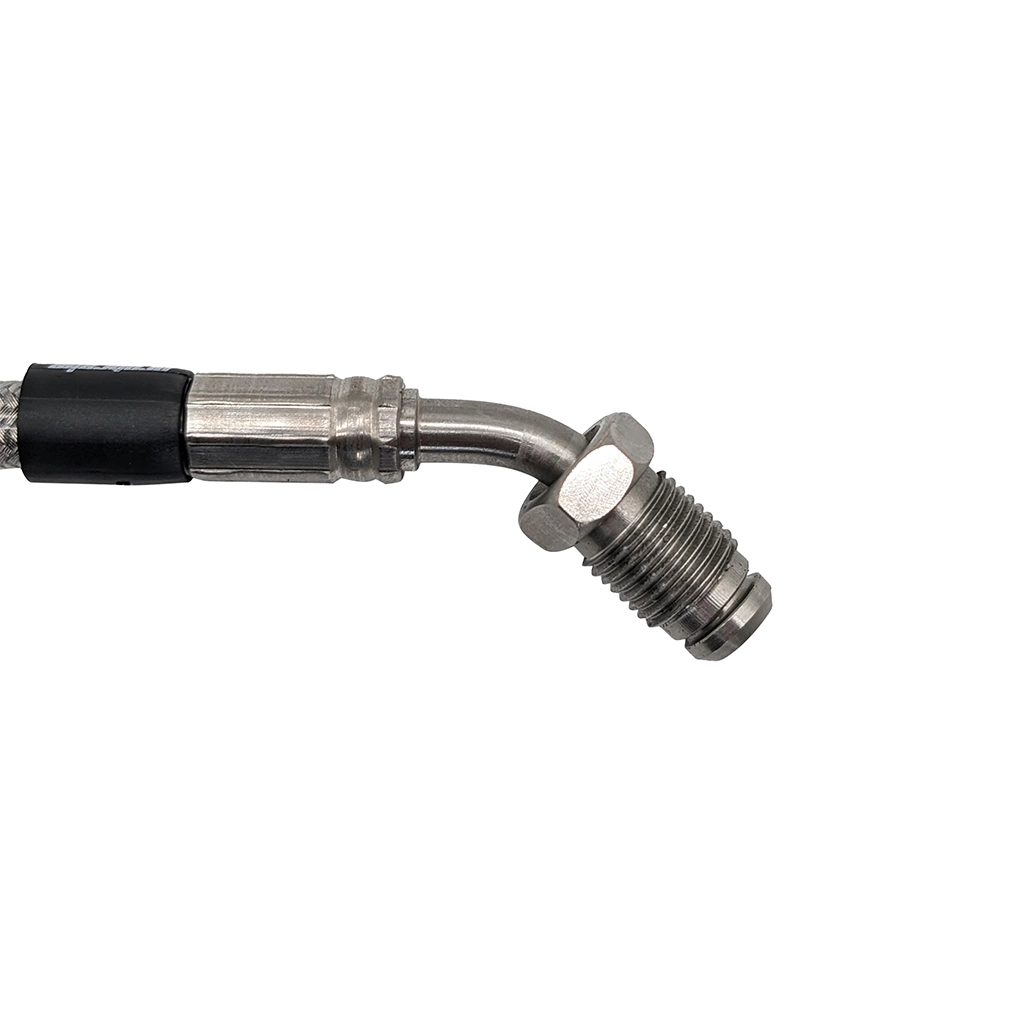

- Anschluss 1 M10x1 Außengewinde gebogen 45°
- Anschluss 2 M10x1 Außengewinde gebogen 45°
- Bördelung 90° unsere Fittinge sind sogenannte Zwitter, dass bedeutet, jeder Anschluss passt egal ob konkav und konvex
Lieferumfang:

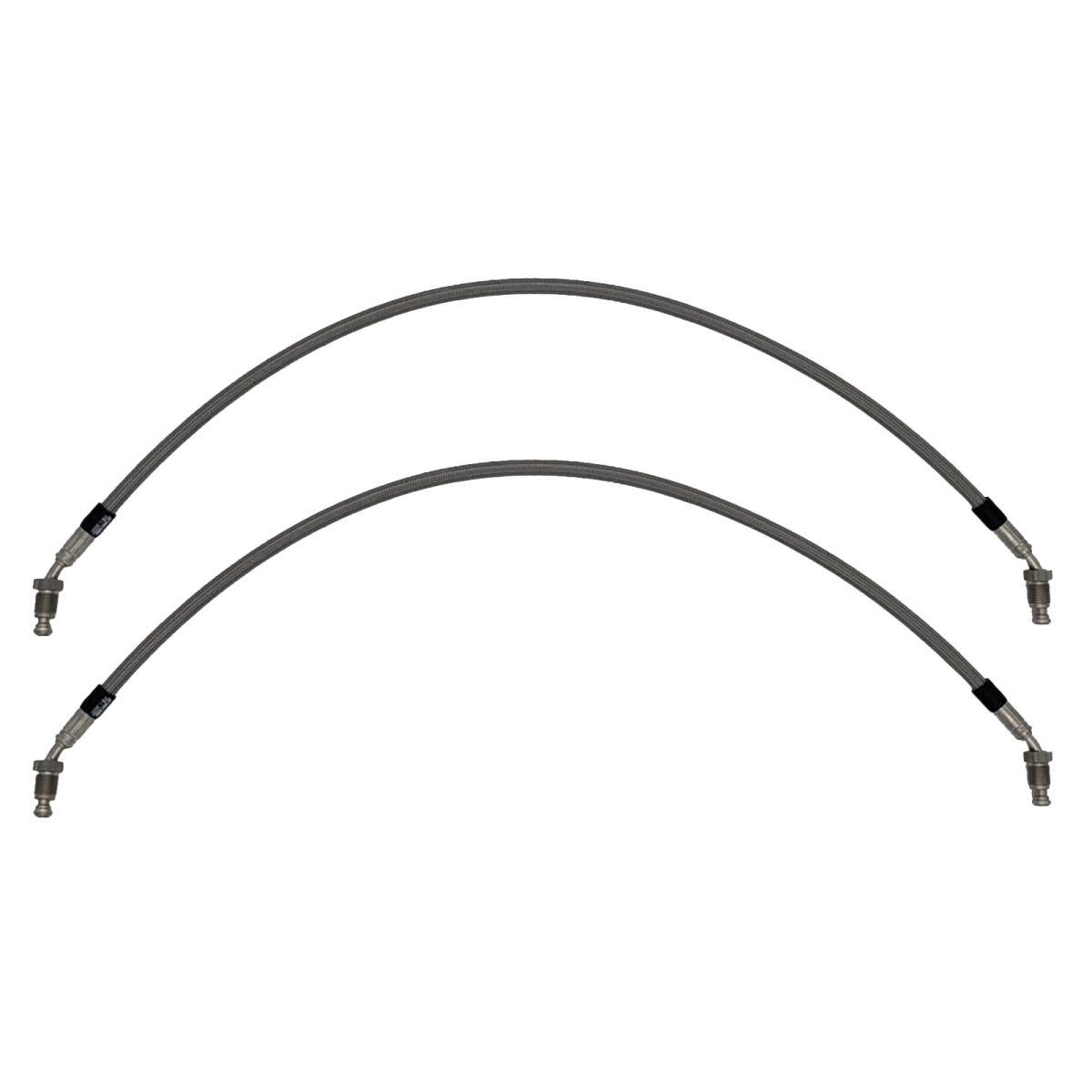

- 2x Stahlflex Bremsleitungen für Audi A1, A2, Seat Cordoba, Ibiza 3, 4, Skoda Fabia 1, 2, 3, VW Polo 4, 5. WRC. usw...
- inkl. Teilegutachten zur problemlosen Eintragung
Wir fertigen auch nach Wunschmaß. Mit unserem Stahlflexleitungenkonfigurator (hier klicken), kannst du dir deine Stahlflexbremsleitung, nach deinen Wünschen konfigurieren. (Länge, Farbe und Anschlüsse)
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Connection 1:
M10x1 Innengewinde
Connection 2:
M10x1 Aussengewinde
Manufacturer:
Epytec
length:
63
Connection 1:
M10x1 Innengewinde
Connection 2:
M10x1 Aussengewinde
Manufacturer:
Epytec
length:
63
Login
or Register with...
- Does the steel braided line also fit other vehicles?
Yes – basically the braided steel line can also fit many other vehicles if the connection data matches. In practice, many manufacturers use very similar thread sizes for brake line fittings, so using them across different models is often possible.
What really matters
To ensure the line fits securely and tightly, you need to match three main points:
Thread size / connection
The key factor is what thread your vehicle has at the connection points (e.g., at the fixed line connection or brake caliper).
This thread size must match the fittings of the line.
Sealing surface (concave or convex)
Often, the problem is not the thread, but the sealing shape on the counterpart:
concave (valley) or
convex (hill)
Our fittings are so-called “hybrid” connections. This means: Each connection is designed to reliably seal with both concave and convex sealing surfaces. This makes the line significantly more versatile.
Length and routing
You need to determine the required length suitable for your vehicle (ideally as described above: fully extend, simulate routing, check steering).
Only if the line is long enough and can be routed cleanly is it truly suitable.
How to quickly check if it fits
Determine the thread size on the vehicle (and compare it with the data of the line)
Measure the line length
Check the technical data in the product description – there you will find all the details about the line and the connections.
- Two lens gaskets were supplied with the Steelflex lines. Where exactly are these installed?
The 2 lens seals are not automatically always installed, but only when they are needed to compensate for the sealing cone on the respective counterpart. Background: Depending on the vehicle/connection, there are different flaring or sealing shapes – and that's exactly why the lenses are always provided as a precaution.
What are the lens seals for?
They serve as a compensating piece when the cone on the connection (counterpart) does not perfectly match the steel braided hose. This ensures that the connection seals cleanly.
Where are they used?
If needed, the lens seals are placed directly into the connection with internal thread – that is, into the “female” fitting on the vehicle/distributor/brake caliper, before you screw in the hose.
The hose presses the lens into its seat when tightened, thus creating the seal.When do you need them – and when not?
F flare (DIN/ISO cone, usually fits):
→ Lens seals are not needed.
The hose usually seals directly over the matching cone here.E flare:
→ Lens seals must be used.
Simply place it into the internal thread, then screw in the hose and tighten as usual.
Installation note
The installation direction does not matter – you can install the lens either way, it makes no difference.
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 9A|70PS(51KW) |
| 1.9 SDI | 9A|64PS(47KW) |
| 1.4 TDI | 9A|80PS(59KW) |
| 1.2 | 9A|54PS(40KW) |
| 1.6 16V | 9N|105PS(77KW) |
| 1.4 16V | 9A|101PS(74KW) |
| 1.4 16V | 9A|80PS(59KW) |
| 1.6 16V | 9A|105PS(77KW) |
| 1.8 GTI Cup Edition | 9N|180PS(132KW) |
| 1.9 TDI | 9N|101PS(74KW) |
| 1.2 12V | 9N|69PS(51KW) |
| 1.9 TDI | 9N|130PS(96KW) |
| 1.2 12V | 9A|64PS(47KW) |
| 1.4 TDI | 9N|70PS(51KW) |
| 1.2 12V | 9N|64PS(47KW) |
| 1.9 TDI | 9A|101PS(74KW) |
| 1.4 16V | 9N|75PS(55KW) |
| 1.4 TDI | 9N|75PS(55KW) |
| 1.8 GTI | 9A|150PS(110KW) |
| 1.4 TDI | 9A|75PS(55KW) |
| 1.4 FSI | 9A|86PS(63KW) |
| 1.8 GTI | 9N|150PS(110KW) |
| 1.9 SDI | 9N|64PS(47KW) |
| 1.8 GTI Cup Edition | 9A|180PS(132KW) |
| 1.2 | 9N|54PS(40KW) |
| 2.0 R WRC | 6C1|220PS(162KW) |
| 1.4 FSI | 9N|86PS(63KW) |
| 2.0 R WRC | 6R1|220PS(162KW) |
| 1.2 | 9N|60PS(44KW) |
| 1.9 TDI | 9A|130PS(96KW) |
| 1.4 16V | 9N|101PS(74KW) |
| 1.2 12V | 9A|69PS(51KW) |
| 1.4 16V | 9N|80PS(59KW) |
| 1.4 16V | 9A|75PS(55KW) |
| 1.4 TDI | 9N|80PS(59KW) |
| 1.2 | 9A|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | 121|75PS(55KW) |
| e-Up | 123|82PS(60KW) |
| 1.0 TSI | BL2|90PS(66KW) |
| 1.0 | BL3|75PS(55KW) |
| 1.0 | BL1|75PS(55KW) |
| 1.0 GTI | 123|115PS(85KW) |
| 1.0 GTI | BL2|115PS(85KW) |
| e-Up | BL3|82PS(60KW) |
| e-Up | BL1|82PS(60KW) |
| 1.0 GTI | BL3|115PS(85KW) |
| 1.0 | BL2|75PS(55KW) |
| 1.0 EcoFuel | BL3|68PS(50KW) |
| e-Up | BL2|82PS(60KW) |
| 1.0 EcoFuel | BL2|68PS(50KW) |
| 1.0 | 122|75PS(55KW) |
| 1.0 EcoFuel | 122|68PS(50KW) |
| 1.0 TSI | 122|90PS(66KW) |
| 1.0 | 122|60PS(44KW) |
| e-Up | 122|82PS(60KW) |
| 1.0 EcoFuel | BL1|68PS(50KW) |
| e-Up | 121|82PS(60KW) |
| 1.0 | BL2|60PS(44KW) |
| 1.0 TSI | 121|90PS(66KW) |
| 1.0 | 123|75PS(55KW) |
| 1.0 | 121|60PS(44KW) |
| 1.0 | BL1|60PS(44KW) |
| 1.0 EcoFuel | 121|68PS(50KW) |
| 1.0 EcoFuel | 123|68PS(50KW) |
| 1.0 | 123|60PS(44KW) |
| 1.0 TSI | BL3|90PS(66KW) |
| 1.0 GTI | 121|115PS(85KW) |
| 1.0 | BL3|60PS(44KW) |
| 1.0 TSI | 123|90PS(66KW) |
| 1.0 TSI | BL1|90PS(66KW) |
| 1.0 GTI | 122|115PS(85KW) |
| 1.0 GTI | BL1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 9N2|75PS(55KW) |
| 1.9 SDI | 9N2|64PS(47KW) |
| 1.4 | 9A6|75PS(55KW) |
| 1.4 TDI | 9A6|75PS(55KW) |
| 1.4 TDI | 9A4|75PS(55KW) |
| 1.9 SDI | 9A6|64PS(47KW) |
| 1.9 SDI | 9A4|64PS(47KW) |
| 1.4 | 9A2|101PS(74KW) |
| 1.9 SDI | 9A2|64PS(47KW) |
| 1.4 | 9A4|101PS(74KW) |
| 1.4 TDI | 9N2|75PS(55KW) |
| 1.4 | 9A6|101PS(74KW) |
| 1.4 | 9A4|75PS(55KW) |
| 1.4 | 9N2|101PS(74KW) |
| 1.4 TDI | 9A2|75PS(55KW) |
| 1.4 | 9A2|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 5Z3|70PS(51KW) |
| 1.2 | 5Z3|55PS(40KW) |
| 1.2 | 5Z3|60PS(44KW) |
| 1.4 TDI | 5Z4|70PS(51KW) |
| 1.4 | 5Z4|75PS(55KW) |
| 1.4 TDI | 5Z1|70PS(51KW) |
| 1.2 | 5Z4|55PS(40KW) |
| 1.4 | 5Z3|75PS(55KW) |
| 1.2 | 5Z4|60PS(44KW) |
| 1.2 | 5Z1|55PS(40KW) |
| 1.4 | 5Z1|75PS(55KW) |
| 1.2 | 5Z1|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| e-Load Up | 121|82PS(60KW) |
| e-Load Up | BL2|82PS(60KW) |
| 1.0 EcoFuel | BL2|68PS(50KW) |
| e-Load Up | BL1|82PS(60KW) |
| 1.0 EcoFuel | 121|68PS(50KW) |
| 1.0 EcoFuel | 122|68PS(50KW) |
| 1.0 EcoFuel | BL1|68PS(50KW) |
| e-Load Up | 122|82PS(60KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | 6R|60PS(44KW) |
| 1.2 | 6R|60PS(44KW) |
| 1.0 TSI | 6R|95PS(70KW) |
| 1.4 TSI | 6R|150PS(110KW) |
| 1.4 | 6R|86PS(63KW) |
| 1.0 TSI | 6R|110PS(81KW) |
| 1.0 | 6R|75PS(55KW) |
| 1.4 TDI | 6R|90PS(66KW) |
| 1.2 TSI | 6R|110PS(81KW) |
| 1.4 TDI | 6R|75PS(55KW) |
| 1.4 TDI | 6R|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 542|86PS(63KW) |
| 1.6 TDI | 542|75PS(55KW) |
| 1.4 TDI | 542|80PS(59KW) |
| 1.2 TSI | 542|105PS(77KW) |
| 1.2 12V | 542|60PS(44KW) |
| 1.6 TDI | 542|90PS(66KW) |
| 1.6 | 542|105PS(77KW) |
| 1.2 | 542|70PS(51KW) |
| 1.2 | 542|60PS(44KW) |
| 1.2 TSI | 542|86PS(63KW) |
| 1.4 TSI RS | 542|180PS(132KW) |
| 1.6 TDI | 542|105PS(77KW) |
| 1.2 TDI | 542|75PS(55KW) |
| 1.9 TDI | 542|105PS(77KW) |
| 1.4 TDI | 542|70PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 6Y5|75PS(55KW) |
| 1.9 SDi | 6Y5|64PS(47KW) |
| 2.0 | 6Y5|116PS(85KW) |
| 1.2 | 6Y5|64PS(47KW) |
| 1.4 | 6Y5|68PS(50KW) |
| 1.2 | 6Y5|54PS(40KW) |
| 1.4 TDI | 6Y5|70PS(51KW) |
| 1.4 16V | 6Y5|100PS(74KW) |
| 1.9 TDI | 6Y5|100PS(74KW) |
| 1.4 | 6Y5|60PS(44KW) |
| 1.4 16V | 6Y5|75PS(55KW) |
| 1.4 TDI | 6Y5|80PS(59KW) |
| 1.4 16V | 6Y5|80PS(59KW) |
| Motor | Motorcode |
|---|---|
| 1.4 16V | 6Y2|75PS(55KW) |
| 1.9 TDI | 6Y2|100PS(74KW) |
| 2.0 | 6Y2|116PS(85KW) |
| 1.2 | 6Y2|54PS(40KW) |
| 1.4 TDI | 6Y2|70PS(51KW) |
| 1.4 | 6Y2|60PS(44KW) |
| 1.9 TDI RS | 6Y2|130PS(96KW) |
| 1.2 | 6Y2|64PS(47KW) |
| 1.0 | 6Y2|50PS(37KW) |
| 1.4 16V | 6Y2|100PS(74KW) |
| 1.9 SDi | 6Y2|64PS(47KW) |
| 1.4 | 6Y2|68PS(50KW) |
| 1.4 TDI | 6Y2|75PS(55KW) |
| 1.4 TDI | 6Y2|80PS(59KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 6Y5|68PS(50KW) |
| 1.9 SDi | 6Y5|64PS(47KW) |
| 1.2 | 6Y5|64PS(47KW) |
| 1.4 TDI | 6Y5|70PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI RS | 545|180PS(132KW) |
| 1.4 LPG | 545|86PS(63KW) |
| 1.9 TDI | 545|105PS(77KW) |
| 1.2 TSI | 545|86PS(63KW) |
| 1.4 | 545|86PS(63KW) |
| 1.6 TDI | 545|75PS(55KW) |
| 1.4 TDI | 545|70PS(51KW) |
| 1.2 TDI | 545|75PS(55KW) |
| 1.6 | 545|105PS(77KW) |
| 1.2 TSI | 545|105PS(77KW) |
| 1.2 | 545|60PS(44KW) |
| 1.4 TDI | 545|80PS(59KW) |
| 1.2 | 545|70PS(51KW) |
| 1.6 TDI | 545|105PS(77KW) |
| 1.6 TDI | 545|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | NJ5|75PS(55KW) |
| 1.2 TSI | NJ5|110PS(81KW) |
| 1.0 TSI | NJ5|95PS(70KW) |
| 1.4 TDI | NJ5|90PS(66KW) |
| 1.0 TSI | NJ5|110PS(81KW) |
| 1.0 | NJ5|75PS(55KW) |
| 1.0 | NJ5|60PS(44KW) |
| 1.2 TSI | NJ5|90PS(66KW) |
| 1.4 TDI | NJ5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | NJ3|90PS(66KW) |
| 1.2 TSI | NJ3|90PS(66KW) |
| 1.0 | NJ3|75PS(55KW) |
| 1.0 | NJ3|60PS(44KW) |
| 1.4 TDI | NJ3|105PS(77KW) |
| 1.2 TSI | NJ3|110PS(81KW) |
| 1.4 TDI | NJ3|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 6Y3|60PS(44KW) |
| 1.4 TDI | 6Y3|70PS(51KW) |
| 1.4 16V | 6Y3|100PS(74KW) |
| 1.9 TDI | 6Y3|100PS(74KW) |
| 1.4 16V | 6Y3|80PS(59KW) |
| 1.2 | 6Y3|54PS(40KW) |
| 1.4 16V | 6Y3|75PS(55KW) |
| 1.4 TDI | 6Y3|75PS(55KW) |
| 1.2 | 6Y3|64PS(47KW) |
| 2.0 | 6Y3|116PS(85KW) |
| 1.4 | 6Y3|68PS(50KW) |
| 1.4 TDI | 6Y3|80PS(59KW) |
| 1.9 SDi | 6Y3|64PS(47KW) |
| Motor | Motorcode |
|---|---|
| 1.0 CNG | NF1|68PS(50KW) |
| 1.0 | NF1|60PS(44KW) |
| 1.0 | NF1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDi | 6J1|105PS(77KW) |
| 1.6 TDi | 6P5|90PS(66KW) |
| 1.4 TDi | 6P5|90PS(66KW) |
| 1.2 TDi | 6J1|75PS(55KW) |
| 1.9 TDi | 6J1|90PS(66KW) |
| 1.4 TDi | 6P5|105PS(77KW) |
| 1.2 TSi | 6J1|105PS(77KW) |
| 2.0 TDi | 6P5|143PS(105KW) |
| 1.2 | 6J1|60PS(44KW) |
| 1.0 TSi | 6J1|110PS(81KW) |
| 1.6 | 6P5|105PS(77KW) |
| 1.4 TDi | 6J1|105PS(77KW) |
| 1.0 TSi | 6P5|95PS(70KW) |
| 1.4 TDi | 6P5|80PS(59KW) |
| 1.4 TSi | 6P5|150PS(110KW) |
| 1.4 TDi | 6P5|75PS(55KW) |
| 1.4 TSi Cupra | 6J1|180PS(132KW) |
| 1.6 TDi | 6P5|105PS(77KW) |
| 1.4 TDi | 6J1|80PS(59KW) |
| 1.4 TSi Cupra | 6P5|180PS(132KW) |
| 1.2 TSi | 6P5|90PS(66KW) |
| 1.0 | 6J1|75PS(55KW) |
| 1.4 TDi | 6J1|75PS(55KW) |
| 1.2 TSi | 6P5|110PS(81KW) |
| 1.4 | 6J1|85PS(63KW) |
| 1.6 | 6J1|105PS(77KW) |
| 1.9 TDi | 6P5|90PS(66KW) |
| 1.2 TSi | 6J1|86PS(63KW) |
| 1.4 TDi | 6J1|90PS(66KW) |
| 1.4 TSi | 6P5|140PS(103KW) |
| 1.2 TSi | 6J1|90PS(66KW) |
| 1.6 TDi | 6J1|105PS(77KW) |
| 1.0 TSi | 6J1|95PS(70KW) |
| 1.2 | 6P5|70PS(51KW) |
| 1.0 TSi | 6P5|110PS(81KW) |
| 1.8 TSi Cupra | 6P5|192PS(141KW) |
| 1.4 TSi | 6J1|140PS(103KW) |
| 1.2 TSi | 6P5|105PS(77KW) |
| 1.8 TSi Cupra | 6J1|192PS(141KW) |
| 1.6 LPG | 6J1|81PS(60KW) |
| 1.9 TDi | 6P5|105PS(77KW) |
| 1.2 TDi | 6P5|75PS(55KW) |
| 1.4 | 6P5|85PS(63KW) |
| 1.2 TSi | 6P5|86PS(63KW) |
| 2.0 TDi | 6J1|143PS(105KW) |
| 1.2 | 6J1|70PS(51KW) |
| 1.0 | 6P5|75PS(55KW) |
| 1.6 TDi | 6J1|90PS(66KW) |
| 1.6 LPG | 6P5|81PS(60KW) |
| 1.2 TSi | 6J1|110PS(81KW) |
| 1.2 | 6P5|60PS(44KW) |
| 1.4 TSi | 6J1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.2 | 6L2|64PS(47KW) |
| 1.4 16V | 6L2|100PS(74KW) |
| 1.4 TDi | 6L2|70PS(51KW) |
| 1.9 TDi | 6L2|131PS(96KW) |
| 1.9 TDi | 6L2|100PS(74KW) |
| 1.4 16V | 6L2|86PS(63KW) |
| 2.0 | 6L2|115PS(85KW) |
| 1.4 TDi | 6L2|75PS(55KW) |
| 1.9 SDi | 6L2|64PS(47KW) |
| 1.6 16V | 6L2|105PS(77KW) |
| 1.2 12V | 6L2|70PS(51KW) |
| 1.4 TDi | 6L2|80PS(59KW) |
| 1.4 16V | 6L2|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 6J8|105PS(77KW) |
| 1.4 TDi | 6P8|90PS(66KW) |
| 1.2 TSi | 6P8|110PS(81KW) |
| 1.6 TDi | 6P8|105PS(77KW) |
| 1.6 | 6P8|105PS(77KW) |
| 1.0 TSi | 6P8|95PS(70KW) |
| 1.4 TDi | 6J8|75PS(55KW) |
| 1.0 TSi | 6J8|95PS(70KW) |
| 1.4 TSi | 6J8|140PS(103KW) |
| 1.6 TDi | 6P8|90PS(66KW) |
| 1.2 | 6J8|60PS(44KW) |
| 1.4 TSi | 6J8|150PS(110KW) |
| 1.6 TDi | 6J8|105PS(77KW) |
| 1.2 TSi | 6J8|86PS(63KW) |
| 1.4 TDi | 6J8|90PS(66KW) |
| 1.0 TSi | 6P8|110PS(81KW) |
| 1.4 TSi | 6P8|150PS(110KW) |
| 1.2 TDi | 6P8|75PS(55KW) |
| 1.0 | 6P8|75PS(55KW) |
| 1.2 TSi | 6J8|90PS(66KW) |
| 1.4 TDi | 6P8|75PS(55KW) |
| 1.4 TSi | 6P8|140PS(103KW) |
| 1.4 TDi | 6J8|105PS(77KW) |
| 1.4 | 6P8|85PS(63KW) |
| 1.2 TDi | 6J8|75PS(55KW) |
| 1.4 TDi | 6P8|105PS(77KW) |
| 1.6 TDi | 6J8|90PS(66KW) |
| 1.2 | 6J8|70PS(51KW) |
| 1.2 TSi | 6P8|86PS(63KW) |
| 1.2 | 6P8|60PS(44KW) |
| 1.0 TSi | 6J8|110PS(81KW) |
| 1.2 TSi | 6P8|90PS(66KW) |
| 1.2 TSi | 6J8|105PS(77KW) |
| 1.0 | 6J8|75PS(55KW) |
| 1.2 TSi | 6J8|110PS(81KW) |
| 1.4 | 6J8|85PS(63KW) |
| 1.2 | 6P8|70PS(51KW) |
| 1.2 TSi | 6P8|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.6 LPG | 6P1|81PS(60KW) |
| 1.2 TDi | 6J5|75PS(55KW) |
| 1.2 TSi | 6P1|105PS(77KW) |
| 1.9 TDi | 6P1|90PS(66KW) |
| 1.2 TSi | 6P1|90PS(66KW) |
| 1.4 TSi | 6J5|150PS(110KW) |
| 1.0 TSi | 6J5|110PS(81KW) |
| 1.2 TSi | 6J5|110PS(81KW) |
| 1.4 TSi | 6P1|150PS(110KW) |
| 1.9 TDi | 6P1|105PS(77KW) |
| 1.0 | 6P1|75PS(55KW) |
| 1.4 | 6P1|85PS(63KW) |
| 1.6 TDi | 6P1|105PS(77KW) |
| 1.4 TDi | 6P1|105PS(77KW) |
| 1.6 | 6J5|105PS(77KW) |
| 1.2 | 6J5|70PS(51KW) |
| 1.0 | 6J5|75PS(55KW) |
| 1.2 | 6P1|60PS(44KW) |
| 1.2 | 6J5|60PS(44KW) |
| 1.4 TDi | 6J5|90PS(66KW) |
| 1.9 TDi | 6J5|90PS(66KW) |
| 1.4 TDi | 6J5|80PS(59KW) |
| 1.6 TDi | 6P1|90PS(66KW) |
| 1.4 TSi | 6J5|140PS(103KW) |
| 1.6 LPG | 6J5|81PS(60KW) |
| 1.6 | 6P1|105PS(77KW) |
| 1.2 TSi | 6J5|105PS(77KW) |
| 1.4 TDi | 6J5|105PS(77KW) |
| 2.0 TDi | 6P1|143PS(105KW) |
| 1.0 TSi | 6P1|95PS(70KW) |
| 1.6 TDi | 6J5|105PS(77KW) |
| 1.2 TSi | 6P1|86PS(63KW) |
| 1.2 | 6P1|70PS(51KW) |
| 1.2 TSi | 6J5|90PS(66KW) |
| 1.4 TDi | 6P1|80PS(59KW) |
| 1.4 TDi | 6J5|75PS(55KW) |
| 1.4 | 6J5|85PS(63KW) |
| 1.4 TDi | 6P1|90PS(66KW) |
| 1.9 TDi | 6J5|105PS(77KW) |
| 1.2 TSi | 6P1|110PS(81KW) |
| 1.4 TDi | 6P1|75PS(55KW) |
| 1.4 TSi | 6P1|140PS(103KW) |
| 1.2 TSi | 6J5|86PS(63KW) |
| 2.0 TDi | 6J5|143PS(105KW) |
| 1.0 TSi | 6P1|110PS(81KW) |
| 1.0 TSi | 6J5|95PS(70KW) |
| 1.2 TDi | 6P1|75PS(55KW) |
| 1.6 TDi | 6J5|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.6 16V | 6L1|105PS(77KW) |
| 1.4 16V | 6L1|86PS(63KW) |
| 1.9 TDi | 6L1|131PS(96KW) |
| 1.4 16V | 6L1|75PS(55KW) |
| 1.9 TDi Cupra R | 6L1|160PS(118KW) |
| 1.8 T Cupra R | 6L1|180PS(132KW) |
| 1.4 TDi | 6L1|70PS(51KW) |
| 1.9 SDi | 6L1|64PS(47KW) |
| 1.4 TDi | 6L1|80PS(59KW) |
| 1.2 | 6L1|60PS(44KW) |
| 1.4 TDi | 6L1|75PS(55KW) |
| 2.0 | 6L1|116PS(85KW) |
| 1.4 16V | 6L1|100PS(74KW) |
| 1.2 | 6L1|64PS(47KW) |
| 1.9 TDi | 6L1|100PS(74KW) |
| 1.8 T FR | 6L1|150PS(110KW) |
| 1.2 12V | 6L1|70PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | KF1|60PS(44KW) |
| 1.0 | KE1|75PS(55KW) |
| 1.0 | KE1|60PS(44KW) |
| 1.0 | KF1|75PS(55KW) |
| 1.0 EcoFuel | KE1|68PS(50KW) |
| 1.0 EcoFuel | KF1|68PS(50KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TFSI | 8X1|125PS(92KW) |
| 1.6 TDI | 8X1|90PS(66KW) |
| 1.0 TFSI | 8X1|95PS(70KW) |
| 1.4 TFSI | 8XK|122PS(90KW) |
| 1.4 TFSI | 8XK|140PS(103KW) |
| 2.0 TDI | 8XK|136PS(100KW) |
| 1.0 TFSI | 8XK|95PS(70KW) |
| 1.8 TFSI | 8XK|192PS(141KW) |
| 2.0 TDI | 8XK|143PS(105KW) |
| 1.4 TFSI | 8X1|185PS(136KW) |
| 1.8 TFSI | 8X1|192PS(141KW) |
| 1.4 TFSI | 8X1|140PS(103KW) |
| 1.4 TFSI | 8XK|125PS(92KW) |
| 1.4 TFSI | 8X1|122PS(90KW) |
| 1.4 TFSI | 8XK|185PS(136KW) |
| 1.4 TSI | 8X1|150PS(110KW) |
| 1.4 TDI | 8X1|90PS(66KW) |
| 1.6 TDI | 8X1|105PS(77KW) |
| 1.4 TDI | 8XK|90PS(66KW) |
| 1.6 TDI | 8XK|115PS(85KW) |
| 2.0 TDI | 8X1|143PS(105KW) |
| 1.2 TFSI | 8XK|86PS(63KW) |
| 1.0 TFSI | 8X1|82PS(60KW) |
| 1.6 TDI | 8X1|115PS(85KW) |
| 1.6 TDI | 8XK|105PS(77KW) |
| 1.6 TDI | 8XK|90PS(66KW) |
| 1.0 TFSI | 8XK|82PS(60KW) |
| 2.0 TDI | 8X1|136PS(100KW) |
| 1.2 TFSI | 8X1|86PS(63KW) |
| 1.4 TSI | 8XK|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TFSI | 8XF|140PS(103KW) |
| 1.4 TSI | 8XF|150PS(110KW) |
| 1.4 TDI | 8XF|90PS(66KW) |
| 1.0 TFSI | 8XA|95PS(70KW) |
| 1.2 TFSI | 8XA|86PS(63KW) |
| 1.6 TDI | 8XA|105PS(77KW) |
| 2.0 TDI | 8XF|143PS(105KW) |
| 1.6 TDI | 8XA|115PS(85KW) |
| 1.0 TFSI | 8XF|95PS(70KW) |
| 1.4 TFSI | 8XA|185PS(136KW) |
| 1.8 TFSI | 8XA|192PS(141KW) |
| 1.0 TFSI | 8XA|82PS(60KW) |
| 2.0 TDI | 8XA|136PS(100KW) |
| 1.6 TDI | 8XA|90PS(66KW) |
| 1.4 TFSI | 8XA|140PS(103KW) |
| 1.4 TDI | 8XA|90PS(66KW) |
| 2.0 TDI | 8XF|136PS(100KW) |
| 1.0 TFSI | 8XF|82PS(60KW) |
| 1.6 TDI | 8XF|105PS(77KW) |
| 1.4 TSI | 8XA|150PS(110KW) |
| 1.2 TFSI | 8XF|86PS(63KW) |
| 1.8 TFSI | 8XF|192PS(141KW) |
| 1.4 TFSI | 8XF|185PS(136KW) |
| 1.6 TDI | 8XF|115PS(85KW) |
| 2.0 TDI | 8XA|143PS(105KW) |
| 1.4 TFSI | 8XF|122PS(90KW) |
| 1.6 TDI | 8XF|90PS(66KW) |
| 1.4 TFSI | 8XF|125PS(92KW) |
| 1.4 TFSI | 8XA|125PS(92KW) |
| 1.4 TFSI | 8XA|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 8Z0|75PS(55KW) |
| 1.2 TDI | 8Z0|61PS(45KW) |
| 1.4 TDI | 8Z0|90PS(66KW) |
| 1.4 | 8Z0|75PS(55KW) |
| 1.6 FSI | 8Z0|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 9A|70PS(51KW) |
| 1.9 SDI | 9A|64PS(47KW) |
| 1.4 TDI | 9A|80PS(59KW) |
| 1.2 | 9A|54PS(40KW) |
| 1.6 16V | 9N|105PS(77KW) |
| 1.4 16V | 9A|101PS(74KW) |
| 1.4 16V | 9A|80PS(59KW) |
| 1.6 16V | 9A|105PS(77KW) |
| 1.8 GTI Cup Edition | 9N|180PS(132KW) |
| 1.9 TDI | 9N|101PS(74KW) |
| 1.2 12V | 9N|69PS(51KW) |
| 1.9 TDI | 9N|130PS(96KW) |
| 1.2 12V | 9A|64PS(47KW) |
| 1.4 TDI | 9N|70PS(51KW) |
| 1.2 12V | 9N|64PS(47KW) |
| 1.9 TDI | 9A|101PS(74KW) |
| 1.4 16V | 9N|75PS(55KW) |
| 1.4 TDI | 9N|75PS(55KW) |
| 1.8 GTI | 9A|150PS(110KW) |
| 1.4 TDI | 9A|75PS(55KW) |
| 1.4 FSI | 9A|86PS(63KW) |
| 1.8 GTI | 9N|150PS(110KW) |
| 1.9 SDI | 9N|64PS(47KW) |
| 1.8 GTI Cup Edition | 9A|180PS(132KW) |
| 1.2 | 9N|54PS(40KW) |
| 2.0 R WRC | 6C1|220PS(162KW) |
| 1.4 FSI | 9N|86PS(63KW) |
| 2.0 R WRC | 6R1|220PS(162KW) |
| 1.2 | 9N|60PS(44KW) |
| 1.9 TDI | 9A|130PS(96KW) |
| 1.4 16V | 9N|101PS(74KW) |
| 1.2 12V | 9A|69PS(51KW) |
| 1.4 16V | 9N|80PS(59KW) |
| 1.4 16V | 9A|75PS(55KW) |
| 1.4 TDI | 9N|80PS(59KW) |
| 1.2 | 9A|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | 121|75PS(55KW) |
| e-Up | 123|82PS(60KW) |
| 1.0 TSI | BL2|90PS(66KW) |
| 1.0 | BL3|75PS(55KW) |
| 1.0 | BL1|75PS(55KW) |
| 1.0 GTI | 123|115PS(85KW) |
| 1.0 GTI | BL2|115PS(85KW) |
| e-Up | BL3|82PS(60KW) |
| e-Up | BL1|82PS(60KW) |
| 1.0 GTI | BL3|115PS(85KW) |
| 1.0 | BL2|75PS(55KW) |
| 1.0 EcoFuel | BL3|68PS(50KW) |
| e-Up | BL2|82PS(60KW) |
| 1.0 EcoFuel | BL2|68PS(50KW) |
| 1.0 | 122|75PS(55KW) |
| 1.0 EcoFuel | 122|68PS(50KW) |
| 1.0 TSI | 122|90PS(66KW) |
| 1.0 | 122|60PS(44KW) |
| e-Up | 122|82PS(60KW) |
| 1.0 EcoFuel | BL1|68PS(50KW) |
| e-Up | 121|82PS(60KW) |
| 1.0 | BL2|60PS(44KW) |
| 1.0 TSI | 121|90PS(66KW) |
| 1.0 | 123|75PS(55KW) |
| 1.0 | 121|60PS(44KW) |
| 1.0 | BL1|60PS(44KW) |
| 1.0 EcoFuel | 121|68PS(50KW) |
| 1.0 EcoFuel | 123|68PS(50KW) |
| 1.0 | 123|60PS(44KW) |
| 1.0 TSI | BL3|90PS(66KW) |
| 1.0 GTI | 121|115PS(85KW) |
| 1.0 | BL3|60PS(44KW) |
| 1.0 TSI | 123|90PS(66KW) |
| 1.0 TSI | BL1|90PS(66KW) |
| 1.0 GTI | 122|115PS(85KW) |
| 1.0 GTI | BL1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 9N2|75PS(55KW) |
| 1.9 SDI | 9N2|64PS(47KW) |
| 1.4 | 9A6|75PS(55KW) |
| 1.4 TDI | 9A6|75PS(55KW) |
| 1.4 TDI | 9A4|75PS(55KW) |
| 1.9 SDI | 9A6|64PS(47KW) |
| 1.9 SDI | 9A4|64PS(47KW) |
| 1.4 | 9A2|101PS(74KW) |
| 1.9 SDI | 9A2|64PS(47KW) |
| 1.4 | 9A4|101PS(74KW) |
| 1.4 TDI | 9N2|75PS(55KW) |
| 1.4 | 9A6|101PS(74KW) |
| 1.4 | 9A4|75PS(55KW) |
| 1.4 | 9N2|101PS(74KW) |
| 1.4 TDI | 9A2|75PS(55KW) |
| 1.4 | 9A2|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 5Z3|70PS(51KW) |
| 1.2 | 5Z3|55PS(40KW) |
| 1.2 | 5Z3|60PS(44KW) |
| 1.4 TDI | 5Z4|70PS(51KW) |
| 1.4 | 5Z4|75PS(55KW) |
| 1.4 TDI | 5Z1|70PS(51KW) |
| 1.2 | 5Z4|55PS(40KW) |
| 1.4 | 5Z3|75PS(55KW) |
| 1.2 | 5Z4|60PS(44KW) |
| 1.2 | 5Z1|55PS(40KW) |
| 1.4 | 5Z1|75PS(55KW) |
| 1.2 | 5Z1|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| e-Load Up | 121|82PS(60KW) |
| e-Load Up | BL2|82PS(60KW) |
| 1.0 EcoFuel | BL2|68PS(50KW) |
| e-Load Up | BL1|82PS(60KW) |
| 1.0 EcoFuel | 121|68PS(50KW) |
| 1.0 EcoFuel | 122|68PS(50KW) |
| 1.0 EcoFuel | BL1|68PS(50KW) |
| e-Load Up | 122|82PS(60KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | 6R|60PS(44KW) |
| 1.2 | 6R|60PS(44KW) |
| 1.0 TSI | 6R|95PS(70KW) |
| 1.4 TSI | 6R|150PS(110KW) |
| 1.4 | 6R|86PS(63KW) |
| 1.0 TSI | 6R|110PS(81KW) |
| 1.0 | 6R|75PS(55KW) |
| 1.4 TDI | 6R|90PS(66KW) |
| 1.2 TSI | 6R|110PS(81KW) |
| 1.4 TDI | 6R|75PS(55KW) |
| 1.4 TDI | 6R|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 542|86PS(63KW) |
| 1.6 TDI | 542|75PS(55KW) |
| 1.4 TDI | 542|80PS(59KW) |
| 1.2 TSI | 542|105PS(77KW) |
| 1.2 12V | 542|60PS(44KW) |
| 1.6 TDI | 542|90PS(66KW) |
| 1.6 | 542|105PS(77KW) |
| 1.2 | 542|70PS(51KW) |
| 1.2 | 542|60PS(44KW) |
| 1.2 TSI | 542|86PS(63KW) |
| 1.4 TSI RS | 542|180PS(132KW) |
| 1.6 TDI | 542|105PS(77KW) |
| 1.2 TDI | 542|75PS(55KW) |
| 1.9 TDI | 542|105PS(77KW) |
| 1.4 TDI | 542|70PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 6Y5|75PS(55KW) |
| 1.9 SDi | 6Y5|64PS(47KW) |
| 2.0 | 6Y5|116PS(85KW) |
| 1.2 | 6Y5|64PS(47KW) |
| 1.4 | 6Y5|68PS(50KW) |
| 1.2 | 6Y5|54PS(40KW) |
| 1.4 TDI | 6Y5|70PS(51KW) |
| 1.4 16V | 6Y5|100PS(74KW) |
| 1.9 TDI | 6Y5|100PS(74KW) |
| 1.4 | 6Y5|60PS(44KW) |
| 1.4 16V | 6Y5|75PS(55KW) |
| 1.4 TDI | 6Y5|80PS(59KW) |
| 1.4 16V | 6Y5|80PS(59KW) |
| Motor | Motorcode |
|---|---|
| 1.4 16V | 6Y2|75PS(55KW) |
| 1.9 TDI | 6Y2|100PS(74KW) |
| 2.0 | 6Y2|116PS(85KW) |
| 1.2 | 6Y2|54PS(40KW) |
| 1.4 TDI | 6Y2|70PS(51KW) |
| 1.4 | 6Y2|60PS(44KW) |
| 1.9 TDI RS | 6Y2|130PS(96KW) |
| 1.2 | 6Y2|64PS(47KW) |
| 1.0 | 6Y2|50PS(37KW) |
| 1.4 16V | 6Y2|100PS(74KW) |
| 1.9 SDi | 6Y2|64PS(47KW) |
| 1.4 | 6Y2|68PS(50KW) |
| 1.4 TDI | 6Y2|75PS(55KW) |
| 1.4 TDI | 6Y2|80PS(59KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 6Y5|68PS(50KW) |
| 1.9 SDi | 6Y5|64PS(47KW) |
| 1.2 | 6Y5|64PS(47KW) |
| 1.4 TDI | 6Y5|70PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI RS | 545|180PS(132KW) |
| 1.4 LPG | 545|86PS(63KW) |
| 1.9 TDI | 545|105PS(77KW) |
| 1.2 TSI | 545|86PS(63KW) |
| 1.4 | 545|86PS(63KW) |
| 1.6 TDI | 545|75PS(55KW) |
| 1.4 TDI | 545|70PS(51KW) |
| 1.2 TDI | 545|75PS(55KW) |
| 1.6 | 545|105PS(77KW) |
| 1.2 TSI | 545|105PS(77KW) |
| 1.2 | 545|60PS(44KW) |
| 1.4 TDI | 545|80PS(59KW) |
| 1.2 | 545|70PS(51KW) |
| 1.6 TDI | 545|105PS(77KW) |
| 1.6 TDI | 545|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | NJ5|75PS(55KW) |
| 1.2 TSI | NJ5|110PS(81KW) |
| 1.0 TSI | NJ5|95PS(70KW) |
| 1.4 TDI | NJ5|90PS(66KW) |
| 1.0 TSI | NJ5|110PS(81KW) |
| 1.0 | NJ5|75PS(55KW) |
| 1.0 | NJ5|60PS(44KW) |
| 1.2 TSI | NJ5|90PS(66KW) |
| 1.4 TDI | NJ5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | NJ3|90PS(66KW) |
| 1.2 TSI | NJ3|90PS(66KW) |
| 1.0 | NJ3|75PS(55KW) |
| 1.0 | NJ3|60PS(44KW) |
| 1.4 TDI | NJ3|105PS(77KW) |
| 1.2 TSI | NJ3|110PS(81KW) |
| 1.4 TDI | NJ3|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 6Y3|60PS(44KW) |
| 1.4 TDI | 6Y3|70PS(51KW) |
| 1.4 16V | 6Y3|100PS(74KW) |
| 1.9 TDI | 6Y3|100PS(74KW) |
| 1.4 16V | 6Y3|80PS(59KW) |
| 1.2 | 6Y3|54PS(40KW) |
| 1.4 16V | 6Y3|75PS(55KW) |
| 1.4 TDI | 6Y3|75PS(55KW) |
| 1.2 | 6Y3|64PS(47KW) |
| 2.0 | 6Y3|116PS(85KW) |
| 1.4 | 6Y3|68PS(50KW) |
| 1.4 TDI | 6Y3|80PS(59KW) |
| 1.9 SDi | 6Y3|64PS(47KW) |
| Motor | Motorcode |
|---|---|
| 1.0 CNG | NF1|68PS(50KW) |
| 1.0 | NF1|60PS(44KW) |
| 1.0 | NF1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDi | 6J1|105PS(77KW) |
| 1.6 TDi | 6P5|90PS(66KW) |
| 1.4 TDi | 6P5|90PS(66KW) |
| 1.2 TDi | 6J1|75PS(55KW) |
| 1.9 TDi | 6J1|90PS(66KW) |
| 1.4 TDi | 6P5|105PS(77KW) |
| 1.2 TSi | 6J1|105PS(77KW) |
| 2.0 TDi | 6P5|143PS(105KW) |
| 1.2 | 6J1|60PS(44KW) |
| 1.0 TSi | 6J1|110PS(81KW) |
| 1.6 | 6P5|105PS(77KW) |
| 1.4 TDi | 6J1|105PS(77KW) |
| 1.0 TSi | 6P5|95PS(70KW) |
| 1.4 TDi | 6P5|80PS(59KW) |
| 1.4 TSi | 6P5|150PS(110KW) |
| 1.4 TDi | 6P5|75PS(55KW) |
| 1.4 TSi Cupra | 6J1|180PS(132KW) |
| 1.6 TDi | 6P5|105PS(77KW) |
| 1.4 TDi | 6J1|80PS(59KW) |
| 1.4 TSi Cupra | 6P5|180PS(132KW) |
| 1.2 TSi | 6P5|90PS(66KW) |
| 1.0 | 6J1|75PS(55KW) |
| 1.4 TDi | 6J1|75PS(55KW) |
| 1.2 TSi | 6P5|110PS(81KW) |
| 1.4 | 6J1|85PS(63KW) |
| 1.6 | 6J1|105PS(77KW) |
| 1.9 TDi | 6P5|90PS(66KW) |
| 1.2 TSi | 6J1|86PS(63KW) |
| 1.4 TDi | 6J1|90PS(66KW) |
| 1.4 TSi | 6P5|140PS(103KW) |
| 1.2 TSi | 6J1|90PS(66KW) |
| 1.6 TDi | 6J1|105PS(77KW) |
| 1.0 TSi | 6J1|95PS(70KW) |
| 1.2 | 6P5|70PS(51KW) |
| 1.0 TSi | 6P5|110PS(81KW) |
| 1.8 TSi Cupra | 6P5|192PS(141KW) |
| 1.4 TSi | 6J1|140PS(103KW) |
| 1.2 TSi | 6P5|105PS(77KW) |
| 1.8 TSi Cupra | 6J1|192PS(141KW) |
| 1.6 LPG | 6J1|81PS(60KW) |
| 1.9 TDi | 6P5|105PS(77KW) |
| 1.2 TDi | 6P5|75PS(55KW) |
| 1.4 | 6P5|85PS(63KW) |
| 1.2 TSi | 6P5|86PS(63KW) |
| 2.0 TDi | 6J1|143PS(105KW) |
| 1.2 | 6J1|70PS(51KW) |
| 1.0 | 6P5|75PS(55KW) |
| 1.6 TDi | 6J1|90PS(66KW) |
| 1.6 LPG | 6P5|81PS(60KW) |
| 1.2 TSi | 6J1|110PS(81KW) |
| 1.2 | 6P5|60PS(44KW) |
| 1.4 TSi | 6J1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.2 | 6L2|64PS(47KW) |
| 1.4 16V | 6L2|100PS(74KW) |
| 1.4 TDi | 6L2|70PS(51KW) |
| 1.9 TDi | 6L2|131PS(96KW) |
| 1.9 TDi | 6L2|100PS(74KW) |
| 1.4 16V | 6L2|86PS(63KW) |
| 2.0 | 6L2|115PS(85KW) |
| 1.4 TDi | 6L2|75PS(55KW) |
| 1.9 SDi | 6L2|64PS(47KW) |
| 1.6 16V | 6L2|105PS(77KW) |
| 1.2 12V | 6L2|70PS(51KW) |
| 1.4 TDi | 6L2|80PS(59KW) |
| 1.4 16V | 6L2|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 6J8|105PS(77KW) |
| 1.4 TDi | 6P8|90PS(66KW) |
| 1.2 TSi | 6P8|110PS(81KW) |
| 1.6 TDi | 6P8|105PS(77KW) |
| 1.6 | 6P8|105PS(77KW) |
| 1.0 TSi | 6P8|95PS(70KW) |
| 1.4 TDi | 6J8|75PS(55KW) |
| 1.0 TSi | 6J8|95PS(70KW) |
| 1.4 TSi | 6J8|140PS(103KW) |
| 1.6 TDi | 6P8|90PS(66KW) |
| 1.2 | 6J8|60PS(44KW) |
| 1.4 TSi | 6J8|150PS(110KW) |
| 1.6 TDi | 6J8|105PS(77KW) |
| 1.2 TSi | 6J8|86PS(63KW) |
| 1.4 TDi | 6J8|90PS(66KW) |
| 1.0 TSi | 6P8|110PS(81KW) |
| 1.4 TSi | 6P8|150PS(110KW) |
| 1.2 TDi | 6P8|75PS(55KW) |
| 1.0 | 6P8|75PS(55KW) |
| 1.2 TSi | 6J8|90PS(66KW) |
| 1.4 TDi | 6P8|75PS(55KW) |
| 1.4 TSi | 6P8|140PS(103KW) |
| 1.4 TDi | 6J8|105PS(77KW) |
| 1.4 | 6P8|85PS(63KW) |
| 1.2 TDi | 6J8|75PS(55KW) |
| 1.4 TDi | 6P8|105PS(77KW) |
| 1.6 TDi | 6J8|90PS(66KW) |
| 1.2 | 6J8|70PS(51KW) |
| 1.2 TSi | 6P8|86PS(63KW) |
| 1.2 | 6P8|60PS(44KW) |
| 1.0 TSi | 6J8|110PS(81KW) |
| 1.2 TSi | 6P8|90PS(66KW) |
| 1.2 TSi | 6J8|105PS(77KW) |
| 1.0 | 6J8|75PS(55KW) |
| 1.2 TSi | 6J8|110PS(81KW) |
| 1.4 | 6J8|85PS(63KW) |
| 1.2 | 6P8|70PS(51KW) |
| 1.2 TSi | 6P8|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.6 LPG | 6P1|81PS(60KW) |
| 1.2 TDi | 6J5|75PS(55KW) |
| 1.2 TSi | 6P1|105PS(77KW) |
| 1.9 TDi | 6P1|90PS(66KW) |
| 1.2 TSi | 6P1|90PS(66KW) |
| 1.4 TSi | 6J5|150PS(110KW) |
| 1.0 TSi | 6J5|110PS(81KW) |
| 1.2 TSi | 6J5|110PS(81KW) |
| 1.4 TSi | 6P1|150PS(110KW) |
| 1.9 TDi | 6P1|105PS(77KW) |
| 1.0 | 6P1|75PS(55KW) |
| 1.4 | 6P1|85PS(63KW) |
| 1.6 TDi | 6P1|105PS(77KW) |
| 1.4 TDi | 6P1|105PS(77KW) |
| 1.6 | 6J5|105PS(77KW) |
| 1.2 | 6J5|70PS(51KW) |
| 1.0 | 6J5|75PS(55KW) |
| 1.2 | 6P1|60PS(44KW) |
| 1.2 | 6J5|60PS(44KW) |
| 1.4 TDi | 6J5|90PS(66KW) |
| 1.9 TDi | 6J5|90PS(66KW) |
| 1.4 TDi | 6J5|80PS(59KW) |
| 1.6 TDi | 6P1|90PS(66KW) |
| 1.4 TSi | 6J5|140PS(103KW) |
| 1.6 LPG | 6J5|81PS(60KW) |
| 1.6 | 6P1|105PS(77KW) |
| 1.2 TSi | 6J5|105PS(77KW) |
| 1.4 TDi | 6J5|105PS(77KW) |
| 2.0 TDi | 6P1|143PS(105KW) |
| 1.0 TSi | 6P1|95PS(70KW) |
| 1.6 TDi | 6J5|105PS(77KW) |
| 1.2 TSi | 6P1|86PS(63KW) |
| 1.2 | 6P1|70PS(51KW) |
| 1.2 TSi | 6J5|90PS(66KW) |
| 1.4 TDi | 6P1|80PS(59KW) |
| 1.4 TDi | 6J5|75PS(55KW) |
| 1.4 | 6J5|85PS(63KW) |
| 1.4 TDi | 6P1|90PS(66KW) |
| 1.9 TDi | 6J5|105PS(77KW) |
| 1.2 TSi | 6P1|110PS(81KW) |
| 1.4 TDi | 6P1|75PS(55KW) |
| 1.4 TSi | 6P1|140PS(103KW) |
| 1.2 TSi | 6J5|86PS(63KW) |
| 2.0 TDi | 6J5|143PS(105KW) |
| 1.0 TSi | 6P1|110PS(81KW) |
| 1.0 TSi | 6J5|95PS(70KW) |
| 1.2 TDi | 6P1|75PS(55KW) |
| 1.6 TDi | 6J5|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.6 16V | 6L1|105PS(77KW) |
| 1.4 16V | 6L1|86PS(63KW) |
| 1.9 TDi | 6L1|131PS(96KW) |
| 1.4 16V | 6L1|75PS(55KW) |
| 1.9 TDi Cupra R | 6L1|160PS(118KW) |
| 1.8 T Cupra R | 6L1|180PS(132KW) |
| 1.4 TDi | 6L1|70PS(51KW) |
| 1.9 SDi | 6L1|64PS(47KW) |
| 1.4 TDi | 6L1|80PS(59KW) |
| 1.2 | 6L1|60PS(44KW) |
| 1.4 TDi | 6L1|75PS(55KW) |
| 2.0 | 6L1|116PS(85KW) |
| 1.4 16V | 6L1|100PS(74KW) |
| 1.2 | 6L1|64PS(47KW) |
| 1.9 TDi | 6L1|100PS(74KW) |
| 1.8 T FR | 6L1|150PS(110KW) |
| 1.2 12V | 6L1|70PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | KF1|60PS(44KW) |
| 1.0 | KE1|75PS(55KW) |
| 1.0 | KE1|60PS(44KW) |
| 1.0 | KF1|75PS(55KW) |
| 1.0 EcoFuel | KE1|68PS(50KW) |
| 1.0 EcoFuel | KF1|68PS(50KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TFSI | 8X1|125PS(92KW) |
| 1.6 TDI | 8X1|90PS(66KW) |
| 1.0 TFSI | 8X1|95PS(70KW) |
| 1.4 TFSI | 8XK|122PS(90KW) |
| 1.4 TFSI | 8XK|140PS(103KW) |
| 2.0 TDI | 8XK|136PS(100KW) |
| 1.0 TFSI | 8XK|95PS(70KW) |
| 1.8 TFSI | 8XK|192PS(141KW) |
| 2.0 TDI | 8XK|143PS(105KW) |
| 1.4 TFSI | 8X1|185PS(136KW) |
| 1.8 TFSI | 8X1|192PS(141KW) |
| 1.4 TFSI | 8X1|140PS(103KW) |
| 1.4 TFSI | 8XK|125PS(92KW) |
| 1.4 TFSI | 8X1|122PS(90KW) |
| 1.4 TFSI | 8XK|185PS(136KW) |
| 1.4 TSI | 8X1|150PS(110KW) |
| 1.4 TDI | 8X1|90PS(66KW) |
| 1.6 TDI | 8X1|105PS(77KW) |
| 1.4 TDI | 8XK|90PS(66KW) |
| 1.6 TDI | 8XK|115PS(85KW) |
| 2.0 TDI | 8X1|143PS(105KW) |
| 1.2 TFSI | 8XK|86PS(63KW) |
| 1.0 TFSI | 8X1|82PS(60KW) |
| 1.6 TDI | 8X1|115PS(85KW) |
| 1.6 TDI | 8XK|105PS(77KW) |
| 1.6 TDI | 8XK|90PS(66KW) |
| 1.0 TFSI | 8XK|82PS(60KW) |
| 2.0 TDI | 8X1|136PS(100KW) |
| 1.2 TFSI | 8X1|86PS(63KW) |
| 1.4 TSI | 8XK|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TFSI | 8XF|140PS(103KW) |
| 1.4 TSI | 8XF|150PS(110KW) |
| 1.4 TDI | 8XF|90PS(66KW) |
| 1.0 TFSI | 8XA|95PS(70KW) |
| 1.2 TFSI | 8XA|86PS(63KW) |
| 1.6 TDI | 8XA|105PS(77KW) |
| 2.0 TDI | 8XF|143PS(105KW) |
| 1.6 TDI | 8XA|115PS(85KW) |
| 1.0 TFSI | 8XF|95PS(70KW) |
| 1.4 TFSI | 8XA|185PS(136KW) |
| 1.8 TFSI | 8XA|192PS(141KW) |
| 1.0 TFSI | 8XA|82PS(60KW) |
| 2.0 TDI | 8XA|136PS(100KW) |
| 1.6 TDI | 8XA|90PS(66KW) |
| 1.4 TFSI | 8XA|140PS(103KW) |
| 1.4 TDI | 8XA|90PS(66KW) |
| 2.0 TDI | 8XF|136PS(100KW) |
| 1.0 TFSI | 8XF|82PS(60KW) |
| 1.6 TDI | 8XF|105PS(77KW) |
| 1.4 TSI | 8XA|150PS(110KW) |
| 1.2 TFSI | 8XF|86PS(63KW) |
| 1.8 TFSI | 8XF|192PS(141KW) |
| 1.4 TFSI | 8XF|185PS(136KW) |
| 1.6 TDI | 8XF|115PS(85KW) |
| 2.0 TDI | 8XA|143PS(105KW) |
| 1.4 TFSI | 8XF|122PS(90KW) |
| 1.6 TDI | 8XF|90PS(66KW) |
| 1.4 TFSI | 8XF|125PS(92KW) |
| 1.4 TFSI | 8XA|125PS(92KW) |
| 1.4 TFSI | 8XA|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 8Z0|75PS(55KW) |
| 1.2 TDI | 8Z0|61PS(45KW) |
| 1.4 TDI | 8Z0|90PS(66KW) |
| 1.4 | 8Z0|75PS(55KW) |
| 1.6 FSI | 8Z0|110PS(81KW) |
Steel Braided Brake Line Steel Flexible Brake Hose front Axle VW Golf MK4 R32 Audi A3 S3 A1 Ibiza Pol
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
€97.21*
Item number: SF100
6-speed gearbox holder 02M for Golf Passat Corrado G60 16V Vr6 gearbox holder DXW DRP DQB
- ✓ gearbox holder
- ✓ Golf 2, Golf 3, Passat, Corrado, Jetta, Vento
- ✓ 02m / R32 V6 1.8T 6-speed gearbox DRP DQB DXW
€86.37*
Item number: 282
VW Golf MK4 Audi A3 TT Seat Rim Centric Ring Extension Bush Spacer Brake Conversion
- ✓ rim centric ring / extension bush, high-strength steel, for VW Golf MK4 Polo 9N Bora Audi A3 TT
€13.03*
Item number: 884
VW Golf MK1 MK2 MK3 Mounting Bracket for 16V 1.8T VR6 Conversion Clutch Cable G60 Gearbox Bracket
- ✓ VW Golf 2, Golf 3 Passat, Corrado, Jetta, Vento
- ✓ 02a 02j 5 gear
- ✓ 1.8T 16V G60 conversion
€32.99*
Item number: 116
Audi TT A3 S3 VW Golf Polo 6r WRC Brake Caliper Adapter Cayenne ZR17 Touareg BM5 Brake System 334x32
- ✓ 334x32 1J0615301AA 1J0615302 A Golf 4 R32 brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne / VW Tuareg brake caliper
- ✓ front axle
€148.46*
Item number: 403
Engine Mounting Bracket Golf MK2 MK3 Corrado Conversion 4 Motion 1,8T 16V TDI Engine Mount 4WD 02M 02Q Gearbox
- ✓ VW Golf 2, Golf 3 Passat, Corrado, Jetta, Vento
- ✓ Golf 3 16V, 1.8T transverse installation, Golf 4TDI
- ✓ 4 motions
€155.56*
Item number: 934
6-speed DSG Gearbox Mounting Bracket Support VW Golf MK2 MK3 Passat Corrado G60 16V VR6 Gearbox Holder KCW KMX HQM
- ✓ Passat, Golf 2, Golf 3, Corrado, Vento
- ✓ DQ250 DSG 6-speed gearbox
- ✓ 2.0TFSI, 1.8T 16V VR6 Turbo or R32 Turbo conversion
€160.96*
Item number: 911
VW Golf 4 VW Polo 6r WRC Audi A3 TT R32 S3 Caliper Brake Adapter Brake Caliper Mounting Bracket
- ✓ 256x22 8L0615601 VW / Audi brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C R32 / S3 brake caliper
- ✓ rear axle
€34.52*
Item number: 683
Lightened Flywheel VW Golf MK4 Bora Audi TT A3 1.8T 20V Turbo Leon Ibiza 6-speed steel light
- ✓ 1.8 T 20V engines
- ✓ 240 clutch
- ✓ lightens 5.0 kg
€251.95*
Item number: 629
Audi A3 S3 TT VW Polo 6R VW Golf MK4 Bora Porsche Brake Caliper Adapter
- ✓ 323x28 1ML615301 Seat Leon Cupra R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ front axle
€155.28*
Item number: 596
Steel Braided Brake Line VW T5 T6 Bus Transporter Porsche Brembo TTRS Audi Porsche Panamera Cayenne Brake Conversion
- ✓ Length: 60cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
€91.52*
Item number: SF112
W Golf MK2 MK3 VR6 G60 Turbo Jetta Passat Front Protection Sheet Metal Front Covering Carrier Headlight Center Support Radiator Front Structure 191805591
- ✓ Golf 2, Jetta, Corrado, VR6 G60
- ✓ Lock carrier headlight mount 191805591
- ✓ Space for large water cooler/radiator
€40.99*
Item number: 435
Golf MK4 MK3 VR6 Audi A3 1.8T Clutch Cable Aluminum Bush Direct Circuit
- ✓ No more play
- ✓ high-quality aluminium
- ✓ Golf 4 Audi A3 Seat with cable shift
€26.32*
Item number: 111
Clutch VW Golf MK4 1.8T GTI Bora V5 V6 Passat Audi A3 A4 A6 TT Seat Leon Ibizia 240mm Epytec Clutch Disc Ceramic Torsion Damped Sinter
- ✓ VW Golf 4 1.8T GTI engine
- ✓ 600NM torque
- ✓ hub profile: 21.8x24.2-23N
€128.72*
Item number: 802
6 speed 02M Gearbox Mounting Bracket for Golf Passat Corrado G60 16V Vr6 Gearbox Conversion
- ✓ gearbox holder
- ✓ Golf 2, Golf 3, Passat, Corrado, Jetta, Vento
- ✓ 02m / R32 V6 1.8T 6-speed gearbox
€76.18*
Item number: 282-T1
VW Audi Golf MK1 MK2 MK3 Corrado Special Track Rod End Head Universal Low Profile Lowering M14 x 1,5 Thread
- ✓ Tie rod end M14x1.5
- ✓ VW, Audi, Golf 1, Golf 2, Golf 3, Corrado,...
- ✓ 100% perfect fit
€106.08*
Item number: TAT102
Passat Golf 2 3 Corrado Vento Steel VR5 Engine Mounting Support Turbo Compressor Conversion
- ✓ Passat, Golf 2, Golf 3, Corrado, Vento
- ✓ VR5 motor mount
- ✓ simple turbo compressor conversion
€109.36*
Item number: 733
Engine and Gearbox Mounting Bracket Golf MK2 MK3 Passat Corrado Jetta Vento 02M Transmission Golf 4 VR6 R32 Engine Conversion
- ✓ VW Golf 2, Golf 3 Passat, Corrado, Jetta, Vento
- ✓ 02M 6-speed transmission Golf 4 R32
- ✓ 1.8 T simple engine and transmission conversion
€321.88*
Item number: 889
