VW Golf MK5 MK6 Plus Audi A3 Jetta Seat Leon Altea Porsche Panamera Brake Caliper Adapter 375x36 Brake Disc with parts certificate
- ✓ 375x36 Mercedes GL 166 421 0912 disc
- ✓ 6-piston Panamera saddle 7PP615149J / 7PP615150J 7PP615123 / 7PP615124 20.A221.03
- ✓ front axle
£172.20*
Available
Product number:
920
Delivery by Wednesday, 16.07.2025 if you order within the next 10 Hours.
Product number:
920
Weight:
2.622 kg
Brake caliper hole spacing:
205
Hole spacing steering knuckle:
146
Mounting location:
front
Your benefits
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Brake caliper adapter on Golf VW Golf 5, 6, Touran, Audi A3 8P, Seat Leon for conversion to Porsche Panamera brake calipers, combined with the Mercedes ML 350, 375x36, brake discs.
This set contains a parts certificate for easy registration according to §19.3 StVZO, so that a problem-free acceptance by TÜV, DEKRA, KÜS or GTÜ is possible.
Suitable for following vehicles :
- Audi A3 8P1
- Audi A3 Sportback 8PA
- Audi TT 8J3
- Seat Altea 5P1
- Seat Leon 5F1
- VW Caddy III Großraumlimosine 2CB
- VW Caddy III Kasten 2CA
- VW Golf Plus 521
- VW Golf V 1K1
- VW Golf V Variant 1K5
- VW Golf VI 5K1 517
- VW Golf VI Cabriolet 517
- VW Golf VI Variant AJ5
- VW Jetta IV 162
- VW Scirocco 137
- VW Touran 1T3
- VW Touran 5T1
It may be that steering angle limiters for complete steering angle must be installed, these can be found below in the appropriate accessories.
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- Simple TÜV registration with parts certificate
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake caliper: Porsche Cayenne 958 GTS Panamera , reference 7PP615149J / 7PP615150J 7PP615123 / 7PP615124 20.A221.03 (Shaft length from the caliper must be 87mm, see yellow mark on the last picture)
- brake disc: MERCEDES-BENZ GL-KLASSE 375x36mm reference 166 421 0912
- The brake pads must be slightly chamfered at the upper edge.
- The steel wishbone must be installed.

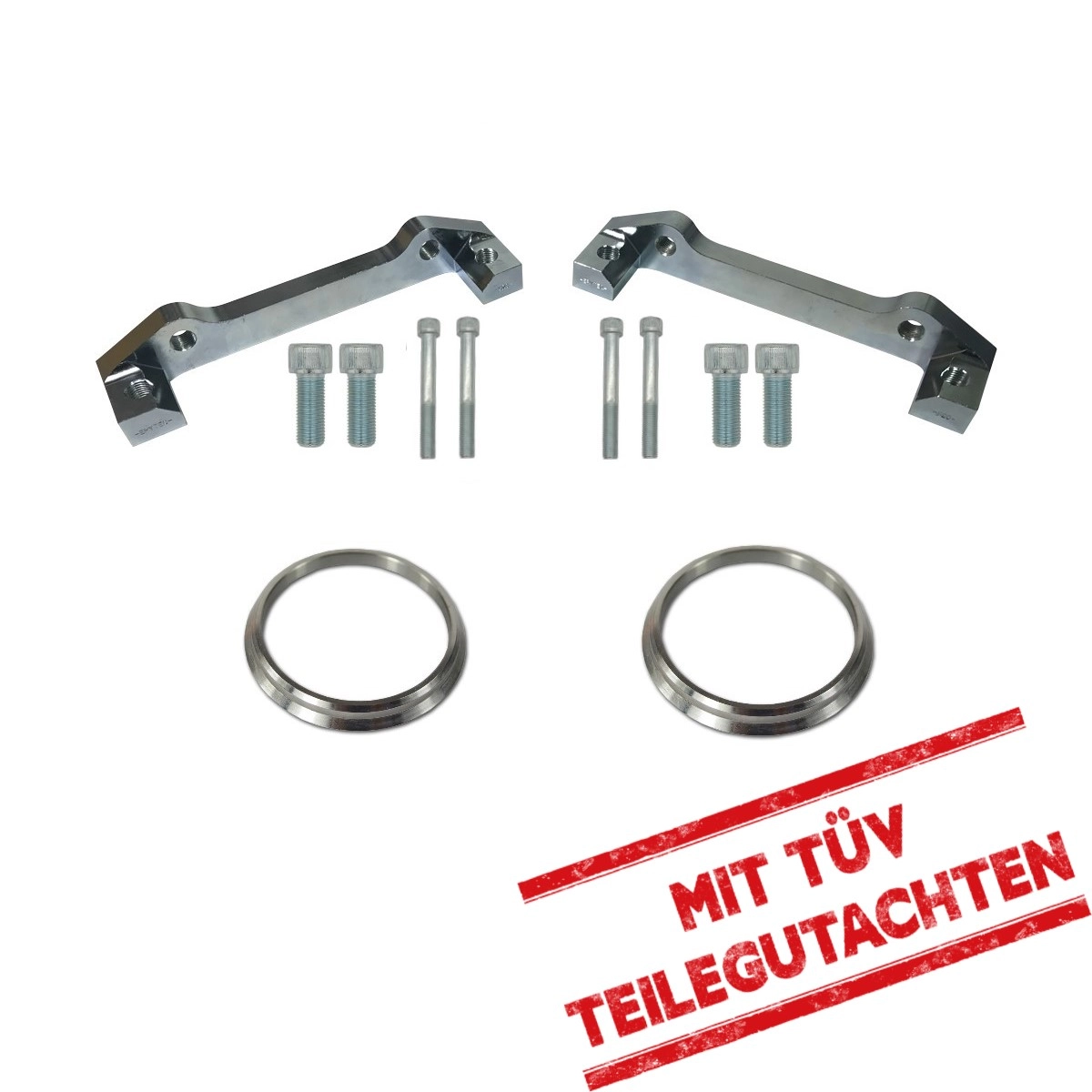

Delivery:
- 2x brake caliper adapters
- 2x centric rings
- including parts certificate for registration with TÜV, DEKRA, KÜS or GTÜ

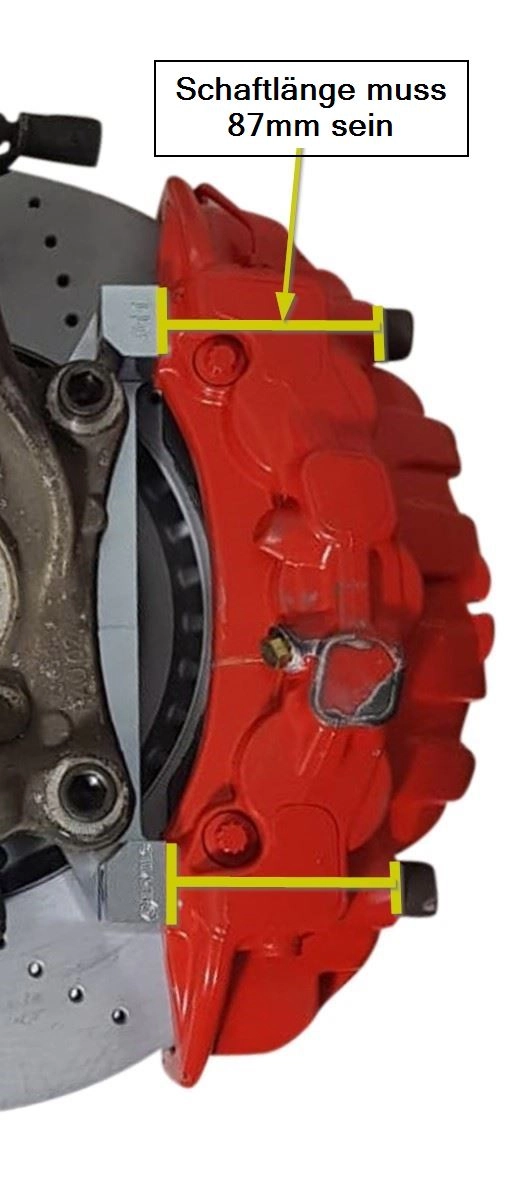

- high-strength mounting screws
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Brake caliper hole spacing:
205
Hole spacing steering knuckle:
146
Mounting location:
front
Brake caliper hole spacing:
205
Hole spacing steering knuckle:
146
Mounting location:
front
Login
or Register with...
3 May 2022 15:06
Maximilian S
Passt sehr gut ohne etwas anpassen zu müssen.
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 1.6 Bi-Fuel | 2CH|102PS(75KW) |
| 1.6 | 2KA|102PS(75KW) |
| 2.0 TDI 16V | 2CH|140PS(103KW) |
| 1.6 TDI | 2CH|102PS(75KW) |
| 2.0 TDI 16V | 2KA|140PS(103KW) |
| 1.2 TSI | 2KA|105PS(77KW) |
| 2.0 TDI 4motion | 2KH|85PS(62KW) |
| 1.9 TDI 4motion | 2CA|105PS(77KW) |
| 1.6 TDI | 2CA|102PS(75KW) |
| 2.0 TDI | 2CA|170PS(125KW) |
| 2.0 TDI | 2CH|170PS(125KW) |
| 2.0 EcoFuel | 2KH|109PS(80KW) |
| 1.6 TDI | 2KH|102PS(75KW) |
| 1.6 Bi-Fuel | 2CA|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2CA|140PS(103KW) |
| 1.6 | 2CH|102PS(75KW) |
| 2.0 TDI 4motion | 2CA|85PS(62KW) |
| 1.2 TSI | 2CA|105PS(77KW) |
| 1.9 TDI 4motion | 2KA|105PS(77KW) |
| 2.0 TDI | 2CA|85PS(62KW) |
| 2.0 TDI | 2KA|170PS(125KW) |
| 2.0 TDI 4motion | 2KA|110PS(81KW) |
| 1.6 TDI | 2CA|75PS(55KW) |
| 1.2 TSI | 2CA|86PS(63KW) |
| 2.0 TDI 4motion | 2CA|110PS(81KW) |
| 1.6 TDI | 2KH|75PS(55KW) |
| 1.2 TSI | 2KH|105PS(77KW) |
| 2.0 EcoFuel | 2CA|109PS(80KW) |
| 1.2 TSI | 2CH|86PS(63KW) |
| 2.0 TDI 4motion | 2KH|110PS(81KW) |
| 1.9 TDI | 2KH|75PS(55KW) |
| 1.4 | 2CH|80PS(59KW) |
| 2.0 TDI | 2CA|140PS(103KW) |
| 2.0 TDI | 2KA|140PS(103KW) |
| 2.0 TDI 16V 4motion | 2KA|140PS(103KW) |
| 1.9 TDI | 2CH|105PS(77KW) |
| 2.0 TDI | 2CH|85PS(62KW) |
| 1.4 | 2KA|80PS(59KW) |
| 1.4 | 2KA|75PS(55KW) |
| 2.0 TDI 4motion | 2KA|85PS(62KW) |
| 2.0 TDI | 2KH|170PS(125KW) |
| 1.9 TDI | 2CH|75PS(55KW) |
| 2.0 TDI 16V | 2CA|140PS(103KW) |
| 1.6 TDI | 2KA|102PS(75KW) |
| 1.6 Bi-Fuel | 2KH|102PS(75KW) |
| 1.9 TDI 4motion | 2CH|105PS(77KW) |
| 2.0 TDI | 2KA|85PS(62KW) |
| 1.9 TDI | 2KH|105PS(77KW) |
| 1.4 | 2CA|75PS(55KW) |
| 2.0 TDI 4motion | 2CH|110PS(81KW) |
| 1.6 Bi-Fuel | 2KA|102PS(75KW) |
| 1.2 TSI | 2KA|86PS(63KW) |
| 2.0 TDI 16V 4motion | 2CH|140PS(103KW) |
| 2.0 TDI | 2KH|140PS(103KW) |
| 1.9 TDI | 2KA|105PS(77KW) |
| 1.9 TDI 4motion | 2KH|105PS(77KW) |
| 2.0 SDI | 2CH|70PS(51KW) |
| 1.6 TDI | 2KA|75PS(55KW) |
| 2.0 TDI | 2CH|140PS(103KW) |
| 1.4 | 2CH|75PS(55KW) |
| 1.2 TSI | 2CH|105PS(77KW) |
| 1.9 TDI | 2CA|75PS(55KW) |
| 2.0 EcoFuel | 2CH|109PS(80KW) |
| 2.0 TDI 4motion | 2CH|85PS(62KW) |
| 1.6 | 2CA|102PS(75KW) |
| 2.0 TDI 16V | 2KH|140PS(103KW) |
| 1.4 | 2CA|80PS(59KW) |
| 2.0 EcoFuel | 2KA|109PS(80KW) |
| 2.0 SDI | 2CA|70PS(51KW) |
| 2.0 SDI | 2KA|70PS(51KW) |
| 2.0 TDI 16V 4motion | 2KH|140PS(103KW) |
| 1.4 | 2KH|80PS(59KW) |
| 1.9 TDI | 2CA|105PS(77KW) |
| 1.6 | 2KH|102PS(75KW) |
| 2.0 SDI | 2KH|70PS(51KW) |
| 1.4 | 2KH|75PS(55KW) |
| 1.9 TDI | 2KA|75PS(55KW) |
| 2.0 TDI | 2KH|85PS(62KW) |
| 1.6 TDI | 2CH|75PS(55KW) |
| 1.2 TSI | 2KH|86PS(63KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 1K5|122PS(90KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 1.6 | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 1.4 | 1K5|80PS(59KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 1.9 TDI 4motion | 1K5|105PS(77KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | AJ5|105PS(77KW) |
| 2.0 TDI | AJ5|136PS(100KW) |
| 1.6 | AJ5|102PS(75KW) |
| 1.6 TDI | AJ5|105PS(77KW) |
| 1.4 TSI | AJ5|160PS(118KW) |
| 1.2 TSI | AJ5|86PS(63KW) |
| 2.0 TDI | AJ5|140PS(103KW) |
| 1.4 | AJ5|80PS(59KW) |
| 1.6 TDI 4motion | AJ5|105PS(77KW) |
| 1.6 MultiFuel | AJ5|102PS(75KW) |
| 1.6 TDI | AJ5|90PS(66KW) |
| 1.4 TSI | AJ5|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 5K1|140PS(103KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| 1.4 | 5K1|80PS(59KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 2.0 R 4motion | 5K1|270PS(199KW) |
| 1.2 TSI | 5K1|86PS(63KW) |
| 1.6 | 5K1|102PS(75KW) |
| 2.0 R 4motion | 5K1|256PS(188KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R | 137|265PS(195KW) |
| 1.4 TSI | 138|150PS(110KW) |
| 2.0 TSI | 138|180PS(132KW) |
| 2.0 TDI | 138|177PS(130KW) |
| 1.4 TSI | 137|122PS(90KW) |
| 1.4 TSI | 137|160PS(118KW) |
| 2.0 TDI | 137|140PS(103KW) |
| 2.0 R | 138|265PS(195KW) |
| 2.0 TDI | 137|177PS(130KW) |
| 2.0 TFSI | 137|200PS(147KW) |
| 2.0 TDI | 138|136PS(100KW) |
| 2.0 TDI | 138|140PS(103KW) |
| 1.4 TSI | 138|122PS(90KW) |
| 2.0 TDI | 137|184PS(135KW) |
| 2.0 TSI | 137|180PS(132KW) |
| 2.0 R | 138|256PS(188KW) |
| 2.0 TFSI | 138|200PS(147KW) |
| 2.0 R | 137|256PS(188KW) |
| 2.0 TSI | 137|220PS(162KW) |
| 2.0 TDI | 138|150PS(110KW) |
| 2.0 TDI | 137|150PS(110KW) |
| 2.0 TDI | 137|170PS(125KW) |
| 1.4 TSI | 138|125PS(92KW) |
| 2.0 TDI | 137|136PS(100KW) |
| 2.0 R | 138|280PS(206KW) |
| 2.0 TDI | 138|184PS(135KW) |
| 2.0 TSI | 138|210PS(155KW) |
| 2.0 TSI | 137|210PS(155KW) |
| 1.4 TSI | 137|150PS(110KW) |
| 1.4 TSI | 138|160PS(118KW) |
| 2.0 R | 137|280PS(206KW) |
| 2.0 TSI | 138|220PS(162KW) |
| 2.0 TDI | 138|170PS(125KW) |
| 1.4 TSI | 137|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSI | 1T1|150PS(110KW) |
| 1.4 TSI EcoFuel | 1T3|150PS(110KW) |
| 2.0 TDI | 1T2|140PS(103KW) |
| 1.4 TSI | 1T2|140PS(103KW) |
| 1.9 TDI | 1T2|100PS(74KW) |
| 1.6 FSI | 1T2|115PS(85KW) |
| 2.0 TDI | 1T3|170PS(125KW) |
| 1.8 TSI | 5T1|180PS(132KW) |
| 1.4 TSI | 1T2|170PS(125KW) |
| 1.9 TDI | 1T1|90PS(66KW) |
| 1.6 TDI | 5T1|110PS(81KW) |
| 2.0 TDI | 1T3|140PS(103KW) |
| 1.6 TDI | 1T3|90PS(66KW) |
| 1.9 TDI | 1T1|105PS(77KW) |
| 1.9 TDI | 1T1|100PS(74KW) |
| 1.2 TSI | 1T3|105PS(77KW) |
| 1.2 TSI | 5T1|110PS(81KW) |
| 1.6 TDI | 1T3|105PS(77KW) |
| 1.6 | 1T2|102PS(75KW) |
| 1.4 TSI | 5T1|150PS(110KW) |
| 2.0 EcoFuel | 1T1|109PS(80KW) |
| 1.6 FSI | 1T1|115PS(85KW) |
| 2.0 FSI | 1T2|150PS(110KW) |
| 2.0 TDI | 1T1|140PS(103KW) |
| 1.6 TDI | 1T2|105PS(77KW) |
| 2.0 TDI | 1T2|170PS(125KW) |
| 1.4 TSI EcoFuel | 1T2|150PS(110KW) |
| 2.0 TDI | 1T1|136PS(100KW) |
| 2.0 TDI | 5T1|150PS(110KW) |
| 2.0 TDI | 5T1|110PS(81KW) |
| 1.4 TSI EcoFuel | 1T1|150PS(110KW) |
| 1.4 TSI | 1T3|170PS(125KW) |
| 2.0 EcoFuel | 1T2|109PS(80KW) |
| 2.0 TDI | 1T1|170PS(125KW) |
| 1.4 TSI | 1T1|140PS(103KW) |
| 2.0 TDI 16V | 1T2|140PS(103KW) |
| 1.4 TSI | 1T1|170PS(125KW) |
| 2.0 TDI | 5T1|190PS(140KW) |
| 1.9 TDI | 1T2|90PS(66KW) |
| 2.0 TDI | 1T2|136PS(100KW) |
| 1.4 TSI | 1T3|140PS(103KW) |
| 1.9 TDI | 1T2|105PS(77KW) |
| 1.6 | 1T1|102PS(75KW) |
| 1.6 TDI | 1T1|105PS(77KW) |
| 2.0 TDI | 1T3|177PS(130KW) |
| 2.0 TDI 16V | 1T1|140PS(103KW) |
| 1.6 TDI | 5T1|115PS(85KW) |
| 2.0 TDI | 1T3|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 2KB|86PS(63KW) |
| 2.0 SDI | 2CJ|70PS(51KW) |
| 1.2 TSI | 2KJ|105PS(77KW) |
| 2.0 TDI 4motion | 2KB|110PS(81KW) |
| 1.6 TDI | 2KJ|75PS(55KW) |
| 1.2 TSI | 2CJ|86PS(63KW) |
| 2.0 TDI | 2CB|170PS(125KW) |
| 2.0 TDI 16V 4motion | 2CJ|140PS(103KW) |
| 1.6 | 2KJ|102PS(75KW) |
| 1.6 TDI | 2CJ|75PS(55KW) |
| 1.2 TSI | 2KJ|86PS(63KW) |
| 1.6 Bi-Fuel | 2KB|102PS(75KW) |
| 1.4 | 2CB|75PS(55KW) |
| 2.0 EcoFuel | 2KB|109PS(80KW) |
| 1.9 TDI | 2CB|105PS(77KW) |
| 1.9 TDI 4motion | 2CB|105PS(77KW) |
| 1.9 TDI | 2KJ|75PS(55KW) |
| 1.6 | 2CJ|102PS(75KW) |
| 1.6 TDI | 2CB|75PS(55KW) |
| 1.4 | 2KJ|75PS(55KW) |
| 2.0 TDI | 2CB|140PS(103KW) |
| 1.9 TDI 4motion | 2KJ|105PS(77KW) |
| 1.2 TSI | 2KB|105PS(77KW) |
| 2.0 TDI | 2KB|140PS(103KW) |
| 1.6 | 2KB|102PS(75KW) |
| 2.0 TDI 16V | 2CB|140PS(103KW) |
| 1.6 TDI | 2KJ|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2CB|140PS(103KW) |
| 2.0 TDI 16V | 2KJ|140PS(103KW) |
| 2.0 TDI | 2KJ|170PS(125KW) |
| 1.6 | 2CB|102PS(75KW) |
| 1.6 Bi-Fuel | 2CJ|102PS(75KW) |
| 2.0 TDI | 2CJ|140PS(103KW) |
| 1.6 Bi-Fuel | 2KJ|102PS(75KW) |
| 1.9 TDI 4motion | 2KB|105PS(77KW) |
| 2.0 SDI | 2KB|70PS(51KW) |
| 1.6 TDI | 2CB|102PS(75KW) |
| 1.4 | 2CB|80PS(59KW) |
| 2.0 EcoFuel | 2KJ|109PS(80KW) |
| 2.0 TDI 16V 4motion | 2KJ|140PS(103KW) |
| 2.0 TDI | 2CJ|170PS(125KW) |
| 2.0 TDI | 2KJ|140PS(103KW) |
| 2.0 TDI 4motion | 2CB|110PS(81KW) |
| 1.9 TDI 4motion | 2CJ|105PS(77KW) |
| 1.4 | 2KJ|80PS(59KW) |
| 2.0 TDI 16V 4motion | 2KB|140PS(103KW) |
| 1.6 TDI | 2KB|75PS(55KW) |
| 2.0 EcoFuel | 2CB|109PS(80KW) |
| 1.4 | 2KB|75PS(55KW) |
| 1.4 | 2CJ|80PS(59KW) |
| 1.9 TDI | 2CJ|75PS(55KW) |
| 1.2 TSI | 2CB|86PS(63KW) |
| 1.6 Bi-Fuel | 2CB|102PS(75KW) |
| 1.9 TDI | 2KB|105PS(77KW) |
| 2.0 SDI | 2KJ|70PS(51KW) |
| 1.9 TDI | 2CB|75PS(55KW) |
| 1.6 TDI | 2CJ|102PS(75KW) |
| 2.0 TDI | 2KB|170PS(125KW) |
| 1.2 TSI | 2CB|105PS(77KW) |
| 2.0 TDI 16V | 2KB|140PS(103KW) |
| 2.0 TDI 4motion | 2KJ|110PS(81KW) |
| 2.0 EcoFuel | 2CJ|109PS(80KW) |
| 1.9 TDI | 2KB|75PS(55KW) |
| 1.9 TDI | 2CJ|105PS(77KW) |
| 2.0 TDI 4motion | 2CJ|110PS(81KW) |
| 1.6 TDI | 2KB|102PS(75KW) |
| 2.0 TDI 16V | 2CJ|140PS(103KW) |
| 1.9 TDI | 2KJ|105PS(77KW) |
| 2.0 SDI | 2CB|70PS(51KW) |
| 1.4 | 2CJ|75PS(55KW) |
| 1.4 | 2KB|80PS(59KW) |
| 1.2 TSI | 2CJ|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 5M1|105PS(77KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 1.4 TSI | 521|170PS(125KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.6 FSI | 521|115PS(85KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 2.0 TDI | 521|131PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI 4motion | 1K1|105PS(77KW) |
| 2.0 FSI 4motion | 1K1|150PS(110KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 1.9 TDI | 1K1|90PS(66KW) |
| 2.0 TDI | 1K1|140PS(103KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 1.6 | 1K1|102PS(75KW) |
| 2.0 TDI 4motion | 1K1|140PS(103KW) |
| 2.0 TDI 16V 4motion | 1K1|140PS(103KW) |
| 2.0 FSI | 1K1|150PS(110KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 517|150PS(110KW) |
| 1.4 TSI | 517|160PS(118KW) |
| 1.2 TSI 16V | 517|105PS(77KW) |
| 1.6 TDI | 517|105PS(77KW) |
| 1.4 TSI | 517|122PS(90KW) |
| 1.4 TSI | 517|125PS(92KW) |
| 2.0 TDI | 517|140PS(103KW) |
| 2.0 TDI | 517|110PS(81KW) |
| 1.4 TSI | 517|150PS(110KW) |
| 1.2 TSI | 517|105PS(77KW) |
| 2.0 GTI | 517|211PS(155KW) |
| 2.0 TSI | 517|220PS(162KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 162|150PS(110KW) |
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDi | 5P1|136PS(100KW) |
| 2.0 FSi | 5P1|150PS(110KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P8|150PS(110KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi | 1P1|200PS(147KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TFSi | 1P1|185PS(136KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8PA|140PS(103KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| 1.6 | 8PA|102PS(75KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 2.0 TFSI quattro | 8PA|200PS(147KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| RS3 quattro | 8PA|340PS(250KW) |
| 2.0 TDI 16V quattro | 8PA|140PS(103KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 2.0 TDI quattro | 8PA|140PS(103KW) |
| 2.0 TDI | 8PA|136PS(100KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 1.9 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 3.2 V6 quattro | 8PA|250PS(184KW) |
| S3 quattro | 8PA|265PS(195KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 TDI quattro | 8PA|170PS(125KW) |
| S3 quattro | 8PA|256PS(188KW) |
| 1.8 TFSI quattro | 8PA|160PS(118KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8P1|163PS(120KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 3.2 V6 quattro | 8P1|250PS(184KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| 2.0 TDI quattro | 8P1|136PS(100KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 2.0 TDI quattro | 8P1|140PS(103KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| S3 quattro | 8P1|265PS(195KW) |
| 2.0 TDI quattro | 8P1|170PS(125KW) |
| 1.6 TDI | 8P1|90PS(66KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| S3 quattro | 8P1|256PS(188KW) |
| 2.0 TDI | 8P1|140PS(103KW) |
| 2.0 TDI 16V quattro | 8P1|140PS(103KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 2.0 TFSI quattro | 8P1|200PS(147KW) |
| 1.8 TFSI quattro | 8P1|160PS(118KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.8 TFSI | 8P7|160PS(118KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 1.6 | 8P7|102PS(75KW) |
| 1.6 TDI | 8P7|105PS(77KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSI | 8J3|200PS(147KW) |
| 2.0 TDI quattro | 8J3|170PS(125KW) |
| 2.5 RS quattro | 8J3|360PS(265KW) |
| 3.2 V6 quattro | 8J3|250PS(184KW) |
| 2.0 TTS quattro | 8J3|272PS(200KW) |
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.5 RS quattro | 8J3|340PS(250KW) |
| 2.0 TFSI quattro | 8J3|211PS(155KW) |
| 2.0 TFSI | 8J3|211PS(155KW) |
| 2.0 TFSI quattro | 8J3|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 1.6 Bi-Fuel | 2CH|102PS(75KW) |
| 1.6 | 2KA|102PS(75KW) |
| 2.0 TDI 16V | 2CH|140PS(103KW) |
| 1.6 TDI | 2CH|102PS(75KW) |
| 2.0 TDI 16V | 2KA|140PS(103KW) |
| 1.2 TSI | 2KA|105PS(77KW) |
| 2.0 TDI 4motion | 2KH|85PS(62KW) |
| 1.9 TDI 4motion | 2CA|105PS(77KW) |
| 1.6 TDI | 2CA|102PS(75KW) |
| 2.0 TDI | 2CA|170PS(125KW) |
| 2.0 TDI | 2CH|170PS(125KW) |
| 2.0 EcoFuel | 2KH|109PS(80KW) |
| 1.6 TDI | 2KH|102PS(75KW) |
| 1.6 Bi-Fuel | 2CA|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2CA|140PS(103KW) |
| 1.6 | 2CH|102PS(75KW) |
| 2.0 TDI 4motion | 2CA|85PS(62KW) |
| 1.2 TSI | 2CA|105PS(77KW) |
| 1.9 TDI 4motion | 2KA|105PS(77KW) |
| 2.0 TDI | 2CA|85PS(62KW) |
| 2.0 TDI | 2KA|170PS(125KW) |
| 2.0 TDI 4motion | 2KA|110PS(81KW) |
| 1.6 TDI | 2CA|75PS(55KW) |
| 1.2 TSI | 2CA|86PS(63KW) |
| 2.0 TDI 4motion | 2CA|110PS(81KW) |
| 1.6 TDI | 2KH|75PS(55KW) |
| 1.2 TSI | 2KH|105PS(77KW) |
| 2.0 EcoFuel | 2CA|109PS(80KW) |
| 1.2 TSI | 2CH|86PS(63KW) |
| 2.0 TDI 4motion | 2KH|110PS(81KW) |
| 1.9 TDI | 2KH|75PS(55KW) |
| 1.4 | 2CH|80PS(59KW) |
| 2.0 TDI | 2CA|140PS(103KW) |
| 2.0 TDI | 2KA|140PS(103KW) |
| 2.0 TDI 16V 4motion | 2KA|140PS(103KW) |
| 1.9 TDI | 2CH|105PS(77KW) |
| 2.0 TDI | 2CH|85PS(62KW) |
| 1.4 | 2KA|80PS(59KW) |
| 1.4 | 2KA|75PS(55KW) |
| 2.0 TDI 4motion | 2KA|85PS(62KW) |
| 2.0 TDI | 2KH|170PS(125KW) |
| 1.9 TDI | 2CH|75PS(55KW) |
| 2.0 TDI 16V | 2CA|140PS(103KW) |
| 1.6 TDI | 2KA|102PS(75KW) |
| 1.6 Bi-Fuel | 2KH|102PS(75KW) |
| 1.9 TDI 4motion | 2CH|105PS(77KW) |
| 2.0 TDI | 2KA|85PS(62KW) |
| 1.9 TDI | 2KH|105PS(77KW) |
| 1.4 | 2CA|75PS(55KW) |
| 2.0 TDI 4motion | 2CH|110PS(81KW) |
| 1.6 Bi-Fuel | 2KA|102PS(75KW) |
| 1.2 TSI | 2KA|86PS(63KW) |
| 2.0 TDI 16V 4motion | 2CH|140PS(103KW) |
| 2.0 TDI | 2KH|140PS(103KW) |
| 1.9 TDI | 2KA|105PS(77KW) |
| 1.9 TDI 4motion | 2KH|105PS(77KW) |
| 2.0 SDI | 2CH|70PS(51KW) |
| 1.6 TDI | 2KA|75PS(55KW) |
| 2.0 TDI | 2CH|140PS(103KW) |
| 1.4 | 2CH|75PS(55KW) |
| 1.2 TSI | 2CH|105PS(77KW) |
| 1.9 TDI | 2CA|75PS(55KW) |
| 2.0 EcoFuel | 2CH|109PS(80KW) |
| 2.0 TDI 4motion | 2CH|85PS(62KW) |
| 1.6 | 2CA|102PS(75KW) |
| 2.0 TDI 16V | 2KH|140PS(103KW) |
| 1.4 | 2CA|80PS(59KW) |
| 2.0 EcoFuel | 2KA|109PS(80KW) |
| 2.0 SDI | 2CA|70PS(51KW) |
| 2.0 SDI | 2KA|70PS(51KW) |
| 2.0 TDI 16V 4motion | 2KH|140PS(103KW) |
| 1.4 | 2KH|80PS(59KW) |
| 1.9 TDI | 2CA|105PS(77KW) |
| 1.6 | 2KH|102PS(75KW) |
| 2.0 SDI | 2KH|70PS(51KW) |
| 1.4 | 2KH|75PS(55KW) |
| 1.9 TDI | 2KA|75PS(55KW) |
| 2.0 TDI | 2KH|85PS(62KW) |
| 1.6 TDI | 2CH|75PS(55KW) |
| 1.2 TSI | 2KH|86PS(63KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 1K5|122PS(90KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 1.6 | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 1.4 | 1K5|80PS(59KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 1.9 TDI 4motion | 1K5|105PS(77KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | AJ5|105PS(77KW) |
| 2.0 TDI | AJ5|136PS(100KW) |
| 1.6 | AJ5|102PS(75KW) |
| 1.6 TDI | AJ5|105PS(77KW) |
| 1.4 TSI | AJ5|160PS(118KW) |
| 1.2 TSI | AJ5|86PS(63KW) |
| 2.0 TDI | AJ5|140PS(103KW) |
| 1.4 | AJ5|80PS(59KW) |
| 1.6 TDI 4motion | AJ5|105PS(77KW) |
| 1.6 MultiFuel | AJ5|102PS(75KW) |
| 1.6 TDI | AJ5|90PS(66KW) |
| 1.4 TSI | AJ5|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI 4motion | 5K1|140PS(103KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| 1.4 | 5K1|80PS(59KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 2.0 R 4motion | 5K1|270PS(199KW) |
| 1.2 TSI | 5K1|86PS(63KW) |
| 1.6 | 5K1|102PS(75KW) |
| 2.0 R 4motion | 5K1|256PS(188KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R | 137|265PS(195KW) |
| 1.4 TSI | 138|150PS(110KW) |
| 2.0 TSI | 138|180PS(132KW) |
| 2.0 TDI | 138|177PS(130KW) |
| 1.4 TSI | 137|122PS(90KW) |
| 1.4 TSI | 137|160PS(118KW) |
| 2.0 TDI | 137|140PS(103KW) |
| 2.0 R | 138|265PS(195KW) |
| 2.0 TDI | 137|177PS(130KW) |
| 2.0 TFSI | 137|200PS(147KW) |
| 2.0 TDI | 138|136PS(100KW) |
| 2.0 TDI | 138|140PS(103KW) |
| 1.4 TSI | 138|122PS(90KW) |
| 2.0 TDI | 137|184PS(135KW) |
| 2.0 TSI | 137|180PS(132KW) |
| 2.0 R | 138|256PS(188KW) |
| 2.0 TFSI | 138|200PS(147KW) |
| 2.0 R | 137|256PS(188KW) |
| 2.0 TSI | 137|220PS(162KW) |
| 2.0 TDI | 138|150PS(110KW) |
| 2.0 TDI | 137|150PS(110KW) |
| 2.0 TDI | 137|170PS(125KW) |
| 1.4 TSI | 138|125PS(92KW) |
| 2.0 TDI | 137|136PS(100KW) |
| 2.0 R | 138|280PS(206KW) |
| 2.0 TDI | 138|184PS(135KW) |
| 2.0 TSI | 138|210PS(155KW) |
| 2.0 TSI | 137|210PS(155KW) |
| 1.4 TSI | 137|150PS(110KW) |
| 1.4 TSI | 138|160PS(118KW) |
| 2.0 R | 137|280PS(206KW) |
| 2.0 TSI | 138|220PS(162KW) |
| 2.0 TDI | 138|170PS(125KW) |
| 1.4 TSI | 137|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSI | 1T1|150PS(110KW) |
| 1.4 TSI EcoFuel | 1T3|150PS(110KW) |
| 2.0 TDI | 1T2|140PS(103KW) |
| 1.4 TSI | 1T2|140PS(103KW) |
| 1.9 TDI | 1T2|100PS(74KW) |
| 1.6 FSI | 1T2|115PS(85KW) |
| 2.0 TDI | 1T3|170PS(125KW) |
| 1.8 TSI | 5T1|180PS(132KW) |
| 1.4 TSI | 1T2|170PS(125KW) |
| 1.9 TDI | 1T1|90PS(66KW) |
| 1.6 TDI | 5T1|110PS(81KW) |
| 2.0 TDI | 1T3|140PS(103KW) |
| 1.6 TDI | 1T3|90PS(66KW) |
| 1.9 TDI | 1T1|105PS(77KW) |
| 1.9 TDI | 1T1|100PS(74KW) |
| 1.2 TSI | 1T3|105PS(77KW) |
| 1.2 TSI | 5T1|110PS(81KW) |
| 1.6 TDI | 1T3|105PS(77KW) |
| 1.6 | 1T2|102PS(75KW) |
| 1.4 TSI | 5T1|150PS(110KW) |
| 2.0 EcoFuel | 1T1|109PS(80KW) |
| 1.6 FSI | 1T1|115PS(85KW) |
| 2.0 FSI | 1T2|150PS(110KW) |
| 2.0 TDI | 1T1|140PS(103KW) |
| 1.6 TDI | 1T2|105PS(77KW) |
| 2.0 TDI | 1T2|170PS(125KW) |
| 1.4 TSI EcoFuel | 1T2|150PS(110KW) |
| 2.0 TDI | 1T1|136PS(100KW) |
| 2.0 TDI | 5T1|150PS(110KW) |
| 2.0 TDI | 5T1|110PS(81KW) |
| 1.4 TSI EcoFuel | 1T1|150PS(110KW) |
| 1.4 TSI | 1T3|170PS(125KW) |
| 2.0 EcoFuel | 1T2|109PS(80KW) |
| 2.0 TDI | 1T1|170PS(125KW) |
| 1.4 TSI | 1T1|140PS(103KW) |
| 2.0 TDI 16V | 1T2|140PS(103KW) |
| 1.4 TSI | 1T1|170PS(125KW) |
| 2.0 TDI | 5T1|190PS(140KW) |
| 1.9 TDI | 1T2|90PS(66KW) |
| 2.0 TDI | 1T2|136PS(100KW) |
| 1.4 TSI | 1T3|140PS(103KW) |
| 1.9 TDI | 1T2|105PS(77KW) |
| 1.6 | 1T1|102PS(75KW) |
| 1.6 TDI | 1T1|105PS(77KW) |
| 2.0 TDI | 1T3|177PS(130KW) |
| 2.0 TDI 16V | 1T1|140PS(103KW) |
| 1.6 TDI | 5T1|115PS(85KW) |
| 2.0 TDI | 1T3|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 2KB|86PS(63KW) |
| 2.0 SDI | 2CJ|70PS(51KW) |
| 1.2 TSI | 2KJ|105PS(77KW) |
| 2.0 TDI 4motion | 2KB|110PS(81KW) |
| 1.6 TDI | 2KJ|75PS(55KW) |
| 1.2 TSI | 2CJ|86PS(63KW) |
| 2.0 TDI | 2CB|170PS(125KW) |
| 2.0 TDI 16V 4motion | 2CJ|140PS(103KW) |
| 1.6 | 2KJ|102PS(75KW) |
| 1.6 TDI | 2CJ|75PS(55KW) |
| 1.2 TSI | 2KJ|86PS(63KW) |
| 1.6 Bi-Fuel | 2KB|102PS(75KW) |
| 1.4 | 2CB|75PS(55KW) |
| 2.0 EcoFuel | 2KB|109PS(80KW) |
| 1.9 TDI | 2CB|105PS(77KW) |
| 1.9 TDI 4motion | 2CB|105PS(77KW) |
| 1.9 TDI | 2KJ|75PS(55KW) |
| 1.6 | 2CJ|102PS(75KW) |
| 1.6 TDI | 2CB|75PS(55KW) |
| 1.4 | 2KJ|75PS(55KW) |
| 2.0 TDI | 2CB|140PS(103KW) |
| 1.9 TDI 4motion | 2KJ|105PS(77KW) |
| 1.2 TSI | 2KB|105PS(77KW) |
| 2.0 TDI | 2KB|140PS(103KW) |
| 1.6 | 2KB|102PS(75KW) |
| 2.0 TDI 16V | 2CB|140PS(103KW) |
| 1.6 TDI | 2KJ|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2CB|140PS(103KW) |
| 2.0 TDI 16V | 2KJ|140PS(103KW) |
| 2.0 TDI | 2KJ|170PS(125KW) |
| 1.6 | 2CB|102PS(75KW) |
| 1.6 Bi-Fuel | 2CJ|102PS(75KW) |
| 2.0 TDI | 2CJ|140PS(103KW) |
| 1.6 Bi-Fuel | 2KJ|102PS(75KW) |
| 1.9 TDI 4motion | 2KB|105PS(77KW) |
| 2.0 SDI | 2KB|70PS(51KW) |
| 1.6 TDI | 2CB|102PS(75KW) |
| 1.4 | 2CB|80PS(59KW) |
| 2.0 EcoFuel | 2KJ|109PS(80KW) |
| 2.0 TDI 16V 4motion | 2KJ|140PS(103KW) |
| 2.0 TDI | 2CJ|170PS(125KW) |
| 2.0 TDI | 2KJ|140PS(103KW) |
| 2.0 TDI 4motion | 2CB|110PS(81KW) |
| 1.9 TDI 4motion | 2CJ|105PS(77KW) |
| 1.4 | 2KJ|80PS(59KW) |
| 2.0 TDI 16V 4motion | 2KB|140PS(103KW) |
| 1.6 TDI | 2KB|75PS(55KW) |
| 2.0 EcoFuel | 2CB|109PS(80KW) |
| 1.4 | 2KB|75PS(55KW) |
| 1.4 | 2CJ|80PS(59KW) |
| 1.9 TDI | 2CJ|75PS(55KW) |
| 1.2 TSI | 2CB|86PS(63KW) |
| 1.6 Bi-Fuel | 2CB|102PS(75KW) |
| 1.9 TDI | 2KB|105PS(77KW) |
| 2.0 SDI | 2KJ|70PS(51KW) |
| 1.9 TDI | 2CB|75PS(55KW) |
| 1.6 TDI | 2CJ|102PS(75KW) |
| 2.0 TDI | 2KB|170PS(125KW) |
| 1.2 TSI | 2CB|105PS(77KW) |
| 2.0 TDI 16V | 2KB|140PS(103KW) |
| 2.0 TDI 4motion | 2KJ|110PS(81KW) |
| 2.0 EcoFuel | 2CJ|109PS(80KW) |
| 1.9 TDI | 2KB|75PS(55KW) |
| 1.9 TDI | 2CJ|105PS(77KW) |
| 2.0 TDI 4motion | 2CJ|110PS(81KW) |
| 1.6 TDI | 2KB|102PS(75KW) |
| 2.0 TDI 16V | 2CJ|140PS(103KW) |
| 1.9 TDI | 2KJ|105PS(77KW) |
| 2.0 SDI | 2CB|70PS(51KW) |
| 1.4 | 2CJ|75PS(55KW) |
| 1.4 | 2KB|80PS(59KW) |
| 1.2 TSI | 2CJ|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 5M1|105PS(77KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 1.4 TSI | 521|170PS(125KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.6 FSI | 521|115PS(85KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 2.0 TDI | 521|131PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI 4motion | 1K1|105PS(77KW) |
| 2.0 FSI 4motion | 1K1|150PS(110KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 1.9 TDI | 1K1|90PS(66KW) |
| 2.0 TDI | 1K1|140PS(103KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 1.6 | 1K1|102PS(75KW) |
| 2.0 TDI 4motion | 1K1|140PS(103KW) |
| 2.0 TDI 16V 4motion | 1K1|140PS(103KW) |
| 2.0 FSI | 1K1|150PS(110KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 517|150PS(110KW) |
| 1.4 TSI | 517|160PS(118KW) |
| 1.2 TSI 16V | 517|105PS(77KW) |
| 1.6 TDI | 517|105PS(77KW) |
| 1.4 TSI | 517|122PS(90KW) |
| 1.4 TSI | 517|125PS(92KW) |
| 2.0 TDI | 517|140PS(103KW) |
| 2.0 TDI | 517|110PS(81KW) |
| 1.4 TSI | 517|150PS(110KW) |
| 1.2 TSI | 517|105PS(77KW) |
| 2.0 GTI | 517|211PS(155KW) |
| 2.0 TSI | 517|220PS(162KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 162|150PS(110KW) |
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDi | 5P1|136PS(100KW) |
| 2.0 FSi | 5P1|150PS(110KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P8|150PS(110KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi | 1P1|200PS(147KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TFSi | 1P1|185PS(136KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8PA|140PS(103KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| 1.6 | 8PA|102PS(75KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 2.0 TFSI quattro | 8PA|200PS(147KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| RS3 quattro | 8PA|340PS(250KW) |
| 2.0 TDI 16V quattro | 8PA|140PS(103KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 2.0 TDI quattro | 8PA|140PS(103KW) |
| 2.0 TDI | 8PA|136PS(100KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 1.9 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 3.2 V6 quattro | 8PA|250PS(184KW) |
| S3 quattro | 8PA|265PS(195KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 TDI quattro | 8PA|170PS(125KW) |
| S3 quattro | 8PA|256PS(188KW) |
| 1.8 TFSI quattro | 8PA|160PS(118KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8P1|163PS(120KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 3.2 V6 quattro | 8P1|250PS(184KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| 2.0 TDI quattro | 8P1|136PS(100KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 2.0 TDI quattro | 8P1|140PS(103KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| S3 quattro | 8P1|265PS(195KW) |
| 2.0 TDI quattro | 8P1|170PS(125KW) |
| 1.6 TDI | 8P1|90PS(66KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| S3 quattro | 8P1|256PS(188KW) |
| 2.0 TDI | 8P1|140PS(103KW) |
| 2.0 TDI 16V quattro | 8P1|140PS(103KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 2.0 TFSI quattro | 8P1|200PS(147KW) |
| 1.8 TFSI quattro | 8P1|160PS(118KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.8 TFSI | 8P7|160PS(118KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 1.6 | 8P7|102PS(75KW) |
| 1.6 TDI | 8P7|105PS(77KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSI | 8J3|200PS(147KW) |
| 2.0 TDI quattro | 8J3|170PS(125KW) |
| 2.5 RS quattro | 8J3|360PS(265KW) |
| 3.2 V6 quattro | 8J3|250PS(184KW) |
| 2.0 TTS quattro | 8J3|272PS(200KW) |
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.5 RS quattro | 8J3|340PS(250KW) |
| 2.0 TFSI quattro | 8J3|211PS(155KW) |
| 2.0 TFSI | 8J3|211PS(155KW) |
| 2.0 TFSI quattro | 8J3|200PS(147KW) |
VW Golf MK5 MK6 Audi A3 TT R8 Adapter Porsche Cayenne Brake Brake Caliper Rear FWD
- ✓ 310x22 1K0615601N Golf 5 R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
£165.71*
Item number: 926
VW Golf MK5 MK6 Audi A3 TT Brake Caliper Adapter Audi RS7 Brake Disc 356x22mm Porsche Cayenne Brake Rear Axle Tuning Adapter
- ✓ 356x22 4G8615601 Audi RS7 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
£214.69*
Item number: 425
VW Golf 5 6 Audi A3 TT Bremssattel Adapter Audi S6 S7 S8 Bremsscheibe 356x22mm Porsche Panamera Bremse Br
- ✓ 356x22 4G8615601 Audi RS7 4H0615601 Audi S6 S7 S8 brake disc
- ✓ 4-piston 970352425 / 970352426 Porsche Panamera brake caliper
- ✓ rear axle
£757.43*
Item number: 505-sonder
Big Brake systems KIT rear axle VW Golf 5 6 Audi A3 TT R8 adapter Porsche Cayenne 310x22 brake disc
- ✓ 310x22 1K0615601N Golf 5 R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
£958.75*
Item number: 926-KIT
Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R32 Audi A3 S3 V6 Brembo TTRS Brake Conversion
- ✓ Length: 63cm
- ✓ M10x1 outside 45° curved
- ✓ M10x1 inside straight
£78.35*
Item number: SF109
EBC brake pads Yellowstuff front axle Porsche VW Cayenne Macan Panamera 4.8 S 3.0 Diesel 4.2
- ✓ Registration-free
- ✓ Yellowstuff sports surface
- ✓ temperature up to 900°C
£289.01*
Item number: DP41835R
Brake pad Epytec Panamera brake caliper ceramic aramid 6 piston brake caliper 95535193961 Porsche Panamera Macan E-Tron
- ✓ 35% better braking performance
- ✓ 75% more service life
- ✓ low dust generation
£138.29*
Item number: 1172
1 Bag Special Assembly Paste Lubricant Brake Brake Pads (6gr ) (=49,83EUR pro 100gr)
- ✓ optimized paste for brake systems
- ✓ correct viscosity
- ✓ no squeaking
£2.53*
Item number: LUBE001
500ml Ultra High Performance Racing Sport Brake Fluid (1L = 74,60)
- ✓ Racing brake fluid
- ✓ Reduction in brake fading
- ✓ improved pedal feel
£31.80*
Item number: BF307
2x Brake Discs Mercedes ML GL Zimmermann Sport 375x36 112x5 GLE GLS 400.3684.20
- ✓ 375x36
- ✓ 67mm centering
- ✓ 54.5mm height
£240.48*
Item number: ZIM170
VW Golf MK5 MK6 Audi A3 TT R8 Brake Caliper Adapter Porsche Cayenne Rear Axle Front Wheel Drive
- ✓ 345x22 1664230312 original brake disc
- ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
- ✓ rear axle
£603.17*
Item number: 893-sonder-161122
Thin 1cm shorter drive shaft on the right front Audi A3 Sportback Q3 VW Golf MK5 MK6 4-motion Passat 3c Skoda
- ✓ Front axle right
- ✓ VW Golf IV Variant Bora Variant Audi A3 Skoda Octavia I Combi Seat Leon Seat Toledo II
- ✓ Free of registration
£262.87*
Item number: APA201
Thin 1cm Shorter Drive Shaft Right DSG Transmission Audi A3 TT Golf MK5 R32 motion
- ✓ Front axle right
- ✓ Audi A3 TT Golf 5 R32 4motion
- ✓ DSG transmission
£235.94*
Item number: APA210
Steering Angle Limiter Turning Angle Reducer Stainless Steel VW Golf Audi A3 Opel - Diameter: 26mm - Thickness: 10mm
- ✓ 2-part steering lock limiter / steering stop limiter made of stainless steel, suitable for all vehicles
£136.99*
Item number: 293-D2610
