VW Golf MK5 MK6 Audi A3 TT R8 Adapter Porsche Cayenne Brake Brake Caliper Rear FWD
- ✓ 310x22 1K0615601N Golf 5 R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
£165.71*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

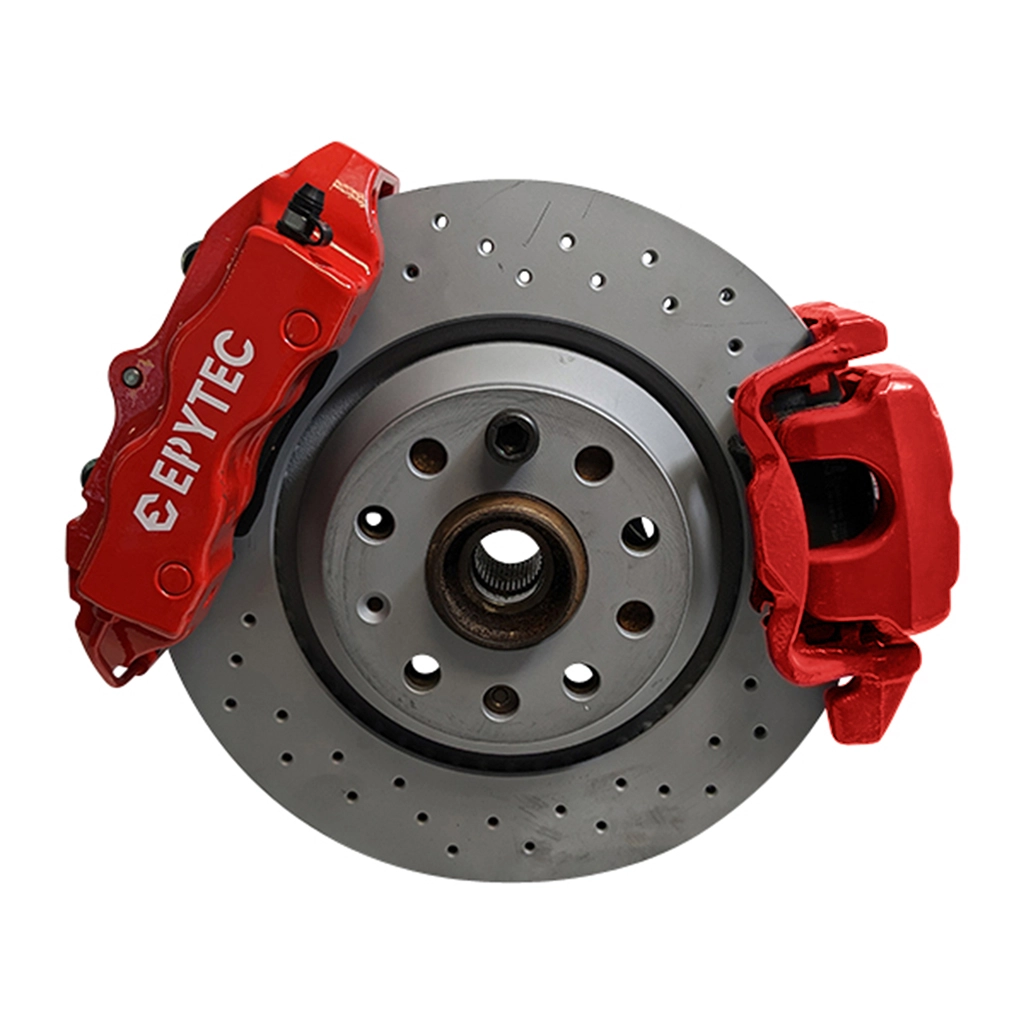

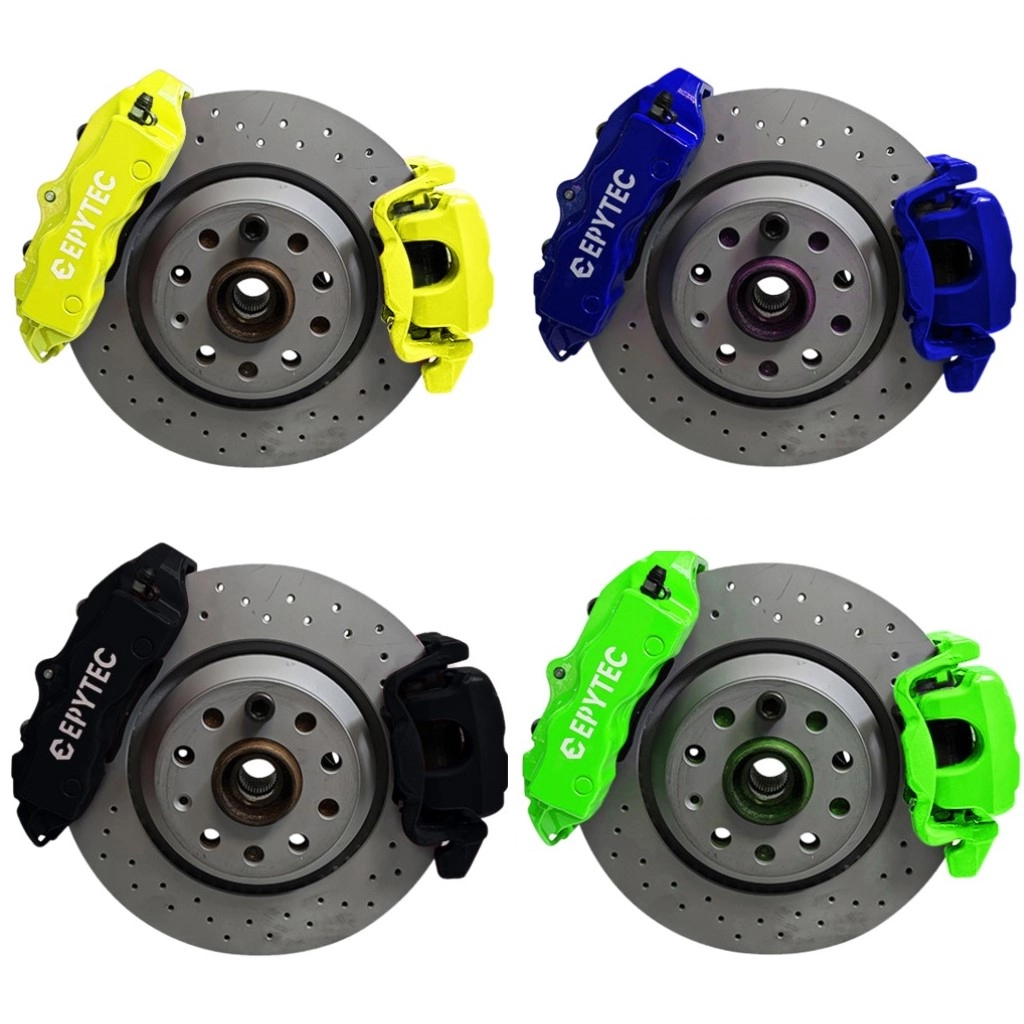

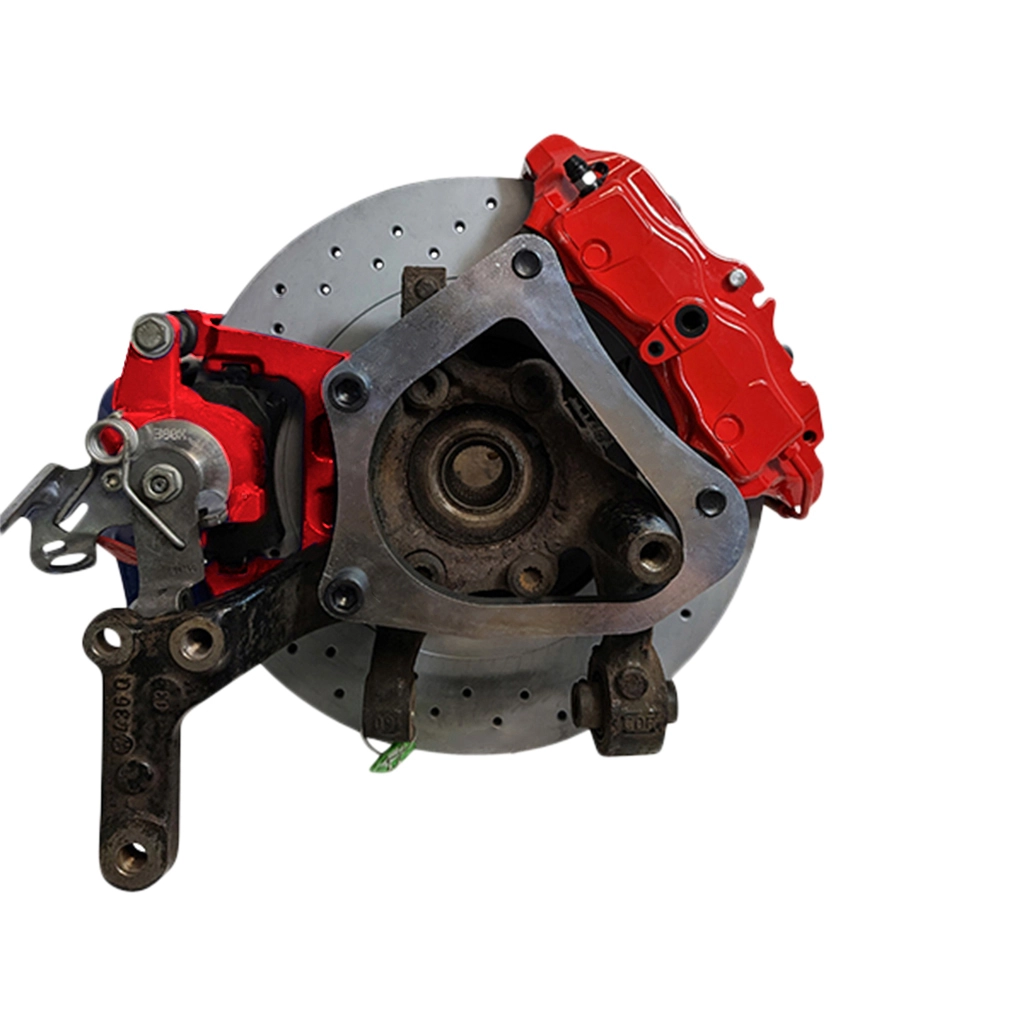

Brake caliper adapter, rear axle, in models Golf MK5 MK6 Audi A3 with steel axl, for conversion to Porsche Cayenne brake caliper, combined with the Golf MK5 R brake disc 310x22 mm.
The Porsche calipers are connected to the hydraulics of the vehicle and can thus develop an enormous braking force. Since these have no handbrake functions, the rear Golf MK5 R is also used as a hand brake caliper adapter. The hydraulic connection is thereby closed with a blind plug / closure cap, thus this serves only as a hand brake caliper.
Suitable for the following VW und Seat models with steel axle (FWD and 4WD):
- VW Golf MK5
- VW Golf MK5R
- Caddy 3
- Touran
- Audi A3 8P
- Ausi S3 8P
- Seat Leon Cupra
- Seat Altea
- Skoda VRS
Advantages of this brake system:
- top deceleration, without comparison with conventional brake discs
- better performance
- supplied material certificate
Required components:
- brake caliper: Porsche Cayenne , rear axle, reference 955.352.421 + 955.352.422 (only 100% compatible with the specified Porsche caliper) Brembo left 20.7673.03 / right 20.7673.04
- rear brake caliper for handbrake: Golf MK5 R
- brake disc: original Golf 5 R 310x22 mm , reference 1K0 615 601 N
- In the all-wheel drive models, the ABS sensor must be changed because the Cayenne brake caliper is there
Delivery:
- 2x brake caliper adapers, rear axle, for Golf MK5 MK6 Ausi A3
- high-strength mounting screws
- material certificate
- Installation instructions (click here)
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
24 February 2024 14:56
vishnosono_0
Wow I love it the item was vas nicely packed
5 April 2020 15:35
rsbrady0123
thanks guys top class seller great communication
16 October 2024 08:55
nicolalotrecchio82
Perfetto in tutto
22 December 2021 15:30
Jonathan D
Produit conforme et bien étudié. Tarif attractif, envoie rapide et tres bonne communication.
3 August 2022 18:10
Aurélien R
Noch nicht montiert aber sieht erstmal gut aus
27 November 2023 19:31
bruce13amber
Quick delivery good ebayer
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 1T3|105PS(77KW) |
| 2.0 TDI | 5T1|110PS(81KW) |
| 2.0 TDI | 1T1|136PS(100KW) |
| 1.9 TDI | 1T1|100PS(74KW) |
| 1.6 TDI | 1T3|105PS(77KW) |
| 2.0 FSI | 1T2|150PS(110KW) |
| 2.0 TDI | 1T3|110PS(81KW) |
| 1.4 TSI | 1T2|140PS(103KW) |
| 1.6 | 1T2|102PS(75KW) |
| 1.4 TSI | 1T2|170PS(125KW) |
| 1.4 TSI | 1T3|170PS(125KW) |
| 1.9 TDI | 1T1|90PS(66KW) |
| 2.0 TDI | 1T3|177PS(130KW) |
| 1.9 TDI | 1T2|90PS(66KW) |
| 1.6 TDI | 1T3|90PS(66KW) |
| 1.4 TSI | 1T1|170PS(125KW) |
| 1.9 TDI | 1T2|105PS(77KW) |
| 2.0 TDI | 1T2|170PS(125KW) |
| 2.0 FSI | 1T1|150PS(110KW) |
| 1.8 TSI | 5T1|180PS(132KW) |
| 2.0 TDI | 1T3|140PS(103KW) |
| 1.6 TDI | 1T2|105PS(77KW) |
| 1.4 TSI | 1T1|140PS(103KW) |
| 2.0 TDI | 1T2|136PS(100KW) |
| 1.2 TSI | 5T1|110PS(81KW) |
| 1.6 | 1T1|102PS(75KW) |
| 2.0 TDI 16V | 1T2|140PS(103KW) |
| 1.6 FSI | 1T1|115PS(85KW) |
| 1.6 TDI | 5T1|110PS(81KW) |
| 1.6 FSI | 1T2|115PS(85KW) |
| 1.4 TSI EcoFuel | 1T2|150PS(110KW) |
| 1.9 TDI | 1T1|105PS(77KW) |
| 1.6 TDI | 1T1|105PS(77KW) |
| 2.0 TDI | 5T1|150PS(110KW) |
| 2.0 TDI | 5T1|190PS(140KW) |
| 2.0 TDI | 1T1|170PS(125KW) |
| 1.6 TDI | 5T1|115PS(85KW) |
| 2.0 TDI | 1T3|170PS(125KW) |
| 2.0 TDI | 1T2|140PS(103KW) |
| 1.4 TSI | 5T1|150PS(110KW) |
| 1.9 TDI | 1T2|100PS(74KW) |
| 2.0 TDI 16V | 1T1|140PS(103KW) |
| 1.4 TSI EcoFuel | 1T3|150PS(110KW) |
| 2.0 TDI | 1T1|140PS(103KW) |
| 1.4 TSI | 1T3|140PS(103KW) |
| 1.4 TSI EcoFuel | 1T1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 2KJ|140PS(103KW) |
| 1.4 | 2KJ|80PS(59KW) |
| 1.6 Bi-Fuel | 2CJ|102PS(75KW) |
| 1.6 TDI | 2CJ|75PS(55KW) |
| 1.4 | 2CB|80PS(59KW) |
| 2.0 SDI | 2KJ|70PS(51KW) |
| 1.6 TDI | 2KJ|102PS(75KW) |
| 2.0 EcoFuel | 2KB|109PS(80KW) |
| 2.0 TDI 4motion | 2KJ|110PS(81KW) |
| 1.2 TSI | 2CB|105PS(77KW) |
| 2.0 TDI 4motion | 2CJ|110PS(81KW) |
| 2.0 TDI | 2CJ|140PS(103KW) |
| 2.0 TDI 16V 4motion | 2KB|140PS(103KW) |
| 2.0 TDI | 2KB|170PS(125KW) |
| 1.9 TDI | 2CJ|75PS(55KW) |
| 2.0 TDI 16V | 2CB|140PS(103KW) |
| 1.6 | 2CJ|102PS(75KW) |
| 1.2 TSI | 2KB|105PS(77KW) |
| 1.6 Bi-Fuel | 2KB|102PS(75KW) |
| 1.6 Bi-Fuel | 2CB|102PS(75KW) |
| 1.6 | 2KJ|102PS(75KW) |
| 1.2 TSI | 2CJ|105PS(77KW) |
| 1.2 TSI | 2KB|86PS(63KW) |
| 2.0 TDI 16V | 2KB|140PS(103KW) |
| 2.0 TDI | 2CJ|170PS(125KW) |
| 1.4 | 2CJ|75PS(55KW) |
| 1.9 TDI 4motion | 2KB|105PS(77KW) |
| 1.6 TDI | 2CJ|102PS(75KW) |
| 2.0 TDI | 2CB|170PS(125KW) |
| 1.9 TDI 4motion | 2KJ|105PS(77KW) |
| 1.9 TDI 4motion | 2CB|105PS(77KW) |
| 2.0 TDI 4motion | 2CB|110PS(81KW) |
| 1.6 TDI | 2KJ|75PS(55KW) |
| 1.9 TDI | 2CB|105PS(77KW) |
| 2.0 TDI 16V 4motion | 2KJ|140PS(103KW) |
| 2.0 EcoFuel | 2CJ|109PS(80KW) |
| 1.2 TSI | 2CJ|86PS(63KW) |
| 2.0 TDI 4motion | 2KB|110PS(81KW) |
| 1.6 TDI | 2CB|102PS(75KW) |
| 1.6 TDI | 2KB|102PS(75KW) |
| 1.2 TSI | 2CB|86PS(63KW) |
| 1.9 TDI | 2CJ|105PS(77KW) |
| 2.0 TDI | 2CB|140PS(103KW) |
| 1.9 TDI | 2KJ|75PS(55KW) |
| 1.4 | 2KB|75PS(55KW) |
| 2.0 TDI | 2KB|140PS(103KW) |
| 2.0 EcoFuel | 2CB|109PS(80KW) |
| 2.0 EcoFuel | 2KJ|109PS(80KW) |
| 1.6 | 2KB|102PS(75KW) |
| 2.0 TDI 16V | 2CJ|140PS(103KW) |
| 1.2 TSI | 2KJ|86PS(63KW) |
| 1.6 TDI | 2CB|75PS(55KW) |
| 1.6 TDI | 2KB|75PS(55KW) |
| 1.4 | 2KJ|75PS(55KW) |
| 1.6 | 2CB|102PS(75KW) |
| 2.0 TDI | 2KJ|170PS(125KW) |
| 2.0 SDI | 2KB|70PS(51KW) |
| 1.9 TDI | 2KB|105PS(77KW) |
| 2.0 SDI | 2CJ|70PS(51KW) |
| 2.0 TDI 16V | 2KJ|140PS(103KW) |
| 1.6 Bi-Fuel | 2KJ|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2CB|140PS(103KW) |
| 1.4 | 2CJ|80PS(59KW) |
| 1.4 | 2KB|80PS(59KW) |
| 1.2 TSI | 2KJ|105PS(77KW) |
| 2.0 SDI | 2CB|70PS(51KW) |
| 1.4 | 2CB|75PS(55KW) |
| 2.0 TDI 16V 4motion | 2CJ|140PS(103KW) |
| 1.9 TDI | 2CB|75PS(55KW) |
| 1.9 TDI | 2KJ|105PS(77KW) |
| 1.9 TDI | 2KB|75PS(55KW) |
| 1.9 TDI 4motion | 2CJ|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 2KH|170PS(125KW) |
| 2.0 TDI 16V 4motion | 2CH|140PS(103KW) |
| 1.9 TDI | 2CH|75PS(55KW) |
| 1.2 TSI | 2KA|105PS(77KW) |
| 2.0 TDI 4motion | 2KH|110PS(81KW) |
| 1.4 | 2CA|80PS(59KW) |
| 1.9 TDI | 2CA|105PS(77KW) |
| 1.6 TDI | 2KH|75PS(55KW) |
| 1.6 TDI | 2KA|75PS(55KW) |
| 1.4 | 2CA|75PS(55KW) |
| 2.0 SDI | 2KH|70PS(51KW) |
| 2.0 TDI | 2KH|85PS(62KW) |
| 1.9 TDI 4motion | 2KA|105PS(77KW) |
| 1.2 TSI | 2KA|86PS(63KW) |
| 1.9 TDI | 2CH|105PS(77KW) |
| 2.0 TDI | 2KH|140PS(103KW) |
| 2.0 TDI 16V | 2KA|140PS(103KW) |
| 1.6 TDI | 2KH|102PS(75KW) |
| 2.0 TDI 16V | 2KH|140PS(103KW) |
| 1.9 TDI 4motion | 2KH|105PS(77KW) |
| 1.6 TDI | 2CA|102PS(75KW) |
| 2.0 TDI 4motion | 2KH|85PS(62KW) |
| 2.0 SDI | 2CH|70PS(51KW) |
| 2.0 SDI | 2KA|70PS(51KW) |
| 2.0 TDI 16V 4motion | 2KH|140PS(103KW) |
| 2.0 EcoFuel | 2KA|109PS(80KW) |
| 1.6 | 2KH|102PS(75KW) |
| 1.9 TDI | 2KH|75PS(55KW) |
| 1.2 TSI | 2CH|86PS(63KW) |
| 1.9 TDI 4motion | 2CH|105PS(77KW) |
| 2.0 TDI 16V | 2CH|140PS(103KW) |
| 1.6 TDI | 2KA|102PS(75KW) |
| 1.2 TSI | 2KH|105PS(77KW) |
| 2.0 SDI | 2CA|70PS(51KW) |
| 2.0 TDI 4motion | 2CA|85PS(62KW) |
| 1.6 Bi-Fuel | 2CH|102PS(75KW) |
| 1.4 | 2KA|80PS(59KW) |
| 2.0 EcoFuel | 2CH|109PS(80KW) |
| 2.0 TDI | 2CA|85PS(62KW) |
| 1.2 TSI | 2KH|86PS(63KW) |
| 2.0 TDI | 2KA|140PS(103KW) |
| 2.0 TDI | 2KA|85PS(62KW) |
| 2.0 TDI 16V 4motion | 2CA|140PS(103KW) |
| 2.0 TDI 4motion | 2CA|110PS(81KW) |
| 2.0 TDI 4motion | 2CH|110PS(81KW) |
| 2.0 TDI 4motion | 2KA|110PS(81KW) |
| 2.0 TDI | 2CH|170PS(125KW) |
| 1.4 | 2KH|80PS(59KW) |
| 2.0 TDI | 2CA|170PS(125KW) |
| 2.0 TDI | 2CH|140PS(103KW) |
| 1.6 TDI | 2CA|75PS(55KW) |
| 1.9 TDI | 2KA|105PS(77KW) |
| 2.0 TDI | 2CH|85PS(62KW) |
| 1.2 TSI | 2CA|105PS(77KW) |
| 1.9 TDI 4motion | 2CA|105PS(77KW) |
| 1.6 Bi-Fuel | 2KA|102PS(75KW) |
| 2.0 TDI | 2KA|170PS(125KW) |
| 1.6 | 2KA|102PS(75KW) |
| 2.0 EcoFuel | 2KH|109PS(80KW) |
| 1.4 | 2KH|75PS(55KW) |
| 1.6 | 2CH|102PS(75KW) |
| 2.0 TDI 4motion | 2CH|85PS(62KW) |
| 1.2 TSI | 2CA|86PS(63KW) |
| 1.4 | 2CH|75PS(55KW) |
| 1.6 TDI | 2CH|102PS(75KW) |
| 1.9 TDI | 2KH|105PS(77KW) |
| 1.6 TDI | 2CH|75PS(55KW) |
| 2.0 TDI 4motion | 2KA|85PS(62KW) |
| 1.4 | 2KA|75PS(55KW) |
| 2.0 TDI | 2CA|140PS(103KW) |
| 1.6 Bi-Fuel | 2KH|102PS(75KW) |
| 1.2 TSI | 2CH|105PS(77KW) |
| 1.4 | 2CH|80PS(59KW) |
| 2.0 EcoFuel | 2CA|109PS(80KW) |
| 1.6 | 2CA|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2KA|140PS(103KW) |
| 1.6 Bi-Fuel | 2CA|102PS(75KW) |
| 1.9 TDI | 2CA|75PS(55KW) |
| 1.9 TDI | 2KA|75PS(55KW) |
| 2.0 TDI 16V | 2CA|140PS(103KW) |
| Motor | Motorcode |
|---|---|
| 1.6 FSI | 521|115PS(85KW) |
| 1.9 TDI | 5M1|105PS(77KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 2.0 TDI | 521|131PS(96KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.4 TSI | 521|170PS(125KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 1.2 TSI | 5K1|86PS(63KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| 1.6 | 5K1|102PS(75KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 1.4 | 5K1|80PS(59KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 1K5|122PS(90KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 1.4 | 1K5|80PS(59KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 1.6 | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 162|150PS(110KW) |
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSI | 1K1|150PS(110KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 1.9 TDI | 1K1|90PS(66KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.6 | 1K1|102PS(75KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 2.0 TDI | 1K1|140PS(103KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 1.6 | 8PA|102PS(75KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 2.0 TDI | 8PA|140PS(103KW) |
| 2.0 TDI | 8PA|136PS(100KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8P1|140PS(103KW) |
| 2.0 TDI | 8P1|163PS(120KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| 1.6 TDI | 8P1|90PS(66KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.6 TDI | 8P7|105PS(77KW) |
| 1.6 | 8P7|102PS(75KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.8 TFSI | 8P7|160PS(118KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.0 TFSI | 8J3|200PS(147KW) |
| 2.0 TFSI | 8J3|211PS(155KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 FSi | 5P8|150PS(110KW) |
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi | 1P1|185PS(136KW) |
| 2.0 TFSi | 1P1|200PS(147KW) |
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDi | 5P1|136PS(100KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| 2.0 FSi | 5P1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 1T3|105PS(77KW) |
| 2.0 TDI | 5T1|110PS(81KW) |
| 2.0 TDI | 1T1|136PS(100KW) |
| 1.9 TDI | 1T1|100PS(74KW) |
| 1.6 TDI | 1T3|105PS(77KW) |
| 2.0 FSI | 1T2|150PS(110KW) |
| 2.0 TDI | 1T3|110PS(81KW) |
| 1.4 TSI | 1T2|140PS(103KW) |
| 1.6 | 1T2|102PS(75KW) |
| 1.4 TSI | 1T2|170PS(125KW) |
| 1.4 TSI | 1T3|170PS(125KW) |
| 1.9 TDI | 1T1|90PS(66KW) |
| 2.0 TDI | 1T3|177PS(130KW) |
| 1.9 TDI | 1T2|90PS(66KW) |
| 1.6 TDI | 1T3|90PS(66KW) |
| 1.4 TSI | 1T1|170PS(125KW) |
| 1.9 TDI | 1T2|105PS(77KW) |
| 2.0 TDI | 1T2|170PS(125KW) |
| 2.0 FSI | 1T1|150PS(110KW) |
| 1.8 TSI | 5T1|180PS(132KW) |
| 2.0 TDI | 1T3|140PS(103KW) |
| 1.6 TDI | 1T2|105PS(77KW) |
| 1.4 TSI | 1T1|140PS(103KW) |
| 2.0 TDI | 1T2|136PS(100KW) |
| 1.2 TSI | 5T1|110PS(81KW) |
| 1.6 | 1T1|102PS(75KW) |
| 2.0 TDI 16V | 1T2|140PS(103KW) |
| 1.6 FSI | 1T1|115PS(85KW) |
| 1.6 TDI | 5T1|110PS(81KW) |
| 1.6 FSI | 1T2|115PS(85KW) |
| 1.4 TSI EcoFuel | 1T2|150PS(110KW) |
| 1.9 TDI | 1T1|105PS(77KW) |
| 1.6 TDI | 1T1|105PS(77KW) |
| 2.0 TDI | 5T1|150PS(110KW) |
| 2.0 TDI | 5T1|190PS(140KW) |
| 2.0 TDI | 1T1|170PS(125KW) |
| 1.6 TDI | 5T1|115PS(85KW) |
| 2.0 TDI | 1T3|170PS(125KW) |
| 2.0 TDI | 1T2|140PS(103KW) |
| 1.4 TSI | 5T1|150PS(110KW) |
| 1.9 TDI | 1T2|100PS(74KW) |
| 2.0 TDI 16V | 1T1|140PS(103KW) |
| 1.4 TSI EcoFuel | 1T3|150PS(110KW) |
| 2.0 TDI | 1T1|140PS(103KW) |
| 1.4 TSI | 1T3|140PS(103KW) |
| 1.4 TSI EcoFuel | 1T1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 2KJ|140PS(103KW) |
| 1.4 | 2KJ|80PS(59KW) |
| 1.6 Bi-Fuel | 2CJ|102PS(75KW) |
| 1.6 TDI | 2CJ|75PS(55KW) |
| 1.4 | 2CB|80PS(59KW) |
| 2.0 SDI | 2KJ|70PS(51KW) |
| 1.6 TDI | 2KJ|102PS(75KW) |
| 2.0 EcoFuel | 2KB|109PS(80KW) |
| 2.0 TDI 4motion | 2KJ|110PS(81KW) |
| 1.2 TSI | 2CB|105PS(77KW) |
| 2.0 TDI 4motion | 2CJ|110PS(81KW) |
| 2.0 TDI | 2CJ|140PS(103KW) |
| 2.0 TDI 16V 4motion | 2KB|140PS(103KW) |
| 2.0 TDI | 2KB|170PS(125KW) |
| 1.9 TDI | 2CJ|75PS(55KW) |
| 2.0 TDI 16V | 2CB|140PS(103KW) |
| 1.6 | 2CJ|102PS(75KW) |
| 1.2 TSI | 2KB|105PS(77KW) |
| 1.6 Bi-Fuel | 2KB|102PS(75KW) |
| 1.6 Bi-Fuel | 2CB|102PS(75KW) |
| 1.6 | 2KJ|102PS(75KW) |
| 1.2 TSI | 2CJ|105PS(77KW) |
| 1.2 TSI | 2KB|86PS(63KW) |
| 2.0 TDI 16V | 2KB|140PS(103KW) |
| 2.0 TDI | 2CJ|170PS(125KW) |
| 1.4 | 2CJ|75PS(55KW) |
| 1.9 TDI 4motion | 2KB|105PS(77KW) |
| 1.6 TDI | 2CJ|102PS(75KW) |
| 2.0 TDI | 2CB|170PS(125KW) |
| 1.9 TDI 4motion | 2KJ|105PS(77KW) |
| 1.9 TDI 4motion | 2CB|105PS(77KW) |
| 2.0 TDI 4motion | 2CB|110PS(81KW) |
| 1.6 TDI | 2KJ|75PS(55KW) |
| 1.9 TDI | 2CB|105PS(77KW) |
| 2.0 TDI 16V 4motion | 2KJ|140PS(103KW) |
| 2.0 EcoFuel | 2CJ|109PS(80KW) |
| 1.2 TSI | 2CJ|86PS(63KW) |
| 2.0 TDI 4motion | 2KB|110PS(81KW) |
| 1.6 TDI | 2CB|102PS(75KW) |
| 1.6 TDI | 2KB|102PS(75KW) |
| 1.2 TSI | 2CB|86PS(63KW) |
| 1.9 TDI | 2CJ|105PS(77KW) |
| 2.0 TDI | 2CB|140PS(103KW) |
| 1.9 TDI | 2KJ|75PS(55KW) |
| 1.4 | 2KB|75PS(55KW) |
| 2.0 TDI | 2KB|140PS(103KW) |
| 2.0 EcoFuel | 2CB|109PS(80KW) |
| 2.0 EcoFuel | 2KJ|109PS(80KW) |
| 1.6 | 2KB|102PS(75KW) |
| 2.0 TDI 16V | 2CJ|140PS(103KW) |
| 1.2 TSI | 2KJ|86PS(63KW) |
| 1.6 TDI | 2CB|75PS(55KW) |
| 1.6 TDI | 2KB|75PS(55KW) |
| 1.4 | 2KJ|75PS(55KW) |
| 1.6 | 2CB|102PS(75KW) |
| 2.0 TDI | 2KJ|170PS(125KW) |
| 2.0 SDI | 2KB|70PS(51KW) |
| 1.9 TDI | 2KB|105PS(77KW) |
| 2.0 SDI | 2CJ|70PS(51KW) |
| 2.0 TDI 16V | 2KJ|140PS(103KW) |
| 1.6 Bi-Fuel | 2KJ|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2CB|140PS(103KW) |
| 1.4 | 2CJ|80PS(59KW) |
| 1.4 | 2KB|80PS(59KW) |
| 1.2 TSI | 2KJ|105PS(77KW) |
| 2.0 SDI | 2CB|70PS(51KW) |
| 1.4 | 2CB|75PS(55KW) |
| 2.0 TDI 16V 4motion | 2CJ|140PS(103KW) |
| 1.9 TDI | 2CB|75PS(55KW) |
| 1.9 TDI | 2KJ|105PS(77KW) |
| 1.9 TDI | 2KB|75PS(55KW) |
| 1.9 TDI 4motion | 2CJ|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 2KH|170PS(125KW) |
| 2.0 TDI 16V 4motion | 2CH|140PS(103KW) |
| 1.9 TDI | 2CH|75PS(55KW) |
| 1.2 TSI | 2KA|105PS(77KW) |
| 2.0 TDI 4motion | 2KH|110PS(81KW) |
| 1.4 | 2CA|80PS(59KW) |
| 1.9 TDI | 2CA|105PS(77KW) |
| 1.6 TDI | 2KH|75PS(55KW) |
| 1.6 TDI | 2KA|75PS(55KW) |
| 1.4 | 2CA|75PS(55KW) |
| 2.0 SDI | 2KH|70PS(51KW) |
| 2.0 TDI | 2KH|85PS(62KW) |
| 1.9 TDI 4motion | 2KA|105PS(77KW) |
| 1.2 TSI | 2KA|86PS(63KW) |
| 1.9 TDI | 2CH|105PS(77KW) |
| 2.0 TDI | 2KH|140PS(103KW) |
| 2.0 TDI 16V | 2KA|140PS(103KW) |
| 1.6 TDI | 2KH|102PS(75KW) |
| 2.0 TDI 16V | 2KH|140PS(103KW) |
| 1.9 TDI 4motion | 2KH|105PS(77KW) |
| 1.6 TDI | 2CA|102PS(75KW) |
| 2.0 TDI 4motion | 2KH|85PS(62KW) |
| 2.0 SDI | 2CH|70PS(51KW) |
| 2.0 SDI | 2KA|70PS(51KW) |
| 2.0 TDI 16V 4motion | 2KH|140PS(103KW) |
| 2.0 EcoFuel | 2KA|109PS(80KW) |
| 1.6 | 2KH|102PS(75KW) |
| 1.9 TDI | 2KH|75PS(55KW) |
| 1.2 TSI | 2CH|86PS(63KW) |
| 1.9 TDI 4motion | 2CH|105PS(77KW) |
| 2.0 TDI 16V | 2CH|140PS(103KW) |
| 1.6 TDI | 2KA|102PS(75KW) |
| 1.2 TSI | 2KH|105PS(77KW) |
| 2.0 SDI | 2CA|70PS(51KW) |
| 2.0 TDI 4motion | 2CA|85PS(62KW) |
| 1.6 Bi-Fuel | 2CH|102PS(75KW) |
| 1.4 | 2KA|80PS(59KW) |
| 2.0 EcoFuel | 2CH|109PS(80KW) |
| 2.0 TDI | 2CA|85PS(62KW) |
| 1.2 TSI | 2KH|86PS(63KW) |
| 2.0 TDI | 2KA|140PS(103KW) |
| 2.0 TDI | 2KA|85PS(62KW) |
| 2.0 TDI 16V 4motion | 2CA|140PS(103KW) |
| 2.0 TDI 4motion | 2CA|110PS(81KW) |
| 2.0 TDI 4motion | 2CH|110PS(81KW) |
| 2.0 TDI 4motion | 2KA|110PS(81KW) |
| 2.0 TDI | 2CH|170PS(125KW) |
| 1.4 | 2KH|80PS(59KW) |
| 2.0 TDI | 2CA|170PS(125KW) |
| 2.0 TDI | 2CH|140PS(103KW) |
| 1.6 TDI | 2CA|75PS(55KW) |
| 1.9 TDI | 2KA|105PS(77KW) |
| 2.0 TDI | 2CH|85PS(62KW) |
| 1.2 TSI | 2CA|105PS(77KW) |
| 1.9 TDI 4motion | 2CA|105PS(77KW) |
| 1.6 Bi-Fuel | 2KA|102PS(75KW) |
| 2.0 TDI | 2KA|170PS(125KW) |
| 1.6 | 2KA|102PS(75KW) |
| 2.0 EcoFuel | 2KH|109PS(80KW) |
| 1.4 | 2KH|75PS(55KW) |
| 1.6 | 2CH|102PS(75KW) |
| 2.0 TDI 4motion | 2CH|85PS(62KW) |
| 1.2 TSI | 2CA|86PS(63KW) |
| 1.4 | 2CH|75PS(55KW) |
| 1.6 TDI | 2CH|102PS(75KW) |
| 1.9 TDI | 2KH|105PS(77KW) |
| 1.6 TDI | 2CH|75PS(55KW) |
| 2.0 TDI 4motion | 2KA|85PS(62KW) |
| 1.4 | 2KA|75PS(55KW) |
| 2.0 TDI | 2CA|140PS(103KW) |
| 1.6 Bi-Fuel | 2KH|102PS(75KW) |
| 1.2 TSI | 2CH|105PS(77KW) |
| 1.4 | 2CH|80PS(59KW) |
| 2.0 EcoFuel | 2CA|109PS(80KW) |
| 1.6 | 2CA|102PS(75KW) |
| 2.0 TDI 16V 4motion | 2KA|140PS(103KW) |
| 1.6 Bi-Fuel | 2CA|102PS(75KW) |
| 1.9 TDI | 2CA|75PS(55KW) |
| 1.9 TDI | 2KA|75PS(55KW) |
| 2.0 TDI 16V | 2CA|140PS(103KW) |
| Motor | Motorcode |
|---|---|
| 1.6 FSI | 521|115PS(85KW) |
| 1.9 TDI | 5M1|105PS(77KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 2.0 TDI | 521|131PS(96KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.4 TSI | 521|170PS(125KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 1.2 TSI | 5K1|86PS(63KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| 1.6 | 5K1|102PS(75KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 1.4 | 5K1|80PS(59KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 1K5|122PS(90KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 1.4 | 1K5|80PS(59KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 1.6 | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 162|150PS(110KW) |
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSI | 1K1|150PS(110KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 1.9 TDI | 1K1|90PS(66KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.6 | 1K1|102PS(75KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 2.0 TDI | 1K1|140PS(103KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 8PA|105PS(77KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 1.6 | 8PA|102PS(75KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 2.0 TDI | 8PA|140PS(103KW) |
| 2.0 TDI | 8PA|136PS(100KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 8P1|140PS(103KW) |
| 2.0 TDI | 8P1|163PS(120KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| 1.6 TDI | 8P1|90PS(66KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.6 TDI | 8P7|105PS(77KW) |
| 1.6 | 8P7|102PS(75KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.8 TFSI | 8P7|160PS(118KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.0 TFSI | 8J3|200PS(147KW) |
| 2.0 TFSI | 8J3|211PS(155KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 FSi | 5P8|150PS(110KW) |
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi | 1P1|185PS(136KW) |
| 2.0 TFSi | 1P1|200PS(147KW) |
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDi | 5P1|136PS(100KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| 2.0 FSi | 5P1|150PS(110KW) |
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ Length: 63cm
- ✓ M10x1 outside 45° curved
- ✓ M10x1 inside straight
- ✓ 350x32 A1644210512 Mercedes W164 brake disc
- ✓ 6-piston 955351421 / 955351422 Z18 brake caliper
- ✓ front axle
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 330x32 1644210412 brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne brake caliper
- ✓ front axle
- ✓ for e.g. VW Golf 5, 6 Audi A3 Polo etc.
- ✓ Connection 1 M12x1 male thread bent
- ✓ Connection 2 M10x1 female thread straight
- ✓ Length 35cm long / Transparent sheathed
- ✓ 334x32 1J0615301A 1J0615302A Golf 4 R3 brake disc
- ✓ 6-piston 95535142150 / 95535142250 Porsche Cayenne/ VW Tuareg brake caliper
- ✓ front axle
- ✓ 345x28 150342270 BMW E46 M3 CSL brake discs
- ✓ 4-piston 996351425 / 996351426 Porsche Boxter S brake caliper
- ✓ front axle
- ✓ for rear axle: Golf MK1, Golf MK1 Cabrio, MK2, MK3, GTI, VR6, Caddy 14d,Jetta, Corrado, Passat 35i, Scirrocco, Vento, Polo 6N1, Seat Cordoba, Ibiza,Toledo
- ✓ brake caliper: Porsche , reference: 996.352.421 + 996.352.422
- ✓ rear axle: brake caliper with mounting brackets from Audi S3 8L or VW Golf R32
- ✓ brake disc: Passat 35i 280mm
- ✓ Length: 20cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 334x32 1J0615301AA / 1J0615302A Golf 4 R32 brake discs
- ✓ 4-piston 7L6615123T / 7L6615124T Porsche Cayenne brake caliper
- ✓ front axle
- ✓ optimized paste for brake systems
- ✓ correct viscosity
- ✓ no squeaking
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ rim assembly
- ✓ M14x1.5 on the wheel hub
- ✓ precise centering
- ✓ 375x36 Mercedes GL 166 421 0912 disc
- ✓ 6-piston Panamera saddle 7PP615149J / 7PP615150J 7PP615123 / 7PP615124 20.A221.03
- ✓ front axle
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ Length: 32cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 360x32 8D0615302B Audi RS4 B5 brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Cayenne 958 GTS Panamera brake caliper
- ✓ front axle
- ✓ 375x36 1664210912 Mercedes Benz GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Cayenne 958 GTS Panamera brake caliper
- ✓ front axle
