Golf MK1 Polo G40 Caddy 14d Brake Caliper Adapter type G60 Brake SystemVW 280x22
- ✓ 280x22 535 615 301 G60 brake disc
- ✓ G60 ATE / Girling 54 brake caliper
- ✓ front axle
€89.94*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

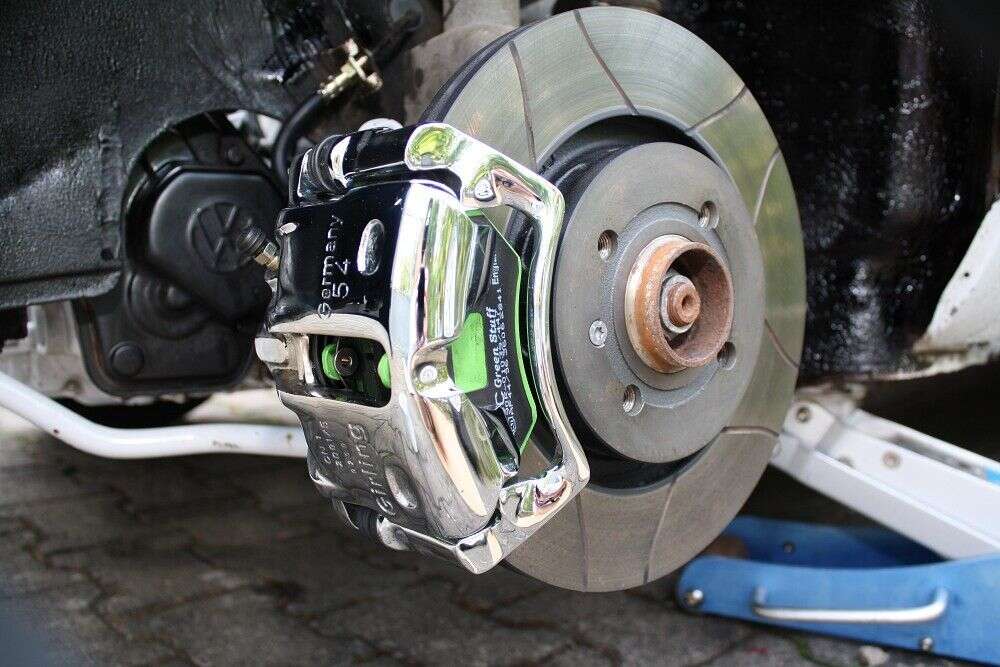

Brake caliper adapter, front axle for Golf MK1 Polo G40 to convert to G60 ATE / Girling 54 brake calipers, combined with the G60 280x22 brake discs.
Suitable for the following models:
- Golf MK1
- Golf MK1 Cabrio
- Caddy 14d
- Jetta 1
- Scirocco 1/2
- Passat
- Polo 1/2
Advantages of this brake system
- no more fading with the G60 brake system.
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake disc: G60 280x22
- brake caliper: G60 ATE / Girling 54
- brake caliper mounting bracket: G60 ( important: it must necessarily be the bracket of the 280 brake, and not of the 256. The 256 are too short)
Tip:
If you don't have the brake caliper carrier and brake calipers yet, we have the perfect solution for you here (click here).
The brake caliper carriers were developed in such a way that you no longer have to install an adapter to install the G60 system on your vehicle.
You can mount the brake calipers and brake caliper brackets directly on your vehicle.
What is the difference between item number 216 and 142?
The hole dimensions of the two tuning adapters are identical. We recommend always to install the article 216, because it is more stable. The tuning adapter 142 we have developed for the VW Polo axle, since this is slightly different in shape and the tuning adapter 216 can not be installed.
Delivery:
- 2x brake caliper adapters
- copy of vehicle document to simplify the registration.
- high-strength mounting screws
- installation instructions
- material certificate
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
12 July 2017 08:23
ultimate590
Super gelaufen
8 November 2016 22:13
trixbert76
Alles bestens gelaufen ;-)
13 March 2020 10:59
markus93*markus
Danke, gerne wieder. Top verkäufer
6 September 2017 00:20
trixbert76
Top gerne wieder
20 June 2018 22:53
polo-andy85
Alles Sehr gut. Besten Dank 😀
12 July 2018 09:38
Margitta K
Ordentliche Ware schneller Versand immer ein verlässlicher Partner
13 November 2020 21:09
frdscha_46
Le top vraiment très bien merci beaucoup !
6 November 2018 22:21
va3andevikt
Got wrong bolts with set, but that was quickly solved by seller, would reccomend
7 September 2016 20:13
dennizielk0
Alles bestens immer wieder gerne ... Genau wie beschrieben
10 January 2017 13:51
chrille-naddel
Alles perfekt, top Ware, superschnelle Lieferung. Vielen Dank!
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
