Gearbox Mounting Bracket Golf 1 Caddy 1.8 T 02A Gearbox Engine Bracket Set
- ✓ Golf 1, Caddy 14d, Scirroco 1, Jetta 1&2
- ✓ 02A/02J gearbox, 1.8T from Golf 4
- ✓ Golf 1 bearing outer diameter 64mm
£107.39*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

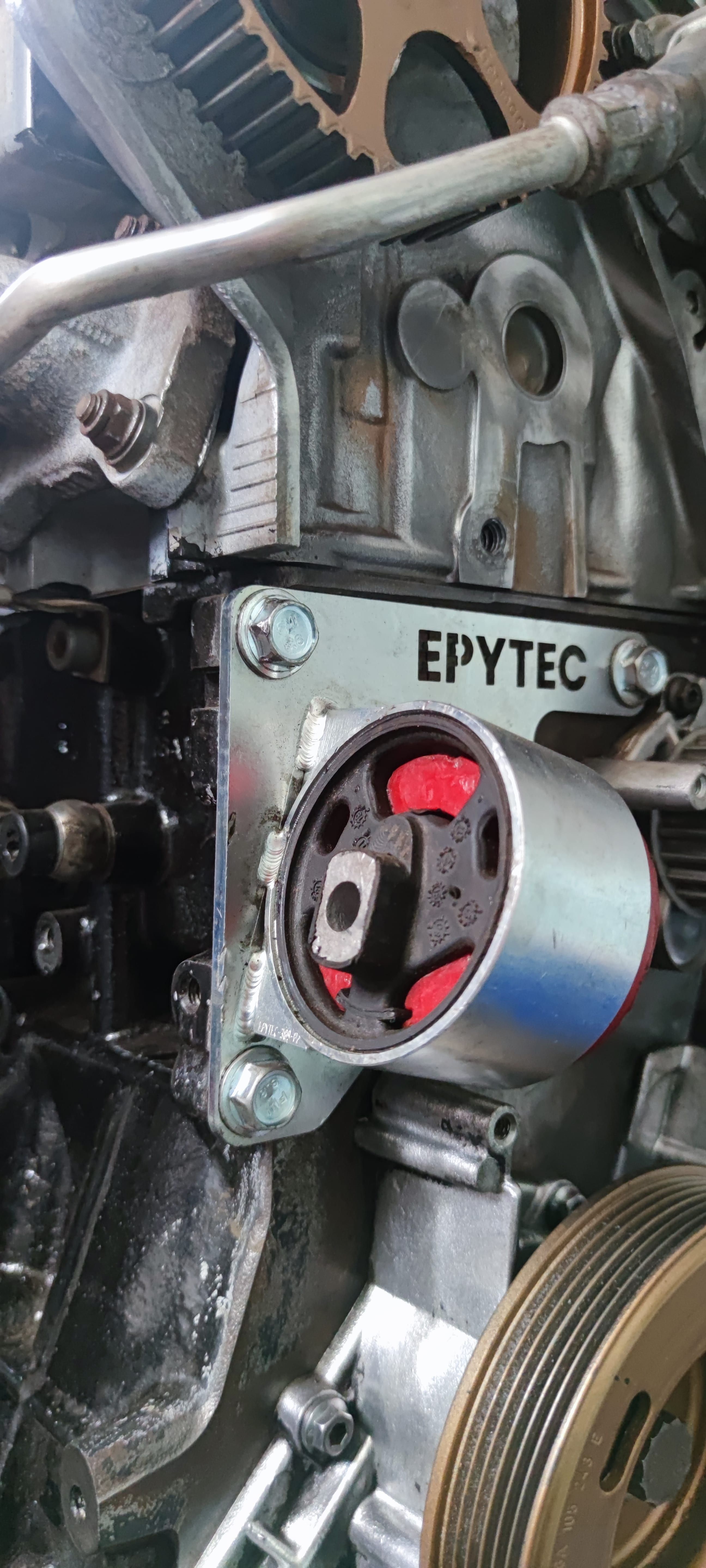

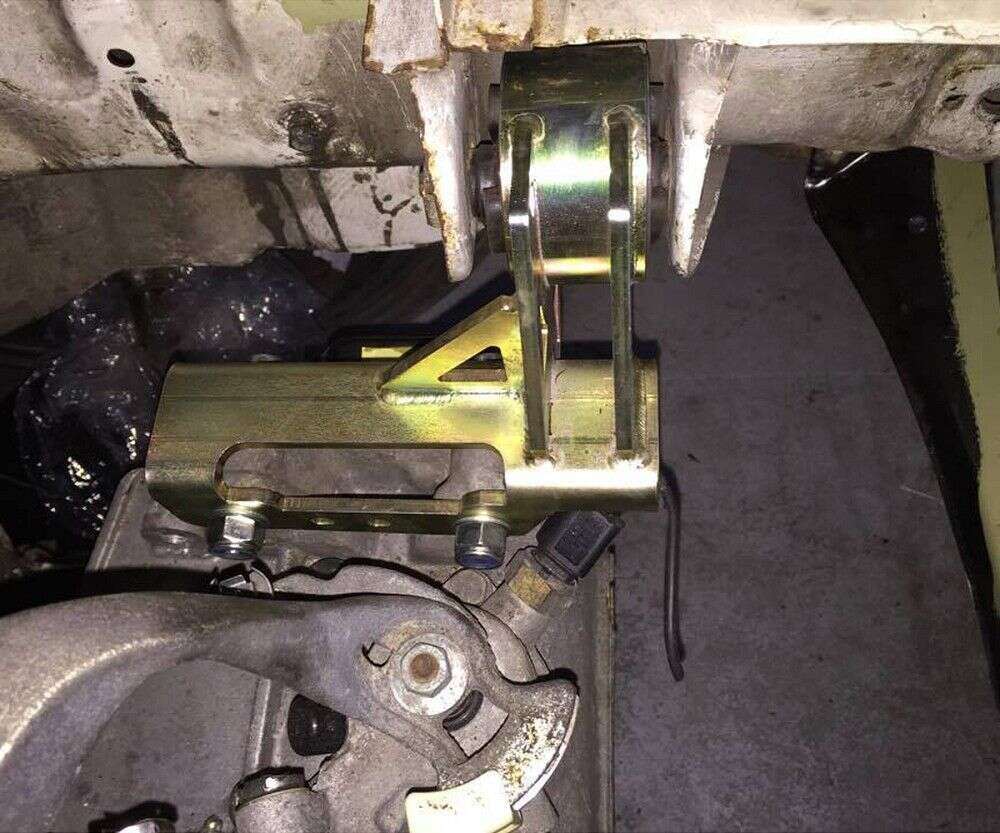

Reinforced engine and gearbox mounting bracket kit.
Ideal strut and thickness of the material for maximum stability. These brackets remain absolutely stable even at high speed

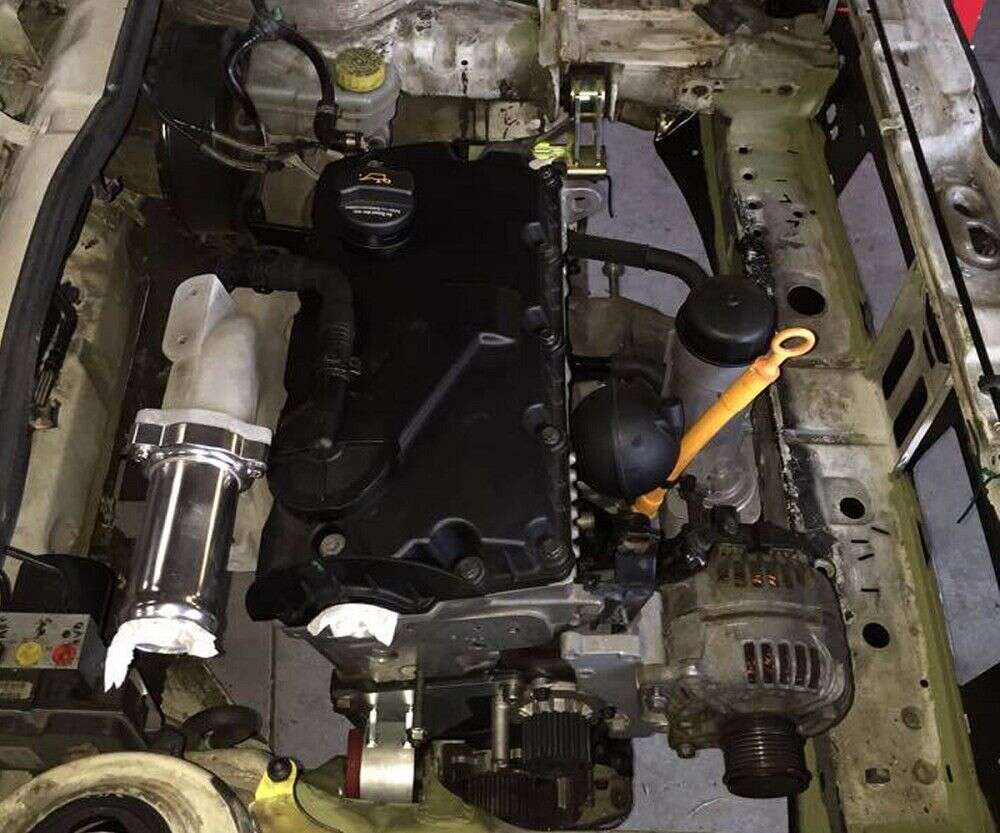

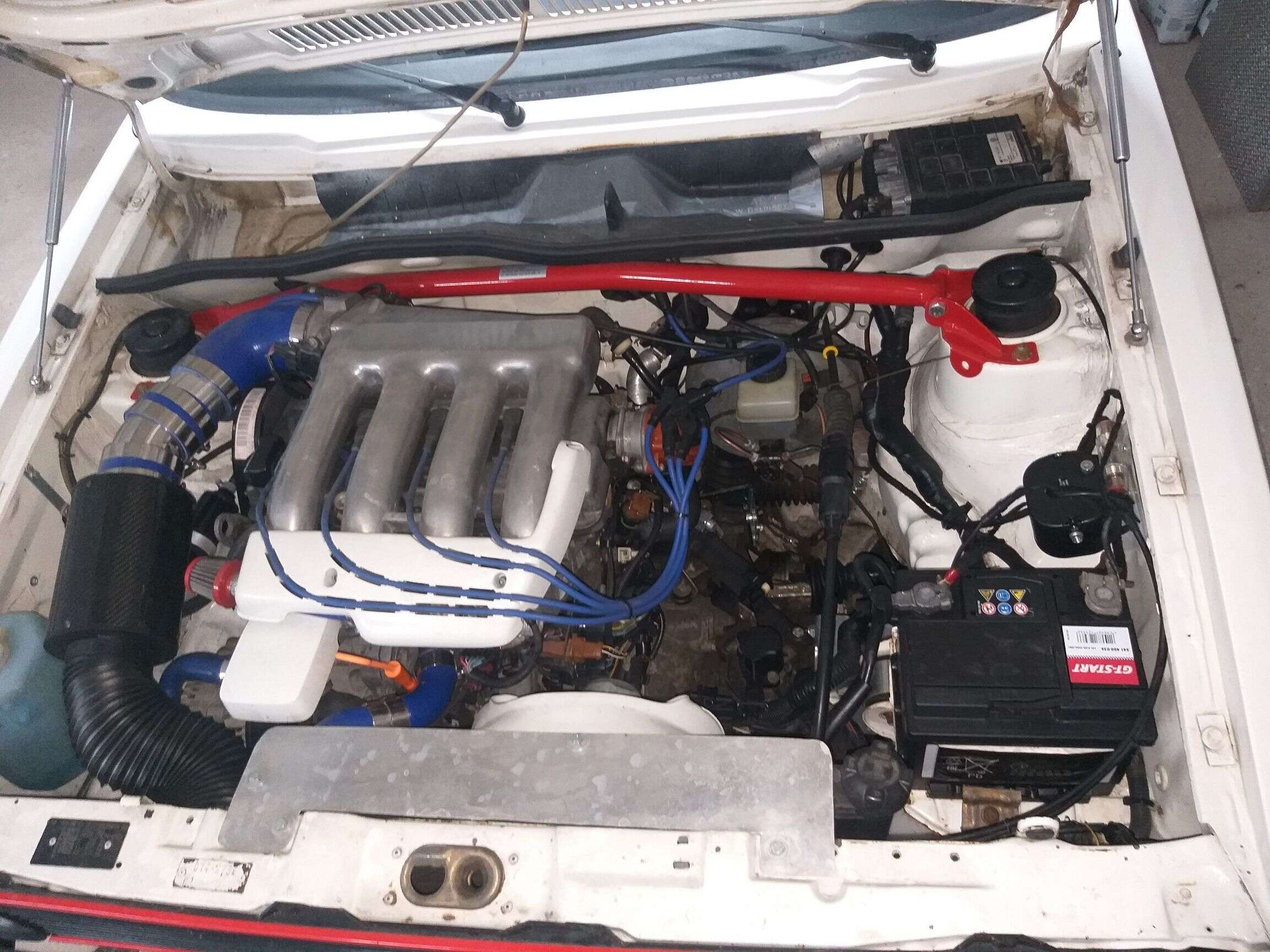

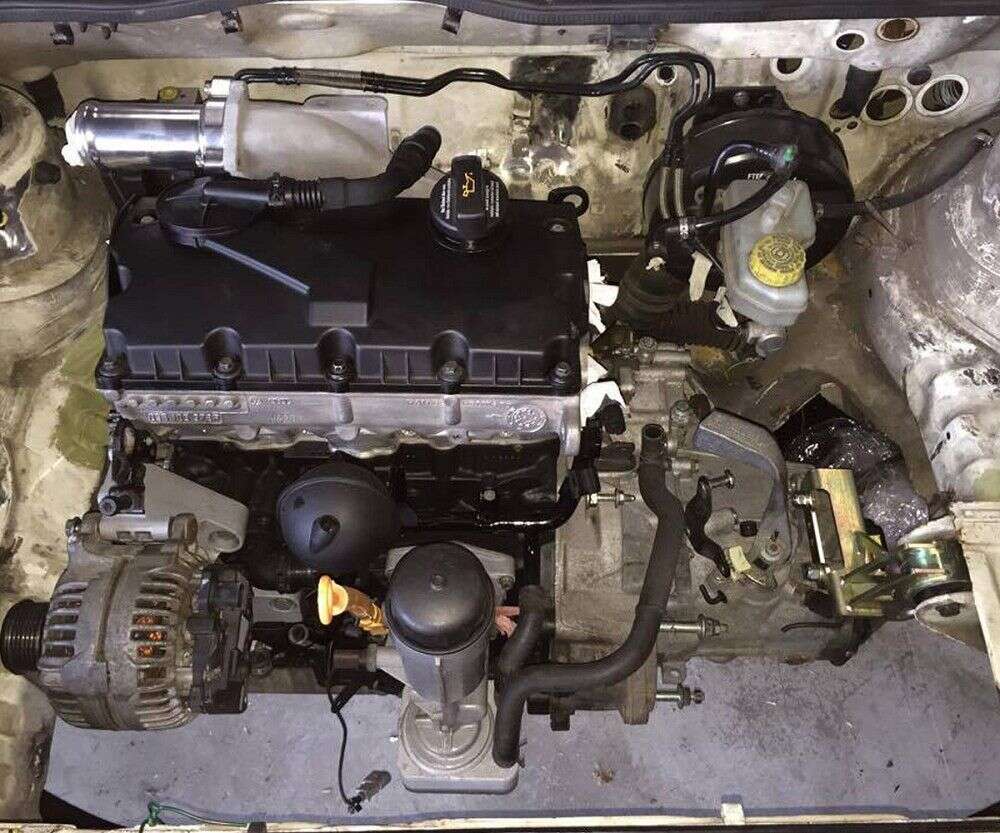

It is absolutely necessary in order to install an original gearbox 02A / 02J of Golf MK3, combined with a 1.8T engine of Golf MK4 on models Golf MK1 Caddy 14d, Scirocco Jetta 1!
The gearbox brackets are for the bearings of the Golf MK1, with bearing outside diameter of 64mm.
Advantages:
- quick and easy conversion with the technology of Golf 4 Audi A3 in Golf 1.
- reinforced equipment (5mm high-strength steel ST52)).
- top german quality product
- excellent corrosion protection. All parts are supplied galvanized.
- adapted to 100%
- screws are supplied
Delivery:

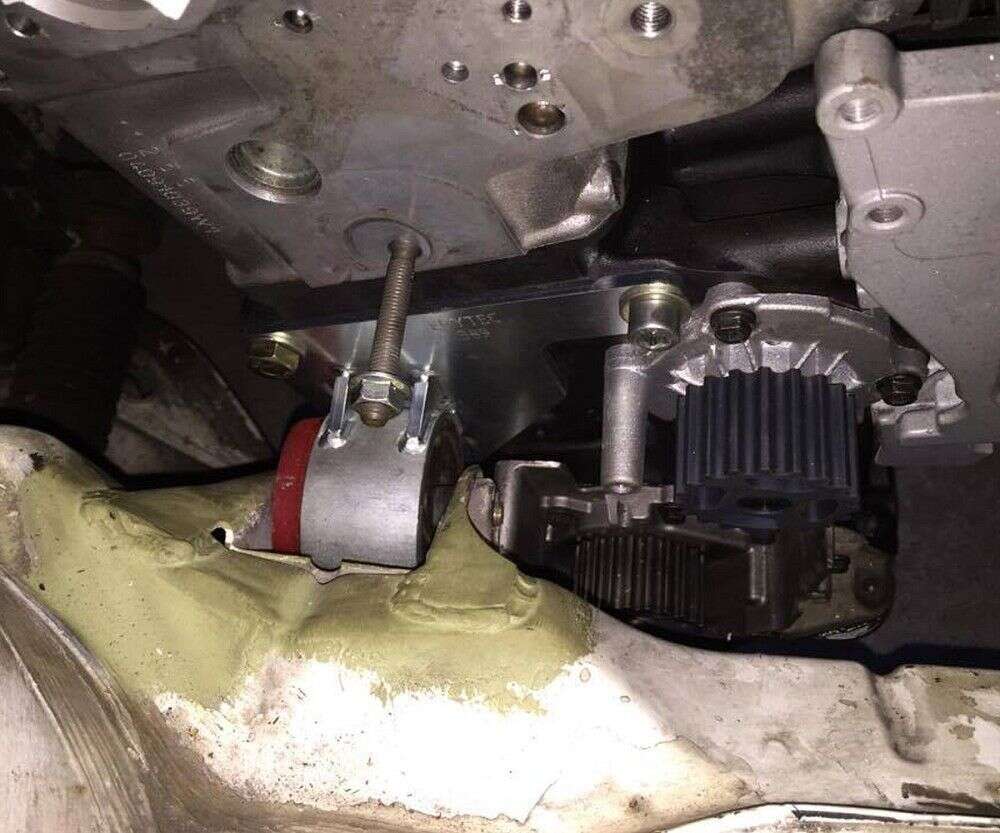

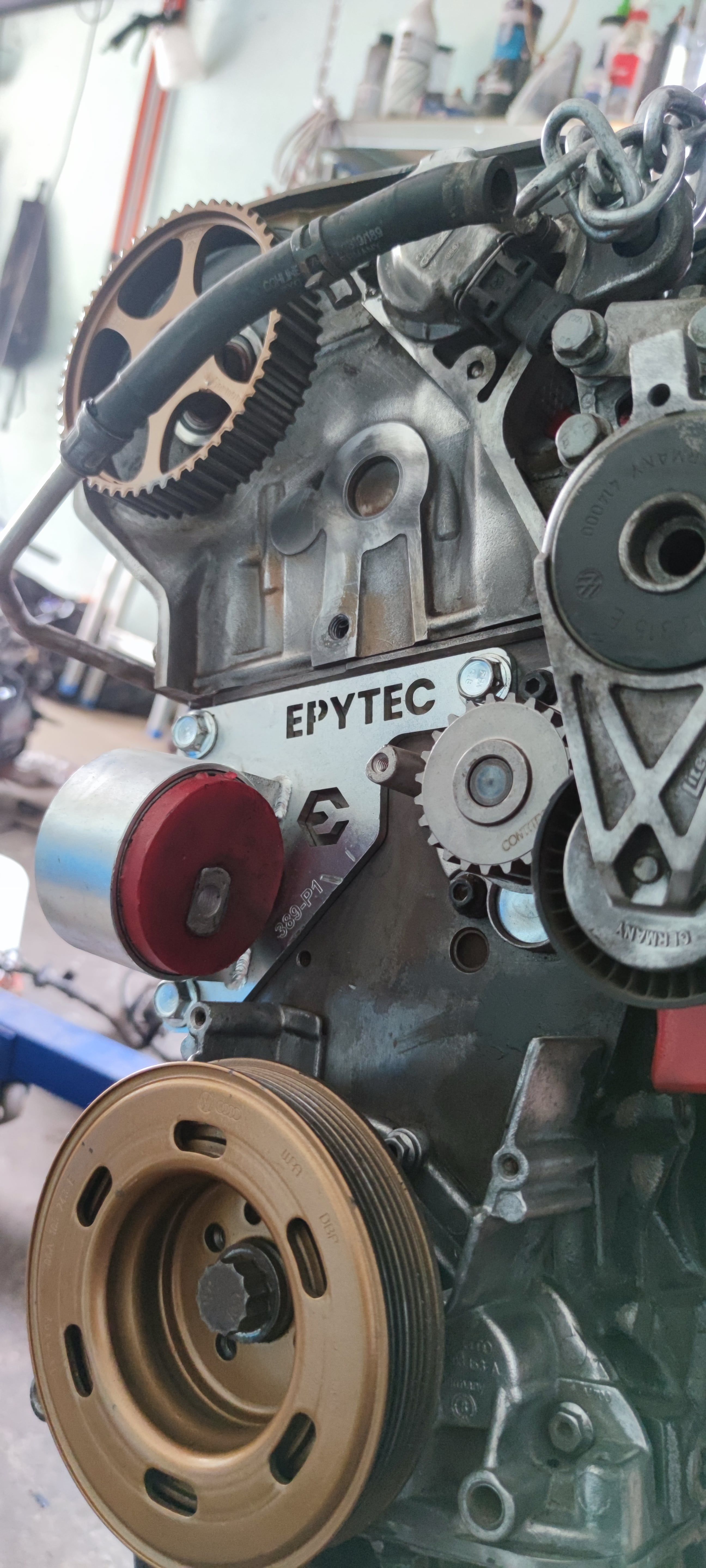

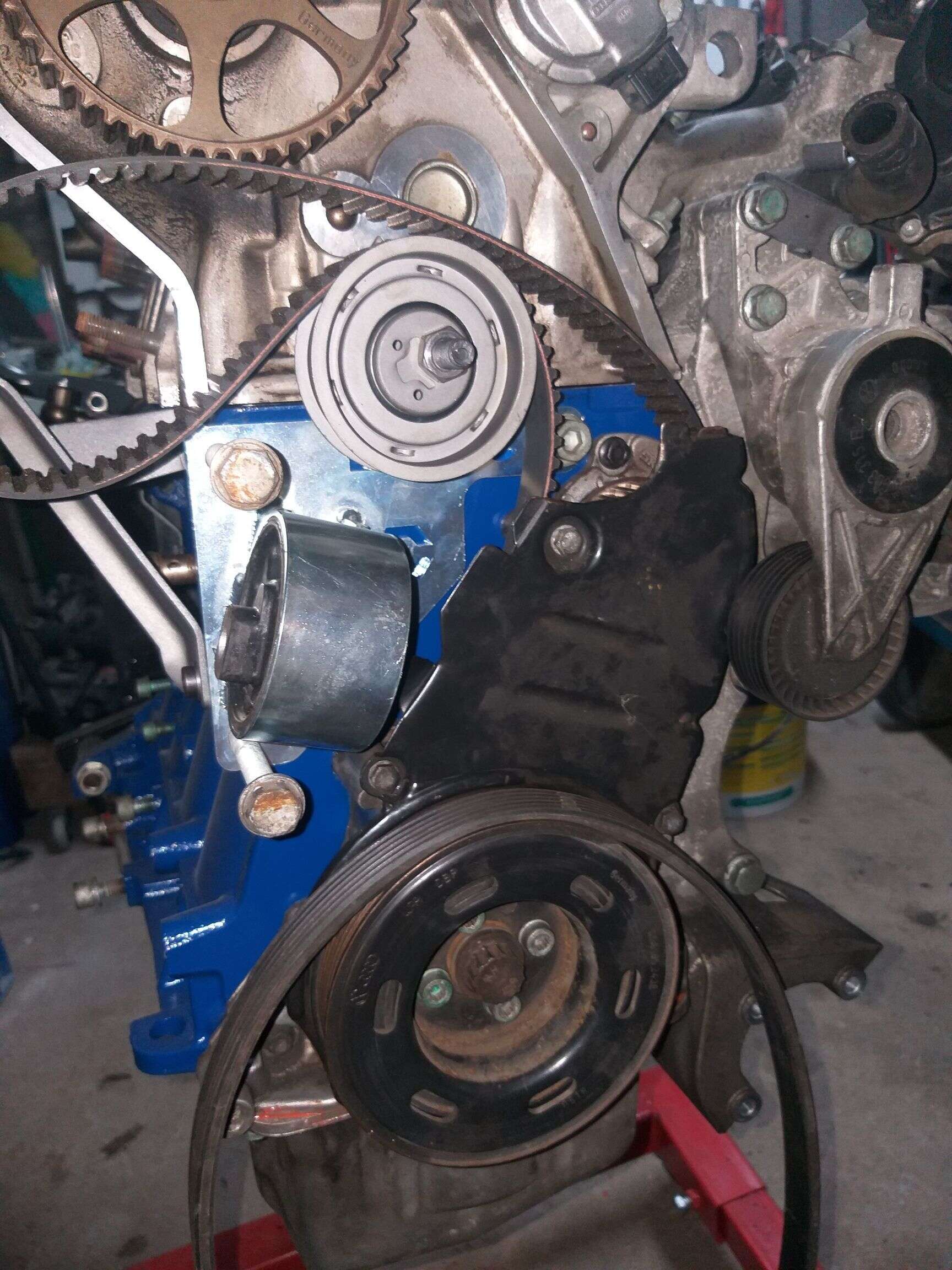

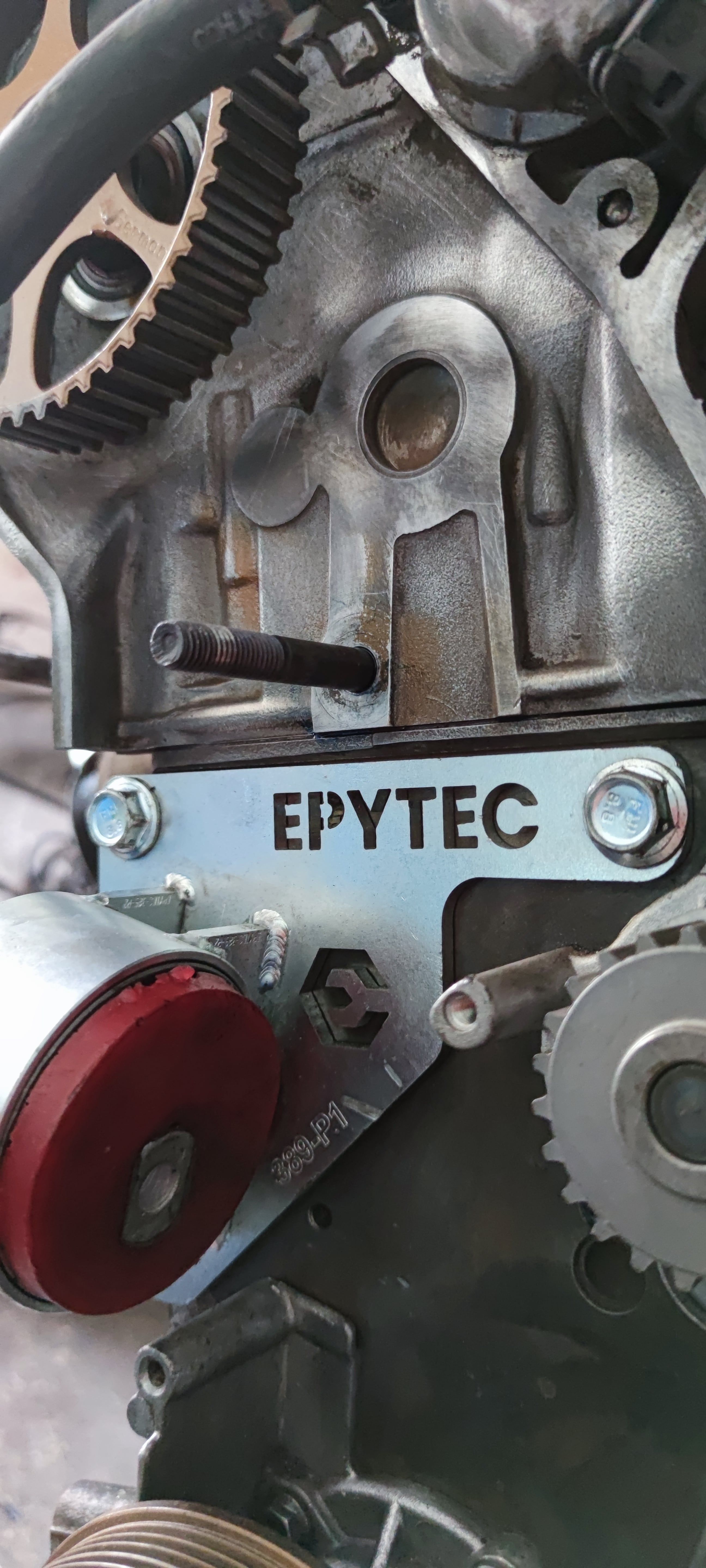

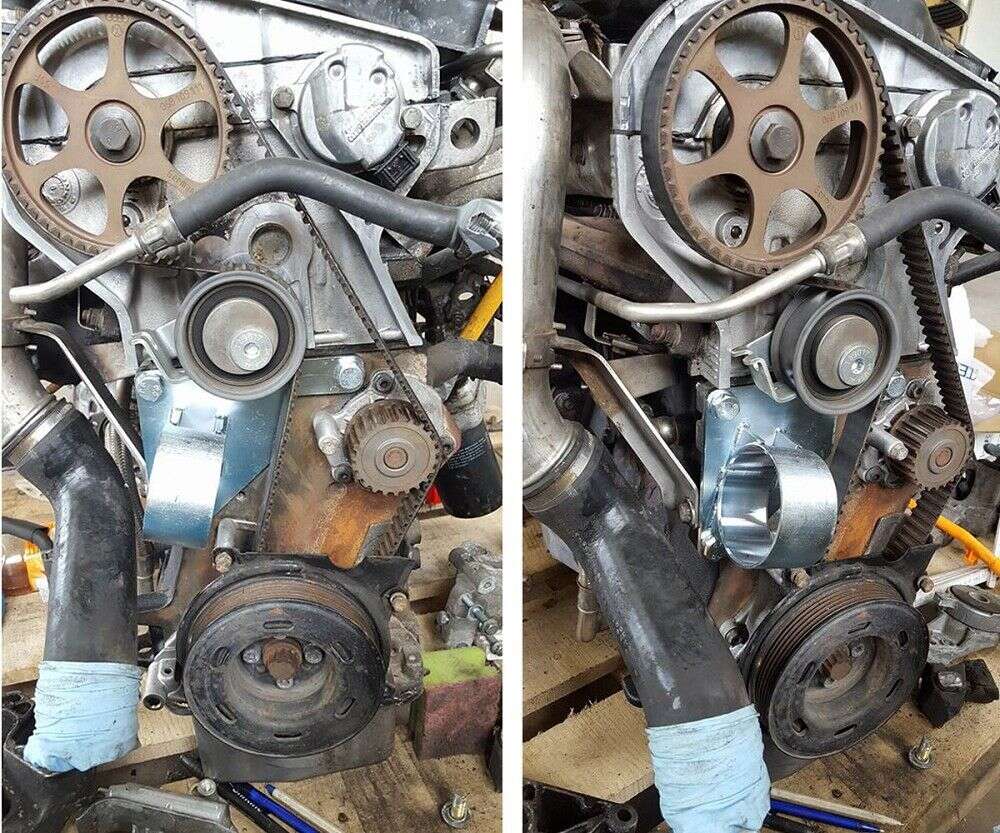

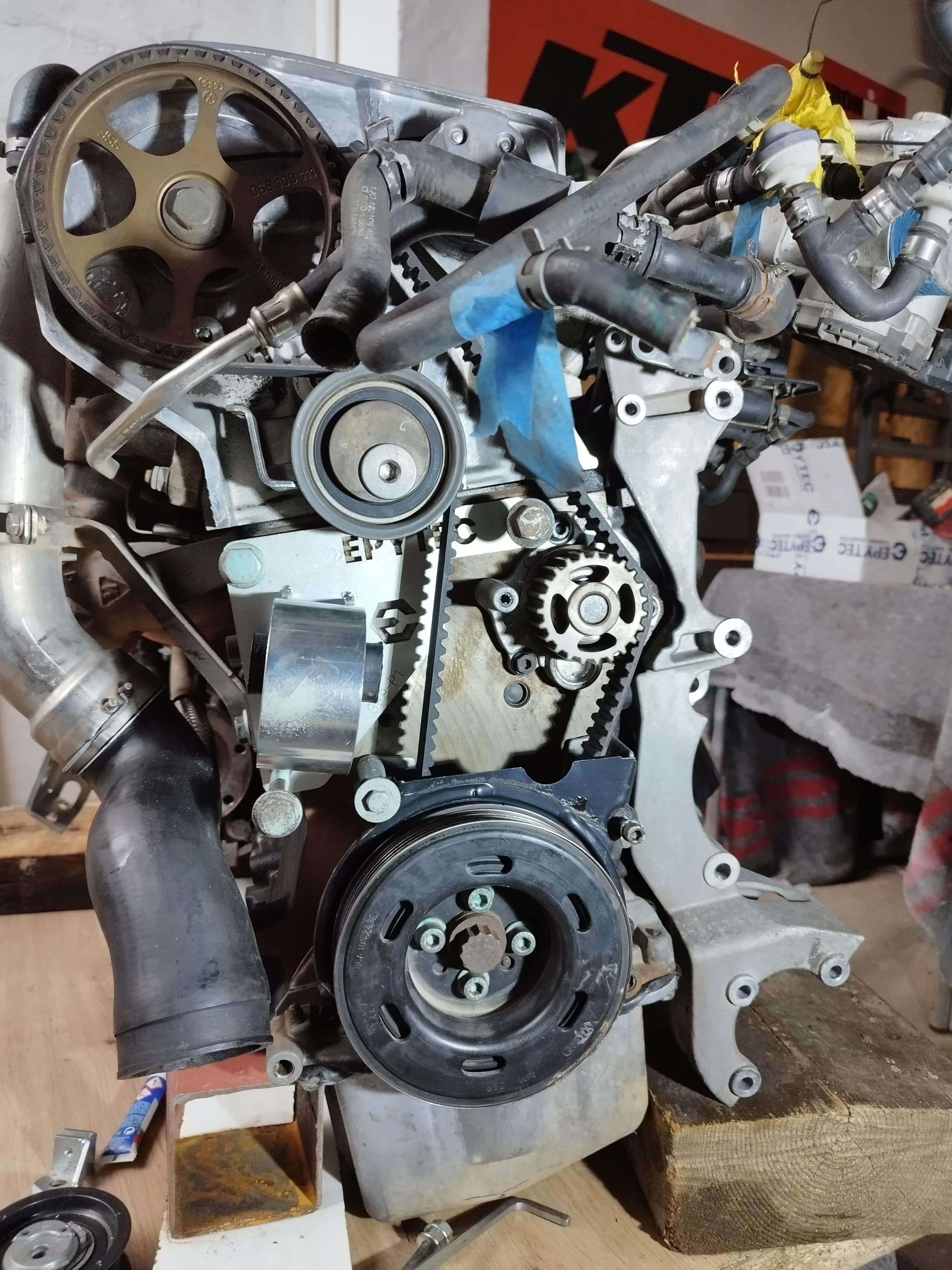

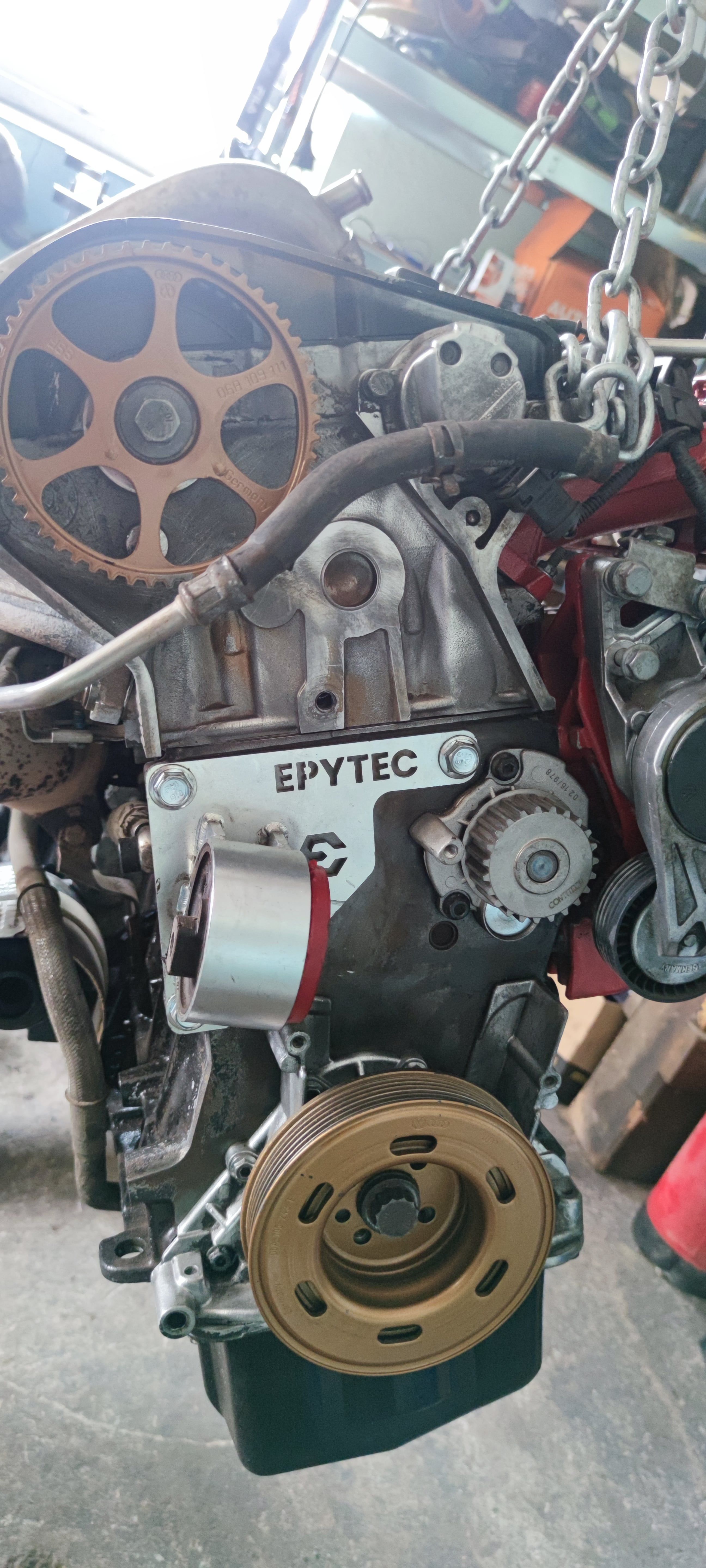

- 1x engine mounting bracket for 1,8 2,0l engine from Audi A3 Golf 4

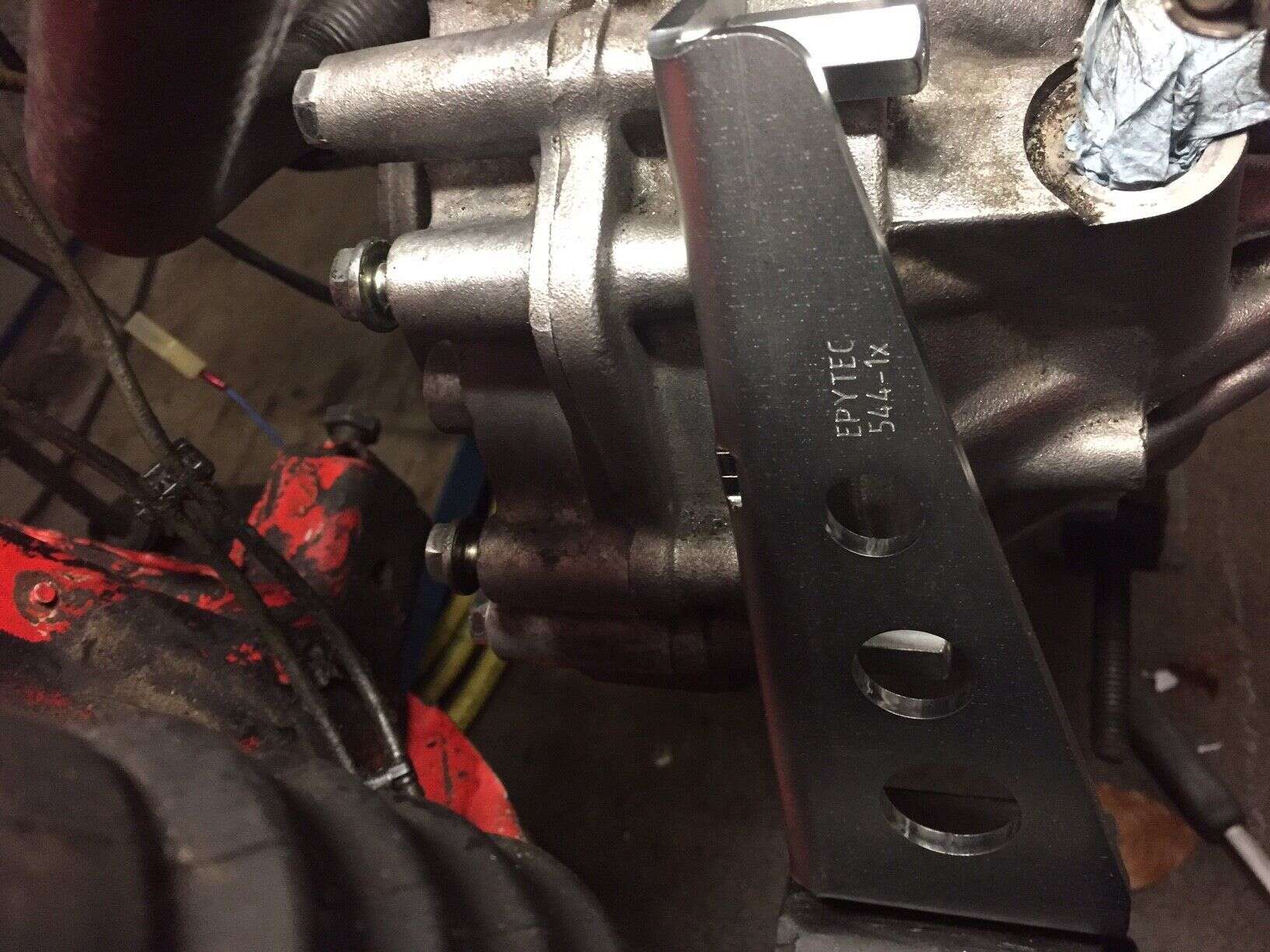

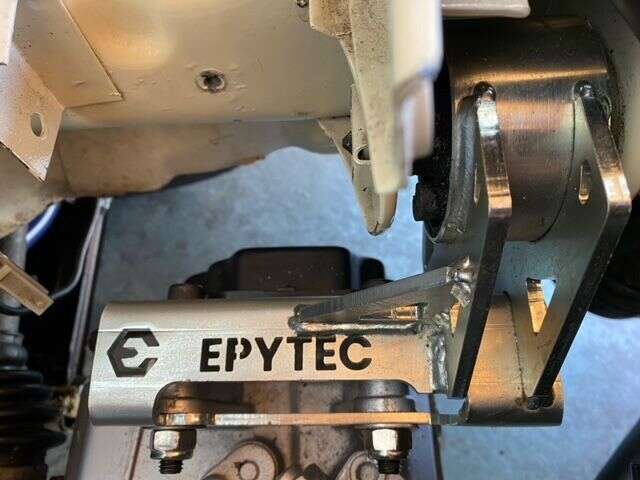

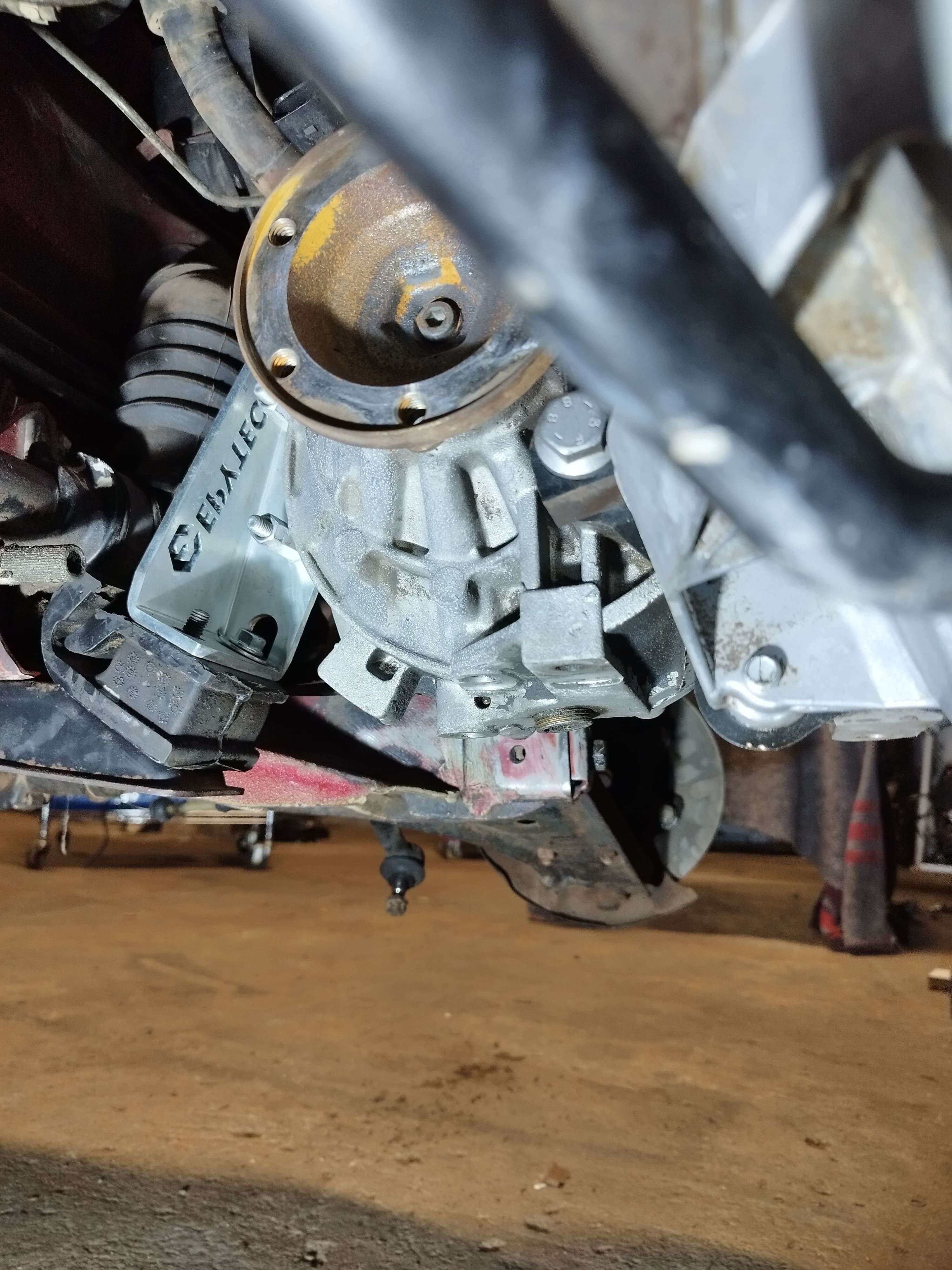

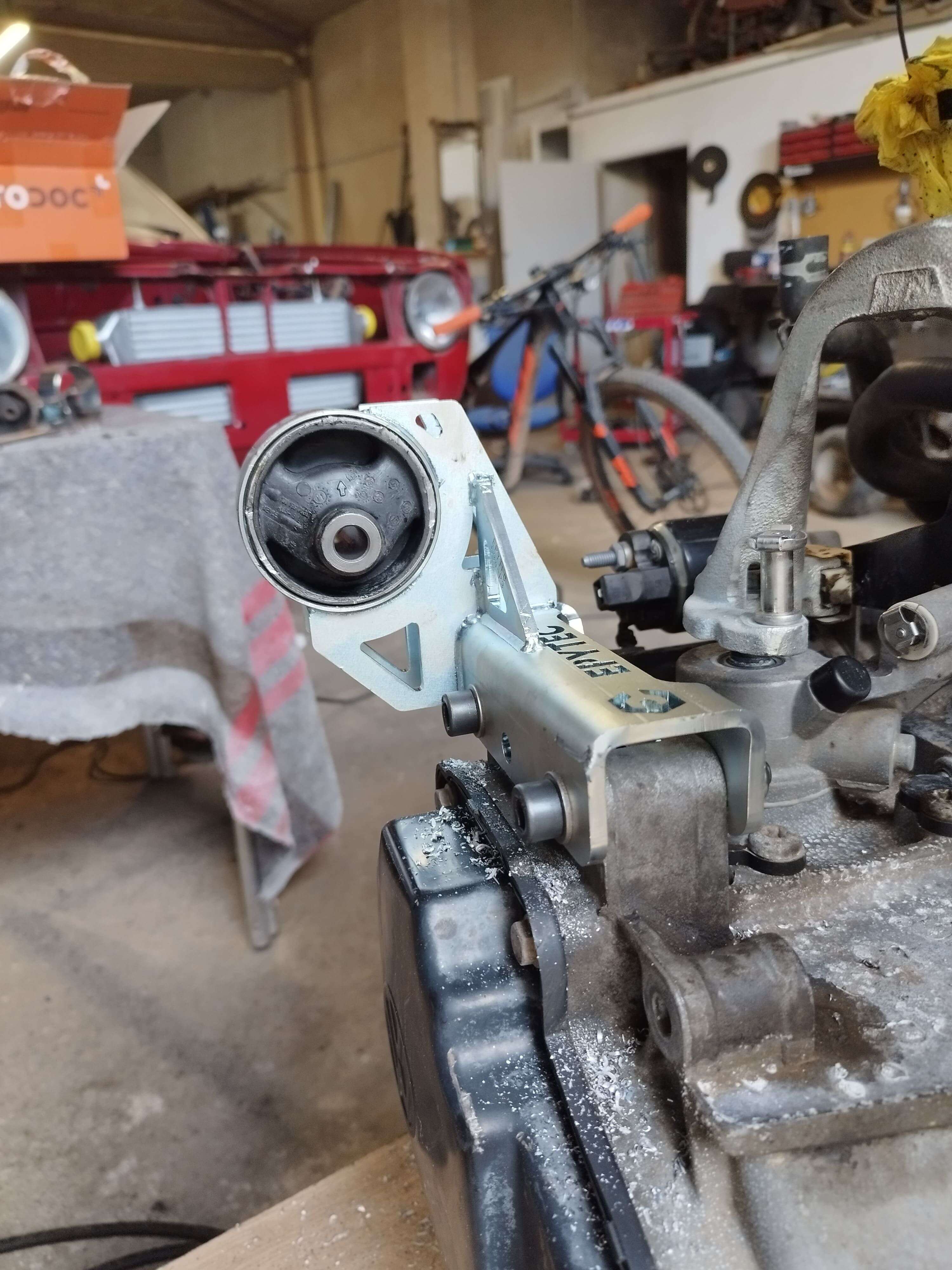

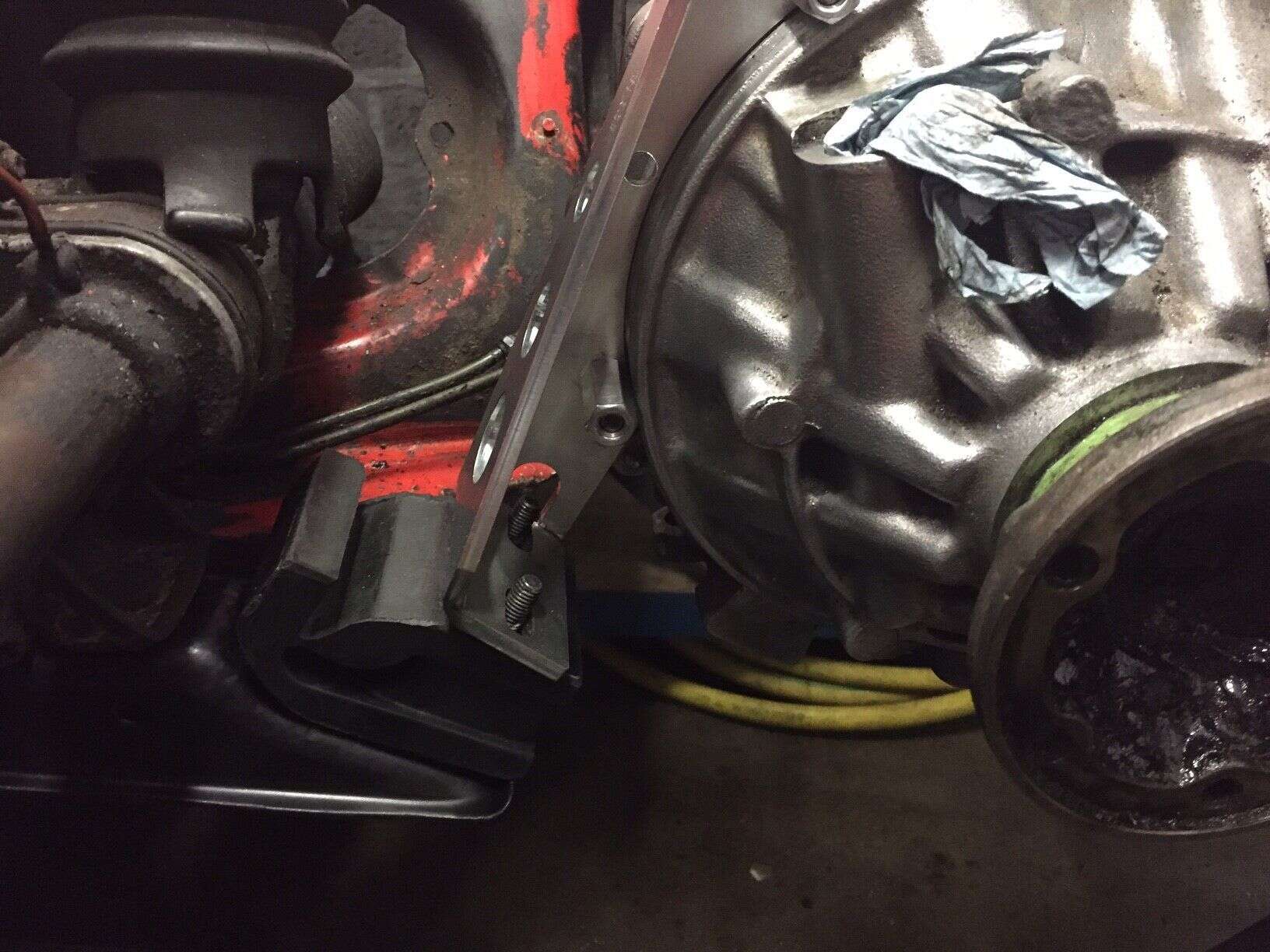

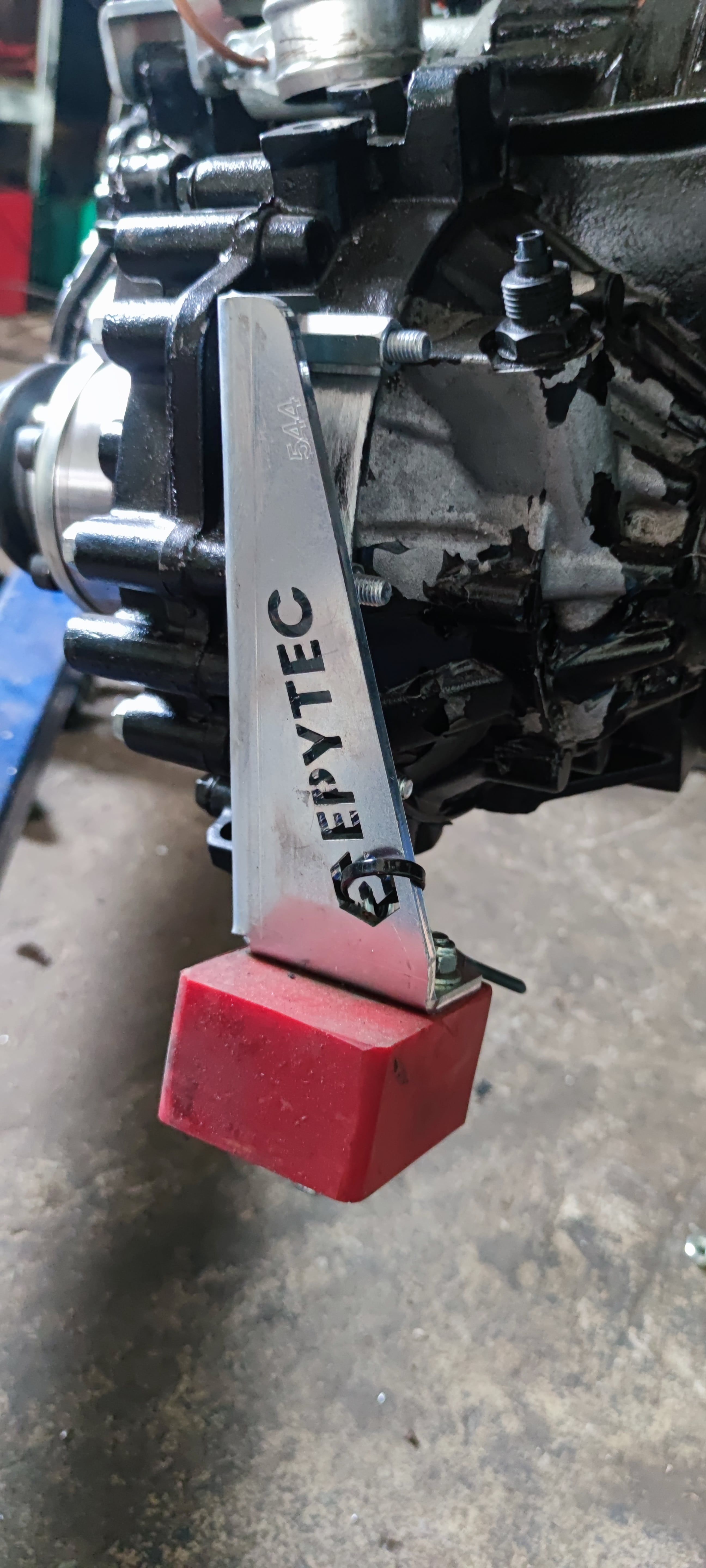

- 2x 02A / 02J gearbox mounting brackets for VW Golf 1 Caddy
- mounting screws
- detailed installation instructions + Pin assignment for 1.8T engine
Not suitable for the CDA gearbox, since the differential and the bell housing are larger in this gearbox.
Here you can find out what we recommend for your complete conversion >>click here<<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
30 April 2018 21:16
kaeferfusspilz
Super schneller Versand. Umfangreicher Support.
30 January 2021 20:16
Sebastian J
Super Arbeit, kann die Teile nur empfehlen.
24 September 2017 17:26
ronnie26480
Alles Prima!! Danke!!
16 October 2018 09:05
panzer0810paul
Sehr gut! Danke
5 March 2018 08:36
jetta-1983
Alles bestens, gerne wieder, jetta-1983 sagt Danke!
5 June 2019 15:50
alpinan1012
Alles prima! Gerne wieder!
25 February 2018 17:11
sportline-fahrer
Alles bestens, gerne wieder
3 December 2022 18:39
mcmillan2108
Great quality and service
14 September 2018 05:48
jorgeenriquvenegasvalenci-0
Excelente producto
18 May 2017 09:04
0321margherita47
ok , veloce e perfetto
- I can't get the clutch cable to attach to the transmission mount, what do I have to do?

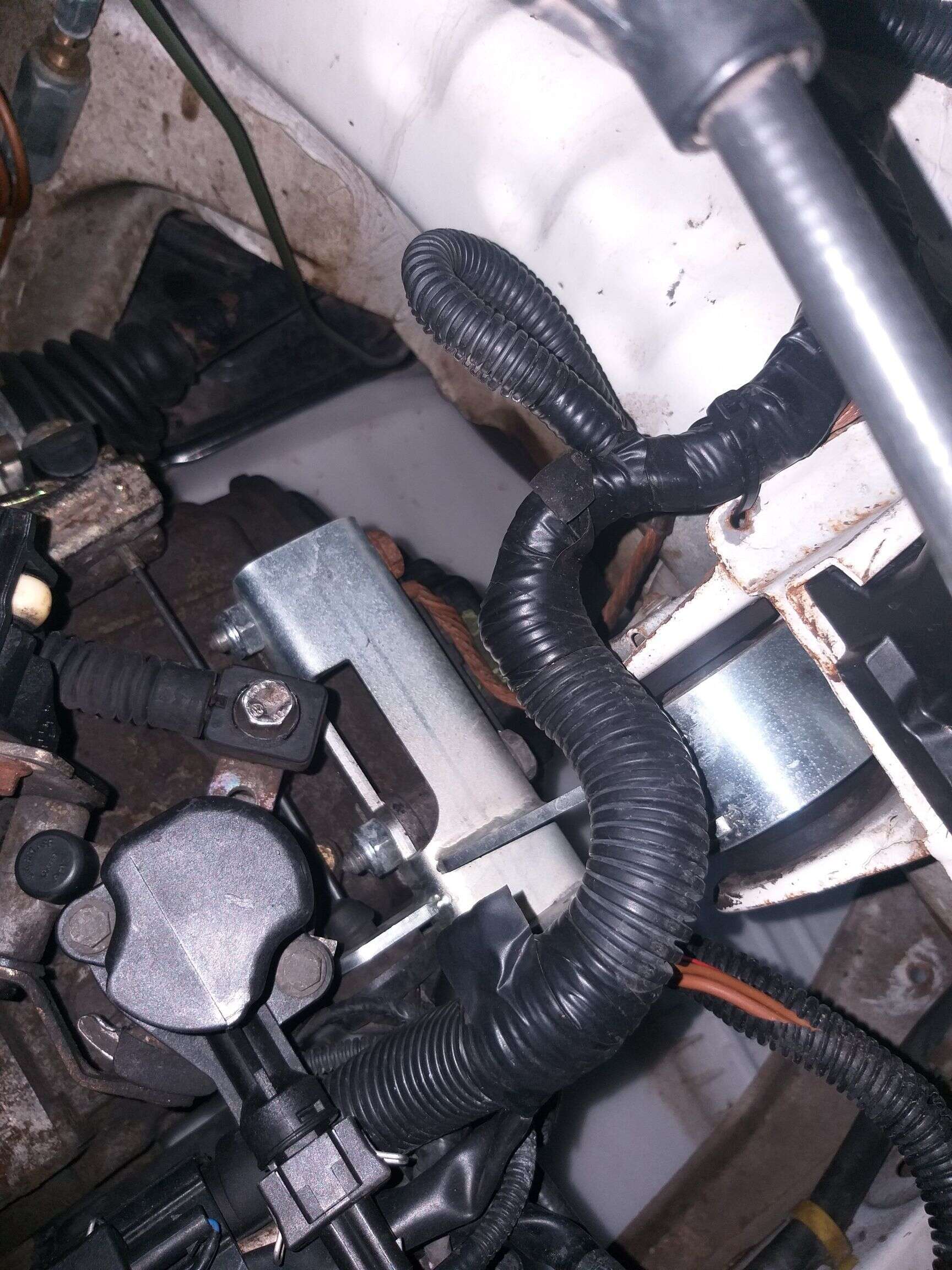

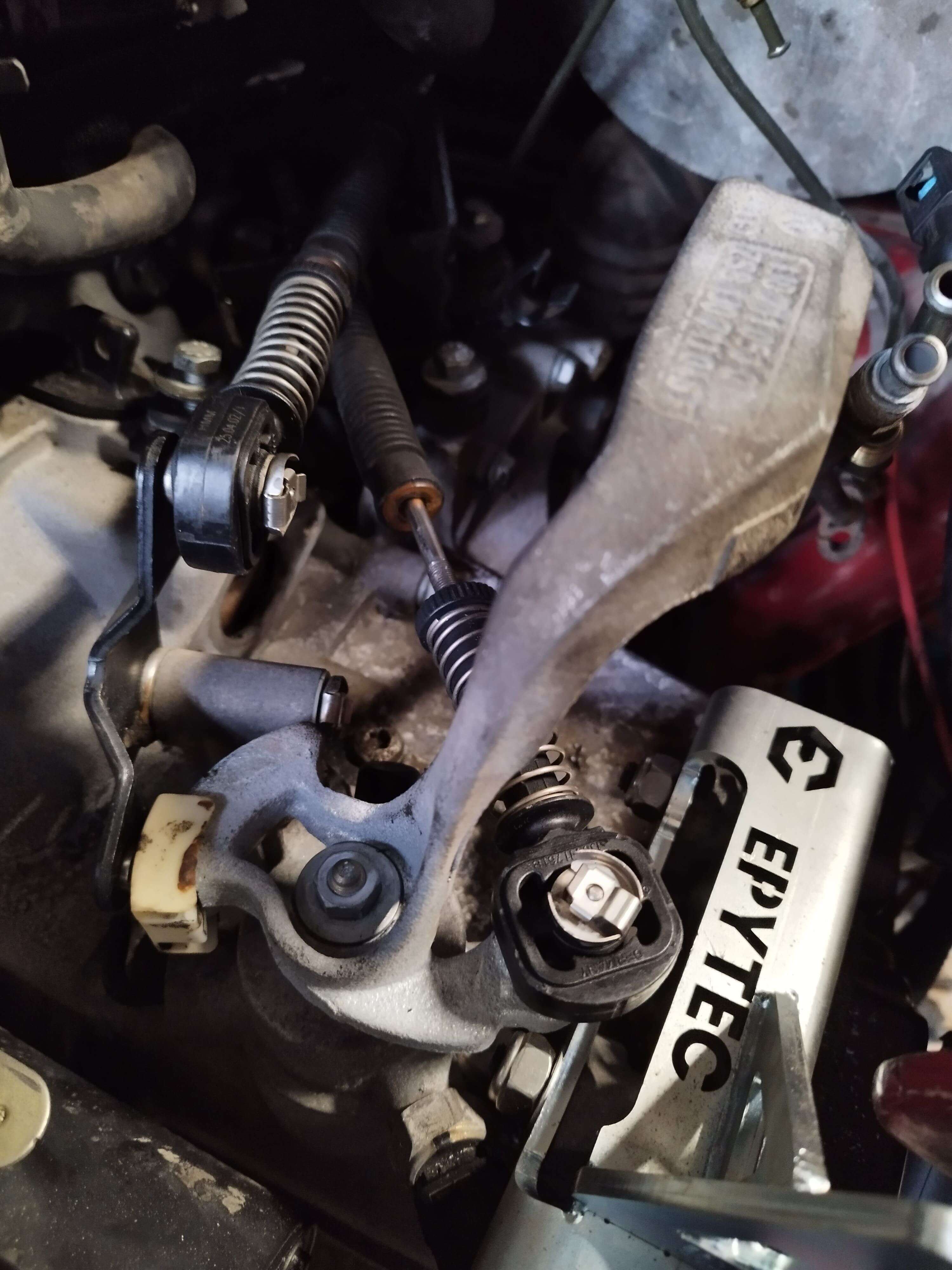

It can happen that the gearshift tower (no. 3 image) is next to the transmission mount. In this case, you will not get the clutch cable holder (no. 1 image) mounted correctly and the clutch cable (no. 2 image) will not be mounted either.
In this case, we can offer you the following solution.
With our counterholder for the clutch cable, you can avoid exactly this problem. In this case, you do not need to fit the small bracket for the clutch cable above (no. 1 image), but can simply use our counter bracket (click here). This is installed as shown in the picture:
As soon as the counterholder (click here) is fitted, you have created the necessary space to be able to fit the clutch cable correctly.
- In which position do I have to press in the bearings?
The position is always different due to the tolerances on the bodies. It is best to proceed as follows:
-Mount the engine and gearbox mount (without bearings).
-Hang the engine and gearbox in the vehicle so that everything fits perfectly.
-Mark the position where the bearings are to be pressed in.
-Press the bearings into place.
Because the bearings are eccentric, you can align the engine and gearbox perfectly.
