Big Brake systems KIT VW Golf 4 Polo VW Polo 6r WRC 9N Bora Audi A3 TT Audi RS4 B5 ZR18 Brake caliper 360x32mm Brake disc - Farbe Bremssattel: In Wunschfarbe lackiert

With our large high-performance brake kit for the Audi A3, TT, VW Golf 4 and many other vehicles, you can upgrade your front axle to a 6-piston braking system and achieve ideal performance.
This kit includes:

- Brake calipers: Porsche ZR18 ZL18 6-piston brake calipers
- Brake discs: 360x32 mm Audi RS4 B5

With this high-performance brake kit / Big Brake Kit, you can install the Porsche ZR18 ZL18 6-piston brake calipers in combination with the 360x32 mm brake discs from the Audi RS4 B5 on the Golf 4 and Audi A3 model range.

The large brake kit is not only sporty but also suitable for everyday use. Thanks to the drilled sports brake discs in combination with our ceramic brake pads, it delivers ideal performance while simultaneously reducing brake dust, temperature and wear.

Another advantage of our brake kit is that it uses the same original brake calipers and brake discs that are also installed in production vehicles. These OE parts not only make brake replacement simple and straightforward but also facilitate TÜV registration.

With this high-performance brake kit, you can get started straight away and have everything you need to upgrade your front axle to a 6-piston braking system.

The large high-performance brake kit / Big Brake Kit is suitable for the following vehicles with a shorter ball joint mounting:

• Audi A1 (8X)
• Audi A3 (8L)
• Audi TT (8N)
• VW Golf 4
• VW Bora
• VW Polo 6r WRC
• VW Beetle
• Seat Leon

Advantages of this braking system:

• Our components, such as brake calipers and brake discs, come from production vehicles and are OE parts. This makes brake replacement simple and straightforward and facilitates TÜV registration.
• The material certificate included in the scope of delivery can also enable registration through individual approval for production vehicles
• High-performance brake pads with a longer service life than original pads
• Extremely high deceleration values, also in combination with our rear axle braking system
• Direct fit for the models listed above, allowing easy conversion back to the original condition at any time
• Our EPYTEC brake caliper adapters do not require you to send in your original parts or carry out any welding, milling or drilling modifications.

Note:

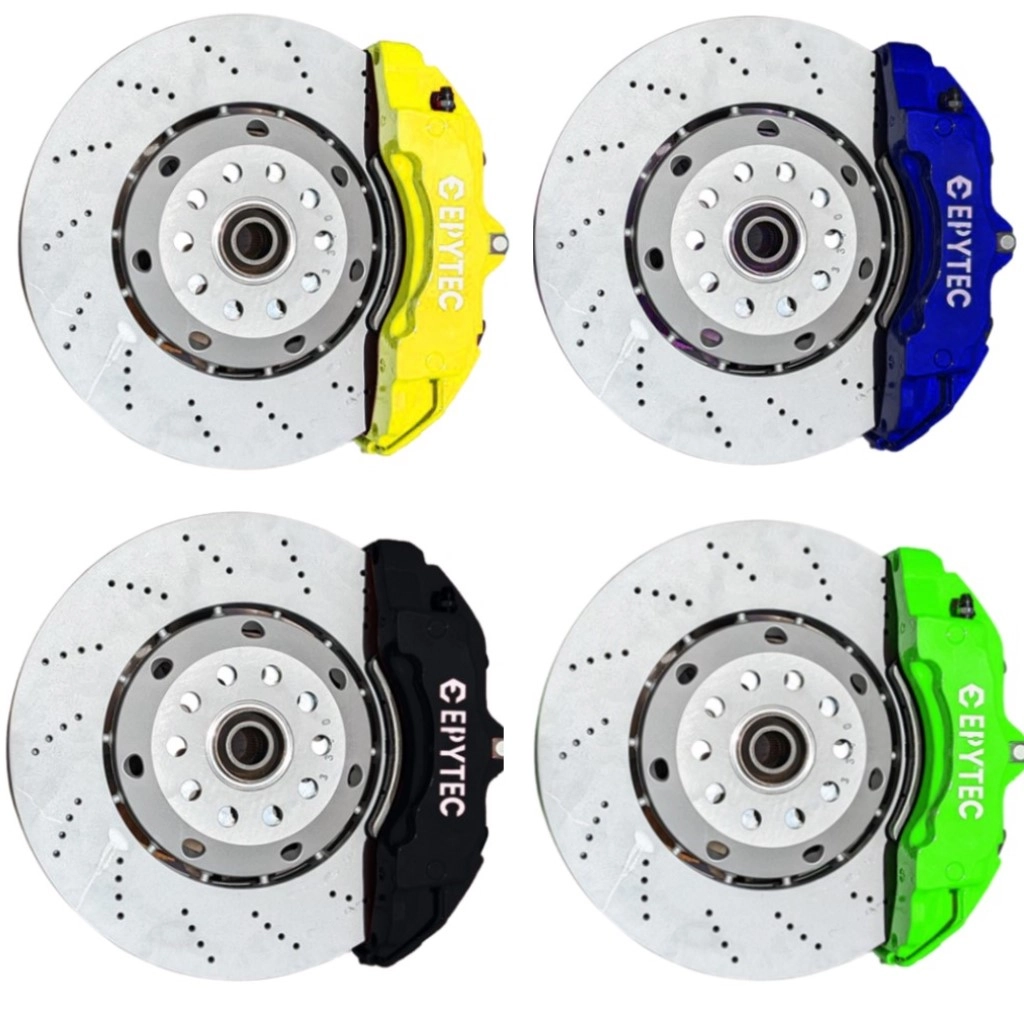

Please note that these brake calipers are supplied in your desired colour so that you can paint them yourself.
Get our high-performance brake kit now and experience ideal performance and durability.

Important!

The adapter is only compatible with cast control arms OE: 8N0 407 151 A.

These are fitted as standard on the Golf 4 R32, Audi S3 8L, Audi TT 8N 1.8T and Quattro models. All other models in the Golf 4 and Audi A3 ranges must be converted to these cast control arms, otherwise steering movement will no longer be possible. The anti-roll bar OE: 1J0411305AF must also be replaced on vehicles that are not equipped with cast control arms as standard.

We offer the matching control arms in our matching accessories, and they can be ordered directly with the kit.

The control arm issue only affects conversions to Z18 and Z17 brake calipers. With all our other adapters, such as those for converting to 4-piston Porsche Boxster, Audi TTRS or 6-piston Porsche Panamera brake calipers for the Golf 4 and Audi A3 model range, the adapters are compatible with all control arms.

As the RS4 brake disc would come into contact with the control arm due to its high overall height, we have developed 5mm wheel spacers that are mounted underneath the brake disc. This moves the brake discs further outwards. In addition, these spacers ensure that the brake disc is perfectly centred on the steering knuckle. The spacers are, of course, included in the scope of delivery.
Important: These can only be used if wheel bearing housings with the shorter ball joint mounting are installed. This must be checked on the vehicle before installation, otherwise the brake disc will come into contact with the ball joint.
Here you can see the difference between the standard and short ball joint.

Standard ball joint:



Short ball joint::



In addition, the supplied 3 mm bushings must be installed underneath the brake caliper adapter, as the thinner spacer means that the brake caliper must be moved 3 mm further towards the engine.

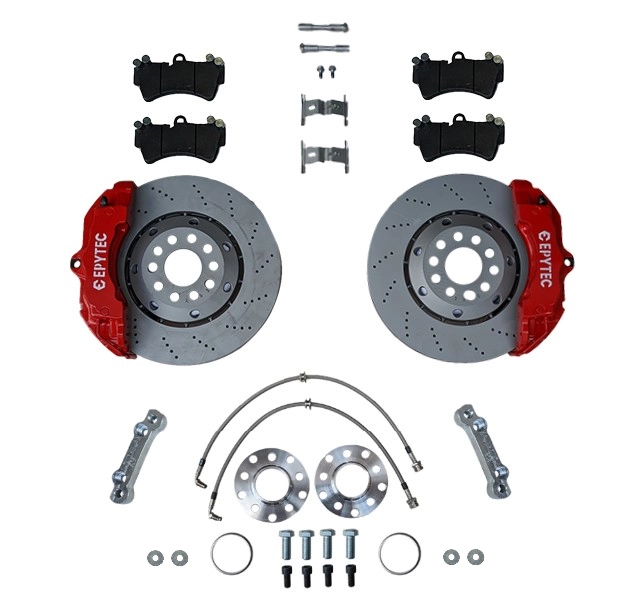

Scope of delivery:

• 2x new Porsche Cayenne brake calipers ZR18 /ZL18, part numbers:  95535142153 / 95535142253 ( left / right ), including a complete new retaining clip kit for the brake calipers in your desired colour
• Matching set of Zimmermann Turbo Groove sports brake discs 360x32mm
• 2x ceramic brake pads for less brake dust and a longer service life
• 2x brake caliper adapters for Golf 4 model range, Audi A3, TT and many more
• 2x matching braided stainless steel brake lines
• Installation aid for brake disc installation
• High-strength bolts
• Material certificate
• Template to check whether the braking system fits under your wheels
• Stress analysis / FEM calculation for registration
