Which RAL colors can we not offer for the coating of our brake calipers?

We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.We do not offer these RAL fluorescent colors (examples)RAL 1026 Fluorescent YellowRAL 2005 Fluorescent OrangeRAL 2007 Fluorescent Light OrangeRAL 3024 Fluorescent RedRAL 3026 Fluorescent Light RedRAL 6038 Fluorescent GreenTip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.

My brake caliper is not exactly centered over the brake disc - what should I do?

If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.The most important thing is:👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:there is very little clearance on one side or the bolt lightly toucheswhile on the other side there is more playThis is generally not critical.🔧 This is how you proceed:Install brake pads:First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:slightly shim the adapter with suitable bushings to adjust the brake caliperor – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.

What torque should be used to tighten the sealing nipples on the brake caliper?

We recommend tightening the sealing nipples on the brake caliper with 20 Nm.Why is this important?The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.Should a torque wrench be used?Yes, for precise and safe installation, we recommend using a torque wrench.Should anything be checked after installation?Yes, the sealing nipple should be checked for tight fit and sealing afterward.

Large brake system KIT rear axle VW T3 Bus Porsche brake caliper handbrake caliper and handbrake cable from Golf 4 R32 - Colour brake caliper: blank without colour

Name: Large brake system KIT rear axle VW T3 Bus Porsche brake caliper handbrake caliper and handbrake cable from Golf 4 R32 - Colour brake caliper: blank without colour
Brand: EPYTEC
SKU: 611-KIT-Blank
Price: 1502.22 EUR
Availability: OutOfStock

€1,502.22*

Prices incl. VAT plus shipping costs

Available again on 01.09.2026

Product number: 611-KIT-Blank

Lieferung ab Tuesday, 01.09.2026, bestelle jetzt um es zwischen dem 02.09.2026 und 05.09.2026 zu erhalten.

Brake caliper color

Blank without color

Red with Epytec logo

Painted in the color of your choice

Notify me when available

This product is currently out of stock. Enter your email address to be notified when the product becomes available again.

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

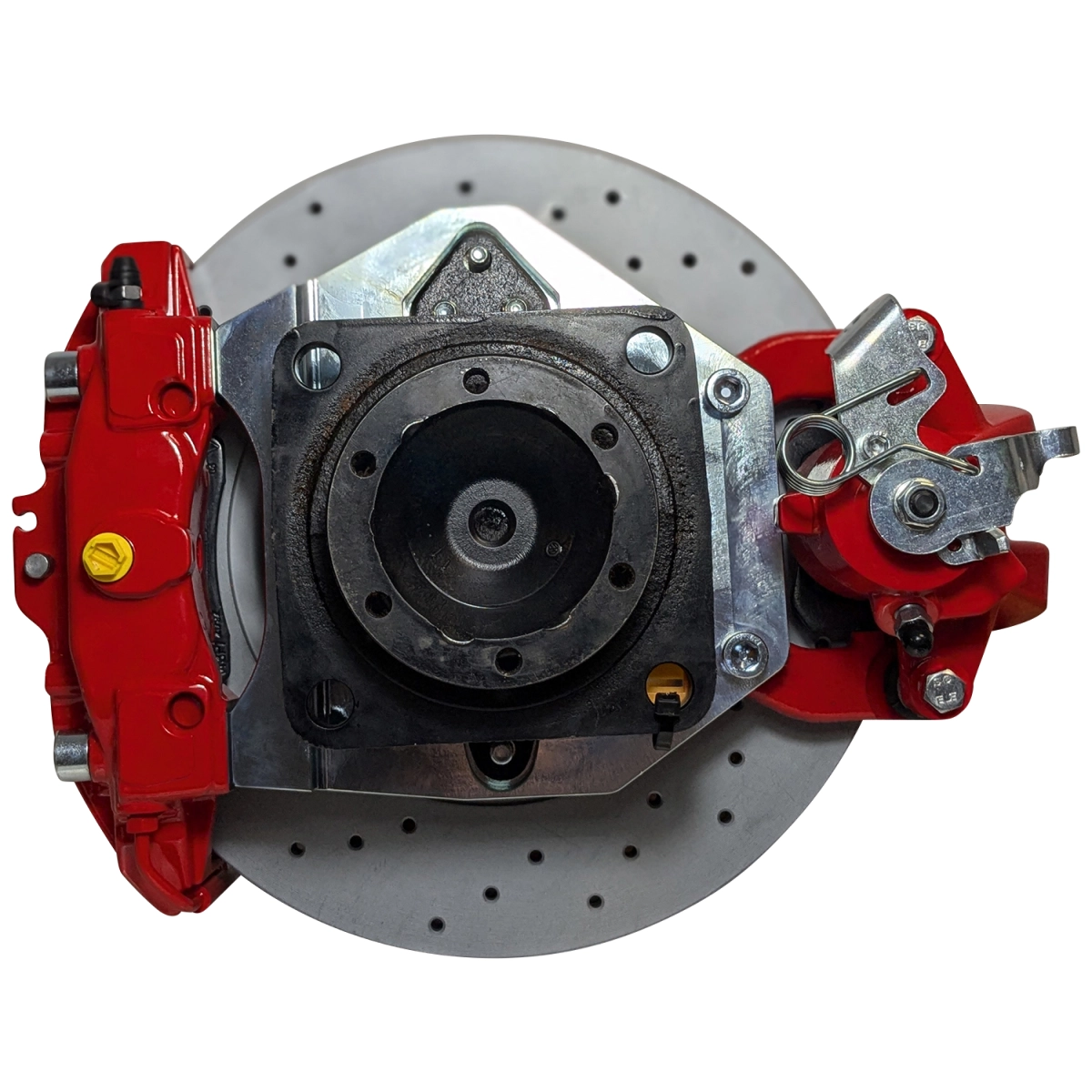

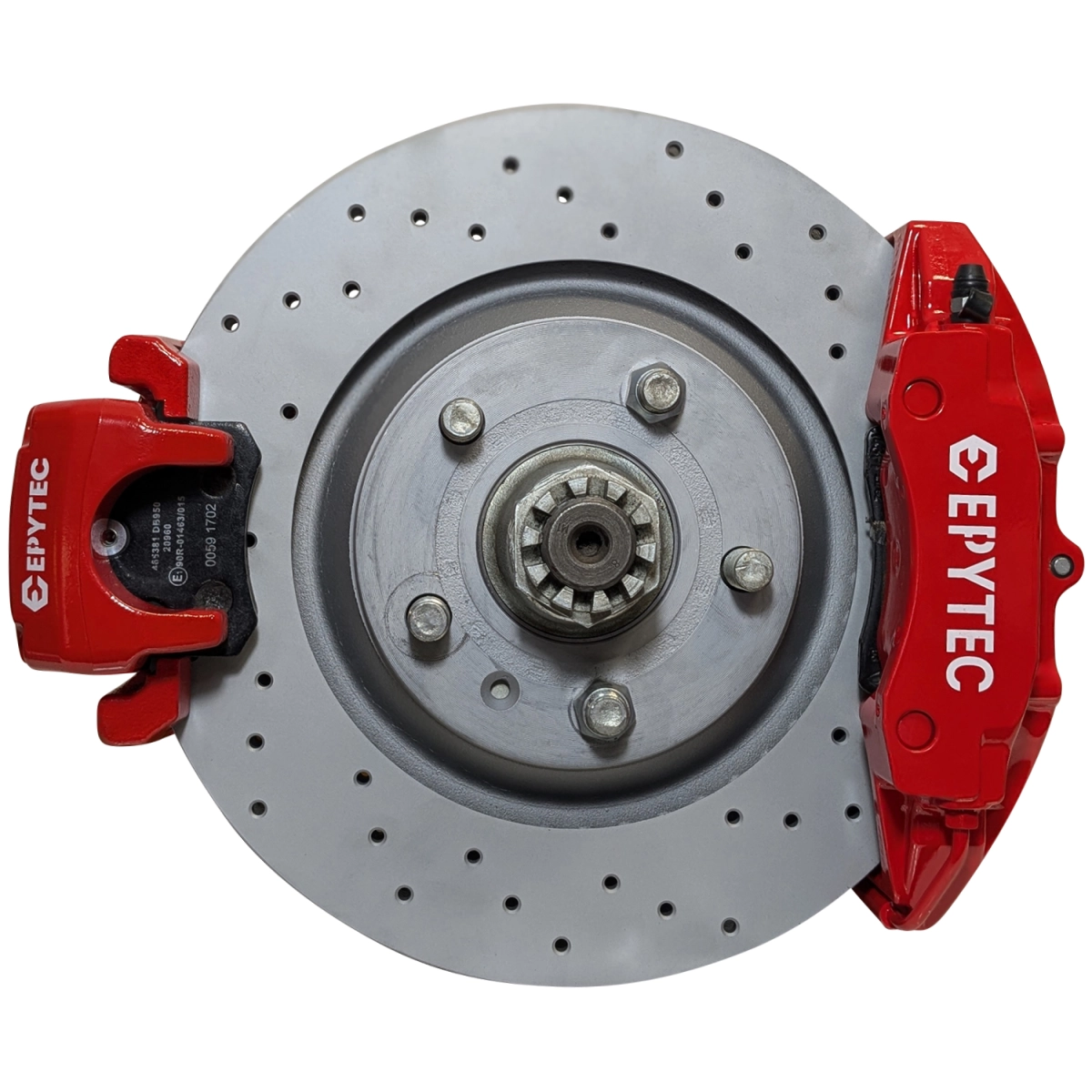

With our large high-performance brake system kit for the T3 Bus (for all T3 Bus models) you can convert your rear axle to a 4-piston Porsche brake system in combination with the Golf 4 R32 handbrake caliper and achieve ideal performance.
With this kit, you convert to the following components:

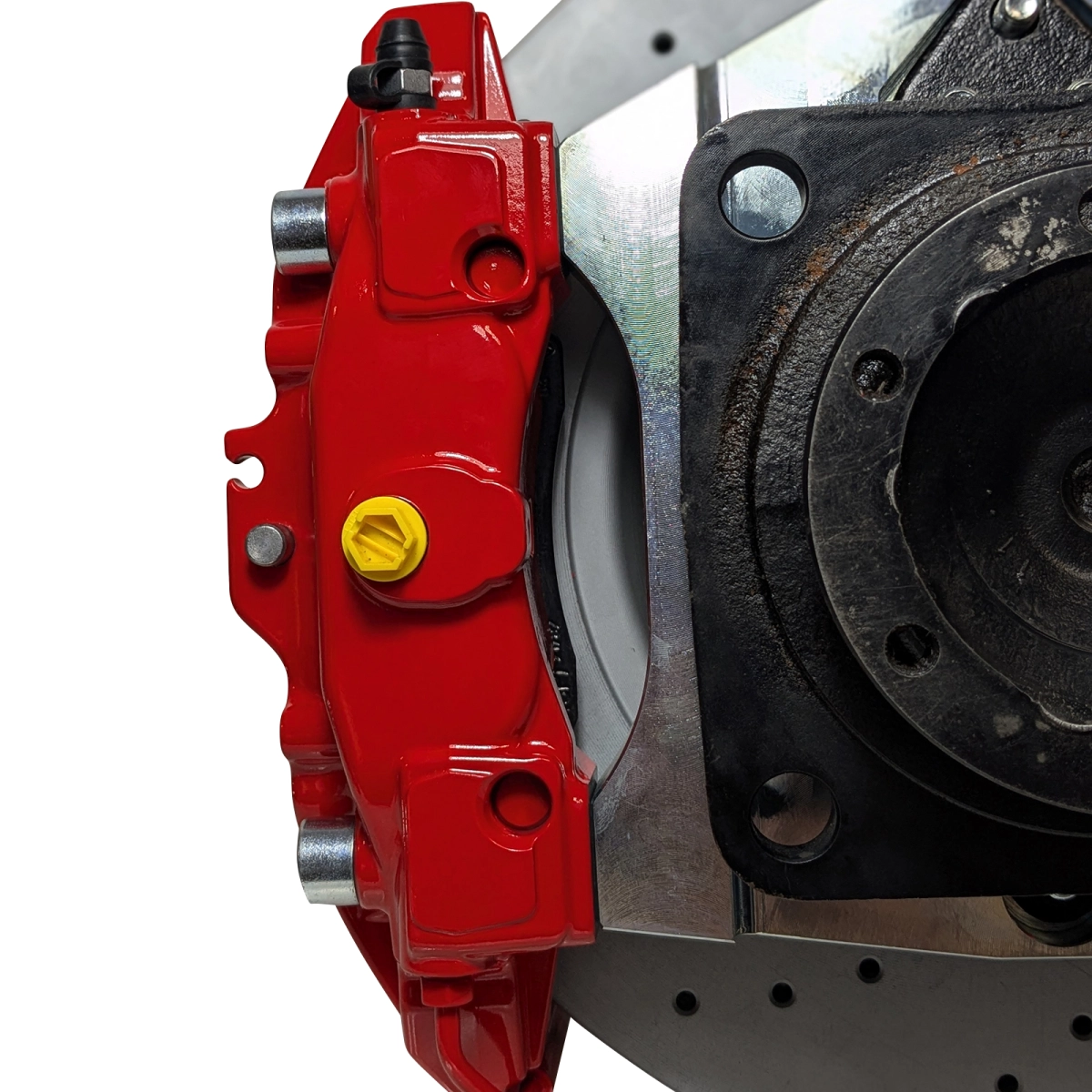

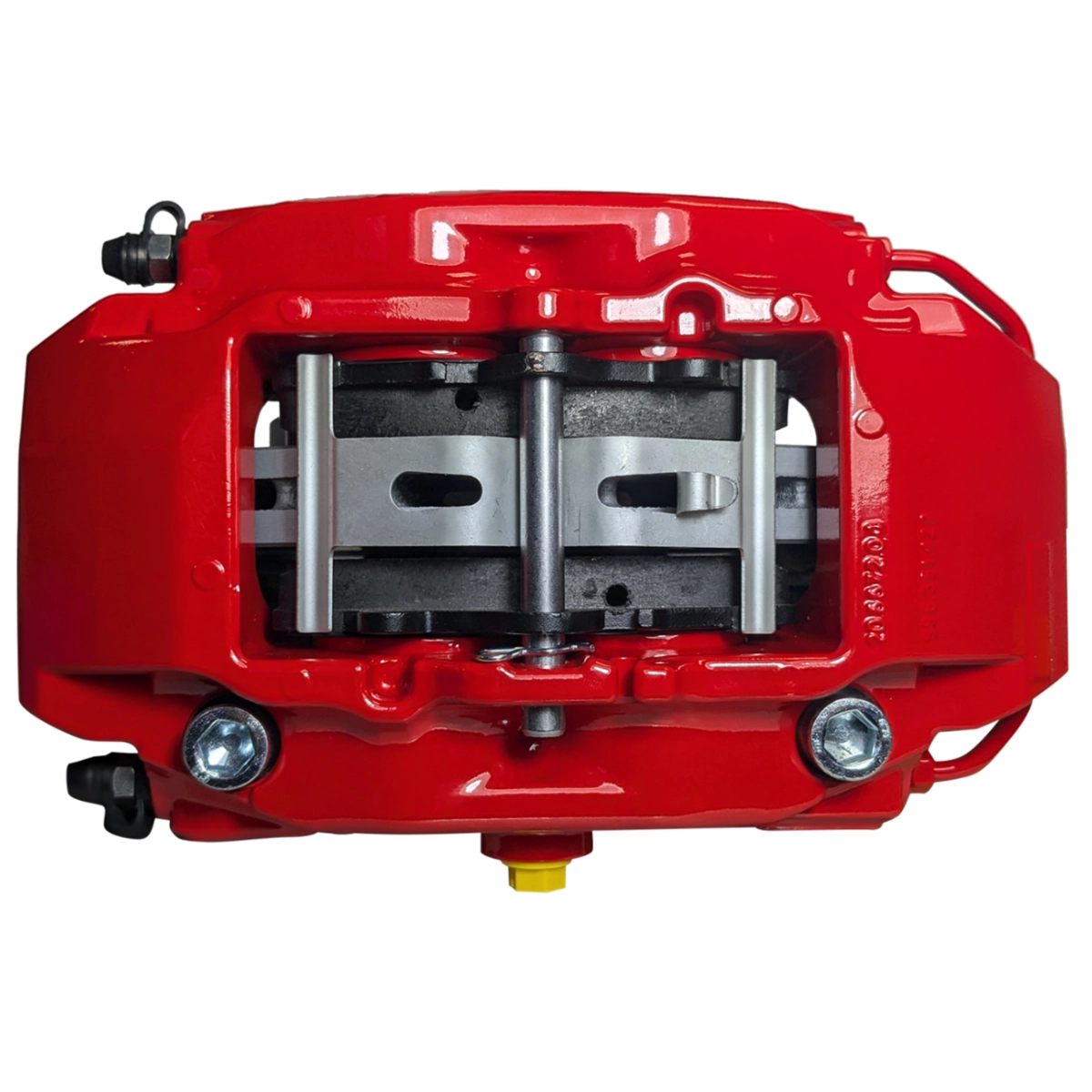

- Brake calipers: Porsche 996 brake calipers

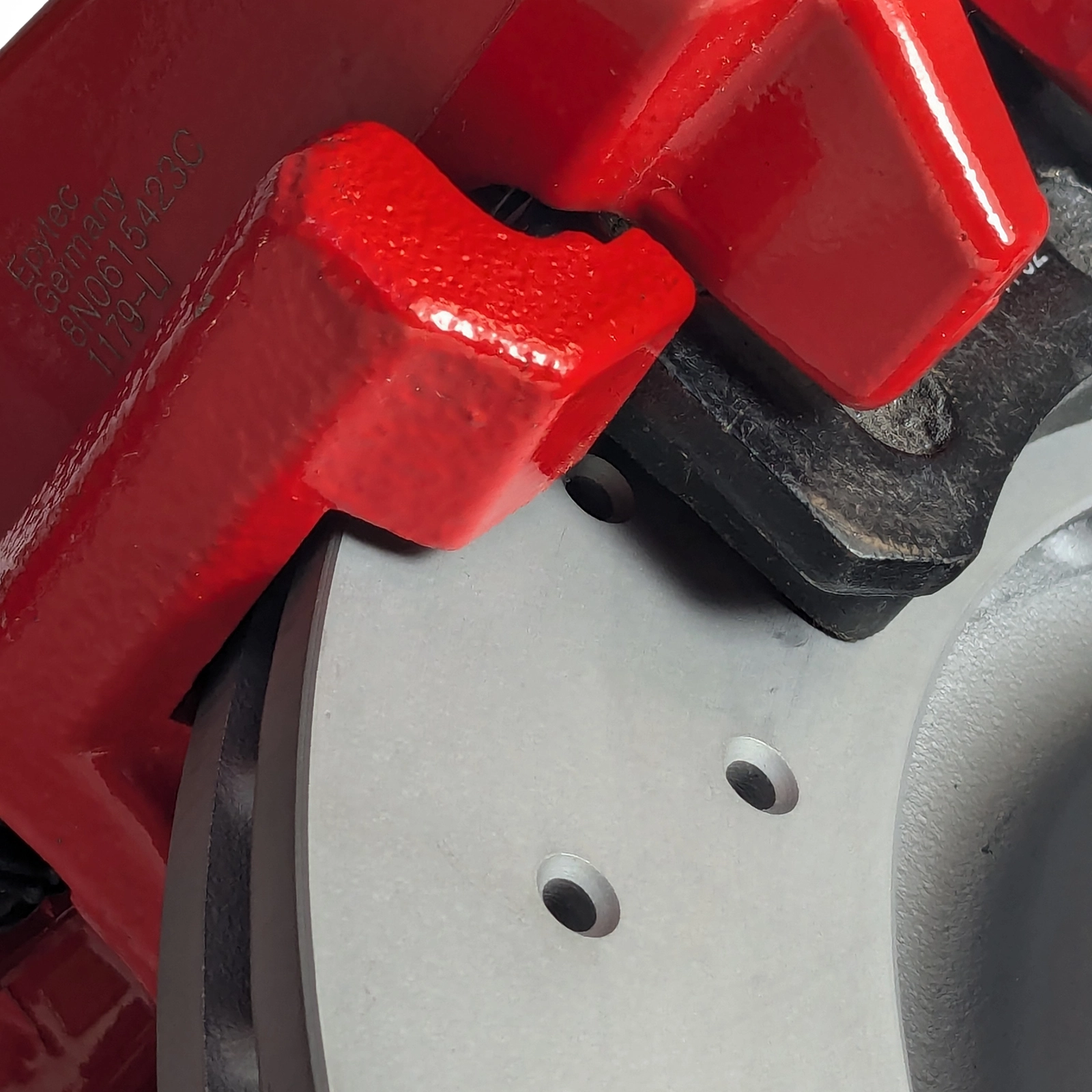

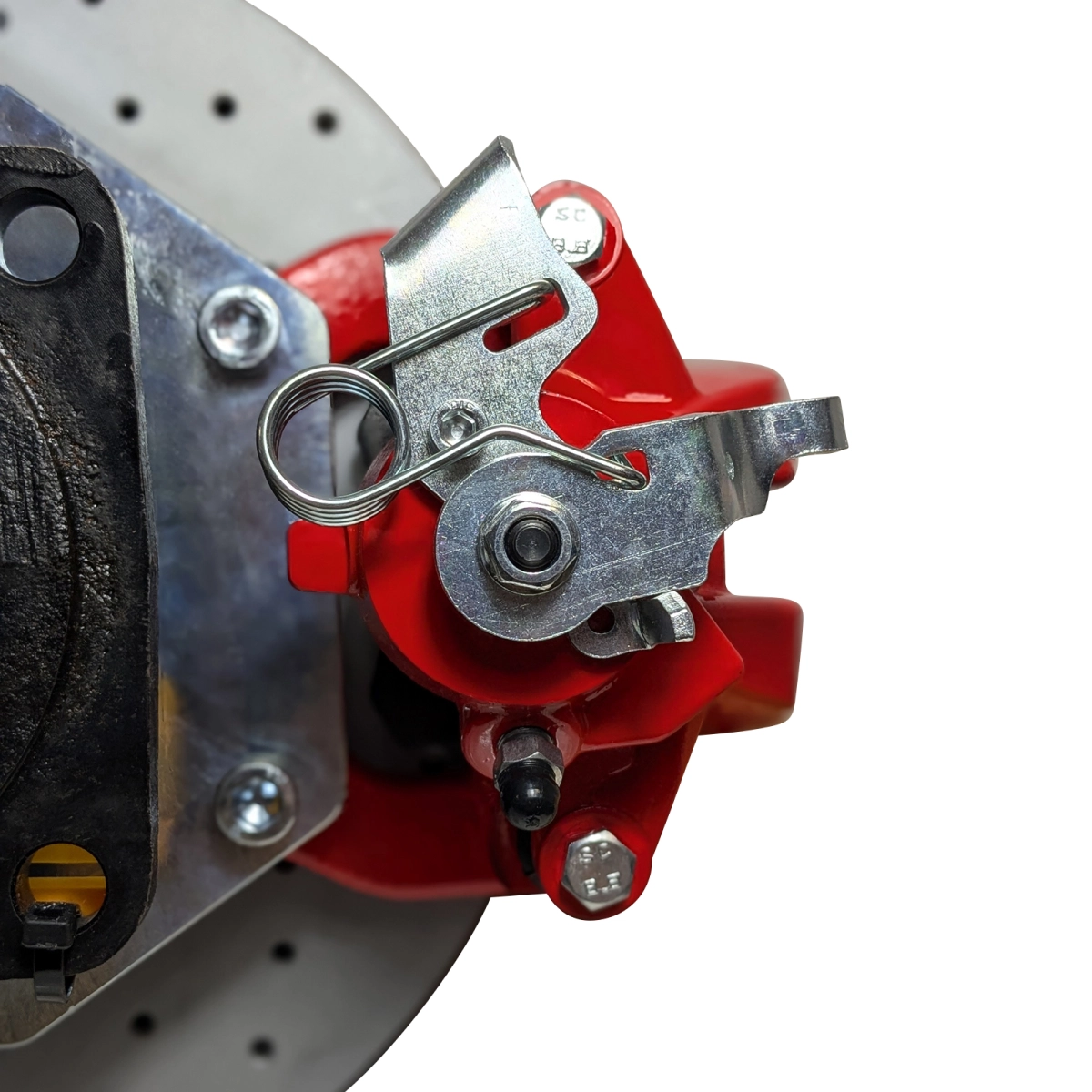

- Handbrake calipers: Golf 4 R32 handbrake caliper
- Brake discs: 300x22 mm A4 S4

With this high-performance brake system kit you can use the Porsche 996 brake calipers and the Golf 4 R32 handbrake caliper in combination with the brake discs 300x22 mm from the A4 S4 on T3 Bus models.

The large brake system kit is not only sporty, but also suitable for everyday use and, thanks to the drilled sport brake discs in combination with our ceramic brake pads, enables ideal performance while simultaneously reducing brake dust, temperature and wear.

Another advantage of our brake system kit is that it is equipped with the same original brake calipers and brake discs that are also installed in production vehicles. These OE parts not only make replacing the brakes easy and straightforward, but also simplify TÜV approval.

With this high-performance brake kit you can get started right away and have everything you need to convert your rear axle to a 4-piston brake system.

The large high-performance brake system kit is suitable for:

T3 Bus models

Advantages of this brake system:

our components, such as brake calipers and brake discs, come from production vehicles and are OE parts. This makes replacing the brakes easy and straightforward and simplifies TÜV approval.
the material certificate included in the scope of delivery can enable approval via individual inspection even for production vehicles

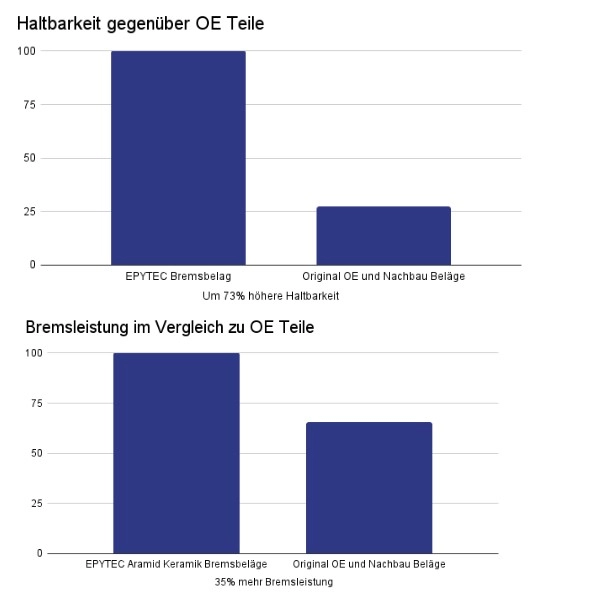

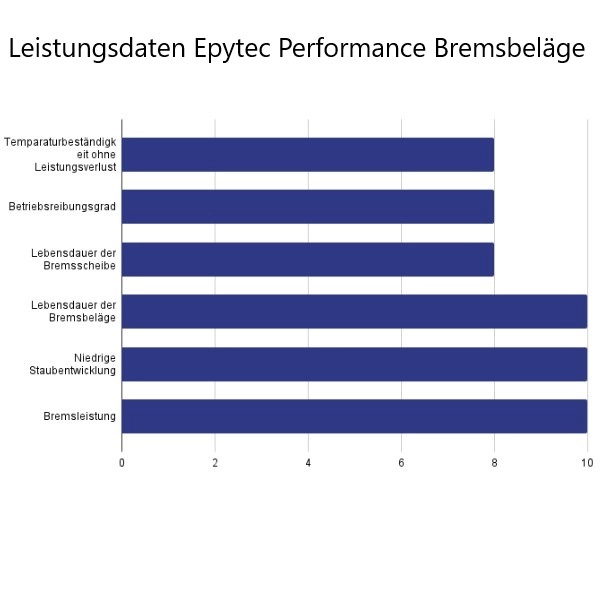

high-performance brake pads with a longer service life than original pads
extreme braking performance, also in combination with our rear axle brake system
directly suitable for the models listed above and therefore can be easily converted back to the original condition at any time
our EPYTEC brake caliper adapters do not require you to send in your original parts, nor do they require rewelding, remachining or redrilling.

Note :

Please note that these brake calipers are supplied unpainted in a bare finish so that you can paint them yourself.
Secure our high-performance brake system kit now and experience ideal performance and durability.
!! The wheel hubs must be machined down for the rear disc. (even those we have in our range still need to be machined down slightly)!!

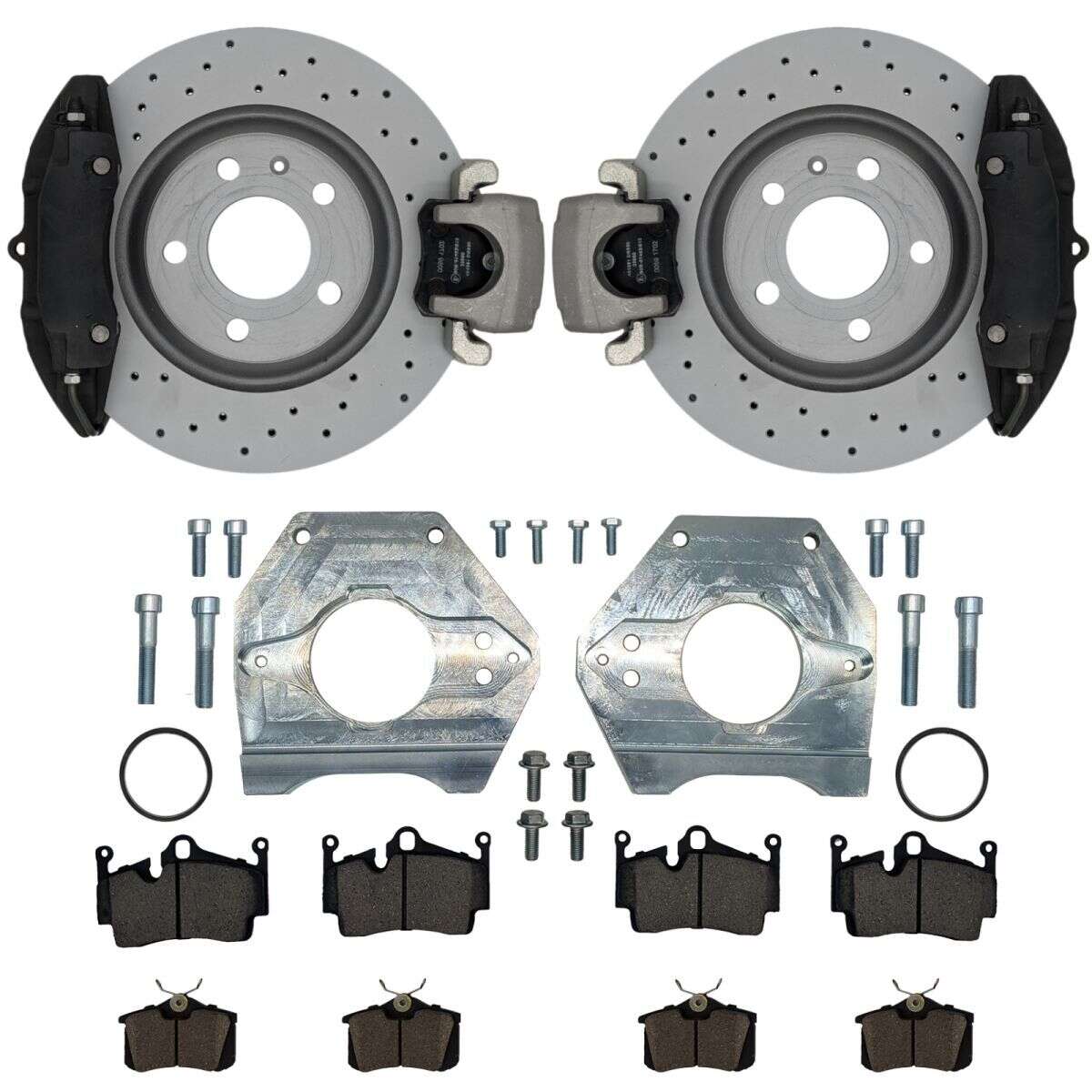

Scope of delivery:

Brake calipers from the Porsche 996 (rear axle) part number: 996.352.422 + 996.352.421 (Only 100% compatible with the specified Porsche calipers) unpainted in a bare finish
Brake discs from the A4 S4 rear axle in 300x22mm Original part no.: 8E0 615 601 R
2x matching centering ring
Matching handbrake caliper brake pads part number: JZW698451
Brake caliper carrier VW part number 8N0 615 425 B.
2x conversion adapters for VW T3 to Porsche for the rear axle
2x matching stainless steel braided brake lines
Assembly aid for brake disc installation
high-strength fastening hardware
material certificate
Stress analysis / FEM calculation for approval
Installation instructions (click here)

We provide a TÜV certificate with this adapter. This means that the TÜV inspector can easily register the adapter.

FAQ: Häufige Fragen

Sollte ich die Anker- bzw. Staubbleche entfernen?

Wir empfehlen das Entfernen der Bleche, da sie die Belüftung einschränken. Ohne diese Barriere wird die Bremse effizienter gekühlt und bleibt auch bei starker Beanspruchung leistungsfähig.

Wie erleichtere ich mir die Felgenmontage?

Mit Radmontagehilfen gelingt das Ausrichten und Aufsetzen der Felge einfacher und präziser. Das schützt Gewinde und Felge und spart Zeit.

Radmontagehilfe ansehen

Benötige ich Spurverbreiterungen nach dem Umbau?

Welche Felgengröße passt, lässt sich pauschal nicht sagen. Streift die Felge minimal am Bremssattel, schaffen Spurverbreiterungen den nötigen Abstand.

Spurverbreiterungen ansehen

Brauche ich neue Bremsleitungen?

Für optimale Passform und stabile Bremswirkung empfehlen wir Stahlflex. Diese sind konfigurierbar und liefern konstantere Ergebnisse als Gummileitungen.

Stahlflex konfigurieren

Warum unsere Adapter die beste Wahl sind

Wusstest du, dass sich dein EPYTEC-Adapter oft schon nach dem ersten Verschleißteilwechsel komplett bezahlt macht?

Das liegt daran, dass du mit unseren Adaptern auf OE-Bremsscheiben und -Sättel setzt, die wir bewusst bei der Entwicklung der Adapter ausgewählt haben. Diese Komponenten sind nicht nur in höchster Qualität gefertigt und in Serienfahrzeugen im Einsatz, sondern durch ihre Großserienproduktion auch günstig und jederzeit verfügbar.

Für dich bedeutet das: erstklassige Bremsleistung ohne Abhängigkeit von teuren Speziallösungen anderer Hersteller.

Und selbst beim TÜV hast du es leichter, denn unsere OE-Komponenten sind bereits offiziell abgenommen – der Prüfer kann sich direkt darauf beziehen, sodass deine Eintragung unkompliziert und sicher abläuft.

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Brake caliper hole spacing: 90

Brake caliper type: Porsche 996 4 Kolben Sattel Hinterachse

Farbe Bremssattel: Blank ohne Farbe

Hole spacing steering knuckle: 90

Manufacturer: Epytec

Mounting location: rear!
