Golf Mk1 Caddy Scirocco conversion set 1.8T 1.9TDI Golf Mk4 6-speed gearbox 02m R32 pedals hydraulic clutch
- ✓ Golf 1, Caddy 1, Scirocco
- ✓ 02M 6-speed gearbox, 1.8T / 1.9TDI engine
- ✓ original pedals, hydraulic clutch
€669.36*
Notify me when available
This product is currently out of stock. Enter your email address to be notified when the product becomes available again.
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
- 19 Jahre Expertenwissen
Product information "Golf Mk1 Caddy Scirocco conversion set 1.8T 1.9TDI Golf Mk4 6-speed gearbox 02m R32 pedals hydraulic clutch"
Complete conversion kit (if you want to convert to all-wheel drive) to convert the VW Golf 1, Scirocco and Caddy I to the 02m 6-speed gearbox from the VW Golf R32 in conjunction with the 1.8T / 1.9TDI engine from the VW Golf 4. The reinforced gearbox and motor mount ensure maximum stability and withstand the most extreme stress. In addition, reinforced engine and transmission bearings are installed, which are perfect for all tuned engines and are more durable than standard bearings.
In addition, the hydraulic clutch from the Golf 4 is installed with an electric accelerator pedal, which makes clutching much easier.
This conversion kit contains all the parts that we recommend for the VW Golf 1, Scirocco and Caddy I conversion to the 02m gearbox from the VW Golf R32 in conjunction with the 1.8T / 1.9TDI engine of the VW Golf 4
This is the perfect all-in-one solution for your remodeling.
If you want to convert to front-wheel drive, we have this complete set in our program (click here)
Advantages:
- quick and easy complete conversion
- no more retrofitting necessary
- original pedals (clutch and brake) can be retained
- hydraulic clutch
- longevity
Tip when converting the clutch:
When installing, make sure whether a small fuse box or the complete original wiring harness is installed. With the small fuse box, you can easily carry out the conversion. If the original wiring harness is installed, the wiring harness goes to
Dashboard and steering column switch exactly through the gap where the cylinder is installed. Here you should pay attention

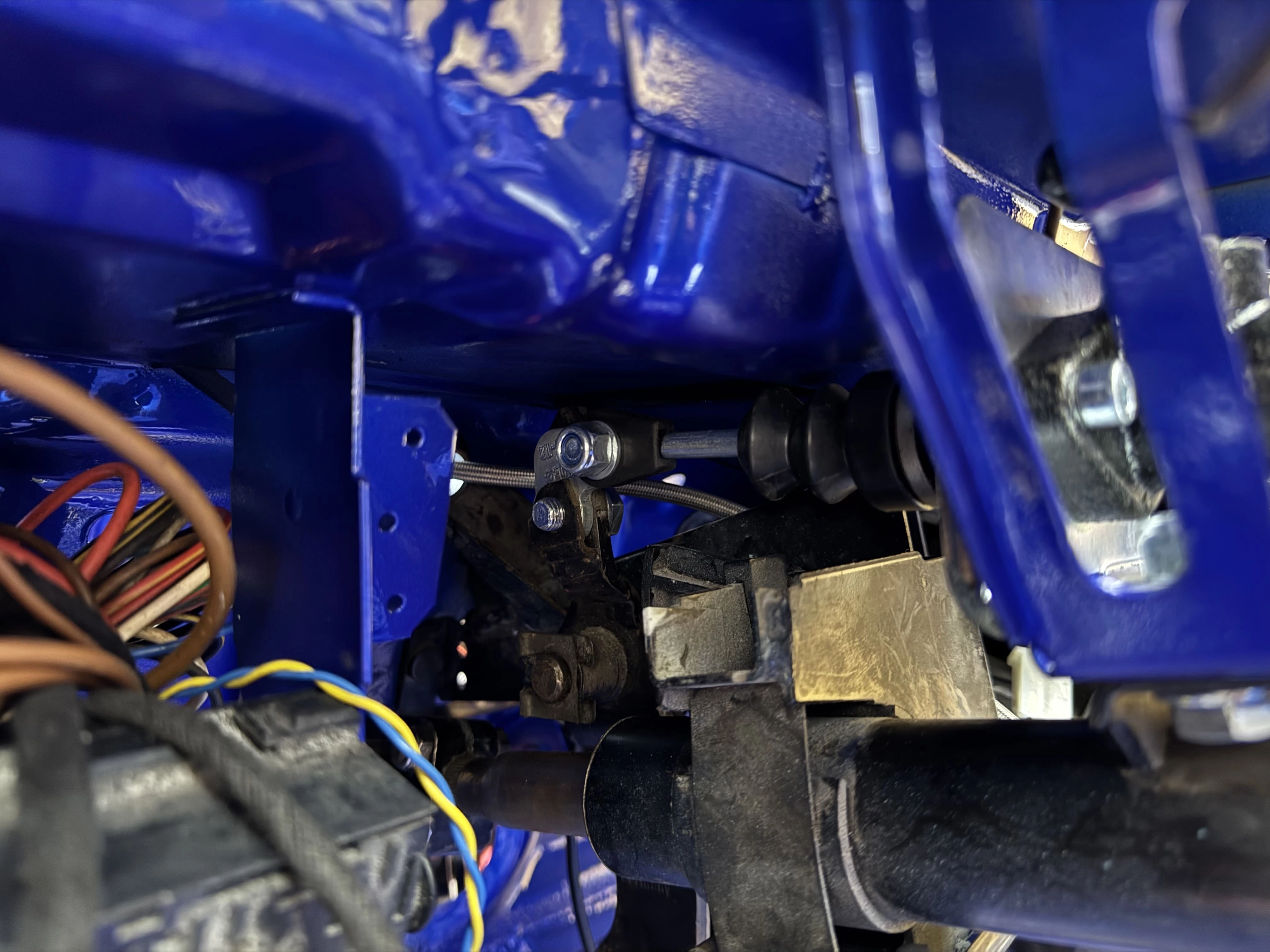

that the cables are adequately protected against contact. The cable harness is best fixed to the body with cable harness cable ties. There are two original holes in the immediate vicinity that can be used. You can see that in the installation pictures.
Scope of delivery:
- Rear cable transmission mount
- Front cable transmission mount

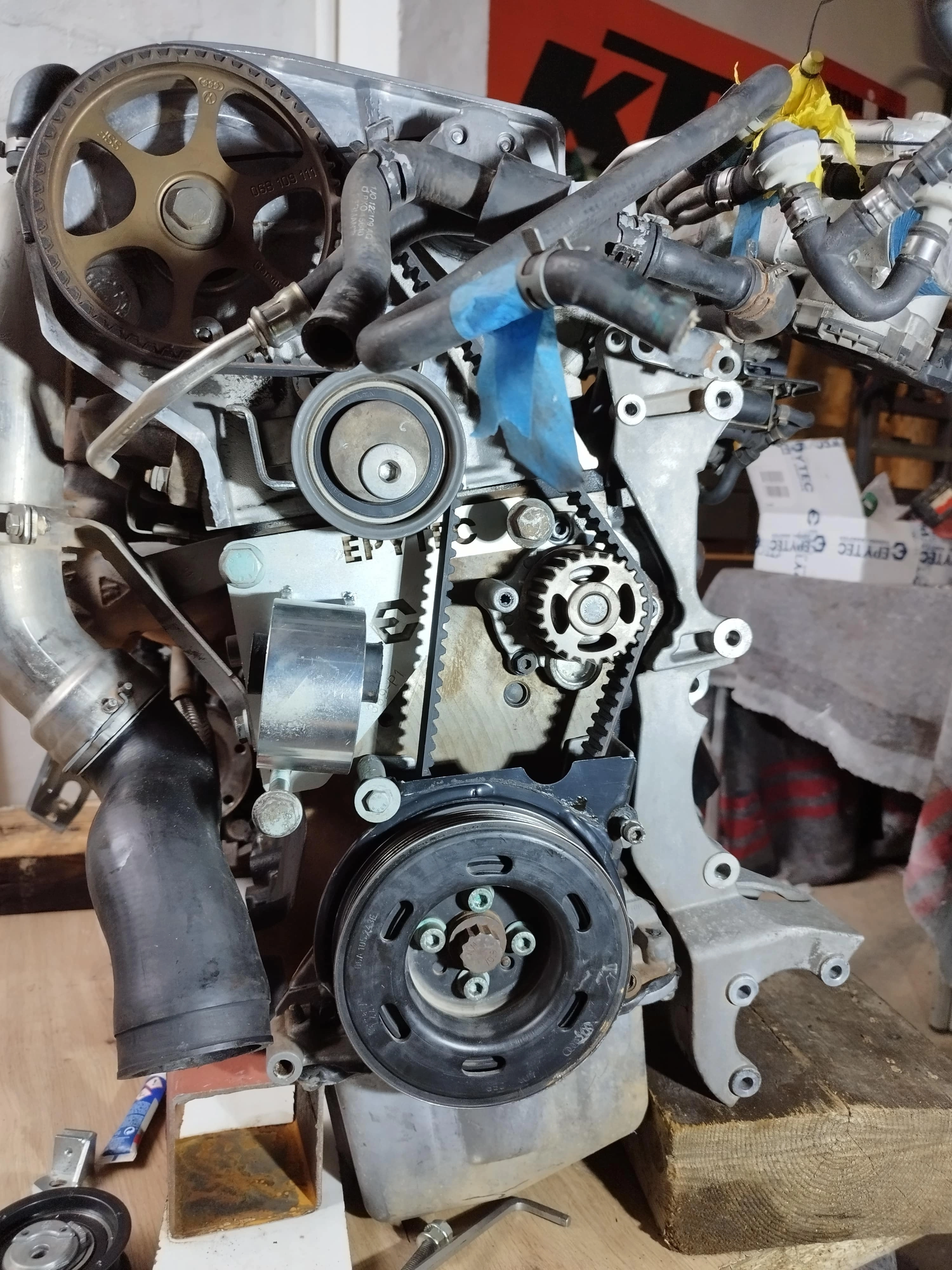

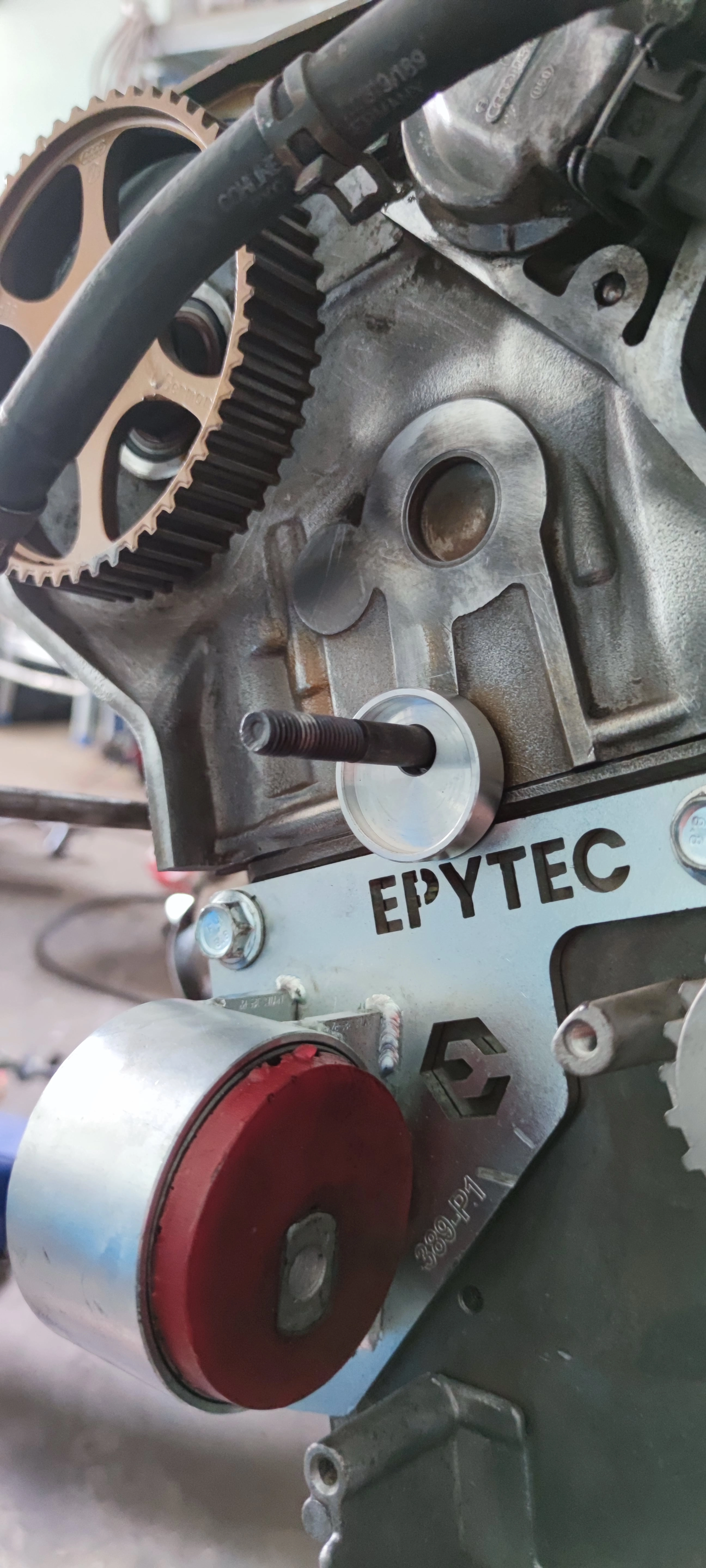

- engine mount

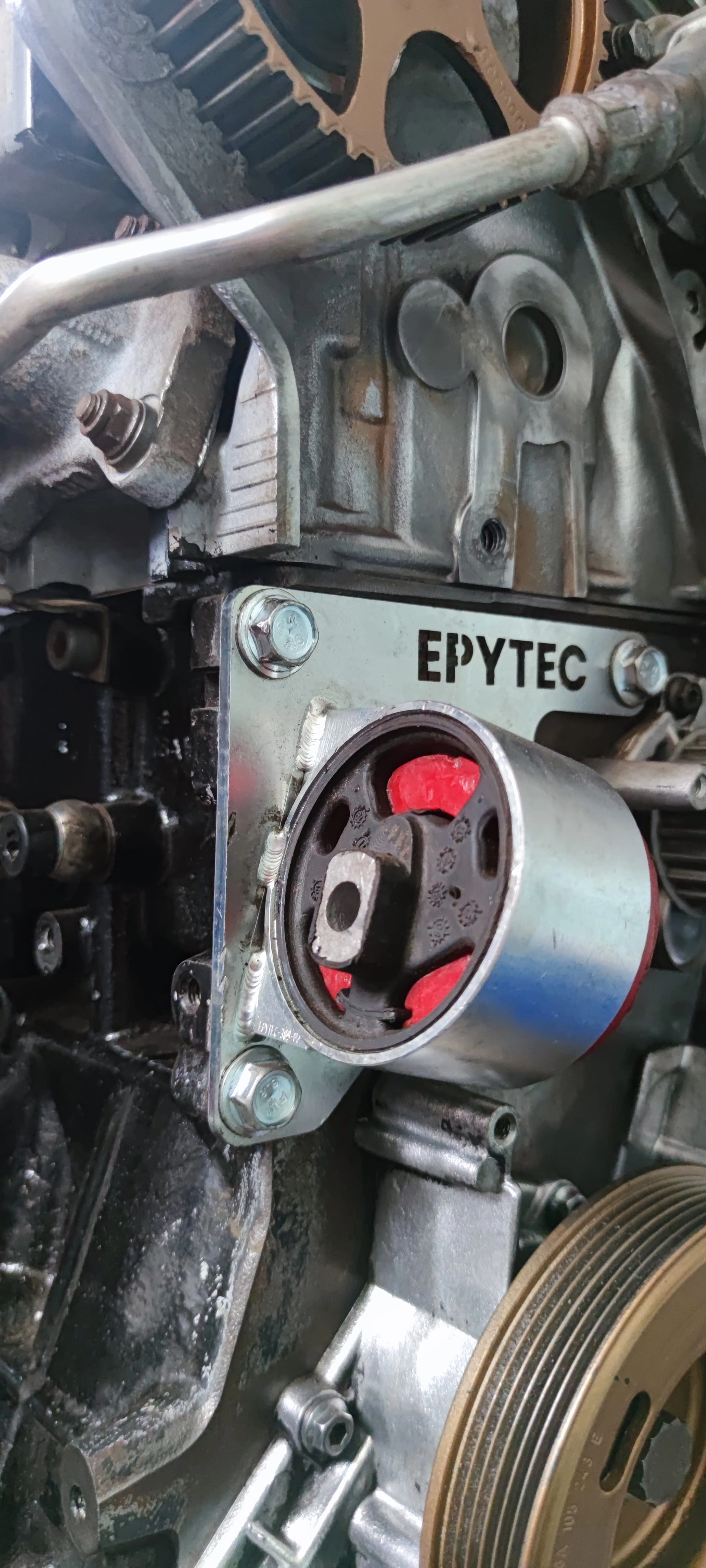

- Reinforced engine and transmission mounts
- Accelerator pedal adapter to electronic accelerator cable

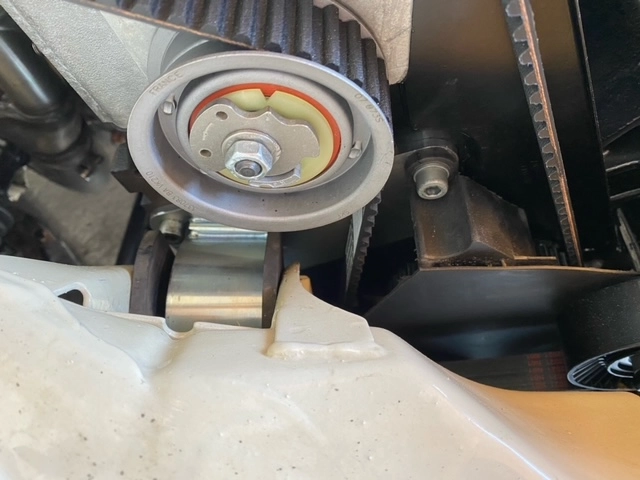

- Idler Adapter
- appropriate idler pulley

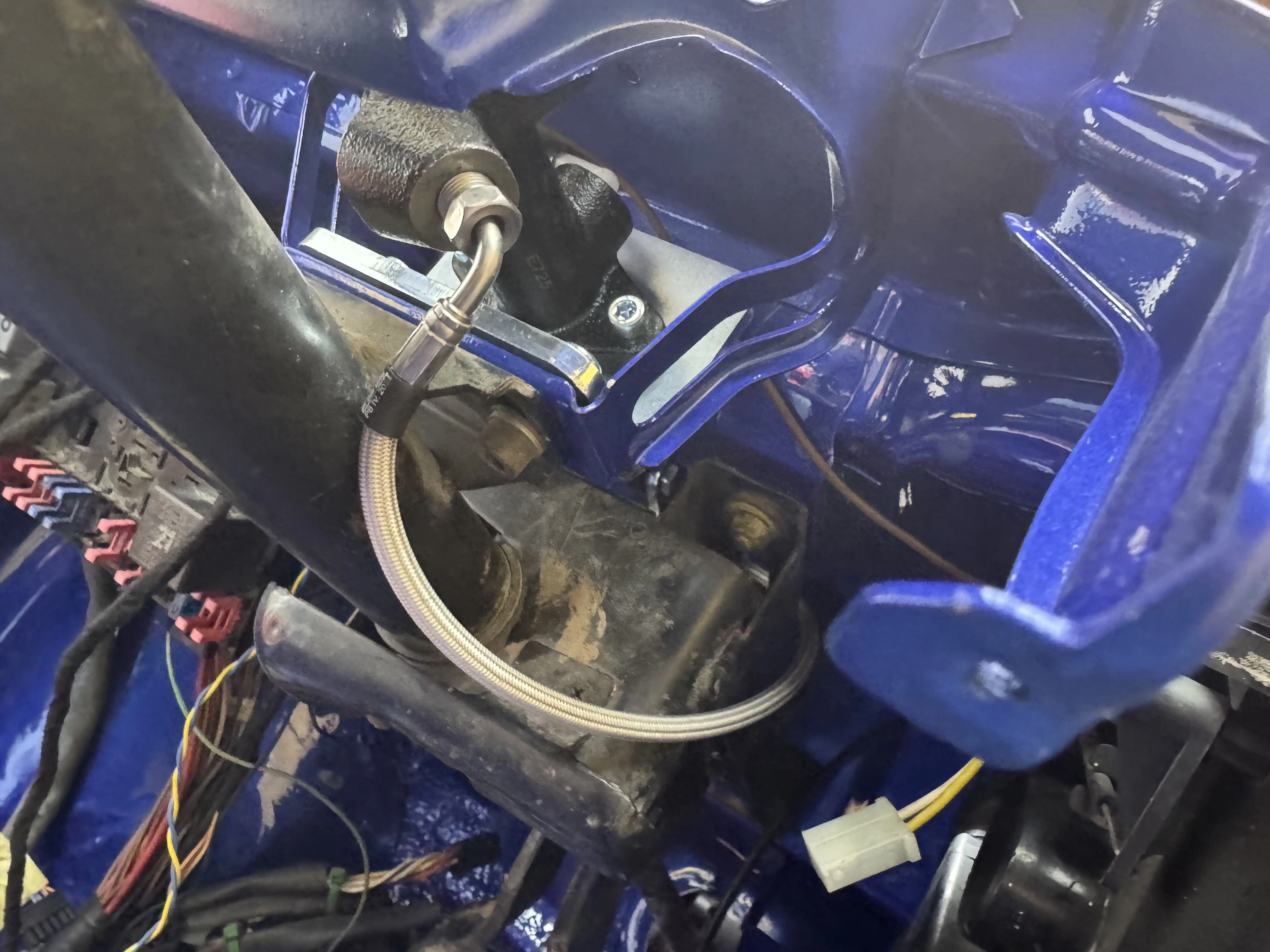

- Conversion kit to hydraulic clutch
- Clutch master cylinder from the Passat 35i
- material certificates
- Installation instructions + pin assignment for 1.8T engine
- Installation instructions for the 1.9TDI engine
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
