Installation instructions article 389 for the 1,9TDI engine conversion for VW Golf 1 Scirocco and Caddy 14d.
Here you can read how to do it step by step to mount the 1,9TDI Motor in VW Golf 1 Scirocco or Caddy 14d.

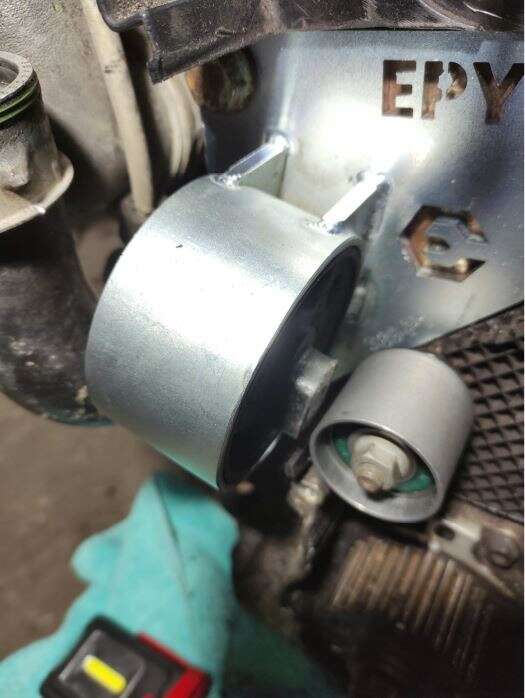

As can be seen here, the distance between the support and the rotating roller is too small to fit the support into the motor bracket.

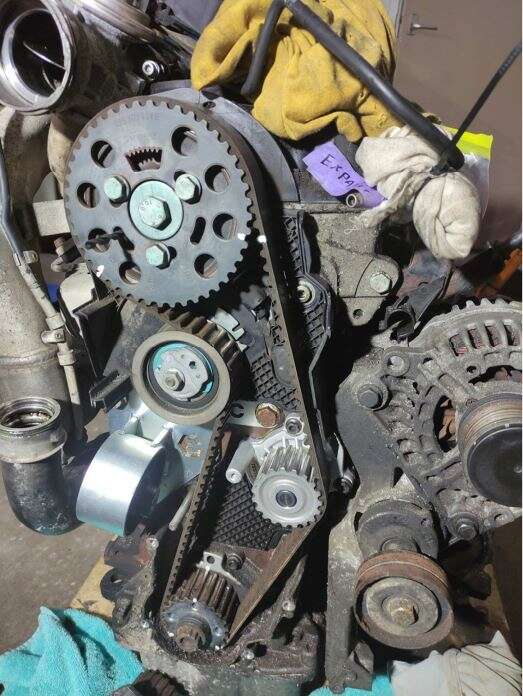

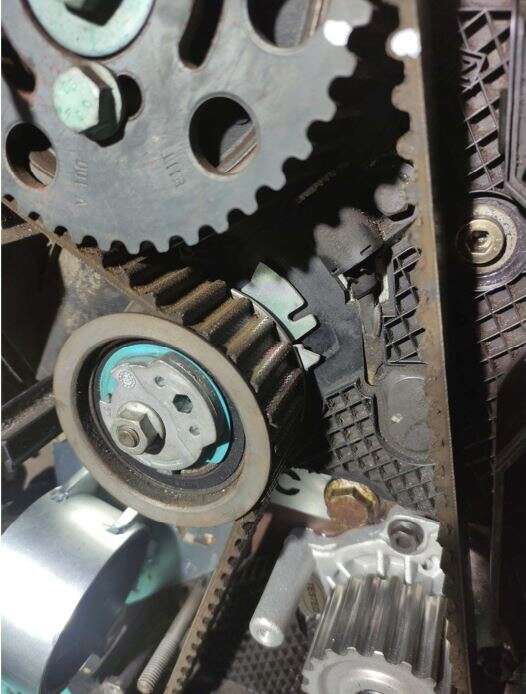

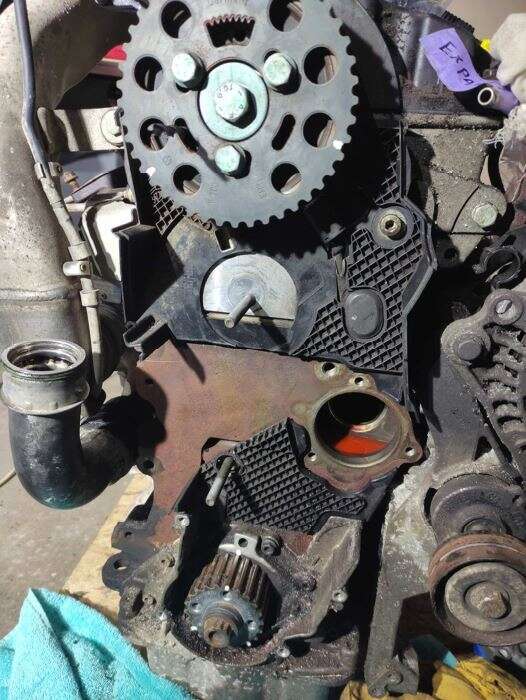

Therefore, the rotating roller must be removed and the new toothed belt must be put on. Then the tension pulley should be set to the maximum tension.
The toothed belt should then be turned two full turns
!! Important !!
the tension of the toothed belt should be checked then.
- ✓ Golf 1, Scirocco, Caddy 14D
- ✓ 1.8l 20vT, 1.9 TDI
- ✓ simple engine conversion
Do you have any questions or requests?
