Caliper adapter VW Audi A3 S3 TT VW Golf 4 Bora Polo 9N Porsche 996 brake
- ✓ 312x25 8N0615301A Audi S3 / Golf 4 GTI brake disc
- ✓ 4-piston 996352422 / 996352421 Porsche 996 brake caliper
- ✓ front axle
€218.95*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Brake caliper adapter for Porsche or Brembo 4 piston brake calipers from the rear axle of the 996 in connection with the Audi 312x25 brake disc.
To be installed on the front axle of the following vehicles:
- Audi A1 (8X)
- Audi A3 (8L)
- Audi S3 (8L)
- Audi TT (8N)
- VW Golf 4
- VW Bora
- VW Beetle
- VW Polo (9N)
- VW Polo 6R WCR
- Seat Ibiza
- Seat Leon
Components required:
- Brake calipers from the Porsche 996 (rear axle) Part number: 996.352.422 + 996.352.421 (only 100% compatible with the specified Porsche calipers)
- Brake discs from the Audi S3 (8L) / Golf 4 GTI 312x25mm part NO. 8N0 615 301 A
Benefits:
- Extreme deceleration values also in connection with our rear axle brake system
- the material certificate included in the scope of delivery enables entry by individual acceptance even for series vehicles
- Directly suitable for the above-mentioned models and can therefore be easily restored to the original state at any time
- Our EPYTEC brake caliper adapters do not require your serial parts to be sent in, no welding, milling or drilling.
Delivery:

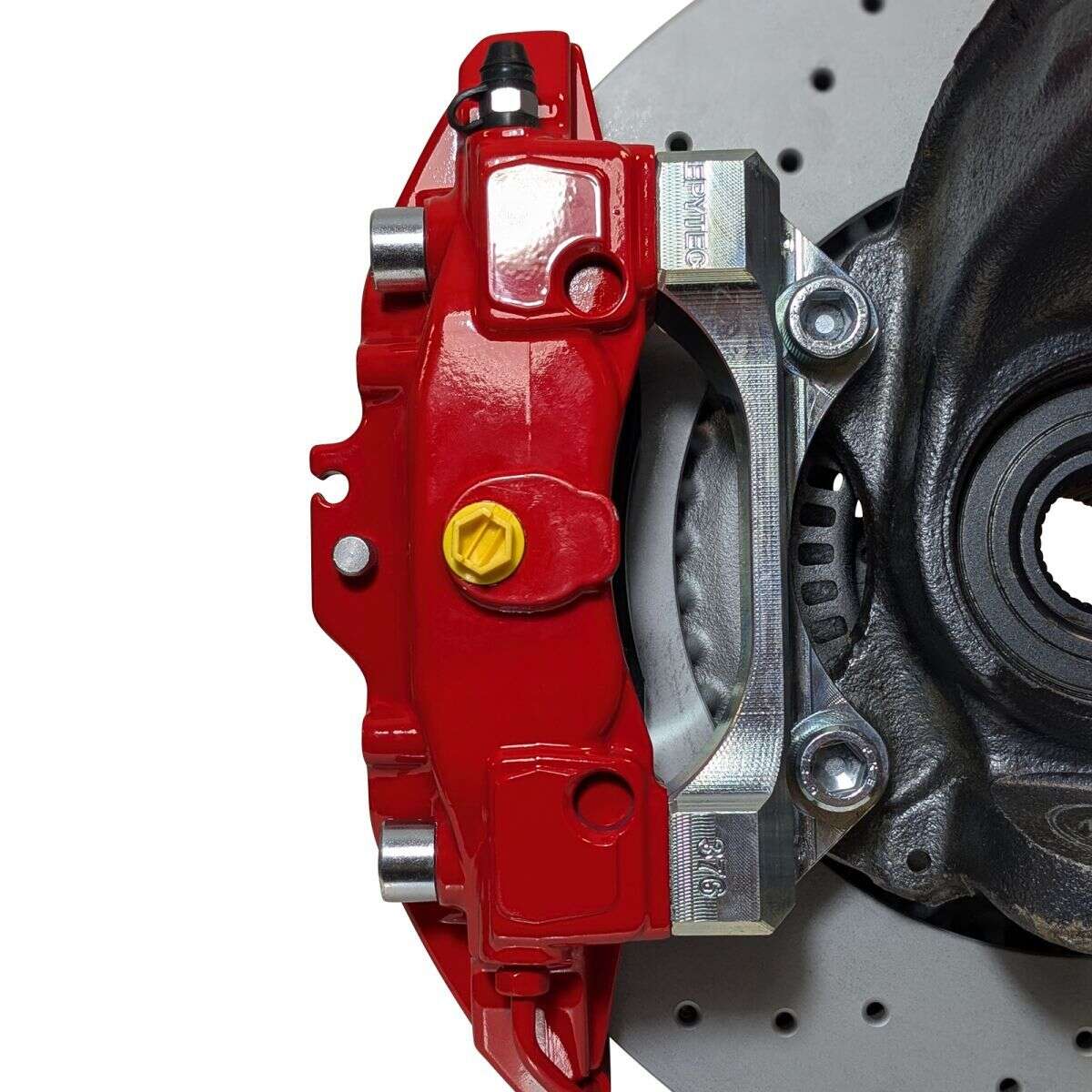

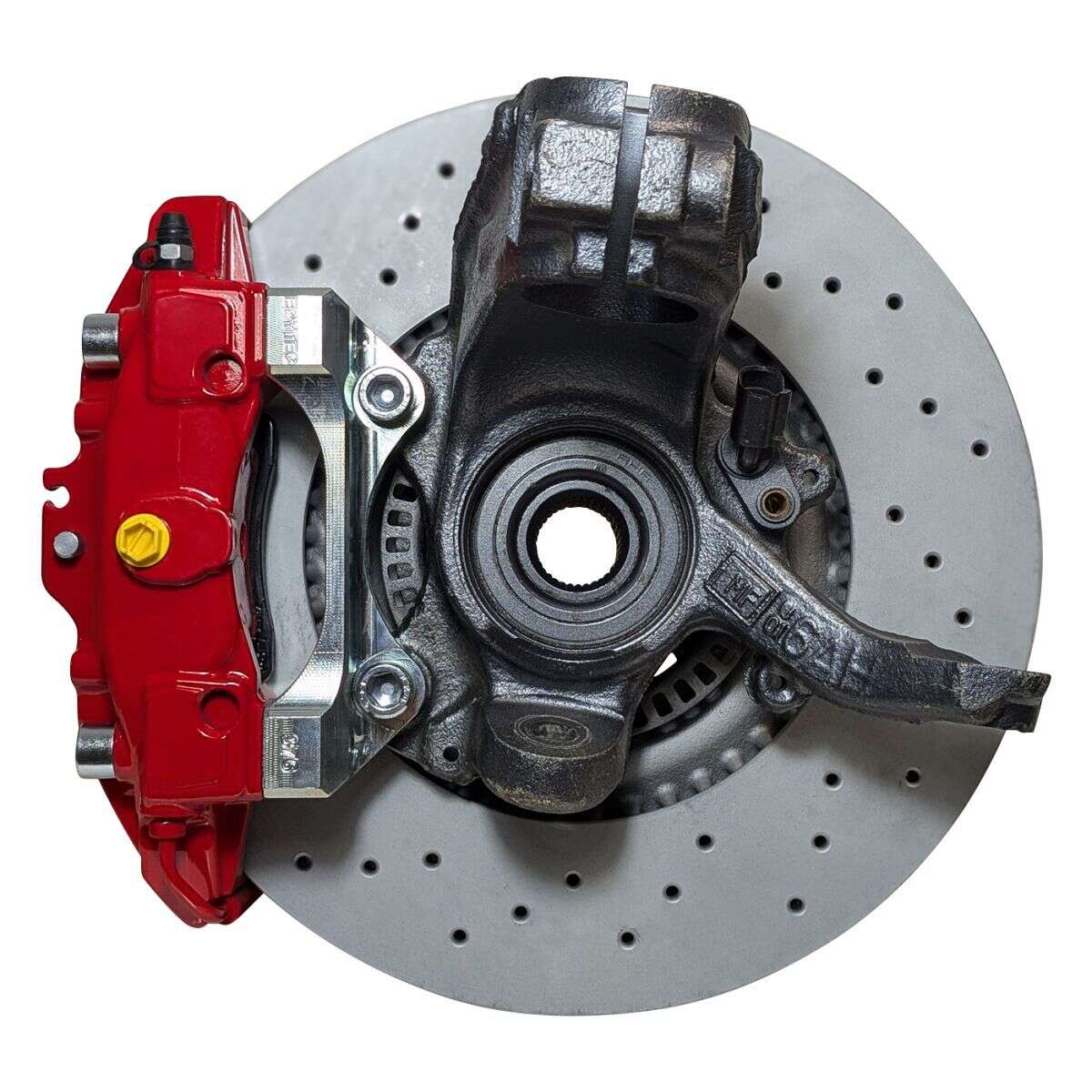

- 2x brake caliper adapter (see picture)
- Complete screw material (high strength)
- Material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
13 October 2018 09:34
delboy0478
Deshalb ist der Kauf von Deutsch der beste Service, danke
26 February 2017 17:38
golfdrengen
👌🏻👌🏻
22 January 2017 05:12
bridge-brn
Very nice eBayer with fast transaction and nice items.
14 May 2018 03:13
fastrider18
Super schneller Versand wie immer! Top!!!
- Which brake pads should be used?
The original brake pads from the brake caliper, which is required for our conversion kit, must always be used.
- Can I use other brake calipers as indicated in the required components?
No, unfortunately that is not possible, the reason being that all brake calipers have different height and depth measurements. If another brake disc is installed, the brake caliper would either not fit the adapter at all or not run centrally to the brake disc. If you want to install a different brake caliper, we also have an option for you. You can have a custom-made product manufactured, check out the following link for more information:
- Can I also use other discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply that all brake calipers have different height and depth measurements. If a different brake disc is installed, the brake caliper would either not fit on the adapter at all or would not be centered with the brake disc. However, if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product produced, have a look at the following link for more information:
https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
My brake caliper is not exactly centered over the brake disc - what should I do?
If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.
The most important thing is:
👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:
there is very little clearance on one side or the bolt lightly touches
while on the other side there is more play
This is generally not critical.
🔧 This is how you proceed:
Install brake pads:
First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:
If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:
If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:
slightly shim the adapter with suitable bushings to adjust the brake caliper
or – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again
👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N3|180PS(132KW) |
| 1.8 T | 8N3|150PS(110KW) |
| 1.8 T | 8N3|190PS(140KW) |
| 3.2 VR6 quattro | 8N3|250PS(184KW) |
| 1.8 T | 8N3|180PS(132KW) |
| 1.8 T quattro | 8N3|245PS(180KW) |
| 1.8 T quattro | 8N3|224PS(165KW) |
| 1.8 T | 8N3|163PS(120KW) |
| 1.8 T quattro | 8N3|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 8L1|180PS(132KW) |
| 1.8 | 8L1|125PS(92KW) |
| 1.9 TDI quattro | 8L1|130PS(96KW) |
| 1.9 TDI | 8L1|110PS(81KW) |
| S3 quattro | 8L1|224PS(165KW) |
| 1.9 TDI | 8L1|130PS(96KW) |
| 1.8 T | 8L1|150PS(110KW) |
| 1.9 TDI | 8L1|90PS(66KW) |
| 1.6 | 8L1|101PS(74KW) |
| 1.8 T quattro | 8L1|150PS(110KW) |
| 1.6 | 8L1|102PS(75KW) |
| 1.9 TDI | 8L1|100PS(74KW) |
| 1.8 T quattro | 8L1|180PS(132KW) |
| S3 quattro | 8L1|210PS(154KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N9|190PS(140KW) |
| 1.8 T | 8N9|180PS(132KW) |
| 1.8 T | 8N9|163PS(120KW) |
| 1.8 T | 8N9|150PS(110KW) |
| 1.8 T | 8N9|190PS(140KW) |
| 3.2 VR6 quattro | 8N9|250PS(184KW) |
| 1.8 T quattro | 8N9|180PS(132KW) |
| 1.8 T quattro | 8N9|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TFSI | 8X1|185PS(136KW) |
| 1.0 TFSI | 8XK|82PS(60KW) |
| 1.4 TFSI | 8X1|140PS(103KW) |
| 1.0 TFSI | 8X1|95PS(70KW) |
| 1.6 TDI | 8XK|105PS(77KW) |
| 1.4 TFSI | 8XK|122PS(90KW) |
| 1.4 TFSI | 8XK|125PS(92KW) |
| 1.6 TDI | 8XK|90PS(66KW) |
| 2.0 TDI | 8XK|136PS(100KW) |
| 1.0 TFSI | 8XK|95PS(70KW) |
| 1.2 TFSI | 8XK|86PS(63KW) |
| 1.4 TFSI | 8X1|122PS(90KW) |
| 1.4 TSI | 8X1|150PS(110KW) |
| 2.0 TDI | 8X1|143PS(105KW) |
| 2.0 TDI | 8XK|143PS(105KW) |
| 2.0 TDI | 8X1|136PS(100KW) |
| 1.6 TDI | 8X1|90PS(66KW) |
| 1.4 TSI | 8XK|150PS(110KW) |
| 1.4 TFSI | 8XK|185PS(136KW) |
| 1.4 TDI | 8X1|90PS(66KW) |
| S1 quattro | 8X1|231PS(170KW) |
| 2.0 TFSI quattro | 8X1|256PS(188KW) |
| 1.6 TDI | 8XK|115PS(85KW) |
| 1.6 TDI | 8X1|105PS(77KW) |
| 1.0 TFSI | 8X1|82PS(60KW) |
| 1.4 TDI | 8XK|90PS(66KW) |
| 1.6 TDI | 8X1|115PS(85KW) |
| 1.4 TFSI | 8XK|140PS(103KW) |
| 1.4 TFSI | 8X1|125PS(92KW) |
| 1.2 TFSI | 8X1|86PS(63KW) |
| 2.0 TFSI quattro | 8XK|256PS(188KW) |
| 1.8 TFSI | 8XK|192PS(141KW) |
| S1 quattro | 8XK|231PS(170KW) |
| 1.8 TFSI | 8X1|192PS(141KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1J2|101PS(74KW) |
| 1.6 FSI | 1J2|110PS(81KW) |
| 1.9 SDI | 1J2|68PS(50KW) |
| 1.6 16V | 1J2|105PS(77KW) |
| 1.4 16V | 1J2|75PS(55KW) |
| 1.8 | 1J2|125PS(92KW) |
| 1.6 | 1J2|102PS(75KW) |
| 1.9 TDI | 1J2|130PS(96KW) |
| 1.9 TDI | 1J2|115PS(85KW) |
| 1.9 TDI | 1J2|110PS(81KW) |
| 2.0 | 1J2|115PS(85KW) |
| 1.9 TDI | 1J2|150PS(110KW) |
| 1.6 | 1J2|101PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI 4motion | 1J1|130PS(96KW) |
| 1.9 TDI | 1J1|115PS(85KW) |
| 2.0 4motion | 1J1|115PS(85KW) |
| 1.9 SDI | 1J1|68PS(50KW) |
| 2.3 V5 4motion | 1J1|170PS(125KW) |
| 1.9 TDI 4motion | 1J1|150PS(110KW) |
| 1.9 TDI | 1J1|101PS(74KW) |
| 2.8 VR6 4motion | 1J1|204PS(150KW) |
| 2.3 V5 4motion | 1J1|150PS(110KW) |
| 1.9 TDI 4motion | 1J1|101PS(74KW) |
| 1.9 TDI | 1J1|110PS(81KW) |
| 1.4 16V | 1J1|75PS(55KW) |
| 3.2 R32 4motion | 1J1|241PS(177KW) |
| 1.8 | 1J1|125PS(92KW) |
| 2.8 V6 4motion | 1J1|204PS(150KW) |
| 1.9 TDI 4motion | 1J1|90PS(66KW) |
| 2.0 | 1J1|115PS(85KW) |
| 2.3 V5 | 1J1|150PS(110KW) |
| 1.6 FSI | 1J1|110PS(81KW) |
| 1.6 | 1J1|102PS(75KW) |
| 1.8 4motion | 1J1|125PS(92KW) |
| 1.8 T GTI | 1J1|180PS(132KW) |
| 1.9 TDI | 1J1|90PS(66KW) |
| 1.9 TDI | 1J1|150PS(110KW) |
| 1.9 TDI | 1J1|130PS(96KW) |
| 1.6 | 1J1|100PS(74KW) |
| 2.3 V5 | 1J1|170PS(125KW) |
| 1.8 T | 1J1|150PS(110KW) |
| 1.9 TDI 4motion | 1J1|115PS(85KW) |
| 1.6 16V | 1J1|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 9C1|90PS(66KW) |
| 1.9 TDI | 9C1|105PS(77KW) |
| 1.9 TDI | 1C1|90PS(66KW) |
| RSI 3.2 4motion | 1C1|224PS(165KW) |
| 1.4 | 1C1|75PS(55KW) |
| 2.0 | 9C1|115PS(85KW) |
| 1.6 | 9C1|100PS(74KW) |
| 2.3 V5 | 1C1|170PS(125KW) |
| RSI 3.2 4motion | 9C1|224PS(165KW) |
| 1.6 | 9C1|102PS(75KW) |
| 1.8 T | 1C1|150PS(110KW) |
| 1.9 TDI | 1C1|101PS(74KW) |
| 1.6 | 1C1|100PS(74KW) |
| 1.9 TDI | 1C1|105PS(77KW) |
| 2.3 V5 | 9C1|170PS(125KW) |
| 1.9 TDI | 9C1|101PS(74KW) |
| 2.0 | 1C1|115PS(85KW) |
| 1.8 T | 9C1|150PS(110KW) |
| 1.6 | 1C1|102PS(75KW) |
| 1.4 | 9C1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1J6|101PS(74KW) |
| 1.9 TDI | 1J6|115PS(85KW) |
| 1.4 16V | 1J6|75PS(55KW) |
| 1.8 T | 1J6|180PS(132KW) |
| 1.6 FSI | 1J6|110PS(81KW) |
| 1.9 TDI | 1J6|110PS(81KW) |
| 1.9 TDI | 1J6|150PS(110KW) |
| 2.0 | 1J6|115PS(85KW) |
| 1.9 TDI | 1J6|90PS(66KW) |
| 1.6 | 1J6|100PS(74KW) |
| 1.9 TDI | 1J6|130PS(96KW) |
| 1.6 | 1J6|102PS(75KW) |
| 1.6 16V | 1J6|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1Y7|100PS(74KW) |
| 1.8 T | 1Y7|150PS(110KW) |
| 1.4 | 1Y7|75PS(55KW) |
| 2.0 | 1Y7|115PS(85KW) |
| 1.9 TDI | 1Y7|105PS(77KW) |
| 1.6 | 1Y7|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R WRC | 6R1|220PS(162KW) |
| 2.0 R WRC | 6C1|220PS(162KW) |
| Motor | Motorcode |
|---|---|
| 1.9 SDI | 1J5|68PS(50KW) |
| 1.6 16V | 1J5|105PS(77KW) |
| 1.9 TDI | 1J5|110PS(81KW) |
| 1.6 | 1J5|101PS(74KW) |
| 1.4 16V | 1J5|75PS(55KW) |
| 1.9 TDI | 1J5|90PS(66KW) |
| 2.0 | 1J5|115PS(85KW) |
| 1.6 FSI | 1J5|110PS(81KW) |
| 2.0 Bi-Fuel | 1J5|116PS(85KW) |
| 1.9 TDI | 1J5|130PS(96KW) |
| 1.6 | 1J5|102PS(75KW) |
| 1.9 TDI | 1J5|115PS(85KW) |
| 1.9 TDI | 1J5|101PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.4 16V | 1M1|75PS(55KW) |
| 1.9 TDi | 1M1|90PS(66KW) |
| 1.6 | 1M1|102PS(75KW) |
| 1.9 SDi | 1M1|68PS(50KW) |
| 1.9 TDi | 1M1|150PS(110KW) |
| 1.9 TDi Syncro | 1M1|150PS(110KW) |
| 1.9 TDi | 1M1|110PS(81KW) |
| 1.8 20V | 1M1|125PS(92KW) |
| 1.8 T Cupra R | 1M1|225PS(165KW) |
| 1.8 T Cupra R | 1M1|209PS(154KW) |
| 2.8 Cupra 4 | 1M1|204PS(150KW) |
| 1.9 TDi | 1M1|130PS(96KW) |
| 1.9 TDi | 1M1|100PS(74KW) |
| 1.6 | 1M1|100PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDi | 1M2|130PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T 4x4 | 1U2|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 5J7|80PS(59KW) |
| 1.4 TDI | 5J7|70PS(51KW) |
| 1.2 | 5J7|64PS(47KW) |
| 1.9 TDI | 5J7|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N3|180PS(132KW) |
| 1.8 T | 8N3|150PS(110KW) |
| 1.8 T | 8N3|190PS(140KW) |
| 3.2 VR6 quattro | 8N3|250PS(184KW) |
| 1.8 T | 8N3|180PS(132KW) |
| 1.8 T quattro | 8N3|245PS(180KW) |
| 1.8 T quattro | 8N3|224PS(165KW) |
| 1.8 T | 8N3|163PS(120KW) |
| 1.8 T quattro | 8N3|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 8L1|180PS(132KW) |
| 1.8 | 8L1|125PS(92KW) |
| 1.9 TDI quattro | 8L1|130PS(96KW) |
| 1.9 TDI | 8L1|110PS(81KW) |
| S3 quattro | 8L1|224PS(165KW) |
| 1.9 TDI | 8L1|130PS(96KW) |
| 1.8 T | 8L1|150PS(110KW) |
| 1.9 TDI | 8L1|90PS(66KW) |
| 1.6 | 8L1|101PS(74KW) |
| 1.8 T quattro | 8L1|150PS(110KW) |
| 1.6 | 8L1|102PS(75KW) |
| 1.9 TDI | 8L1|100PS(74KW) |
| 1.8 T quattro | 8L1|180PS(132KW) |
| S3 quattro | 8L1|210PS(154KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T quattro | 8N9|190PS(140KW) |
| 1.8 T | 8N9|180PS(132KW) |
| 1.8 T | 8N9|163PS(120KW) |
| 1.8 T | 8N9|150PS(110KW) |
| 1.8 T | 8N9|190PS(140KW) |
| 3.2 VR6 quattro | 8N9|250PS(184KW) |
| 1.8 T quattro | 8N9|180PS(132KW) |
| 1.8 T quattro | 8N9|224PS(165KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TFSI | 8X1|185PS(136KW) |
| 1.0 TFSI | 8XK|82PS(60KW) |
| 1.4 TFSI | 8X1|140PS(103KW) |
| 1.0 TFSI | 8X1|95PS(70KW) |
| 1.6 TDI | 8XK|105PS(77KW) |
| 1.4 TFSI | 8XK|122PS(90KW) |
| 1.4 TFSI | 8XK|125PS(92KW) |
| 1.6 TDI | 8XK|90PS(66KW) |
| 2.0 TDI | 8XK|136PS(100KW) |
| 1.0 TFSI | 8XK|95PS(70KW) |
| 1.2 TFSI | 8XK|86PS(63KW) |
| 1.4 TFSI | 8X1|122PS(90KW) |
| 1.4 TSI | 8X1|150PS(110KW) |
| 2.0 TDI | 8X1|143PS(105KW) |
| 2.0 TDI | 8XK|143PS(105KW) |
| 2.0 TDI | 8X1|136PS(100KW) |
| 1.6 TDI | 8X1|90PS(66KW) |
| 1.4 TSI | 8XK|150PS(110KW) |
| 1.4 TFSI | 8XK|185PS(136KW) |
| 1.4 TDI | 8X1|90PS(66KW) |
| S1 quattro | 8X1|231PS(170KW) |
| 2.0 TFSI quattro | 8X1|256PS(188KW) |
| 1.6 TDI | 8XK|115PS(85KW) |
| 1.6 TDI | 8X1|105PS(77KW) |
| 1.0 TFSI | 8X1|82PS(60KW) |
| 1.4 TDI | 8XK|90PS(66KW) |
| 1.6 TDI | 8X1|115PS(85KW) |
| 1.4 TFSI | 8XK|140PS(103KW) |
| 1.4 TFSI | 8X1|125PS(92KW) |
| 1.2 TFSI | 8X1|86PS(63KW) |
| 2.0 TFSI quattro | 8XK|256PS(188KW) |
| 1.8 TFSI | 8XK|192PS(141KW) |
| S1 quattro | 8XK|231PS(170KW) |
| 1.8 TFSI | 8X1|192PS(141KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1J2|101PS(74KW) |
| 1.6 FSI | 1J2|110PS(81KW) |
| 1.9 SDI | 1J2|68PS(50KW) |
| 1.6 16V | 1J2|105PS(77KW) |
| 1.4 16V | 1J2|75PS(55KW) |
| 1.8 | 1J2|125PS(92KW) |
| 1.6 | 1J2|102PS(75KW) |
| 1.9 TDI | 1J2|130PS(96KW) |
| 1.9 TDI | 1J2|115PS(85KW) |
| 1.9 TDI | 1J2|110PS(81KW) |
| 2.0 | 1J2|115PS(85KW) |
| 1.9 TDI | 1J2|150PS(110KW) |
| 1.6 | 1J2|101PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI 4motion | 1J1|130PS(96KW) |
| 1.9 TDI | 1J1|115PS(85KW) |
| 2.0 4motion | 1J1|115PS(85KW) |
| 1.9 SDI | 1J1|68PS(50KW) |
| 2.3 V5 4motion | 1J1|170PS(125KW) |
| 1.9 TDI 4motion | 1J1|150PS(110KW) |
| 1.9 TDI | 1J1|101PS(74KW) |
| 2.8 VR6 4motion | 1J1|204PS(150KW) |
| 2.3 V5 4motion | 1J1|150PS(110KW) |
| 1.9 TDI 4motion | 1J1|101PS(74KW) |
| 1.9 TDI | 1J1|110PS(81KW) |
| 1.4 16V | 1J1|75PS(55KW) |
| 3.2 R32 4motion | 1J1|241PS(177KW) |
| 1.8 | 1J1|125PS(92KW) |
| 2.8 V6 4motion | 1J1|204PS(150KW) |
| 1.9 TDI 4motion | 1J1|90PS(66KW) |
| 2.0 | 1J1|115PS(85KW) |
| 2.3 V5 | 1J1|150PS(110KW) |
| 1.6 FSI | 1J1|110PS(81KW) |
| 1.6 | 1J1|102PS(75KW) |
| 1.8 4motion | 1J1|125PS(92KW) |
| 1.8 T GTI | 1J1|180PS(132KW) |
| 1.9 TDI | 1J1|90PS(66KW) |
| 1.9 TDI | 1J1|150PS(110KW) |
| 1.9 TDI | 1J1|130PS(96KW) |
| 1.6 | 1J1|100PS(74KW) |
| 2.3 V5 | 1J1|170PS(125KW) |
| 1.8 T | 1J1|150PS(110KW) |
| 1.9 TDI 4motion | 1J1|115PS(85KW) |
| 1.6 16V | 1J1|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 9C1|90PS(66KW) |
| 1.9 TDI | 9C1|105PS(77KW) |
| 1.9 TDI | 1C1|90PS(66KW) |
| RSI 3.2 4motion | 1C1|224PS(165KW) |
| 1.4 | 1C1|75PS(55KW) |
| 2.0 | 9C1|115PS(85KW) |
| 1.6 | 9C1|100PS(74KW) |
| 2.3 V5 | 1C1|170PS(125KW) |
| RSI 3.2 4motion | 9C1|224PS(165KW) |
| 1.6 | 9C1|102PS(75KW) |
| 1.8 T | 1C1|150PS(110KW) |
| 1.9 TDI | 1C1|101PS(74KW) |
| 1.6 | 1C1|100PS(74KW) |
| 1.9 TDI | 1C1|105PS(77KW) |
| 2.3 V5 | 9C1|170PS(125KW) |
| 1.9 TDI | 9C1|101PS(74KW) |
| 2.0 | 1C1|115PS(85KW) |
| 1.8 T | 9C1|150PS(110KW) |
| 1.6 | 1C1|102PS(75KW) |
| 1.4 | 9C1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1J6|101PS(74KW) |
| 1.9 TDI | 1J6|115PS(85KW) |
| 1.4 16V | 1J6|75PS(55KW) |
| 1.8 T | 1J6|180PS(132KW) |
| 1.6 FSI | 1J6|110PS(81KW) |
| 1.9 TDI | 1J6|110PS(81KW) |
| 1.9 TDI | 1J6|150PS(110KW) |
| 2.0 | 1J6|115PS(85KW) |
| 1.9 TDI | 1J6|90PS(66KW) |
| 1.6 | 1J6|100PS(74KW) |
| 1.9 TDI | 1J6|130PS(96KW) |
| 1.6 | 1J6|102PS(75KW) |
| 1.6 16V | 1J6|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1Y7|100PS(74KW) |
| 1.8 T | 1Y7|150PS(110KW) |
| 1.4 | 1Y7|75PS(55KW) |
| 2.0 | 1Y7|115PS(85KW) |
| 1.9 TDI | 1Y7|105PS(77KW) |
| 1.6 | 1Y7|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 2.0 R WRC | 6R1|220PS(162KW) |
| 2.0 R WRC | 6C1|220PS(162KW) |
| Motor | Motorcode |
|---|---|
| 1.9 SDI | 1J5|68PS(50KW) |
| 1.6 16V | 1J5|105PS(77KW) |
| 1.9 TDI | 1J5|110PS(81KW) |
| 1.6 | 1J5|101PS(74KW) |
| 1.4 16V | 1J5|75PS(55KW) |
| 1.9 TDI | 1J5|90PS(66KW) |
| 2.0 | 1J5|115PS(85KW) |
| 1.6 FSI | 1J5|110PS(81KW) |
| 2.0 Bi-Fuel | 1J5|116PS(85KW) |
| 1.9 TDI | 1J5|130PS(96KW) |
| 1.6 | 1J5|102PS(75KW) |
| 1.9 TDI | 1J5|115PS(85KW) |
| 1.9 TDI | 1J5|101PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.4 16V | 1M1|75PS(55KW) |
| 1.9 TDi | 1M1|90PS(66KW) |
| 1.6 | 1M1|102PS(75KW) |
| 1.9 SDi | 1M1|68PS(50KW) |
| 1.9 TDi | 1M1|150PS(110KW) |
| 1.9 TDi Syncro | 1M1|150PS(110KW) |
| 1.9 TDi | 1M1|110PS(81KW) |
| 1.8 20V | 1M1|125PS(92KW) |
| 1.8 T Cupra R | 1M1|225PS(165KW) |
| 1.8 T Cupra R | 1M1|209PS(154KW) |
| 2.8 Cupra 4 | 1M1|204PS(150KW) |
| 1.9 TDi | 1M1|130PS(96KW) |
| 1.9 TDi | 1M1|100PS(74KW) |
| 1.6 | 1M1|100PS(74KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDi | 1M2|130PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T 4x4 | 1U2|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TDI | 5J7|80PS(59KW) |
| 1.4 TDI | 5J7|70PS(51KW) |
| 1.2 | 5J7|64PS(47KW) |
| 1.9 TDI | 5J7|105PS(77KW) |
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 256x22 8L0615601 R32 / S3 brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C R32 / S3 brake caliper
- ✓ rear axle
- ✓ Kit of camber correction / adjustment plates for rear axle
- ✓ suitable for : Fiat Ibiza 6L, VW Polo 9N, Audi A1
- ✓ Length: 20cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ Bore 11mm
- ✓ 90° bent
- ✓ for welding/screwing
- ✓ Thread M14x1.5
- ✓ ensures comfortable installation of your upgrade brake
- ✓ makes work easier
- ✓ Rear axle
- ✓ Audi A3 8L, Audi S3 8L, TT 8N, Golf 4, Golf 4 R32, Bora, Beetle, Seat Leon
- ✓ camber adjustment
- ✓ G60 GTI 16V engines
- ✓ 228 clutch
- ✓ lightens 4.1 kg
- ✓ Release lever reinforced
- ✓ G60, VR6, 2L 16V, GTI, TDI, Corrado, Golf 2/ 3, Passat
- ✓ 02A/02J gearbox
- ✓ rim centric ring / extension bush, high-strength steel, for VW Golf MK4 Polo 9N Bora Audi A3 TT
- ✓ 350x32 A1644210512 Mercedes W164 brake disc
- ✓ 6-piston 955351421 / 955351422 Z18 brake caliper
- ✓ front axle
- ✓ 334x32 1J0615301AA 1J0615302 A Golf 4 R32 brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne / VW Tuareg brake caliper
- ✓ front axle
- ✓ 356x22 4H0615601F Audi A6 brake disc
- ✓ 1-piston 8V0615425B Golf 7 / Audi S3 RS3 brake caliper
- ✓ rear axle
- ✓ 256x22 8L0615601 VW / Audi brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C R32 / S3 brake caliper
- ✓ rear axle
- ✓ No more play
- ✓ High quality brass
- ✓ For all 02m 02q 02a and 02j gearboxes
