My brake caliper is not exactly centered over the brake disc - what should I do?

If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.The most important thing is:👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:there is very little clearance on one side or the bolt lightly toucheswhile on the other side there is more playThis is generally not critical.🔧 This is how you proceed:Install brake pads:First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:slightly shim the adapter with suitable bushings to adjust the brake caliperor – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.

Why does the brake pad not cover the entire friction surface of the brake disc during a brake conversion, and what influence does this have on the braking performance?

In a brake conversion with components from different vehicle models, the radial height of the brake pad and the width of the friction ring do not necessarily match. The pad geometry is determined by the caliper being used. Therefore, part of the friction surface of the brake disc may remain unused, even though the components are mounted according to the intended conversion combination.The percentage coverage of the brake disc alone is not a measure of braking performance. For the generated braking torque, in particular, the contact pressure of the brake pads, the coefficient of friction, and the effective friction radius are crucial. The effective friction radius describes the distance between the wheel axis and the point of application of the resulting frictional force.A larger effective friction radius generates higher braking torque with the same contact pressure and coefficient of friction. If the caliper is positioned further out by the adapter, this lever arm increases. For example, if the effective friction radius increases by 15%, the braking torque increases by 15% under otherwise identical conditions—even if the pad does not utilize the entire width of the friction ring. What matters is the actual position of the pad, not just the outer diameter of the brake disc.In contrast, the pad area influences, among other things, the surface pressure, thermal load, and wear. Depending on its design, a larger brake disc can also allow for higher heat capacity and better heat dissipation.An unused ring on the brake disc is therefore not a sign that something is wrong or of inferior braking performance. What matters is the designed combination, the correct position of the brake pad on the friction ring, as well as the hydraulic and thermal coordination of the entire brake system.

Why do we offer custom paint finishes exclusively in RAL colors?

RAL color tones are clearly defined and easily understandable for all parties involved. This allows misunderstandings in color selection to be avoided and the desired color tone to be reliably assigned.Individual manufacturer colors, special color tones or freely chosen color names cannot be fully covered due to the very large variety of colors. Therefore, custom paint jobs for all offered brake calipers and brake system kits are only possible with a clear RAL color number.

Why does the drilling of the brake disc fixing not match the wheel hub when converting the brakes?

In brake system modifications, OE components from different vehicle models are often combined. Although all functionally relevant dimensions are coordinated, the position of the hole for the standard brake disc fixing screw may differ from the threaded hole in the wheel hub. This is design-related and not an indication of a wrong brake disc or a faulty fit—provided that the components specified in the product description are used.The fixing screw is solely used to temporarily hold the brake disc on the wheel hub with the wheel disassembled. It does not perform the centering or the force-fit fastening of the brake disc.The centering is done depending on the modification over the centering collar of the wheel hub or an included centering ring. When mounting the wheel, the brake disc is flat and force-fit clamped against the wheel hub flange together with the rim using the wheel bolts or wheel nuts.The standard fixing screw is not used in this case. Drilling or machining the brake disc or the wheel hub is neither required nor intended.

Which RAL colors can we not offer for the coating of our brake calipers?

We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.We do not offer these RAL fluorescent colors (examples)RAL 1026 Fluorescent YellowRAL 2005 Fluorescent OrangeRAL 2007 Fluorescent Light OrangeRAL 3024 Fluorescent RedRAL 3026 Fluorescent Light RedRAL 6038 Fluorescent GreenTip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.

What torque should be used to tighten the sealing nipples on the brake caliper?

We recommend tightening the sealing nipples on the brake caliper with 20 Nm.Why is this important?The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.Should a torque wrench be used?Yes, for precise and safe installation, we recommend using a torque wrench.Should anything be checked after installation?Yes, the sealing nipple should be checked for tight fit and sealing afterward.

Big Brake systems KIT VW Corrado Golf 2 3 Passat VR6 ZR18 Brake caliper adapter 334x32mm Brake disc - Farbe Bremssattel: Blank ohne Farbe

Name: Big Brake systems KIT VW Corrado Golf 2 3 Passat VR6 ZR18 Brake caliper adapter 334x32mm Brake disc - Farbe Bremssattel: Blank ohne Farbe
Brand: EPYTEC
SKU: 471-KIT-Blank
Price: 1547.29 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

✓ 334x32 1J0615301A 1J0615302A Golf 4 R3 brake disc
✓ 6-piston 95535142150 / 95535142250 Porsche Cayenne/ VW Tuareg brake caliper
✓ front axle

€1,547.29*

Prices incl. VAT plus shipping costs

1 Review

Available

Product number: 471-KIT-Blank

Delivery by Wednesday, 28.10.2026 if you order within the next 5 Hours.

Brake caliper color

Blank without color

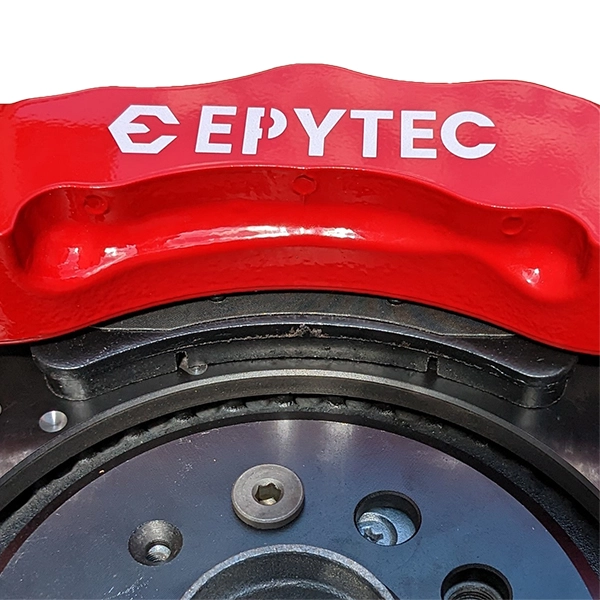

Red with Epytec logo

Painted in the color of your choice

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

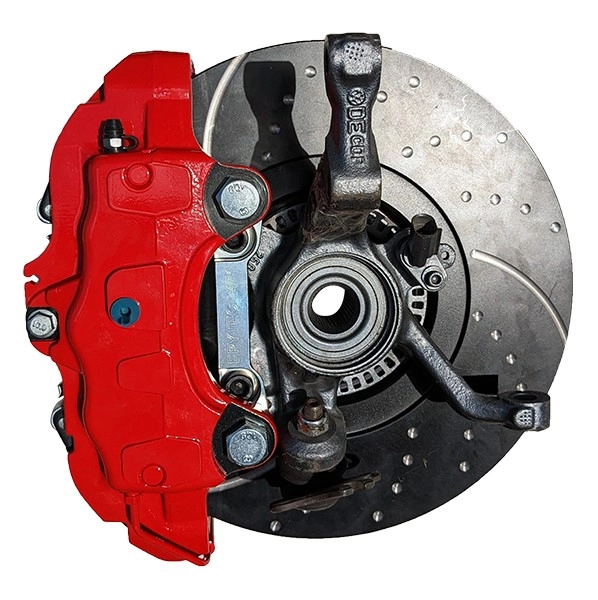

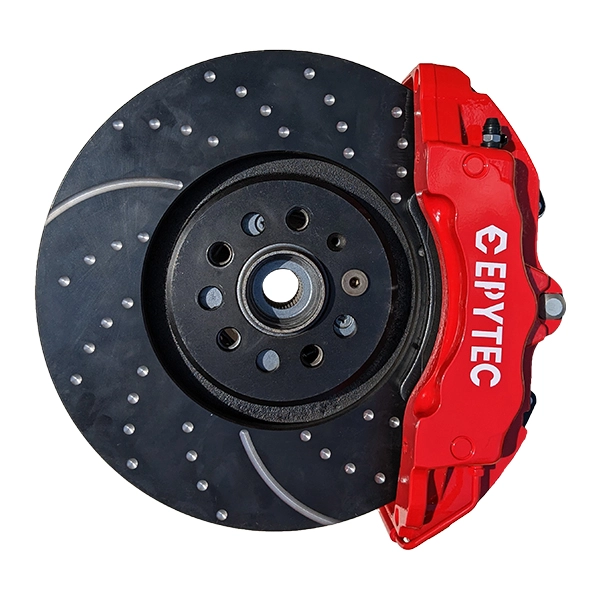

With our large high-performance brake kit for the Golf VR6 Corrado VR6 Passat 35i VR6 and many other vehicles, you can upgrade your front axle to a 6-piston braking system and achieve ideal performance.
This kit includes:

- Brake calipers: ZR18 ZL18 6-piston brake calipers
- Brake discs: 334x32 mm Golf 4 R32

With this high-performance brake kit / Big Brake Kit you can install Porsche ZR18 ZL18 6-piston brake calipers in combination with the 334x32 mm brake discs from the Golf 4 R32 on the Golf VR6, Corrado VR6 and many other vehicles.

The large brake kit is not only sporty but also suitable for everyday use. Thanks to the drilled sports brake discs in combination with our ceramic brake pads, it delivers ideal performance while simultaneously reducing brake dust, temperature and wear

Another advantage of our brake kit is that it features the same original brake calipers and brake discs used in production vehicles. These OE parts not only make replacing the brakes simple and straightforward but also facilitate TÜV approval.

The large brake kit is not only sporty but also suitable for everyday use. Thanks to the drilled sports brake discs in combination with our ceramic brake pads, it delivers ideal performance while simultaneously reducing brake dust, temperature and wear.

With this high-performance brake kit you can get started right away and have everything you need to upgrade your front axle to a 6-piston braking system.

The large high-performance brake kit / Big Brake Kit is suitable for the following vehicles:

Golf VR6
Corrado VR6
Passat 35i VR6

Advantages of this braking system:

our components, such as brake calipers and brake discs, come from production vehicles and are OE parts. This makes replacing the brakes simple and straightforward and facilitates TÜV approval.
the material certificate included in the scope of delivery can enable approval through an individual inspection, even for standard production vehicles

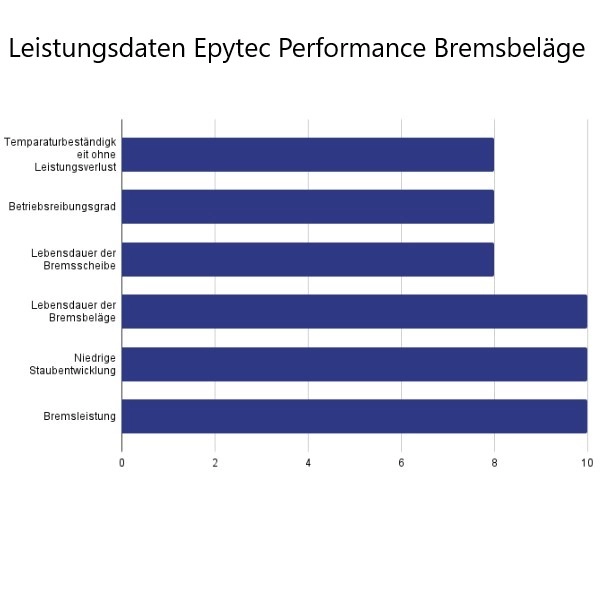

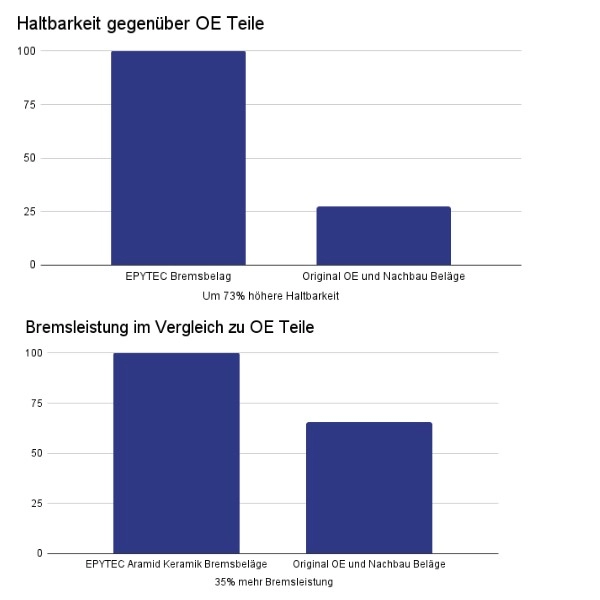

high-performance brake pads with a longer service life than original pads
extremely high braking performance, also in combination with our rear axle braking system
direct fit for the models mentioned above and therefore easily reversible to the original configuration at any time
our EPYTEC brake caliper adapters do not require you to send in your original parts or carry out any re-welding, milling or drilling.

Note:

As standard, the kit includes new brake calipers in an unpainted, bare metal finish. For an additional charge, we can also supply the brake calipers in your desired colour and without a logo, although the delivery time will be approximately 2-3 weeks longer.

Get our high-performance brake kit now and experience ideal performance and durability.

Also suitable for many other vehicles when the VR6 Plus axle is installed.

Scope of delivery:

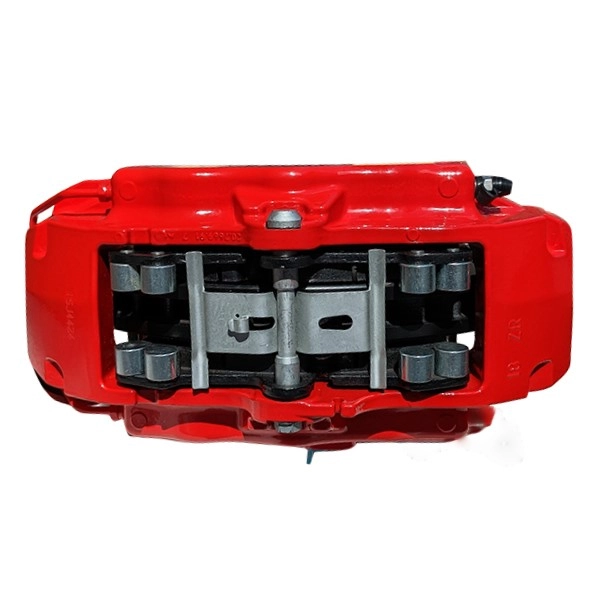

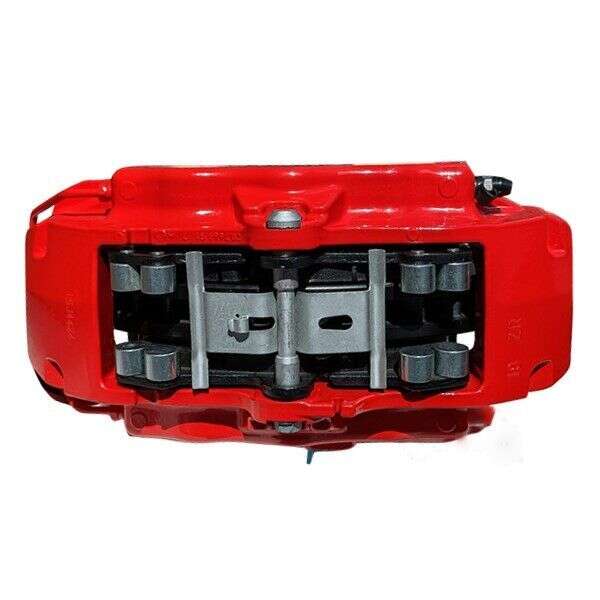

2x new Porsche Cayenne brake calipers ZR18 /ZL18 part numbers: 955.351.421.50 + 955.351.422.50 ( left / right ) including a complete new retaining clip kit for the brake calipers in an unpainted, bare metal finish
matching set of EBC Turbo Groove sports brake discs 334x32mm
2x ceramic brake pads for less brake dust and a longer service life
2x brake caliper adapters for Golf VR6,Corrado VR6,Passat 35i
2x matching braided stainless steel brake hoses
Installation aid for brake disc installation
high-strength mounting bolts
material certificate
Template to check whether the braking system fits inside your wheel rim
Stress analysis / FEM calculation for approval

We provide a TÜV certificate with this adapter. This means that the TÜV inspector can easily register the adapter.

Tips, information and advice:

To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Brake caliper type: Z18 6-Kolben

Farbe Bremssattel: Blank ohne Farbe

Manufacturer: Epytec

Mounting location: front

Weight: 40.31 kg

1 of 1 reviews

Leave a review!

Share your experiences with other customers.

Login

email address

password

or Register with...

Sort by

14 January 2025 20:49

CHRISTIAN K

Preisleistung einfach nur Top ... Qualität ist perfekt. Der Kontakt mit dem Service hat sehr gut geklappt sehr schnelle Rückantwort.

Motor	Motorcode
2.8 VR6	7M8\|174PS(128KW)
2.8 VR6 Syncro	7M6\|174PS(128KW)
2.8 VR6 Syncro	7M9\|174PS(128KW)
2.8 VR6	7M6\|174PS(128KW)
2.8 VR6	7M9\|174PS(128KW)
2.8 VR6 Syncro	7M8\|174PS(128KW)

Motor	Motorcode
2.9 VR6 Syncro	3A5\|184PS(135KW)
2.9 VR6 Syncro	35I\|184PS(135KW)
2.8 VR6	35I\|174PS(128KW)
2.8 VR6	3A5\|174PS(128KW)

Motor	Motorcode
2.8 VR6	1H2\|174PS(128KW)

Motor	Motorcode
2.8 VR6	35I\|174PS(128KW)
2.8 VR6	3A2\|174PS(128KW)

Motor	Motorcode
2.9 VR6 Syncro	1H5\|190PS(140KW)

Motor	Motorcode
2.9 VR6	53I\|190PS(140KW)

Motor	Motorcode
2.9 VR6 Syncro	1H1\|190PS(140KW)
2.8 VR6	1H1\|174PS(128KW)

Motor	Motorcode
2.8 VR6	7M8\|174PS(128KW)
2.8 VR6 Syncro	7M6\|174PS(128KW)
2.8 VR6 Syncro	7M9\|174PS(128KW)
2.8 VR6	7M6\|174PS(128KW)
2.8 VR6	7M9\|174PS(128KW)
2.8 VR6 Syncro	7M8\|174PS(128KW)

Motor	Motorcode
2.9 VR6 Syncro	3A5\|184PS(135KW)
2.9 VR6 Syncro	35I\|184PS(135KW)
2.8 VR6	35I\|174PS(128KW)
2.8 VR6	3A5\|174PS(128KW)

Motor	Motorcode
2.8 VR6	1H2\|174PS(128KW)

Motor	Motorcode
2.8 VR6	35I\|174PS(128KW)
2.8 VR6	3A2\|174PS(128KW)

Motor	Motorcode
2.9 VR6 Syncro	1H5\|190PS(140KW)

Motor	Motorcode
2.9 VR6	53I\|190PS(140KW)

Motor	Motorcode
2.9 VR6 Syncro	1H1\|190PS(140KW)
2.8 VR6	1H1\|174PS(128KW)
