Audi VW Golf 4 Audi A3 S3 TT Camber correction plates Camber regolation
Camber correction plates for installation on rear axle.Allow a perfect camber adjustment on your vehicle.
Product description
Correction plates for installation on rear axle.
Tailor-made for all VW/Seat vehicles with exception of Syncro/4x4 as:
- Audi A3 (8L1) – years 1996-2003
- Audi TT und TT Roadster (8N)
- Seat Leon (1M) - years1999-2006
- Seat Toledo II (1M) – years 1999-2006
- SEAT Inca (6K) – from 1995 on / Skoda Octavia + Octavia Variant (1U) – from 1997 on.
- Skoda Roomster (5J) - from 09.2006 on.
- VW Bora + Bora Kombi (1J) – years 1998-2005
- VW Caddy II (9K) – years 1995-2004 / VW Golf IV + Golf IV Variant (1J) –years 1998-2005
- VW New Beetle (1C,9C) and New Beetle Cabriolet (1Y) with all types of engines

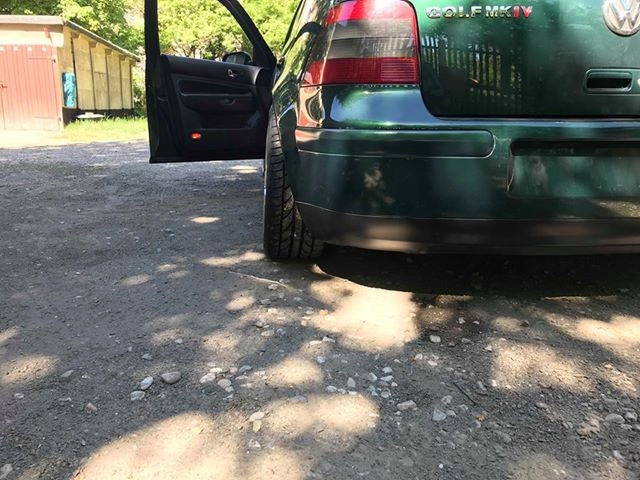

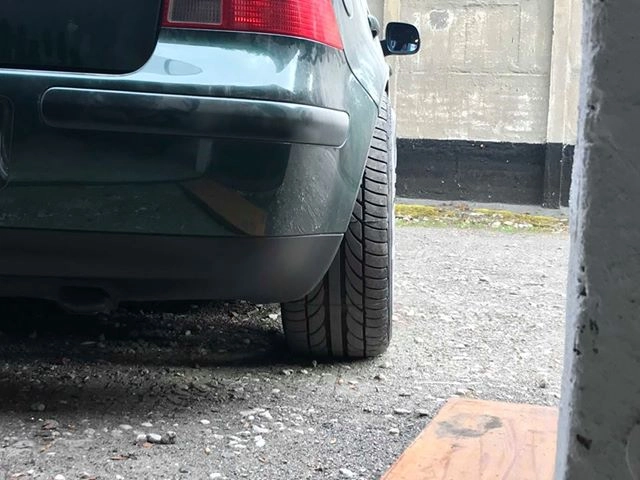

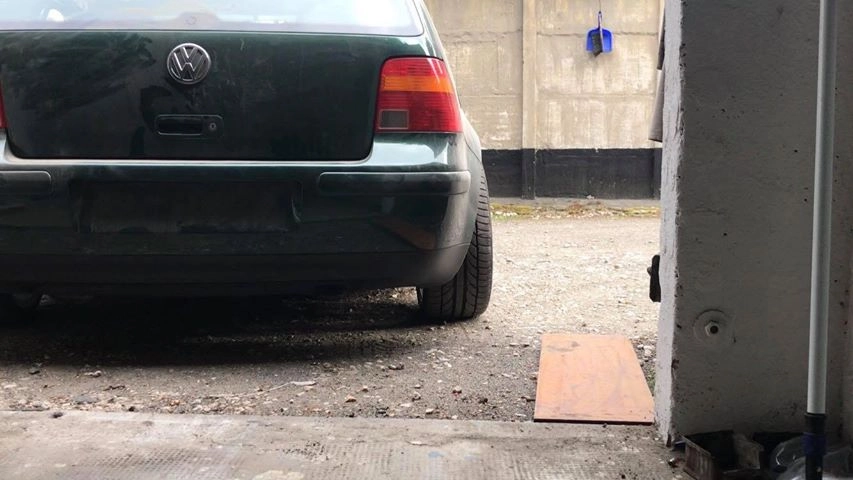

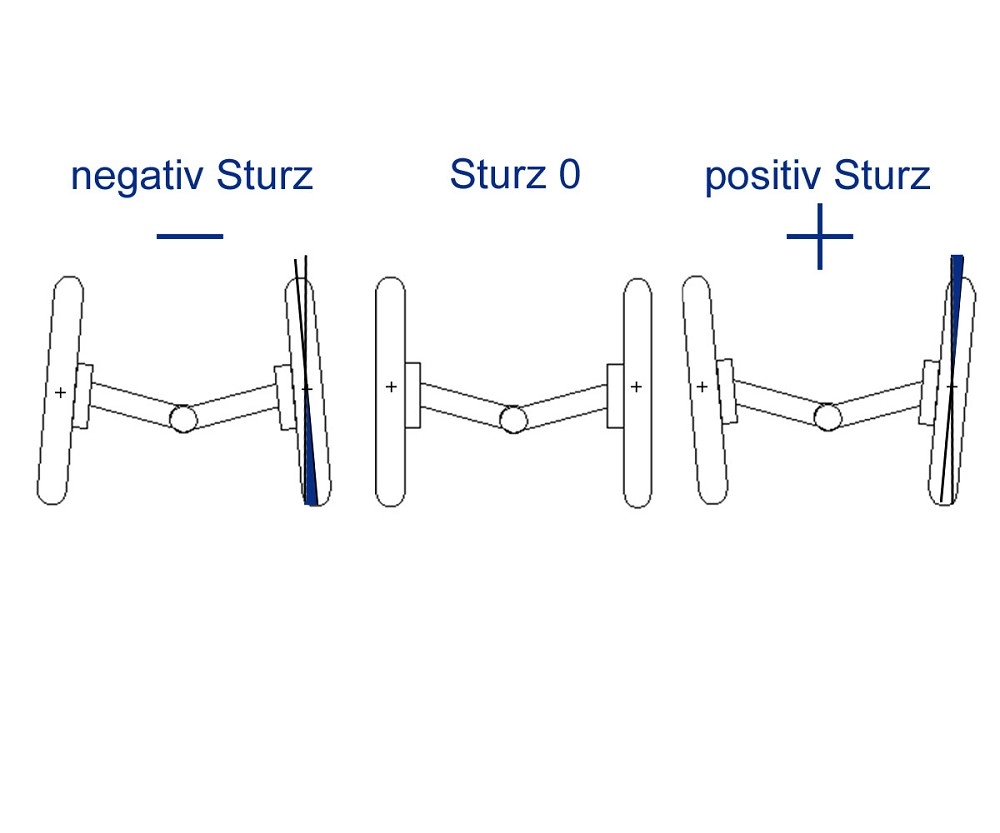

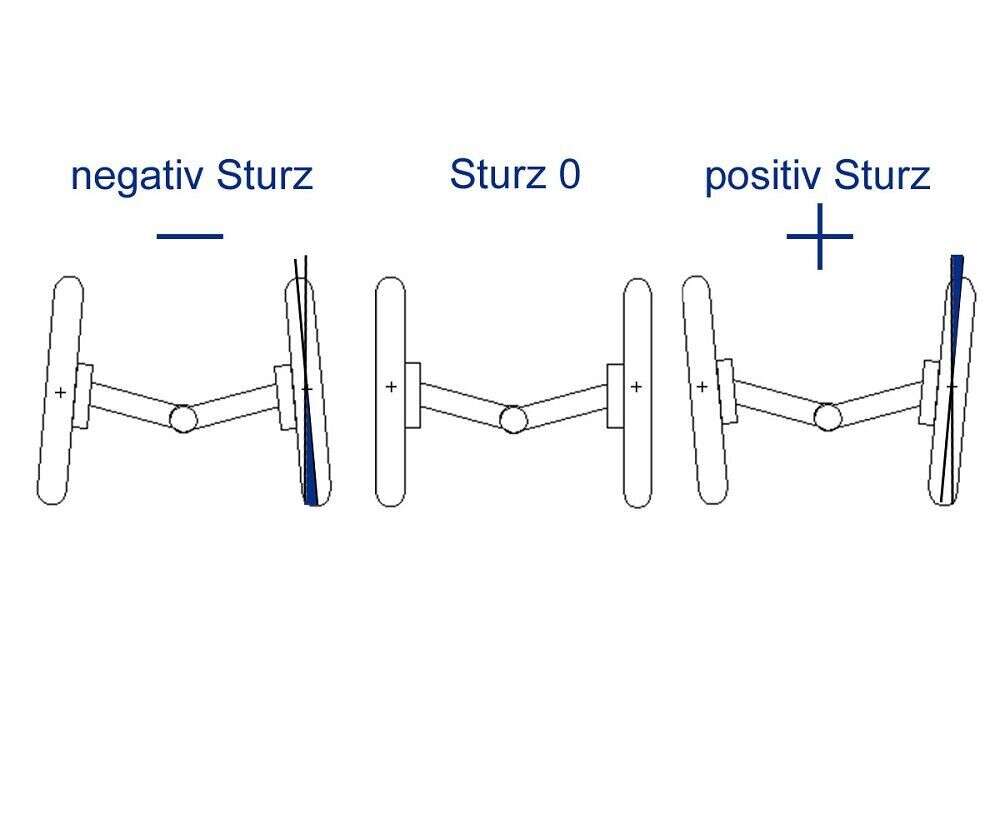

Allows a perfect camber adjustment.This guarantees a even consumption of your tires.
Recommanded for sporty driving on public road and for any kind of partecipation in races.
Technical information:

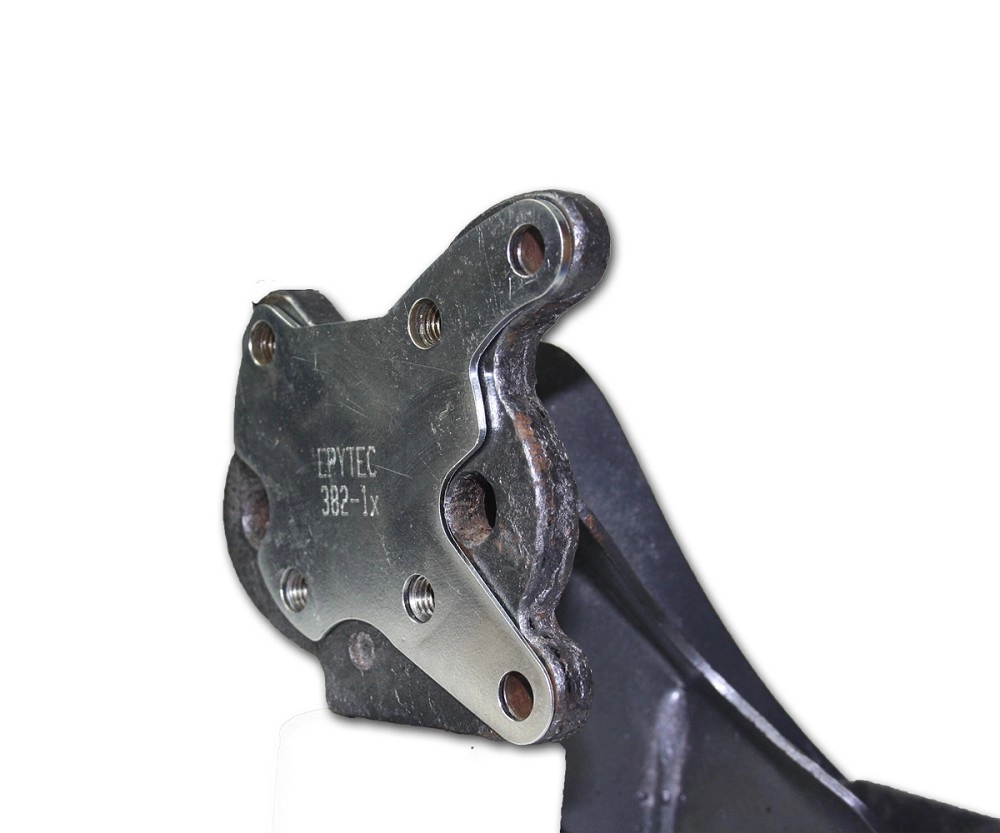

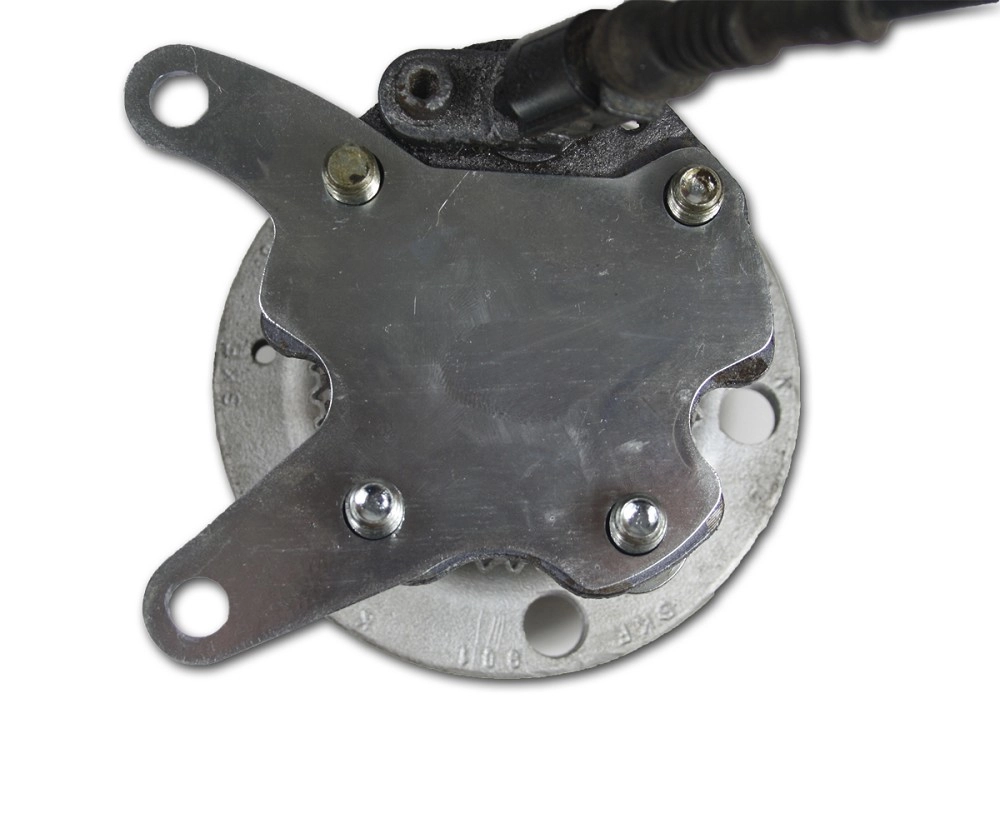

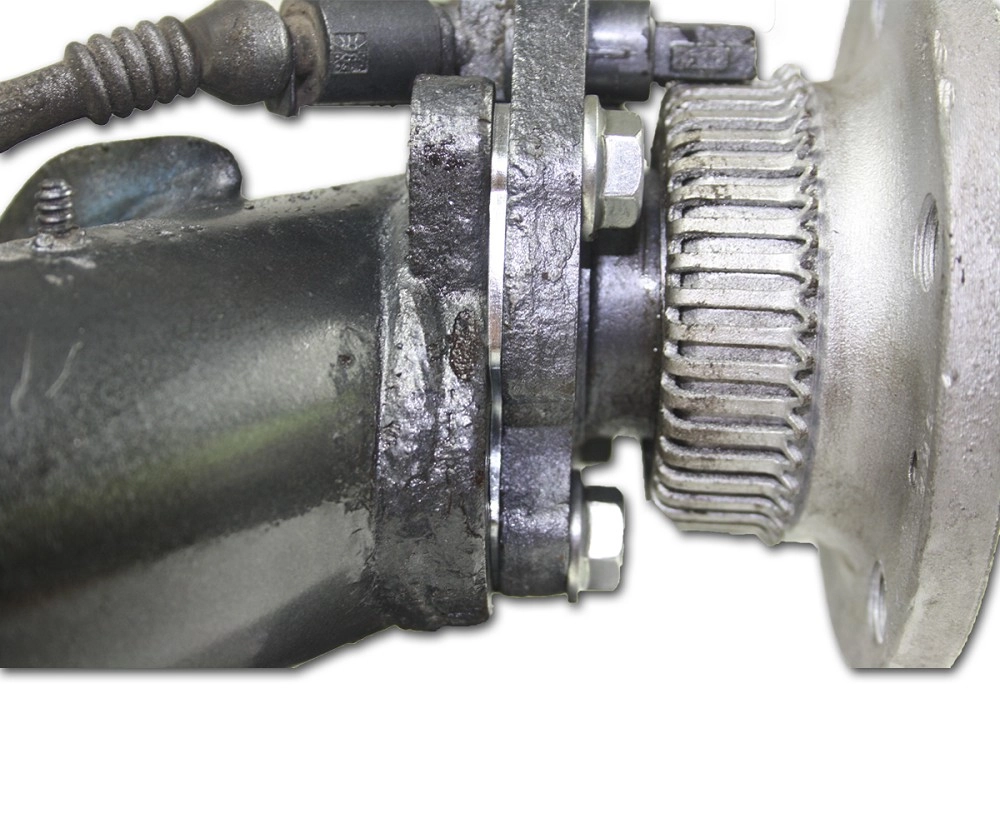

- The correction plates are installed between axle and axle tap. Installation is simple and it’s excution doesn’t require much time.
- The wheel lane widens only 3mm on every side.
- The degree of tilt of every plate is positive of 2,0.

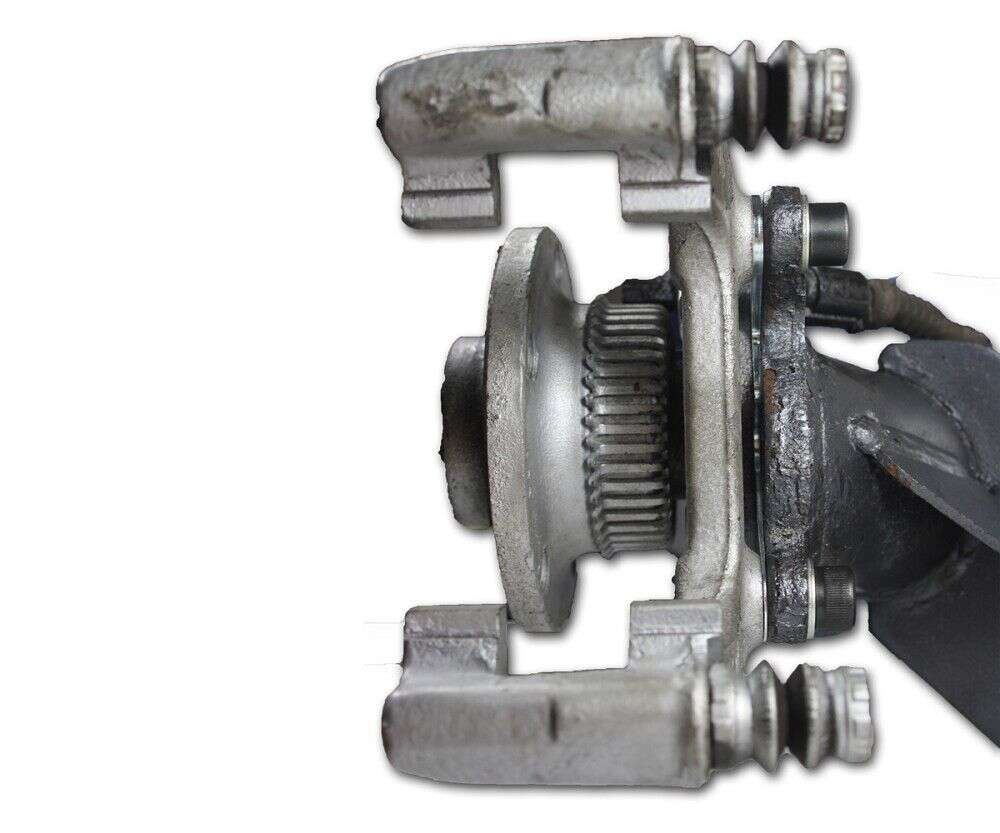

- The break calipers that are directly fixed on the axle have to be modified to fit on the inclined brake discs that are mounted on the axle tap.
- Any plate typ with different degree of tilt can be delivered upon request.
Scope of delivery:

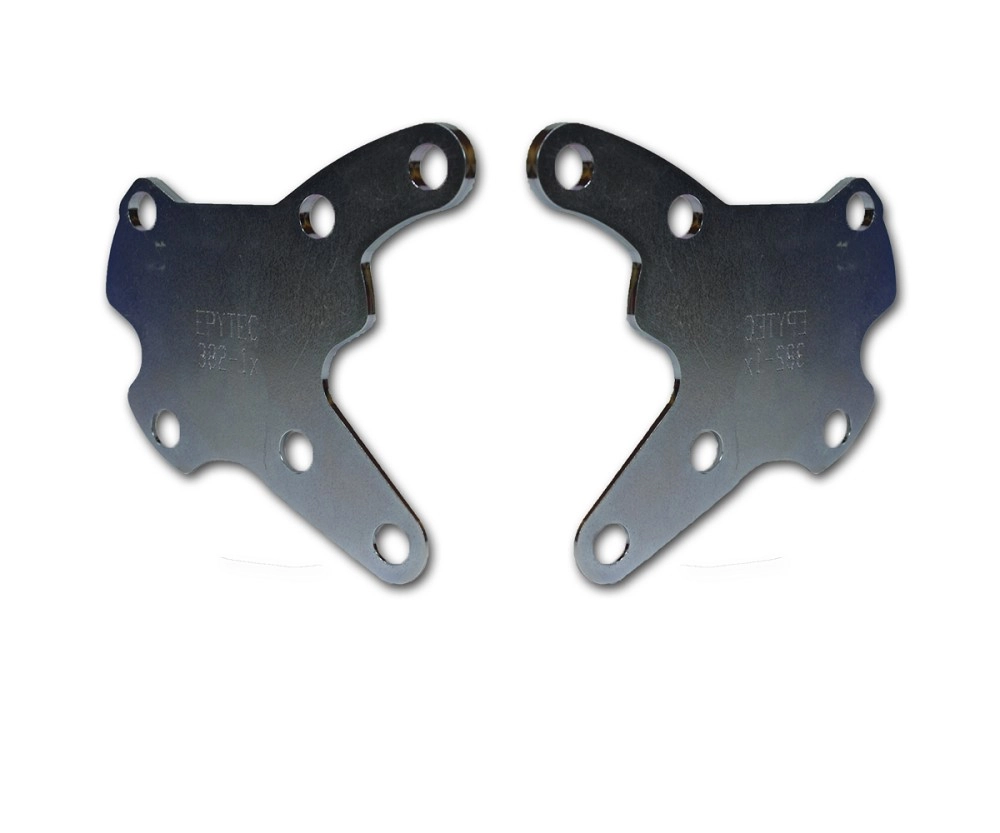

- 2x Correction plates for camber adjustment, galvanized.
- Certificate of material
Technical data:
Login
28 August 2019 05:34
poseidon.88
Top 👍🏼
6 February 2020 16:23
blackbox83
Sehr passgenau
1 May 2020 13:11
papagazaroo
Top EBayer ✅ pleasure to buy from 👍Many Thanks
31 October 2018 19:07
litschgi2005
Sehr zufrieden. Gerne wieder. Dankeschön.
- Does the ABS still work after installing the camber adjustment plate?

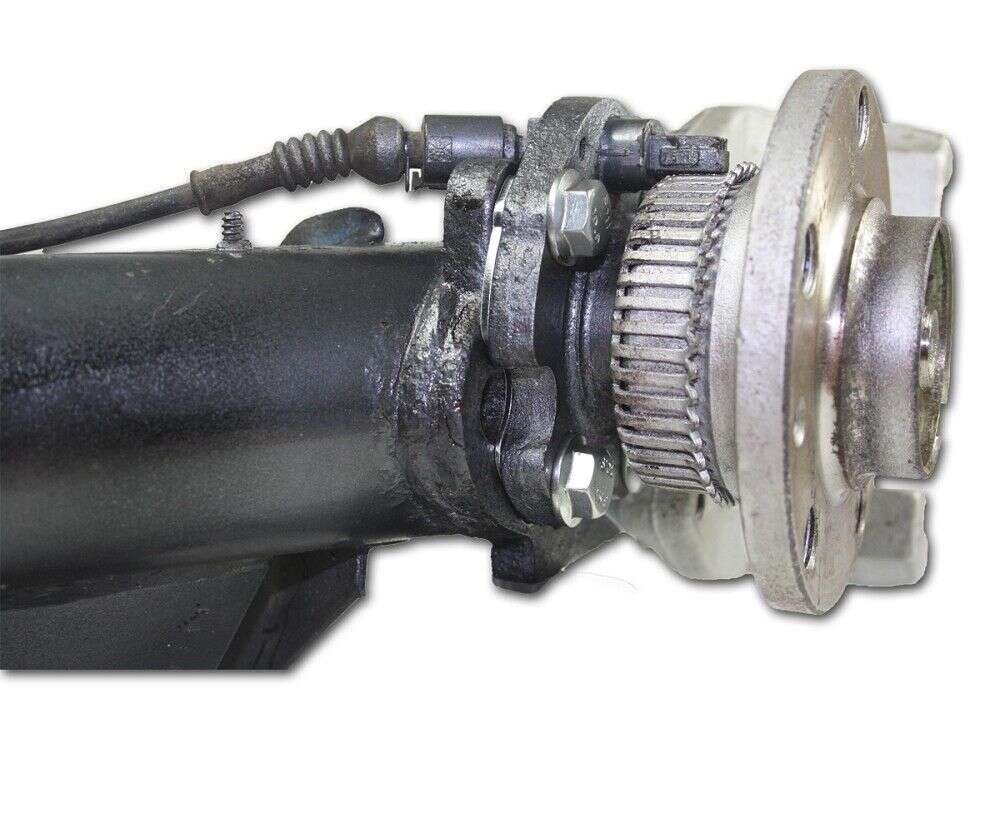

From a camber of 1 °, the ABS sensor may no longer be parallel to the ABS ring. Then, the position of the ABS sensor on the vehicle should be slightly changed.
- ✓ Golf 4 Bora Jetta TT
- ✓ Better directional stability
- ✓ Easy installation
