Audi A4 B5 / A6 VW Passat 3BG 3B Brake Caliper Adapter Porsche Cayenne Brake ZR18 Conservion Brake Disc Tuning Adapter

  • ✓ 350x32 A1764210212 Mercedes CLA 43 AMG brake disc
  • ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne / VW Tuareg brake caliper
  • ✓ front axle

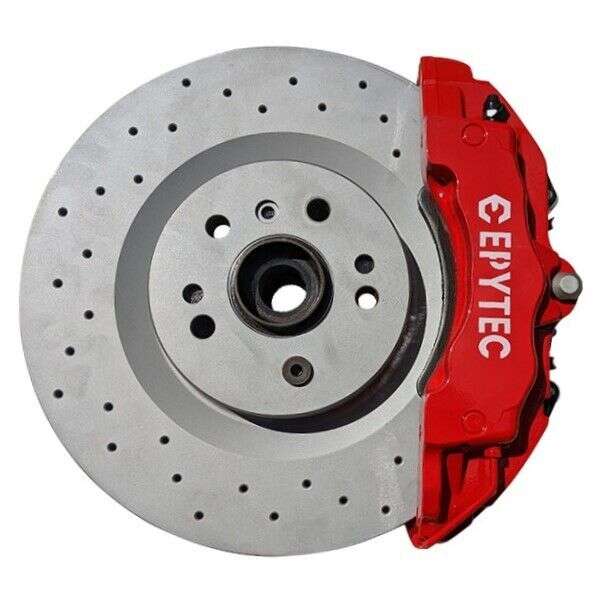

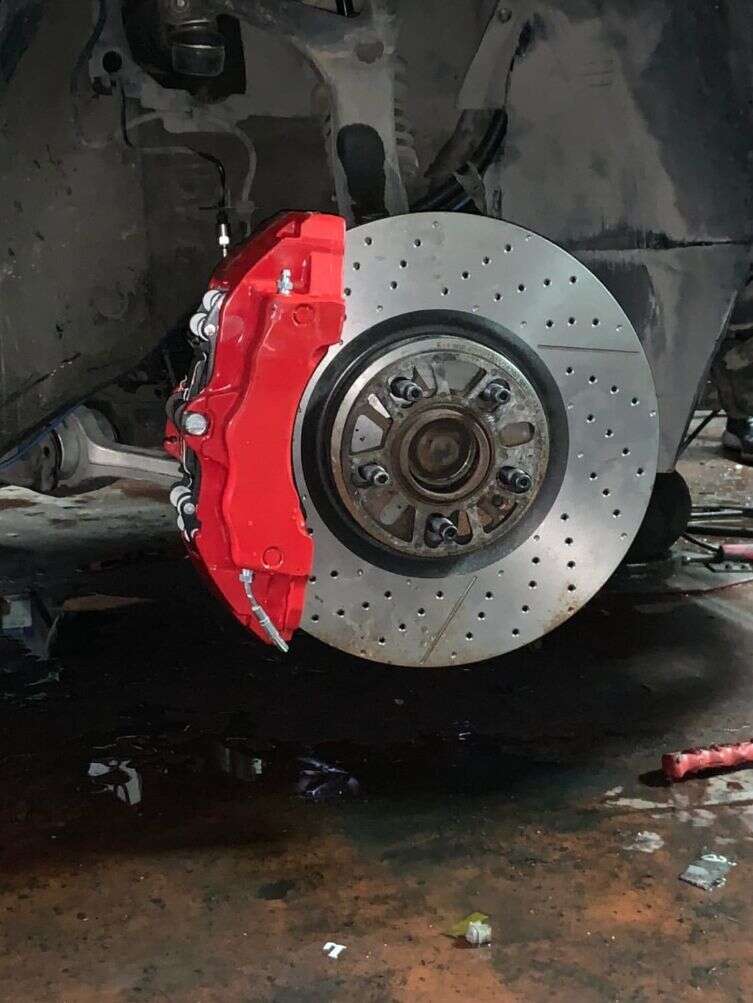

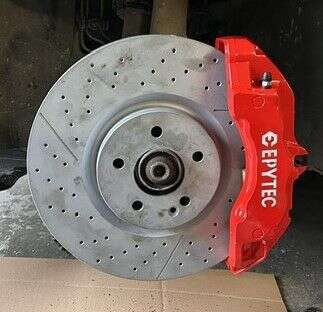

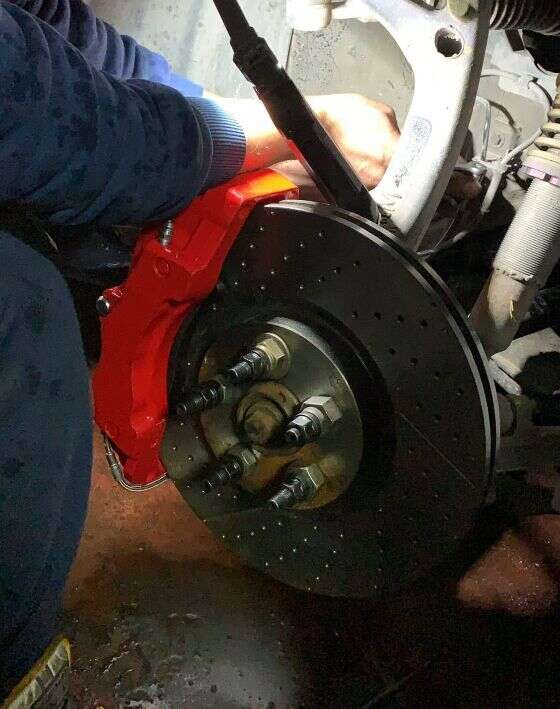

Brake caliper adapter, front axle, on series Audi A4 B5, for conversion to the ZR18 brake calipers from Porsche Cayenne, combined with the 350x32 Mercedes brake discs.

The adapters fit the following vehicles with a wheel bearing diameter of 75mm (OE number: 8D0 407 257 AC / 8D0 407 257 AL):

  • Audi A4 B5 année de fabrication 1994-2001
  • Audi A6 4B, C5 année modèle 1997-2005
  • VW Passat 3B2 année modèle 1996-2000
  • VW Passat 3B3 année de fabrication 2000-2005
  • VW Passat Variante 3B5 année de fabrication 1997-2000
  • VW Passat Variante 3B6 année de fabrication 2000-2005
  • VW Passat Variant 35l,3A5 année de fabrication 1988-1997
  • Skoda Superb I 3U4 année de fabrication 2001-2008

Depending on the batch and manufacturer, there are slight differences in the axle geometry.

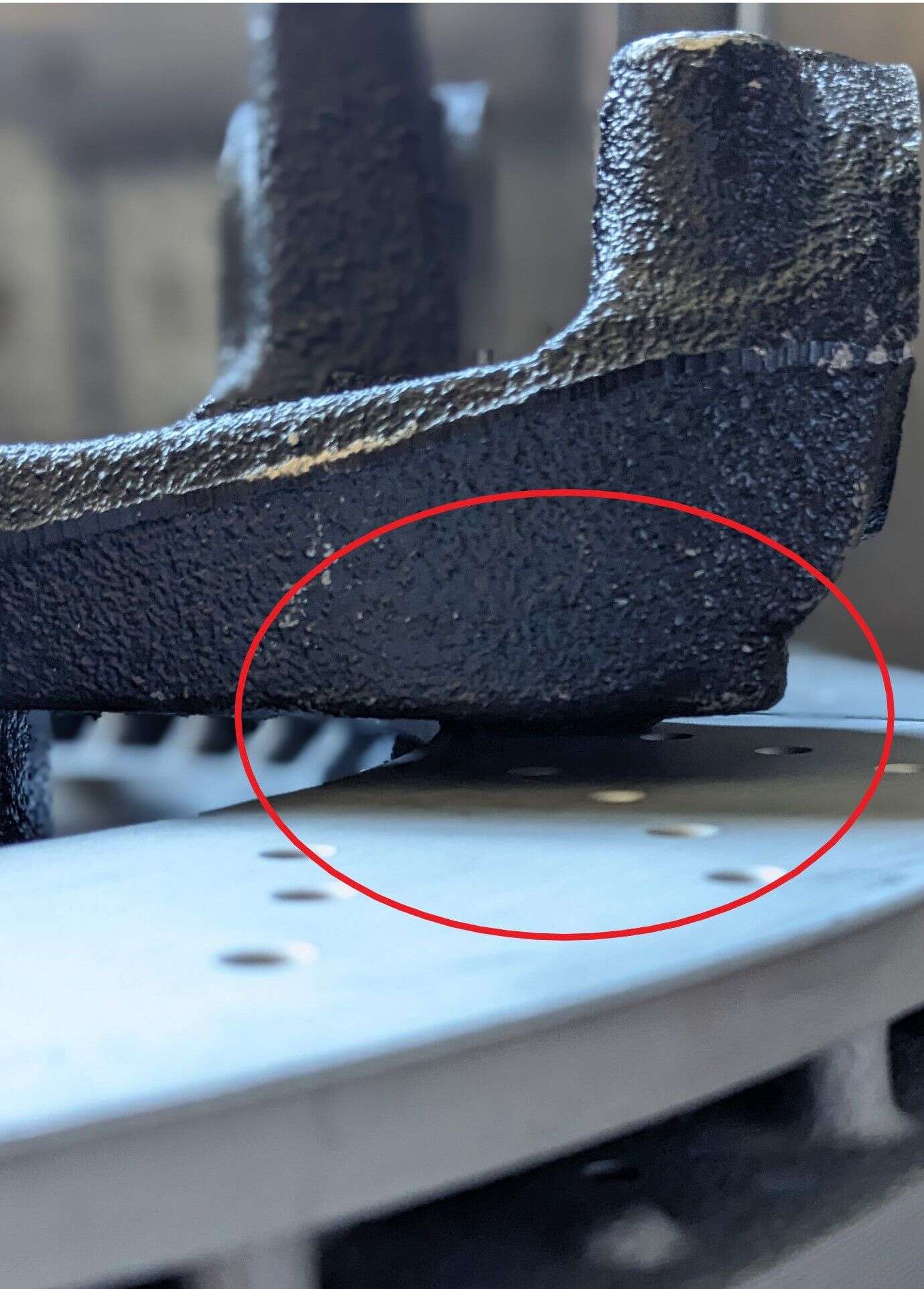

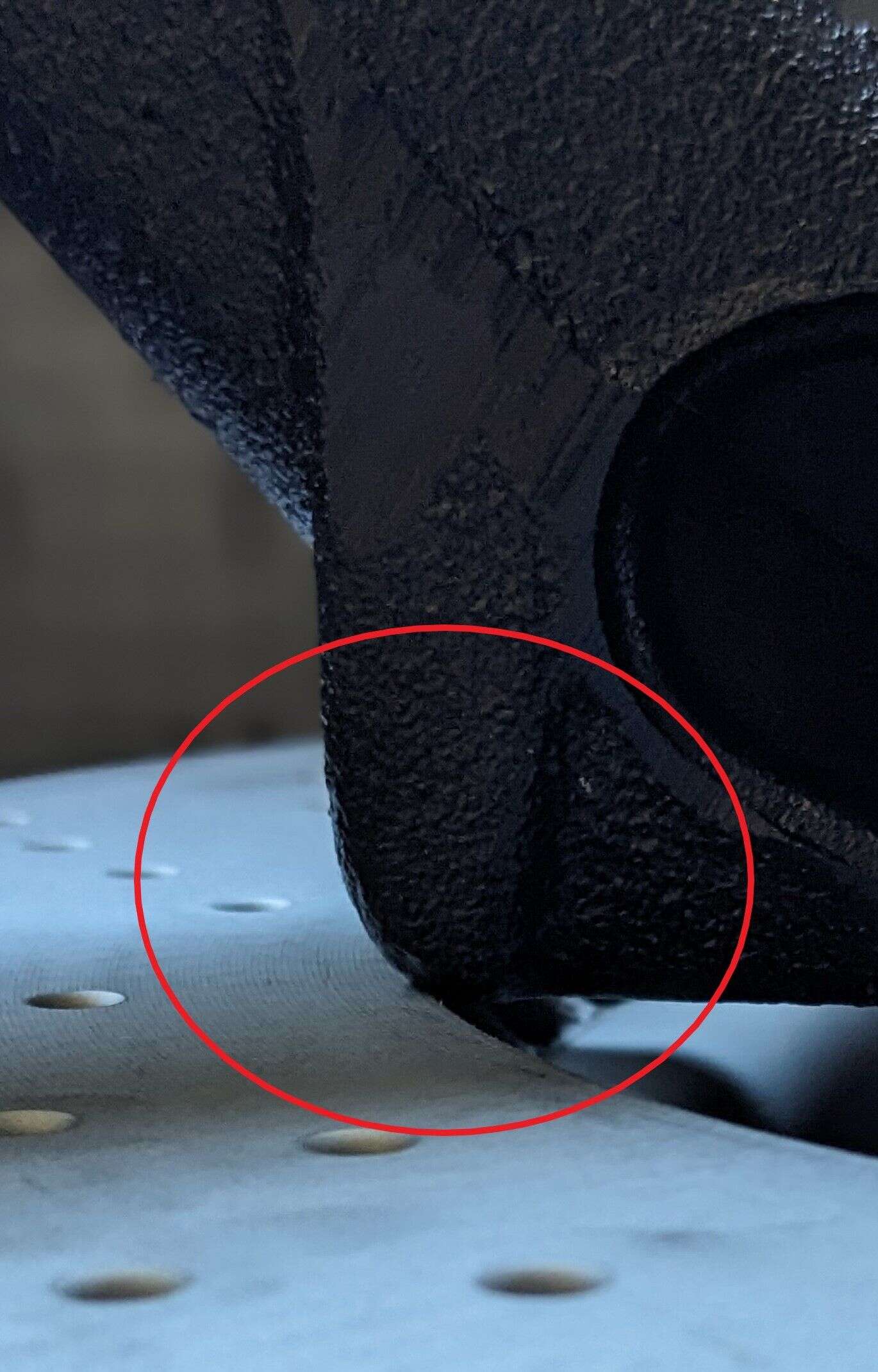

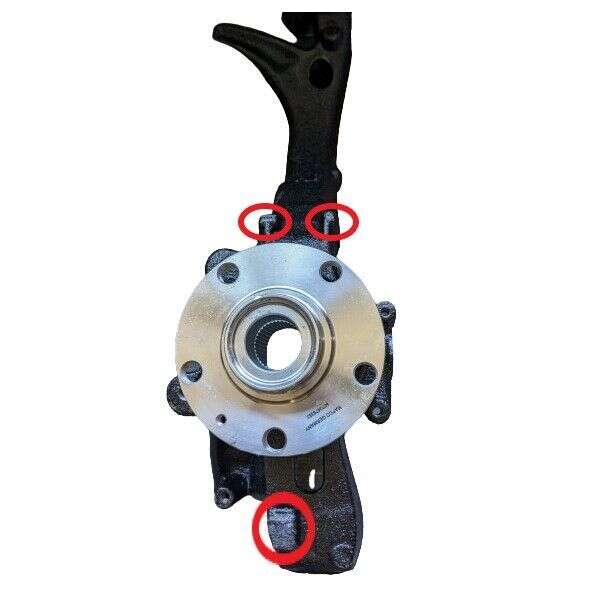

It is therefore necessary to test whether the brake disk is in clean contact with the axle and can move freely. If the brake disk cannot be turned or is in contact with the axle, the axle must be lightly machined at the points where the brake disk is in contact (see pictures). On the last 3 pictures you can see where there are differences on the axles. We have marked the points in red. If the brake disk is in contact with these points, the easiest way to remove some material is to use an angle grinder. As a rule, it is only 1-3 mm.

In most cases, however, the adapter fits without machining the axle.

Advantages of this brake system:

  • high deceleration, also in conjunction with our rear axle braking system
  • thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
  • directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
  • our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling

Required components:

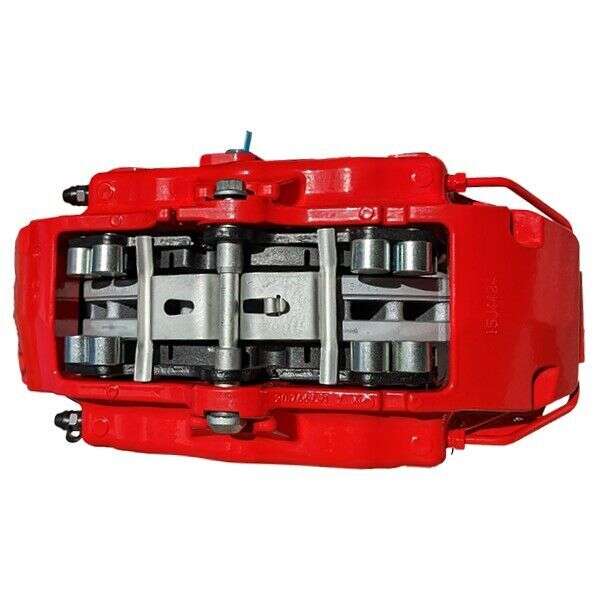

  • brake caliper: Porsche Cayenne oder VW Tuareg ( 18 inch version ), reference 95535142153 / 95535142253
  • brake disc: Mercedes CLA 43 AMG 350x32mm, reference: A1764210212
  • Hub bore must be turned to 68mm.
  • Axle with 75mm wheel bearing diameter, OE: 8D0407257AC / AL

Delivery:

Tips, information and notes:

  • For better ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.

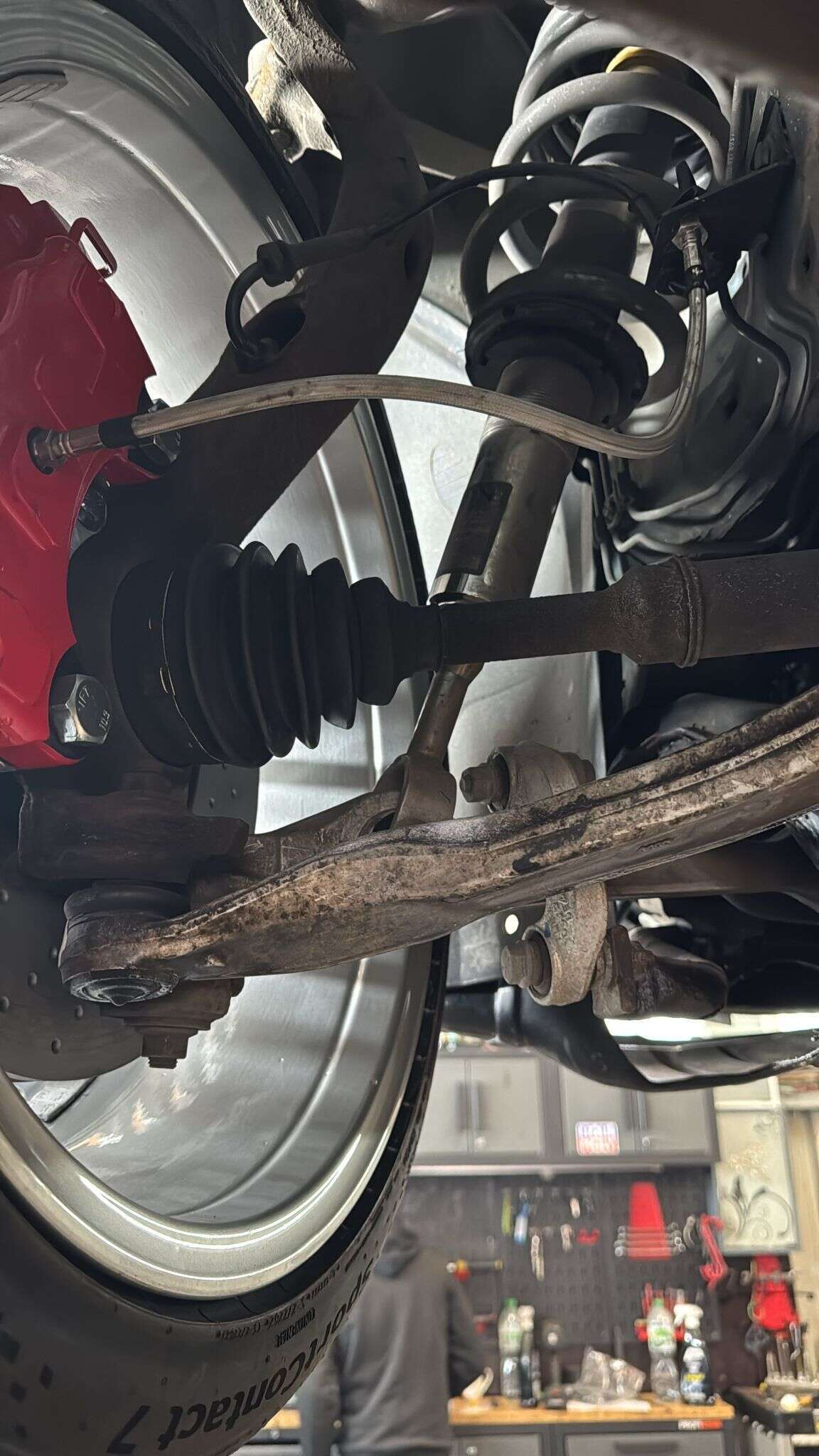

  • Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, where you can assemble and then install them according to your requirements.click here for the steel braided line configurator >>configure steel braided brake line<<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 146mm
Einbauort: vorne
Lochabstand Achsschenkel: 94mm
Lochabstand Bremssattel : 146mm

7 of 7 reviews

Average rating of 4.7 out of 5 stars


86%

0%

14%

0%

0%


Leave a review!

Share your experiences with other customers.


23 July 2020 14:03

Review with rating of 5 out of 5 stars

Andrzej T

I can`t understand any of those questions but: The product seams high quality The packaging was very well made and the product was secure The only concern was the bolts of 8.8 hardness that I`ll change to 10.9

10 January 2022 23:45

Review with rating of 5 out of 5 stars

Patrik R

Gut

26 May 2023 07:14

Review with rating of 5 out of 5 stars

KOSTAS K

Πολυ καλο προιον.Αψογη τοποθετηση

14 June 2023 17:01

Review with rating of 5 out of 5 stars

Reinhard W

Tolle Produkte, Toller Support gute Qualität

7 January 2024 05:58

Review with rating of 5 out of 5 stars

Kurt H

Alles super

13 December 2019 16:41

Review with rating of 5 out of 5 stars

Marcel V

Super danke

5 August 2022 15:37

Review with rating of 3 out of 5 stars

Markus K

Bin mit dem Produkt sehr zufrieden, jedoch wurden keine Dokumente für die Eintragung mitgeliefert.

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
