Clutch VW Passat 3bg Audi TT A3 A4 B5 B6 A6 4b C5 228mm EPYTEC Clutch Disc Ceramic Torsion Damped Sinter
- ✓ VW / Audi 1.8T engine
- ✓ 600NM torque
- ✓ hub profile: 20.3x22 x 2-28N
€102.29*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

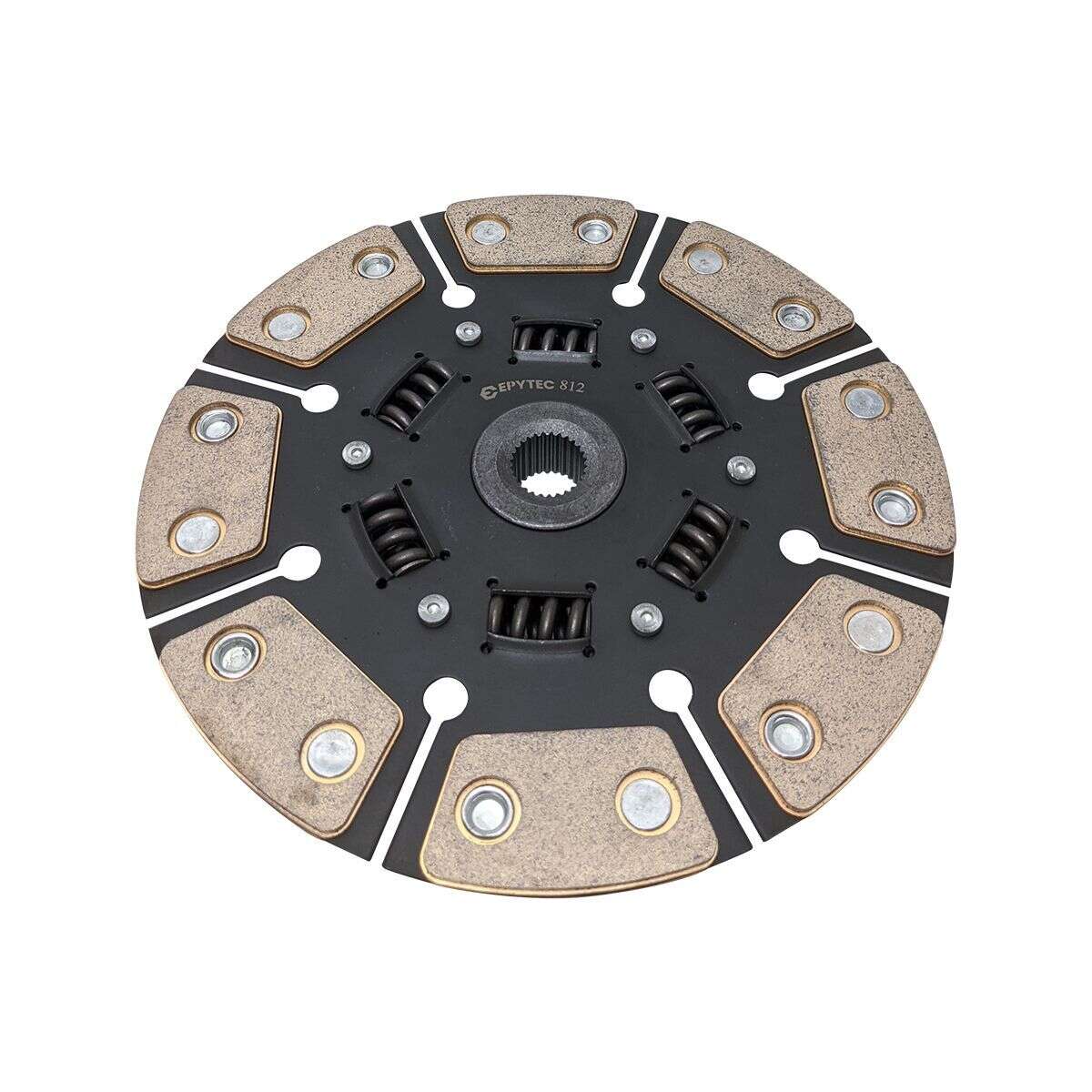

Torsion spring clutch disc with ceramic / sintered pad clutch coating/lining.
Torsion spring clutch disc Epytec dampen engine vibrations and, thanks to their reinforced damper structure, protect your vehicle's transmission.
Ceramic / sintered discs offer higher thermal resilience and a higher transmissible torque than discs with an organic coating. This enables the clutch to engage suddenly and significantly higher torques can also be transmitted. In addition, the discs are particularly resistant to dirt and oil.
Advantages of the torsion spring clutch disc with organic performance clutch coating/lining
- the torsional damping achieves a higher impact moment
- exactly identical to the series clutch plate, AND easy replacement of the clutch disc
- Significantly higher transmittable torque than organic friction lining
- better thermal resilience compared to organic friction lining
- higher speeds possible
- more aggressive starting behavior
- very resistant to dirt
Areas of application:
- due to the aggressive starting behavior ideal for motor sports.
- chip tuning
- turbo and compressor conversions
- 1/4 mile race
- circuit racing (e.g. endurance racing, motor sport, cross)
- hill climb
- rallies
- clubsport
- autocross
- slalom
- drift
Technical data:
- transmittable torque [Nm]: 600
- diameter [mm]: 228
- number of teeth: 28
- hub profile: 20.3x22 x2-28N
- torsion spring clutch disc with sinterpad clutch coating/lining
Delivery:
- 1x clutch disc 228mm suitable for VW Passat 3bg Audi TT A3 A4 B5 B6 A6 4b C5 with 1.8T engines (longitudinally installed)
Login
7 April 2022 13:10
Santo Anthony P
Ausgezeichnetes Produkt zu einem sehr guten Preis und ziemlich genau und pünktlich beim Versand
- Does the clutch become harder to press when a Sachs pressure plate is installed?
yes, the pedal is often harder to press when a SACHS Performance reinforced clutch pressure plate is installed.
How much harder is difficult to say and varies. However, with the reinforced standard clutches, the hardness of the pedal remains quite the same.
- Does a new clutch need to be broken in and if so, how long?
Yes – a new clutch should be broken in. We recommend a break-in period of several hundred kilometers after installation, typically around 500 km (for some setups, even up to 1,000 km). During this time, the clutch lining optimally adapts to the flywheel and pressure plate, manufacturing and handling residues are "removed," and a clean contact pattern is formed. This ensures optimal functionality and durability later on.
Important: If the clutch is overloaded or "abused" during the first kilometers, the lining can overheat and get damaged (e.g., glazing/warping). Such damages are generally not covered by warranty because they result from improper use.
How to properly break in your new clutch
Start gently and moderate loads: During the first kilometers, avoid full-throttle starts or hard launches.
Shift up early / shift down late: Keep RPMs and loads low, especially in lower gear ranges.
Do not let it slip: Especially on hills, do not "hold" with the clutch, but start with the handbrake instead.
No additional load: During the first 500 km, avoid towing trailers/caravans and strong continuous loads as much as possible.
Is "clutch judder" normal at the beginning?
Yes, after a clutch replacement, occasional judder or a slightly different pedal/start feel may occur in the first kilometers. This usually settles during the break-in period.
However, if the judder remains noticeable even after about 1,000 km, you should have it checked in a workshop – it could be due to an installation or adjustment issue (release system, flywheel, alignment, etc.).
| Motor | Motorcode |
|---|---|
| 1.8 T | 8D2|150PS(110KW) |
| 1.8 T quattro | 8E2|150PS(110KW) |
| 1.8 T | B6|150PS(110KW) |
| 1.8 | B5|125PS(92KW) |
| 1.8 T | 8E2|150PS(110KW) |
| 1.8 T | 8EC|163PS(120KW) |
| 1.8 T quattro | B5|180PS(132KW) |
| 2.0 | B6|130PS(96KW) |
| 1.8 | 8D2|125PS(92KW) |
| 1.8 T quattro | B5|150PS(110KW) |
| 1.8 T quattro | B6|150PS(110KW) |
| 1.8 T | B6|163PS(120KW) |
| 1.8 quattro | 8D2|125PS(92KW) |
| 1.8 T quattro | 8D2|150PS(110KW) |
| 2.0 | 8EC|130PS(96KW) |
| 2.0 | 8E2|130PS(96KW) |
| 2.0 FSI | 8E2|150PS(110KW) |
| 2.0 FSI | B6|150PS(110KW) |
| 1.8 T | 8E2|163PS(120KW) |
| 1.8 T quattro | 8D2|180PS(132KW) |
| 1.8 quattro | B5|125PS(92KW) |
| 1.8 T | B5|150PS(110KW) |
| 1.8 T | B5|180PS(132KW) |
| 1.8 T | 8D2|180PS(132KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 4B2|130PS(96KW) |
| 1.8 T | 4B4|150PS(110KW) |
| 1.8 T quattro | 4B2|150PS(110KW) |
| 1.8 quattro | 4A2|125PS(92KW) |
| 2.0 | C5|130PS(96KW) |
| 1.8 | C5|125PS(92KW) |
| 1.8 | 4A|125PS(92KW) |
| 1.8 quattro | 4A|125PS(92KW) |
| 1.8 T | 4B2|150PS(110KW) |
| 1.8 T quattro | 4B4|150PS(110KW) |
| 2.0 | 4B4|130PS(96KW) |
| 1.8 | 4B4|125PS(92KW) |
| 1.8 | 4A2|125PS(92KW) |
| 1.8 T | C5|180PS(132KW) |
| 1.8 T quattro | C5|150PS(110KW) |
| 1.8 T | 4B2|180PS(132KW) |
| 1.8 T | C5|150PS(110KW) |
| 1.8 quattro | C4|125PS(92KW) |
| 1.8 | 4B2|125PS(92KW) |
| 1.8 T quattro | 4B2|180PS(132KW) |
| 1.8 T quattro | C5|180PS(132KW) |
| 1.8 | C4|125PS(92KW) |
| 1.8 T | 4B4|180PS(132KW) |
| 1.8 T quattro | 4B4|180PS(132KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 4B6|130PS(96KW) |
| 1.8 T quattro | 4B5|150PS(110KW) |
| 1.8 quattro | 4A5|125PS(92KW) |
| 1.8 T quattro | 4B5|180PS(132KW) |
| 1.8 T quattro | 4B6|180PS(132KW) |
| 1.8 T | 4B5|150PS(110KW) |
| 2.0 | 4B5|130PS(96KW) |
| 1.8 | 4B5|125PS(92KW) |
| 1.8 T quattro | 4B6|150PS(110KW) |
| 1.8 T | 4B5|180PS(132KW) |
| 1.8 | C4|125PS(92KW) |
| 1.8 T | 4B6|150PS(110KW) |
| 1.8 | 4A5|125PS(92KW) |
| 1.8 quattro | C4|125PS(92KW) |
| 1.8 quattro | 4A|125PS(92KW) |
| 1.8 | 4B6|125PS(92KW) |
| 1.8 | 4A|125PS(92KW) |
| 1.8 T | 4B6|180PS(132KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | B5|180PS(132KW) |
| 1.8 T | B5|150PS(110KW) |
| 1.8 | B5|125PS(92KW) |
| 2.0 | 8ED|130PS(96KW) |
| 1.8 T | B6|163PS(120KW) |
| 1.8 quattro | 8D5|125PS(92KW) |
| 1.8 T quattro | 8E5|150PS(110KW) |
| 1.8 T | 8E5|163PS(120KW) |
| 1.8 quattro | B5|125PS(92KW) |
| 1.8 T quattro | 8D5|150PS(110KW) |
| 1.8 | 8D5|125PS(92KW) |
| 2.0 | B6|130PS(96KW) |
| 1.8 T | 8E5|150PS(110KW) |
| 1.8 T | 8D5|180PS(132KW) |
| 1.8 T quattro | 8D5|180PS(132KW) |
| 2.0 | 8E5|130PS(96KW) |
| 1.8 T | B6|150PS(110KW) |
| 2.0 FSI | 8E5|150PS(110KW) |
| 1.8 T quattro | B5|150PS(110KW) |
| 2.0 FSI | B6|150PS(110KW) |
| 1.8 T quattro | B5|180PS(132KW) |
| 1.8 T quattro | B6|150PS(110KW) |
| 1.8 T | 8ED|163PS(120KW) |
| 1.8 T | 8D5|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 8H7|163PS(120KW) |
| 2.0 | 8H7|130PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.8 | 8G7|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 3R2|150PS(110KW) |
| 1.6 | 3R2|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 3R5|150PS(110KW) |
| 1.6 | 3R5|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 1.8 Syncro/4motion | 3B2|125PS(92KW) |
| 2.0 4motion | 3B3|115PS(85KW) |
| 2.0 | 3B3|130PS(96KW) |
| 2.0 | 3B3|115PS(85KW) |
| 1.8 T | 3B2|150PS(110KW) |
| 1.8 | 3B2|125PS(92KW) |
| 1.8 T 20V | 3B3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 3U4|115PS(85KW) |
| 1.8 T | 3U4|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 8D2|150PS(110KW) |
| 1.8 T quattro | 8E2|150PS(110KW) |
| 1.8 T | B6|150PS(110KW) |
| 1.8 | B5|125PS(92KW) |
| 1.8 T | 8E2|150PS(110KW) |
| 1.8 T | 8EC|163PS(120KW) |
| 1.8 T quattro | B5|180PS(132KW) |
| 2.0 | B6|130PS(96KW) |
| 1.8 | 8D2|125PS(92KW) |
| 1.8 T quattro | B5|150PS(110KW) |
| 1.8 T quattro | B6|150PS(110KW) |
| 1.8 T | B6|163PS(120KW) |
| 1.8 quattro | 8D2|125PS(92KW) |
| 1.8 T quattro | 8D2|150PS(110KW) |
| 2.0 | 8EC|130PS(96KW) |
| 2.0 | 8E2|130PS(96KW) |
| 2.0 FSI | 8E2|150PS(110KW) |
| 2.0 FSI | B6|150PS(110KW) |
| 1.8 T | 8E2|163PS(120KW) |
| 1.8 T quattro | 8D2|180PS(132KW) |
| 1.8 quattro | B5|125PS(92KW) |
| 1.8 T | B5|150PS(110KW) |
| 1.8 T | B5|180PS(132KW) |
| 1.8 T | 8D2|180PS(132KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 4B2|130PS(96KW) |
| 1.8 T | 4B4|150PS(110KW) |
| 1.8 T quattro | 4B2|150PS(110KW) |
| 1.8 quattro | 4A2|125PS(92KW) |
| 2.0 | C5|130PS(96KW) |
| 1.8 | C5|125PS(92KW) |
| 1.8 | 4A|125PS(92KW) |
| 1.8 quattro | 4A|125PS(92KW) |
| 1.8 T | 4B2|150PS(110KW) |
| 1.8 T quattro | 4B4|150PS(110KW) |
| 2.0 | 4B4|130PS(96KW) |
| 1.8 | 4B4|125PS(92KW) |
| 1.8 | 4A2|125PS(92KW) |
| 1.8 T | C5|180PS(132KW) |
| 1.8 T quattro | C5|150PS(110KW) |
| 1.8 T | 4B2|180PS(132KW) |
| 1.8 T | C5|150PS(110KW) |
| 1.8 quattro | C4|125PS(92KW) |
| 1.8 | 4B2|125PS(92KW) |
| 1.8 T quattro | 4B2|180PS(132KW) |
| 1.8 T quattro | C5|180PS(132KW) |
| 1.8 | C4|125PS(92KW) |
| 1.8 T | 4B4|180PS(132KW) |
| 1.8 T quattro | 4B4|180PS(132KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 4B6|130PS(96KW) |
| 1.8 T quattro | 4B5|150PS(110KW) |
| 1.8 quattro | 4A5|125PS(92KW) |
| 1.8 T quattro | 4B5|180PS(132KW) |
| 1.8 T quattro | 4B6|180PS(132KW) |
| 1.8 T | 4B5|150PS(110KW) |
| 2.0 | 4B5|130PS(96KW) |
| 1.8 | 4B5|125PS(92KW) |
| 1.8 T quattro | 4B6|150PS(110KW) |
| 1.8 T | 4B5|180PS(132KW) |
| 1.8 | C4|125PS(92KW) |
| 1.8 T | 4B6|150PS(110KW) |
| 1.8 | 4A5|125PS(92KW) |
| 1.8 quattro | C4|125PS(92KW) |
| 1.8 quattro | 4A|125PS(92KW) |
| 1.8 | 4B6|125PS(92KW) |
| 1.8 | 4A|125PS(92KW) |
| 1.8 T | 4B6|180PS(132KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | B5|180PS(132KW) |
| 1.8 T | B5|150PS(110KW) |
| 1.8 | B5|125PS(92KW) |
| 2.0 | 8ED|130PS(96KW) |
| 1.8 T | B6|163PS(120KW) |
| 1.8 quattro | 8D5|125PS(92KW) |
| 1.8 T quattro | 8E5|150PS(110KW) |
| 1.8 T | 8E5|163PS(120KW) |
| 1.8 quattro | B5|125PS(92KW) |
| 1.8 T quattro | 8D5|150PS(110KW) |
| 1.8 | 8D5|125PS(92KW) |
| 2.0 | B6|130PS(96KW) |
| 1.8 T | 8E5|150PS(110KW) |
| 1.8 T | 8D5|180PS(132KW) |
| 1.8 T quattro | 8D5|180PS(132KW) |
| 2.0 | 8E5|130PS(96KW) |
| 1.8 T | B6|150PS(110KW) |
| 2.0 FSI | 8E5|150PS(110KW) |
| 1.8 T quattro | B5|150PS(110KW) |
| 2.0 FSI | B6|150PS(110KW) |
| 1.8 T quattro | B5|180PS(132KW) |
| 1.8 T quattro | B6|150PS(110KW) |
| 1.8 T | 8ED|163PS(120KW) |
| 1.8 T | 8D5|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 8H7|163PS(120KW) |
| 2.0 | 8H7|130PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.8 | 8G7|125PS(92KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 3R2|150PS(110KW) |
| 1.6 | 3R2|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T | 3R5|150PS(110KW) |
| 1.6 | 3R5|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 1.8 Syncro/4motion | 3B2|125PS(92KW) |
| 2.0 4motion | 3B3|115PS(85KW) |
| 2.0 | 3B3|130PS(96KW) |
| 2.0 | 3B3|115PS(85KW) |
| 1.8 T | 3B2|150PS(110KW) |
| 1.8 | 3B2|125PS(92KW) |
| 1.8 T 20V | 3B3|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 3U4|115PS(85KW) |
| 1.8 T | 3U4|150PS(110KW) |
- ✓ Brake force regulator 3/15
- ✓ conversion to G60 16V VR6
- ✓ OE NO: 486145
- ✓ 280x22 535615301 VW Golf 2 / 3 G60 brake disc
- ✓ 4-piston 986351421 / 986351422 986 Porsche Boxter brake caliper
- ✓ front axle
- ✓ Golf 1, Caddy 14d, Scirroco 1
- ✓ VR6 1.8T engine
- ✓ stable cross member front panel
- ✓ Switch box adapter plate
- ✓ VW Golf 1 series conversion to 02A gearbox
- ✓ Time saving
- ✓ Bushing wishbone front axle 4D0407693AC
- ✓ Audi A4 A6 A8, VW Passat, Skoda Superb, Seat Exeo.......
- ✓ Made in Germany
- ✓ Bushing wishbone front axle 8E0407151E
- ✓ Audi A4 A6 A8, VW Passat, Skoda Superb, Seat Exeo.......
- ✓ Made in Germany
- ✓ 1.8 T 20V engines
- ✓ 240 clutch
- ✓ lightens 5.0 kg
- ✓ 330x22 4F0615601B Audi A6 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ M10x1.0 external thread
- ✓ stainless steel V2A
- ✓ excellent fit
- ✓ rear axle Audi RS4 / RS2 / A4
- ✓ high stability
- ✓ VW Golf 4 1.8T GTI engine
- ✓ 600NM torque
- ✓ hub profile: 21.8x24.2-23N
- ✓ Easy to install
- ✓ original fuel injection rail can be retained
- ✓ fuel injectors from the Audi S3 EV12
- ✓ 330x32 2104212612 Mercedes CLK brake disc
- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne brake caliper
- ✓ front axle
- ✓ 350x32 A1764210212 Mercedes CLA 43 AMG brake disc
- ✓ 6-piston 95535142153 / 95535142253 Porsche Cayenne / VW Tuareg brake caliper
- ✓ front axle
- ✓ Right brake caliper suitable for many Audi A4, VW Passat
- ✓ front axle
- ✓ OE quality
- ✓ 5x112 bolt circle
- ✓ Plug & Play
- ✓ Audi A4
- ✓ Left brake caliper suitable for many Audi A4, VW Passat
- ✓ front axle
- ✓ OE quality
- ✓ 35% better braking performance
- ✓ 75% more service life
- ✓ low dust generation
- ✓ Hole circle: 5x112
- ✓ Thickness: 3.0mm
- ✓ Center centering up to a maximum of 73.0
