Why does the drilling of the brake disc fixing not match the wheel hub when converting the brakes?

In brake system modifications, OE components from different vehicle models are often combined. Although all functionally relevant dimensions are coordinated, the position of the hole for the standard brake disc fixing screw may differ from the threaded hole in the wheel hub. This is design-related and not an indication of a wrong brake disc or a faulty fit—provided that the components specified in the product description are used.The fixing screw is solely used to temporarily hold the brake disc on the wheel hub with the wheel disassembled. It does not perform the centering or the force-fit fastening of the brake disc.The centering is done depending on the modification over the centering collar of the wheel hub or an included centering ring. When mounting the wheel, the brake disc is flat and force-fit clamped against the wheel hub flange together with the rim using the wheel bolts or wheel nuts.The standard fixing screw is not used in this case. Drilling or machining the brake disc or the wheel hub is neither required nor intended.

Why do we offer custom paint finishes exclusively in RAL colors?

RAL color tones are clearly defined and easily understandable for all parties involved. This allows misunderstandings in color selection to be avoided and the desired color tone to be reliably assigned.Individual manufacturer colors, special color tones or freely chosen color names cannot be fully covered due to the very large variety of colors. Therefore, custom paint jobs for all offered brake calipers and brake system kits are only possible with a clear RAL color number.

Which RAL colors can we not offer for the coating of our brake calipers?

We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.We do not offer these RAL fluorescent colors (examples)RAL 1026 Fluorescent YellowRAL 2005 Fluorescent OrangeRAL 2007 Fluorescent Light OrangeRAL 3024 Fluorescent RedRAL 3026 Fluorescent Light RedRAL 6038 Fluorescent GreenTip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.

What torque should be used to tighten the sealing nipples on the brake caliper?

We recommend tightening the sealing nipples on the brake caliper with 20 Nm.Why is this important?The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.Should a torque wrench be used?Yes, for precise and safe installation, we recommend using a torque wrench.Should anything be checked after installation?Yes, the sealing nipple should be checked for tight fit and sealing afterward.

My brake caliper is not exactly centered over the brake disc - what should I do?

If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.The most important thing is:👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:there is very little clearance on one side or the bolt lightly toucheswhile on the other side there is more playThis is generally not critical.🔧 This is how you proceed:Install brake pads:First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:slightly shim the adapter with suitable bushings to adjust the brake caliperor – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.

Big Brake systems KIT VW Golf 3 Porsche VR6 GTI Passat 35 16V ZL17 ZR17 Brake caliper 334x32mm Brake disc - Farbe Bremssattel: Blank ohne Farbe

✓ 334x32 1J0615301AA 1J0615302 A Golf 4 brake disc
✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne/ VW Tuareg brake caliper
✓ front axle

£1,210.91*

Available

Product number: 284-KIT-Blank

Delivery by Thursday, 15.10.2026 if you order within the next 9 Hours.

Brake caliper color

Blank without color

Red with Epytec logo

Painted in the color of your choice

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

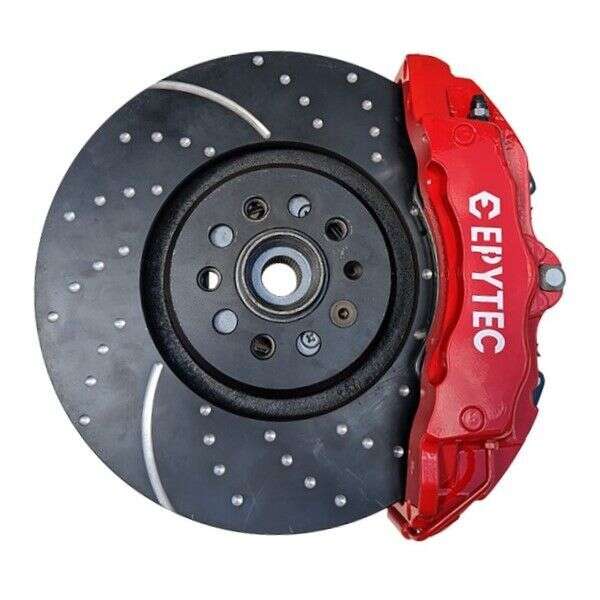

With our large high-performance brake kit for the Golf 3, Passat, Corrado, Seat Toledo with VR6 axle and many other vehicles, you can upgrade your front axle to a 6-piston braking system and achieve ideal performance.
This kit includes:

- Brake calipers: Porsche ZR17 / ZL17 6-piston brake calipers
- Brake discs: 334x32 Golf 4 R32

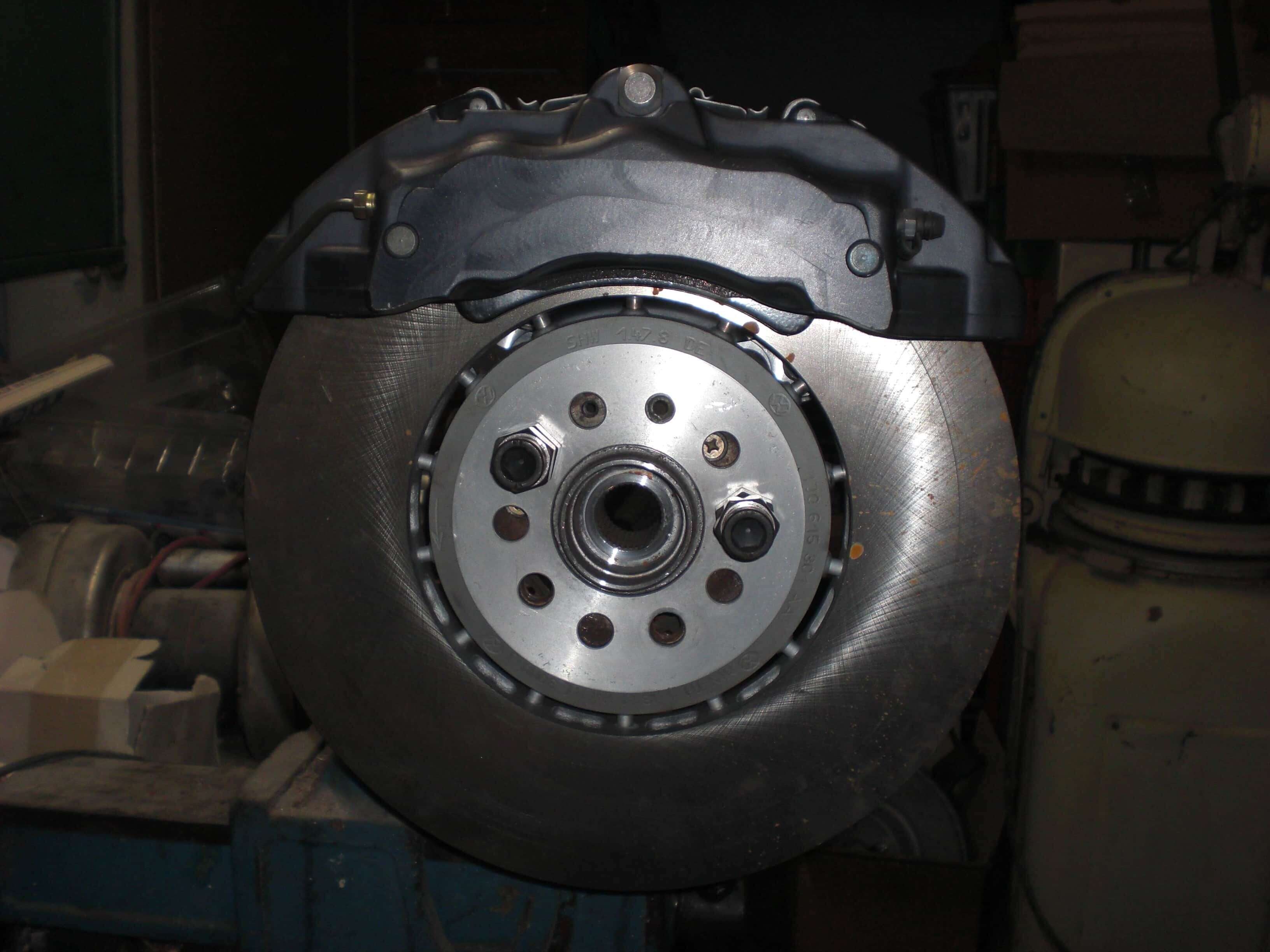

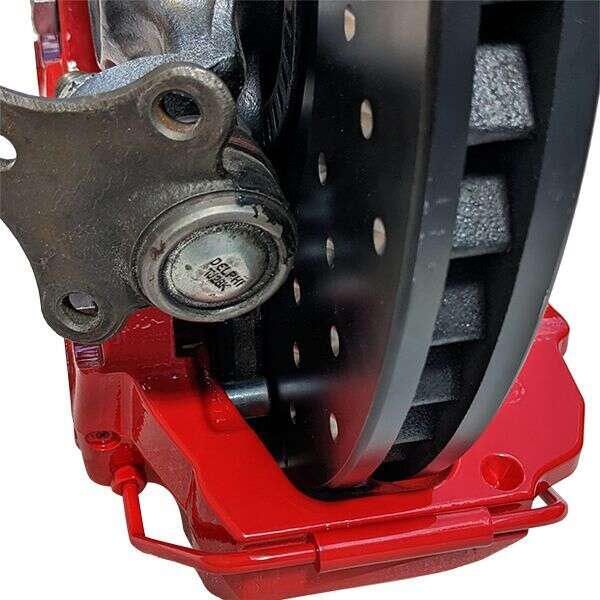

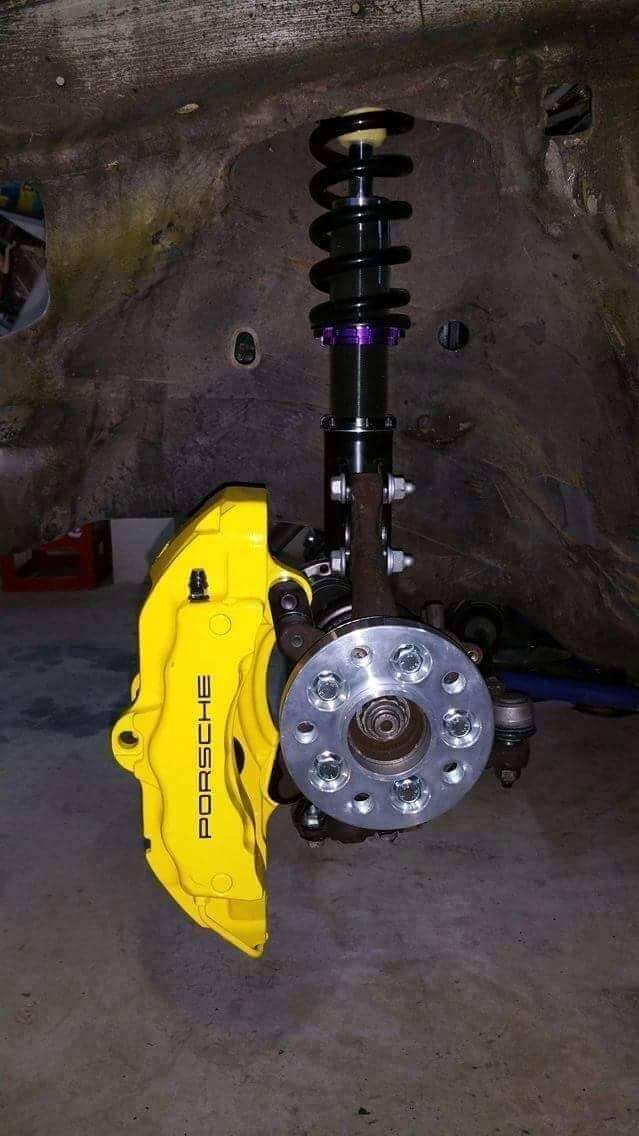

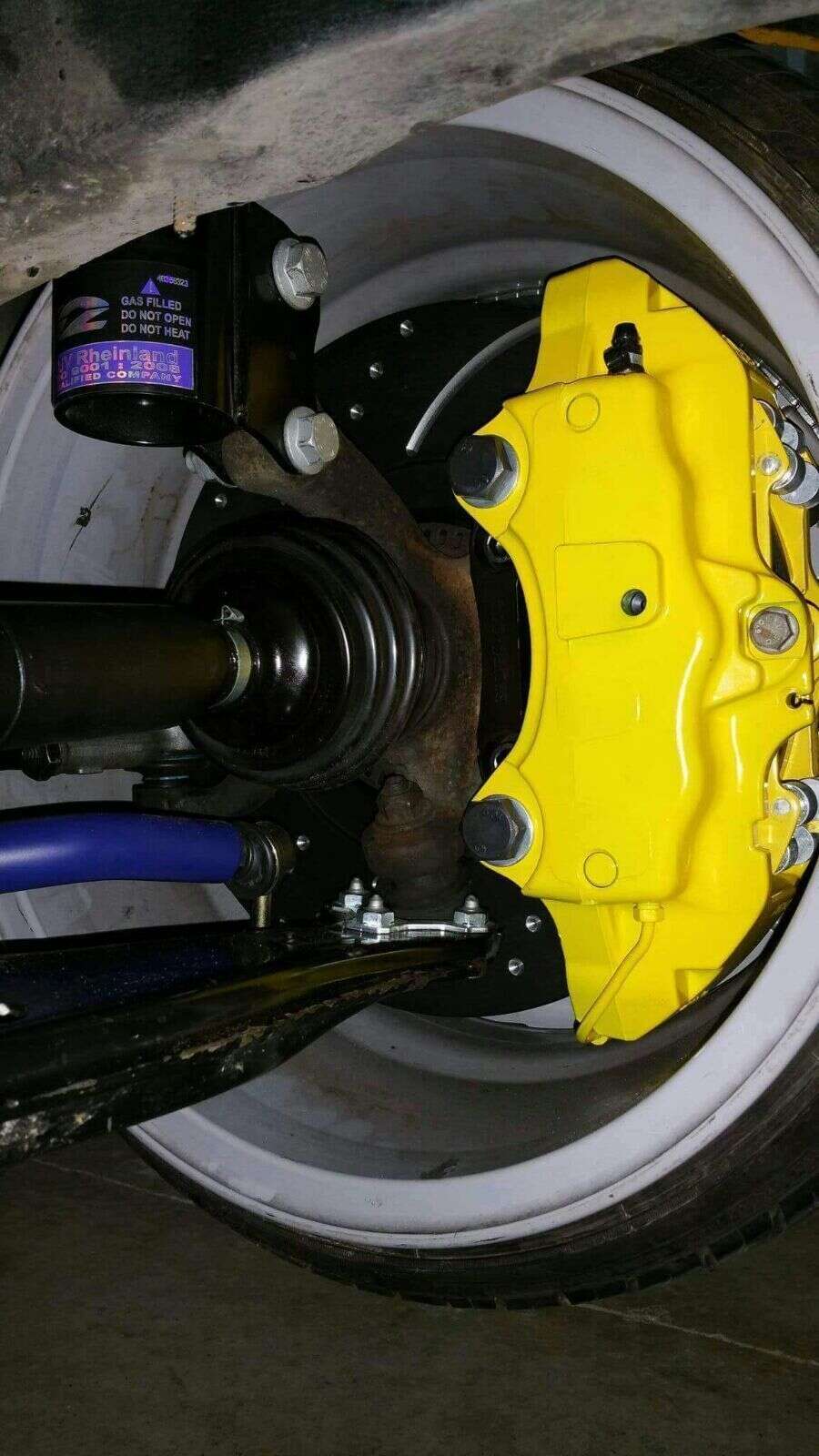

With this high-performance brake kit / Big Brake Kit you can install the Porsche ZR17 / ZL17 6-piston brake calipers in combination with the 334x32 mm brake discs from the Golf 4 R32 on the Golf 3, Passat and many other vehicles.

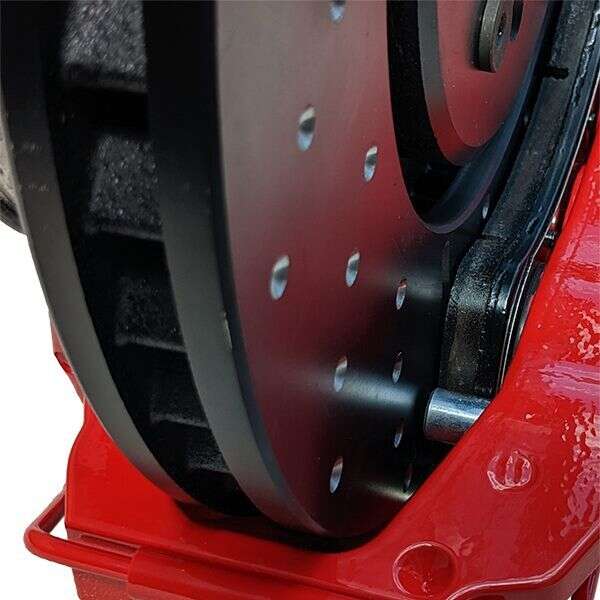

The large brake kit is not only sporty but also suitable for everyday use. Thanks to the drilled sports brake discs in combination with our ceramic brake pads, it provides ideal performance while simultaneously reducing brake dust, temperature and wear.

Another advantage of our brake kit is that it uses the same original brake calipers and brake discs that are also fitted to production vehicles. These OE parts not only make brake replacement simple and straightforward but also facilitate TÜV approval.

With this high-performance brake kit you can get started straight away and have everything you need to upgrade your front axle to a 6-piston braking system.

The large high-performance brake kit / Big Brake Kit is suitable for the following vehicles:

VW Golf 3 2.0L 16V and VR6 GTI
VW Passat 2.0L 16V 35i and VR6 GTI
VW Corrado 2.0L 16V and VR6 GTI
Seat Toledo

Advantages of this braking system:

Our components, such as brake calipers and brake discs, come from production vehicles and are OE parts. This makes brake replacement simple and straightforward and facilitates TÜV approval.
The material certificate included in the scope of delivery can enable approval through an individual inspection, even for standard production vehicles.

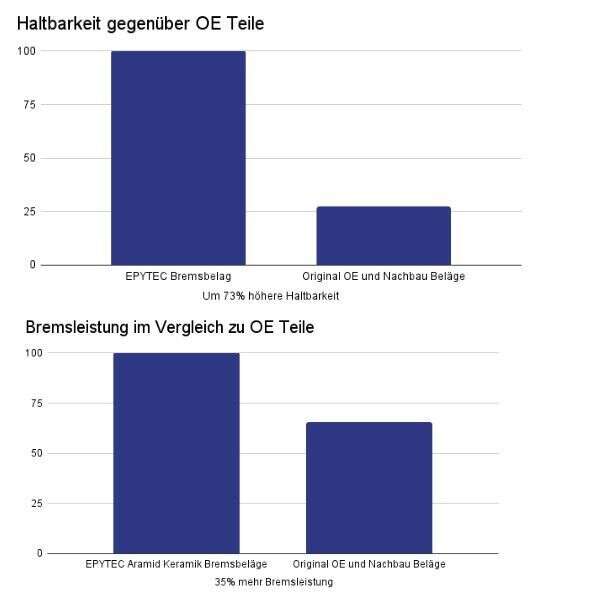

High-performance brake pads with a longer service life than original brake pads
Extremely high braking performance, also in combination with our rear axle braking system
Direct fit for the models listed above and therefore can be easily converted back to the original configuration at any time
Our EPYTEC brake caliper adapters do not require you to send in your original parts, nor do they require any rewelding, milling or redrilling.

Note:

The kit comes with new brake calipers in an unpainted, bare metal finish as standard. For an additional charge, we can also supply the brake calipers in your preferred colour and without a logo, although the delivery time will be approximately 2-3 weeks longer.

Get our high-performance brake kit now and experience ideal performance and durability.

Scope of delivery:

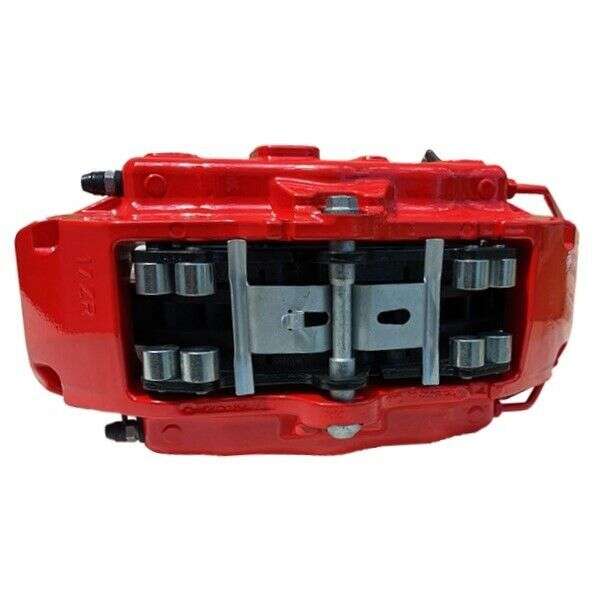

2x new Porsche Cayenne brake calipers ZR17 /ZR17 part numbers: 7L6 615 123 T / 7L6 615 124 T (left / right), including a complete new retaining clip kit for the brake calipers in an unpainted, bare metal finish
Matching set of EBC Turbo Groove sports brake discs 334x32mm

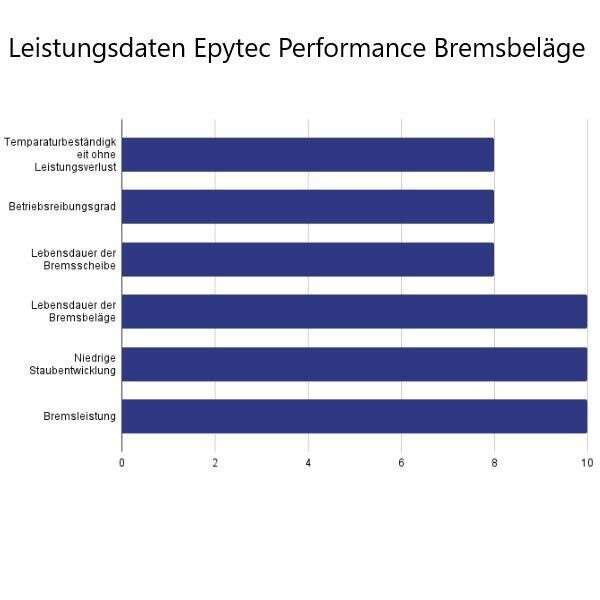

2x ceramic brake pads for less brake dust and longer service life

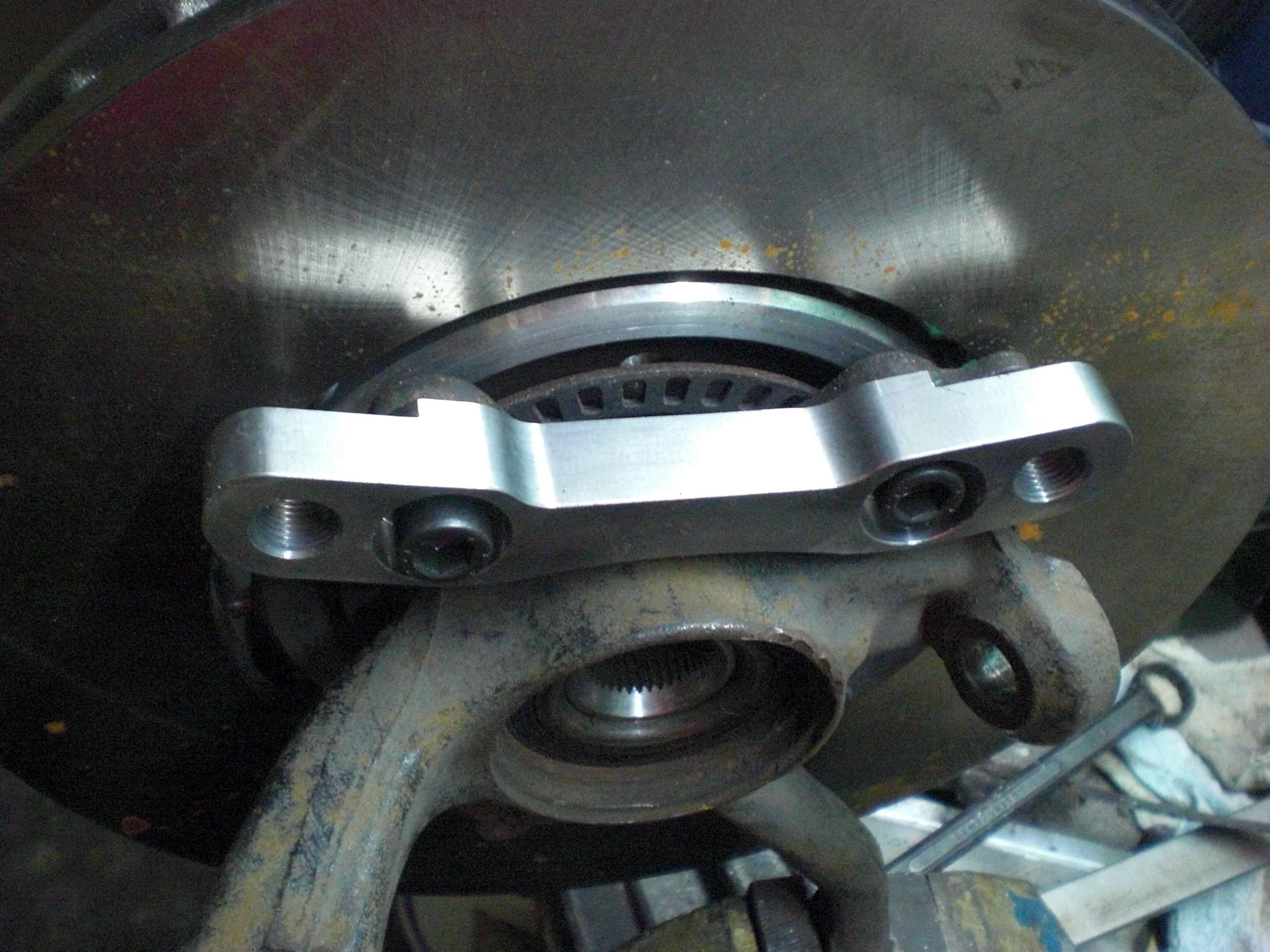

2x brake caliper adapters for VW Golf 3, VW Passat, VW Corrado, Seat Toledo
2x matching braided stainless steel brake lines
Installation aid for brake disc installation
High-strength fastening bolts
Template to check whether the braking system fits inside your wheel rims
Material certificate
Stress analysis / FEM calculation for approval

We provide a TÜV certificate with this adapter. This means that the TÜV inspector can easily register the adapter.

Tips, information and advice:

To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

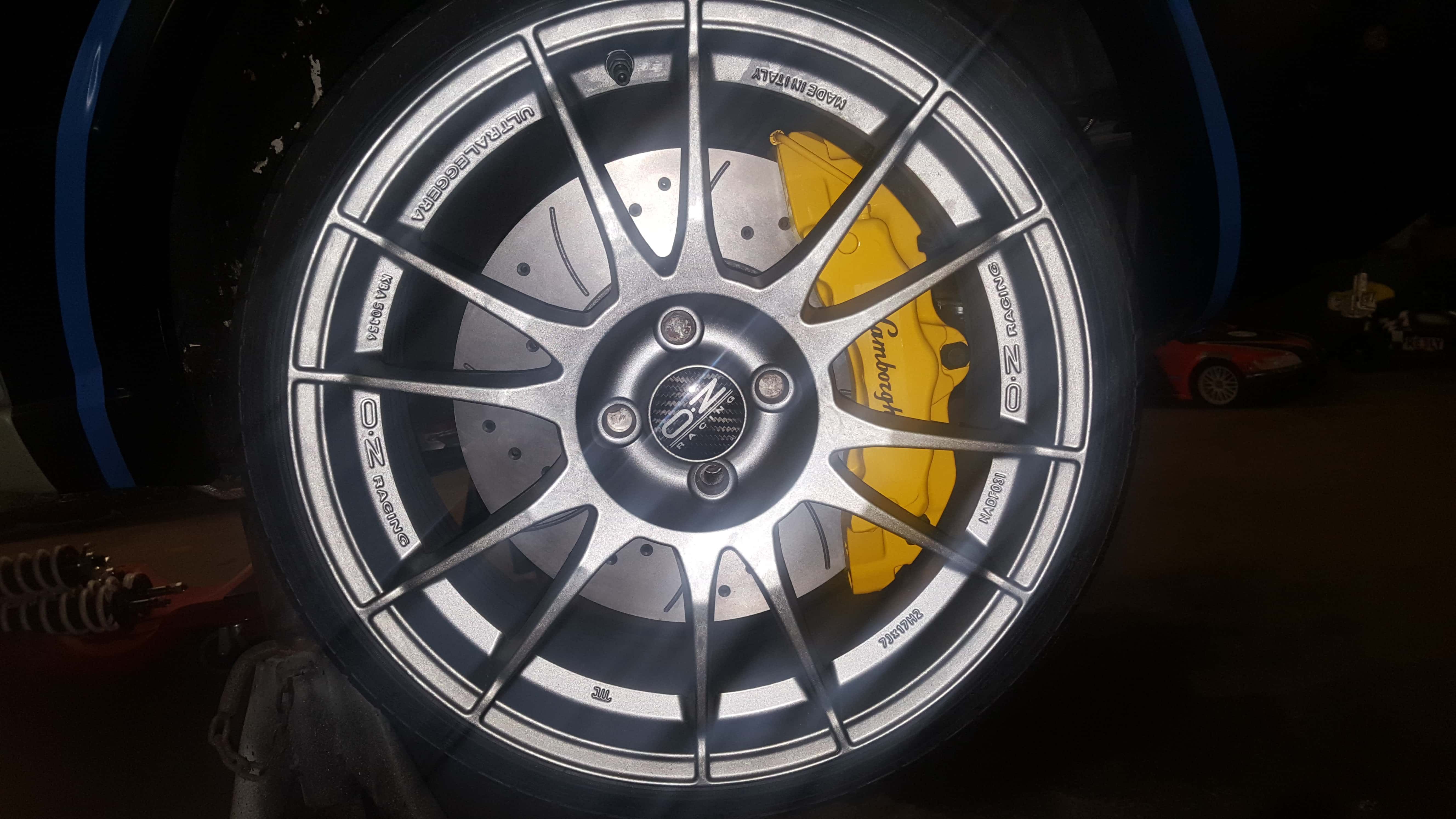

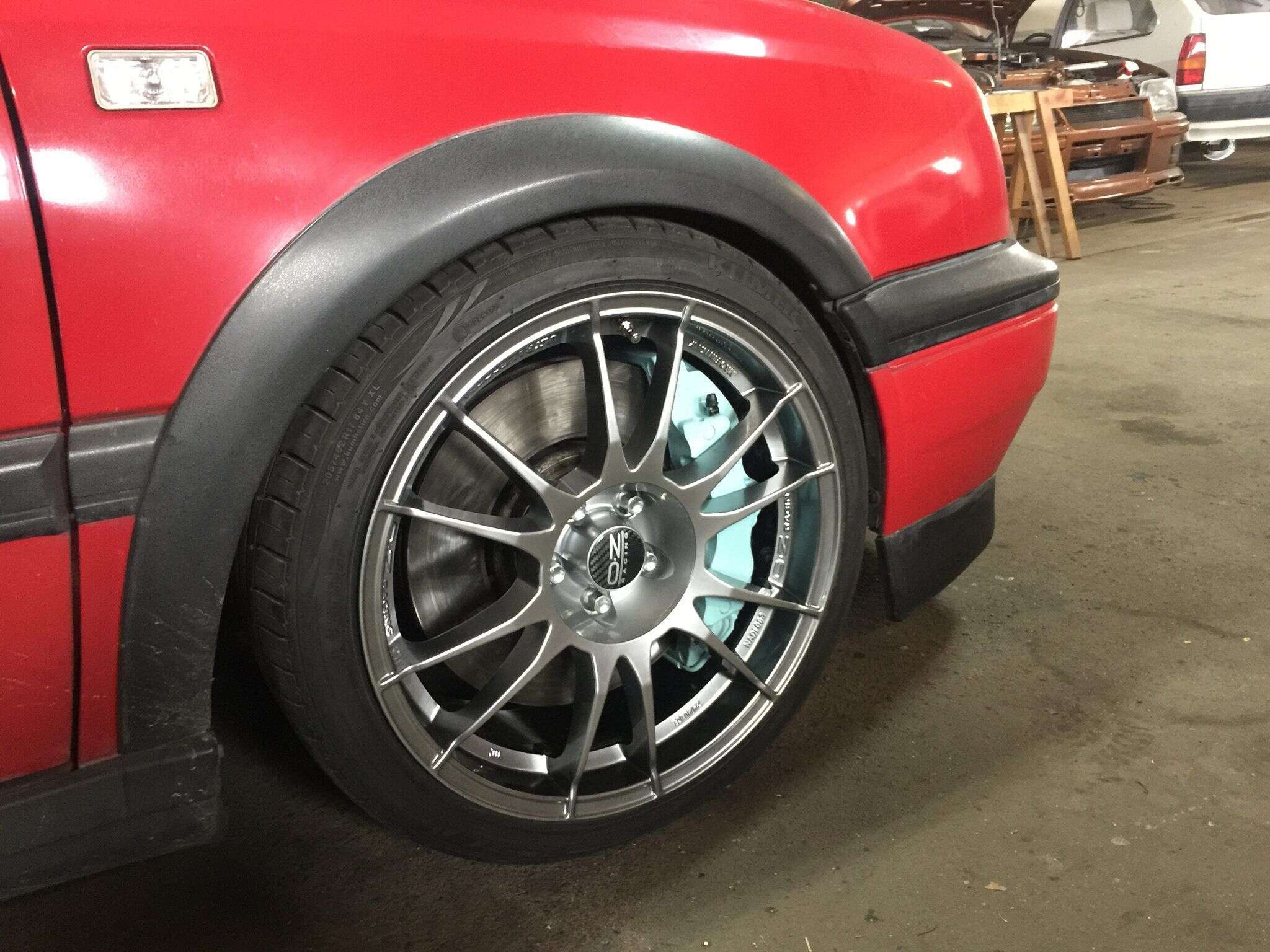

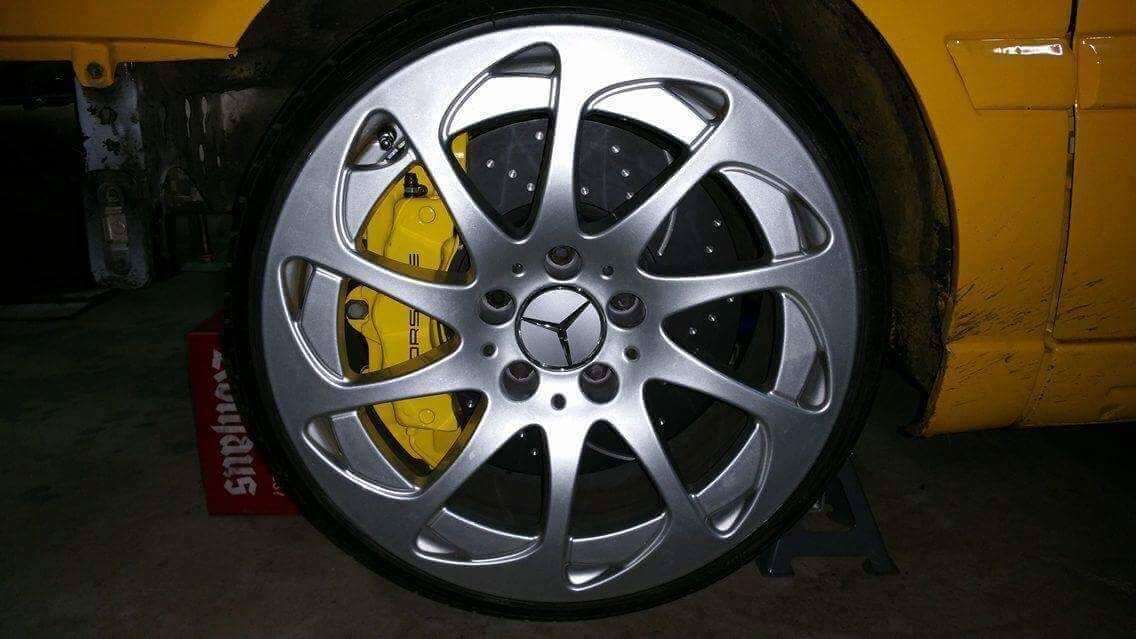

We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Brake caliper type: Z17 6-Kolben

Farbe Bremssattel: Blank ohne Farbe

Manufacturer: Epytec

Mounting location: front

Weight: 39.93 kg
