VW Golf 1 2 Caddy Scirocco 16V Engine Conversion Engine and Gearbox Mounting Bracket 055199293G
- ✓ Golf 1, Caddy 14d, Scirroco
- ✓ 16V engine conversion
- ✓ OE No. 055199293G
£72.62*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

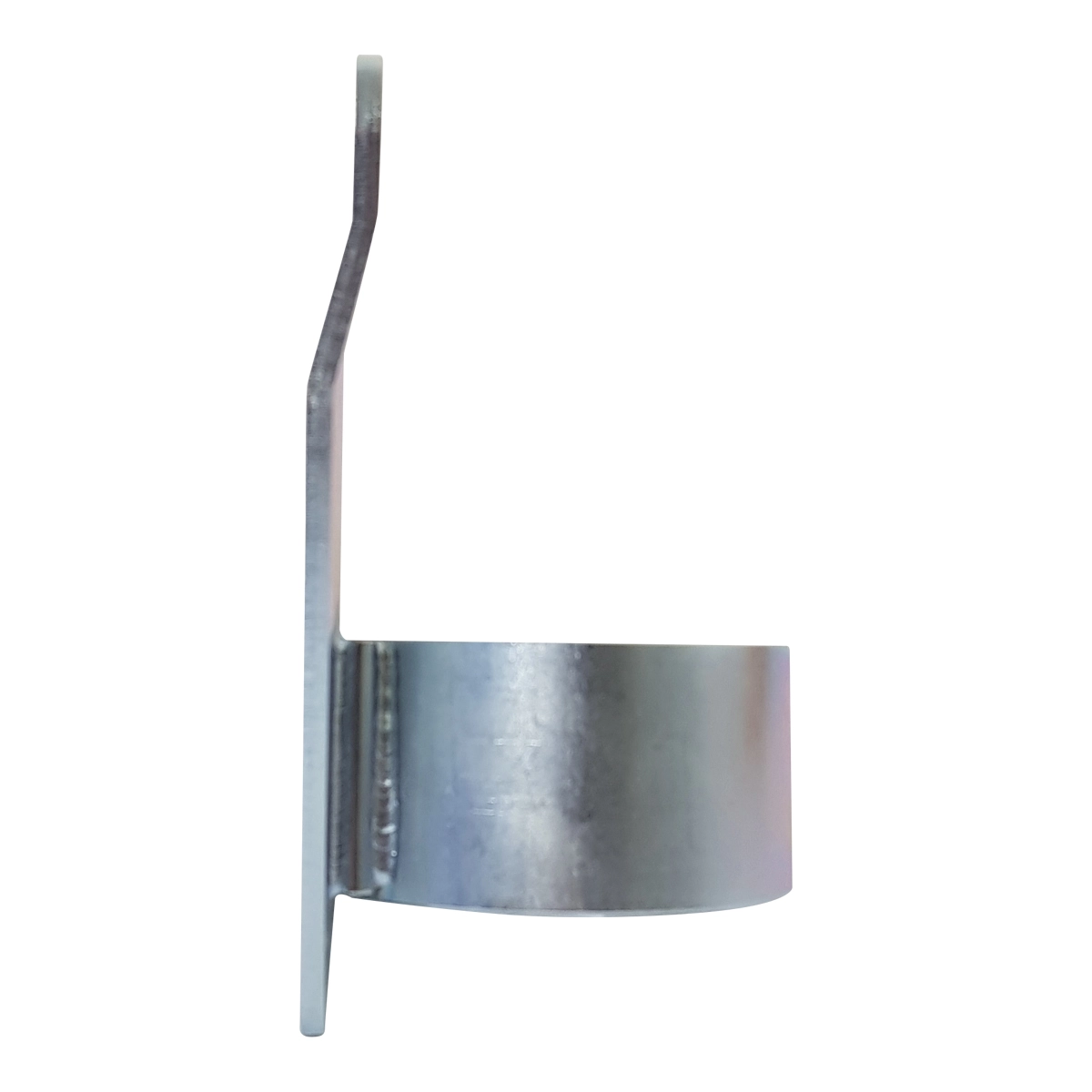

Easy engine conversion with our engine mounting bracket. It enables the installation of a 16V engine in your Golf MK1 / Caddy 14d / Scirocco.
The engine mounting bracket is absolutely necessary when converting the motor to 16V in order to have a 100% flat contact surface.

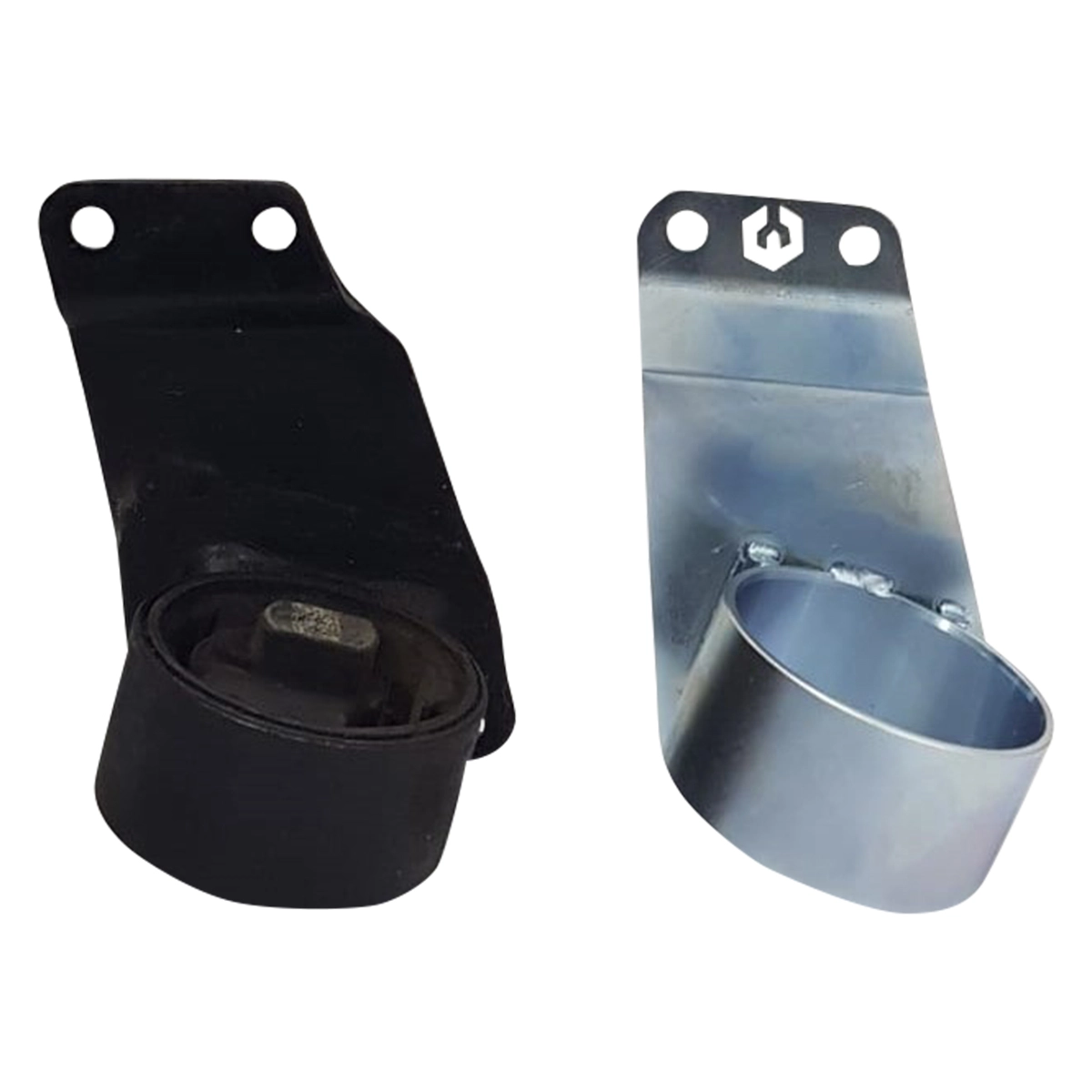

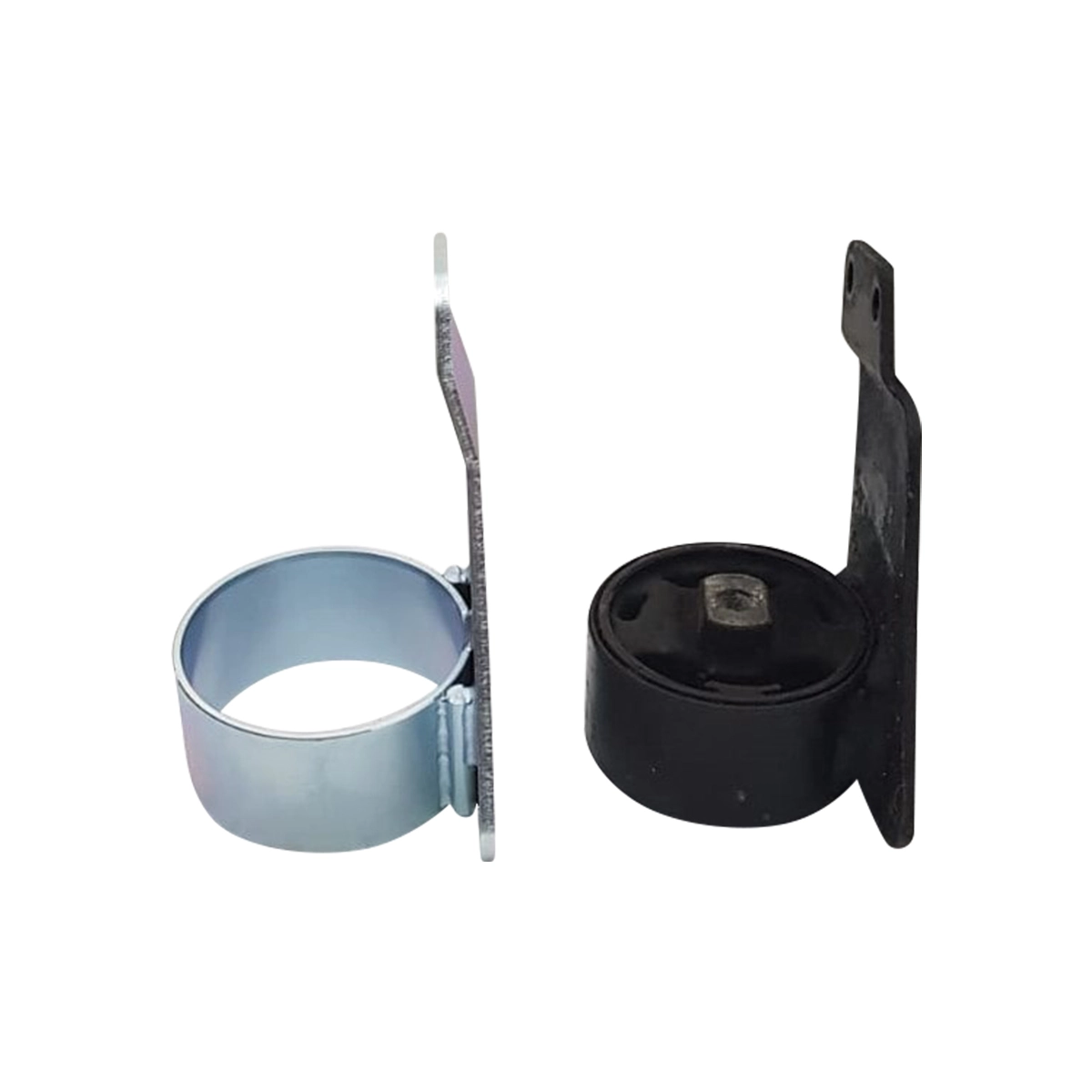

The bracket is a stable replica of the original 16V engine bracket with the part number of the manufacturer : 055199293G.
The original engine mount is no longer available from VW.
Additionally, the bracket can also be used as an original spare part for the following engines: Golf 1.6, 1.8, and 2.0. This makes it suitable not only for conversions but also as a reliable replacement for worn or defective original parts.
Advantages:
- time saving
- easy and fast assembly
- Excellent corrosion protection, all parts are galvanized
- great optics
- professional engine and gearbox conversion
Delivery:
- 1x engine mounting bracket for a conversion to 16V engine on modelsVW Golf MK1, Caddy 14d, Scirocco
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
13 October 2024 09:53
Alexandre F
Parfait🤩🤩
5 April 2021 13:26
moscatelli53
tutto ok, grazie
25 January 2021 22:45
retrosportiva
Danke - schnelle Lieferung & gutes Produkt!

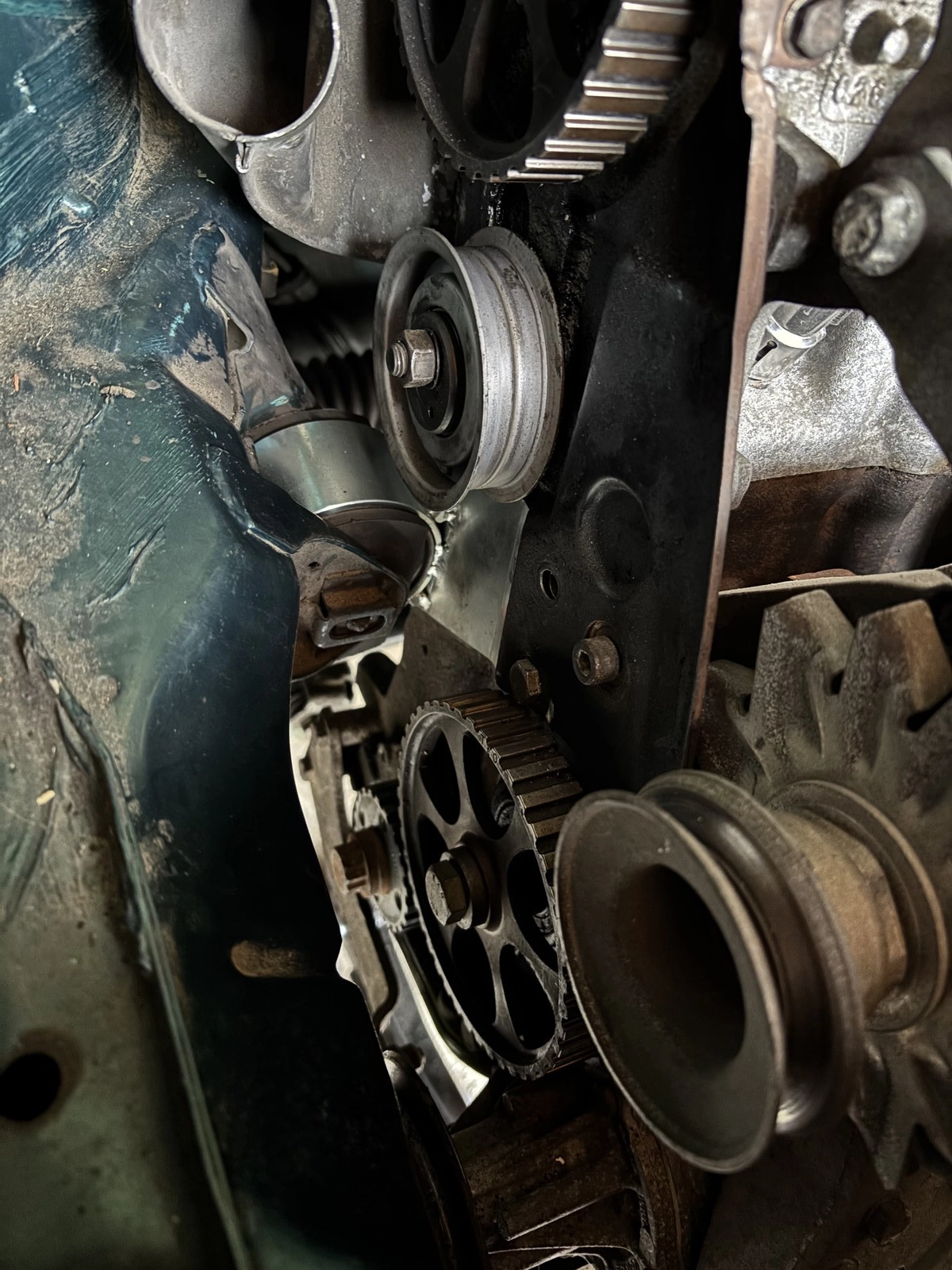

- In which position do I have to press in the bearings?
The position is always different due to the tolerances on the bodies. It is best to proceed as follows:
-Mount the engine and gearbox mount (without bearings).
-Hang the engine and gearbox in the vehicle so that everything fits perfectly.
-Mark the position where the bearings are to be pressed in.
-Press the bearings into place.
Because the bearings are eccentric, you can align the engine and gearbox perfectly.
| Motor | Motorcode |
|---|---|
| 1.3 | 53B|55PS(40KW) |
| 1.6 | 53B|85PS(63KW) |
| 1.6 | 53|85PS(63KW) |
| 1.6 | 53|75PS(55KW) |
| 1.5 | 53|75PS(55KW) |
| 1.6 | 53B|75PS(55KW) |
| 1.6 | 53B|110PS(81KW) |
| 1.6 | 53|70PS(51KW) |
| 1.8 | 53B|95PS(70KW) |
| 1.1 | 53|50PS(37KW) |
| 1.8 | 53B|90PS(66KW) |
| 1.5 | 53|86PS(63KW) |
| 1.6 | 53B|72PS(53KW) |
| 1.5 | 53|70PS(51KW) |
| 1.3 | 53B|60PS(44KW) |
| 1.5 | 53B|70PS(51KW) |
| 1.6 | 53|110PS(81KW) |
| 1.3 | 53|60PS(44KW) |
| 1.8 | 53B|112PS(82KW) |
| Motor | Motorcode |
|---|---|
| 1.8 | 155|90PS(66KW) |
| 1.8 | 155|95PS(70KW) |
| 1.3 | 155|54PS(40KW) |
| 1.6 | 155|72PS(53KW) |
| 1.8 | 155|98PS(72KW) |
| 1.5 | 155|70PS(51KW) |
| 1.8 | 155|111PS(82KW) |
| 1.8 | 155|112PS(82KW) |
| 1.6 | 155|110PS(81KW) |
| 1.6 | 155|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.3 | 17|60PS(44KW) |
| 1.1 | 17|52PS(38KW) |
| 1.1 | 17|50PS(37KW) |
| 1.5 D | 17|50PS(37KW) |
| 1.6 TD | 17|70PS(51KW) |
| 1.5 | 17|70PS(51KW) |
| 1.6 GTI | 17|110PS(81KW) |
| 1.6 D | 17|54PS(40KW) |
| 1.6 | 17|75PS(55KW) |
| 1.8 GTI | 17|112PS(82KW) |
| Motor | Motorcode |
|---|---|
| 1.5 D | 16|50PS(37KW) |
| 1.6 TD | 16|70PS(51KW) |
| 1.8 | 16|112PS(82KW) |
| 1.5 | 16|70PS(51KW) |
| 1.3 | 16|60PS(44KW) |
| 1.6 | 16|75PS(55KW) |
| 1.6 | 16|85PS(63KW) |
| 1.1 | 16|50PS(37KW) |
| 1.6 GLI | 16|110PS(81KW) |
| 1.6 D | 16|54PS(40KW) |
| Motor | Motorcode |
|---|---|
| 1.8 GTI 16V | 1G1|139PS(102KW) |
| 1.8 GTI 16V | 19E|129PS(95KW) |
| 1.8 GTI 16V | 1G1|129PS(95KW) |
| 1.8 GTI 16V | 19E|139PS(102KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 14|75PS(55KW) |
| 1.8 | 14|95PS(70KW) |
| 1.6 D | 14|55PS(40KW) |
| 1.5 | 14|70PS(51KW) |
| Motor | Motorcode |
|---|---|
| 1.3 | 53B|55PS(40KW) |
| 1.6 | 53B|85PS(63KW) |
| 1.6 | 53|85PS(63KW) |
| 1.6 | 53|75PS(55KW) |
| 1.5 | 53|75PS(55KW) |
| 1.6 | 53B|75PS(55KW) |
| 1.6 | 53B|110PS(81KW) |
| 1.6 | 53|70PS(51KW) |
| 1.8 | 53B|95PS(70KW) |
| 1.1 | 53|50PS(37KW) |
| 1.8 | 53B|90PS(66KW) |
| 1.5 | 53|86PS(63KW) |
| 1.6 | 53B|72PS(53KW) |
| 1.5 | 53|70PS(51KW) |
| 1.3 | 53B|60PS(44KW) |
| 1.5 | 53B|70PS(51KW) |
| 1.6 | 53|110PS(81KW) |
| 1.3 | 53|60PS(44KW) |
| 1.8 | 53B|112PS(82KW) |
| Motor | Motorcode |
|---|---|
| 1.8 | 155|90PS(66KW) |
| 1.8 | 155|95PS(70KW) |
| 1.3 | 155|54PS(40KW) |
| 1.6 | 155|72PS(53KW) |
| 1.8 | 155|98PS(72KW) |
| 1.5 | 155|70PS(51KW) |
| 1.8 | 155|111PS(82KW) |
| 1.8 | 155|112PS(82KW) |
| 1.6 | 155|110PS(81KW) |
| 1.6 | 155|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.3 | 17|60PS(44KW) |
| 1.1 | 17|52PS(38KW) |
| 1.1 | 17|50PS(37KW) |
| 1.5 D | 17|50PS(37KW) |
| 1.6 TD | 17|70PS(51KW) |
| 1.5 | 17|70PS(51KW) |
| 1.6 GTI | 17|110PS(81KW) |
| 1.6 D | 17|54PS(40KW) |
| 1.6 | 17|75PS(55KW) |
| 1.8 GTI | 17|112PS(82KW) |
| Motor | Motorcode |
|---|---|
| 1.5 D | 16|50PS(37KW) |
| 1.6 TD | 16|70PS(51KW) |
| 1.8 | 16|112PS(82KW) |
| 1.5 | 16|70PS(51KW) |
| 1.3 | 16|60PS(44KW) |
| 1.6 | 16|75PS(55KW) |
| 1.6 | 16|85PS(63KW) |
| 1.1 | 16|50PS(37KW) |
| 1.6 GLI | 16|110PS(81KW) |
| 1.6 D | 16|54PS(40KW) |
| Motor | Motorcode |
|---|---|
| 1.8 GTI 16V | 1G1|139PS(102KW) |
| 1.8 GTI 16V | 19E|129PS(95KW) |
| 1.8 GTI 16V | 1G1|129PS(95KW) |
| 1.8 GTI 16V | 19E|139PS(102KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 14|75PS(55KW) |
| 1.8 | 14|95PS(70KW) |
| 1.6 D | 14|55PS(40KW) |
| 1.5 | 14|70PS(51KW) |
