VW Cable Gearbox Mounting Bracket Golf MK1 Caddy G60 VR6 1,8T 02 J Engine Conversion VR6 Holder
- ✓ Golf 1, Caddy 14d, Scirocco 1, Jetta 1&2
- ✓ 02A/02J gearbox, VR6 G60 engine conversion
- ✓ Golf 1 bearing outer diameter 64mm
£75.89*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Forward cable gearbox mounting bracket.
Thanks to this bracket, you can perform a conversion to motor G60 or VR6 on Golf MK1, Caddy 14d , Scirroco 1 and Jetta models.
It is absolutely necessary to install an original 02A 02J gearbox into G60 or VR6 engine on the mentioned models .
The gearbox mounting brackets are for the bearings of the Golf MK1, with bearing outside diameter of 64mm.
Advantages:
- quick and easy conversion to VR6 /G60 engine and gearbox.
- excellent corrosion protection. All parts are supplied galvanized.
- adapted to 100%
- screws are supplied
Delivery:

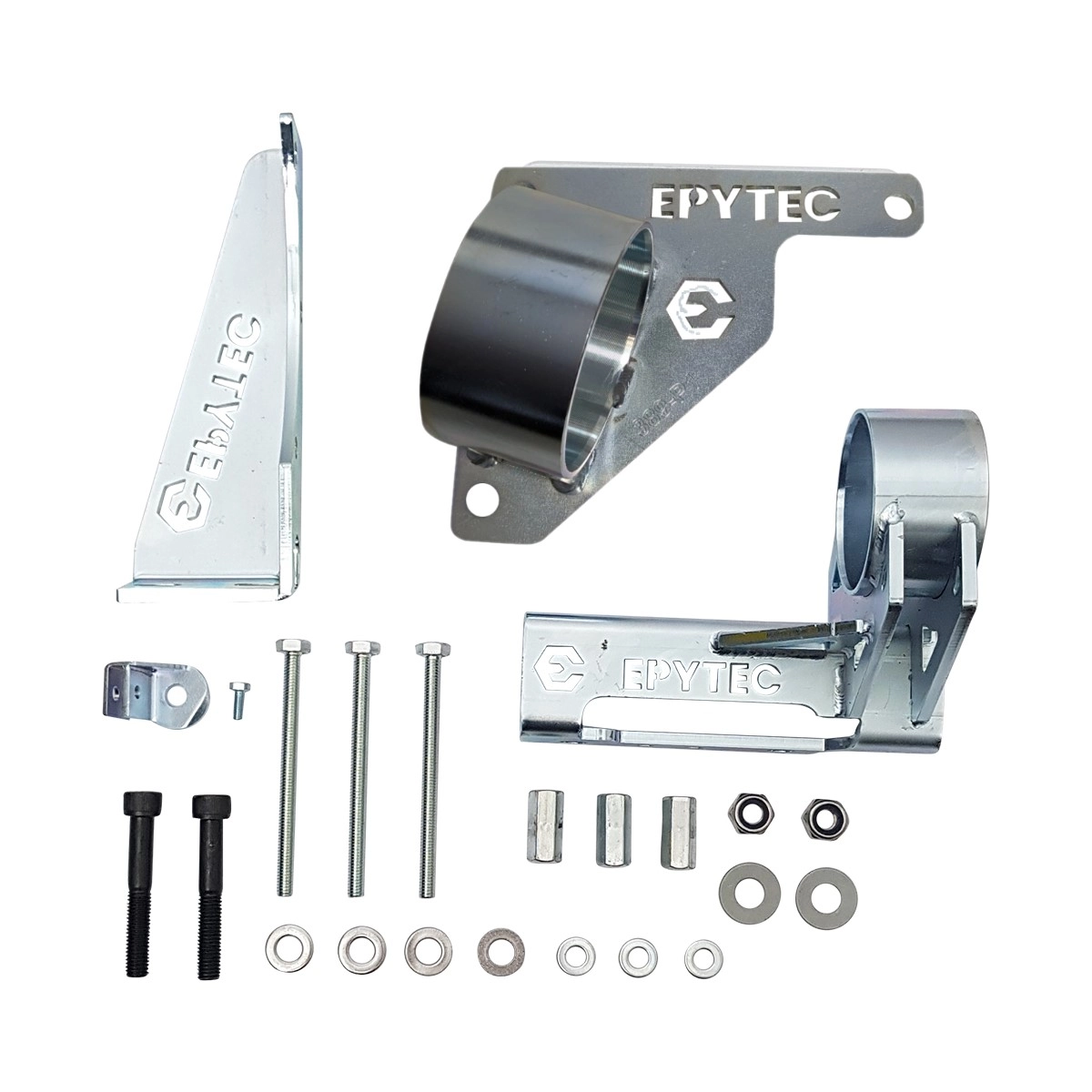

- 1x 02A/ J gearbox mounting bracket kit for VW Golf MK1 Caddy G60, combined with the VR6 engine
- mounting screws
- detailed installation instructions
- material certificate
Please note: A second back mounting bracket is needed for the conversion! The complete kit can be found in our shop.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
18 November 2020 08:49
cake02081985
A1 ++++++ the item is best ever!!! The seller also!!!! Super fast shippment!!!
5 June 2019 15:38
jetta8317cl_04s
danke für die schnelle sendung
27 March 2018 17:47
luismi6904
100% rapido
19 May 2018 21:11
michaelflaschevoll
Super Ware, sehr guter Service.
7 January 2020 21:05
Bertrand B
J'ai utilisé ce support pour mon swap R32 avec une boîte VR6 ! Très. Bon produit de qualité, s'adapte parfaitement sur mon scirocco mk1. Je recommande vivement ce produit.
- In which position should I press in the bearings?
The position is always different due to the tolerances on the bodies. The best approach is as follows:
-Install engine and transmission mounts (without bearings).
-Hang the engine and transmission in the vehicle so that everything fits perfectly.
-Mark the position where the bearings should be pressed in.
-Press in the bearings.
Because the bearings are eccentric, you can perfectly align the engine and transmission.
- Do your engine and transmission mounts fit both left-hand drive and right-hand drive vehicles?
Yes – in most cases, our engine and gearbox mounts fit both left-hand and right-hand drive vehicles equally well. The reason is simple: engine and gearbox are installed in the same position in most vehicles – regardless of whether the car is configured as left-hand drive or right-hand drive. This is exactly what our mounts are designed and intended for.
For you, this means: You can usually use the mounts without additional modifications, and installation proceeds as usual. Especially in conversions or replacement projects, this is a significant advantage because the relevant mounting points in the powertrain area usually remain identical.
In individual cases, it may be advisable for right-hand drive vehicles, due to the immediate environment (e.g., due to vehicle-specific components or slightly different spatial conditions), to make a small adjustment. However, this is the exception – and if at all, it usually involves small, easily feasible adjustments, not extensive changes to the mount.
