Golf 1 Caddy Scirocco conversion set VR6 Golf 3 engine 6 speed gearbox 02M
- ✓ Golf 1, Caddy 1, Scirocco
- ✓ 02M 6-speed gearbox, 1.8T / 1.9TDI engine
- ✓ Front-wheel drive, transmission conversion, original pedals
In addition, reinforced engine and gearbox bearings are installed, which are perfect for all tuned engines and are more durable compared to the standard bearings.
This conversion kit contains all parts that we recommend for a conversion on models VW Golf 1, Scirocco and Caddy 1 to the 02M 6-speed gearbox in connection with the VR6 engine from the VW Golf 3.
This is the perfect all-in-one solution for your conversion.
Can also be used with adaptations for R32!
Advantages:
- quick and easy complete conversion
- your don't need to upgrade after this conversion
- original pedals (clutch and brake) can be retained
- long-life-cycle
- matching drive shafts
- no modification of the body
- time saving

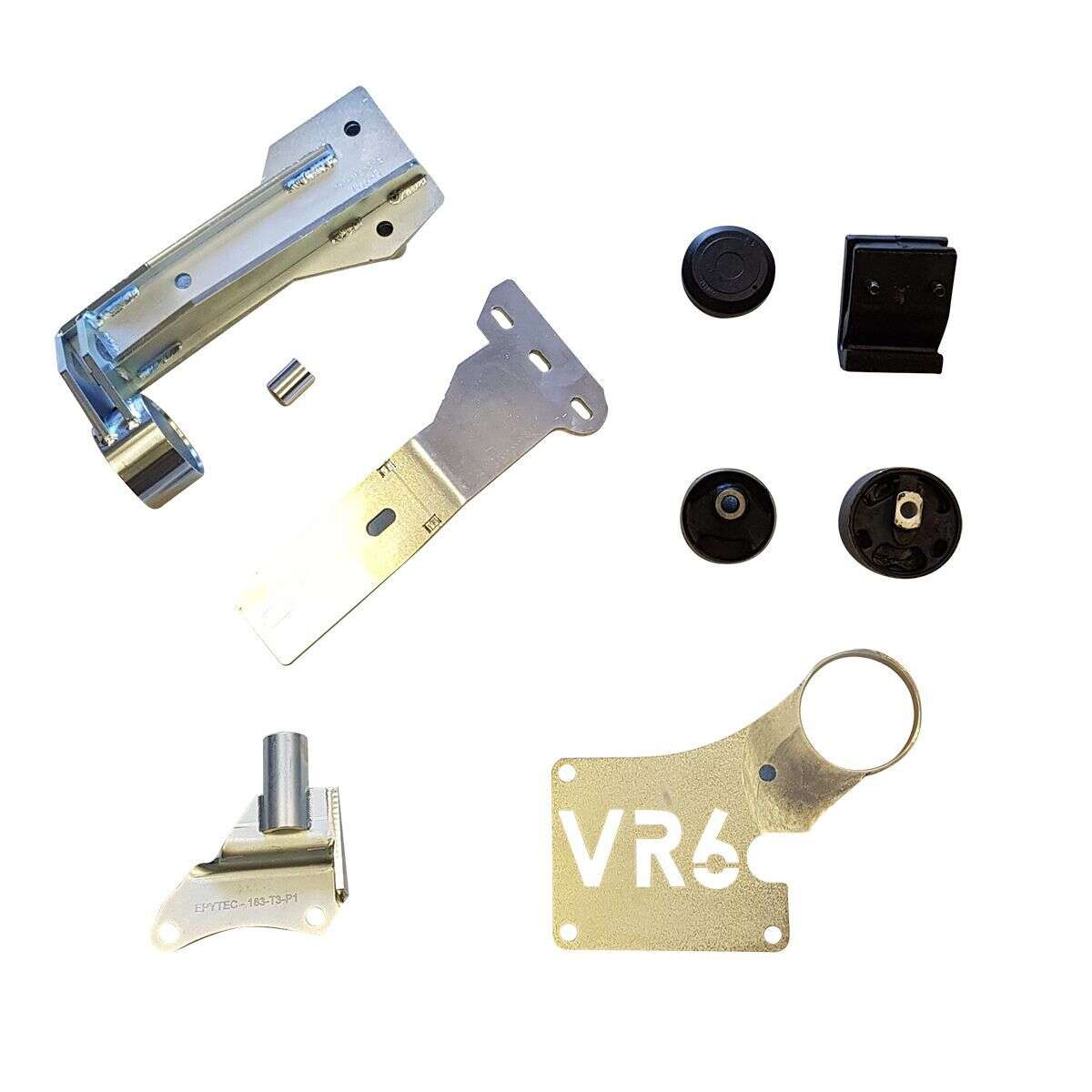

Delivery:
- 1x gearbox mounting bracket for conversion to the 02M / R32 V6 1,8T 6-speed gearbox for change to 4 cylinder engine
- 1x gearbox mounting bracket down behind
- 1x convrersion set of engine mounting bracket consisting of 2 brackets for the VR6 engine conversion
- circuit diagram for the engine cable harness - tips for the registration
- reinforced engine and gearbox bearings
- material certificate
- installation instructions
Login
2 February 2023 20:07
Jan-Henrik D
Super hochwertig Verarbeitet, Top Schweißnähte und sehr pass genau.
- In which position do I have to press in the bearings?
The position is always different due to the tolerances on the bodies. It is best to proceed as follows:
-Mount the engine and gearbox mount (without bearings).
-Hang the engine and gearbox in the vehicle so that everything fits perfectly.
-Mark the position where the bearings are to be pressed in.
-Press the bearings into place.
Because the bearings are eccentric, you can align the engine and gearbox perfectly.
- Why does the transmission mount not fit on my 02m transmission?
If the transmission mount does not fit the mounting points of your 02m transmission, the problem is this: You have the 02m transmission from a Seat Ibizia, Fabia or VW Polo. These 02M transmissions are relatively rare and the mounts are different than the 02M transmissions used in the VW Golf, Audi A3, etc. The easiest and cheapest way is to get the 02m gearbox from a Golf or Audi, then our gearbox holder will fit perfectly.
